Horizontal and Vertical Band Saw - BS-712MS
Stock Number:
BA9-1001684
$3,149.00
.
Enhanced Bullet 1:
120V 1-phase power
Enhanced Bullet 2:
7" round capacity at 90°
Enhanced Bullet 3:
Swivel head miters 45°
Enhanced Bullet 4:
.75" blade width
Leasing starts at $93 with Click LeaseYou are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.
Product Overview
Like 2 machines for the price of 1! Use the BS-712MS as a horizontal band saw or a vertical band saw. This model has the same capacity as our BS-712M, but with a swiveling head.
Call us at 1-920-684-4990 with any questions you have about this horizontal vertical metal cutting bandsaw.
Manual
The BS-712MS horizontal vertical metal bandsaw is recommended for any shop, home, or work, with wheels on the base make this saw easy to move and store
Powered by 120-volt single-phase power, so you can run it just about anywhere
Capacity of 7” OD round and 7” x 10-1/4” rectangle in horizontal position (for traditional cutoffs) at 90°
Choose from 3 cutting speeds: 125, 215, and 270 fpm with the standard .75"-wide blades
Cast iron head and bow, machined to exacting tolerances, ensure proper alignment during the cutting process and help the saw last for years
Operate the machine in vertical position (for precise shape cutting) just by lifting the bow and locking it in place

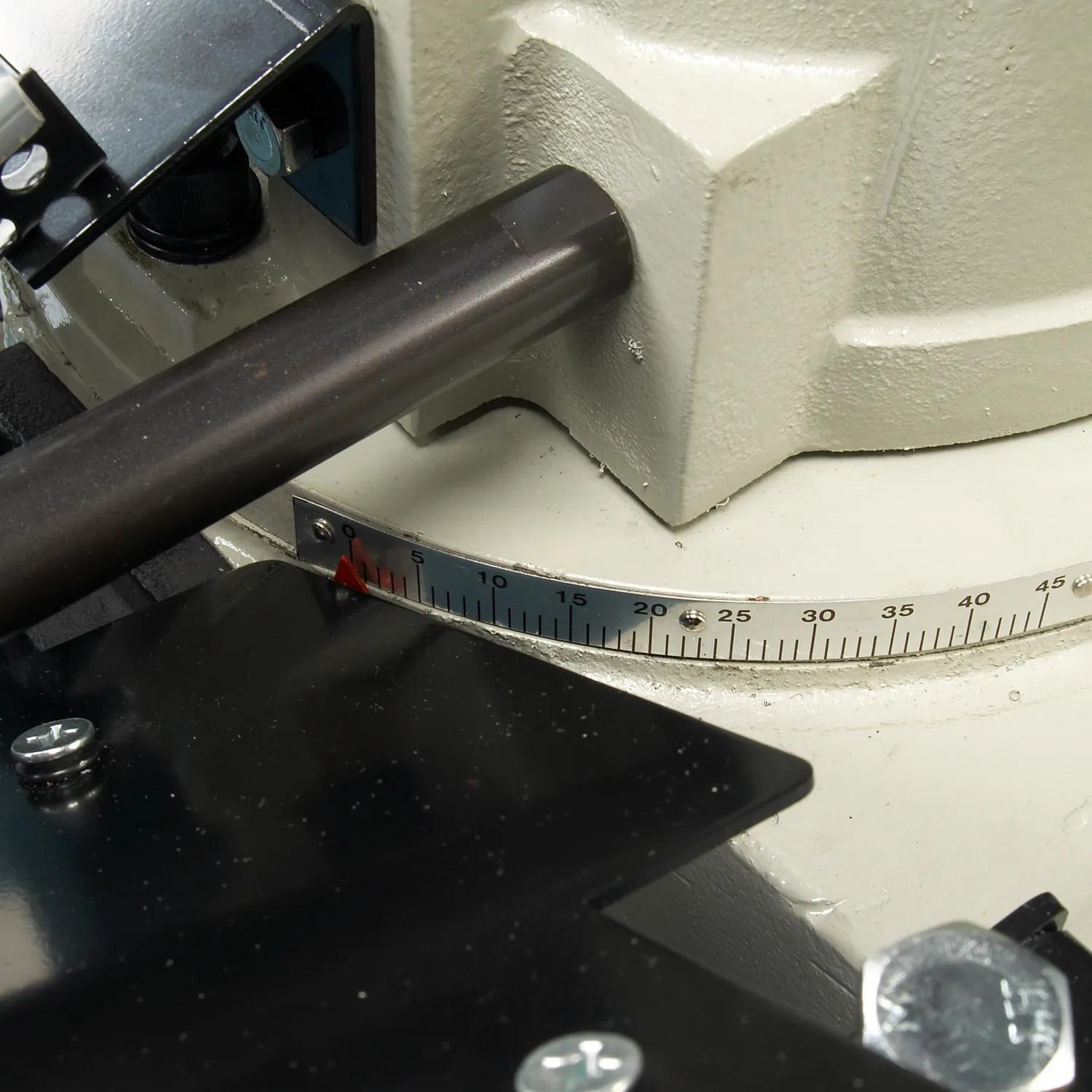

Swivel head for mitering allows for faster production times and less waste than you’d get with a moving vise
Pair of adjustable blade guides, attached to the saw head along with 8 sealed ball bearings, maintain alignment and increase the life of the blade
Fully welded steel plate framework keeps the machine stable and gives it the structural strength to tackle its maximum capacity

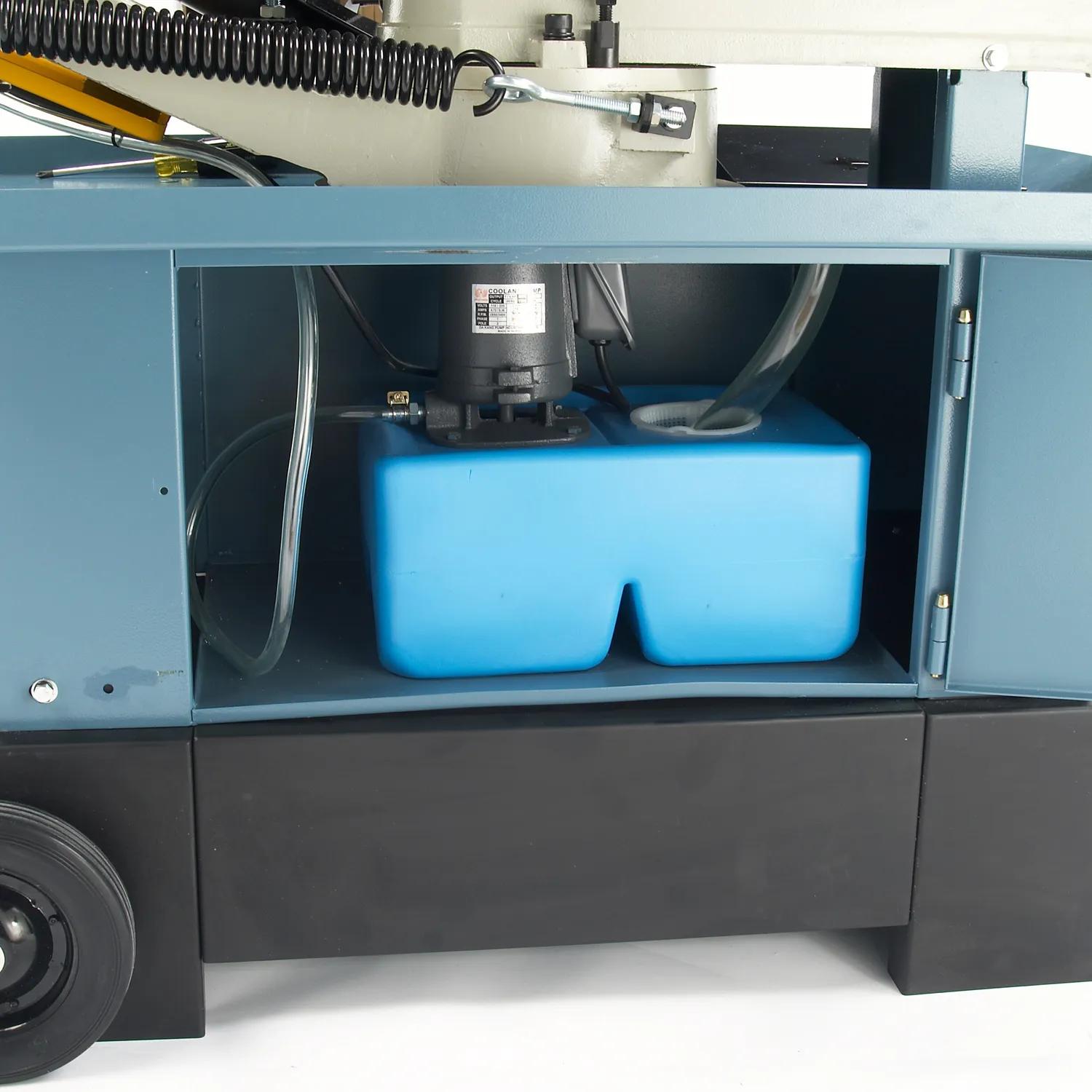

Comes standard a flood coolant system, often considered an upgrade by other brands, and a chip removal brush
| Stock Number | BA9-1001684 |
|---|---|
| Blade Guide | Roller |
| Blade Speeds (SFPM) | 125 x 215 x 270 |
| Capacity Rectangular 90 X 45 X 45 | 7" x 10.23" x 4.72" x 4.13" |
| Capacity Round 90 X 45 | 7" x 4.33" |
| Descent Control | Hydraulic |
| Drive | Gear |
| Input Power | 120V, 1-phase |
| Type of Miter Adjustment | Swivel Head |
| Miter Angle Range (Deg.) | 0 – 45° |
| Model Number | BS-712MS |
| Motor (HP) | 1 hp |
| Overall Dimensions (L x W x H) (In.) | 51" x 23" x 43" |
| Prop 65 | Cancer and Reproductive Harm |
| Return | Manual |
| Shipping Dimensions (L x W x H) (In.) | 60x44x48 |
| Table Height (In.) | 23 |
| Warranty | 1 Year |
| Weight (Lbs.) | 530 |
| Gross Weight | 452.0 |
| Net weight | 452.0 |
