Manual Tube Bender | RDB-050

Stock Number
BA9-1006768
$1,899.00
Click LeaseLeasing starts at $57 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $57

Product Overview

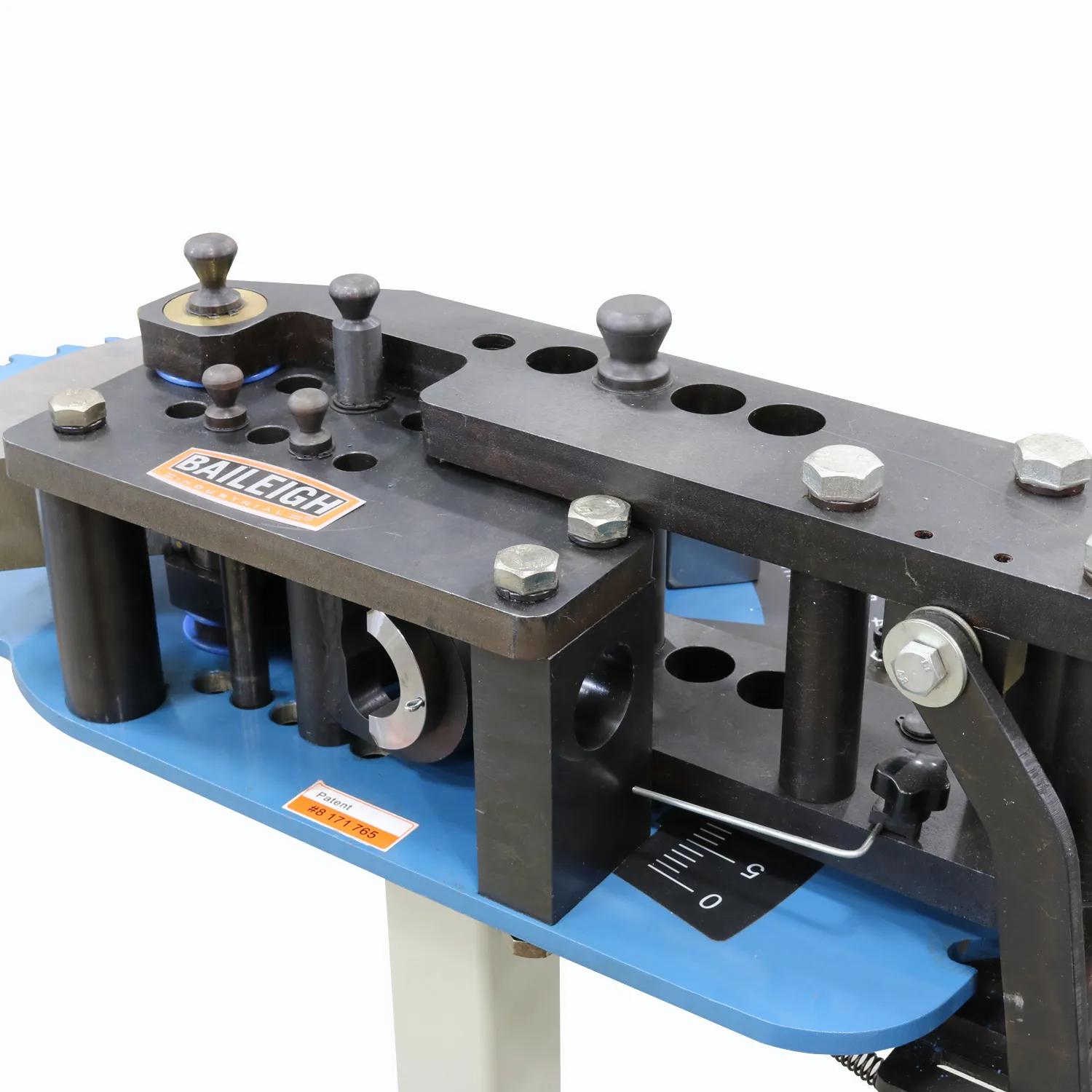

Need an affordable but powerful Bender with enough capacity for almost about any chassis fabrication shop? The Baileigh patented RDB-050 Manual Tube Bender is revolutionary in function, capacity, and efficiency.


*Tackles up to 2.5” OD mild steel with a wall thickness of .120" and 2” OD Chrome Moly with a wall thickness of .120”.

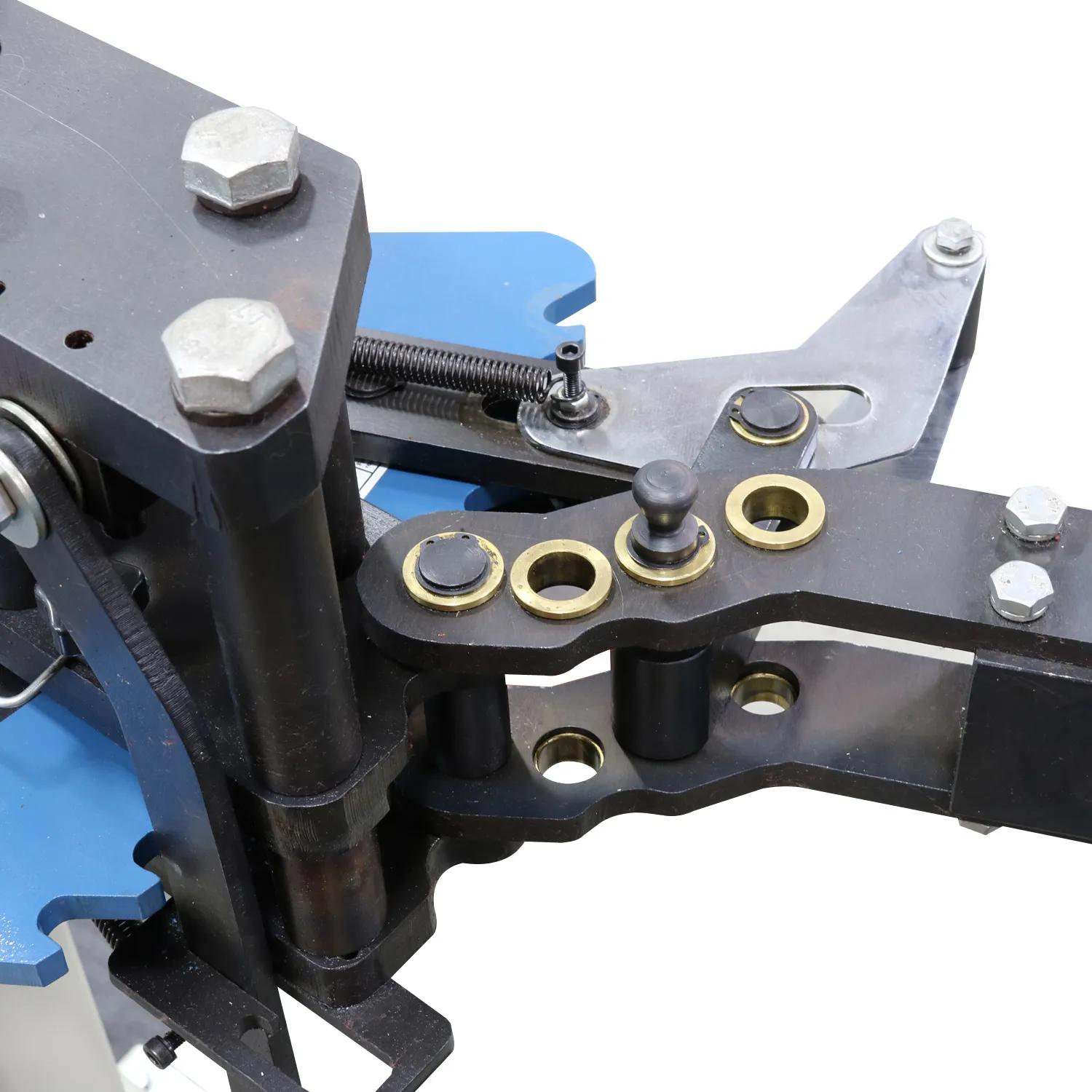

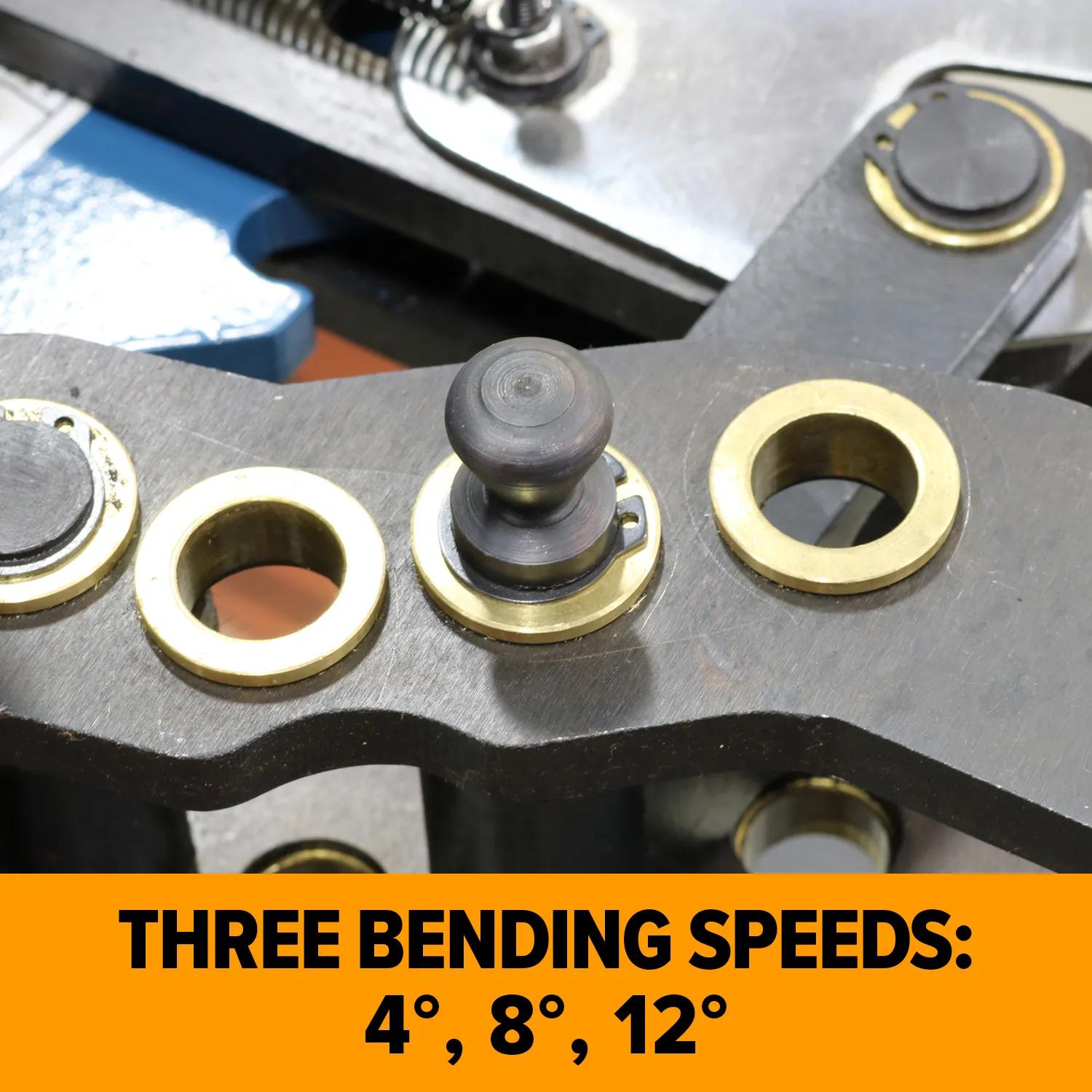

*Choose from 3 bending speeds, depending on material type, OD, and wall thickness, to proper speed for each application.

*Speed 1 produces 4° per pull. This speed has the most torque, suitable for bending 2” OD Chrome Moly or 2.5” OD mild steel.
*Speed 2 produces 8° per pull for intermediate materials.
*Speed 3 produces 12° per pull for lighter gauge materials.

*Bends up to 200° in one shot without you needing to stop and reset the machine.
*Anti-springback mechanism holds each bend in place as the operator ratchets forward.
*No assembly or disassembly needed to produce a bend.

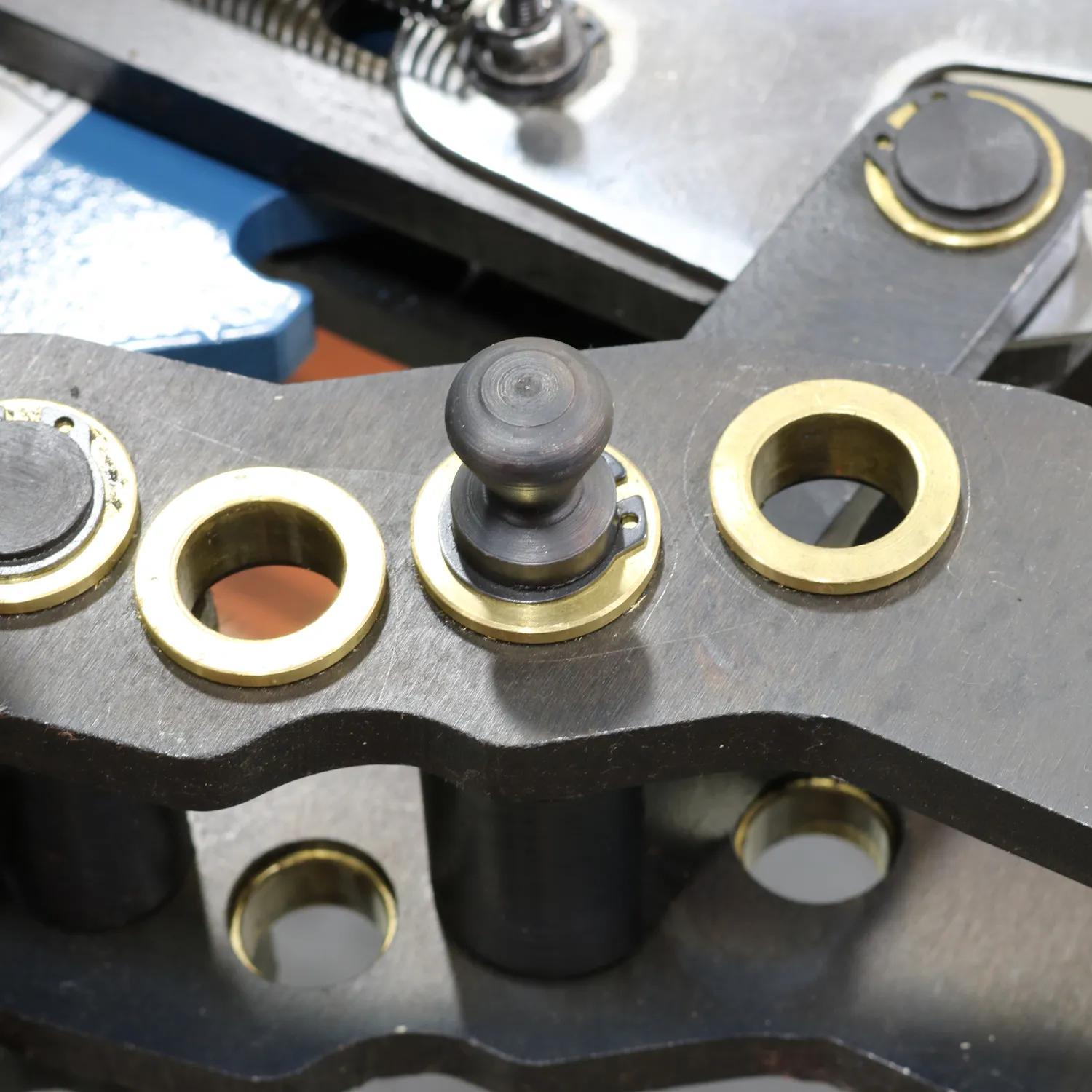

*All pivot points use aluminum bronze bushings and thrust washers for long machine life.

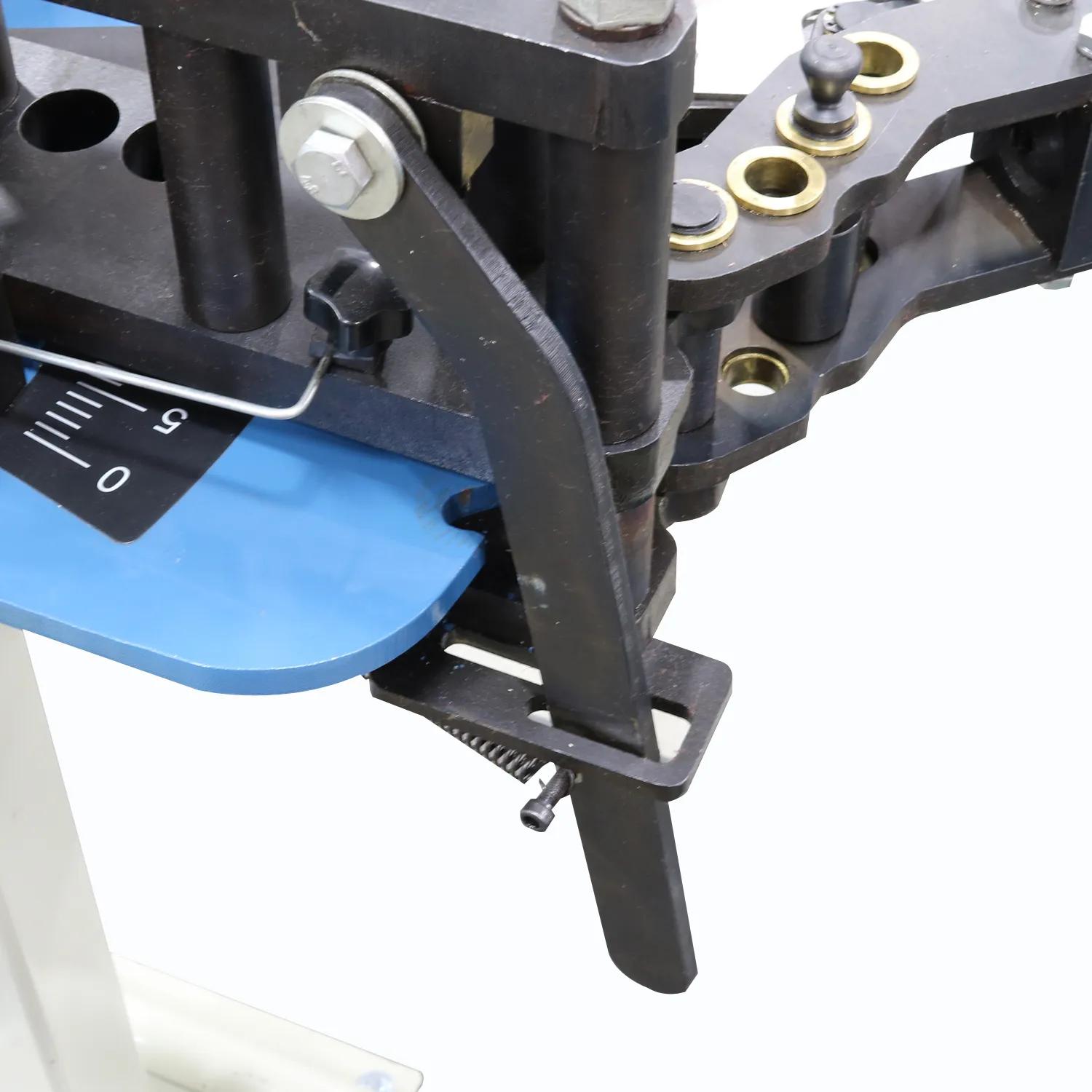

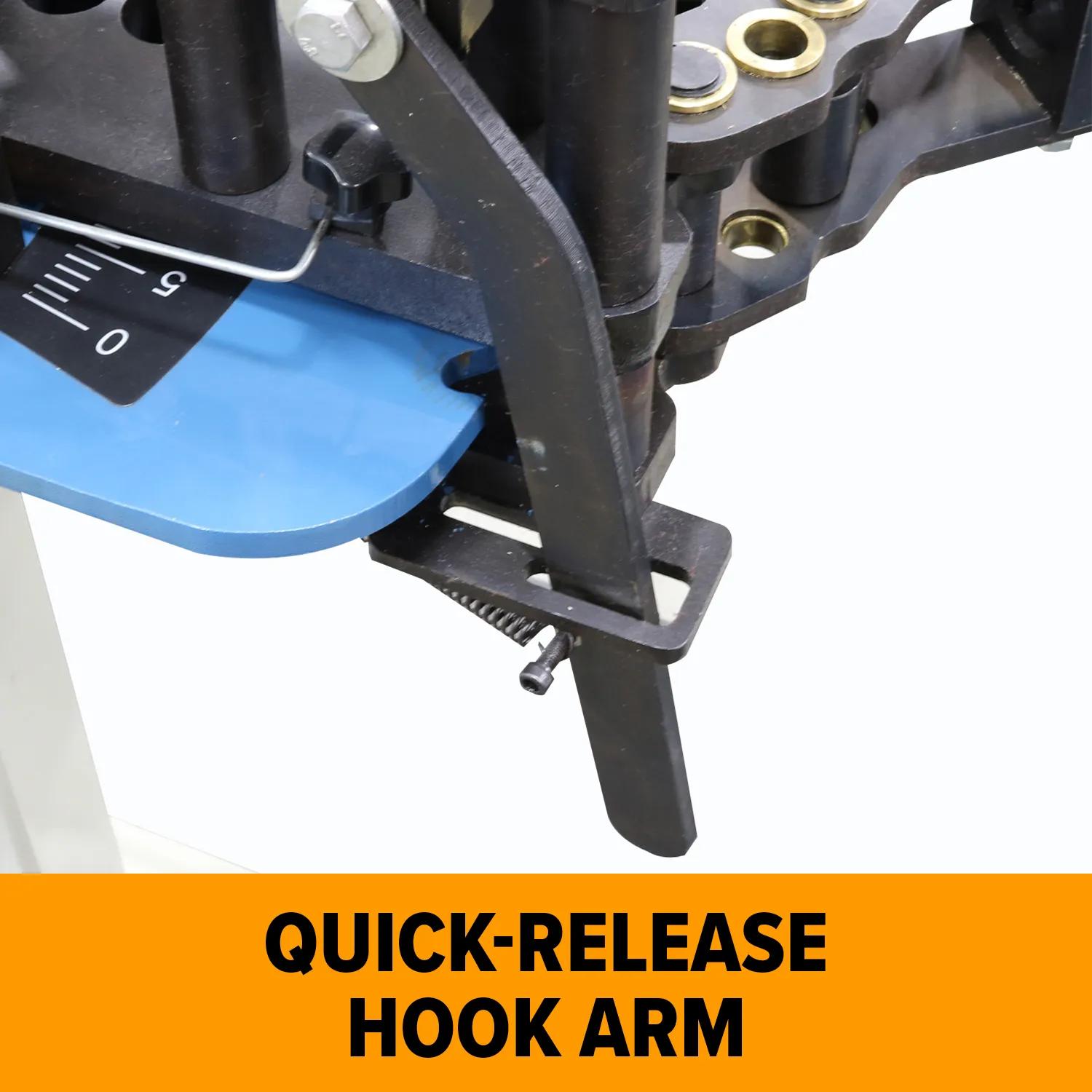

*Quick-release hook arm inserts assist when you’re changing over the machine to a different size of tubing. You can do a complete changeover in 1 minute or less.
*Just walk up to the machine, put your tubing into the hook arm insert, and begin bending. When the bend is complete, return the machine to the home position, pull your bend out—and you’re all set.
*Comes complete with the stand, bend handle, and degree dial. Just add tooling and you’re ready to bend tube.


Add this manual tubing bender to your cart today!

If you like the RDB-050, you may also like the RDB-100 Manual Tubing Bender.


Please give us a call at 1-920-684-4990 to talk to a customer service representative or fill out our contact form.

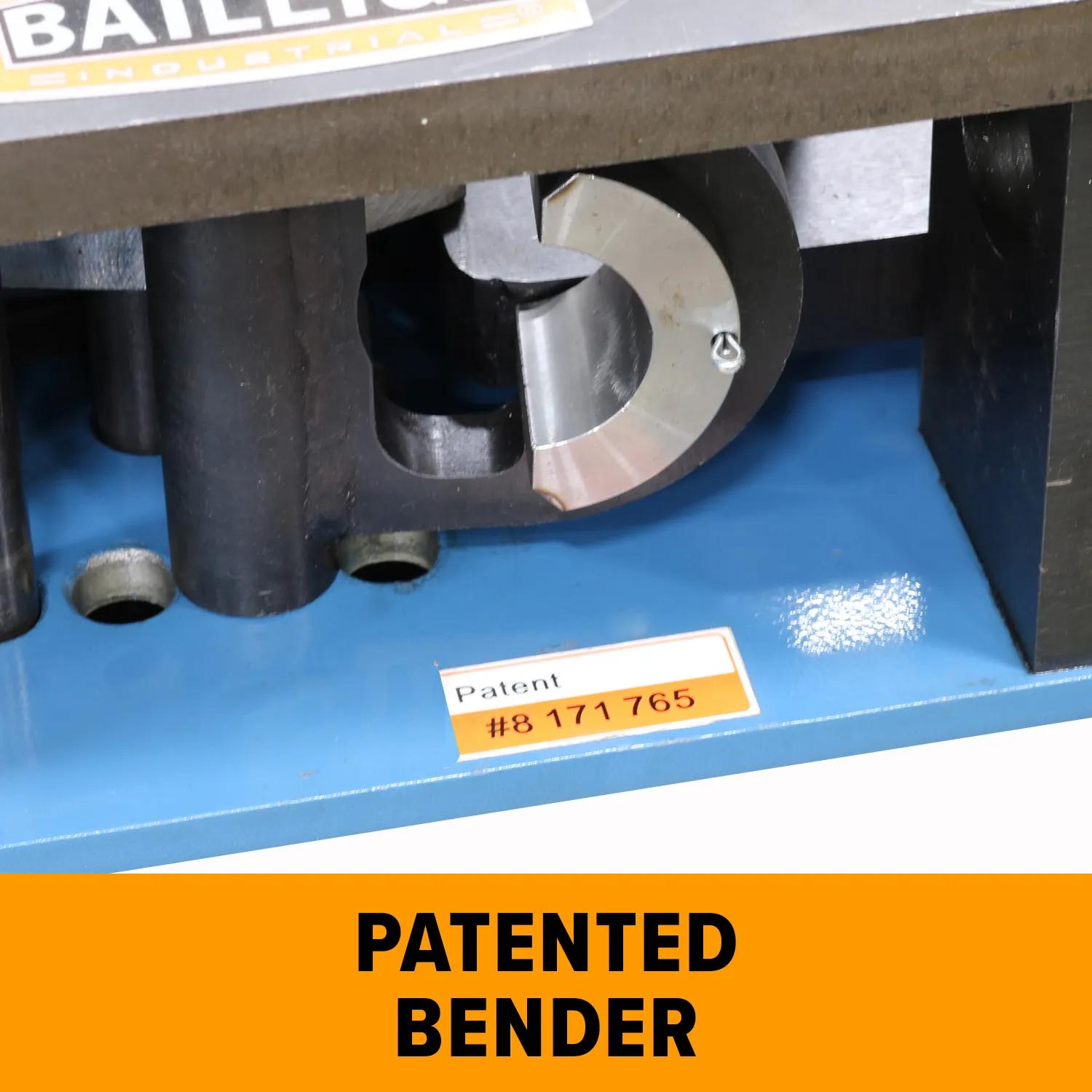

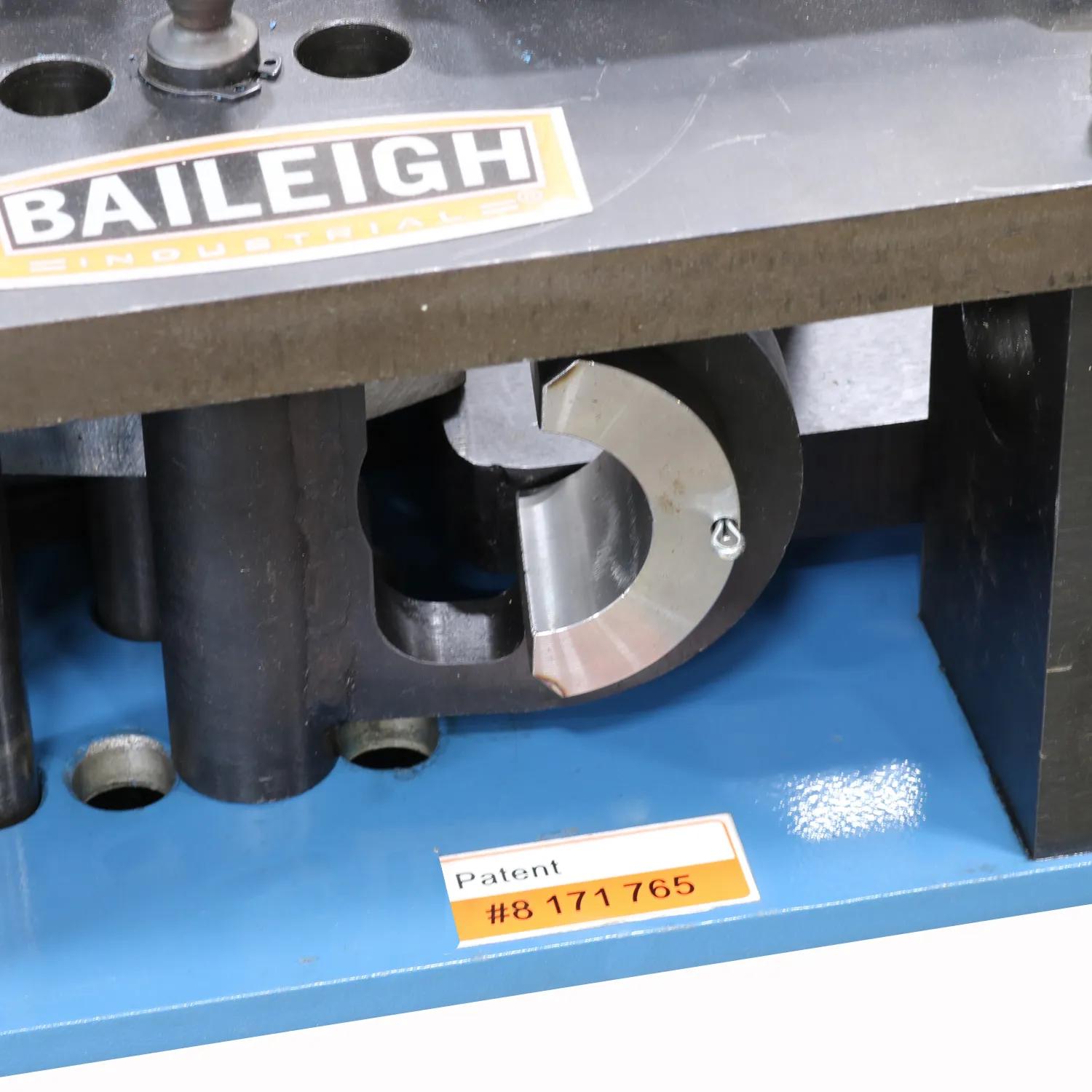

U.S Patent No. #8,171,765

Sample Tooling List


+ Show More
Tackles up to 2.5 In. OD mild steel with a wall thickness of 0.12 In. and 2 In. OD chrome moly with a wall thickness of 0.12 In.
Just walk up to the machine, put your tubing into the hook arm insert, and begin bending, When the bend is complete, return the machine to the home position, pull your bend out-and you’re all set, tooling not included
Speed 1 produces 4 Deg per pull, This speed has the most torque, suitable for bending 2 In. OD chrome moly or 2.5 In. OD mild steel
Speed 2 produces 8 Deg per pull for intermediate materials
Speed 3 produces 12 Deg per pull for lighter gauge materials
Bends up to 200 Deg in one shot without you needing to stop and reset the machine
Anti-spring back mechanism holds each bend in place as the operator ratchets forward
No assembly or disassembly needed to produce a bend
All pivot points use aluminum bronze bushings and thrust washers for long machine life
Quick-release hook arm inserts assist when you’re changing over the machine to a different size of tubing, You can do a complete changeover in 1 minute or less
More Information
Stock NumberBA9-1006768
Model NumberRDB-050
Aluminum Pipe Schedule 40Call for Details
Chromoly Round Tube Wall2" (.120)
Input PowerManual
Minimum OD0.75
Prop 65Cancer and Reproductive Harm
Round Pipe Sch. 40 Capacity (In.)Call for Details
Round Tube Capacity (In.)2.5" (.120)
Shipping Dimensions (L x W x H) (In.)36x36x18
Square Tube Capacity (In.)N/A
Warranty1 Year
Weight (Lbs.)290
Gross Weight310.0
Net weight310.0
