10' Rotary Positioning Table for RDB-250 (IDX-250-10)

Stock Number
BA9-1021533
$4,587.00

Product Overview

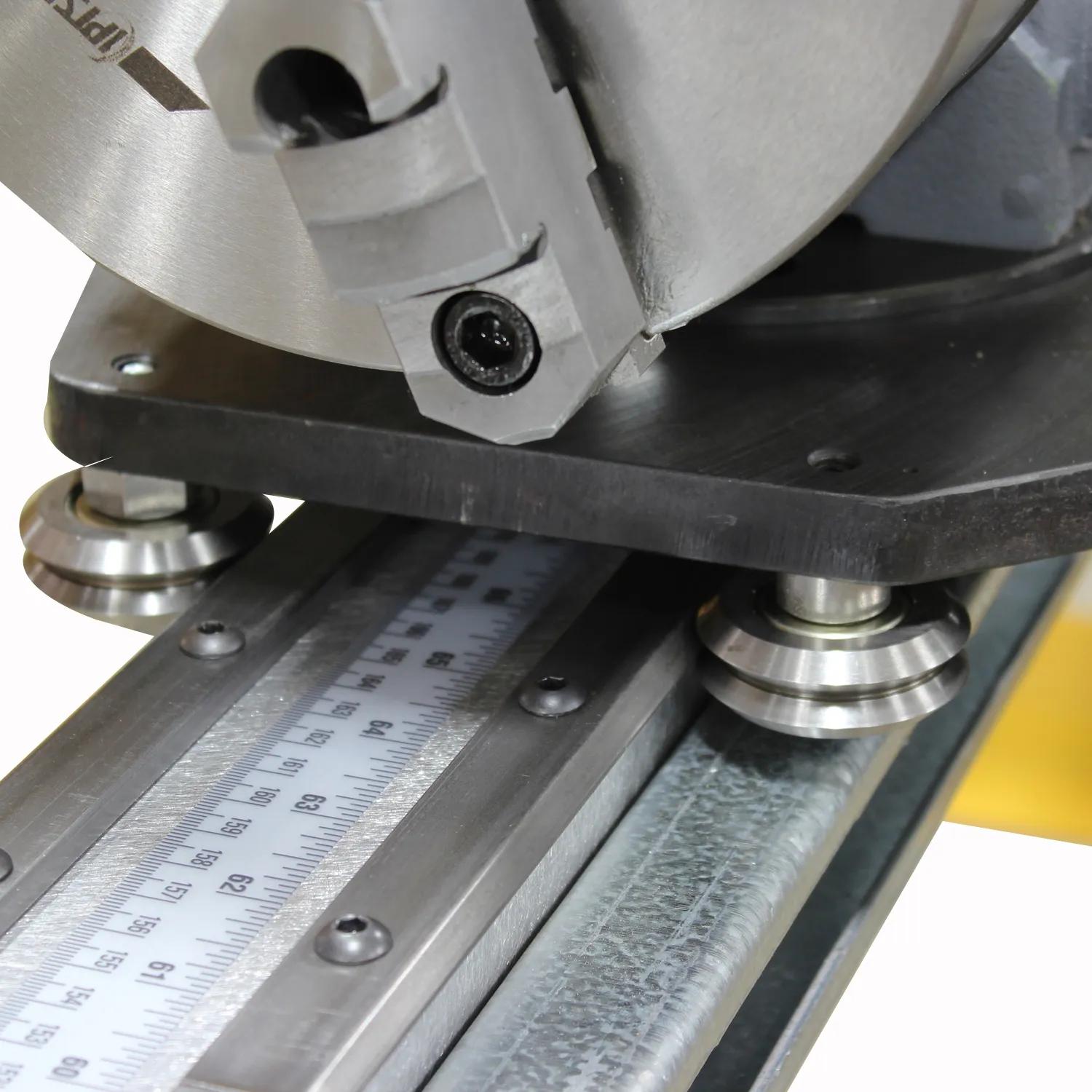

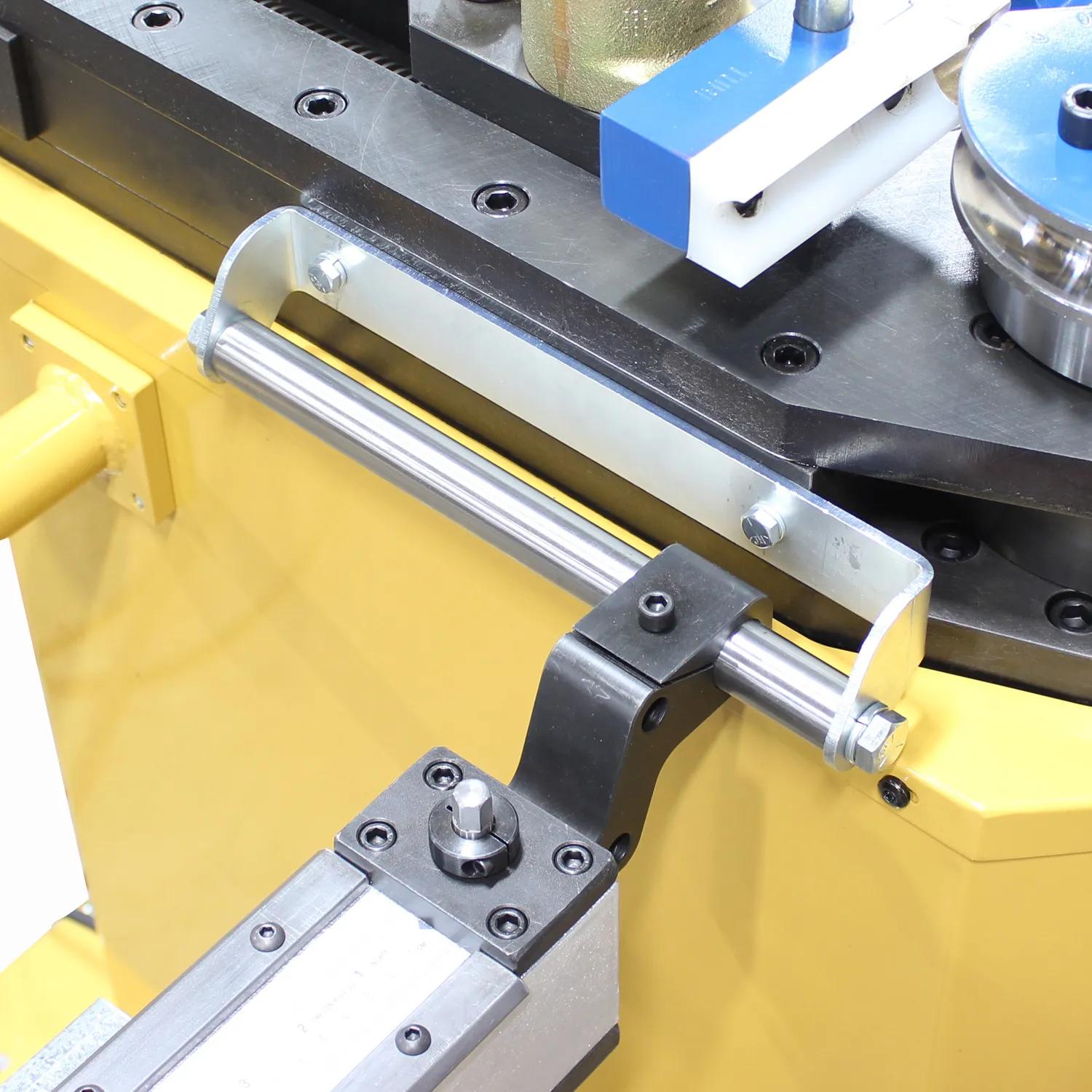

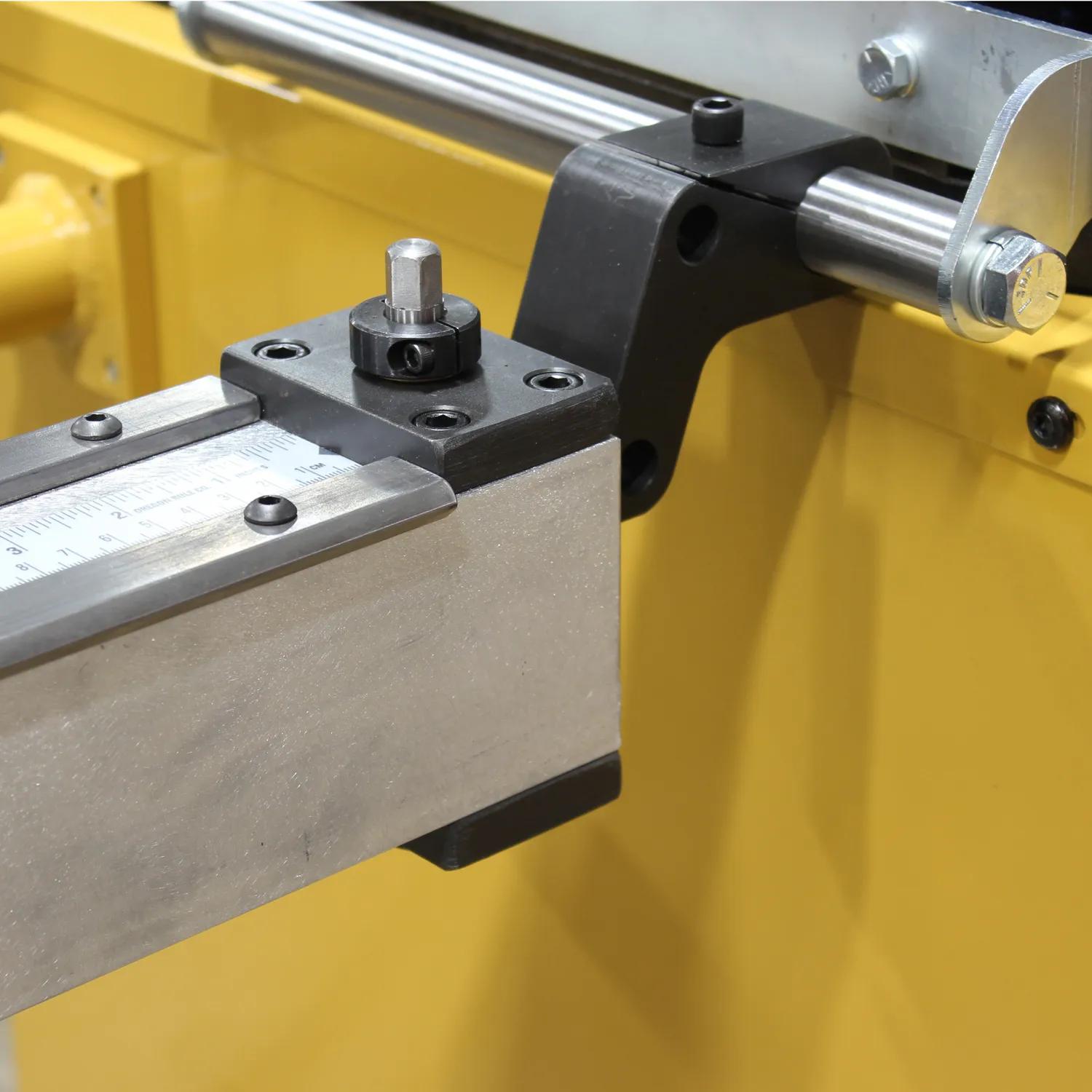

What is the perfect complement to any computer controlled Baileigh Tube and Pipe Bender?  A rotary indexing table, of course. An RDB-250 tube bender fitted with a rotary positioning table allows for accurate bends in varying planes, as well as consistent measurements between bends. The IDX-10-250 is a 10' table but other tables for the RDB-25 are available in lengths of 15, and 20' as well, call for the pricing of the longer tables. And because only some jobs require the rotary indexing table, it can be attached or taken off of the bender with ease. This rotary indexer table comes with an 8" three jaw chuck with 2-1/2" thru hole that allows for longer pieces of tubing than the table length. Chuck can handle up to 4-1/2" OD. The minimum OD is 1/4".  The rotary positioning table has a linear indicator strip so the operator can set up accurate distances between bends. Mechanical stops can be positioned for the start of each bend. Using the mechanical stops is very beneficial for repeatability on bigger production runs. Another nice feature of the table is that the positioning carriage rolls on a precision V block rail and rides the rail using V-block bearings. These bearings are placed on eccentric shafts, which allows for tolerance adjustment allowing the most accurate results. An optional digital readout system is also available.

For more information, please contact Baileigh Industrial.


+ Show More

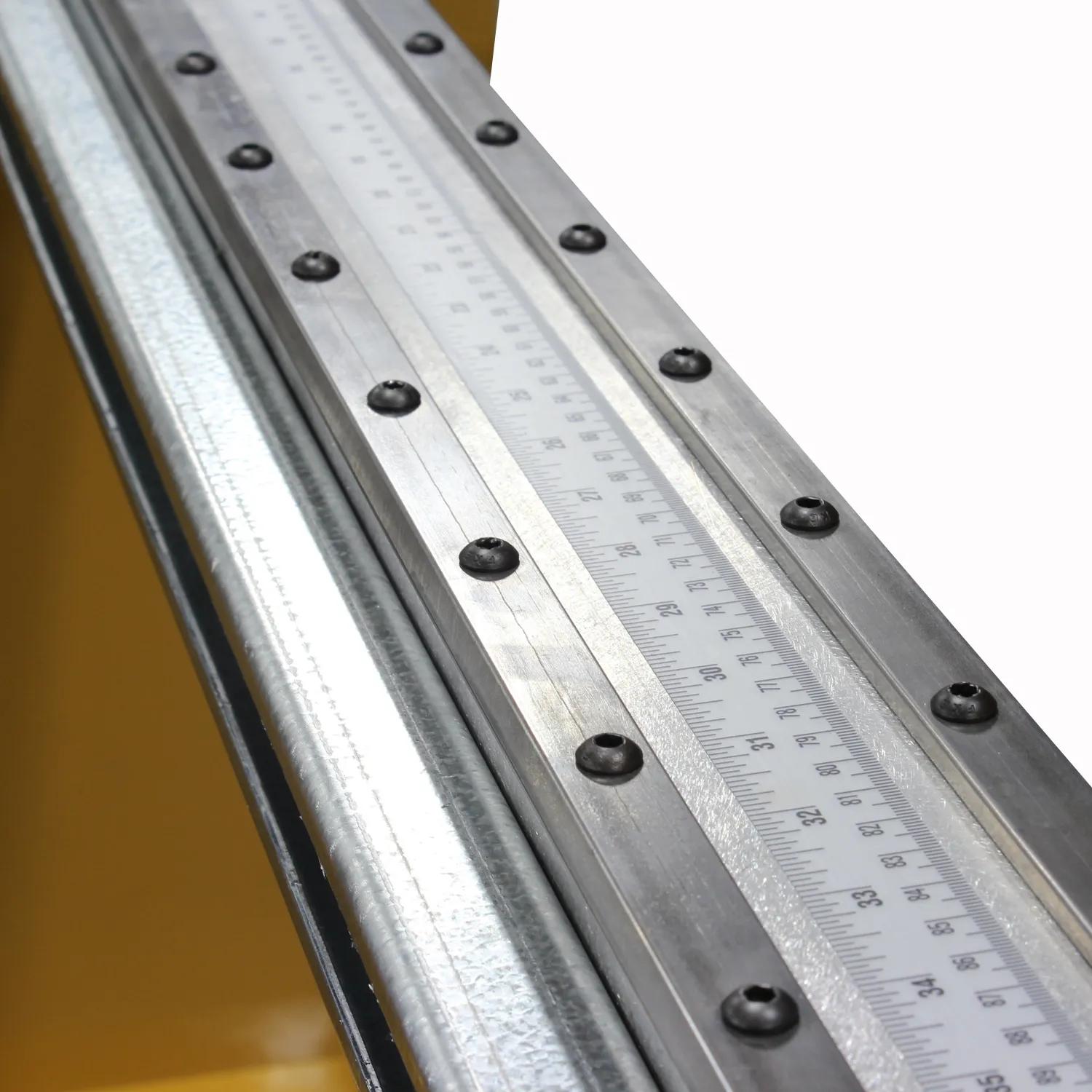

Linear guide scale

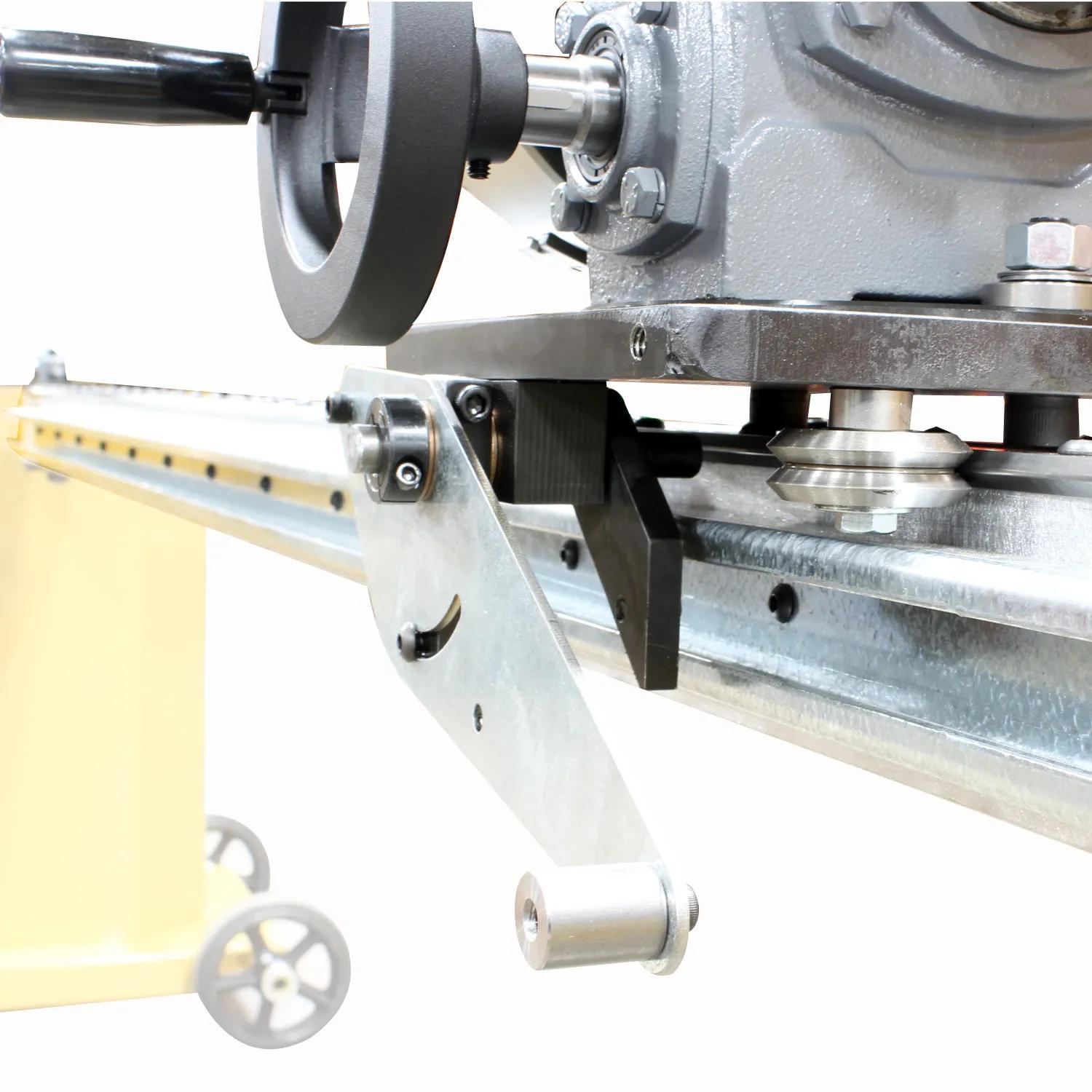

Mechanical stops for multiple bend parts

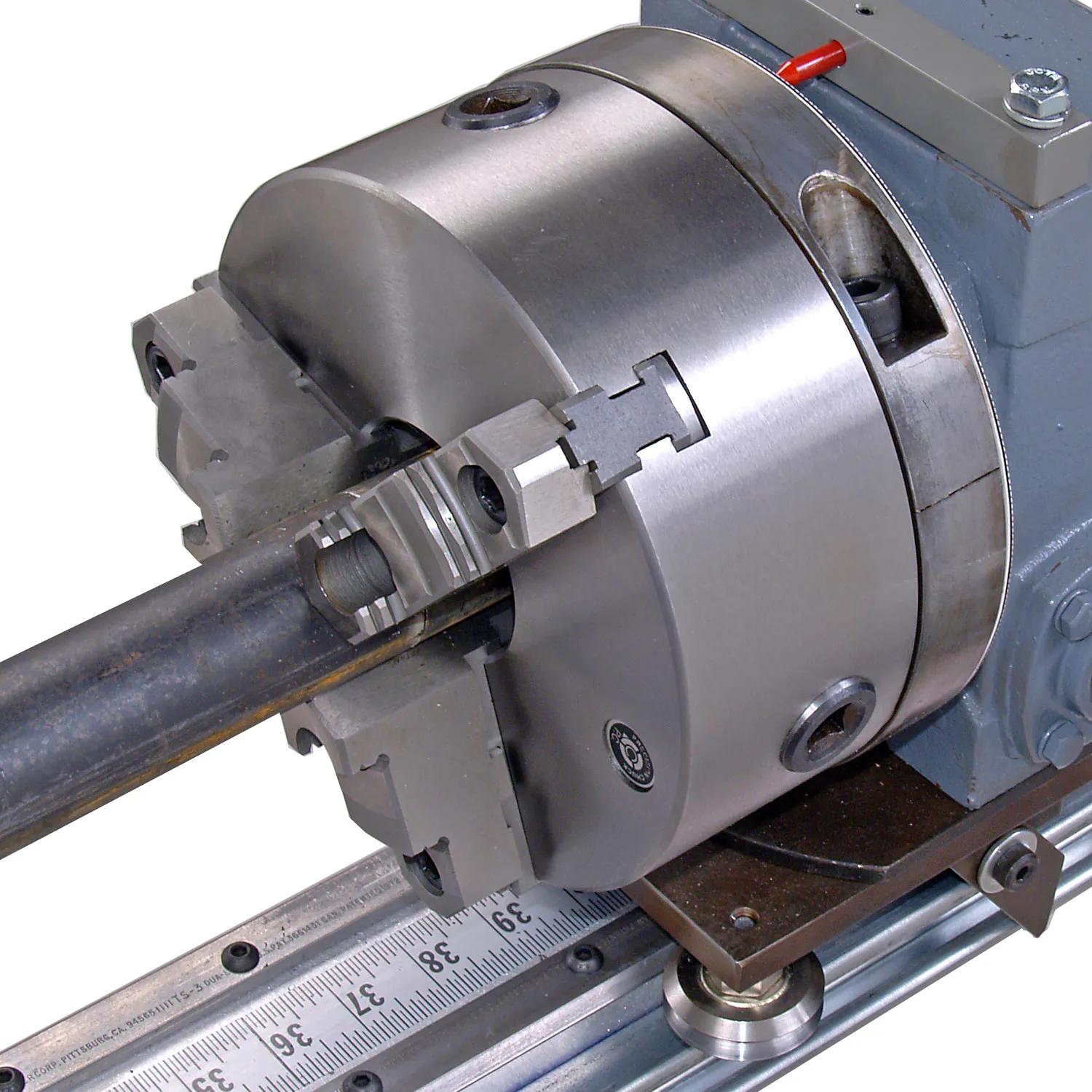

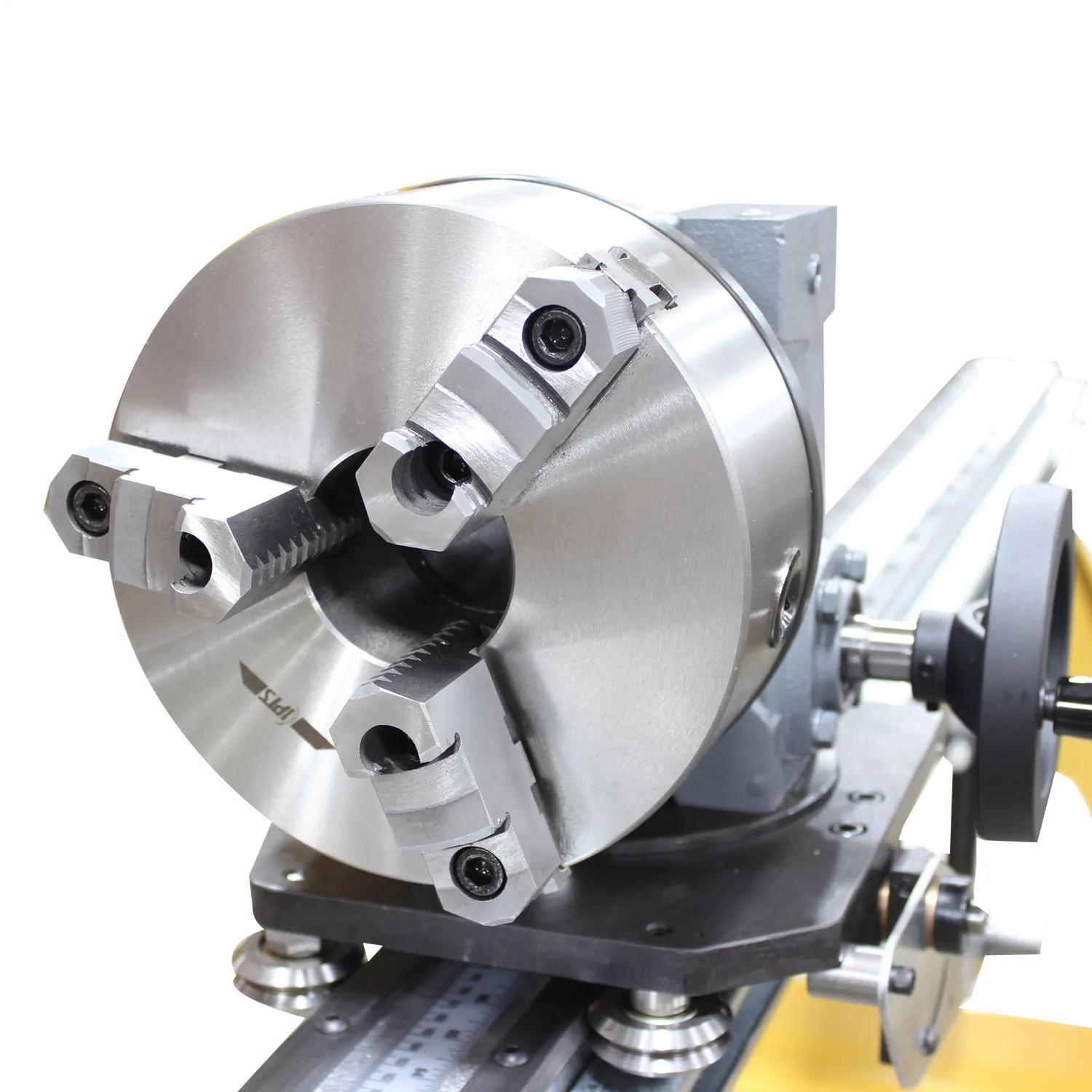

Rotary chuck for accurate bends in varying planes
2-1/2" thru-hole allows material longer than the table to be used
More Information
Stock NumberBA9-1021533
AccessoriesIncluded Accessories
Model NumberIDX-250-10
Prop 65Cancer and Reproductive Harm
WarrantyNo value
Gross Weight315.0
Net weight315.0
Material Dimension (In.)Max. 4.5" OD, Min. 1/4" OD in Chuck
