10' Rotary Positioning Table for RDB-325 (IDX-325-10)
Call 920-684-4990 for availability
Stock Number:
BA9-1021537
$4,587.00
Enhanced Bullet 1:
10' Rotary Positioning Table for RDB-325.
Enhanced Bullet 2:
Mechanical stops for multiple bend parts.
Enhanced Bullet 3:
Rotary chuck for accurate bends in varying planes.
Enhanced Bullet 4:
2-1/2" thru-hole
Product Overview

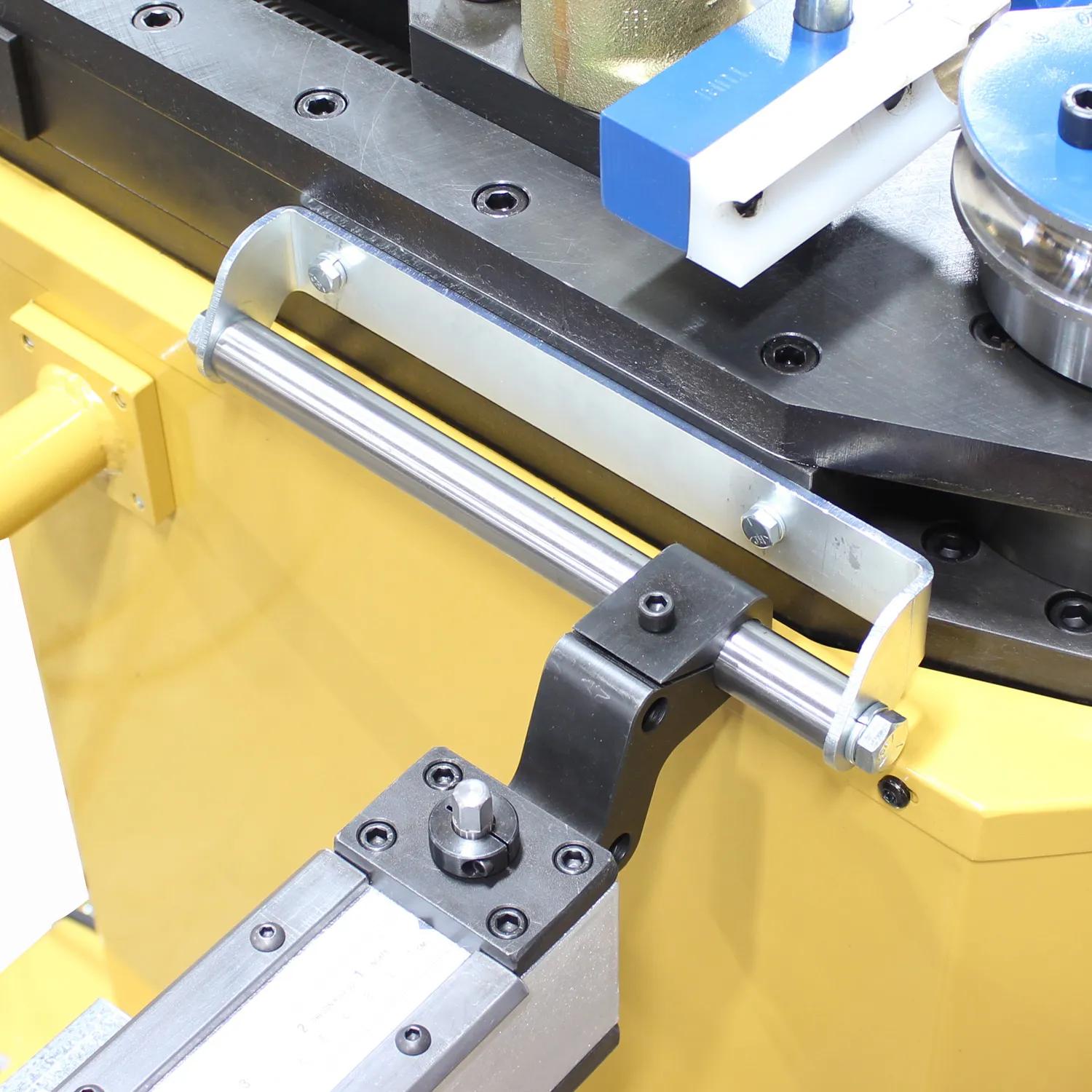

What is the perfect complement to any computer controlled Baileigh Tube and Pipe Bender? A rotary indexing table, of course. An RDB-325 pipe bender fitted with a rotary positioning table allows for accurate bends in varying planes, as well as consistent measurements between bends. The IDX-10-325 is a 10' rotary indexing table but other tables for the RDB-325 are available in lengths of 15, and 20' as well, call for the pricing of the longer tables. And because only some jobs require the rotary indexing table, it can be attached or taken off of the bender with ease.
For more information on this rotary indexing table for the RDB-325 tube bender, please contact Baileigh Industrial.
The minimum OD is 1/4"
Chuck can handle up to 4-1/2" OD
Chuck can handle up to 4-1/2" OD

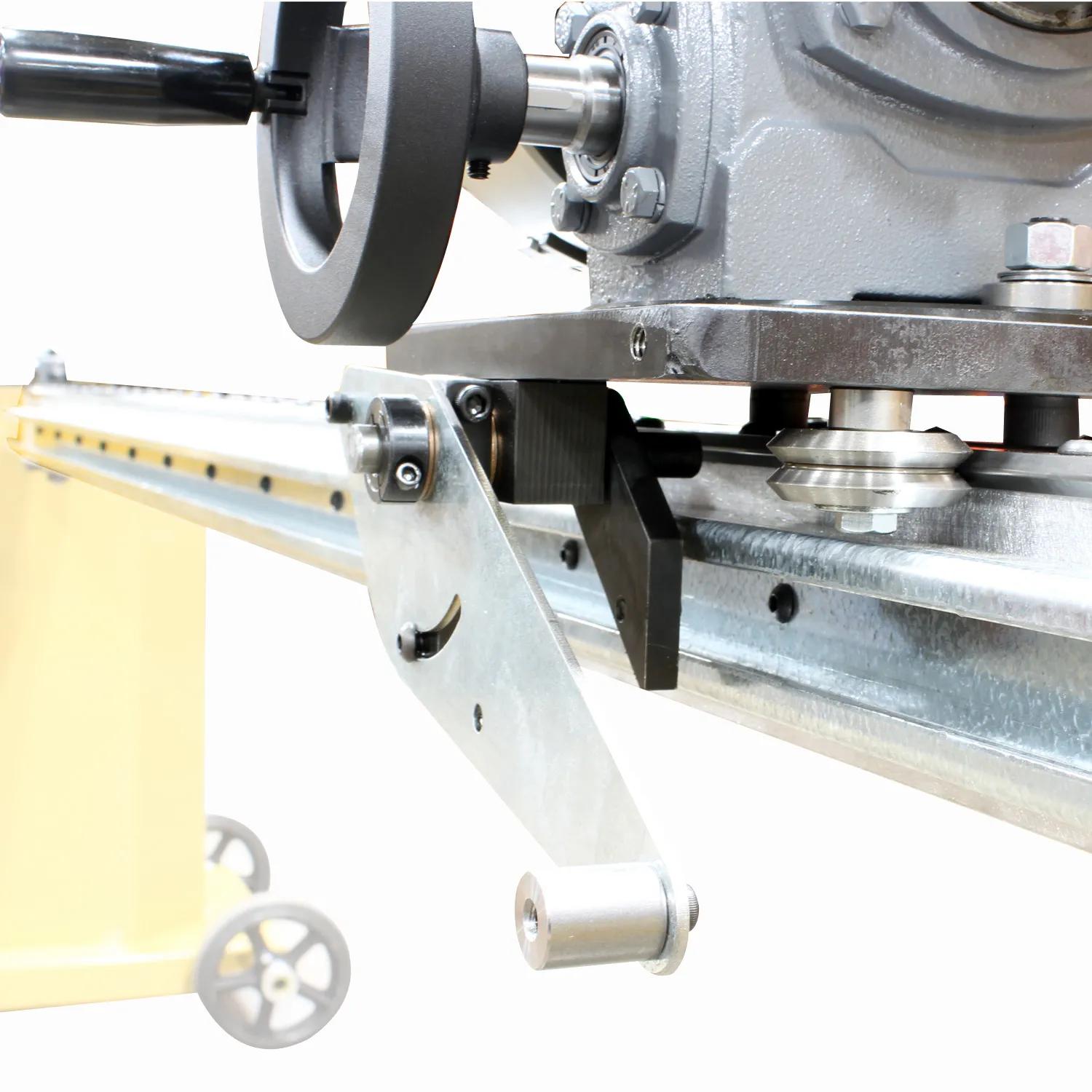

Mechanical stops can be positioned for the start of each bend
Using the mechanical stops is very beneficial for repeatability on bigger production runs

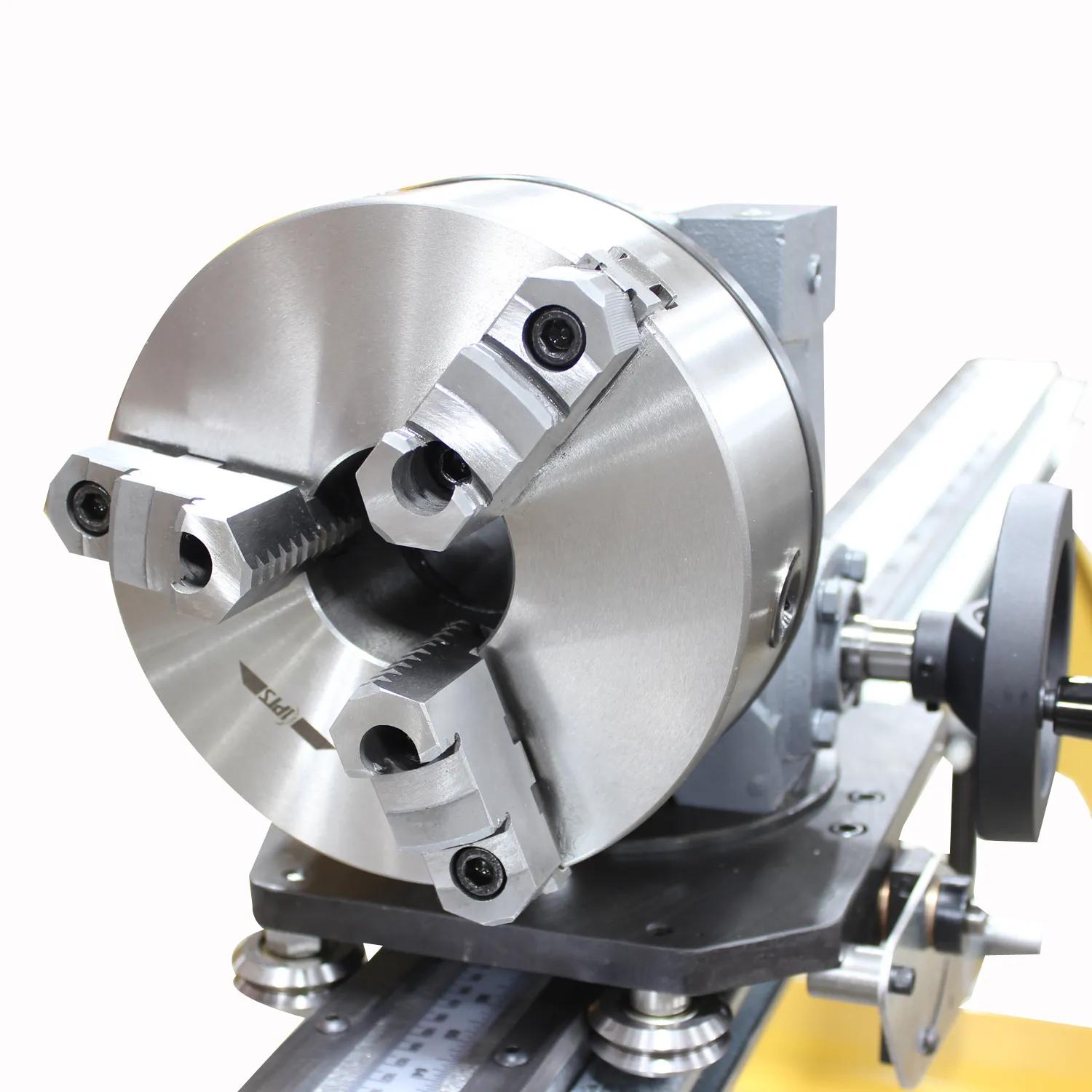

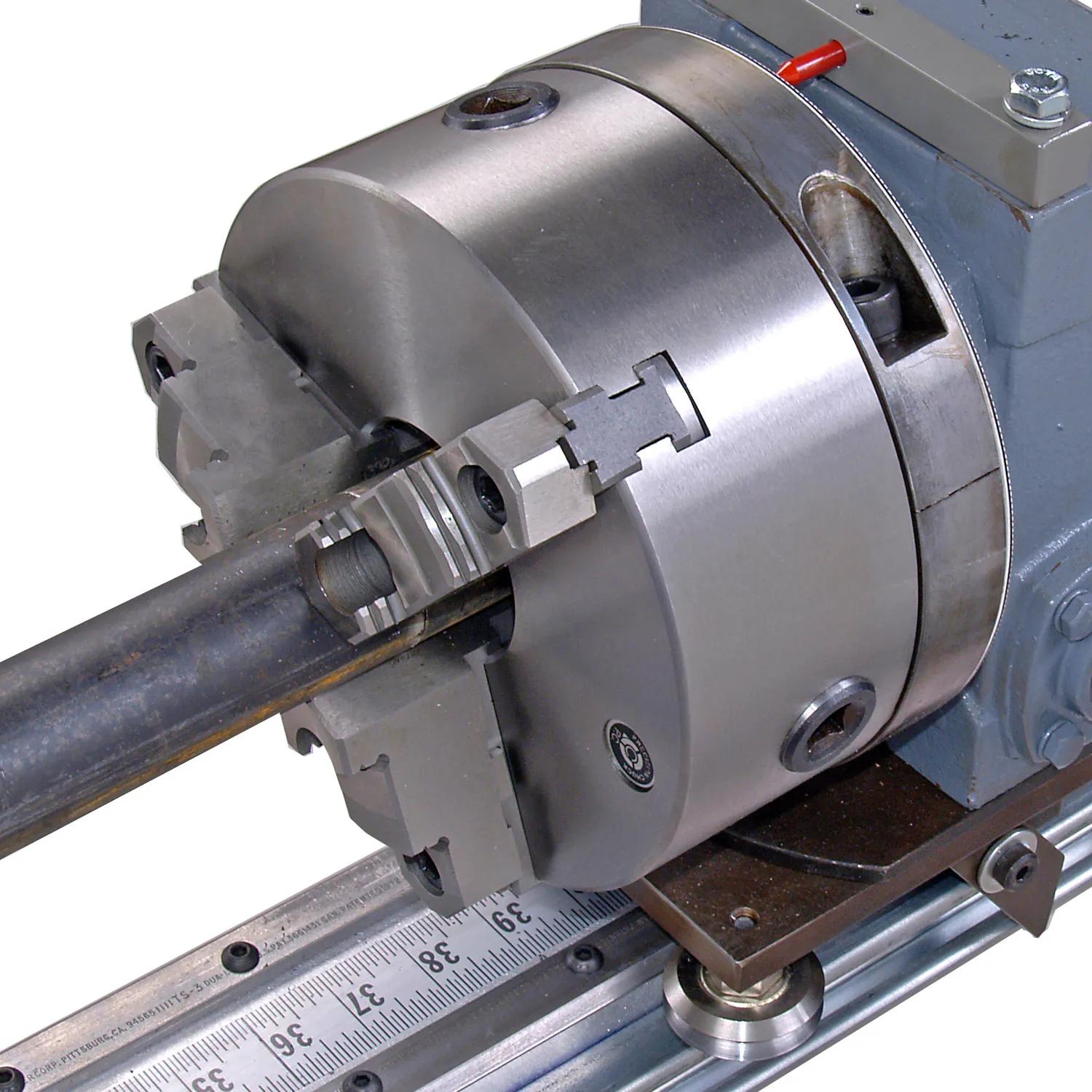

8" three jaw chuck with 2-1/2" thru hole that allows for longer pieces of tubing than the table length

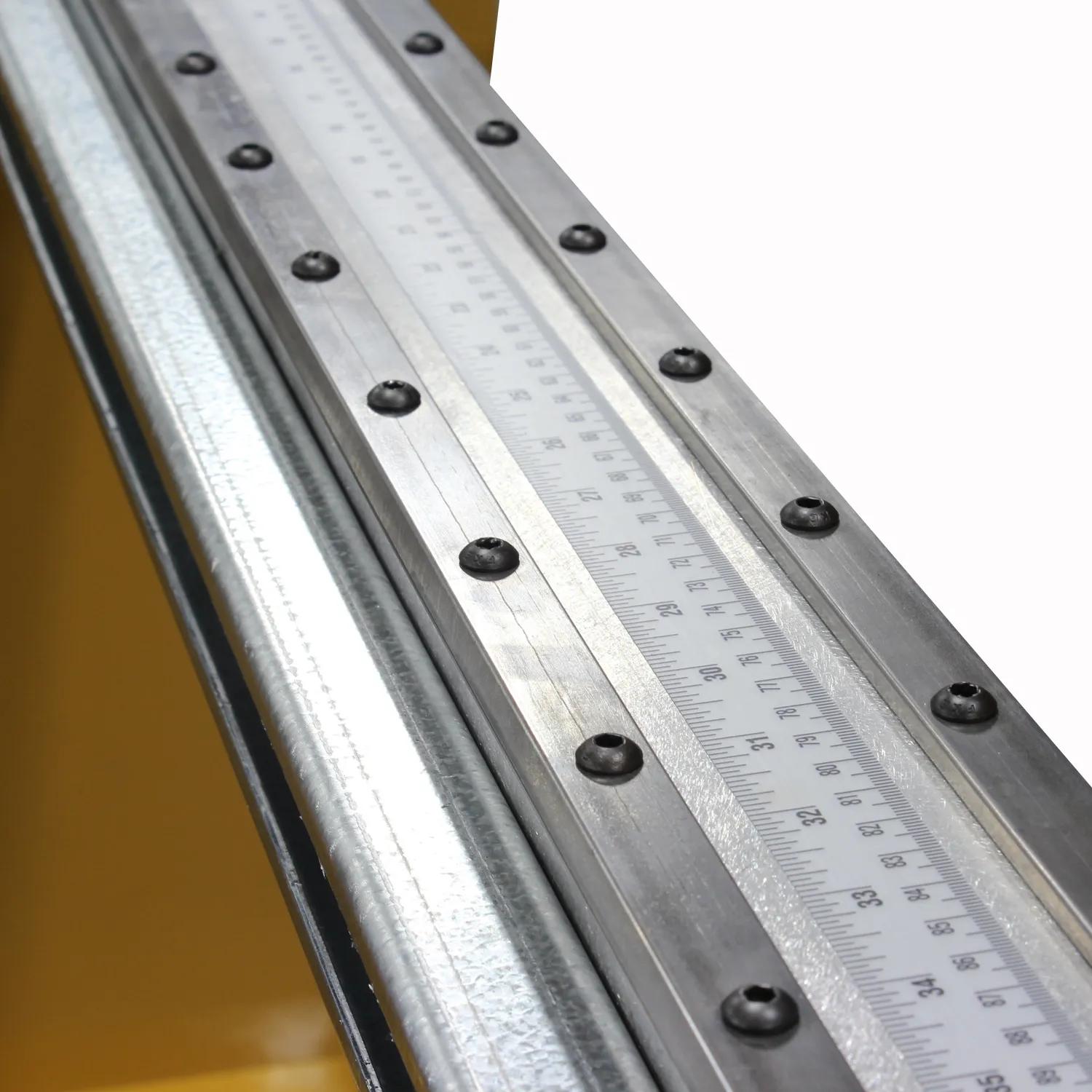

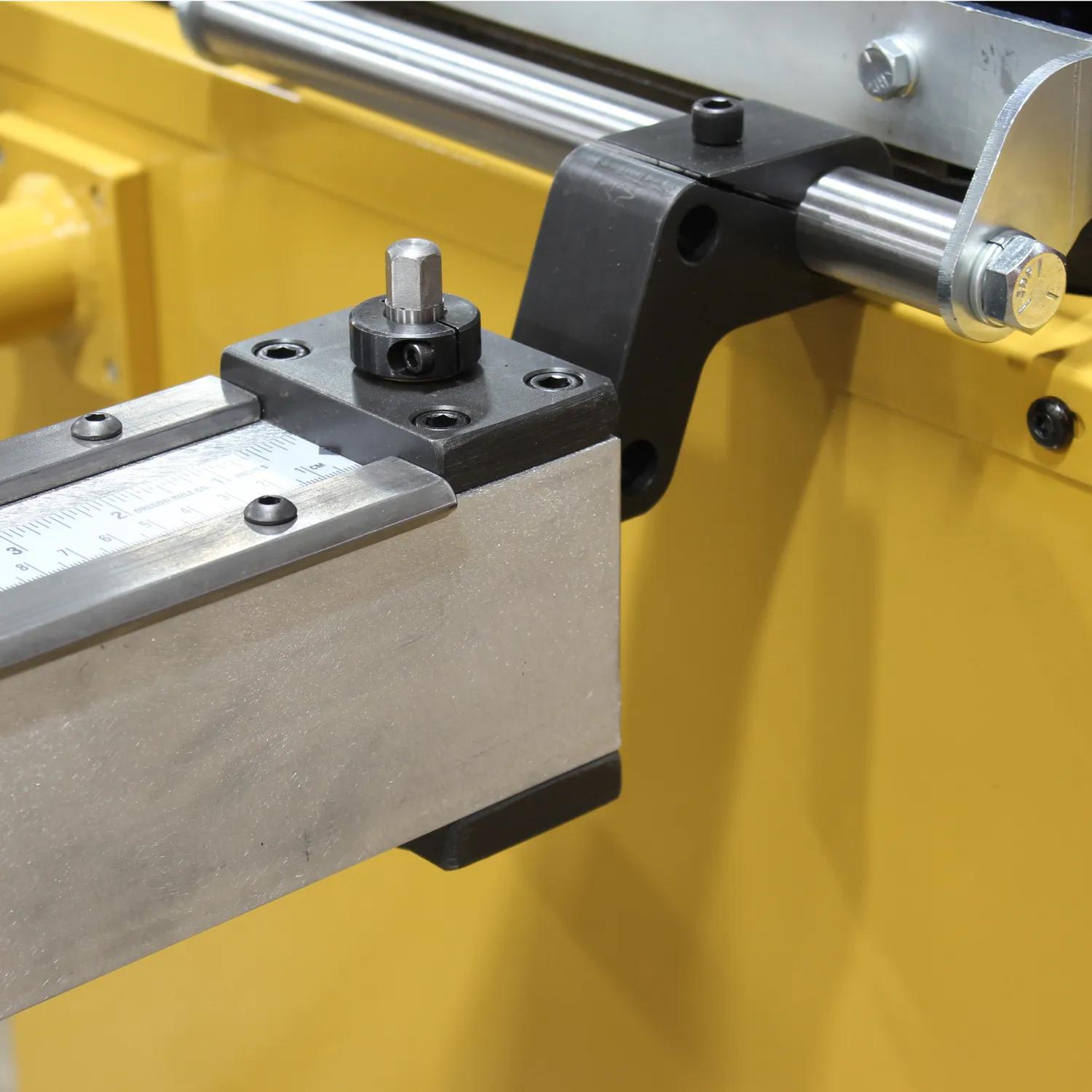

The table has a linear indicator strip so the operator can set up accurate distances between bends

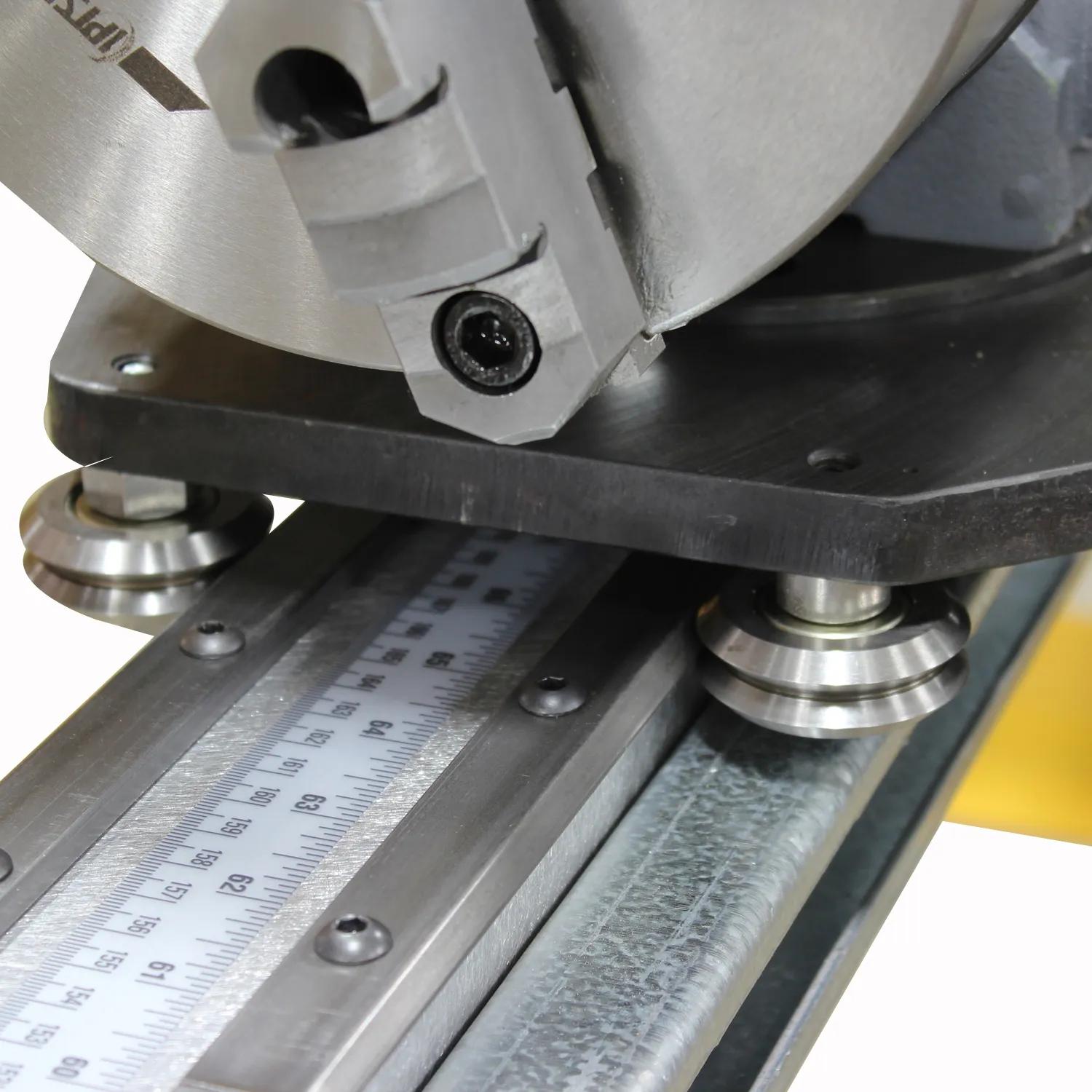

These bearings are placed on eccentric shafts, which allows for tolerance adjustment allowing the most accurate results
Another nice feature of the table is that the positioning carriage rolls on a precision V block rail and rides the rail using V-block bearings
| Stock Number | BA9-1021537 |
|---|---|
| Accessories | Included Accessories |
| Model Number | IDX-325-10 |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | No value |
| Gross Weight | 240.0 |
| Net weight | 240.0 |
| Material Dimension (In.) | Max. 4.5" OD, Min. 1/4" OD in Chuck |
