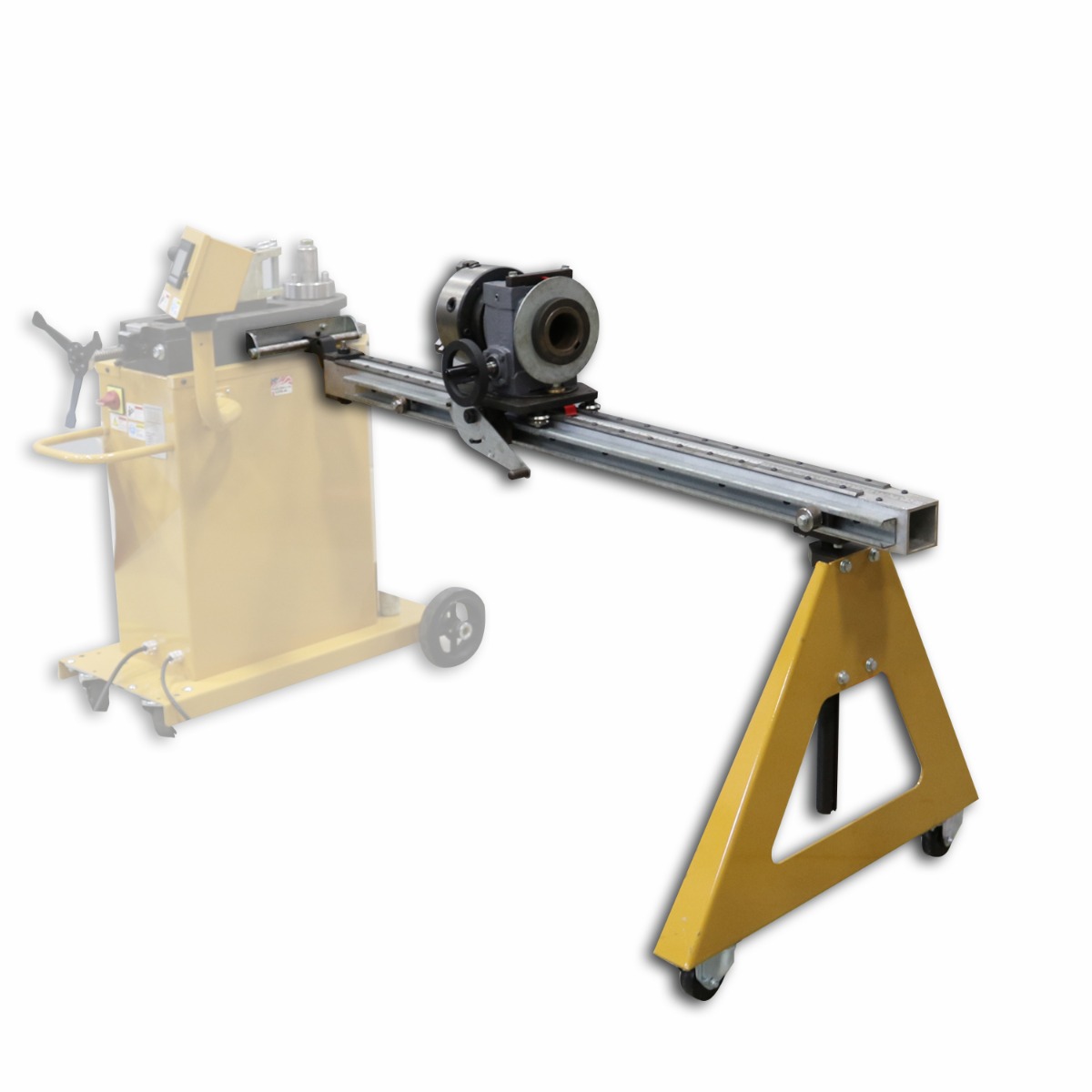

10' Rotary Positioning Table for RDB-350 (IDX-350-10)
Stock Number:
BA9-1021542
$4,587.00
Enhanced Bullet 1:
10' Rotary Positioning Table for RDB-350.
Enhanced Bullet 2:
Mechanical stops for multiple bend parts.
Enhanced Bullet 3:
Rotary chuck for accurate bends in varying planes.
Enhanced Bullet 4:
2-1/2" thru-hole allows material longer than the table.
Product Overview
What is the perfect complement to any computer controlled Baileigh Tube and Pipe Bender? A rotary indexing table, of course.
An RDB-350 industrial tubing bender fitted with a rotary positioning table allows for accurate bends in varying planes, as well as consistent measurements between bends. The IDX-10-350 is a 10' table but other tables for the RDB-350 are available in lengths of 15, and 20' as well, call for the pricing of the longer tables. And because only some jobs require the rotary indexing table, it can be attached or taken off of the bender with ease.
For more information, please contact Baileigh Industrial.
Manual
table comes with an 8" three jaw chuck with 2-1/2" thru hole that allows for longer pieces of tubing than the table length
Chuck can handle up to 4-1/2" OD, Minimum is 1/4"
The table has a linear indicator strip so the operator can set up accurate distances between bends.
Mechanical stops can be positioned for the start of each bend. Using the mechanical stops is very beneficial for repeatability on bigger production runs
positioning carriage rolls on a precision V block rail and rides the rail using V-block bearings.
bearings are placed on eccentric shafts, which allows for tolerance adjustment allowing the most accurate results.
| Stock Number | BA9-1021542 |
|---|---|
| Accessories | Included Accessories |
| Model Number | IDX-350-10 |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | 1 Year |
| Gross Weight | 240.0 |
| Net weight | 240.0 |
| Index Chuck Through Hole | 2.4 |
| Table Length (In.) | 120 |
