180 Degree 3/4" Round Tube Die Set 3" CLR - (DS-180-0750T-R300)
Stock Number:
BA9-DS0750TR300180
$453.00
Enhanced Bullet 1:
3/4" round tube
Enhanced Bullet 2:
3" centerline radius
Enhanced Bullet 3:
180° die set
Enhanced Bullet 4:
For RDB-050
Product Overview

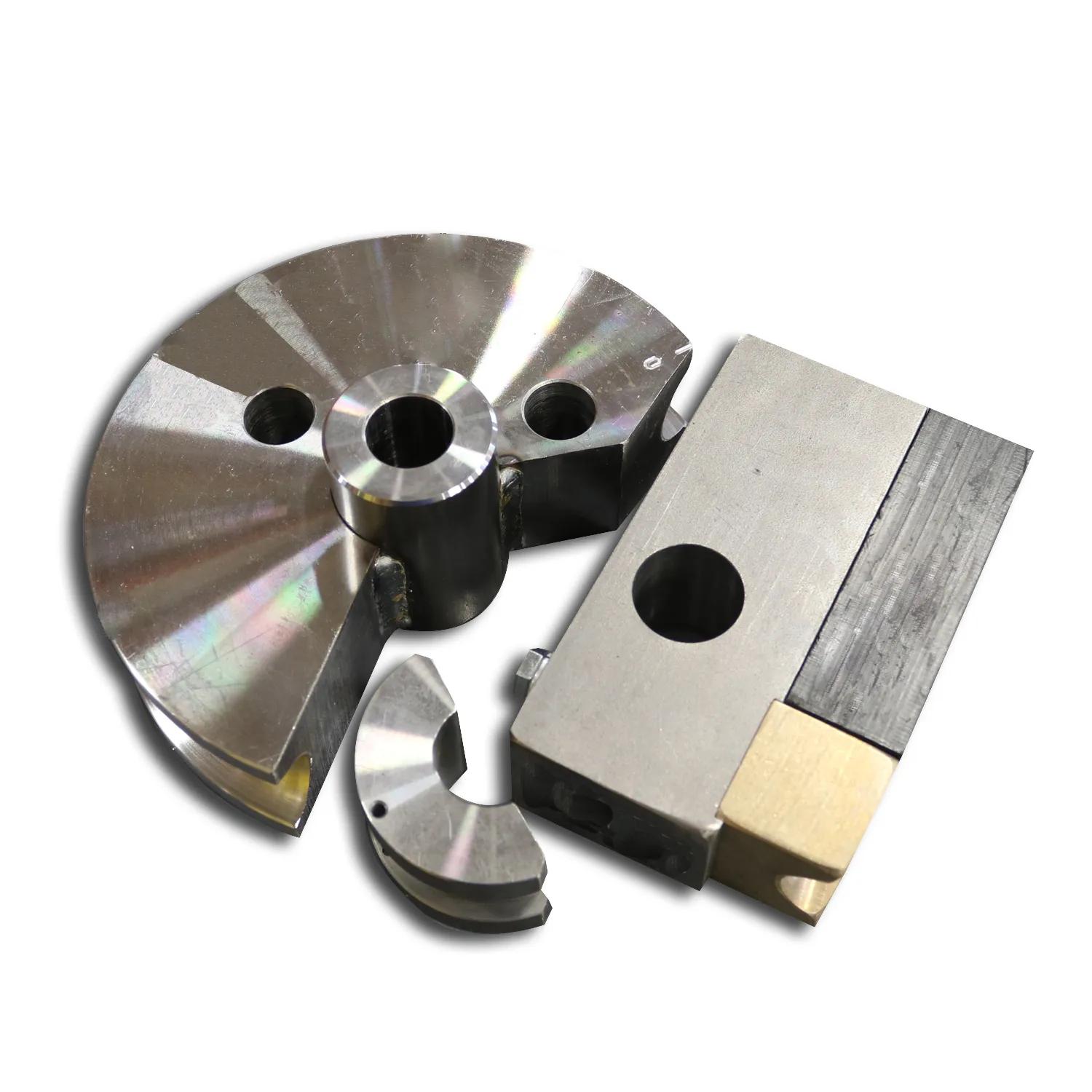

This is a complete die set, including forming die, counter die, and hook sleeve for 3/4" Round tube die set with a 3 Inch Center line Radius for making 180 dergree bends on the RDB-050 only. Center line radius is based on .058 wall thickness.
Compatible with RDB-050 only
Allows for 180 degree bends
1018 billet steel forming die
Replaceable / Consumable counter die inserts for counter die block
Nonproprietary spindle bore
| Stock Number | BA9-DS0750TR300180 |
|---|---|
| Center Line Radius | 3" |
| Max Bend (Degrees) | 180.0000 |
| Model Number | DS-180-0750T-R300 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Wall Thickness | 0.058 |
| Warranty | No value |
| Gross Weight | 15.35 |
| Net weight | 15.35 |
| Material Dimension (In.) | 0.75 |
