3 in 1 Combination Machine SBR-3020

Call 920-684-4990 for availability
Stock Number
BA9-1006958
$1,449.00

.

Click LeaseLeasing starts at $43 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $43

Product Overview

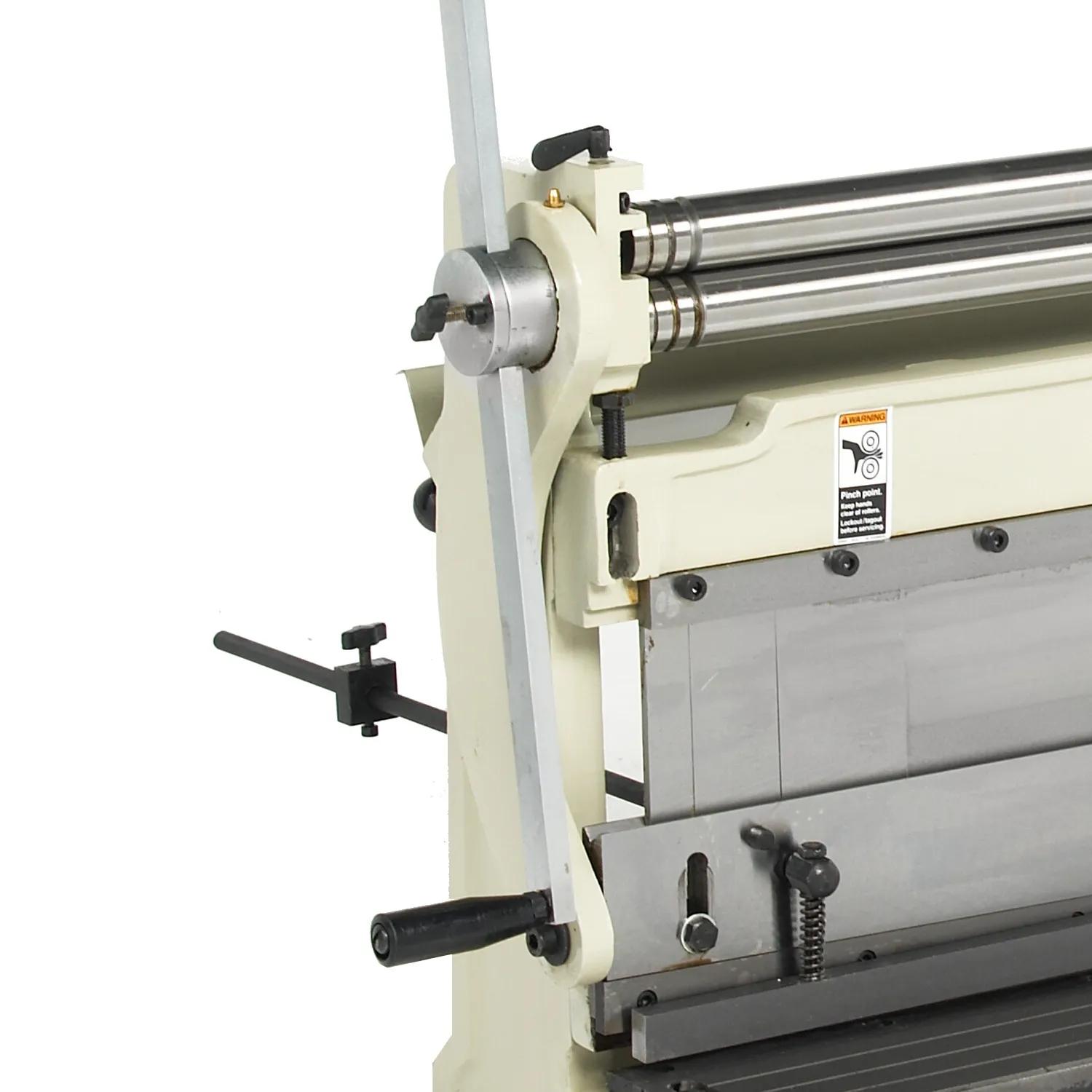

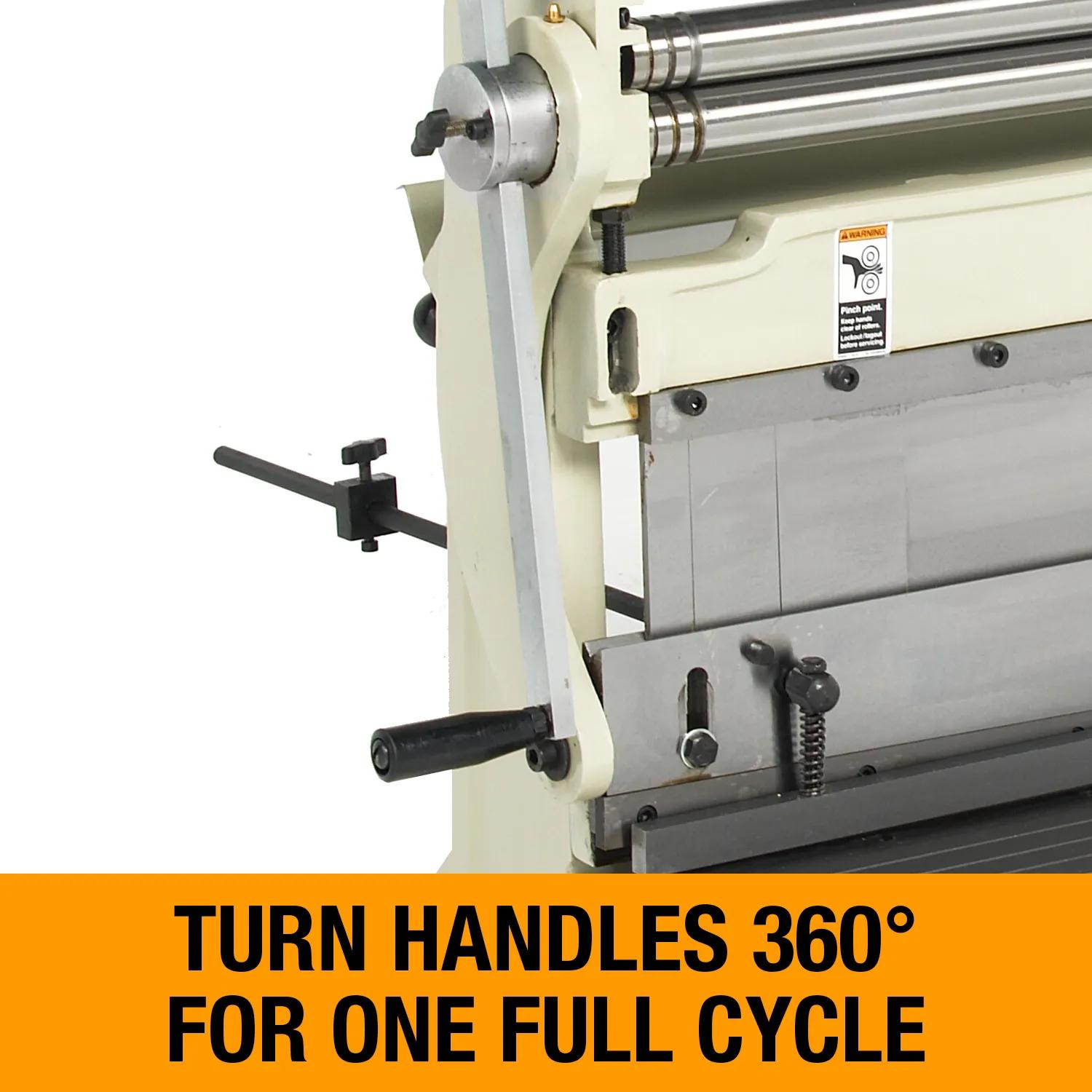

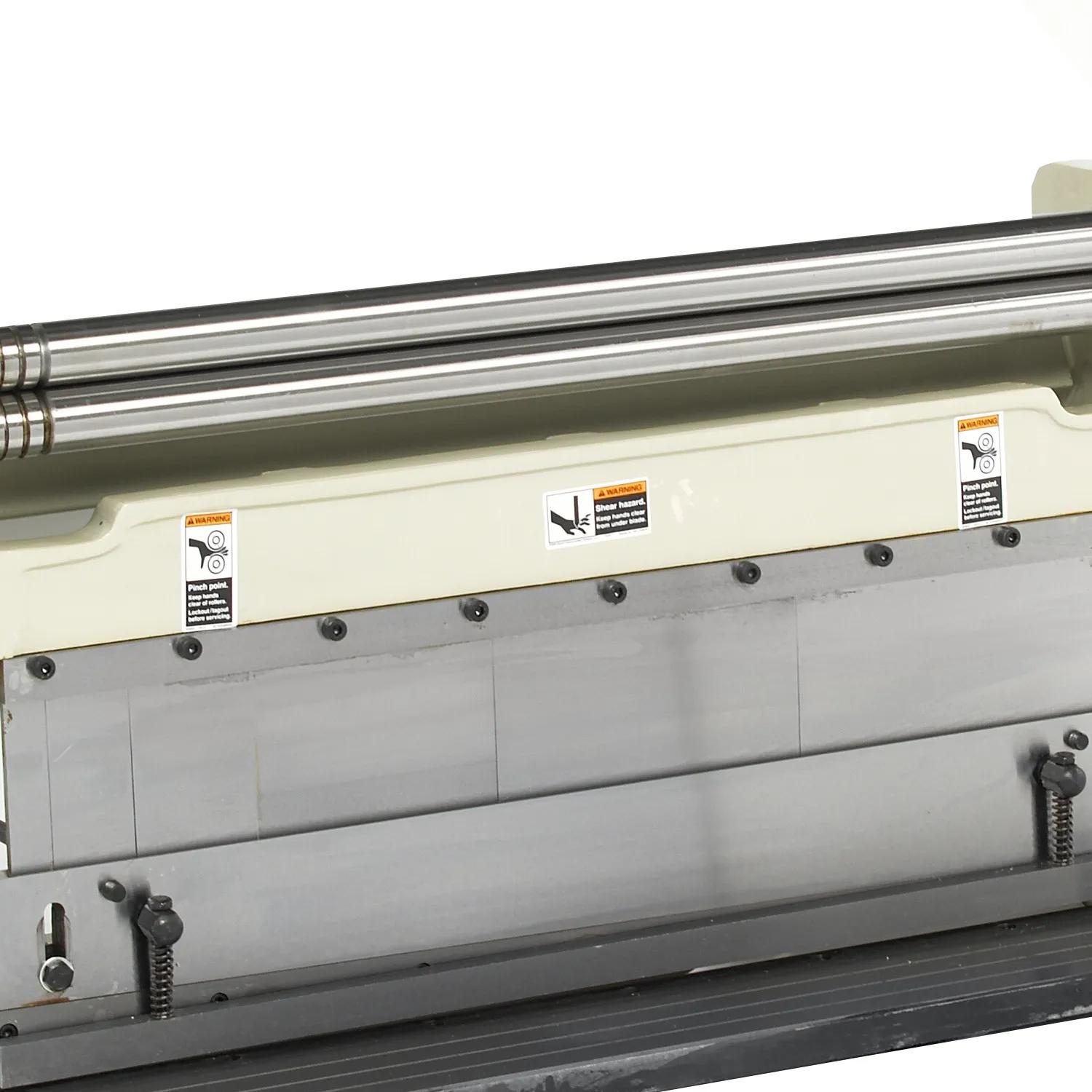

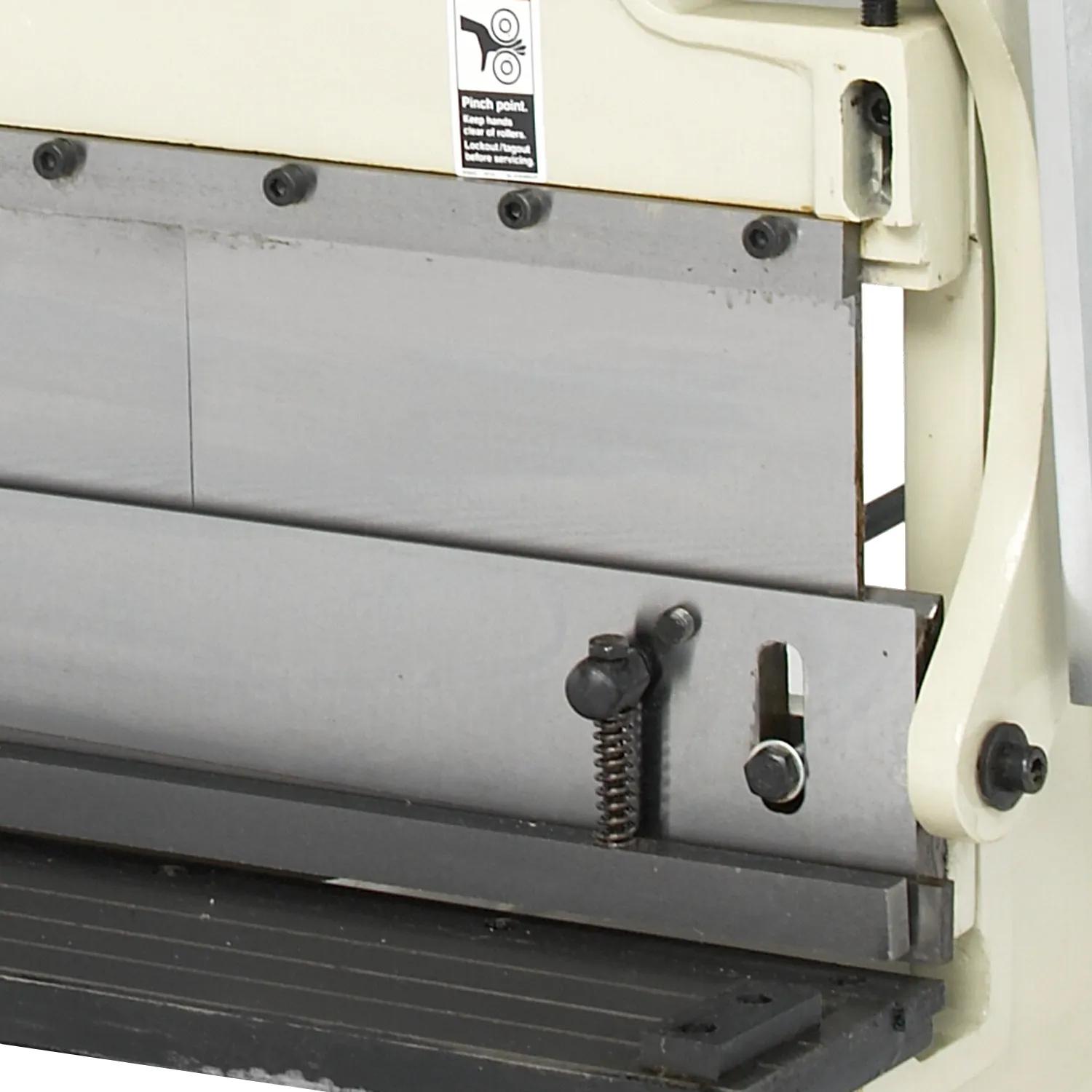

Slip roll on top. Press brake in the middle. Shear on the bottom. This 3-in-1 combo machine saves space. The Baileigh SBR-3020 Shear Brake Roll is a great choice for small shops with low production runs and one-off projects. Adjust the camber of the tooling to keep pressure in the middle for a consistent bend across the full width. On the shear portion, a spring-loaded hold-down helps reduce burr on the cut and prevent waste. Hardened and reversible blades stay sharp for longer. Turn the handles 360° to get one full cycle from the slip roll, press brake, or shear.

Baileigh SBR-3020 Shear Brake Roll comes with a 1-year parts warranty. We offer lifetime technical support by phone. Call our team of experienced reps whenever you need help.

Recommended for: Hobbyists, maintenance, and R&D shops.

Looking for a wider shear brake roll? This machine is also available in a 40"-wide version and a 52”-wide model.

Not sure which combination machine is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.


+ Show More
30" working width for manual shear, press brake, and roll
Maximum capacity of 20-gauge mild steel and 16-gauge aluminum for all functions

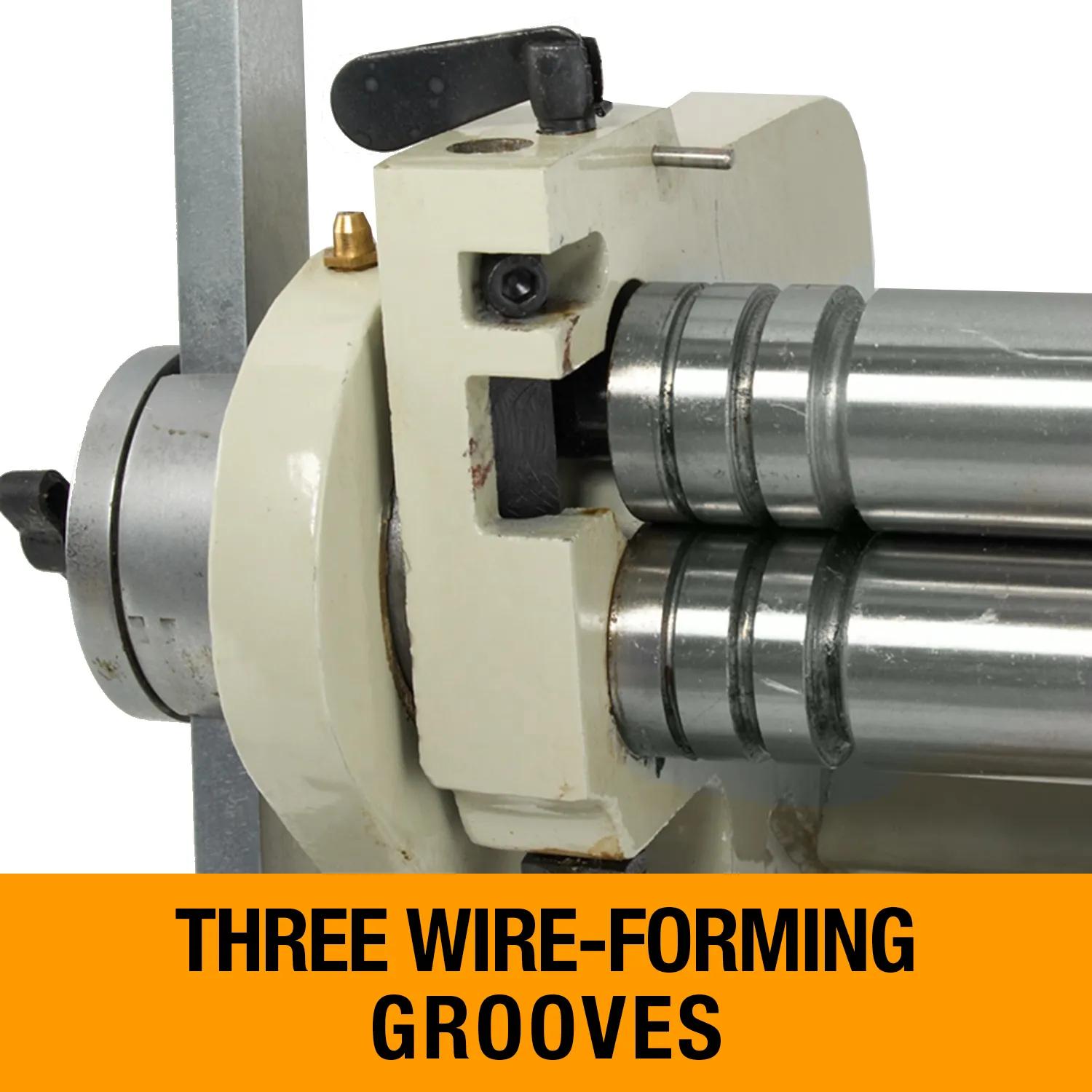

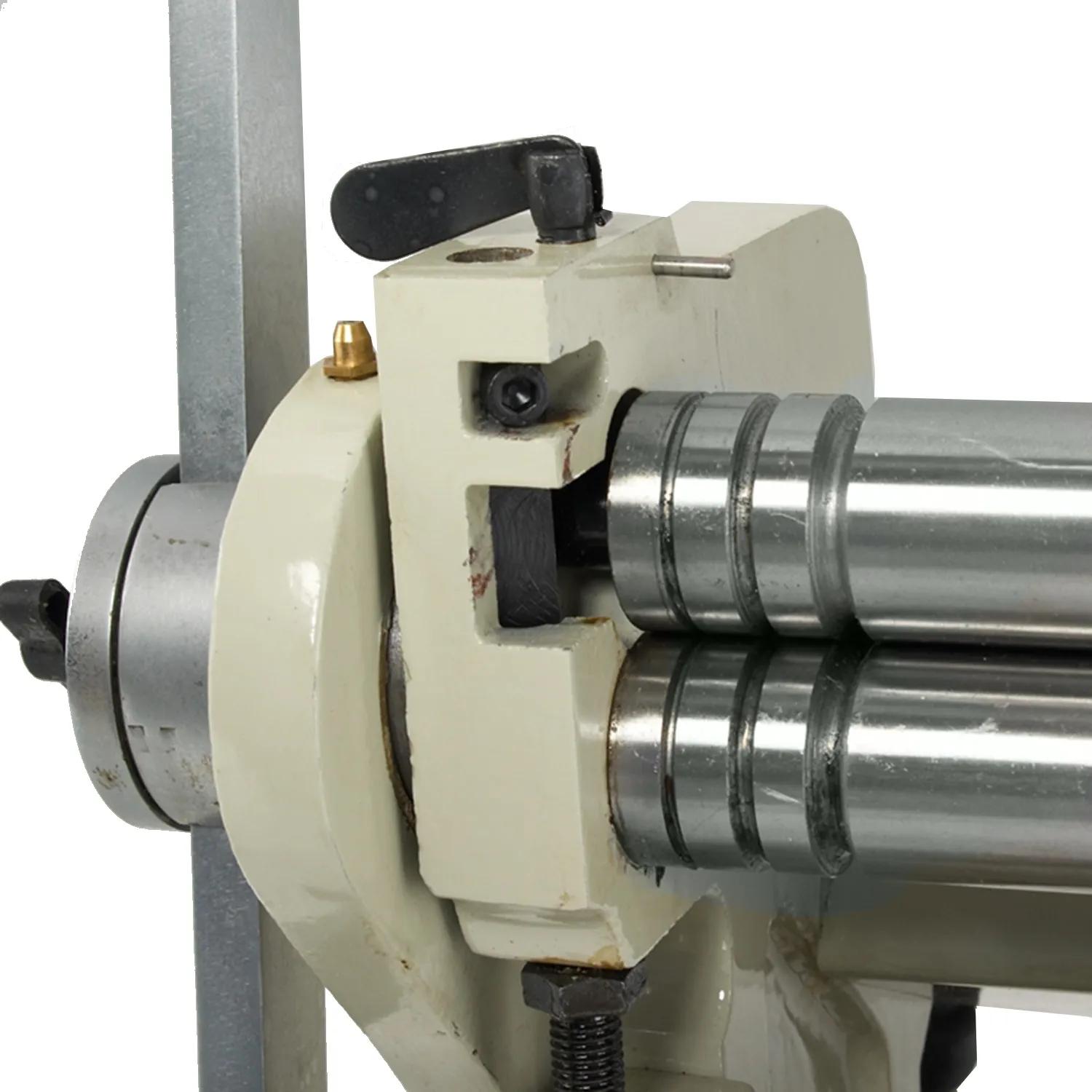

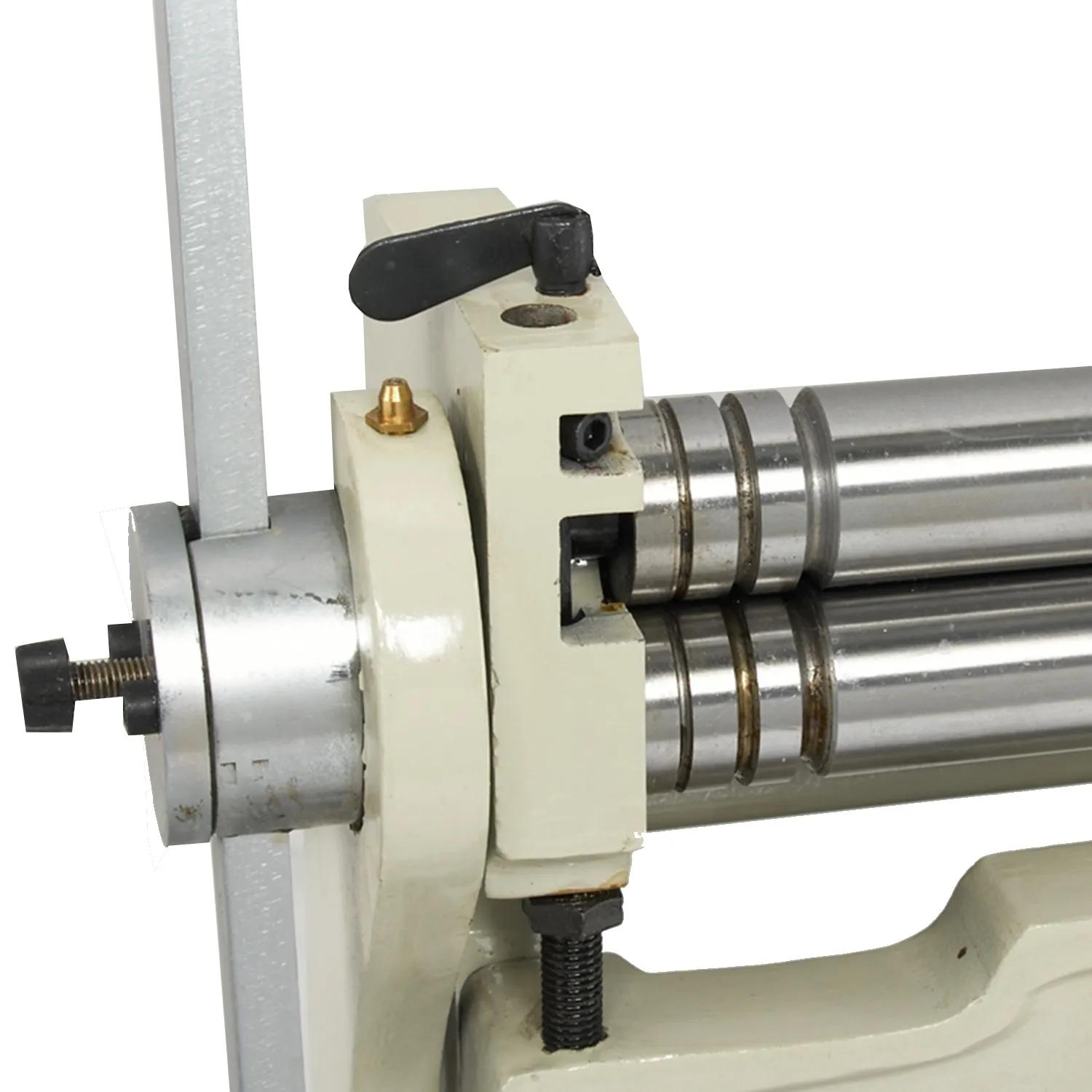

Slip roll features three wire grooves
Forms rolls down to 1.54" in diameter

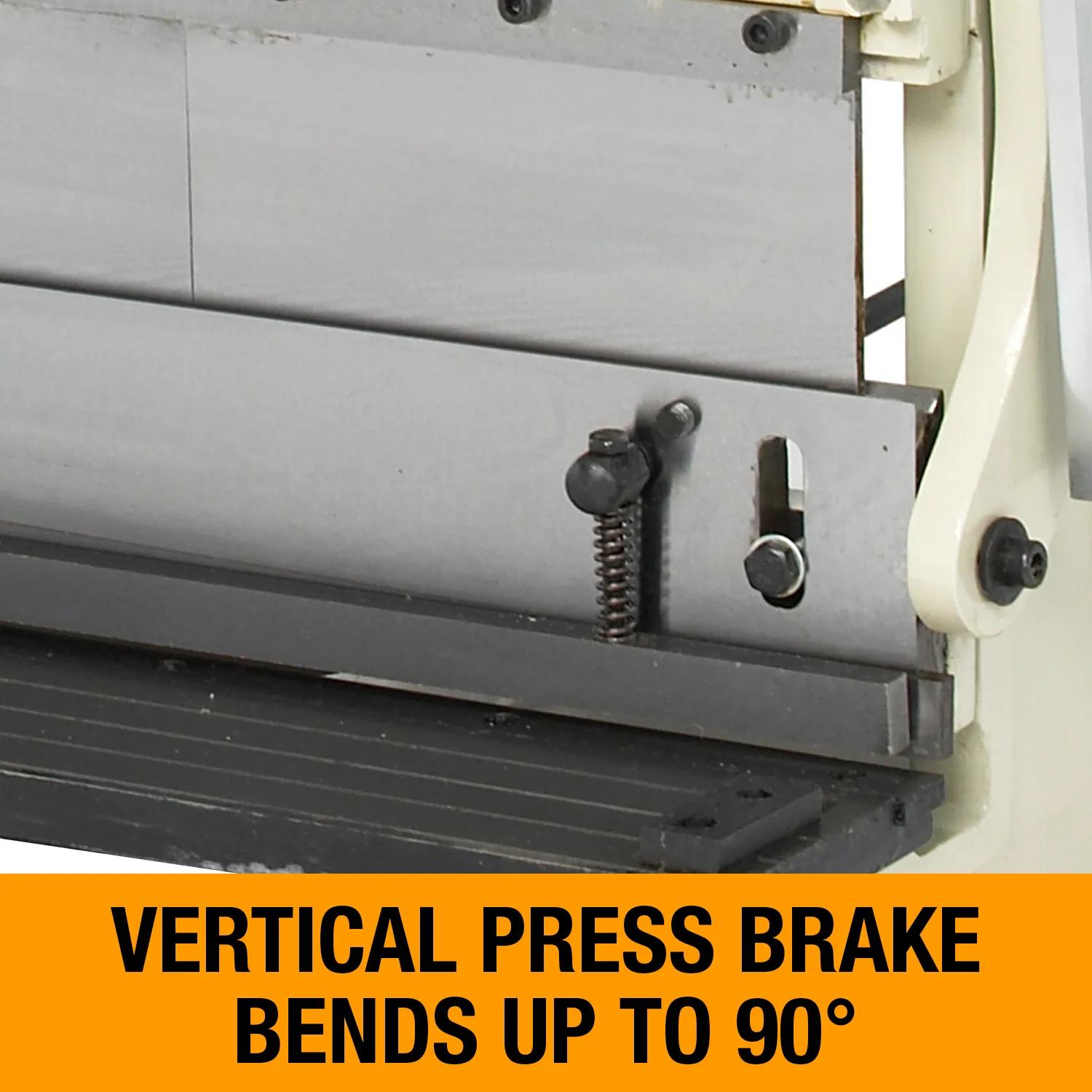

Vertical press brake portion bends up to 90°, so you can make perfect corners
Press brake portion includes a V die set with corresponding punch die on top to make a 90° bend

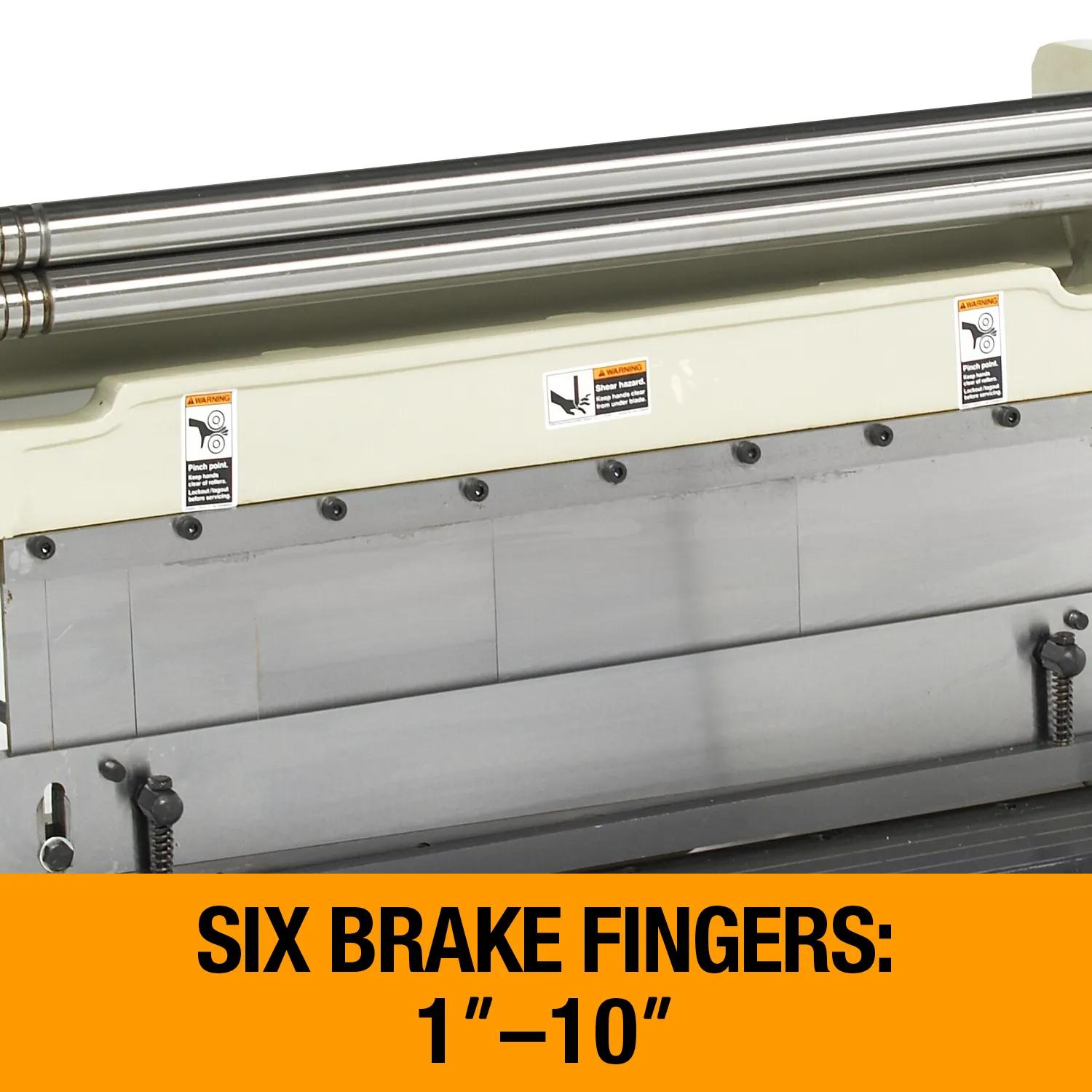

Movable fingers on the top beam, ranging from 1" to 10-1/8", can make many box sizes
Large handles with grips on both sides allow two operators to combine their force and make the machine easier to use
Manual back gauge lets you make repeatable parts without difficulty

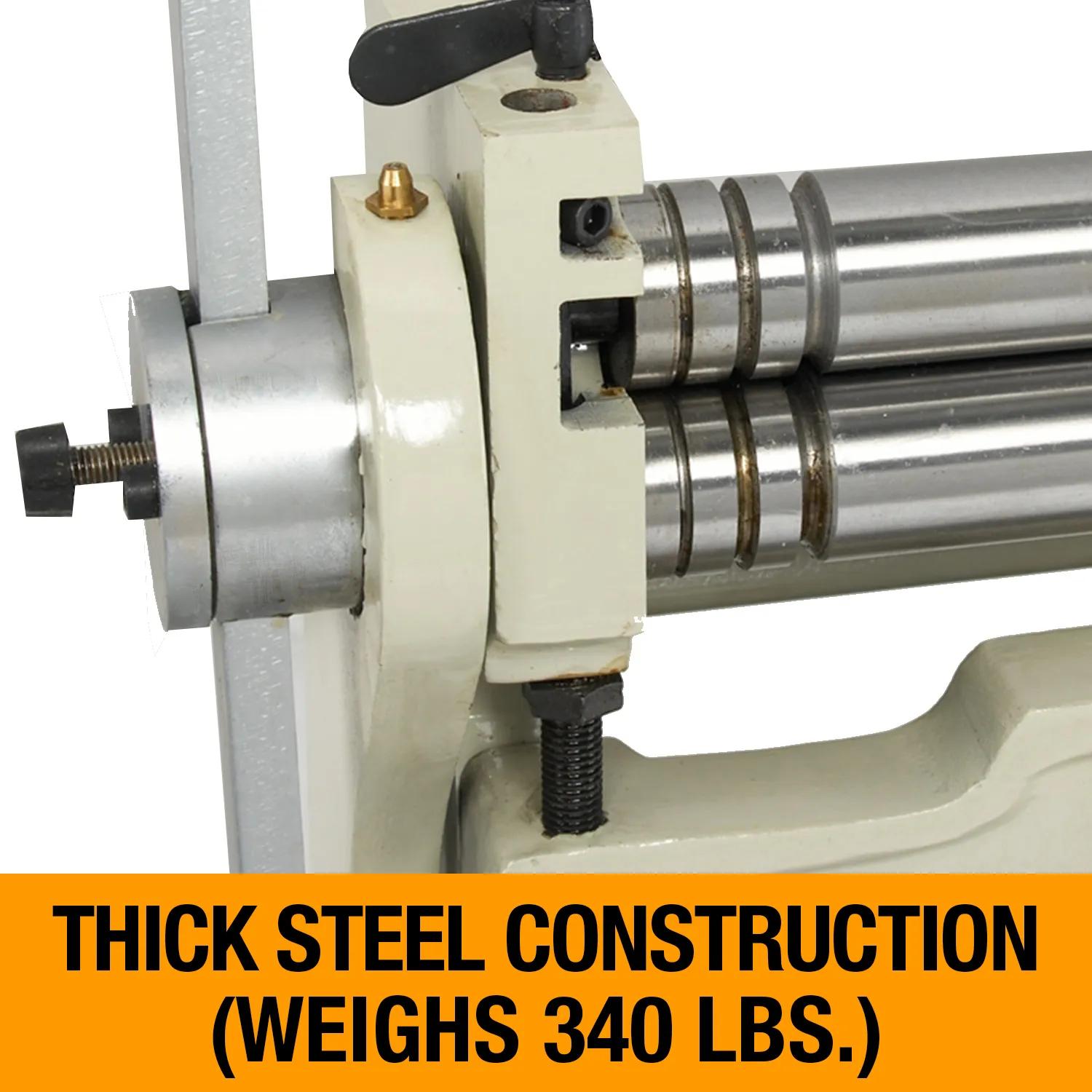

Thick steel construction, weighing 340 lbs., gives the machine structural strength and maintains accuracy
More Information
Stock NumberBA9-1006958
Model NumberSBR-3020
Prop 65Cancer and Reproductive Harm
Warranty1 Year
Weight (Lbs.)340
Gross Weight340.0
Net weight340.0
Rolling Capacity (Gauge)20 ga. (.036”)
Shear Capacity (Gauge)20 ga. (.036”)
