3-in-1 Shear Brake Roll Machine SBR-4020

Stock Number
BA9-1006968
$2,299.00

.

Click LeaseLeasing starts at $68 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $68

Product Overview

The SBR-4020 shear brake roll machine has a small floor plan for shops with limited space. You can mount this combination machine to a bench or stand. Get a durable 3 in 1 sheet metal machine for an affordable price!

*40” working width for rolling, bending, and shearing.
*Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions.

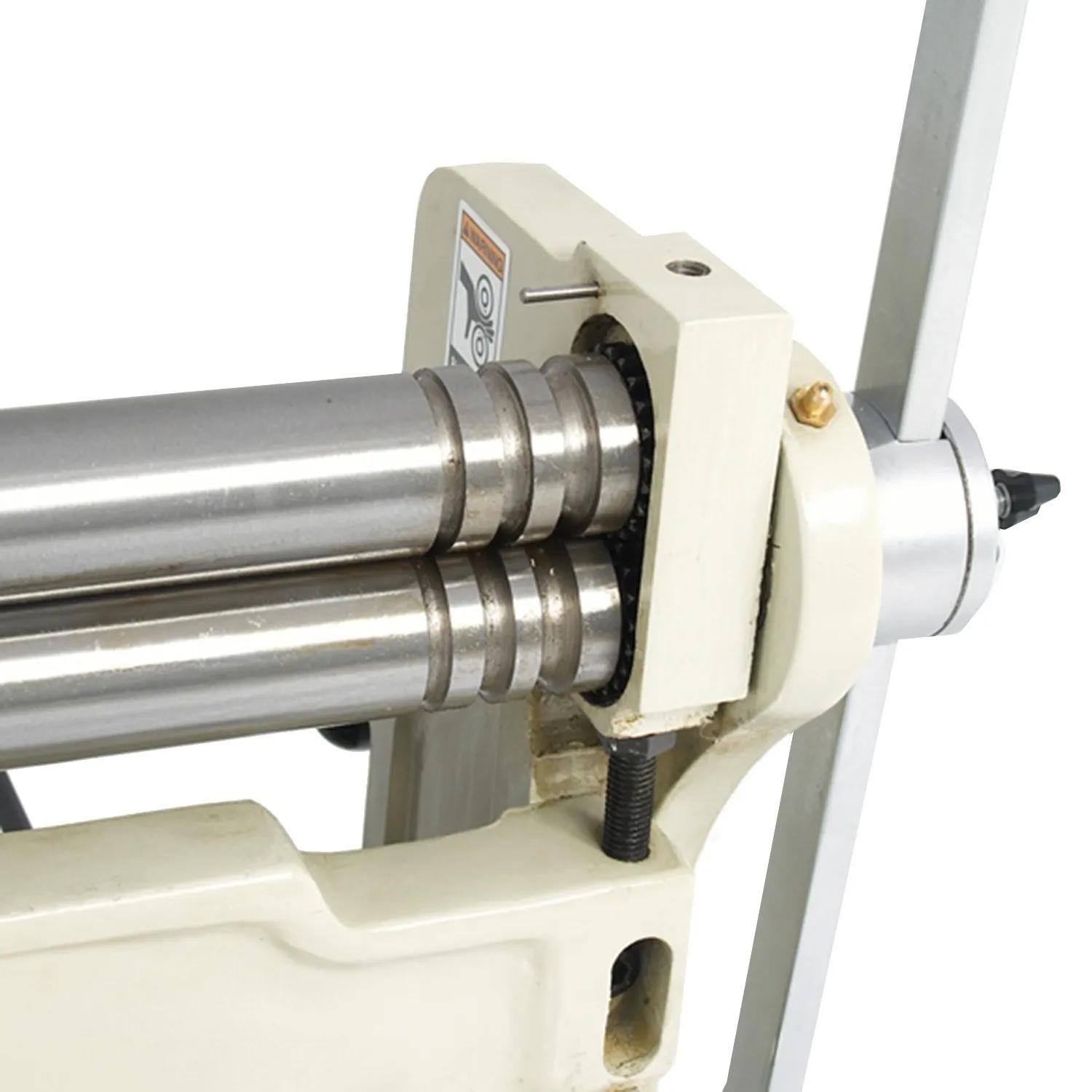

*Manual slip roll on the top portion of the machine can create sheet metal rolls with a 1.70” minimum diameter.
*Hardened rolls with 3 grooves can form wire or small round stock.
*Manual press brake bends up to 90° and includes a V die set.
*Crowning feature lets you set the camber of the tooling so it bends consistently across the machine’s full width.
*Hardened adjustable dies (from 1” to 10-⅛”) on the upper beam of the press brake can make boxes and pans.

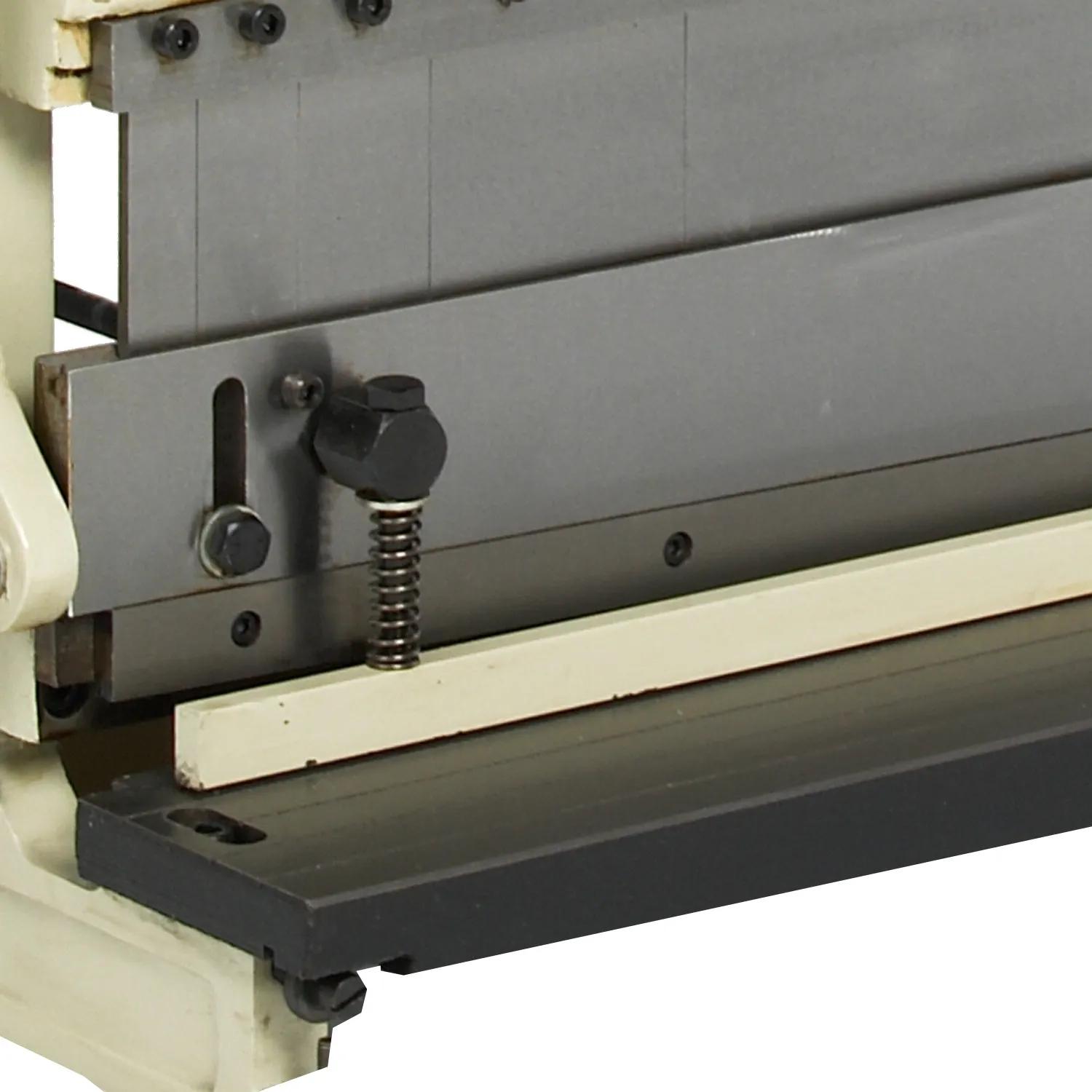

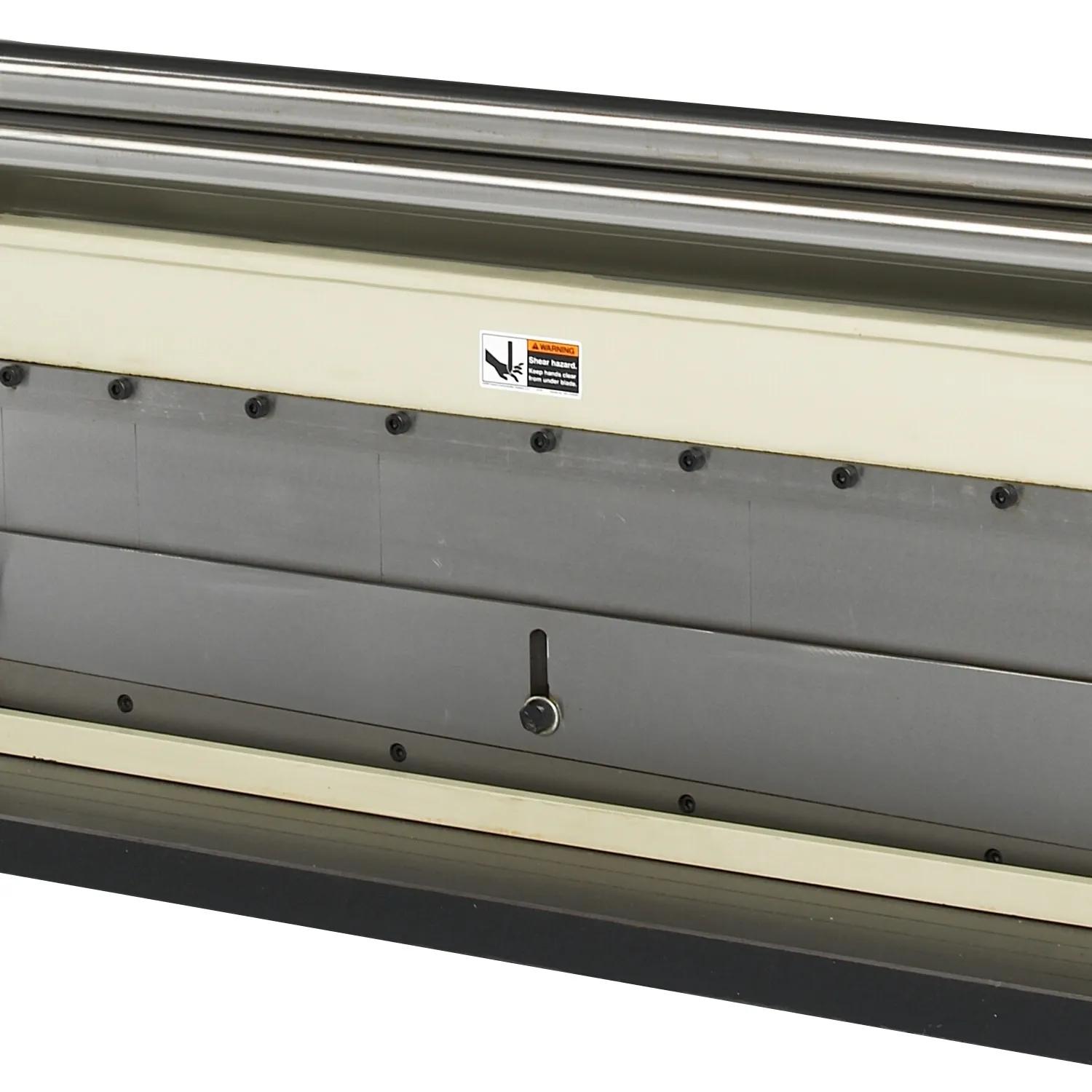

*Metal shear on the bottom uses spring-loaded clamps to hold the material down and produce clean, crisp shearing across the machine.
*Shear blades are hardened and reversible, so they stay sharp.

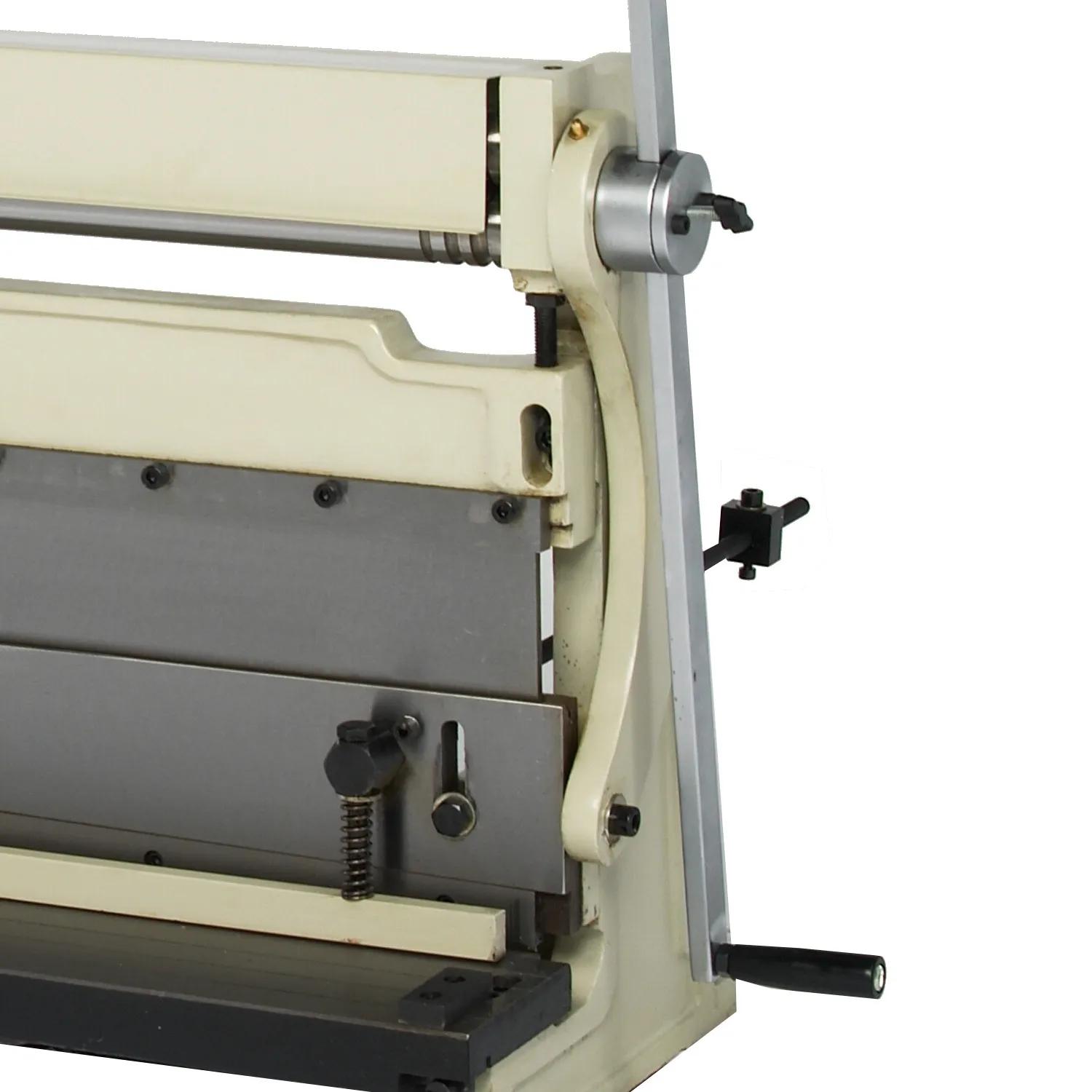

*Large handles with grips on both sides allow 2 operators to combine their force and make the machine easier to use.
*Each 360° turn of the handles gives you a full cycle on each of the machines.
*Back gauge helps ensure repeatability.
*Heavy-duty steel frame adds strength to the 461-pound machine, so it delivers accurate results for many years.
*3 in 1 sheet metal machine covered by a 1-year parts warranty.
*You can count on lifetime technical support by phone. Call up our team of knowledgeable reps whenever you have questions.

3 in 1 sheet metal machine recommended for: Hobbyists, maintenance, and R&D shops.
Looking for a larger or smaller shear brake roll machine? This machine is also available in a 30”-wide version and a 52”-wide model.
Call us at 1-920-684-4990 with any questions you have about this combination 3 in 1 sheet metal machine for sale.


+ Show More
More Information
Stock NumberBA9-1006968
Model NumberSBR-4020
Prop 65Cancer and Reproductive Harm
Warranty1 Year
Weight (Lbs.)465
Gross Weight465.0
Net weight465.0
Rolling Capacity (Gauge)20 ga. (.036”)
Shear Capacity (Gauge)20 ga. (.036”)
