90 Degree 2-1/2" Round Tube Die Set 7" CLR(DS-90-2500T-R700)
Stock Number:
BA9-DS2500TR70090
$1,015.00
Enhanced Bullet 1:
2-1/2" round tube
Enhanced Bullet 2:
7" centerline radius
Enhanced Bullet 3:
90° die set
Enhanced Bullet 4:
For RDB-050
Product Overview

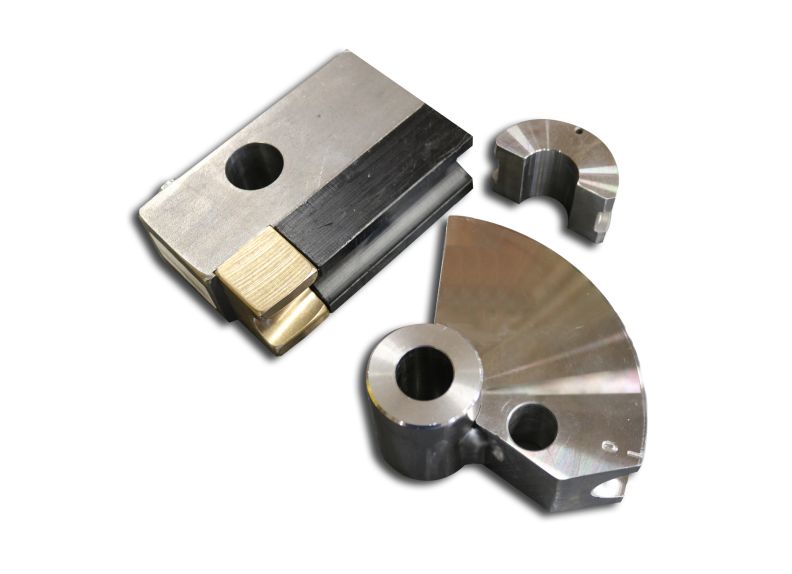

This is a complete die set, including forming die, counter die, and hook sleeve for 2-1/2" Round tube die set with a 7 Inch Center line Radius for making 90 dergree bends on the RDB-050 only. Center line radius is based on .120" wall thickness.
Compatible with RDB-050 only
Allows for 90 degree bends only
1018 billet steel forming die
Replaceable / Consumable counter die inserts for counter die block
Nonproprietary spindle bore
| Stock Number | BA9-DS2500TR70090 |
|---|---|
| Center Line Radius | 7" |
| Max Bend (Degrees) | 90.0000 |
| Model Number | DS-90-2500T-R700 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Wall Thickness | 0.12 |
| Warranty | No value |
| Gross Weight | 52.94 |
| Net weight | 52.94 |
| Material Dimension (In.) | 2-1/2" |
