AH-24H Hinged Planishing Hammer

Call 920-684-4990 for availability
Stock Number
BA9-AH24H
$2,199.00
Click LeaseLeasing starts at $62 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $62

Product Overview

The most versatile planishing hammer on the market, this handheld air-powered planishing hammer lands 3,200 beats per minute to give you a smooth finish. The AH-24H has a unique hinged spine that allows you to get into spaces normally not available. It arrives fully assembled with 7 dies.


+ Show More

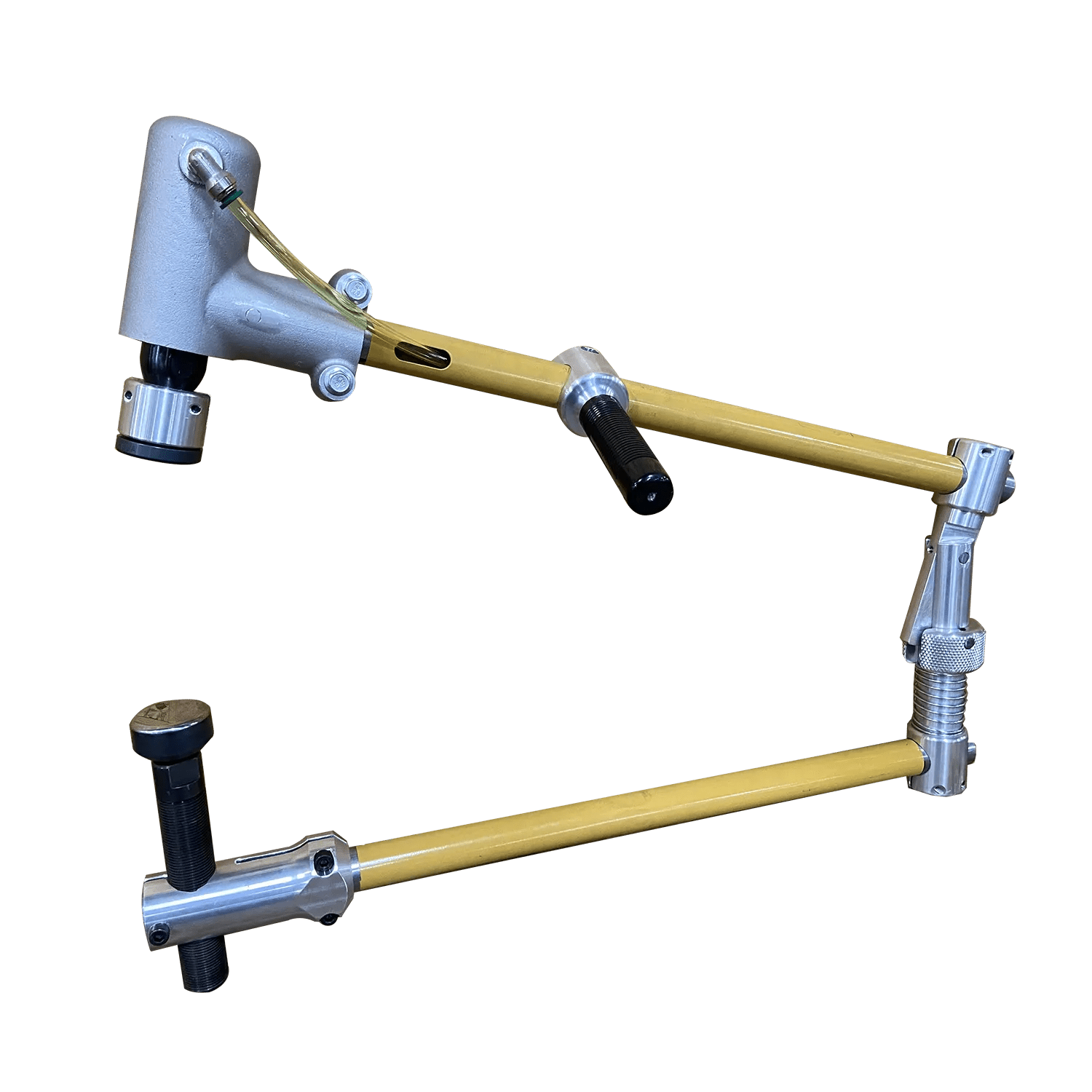

Hinged spine - Allows for quick opening of the throat area for hard-to-reach work areas.
16 gauge mild steel capacity.
Adjustable throat depth; comes standard with 24".
Air motor runs on just 90-120 psi.
Completely rebuildable air motor lets you change the characteristics of the hit for your application.
Top and bottom supports have adjustable length for offset planishing.

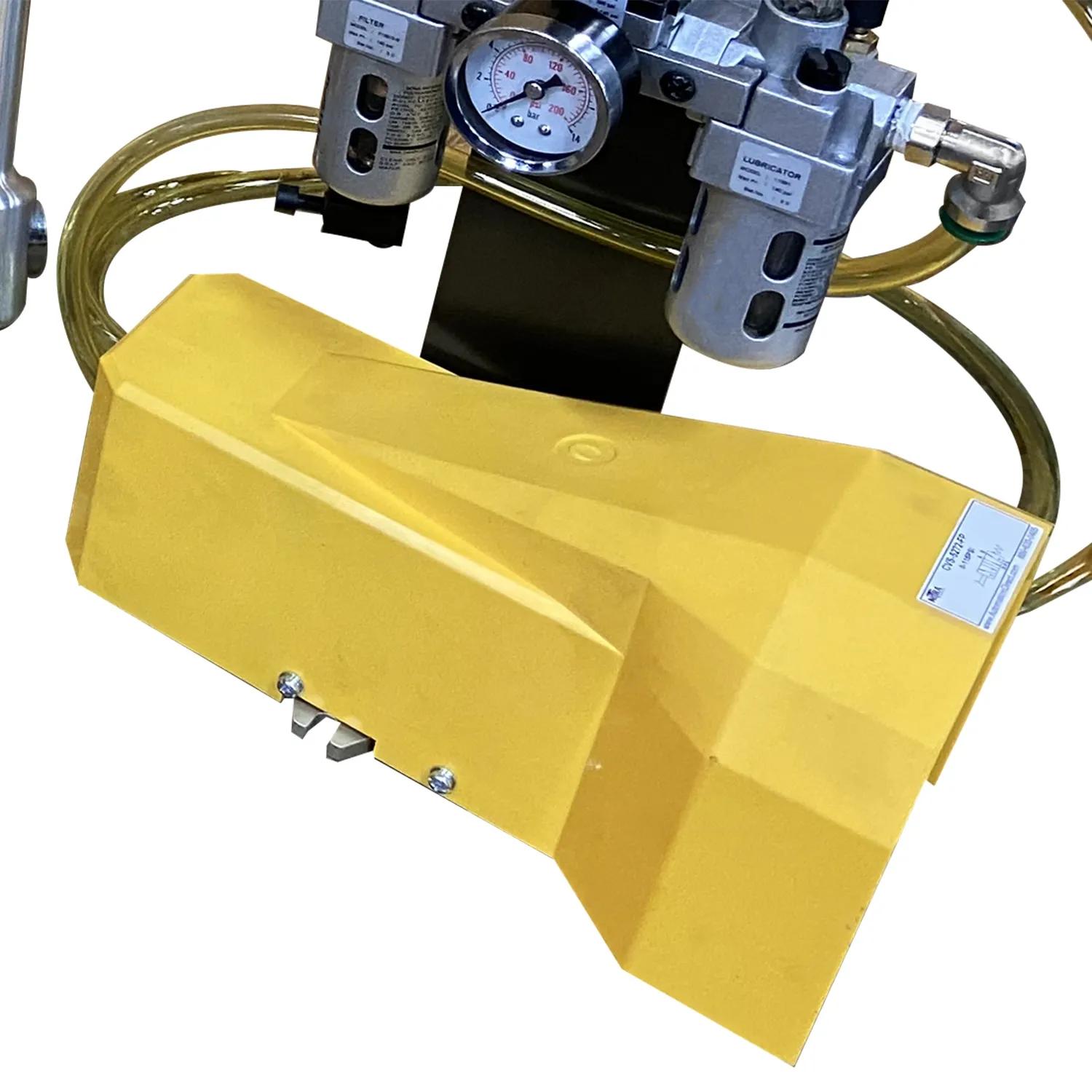

Foot pedal operation leaves your hands free to move the material.
Includes 7 radius dies: flat, 2”, 3”, 6”, 8”, 12”, 24" and 36”.
Captured 2.5" dia. top die; rubber O-ring detent keeping the top die from falling out when the material is removed when the hinge is opened or when the material is removed

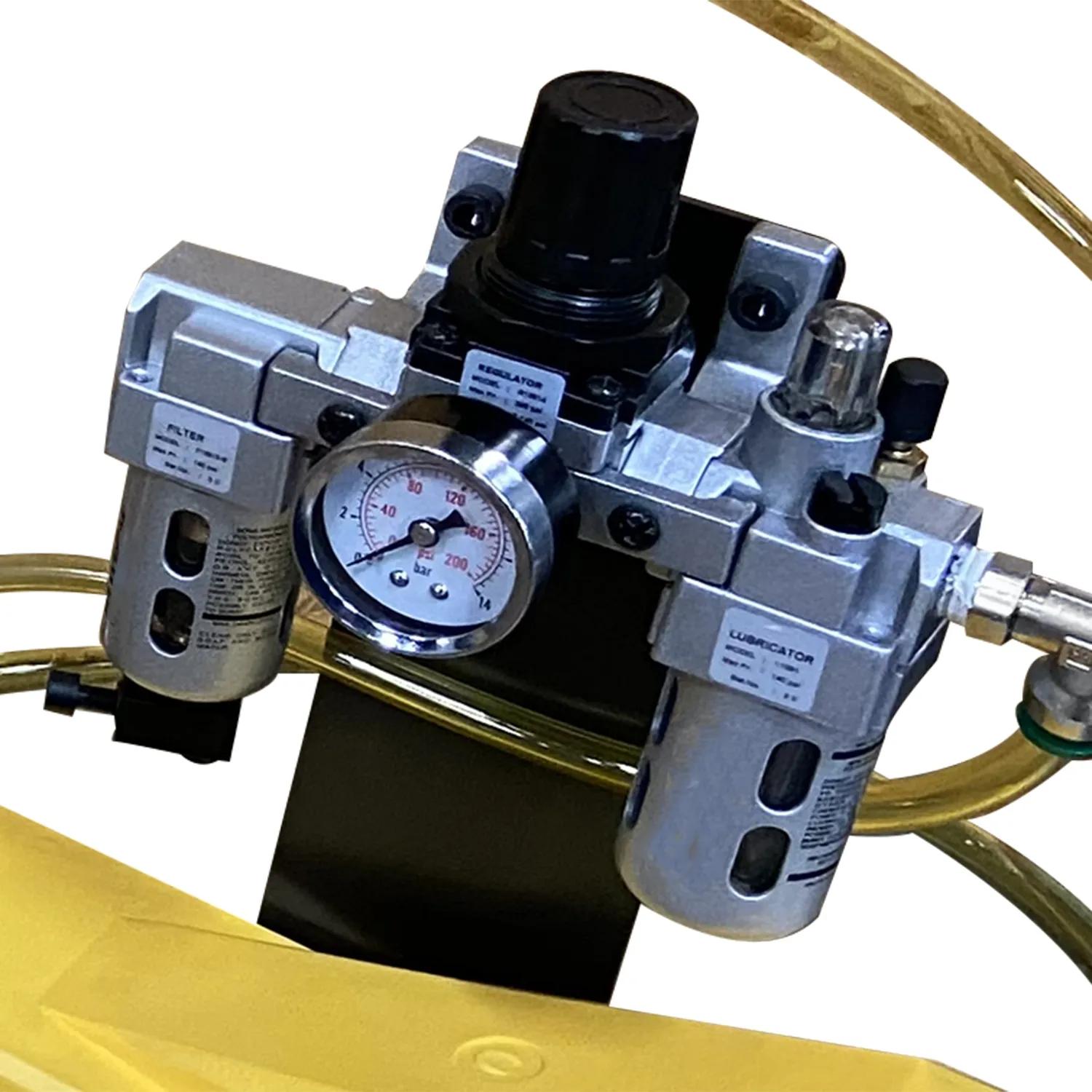

Automatic oiler keeps your machine running smoothly and saves you time on maintenance.
More Information
Stock NumberBA9-AH24H
Aluminum Capacity (Gauge)14.0000
Included ToolingFlat, 2", 3", 6", 12", 24", 36" Radii
Input Power90 - 120 Psi.
Mild Steel Capacity (Gauge)16.0000
Model NumberAH-24H
Prop 65Cancer and Reproductive Harm
Range of Speeds3200 beats / minute
Shipping Dimensions (L x W x H) (In.)60x44x48
Throat Depth (In.)24" adjustable
Warranty1 Year
Weight (Lbs.)35
Gross Weight32.0
Net weight32.0
Tooling Height Adjustment (In.)11
