Product Details
Industrial Construction: The Baileigh DP-1250VS Variable Speed Drill Press is built with a heavy cast iron base, wide column, and robust table casting to resist flexing and provide rigidity under heavy drilling loads.

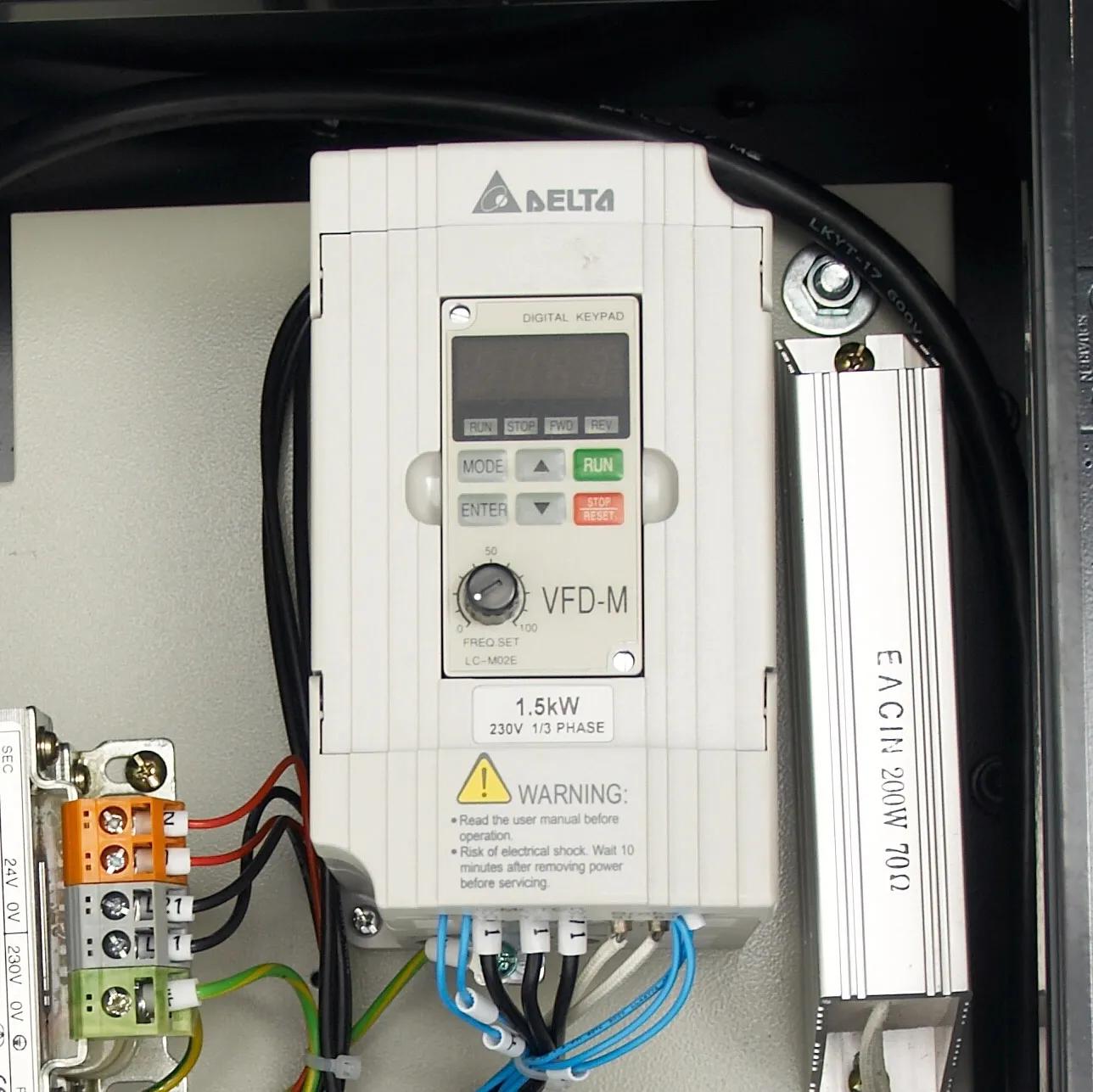

Variable Speed Control: Featuring a 2 HP, 220 V single-phase inverter-driven head with a speed potentiometer dial and digital readout, this drill press offers smooth variable speed from 85 to 2000 RPM for a wide range of drilling and tapping tasks.

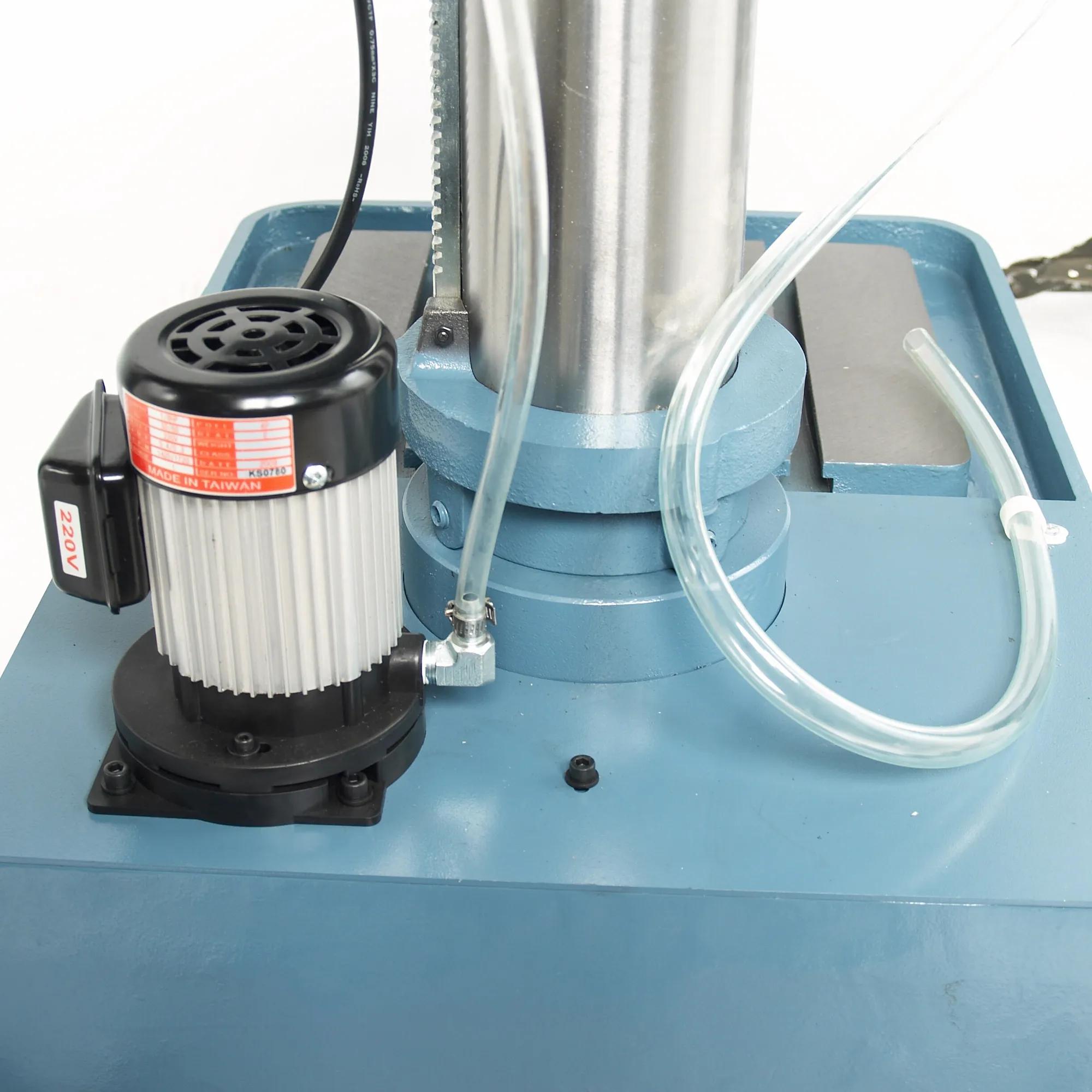

Shop Versatility: Designed for fabrication and machine shops, the DP-1250VS handles up to 1.25″ mild steel drilling capacity, includes an auto-reversing tap function, and features a base-mounted coolant system with spray behind a safety guard for extended tooling life.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Swing Capacity: This drill press provides a 20.8″ swing for drilling larger workpieces.
- Drill Capacity: This machine drills up to 1.25″ through mild steel at full capacity.
- Motor Power: A 2 HP inverter-driven motor supplies variable speed drive power.
- Power Requirement: The unit runs on 220 V single-phase shop power.

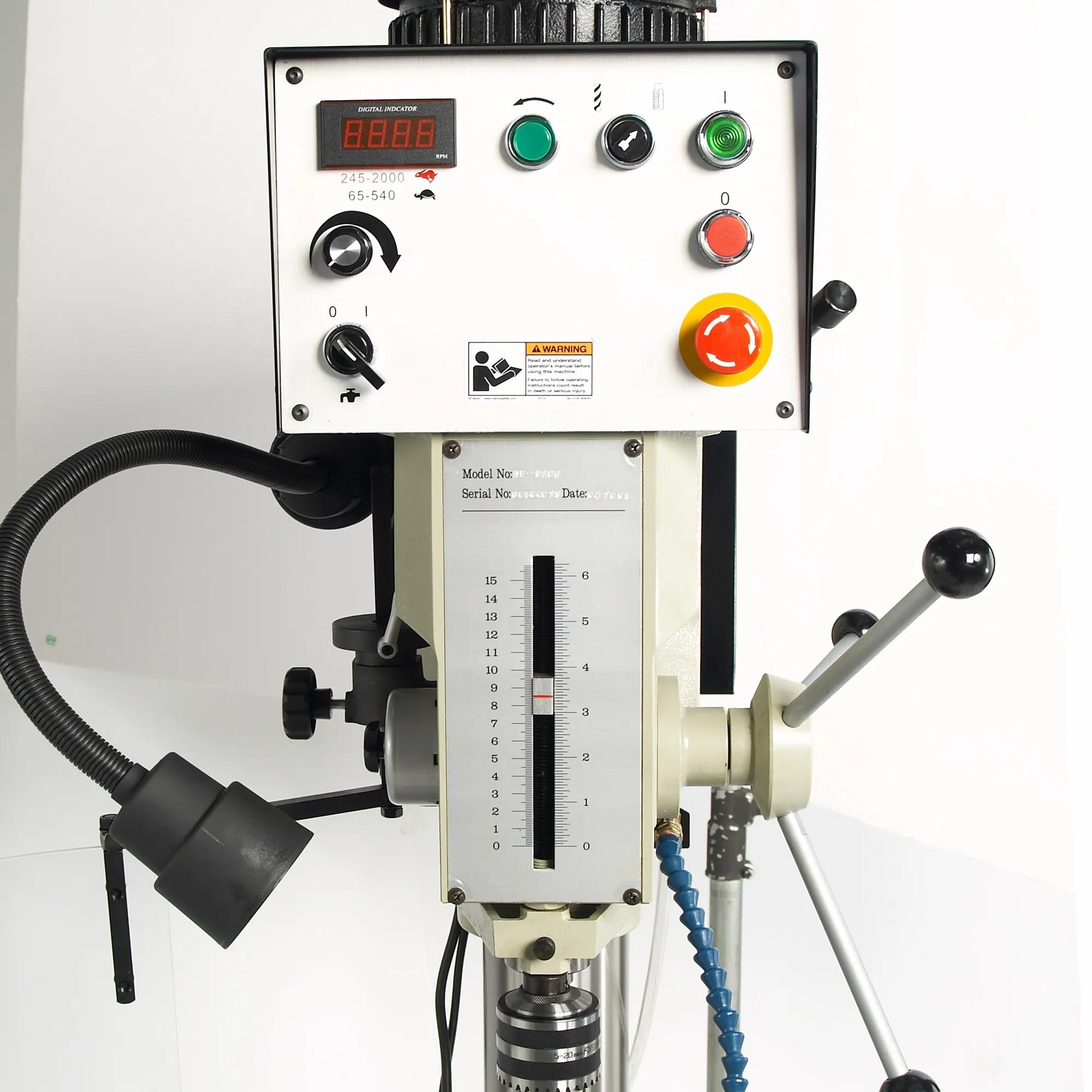

- Variable Speed: This drill press offers continuous speed adjustment from 85 to 2000 RPM through the inverter control.
- Digital RPM: A digital readout displays actual spindle RPM for precise speed control.
- Auto Reverse: An automatic reversing tap function supports efficient tapping operations.

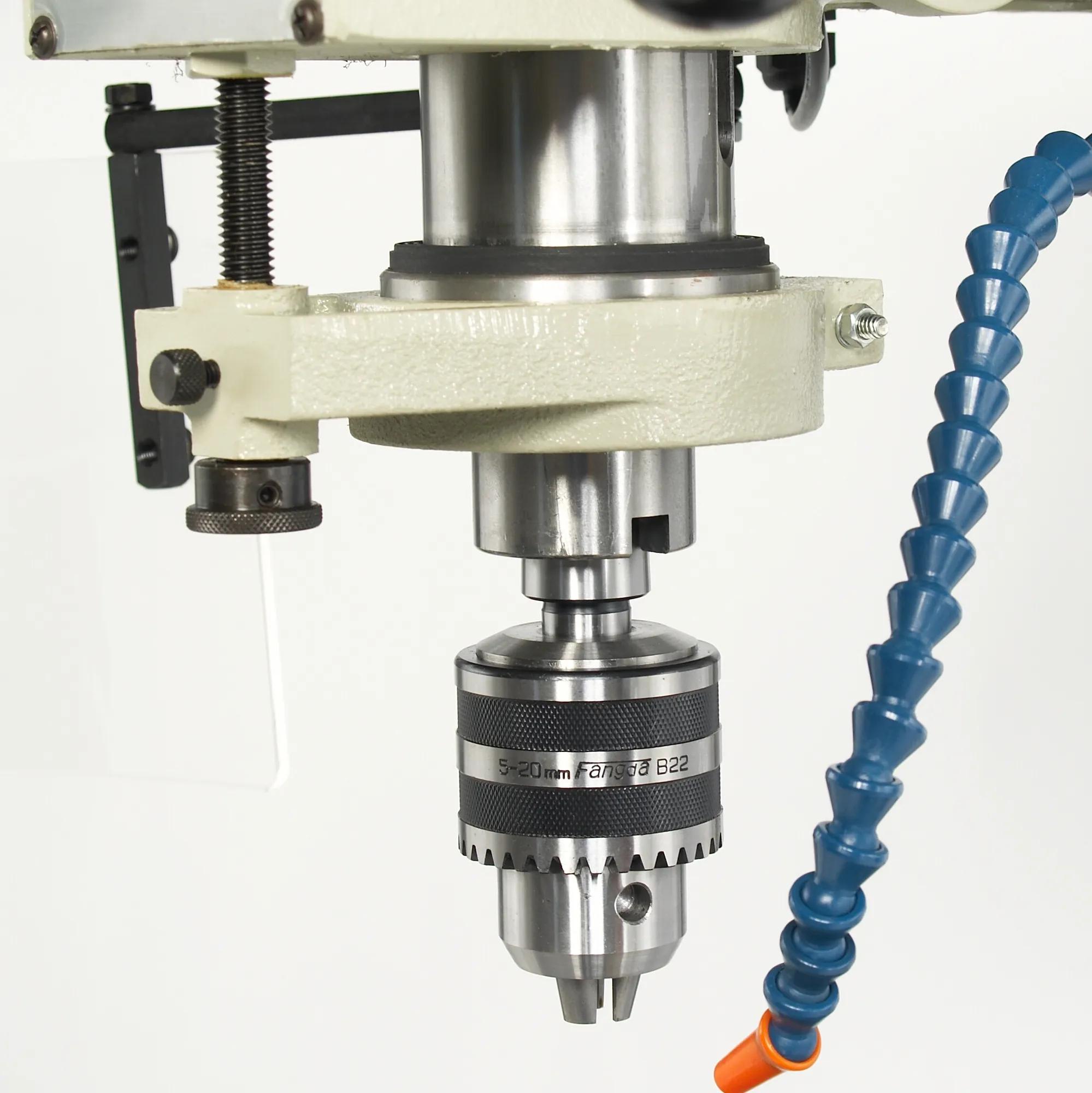

- Coolant System: An integrated coolant system sprays coolant at the spindle to extend bit and tap life.

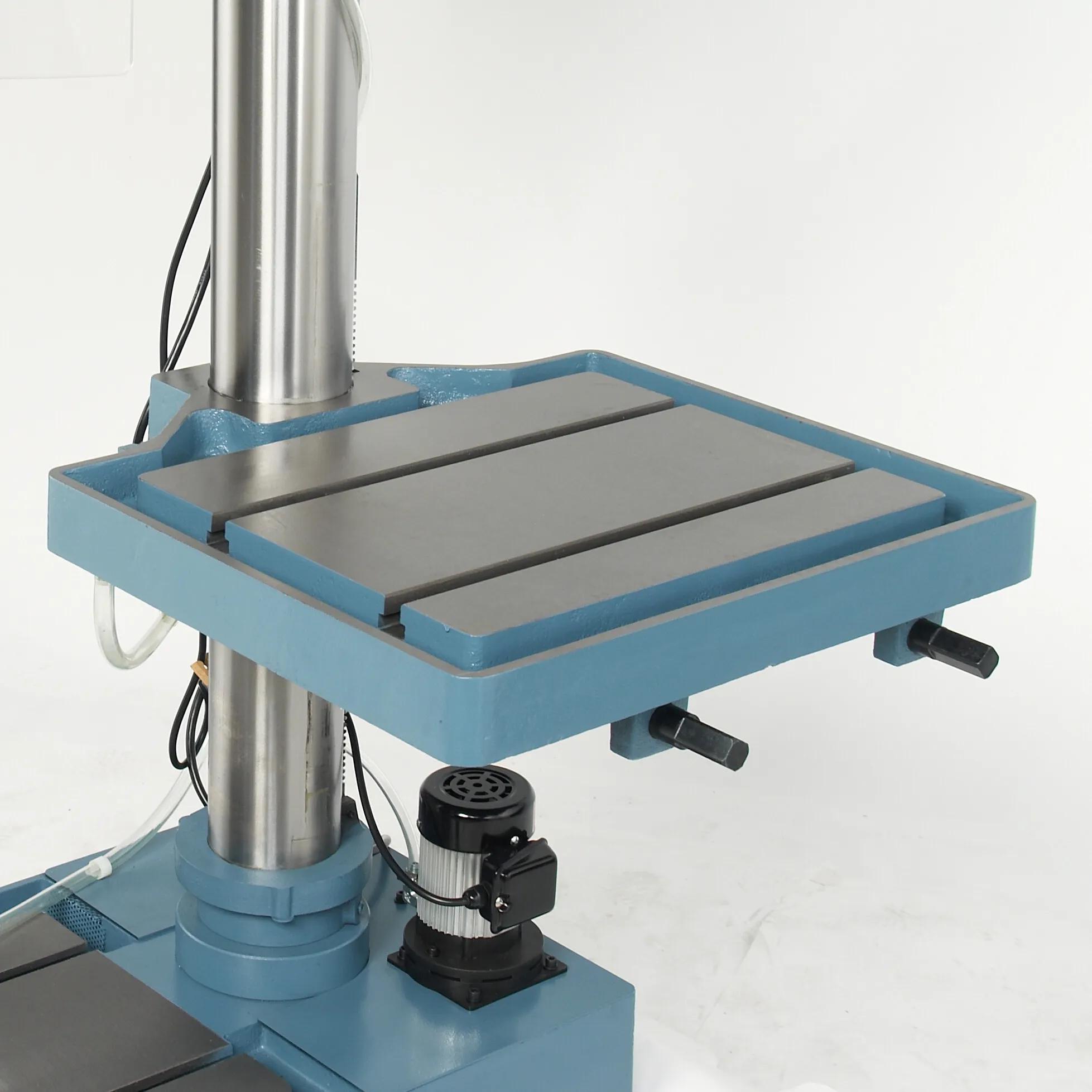

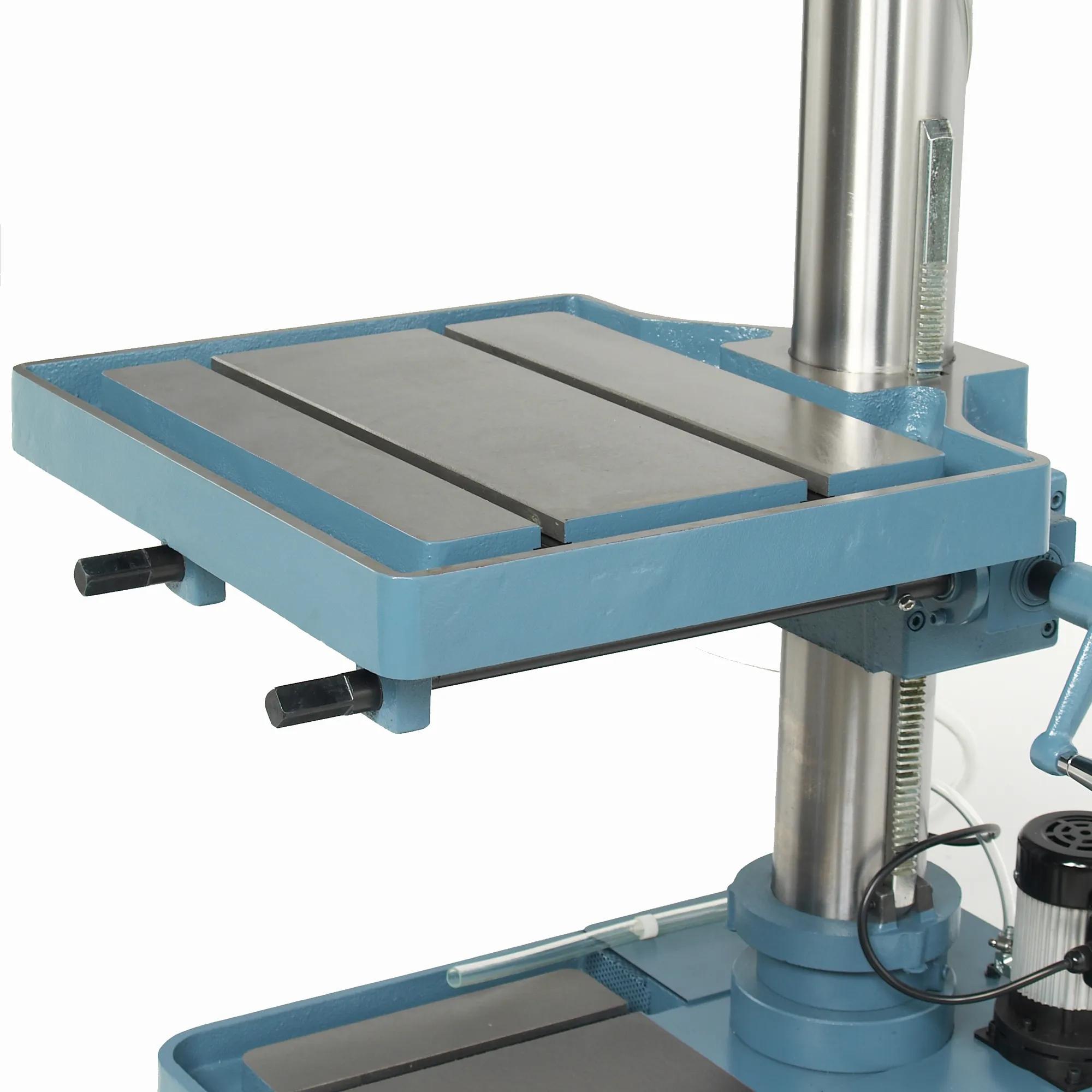

- Workholding: The heavy casting base and 22″ x 18.5″ table with large .625″ T-slots secure vises or fixtures.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1002869
- Drilling Capacity Mild Steel1.25 in.
- Gross Weight735.0
- Horse Power (HP)2
- Input Power220V Single Phase
- Max. Spindle Speed245 to 2000 rpm
- Min. Spindle Speed85 to 540 rpm
- Model NumberDP-1250VS
- Motor PhaseSingle
- Net weight735.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Spindle Speeds85 to 2000 RPM
- Swing20.8 in.
- Tapping Capacity Mild Steel.625 in.
- Warranty1 Year
