Product Details
Industrial Capability: The Baileigh SW-501 combines five heavy-duty workstations into one compact hydraulic ironworker capable of punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching for fabrication shops and maintenance departments.
Power & Performance: Powered by a 3 HP motor with 220 V 1-phase power, this machine generates 50 tons of vertical hydraulic force at each station for clean, efficient metalworking operations.
Built for Precision: With pure vertical movement to minimize deformation, large swing-away stripper tooling, and integrated tables with meter guides, the SW-501 produces repeatable results with reduced material waste.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Motor power: Driven by a 3 HP motor on 220 V 1-phase electrical supply.
- Hydraulic force: Provides 50 tons of vertical force at all workstations.

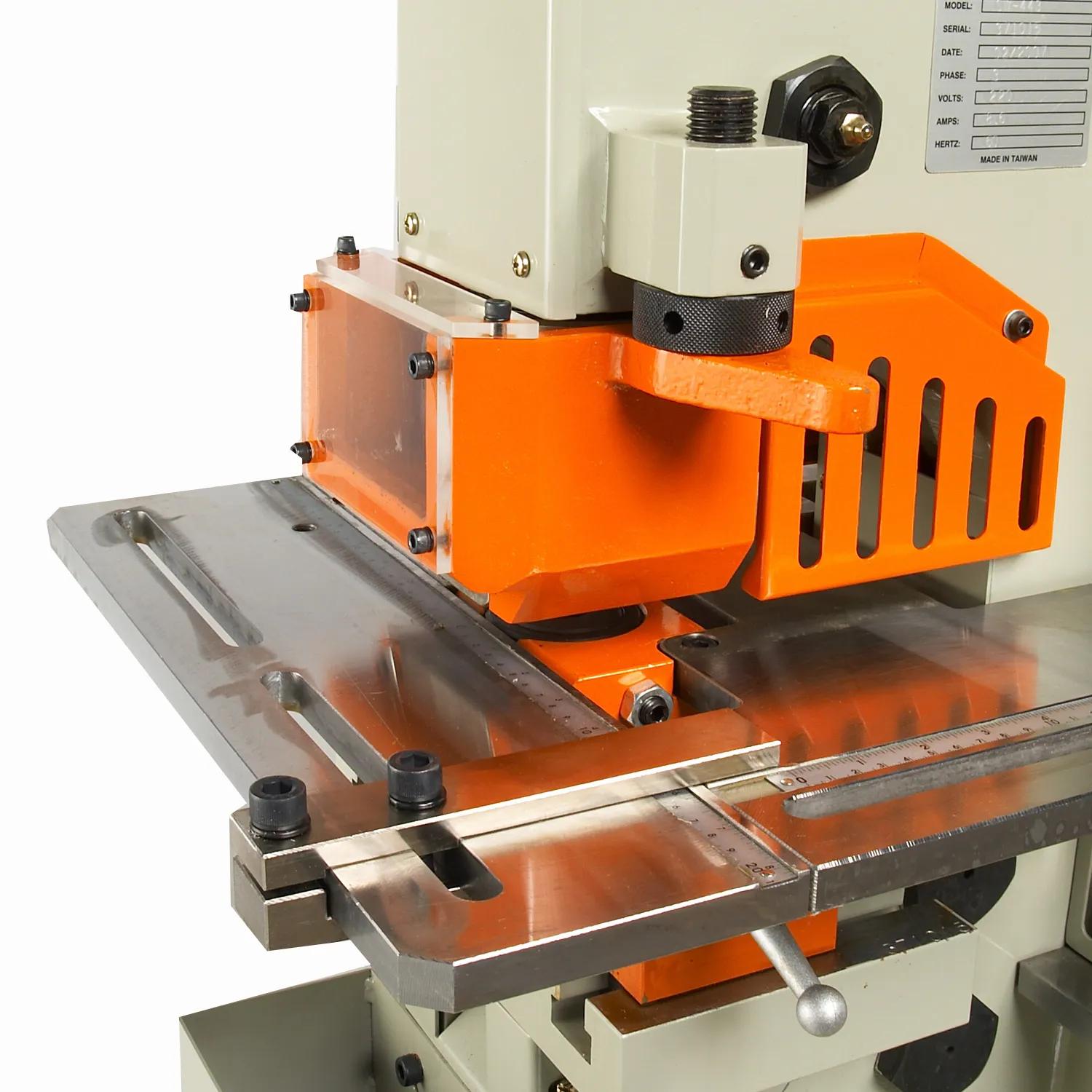

- Punch capacity: Punch station supports .875" x .625" maximum hole size.

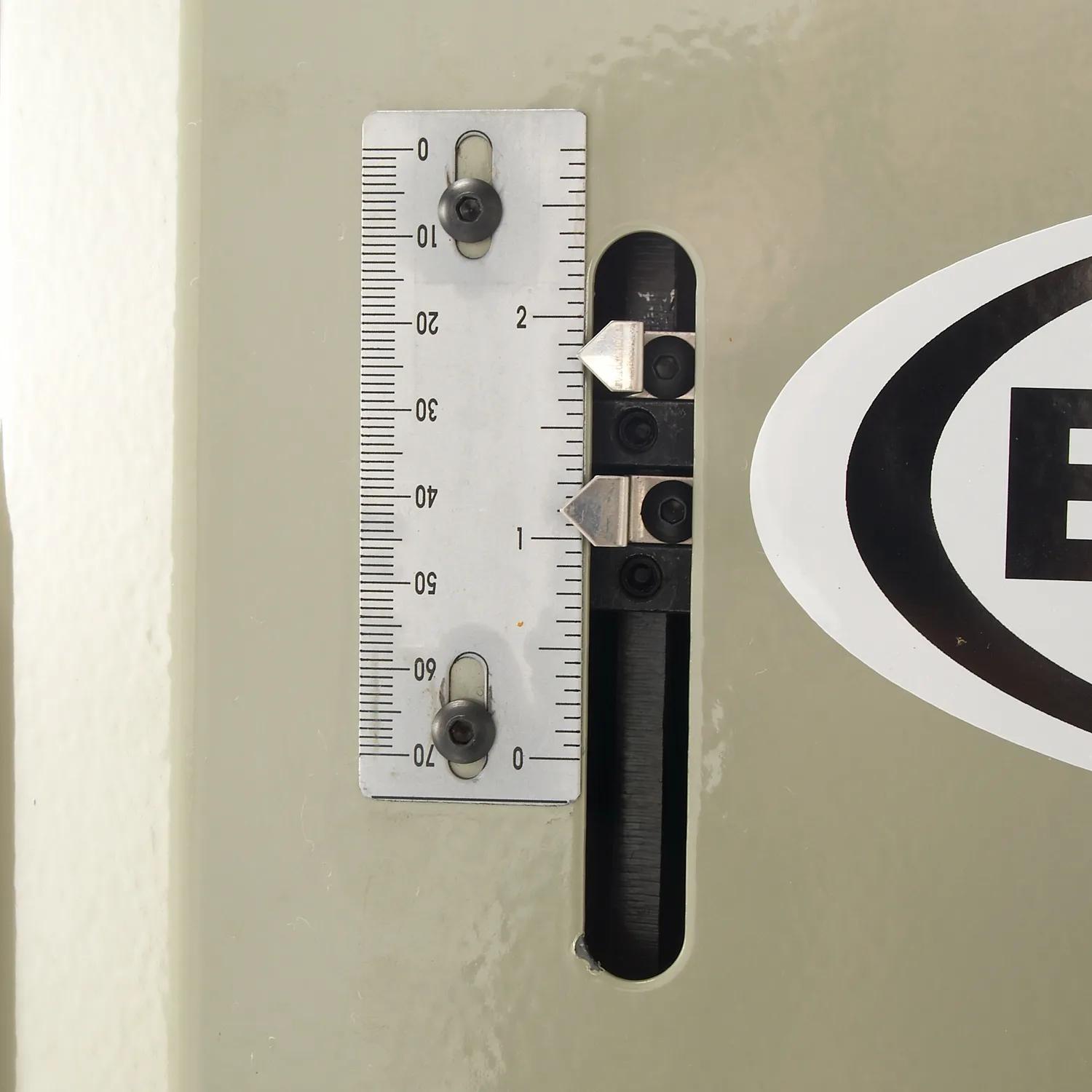

- Stroke length: Adjustable stroke up to 1.125" for controlled punching and shearing.
- Throat depth: Features a 6" throat for versatile material placement.

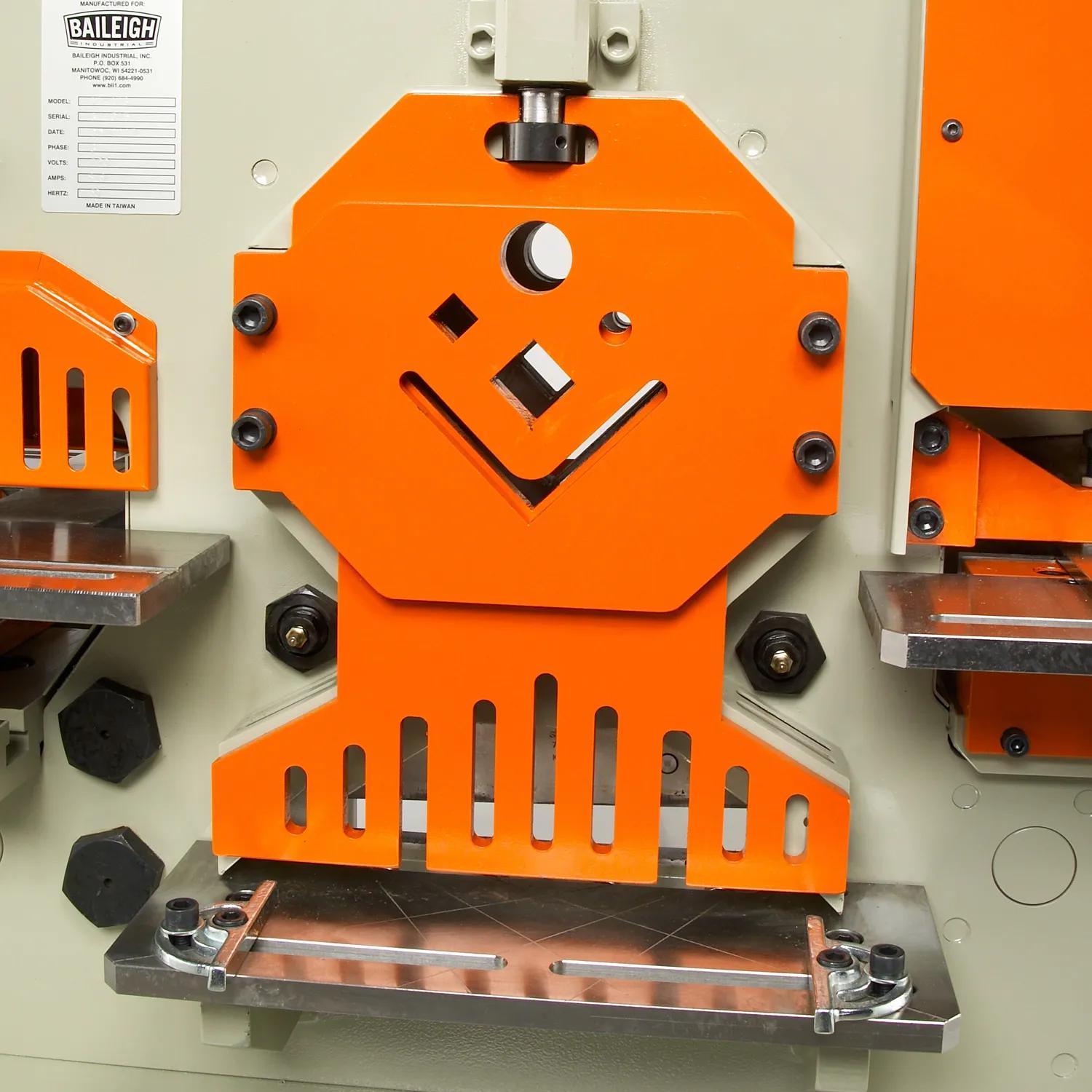

- Workstations: Includes five integrated stations for punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.

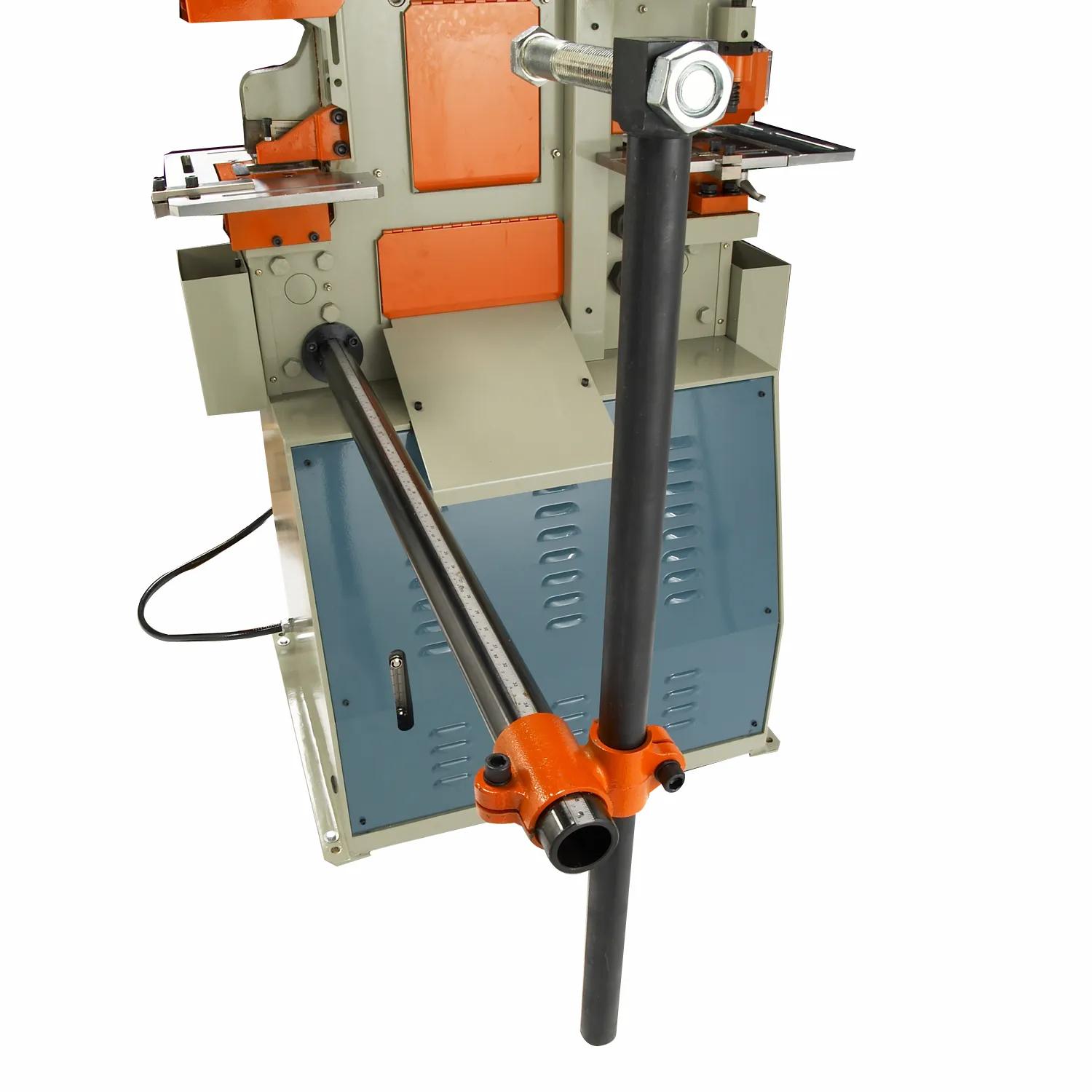

- Material guides: Large two-piece tables with meter guides support many shapes and profiles.

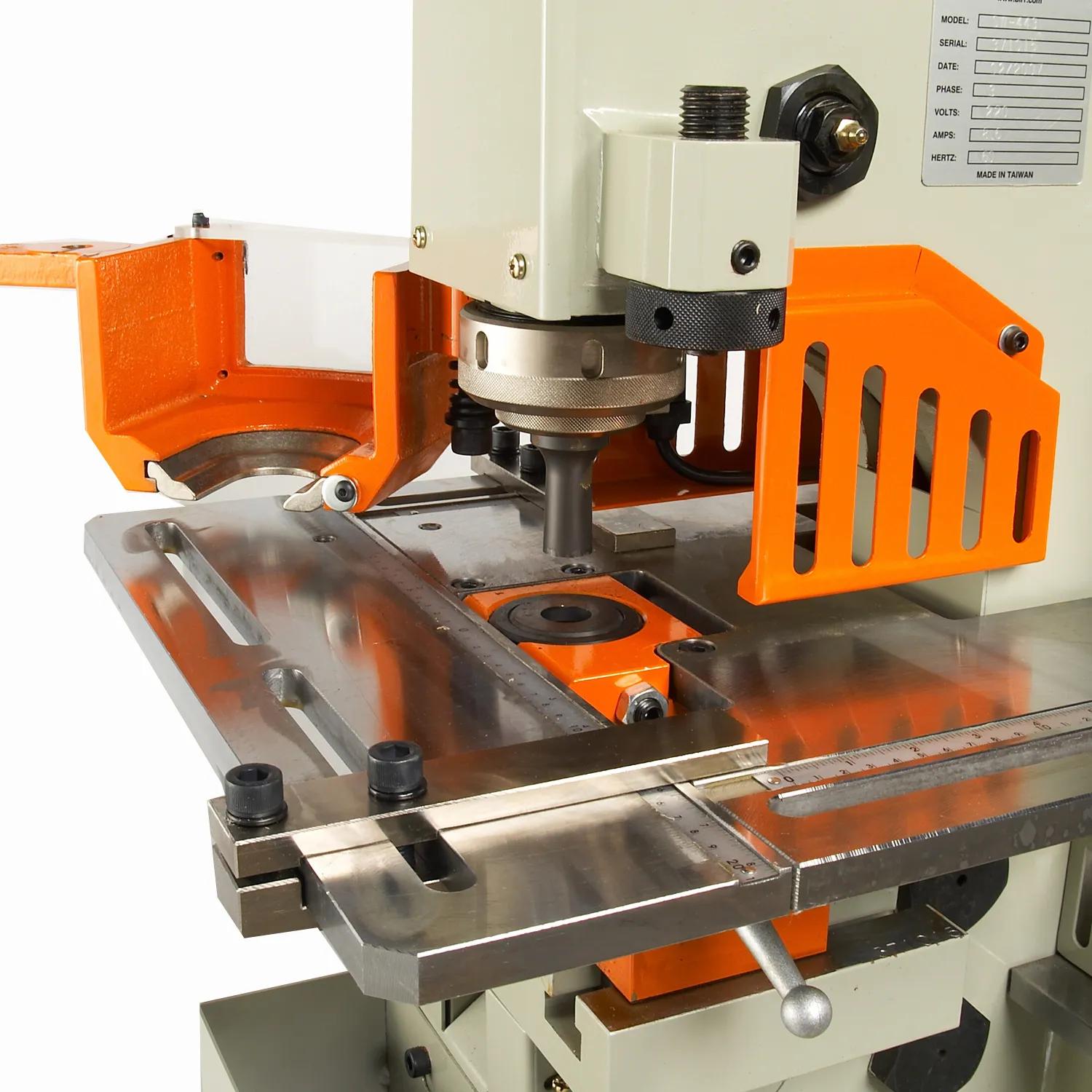

- Tooling change: Swing-away stripper design speeds tooling changes and setup.
- Foot control: Foot pedal operation allows safe hands-free actuation.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1007789
- Gross Weight1920.0
- Hydraulic Reservoir (Gal.)
- Hydraulics (PSI)
- Input Power220V Single Phase
- Model NumberSW-501
- Motor HP3
- Net weight1920.0
- Old Material Number1007789
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Punch Max Capacity.875 in. x .625 in.
- Stroke Length1.125 in.
- Throat Depth6 in.
- Warranty1 Year
