BS-20SA-DM Semi-Automatic Dual-Miter Bandsaw, 3Ph 220V
Call 920-684-4990 for availability
Stock Number:
BA9-1001298
$22,759.00
Enhanced Bullet 1:
220V or 440V 3-phase models
Enhanced Bullet 2:
13" round capacity at 90°
Enhanced Bullet 3:
Miters 45° left, 60° right
Enhanced Bullet 4:
1.25" blade width
 | Click here to explore affordable leasing options today! |
Product Overview
We built this semi-automatic dual miter band saw with a cast iron bow and steel frame to offer decades of reliable quality. Its hydraulic system will speed up production and save you effort.
Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.

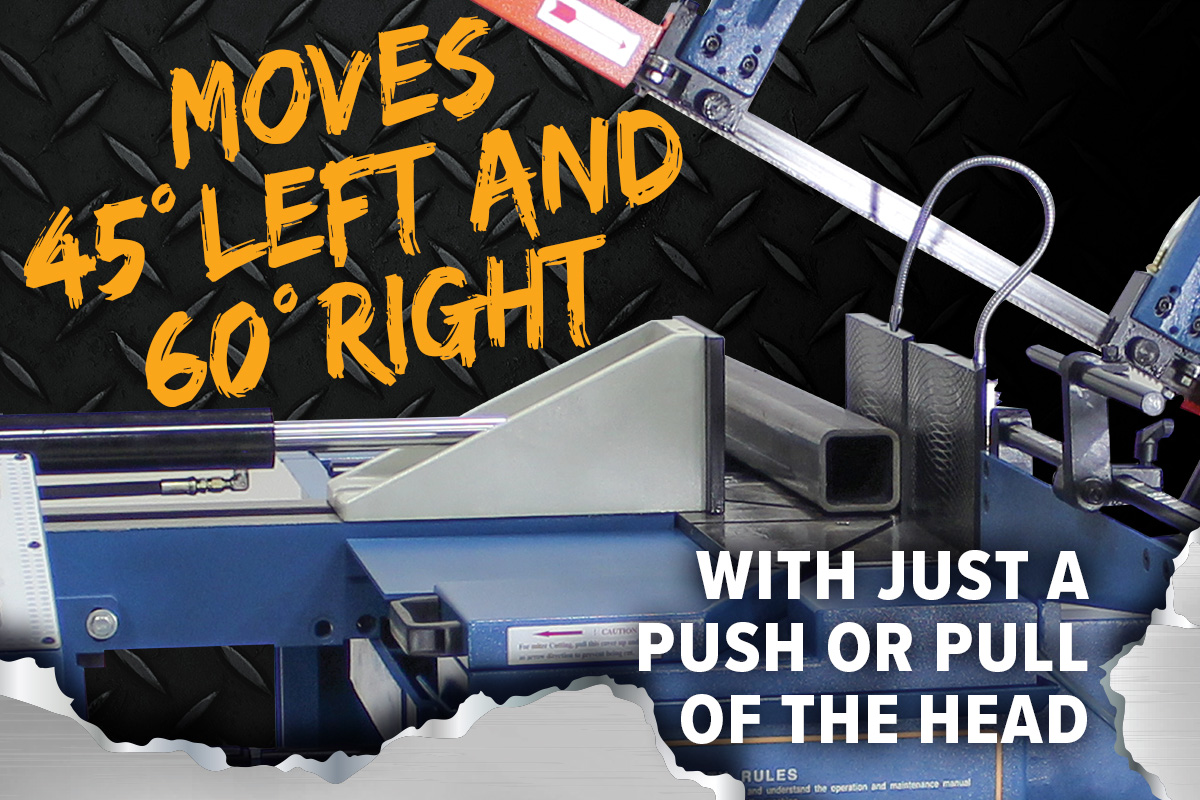

Dual-mitering band saw can move 45° left and 60° right. Just push or pull the head to the right angle

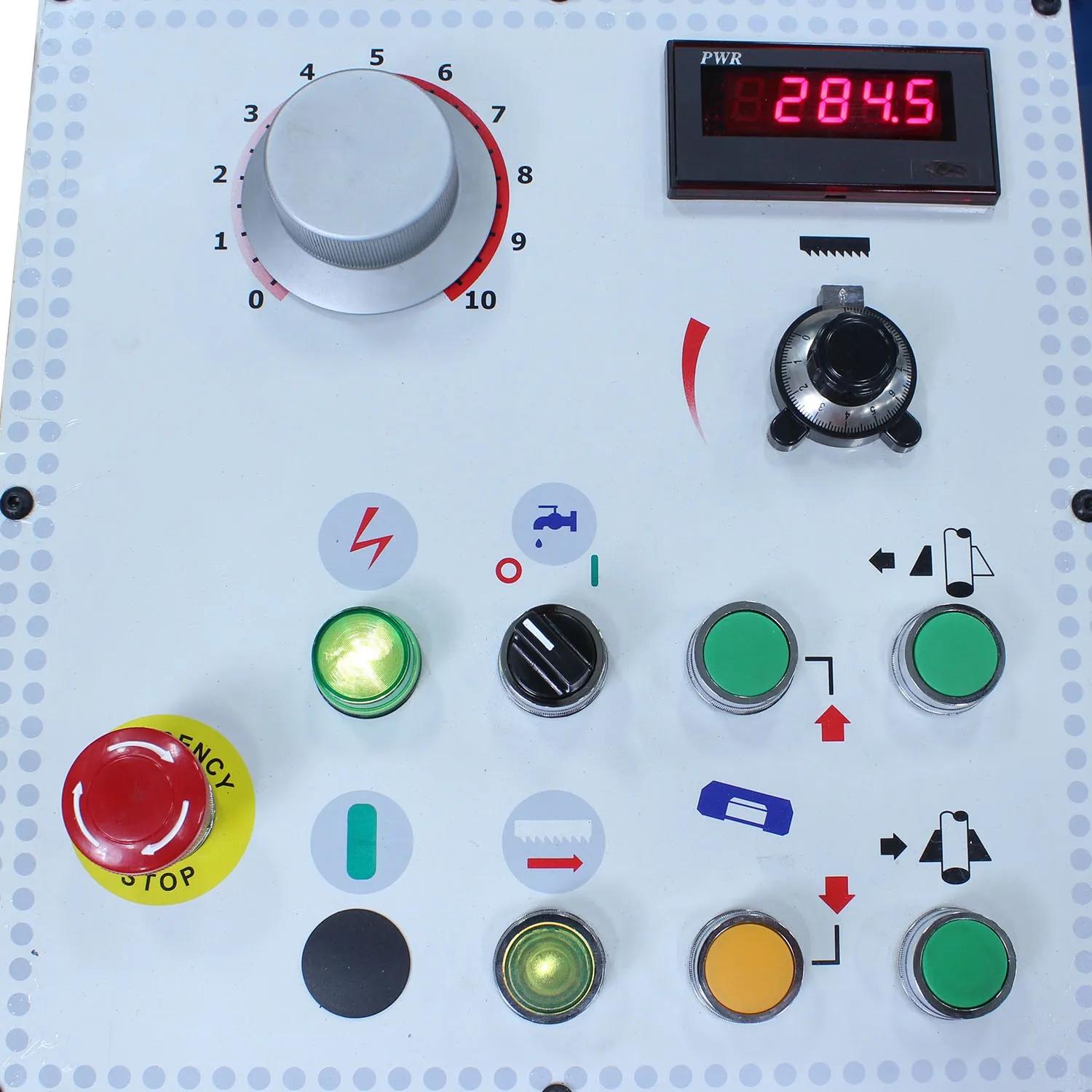

Inverter drive allows for infinite blade speed adjustments from 69 to 306 fpm with digital readout (DRO) which allows you to reproduce settings with ease
Maximum capacity of 13” OD round at 90° with fine-tuning speed capabilities for materials like mild steel, bronze, or aluminum

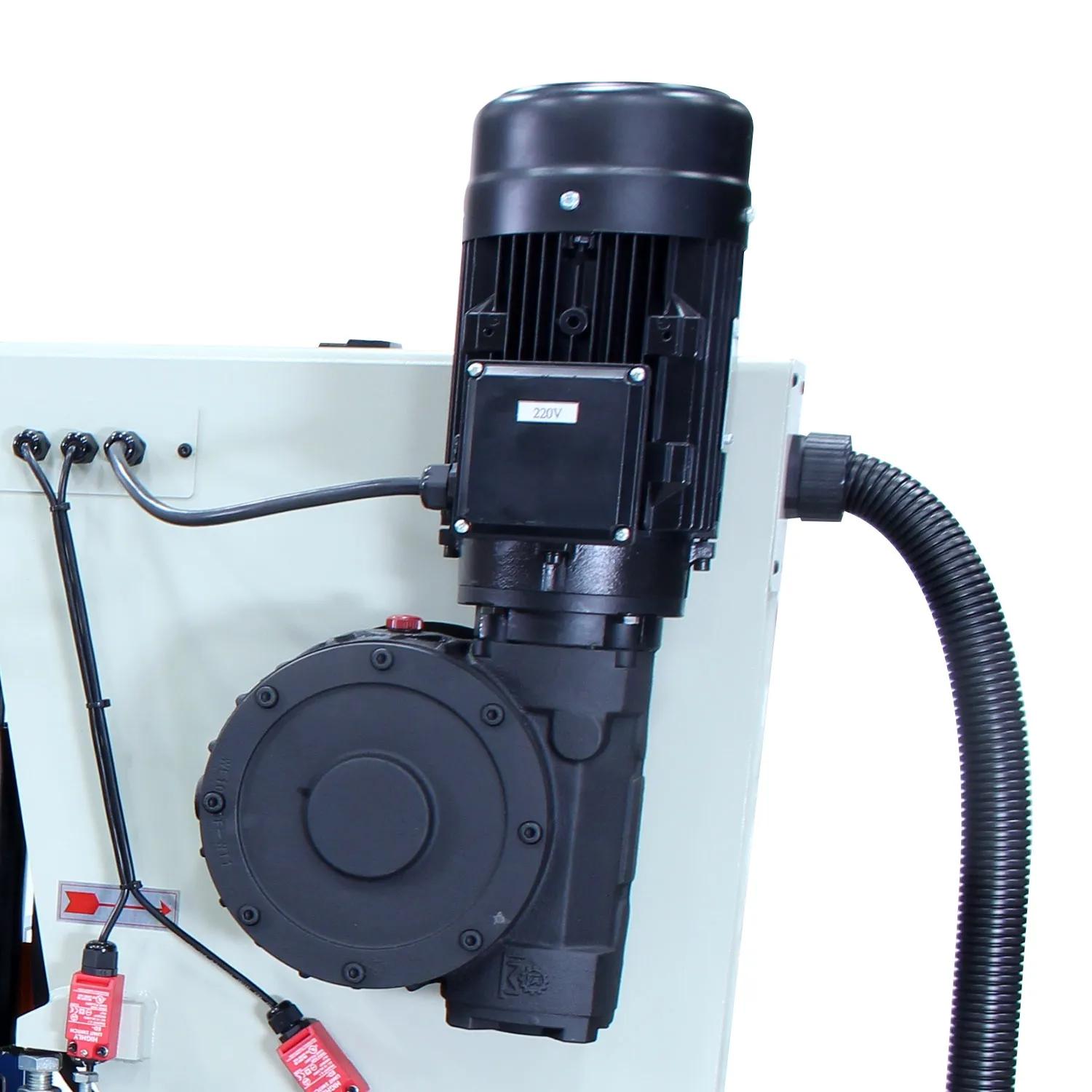

Available in 220-volt or 440-volt triple-phase models (440-volt is a special order) and accepts a 1.25” blade (included). The large size makes faster and more accurate cuts

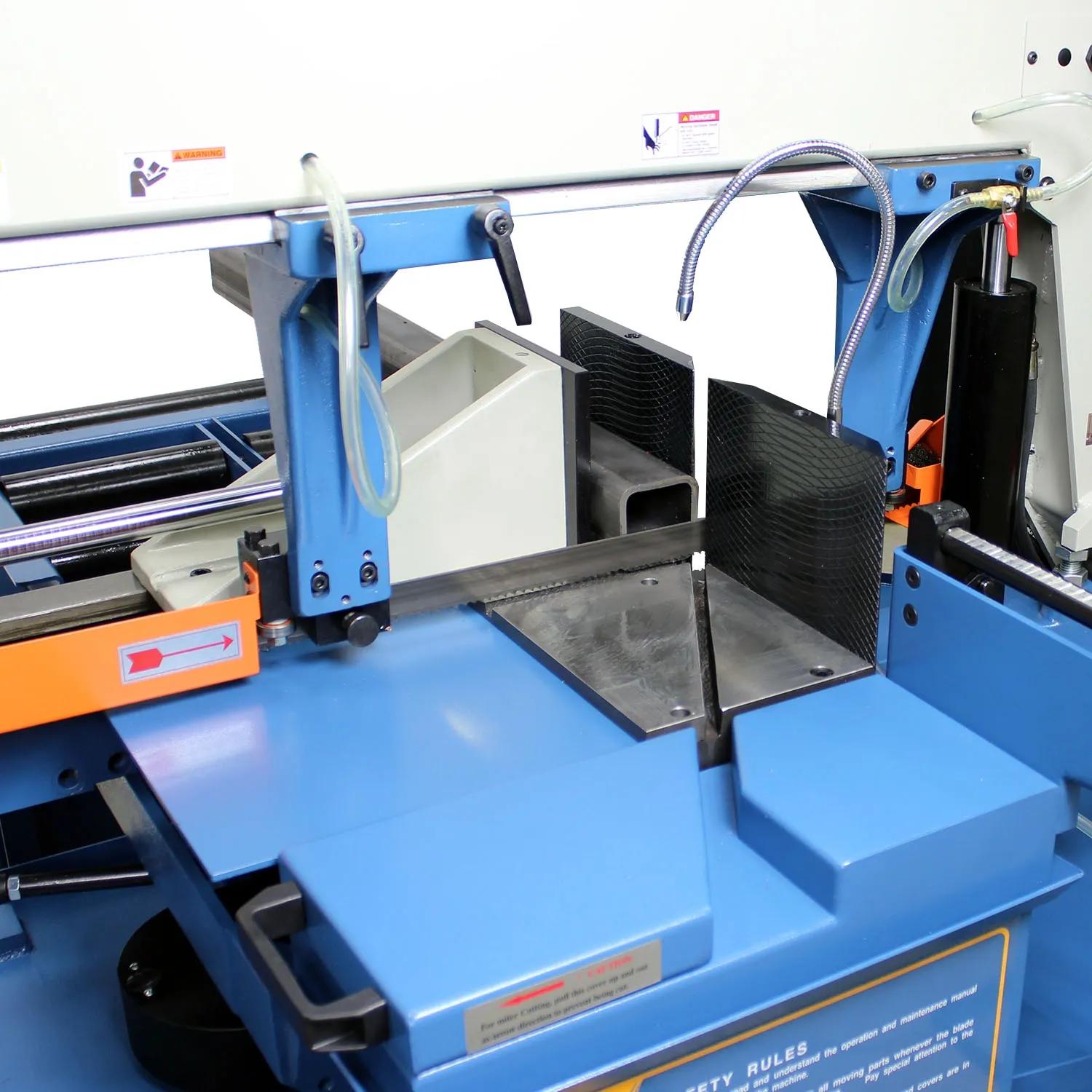

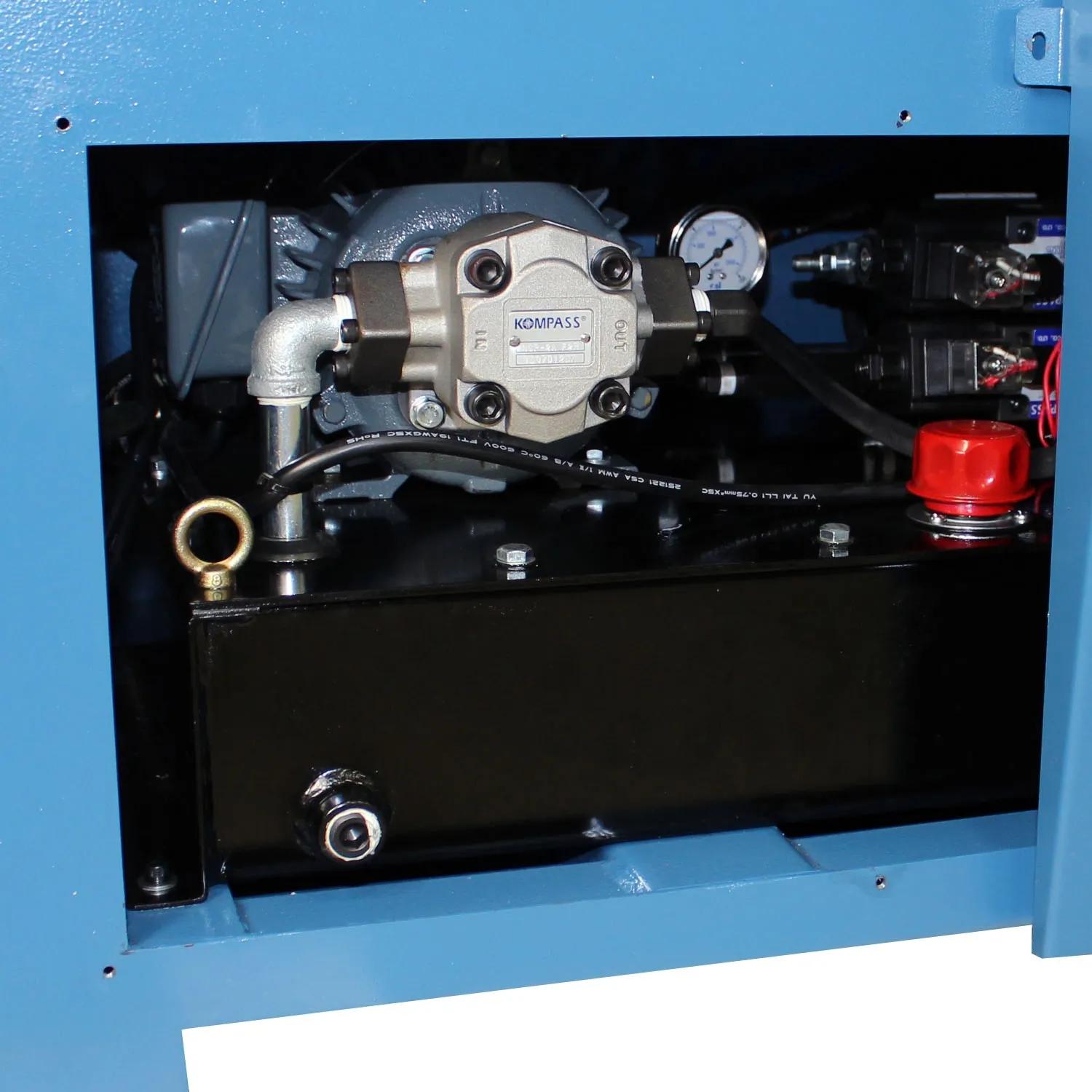

Hydraulic vise, down feed, and bow return make production runs more efficient. Set down the material, press start, and the saw will automatically handle the rest
You can adjust the hydraulic descent pressure (depending on the material) to achieve faster cut times and longer blade life

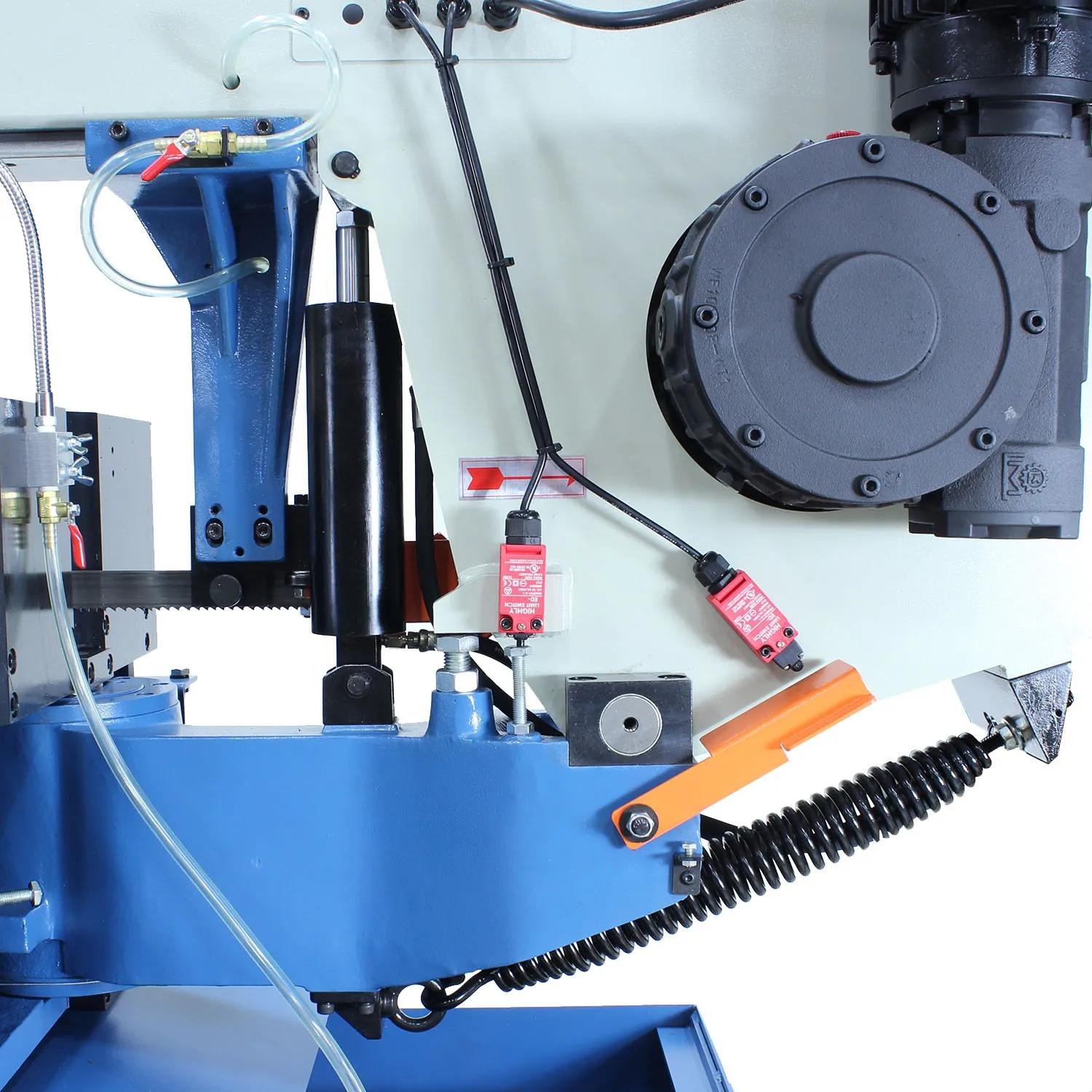

Cutting head return position can be altered for faster cycle times between cuts on smaller pieces

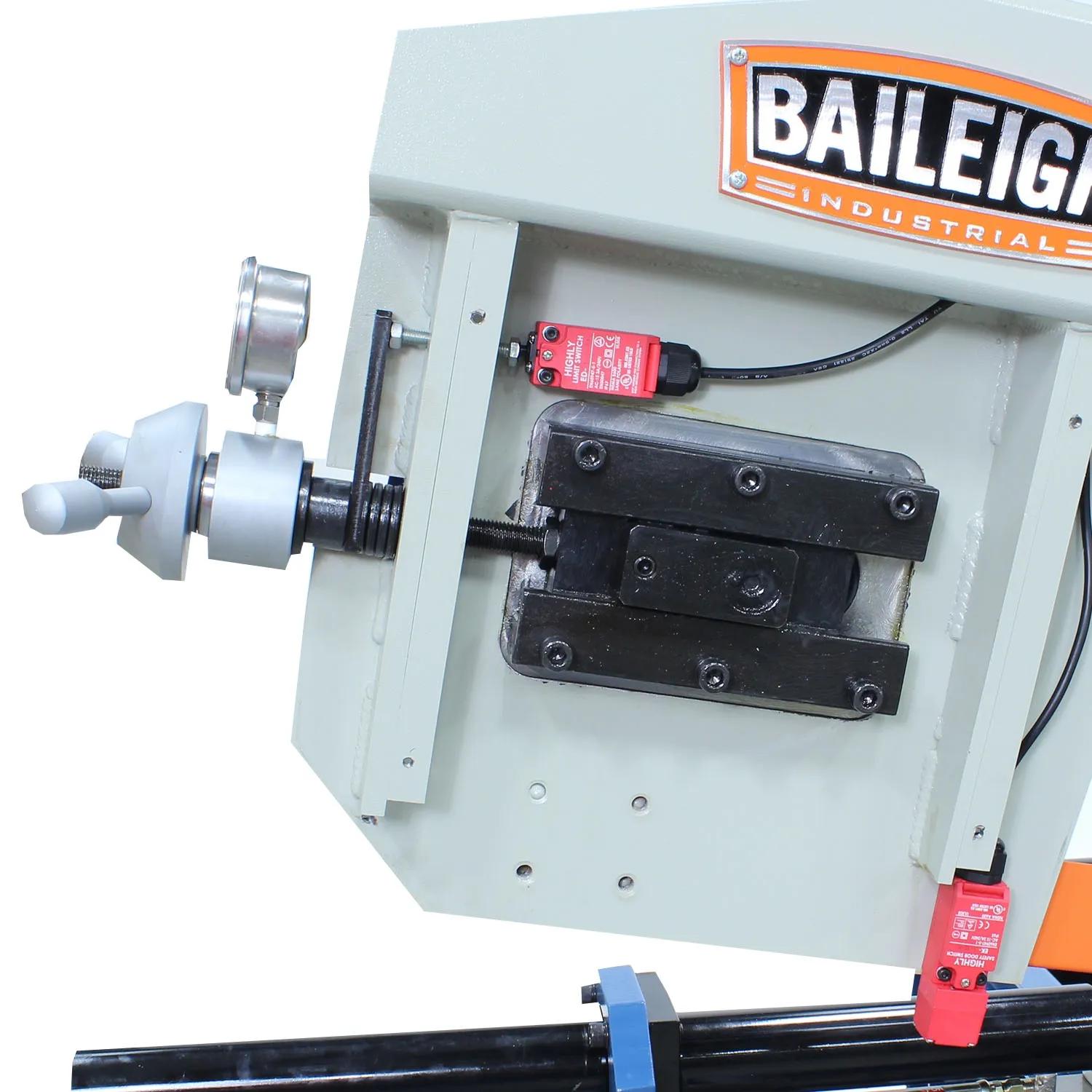

Our patented blade tension device lets you easily set the right tension. Adjust until the black arrow lines up with the green liquid-filled gauge
Compact floor plan conserves space in your shop with a high-pressure flood coolant system that washes away metal chips and helps blades last longer
Electro-welded steel frame gives the machine structural strength to maintain accuracy and cast-iron bow resists vibrations and helps to ensure a high-quality cut. Comes with heavy-duty infeed and outfeed tables for easier material handling
| Stock Number | BA9-1001298 |
|---|---|
| Blade Guide | Carbide / Roller |
| Blade Speeds (SFPM) | 60 - 306 Inverter Driven |
| Capacity Round 90 X 45 X 60 | 13" x 12" x 8.5" |
| Capacity Square 90 X 45 X 60 | 13" x 12" x 8.5" |
| Descent Control | Pressure Assist Hydraulic |
| Drive | Inverter Direct |
| Input Power | 220V or 440V 3-Phase (440V special order) |
| Type of Miter Adjustment | Dual Miter Swivel Head |
| Miter Angle Range (Deg.) | 0 – 60°, 45°L |
| Model Number | BS-20SA-DM |
| Motor (HP) | 3.0 hp |
| Prop 65 | Cancer and Reproductive Harm |
| Return | Hydraulic |
| Shipping Dimensions (L x W x H) (In.) | 90x36x66 |
| Solid Rectangle at 90 Degrees (In.) | 13" x 18" / 13" x 10.6" / 12.4" x 7.7" |
| Warranty | 1 Year |
| Weight (Lbs.) | 2370 |
| Gross Weight | 2370.0 |
| Net weight | 2370.0 |
