BSV-18VS-V2 - Vertical Band Saw

Stock Number
BA9-1230389
$6,779.00

Product Overview


Within our lineup of vertical bandsaws, the BSV-18VS-V2 metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade.


*1 hp motor runs on 120-volt power.
*Wide 18" throat depth.
*12.9” maximum cutting thickness.
*Accepts standard 1/8” to 5/8” blades.

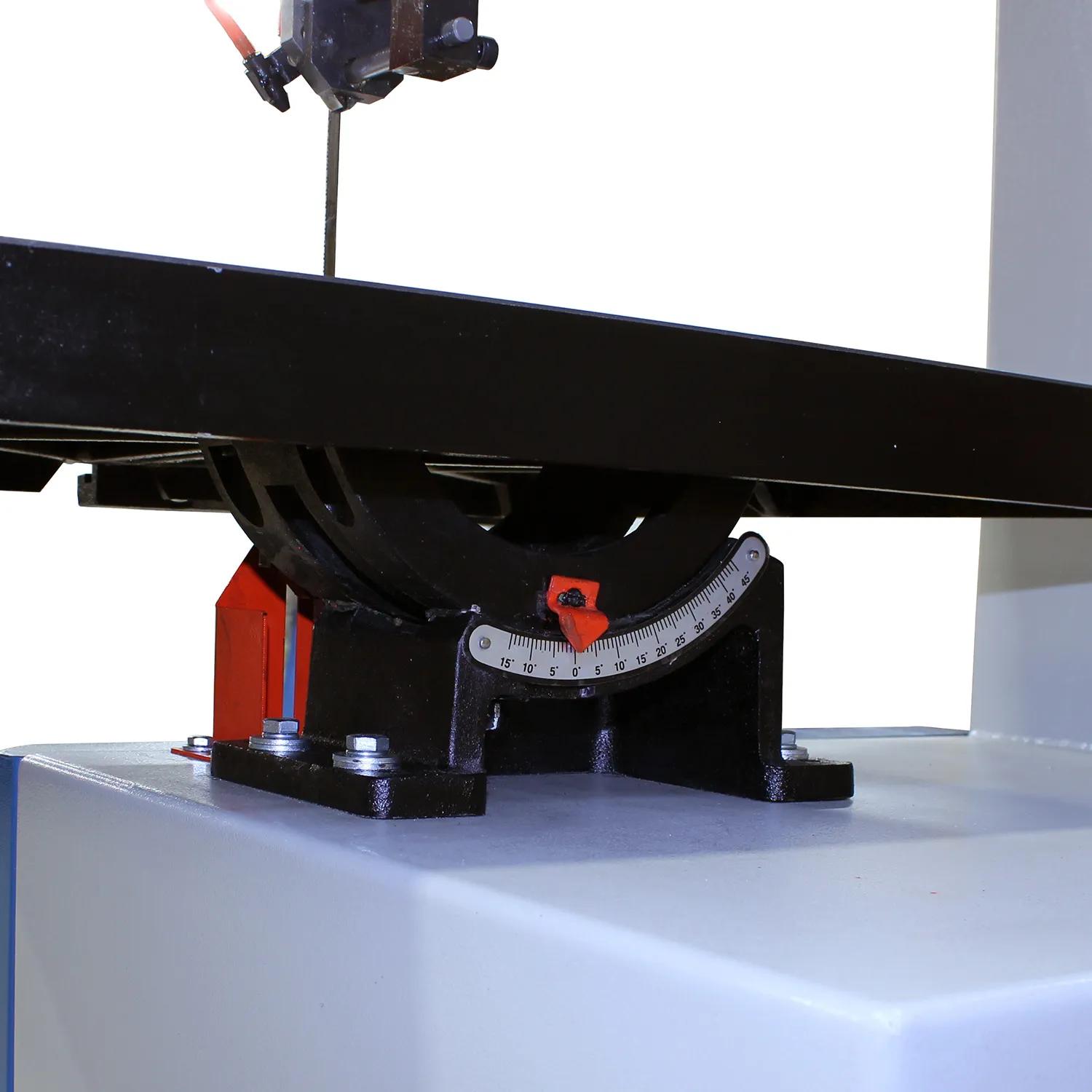

*Cast iron table can pivot front to back and left to right.

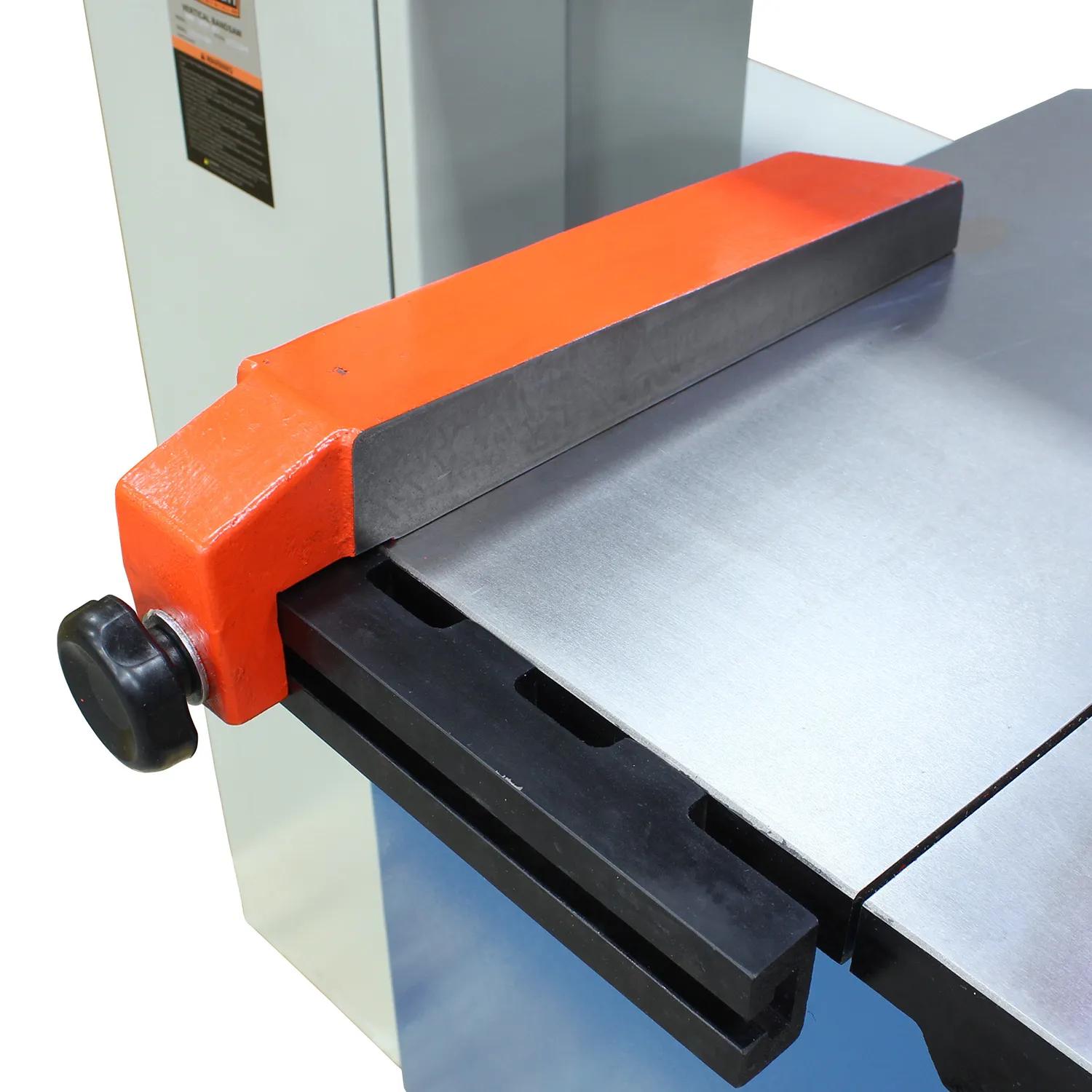

*Includes a cast iron rip fence to make sure your cuts are straight and repeatable.
*Variable speed from 90 to 1400 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.

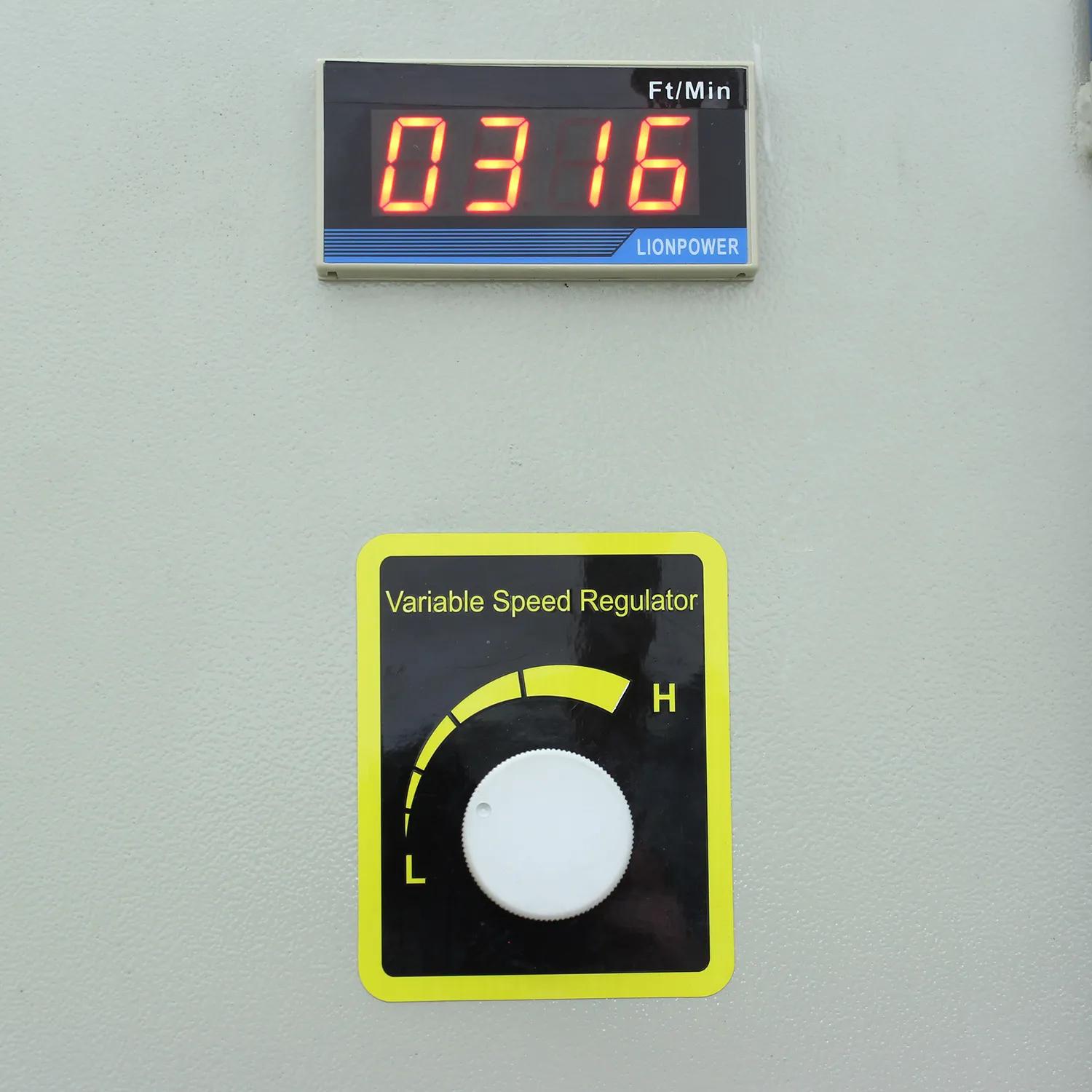

*Digital read out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
*This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.

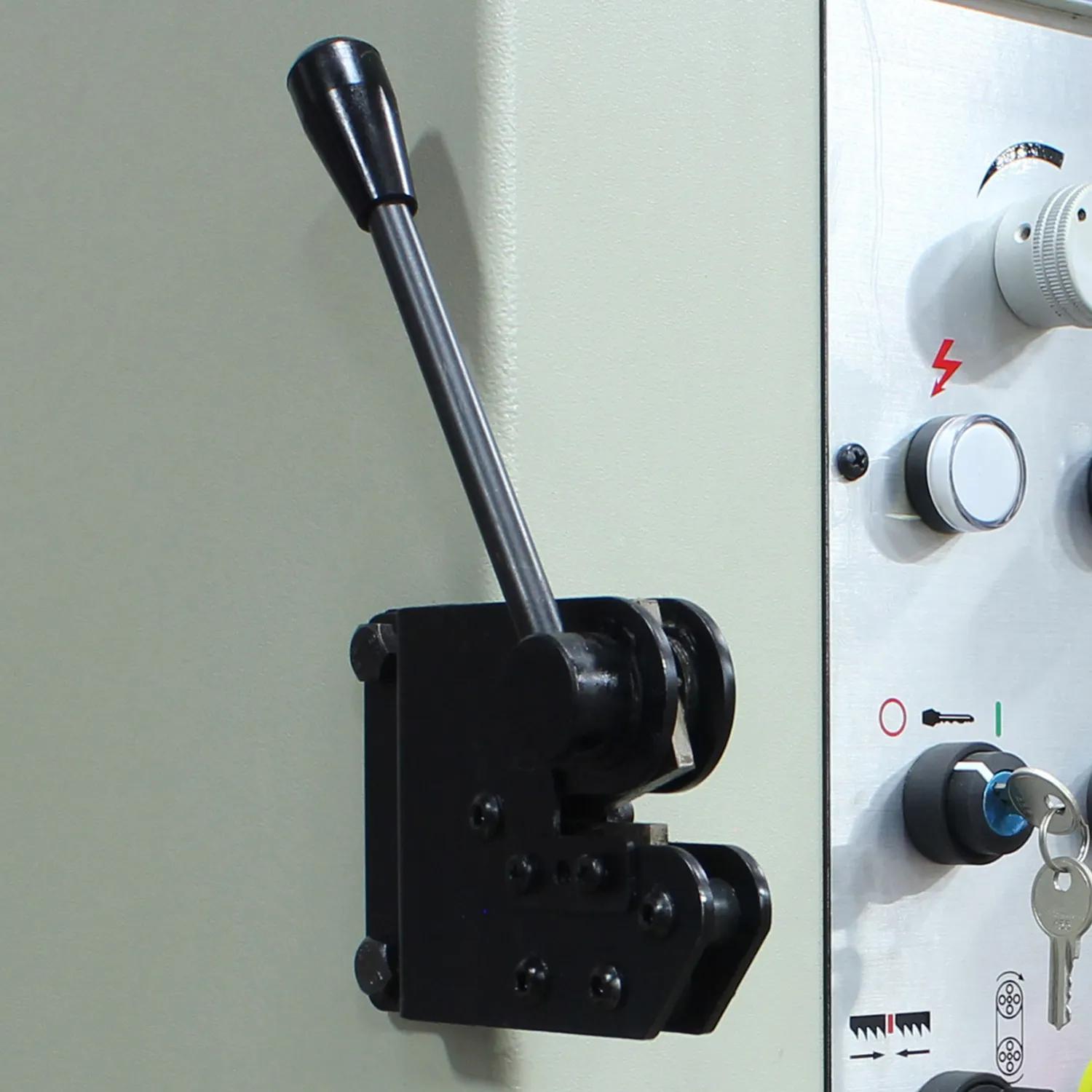

*Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
*Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
*Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.

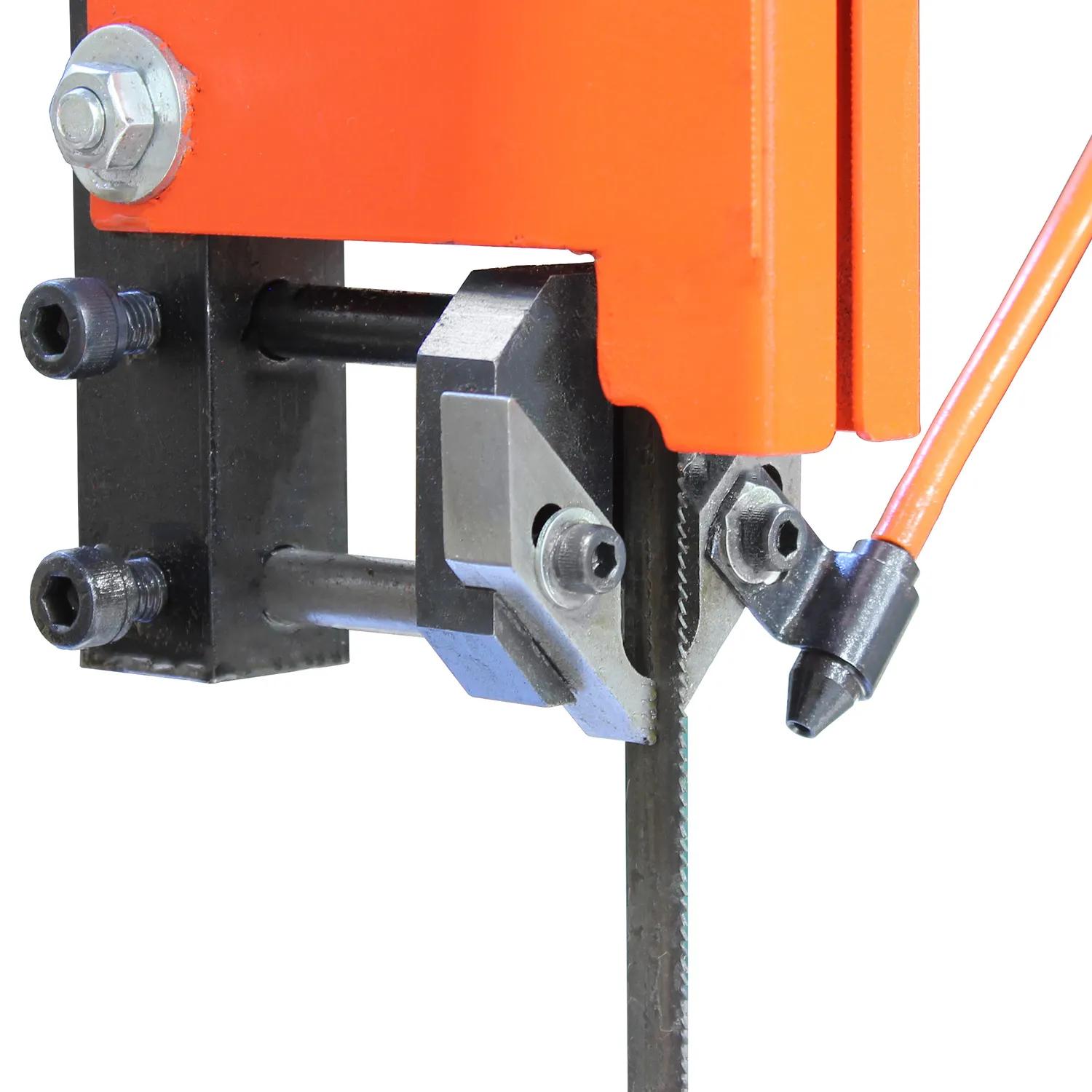

*Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
*LED work light lets you see what you’re cutting more clearly.
*Covered by a 1-year parts warranty.
*Both the saw and its replacement parts are typically in stock for fast deliveries.
*Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.


Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.

Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.


+ Show More
More Information
Stock NumberBA9-1230389
AccessoriesIncluded Accessories
Blade Length (In.)Range 146.45" - 147"
Blade Speed (RPM)95 - 1400 fpm
Blade Thickness0.032
Blade Width (In.)1/8" - 5/8"
Input Power120 volt
Model NumberBSV-18VS-V2
Motor (HP)1 hp
Prop 65Cancer and Reproductive Harm
Shipping Dimensions (L x W x H) (In.)60” x 45” x 93”
Table Tilt (Deg.)15° Left, 45° Right
Throat Depth (In.)18"
Weight (Lbs.)807
Gross Weight776.0
Net weight776.0
Speed ControlInverter
