CNC Press Brake - (BP-3305CNC)
Product Overview
Need high production in a limited space? This CNC Hydraulic Press Brake offers programmable controls, top-quality components, and heavy steel construction for an unbeatable price.
*BP-3305CNC delivers 33 tons of pressure across its 63” table.
*Runs on 220-volt 3-phase power.

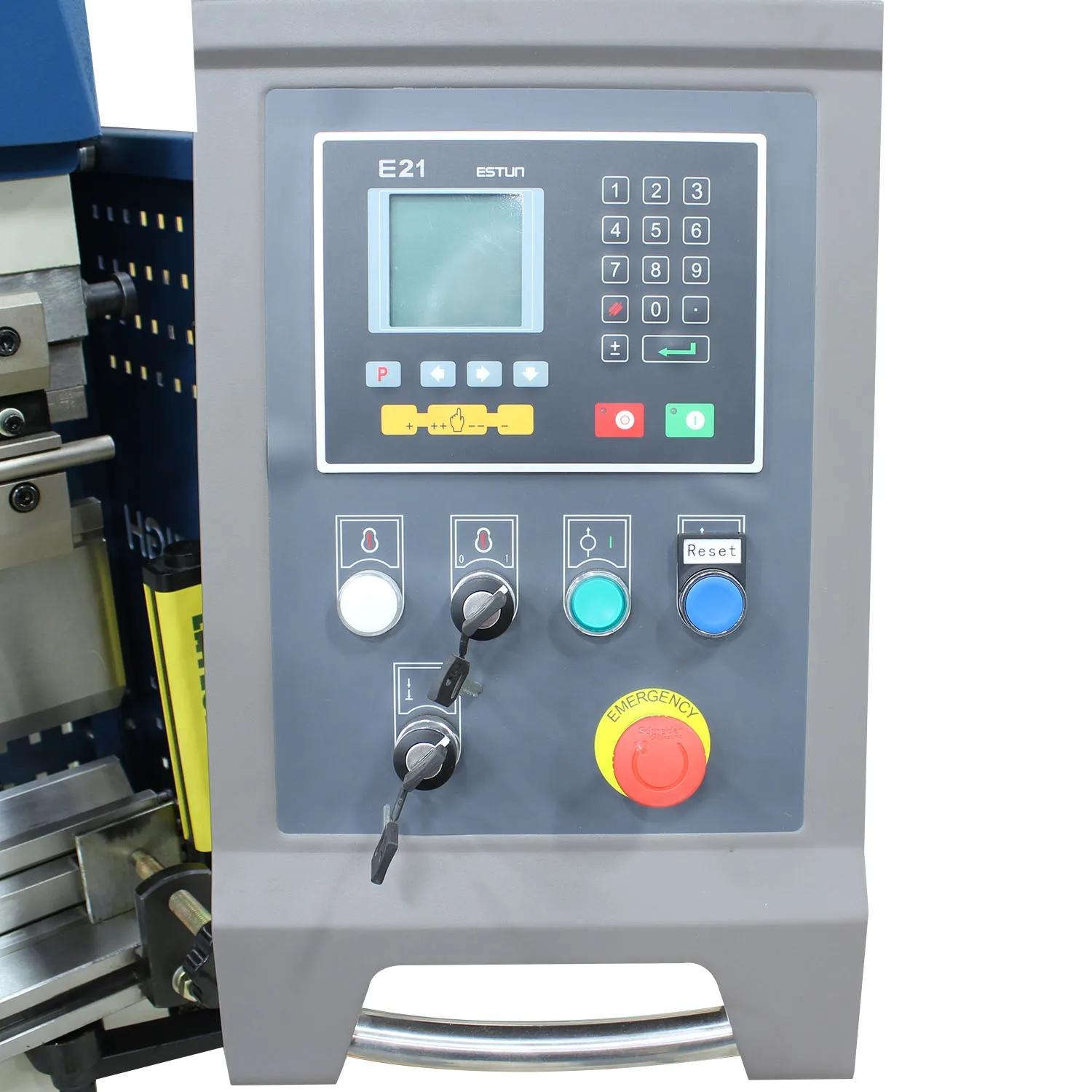

*Easy-to-use programmable 2-axis Estun E21 controller is integrated right from the factory.
*Internal memory can hold 40 programs, each with its own unique number for easy identification.
*Controller will keep a piece count for large production runs.
*Made with NOK, Siemens, and Omron components.
*Foot pedal lets you control all bending functions, whether on full auto or jog mode.
*Fully welded steel plate frame minimizes deflection and maintains rigidity.

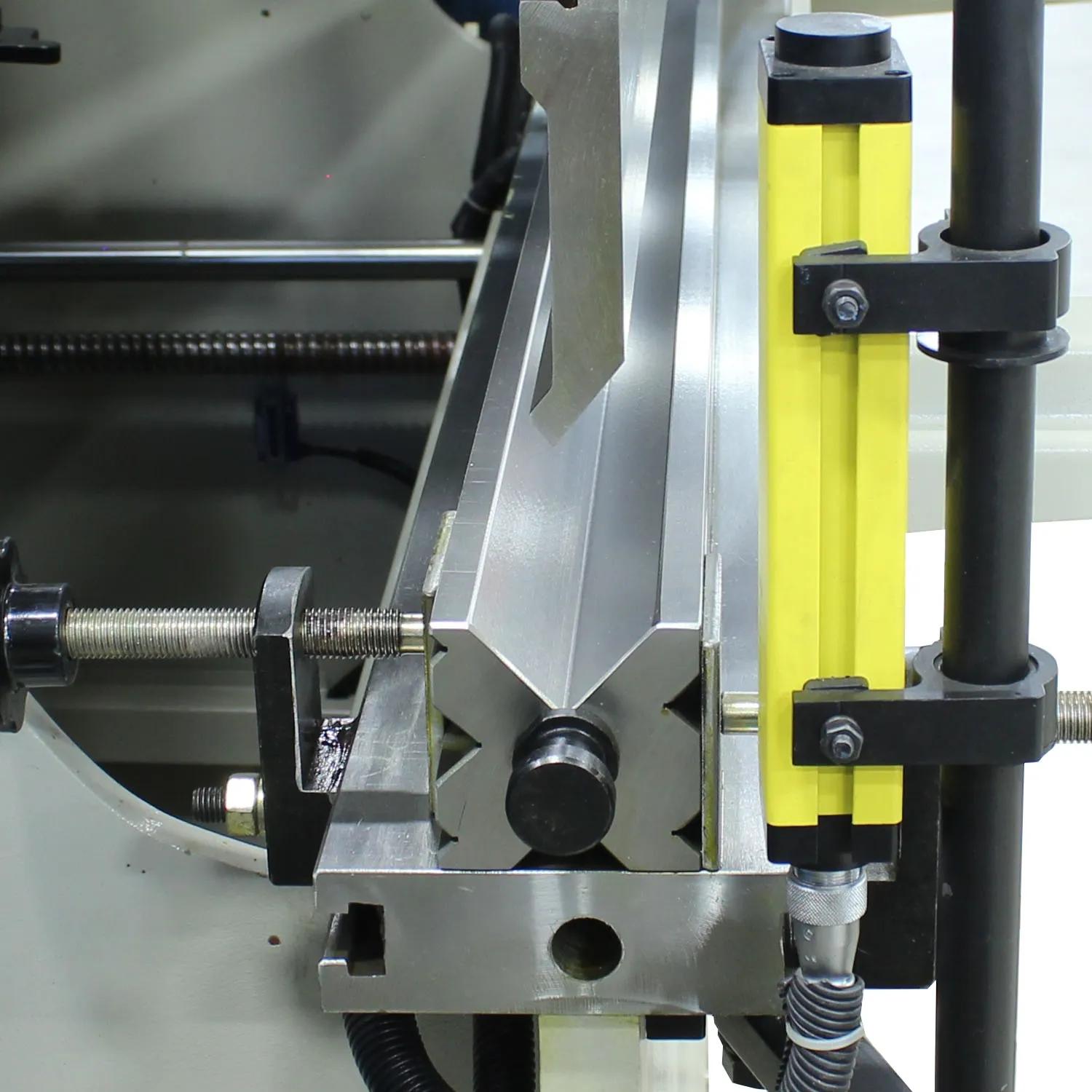

*Gooseneck punch and a 4 sided multi-V bottom die come standard.

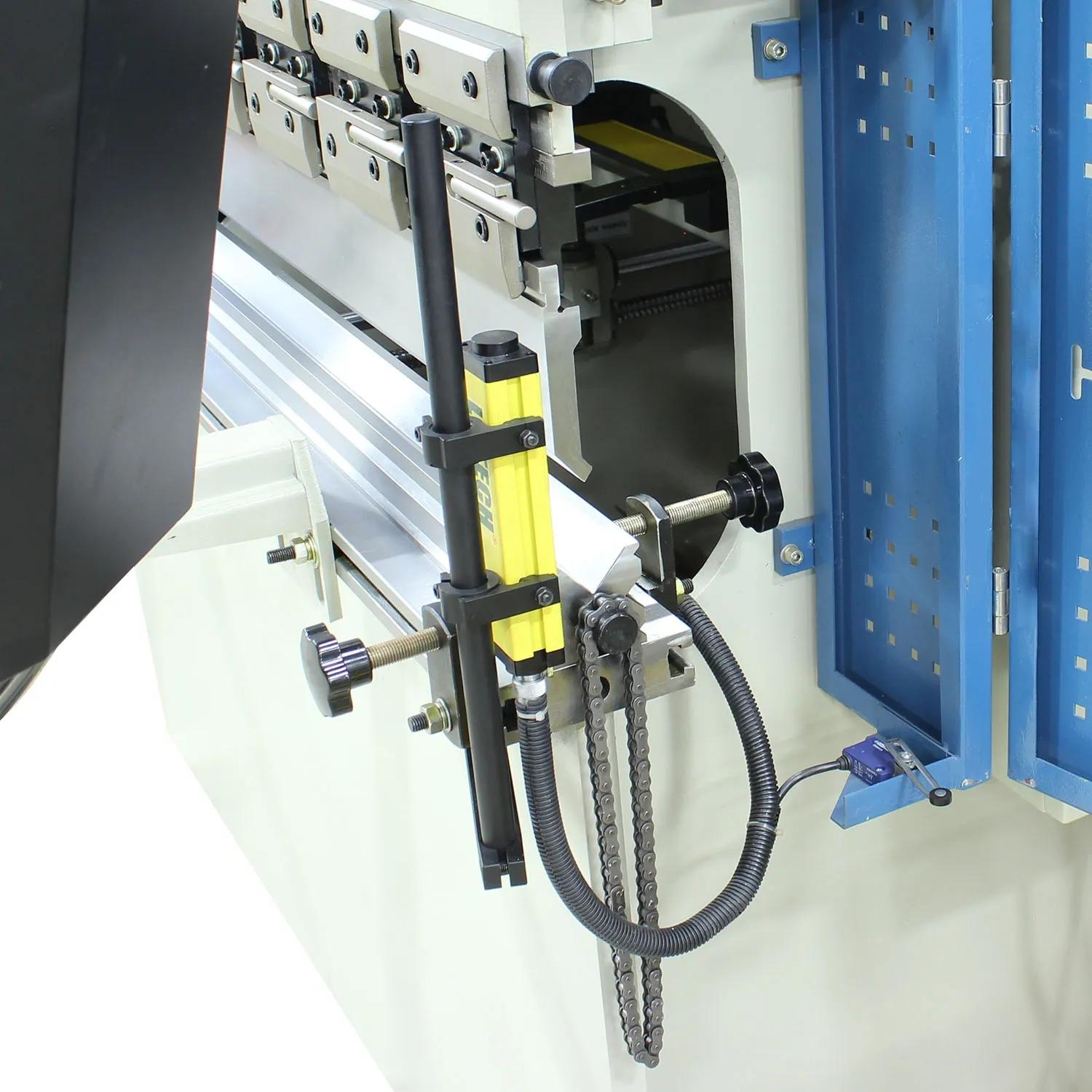

*Integrated safety light curtains help prevent accidents.
*We keep parts in stock at our Wisconsin headquarters so we can ship them to you quickly.
*Covered by a 1-year parts warranty.
*Includes lifetime technical support by phone from a team of customer service reps with hands-on industrial experience.
Questions? Not sure which Press Brake is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.
Manual (1)
| Stock Number | BA9-1020680 |
|---|---|
| Approach Speed | 3.5" / sec |
| Bending Speed | .394" / sec. |
| Distance Between Housings | 51.25 |
| Distance From Table To Ram | 13.325" |
| Distance Per Stroke (In.) | 3.15 |
| Included Tooling | 78° Gooseneck & Multi-Vee Die (5/16", .39", .47", 5/8", .94", 1-1/4", 2") |
| Input Power | 220V / 3-phase |
| Minimum Return Speed (In./Sec) | 3.3" / sec. |
| Model Number | BP-3305CNC |
| Prop 65 | Cancer and Reproductive Harm |
| Shipping Dimensions (L x W x H) (In.) | 91x56x87 |
| Throat Depth (In.) | 8" |
| Warranty | 1 Year |
| Weight (Lbs.) | 5050 |
| Gross Weight | 5100.0 |
| Net weight | 5100.0 |
| Back Gauge Motor (hp) | 1/2 hp |
