Compact Hydraulic Shear - (SH-8014)

Stock Number
BA9-1007207
$20,630.00

Product Overview

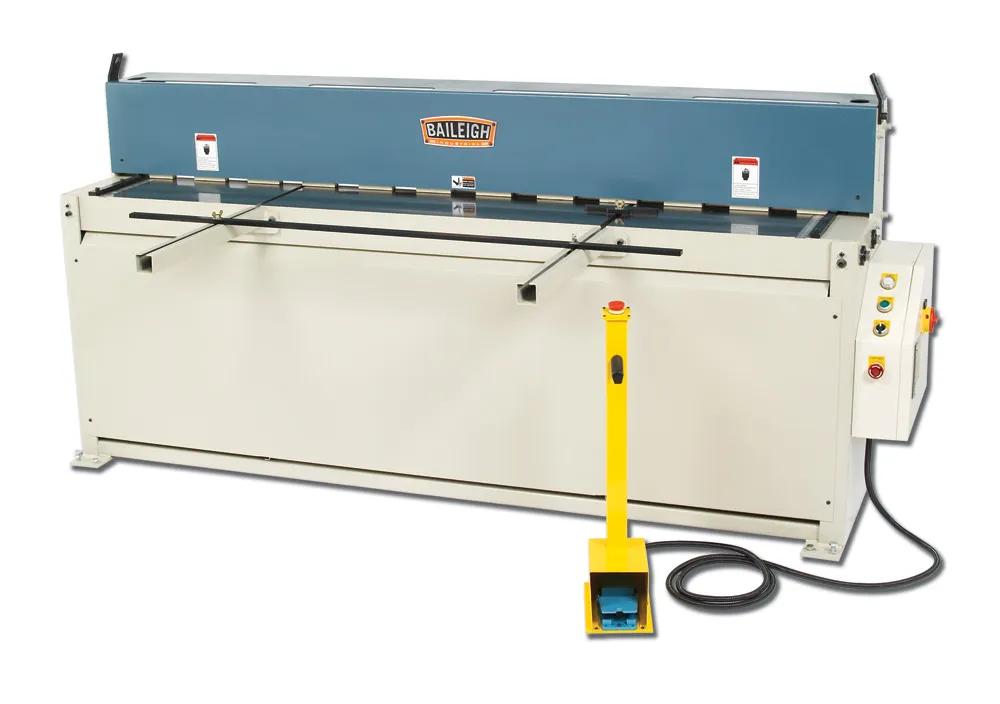

This Hydraulic Metal Shear for sale is perfect for fabrication shops that mainly work with smaller gauges. Made from ground, polished steel plate, the SH-8014 14 gauge shear at full capacity all day long.

Also available in 52”-long and 60”-long 14-gauge versions as well as an 80”-long, 10-gauge model.

Covered by a 1-year parts warranty. Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience. Questions? Not sure which Sheet Metal Shear is right for you? Call 1-920-684-4990 and talk to a Baileigh expert.


+ Show More
80” length and up to 26 strokes per minute
14-gauge mild steel maximum capacity with a minimum capacity of 24-gauge mild steel
3 hp motor runs on 220-volt 3-phase power

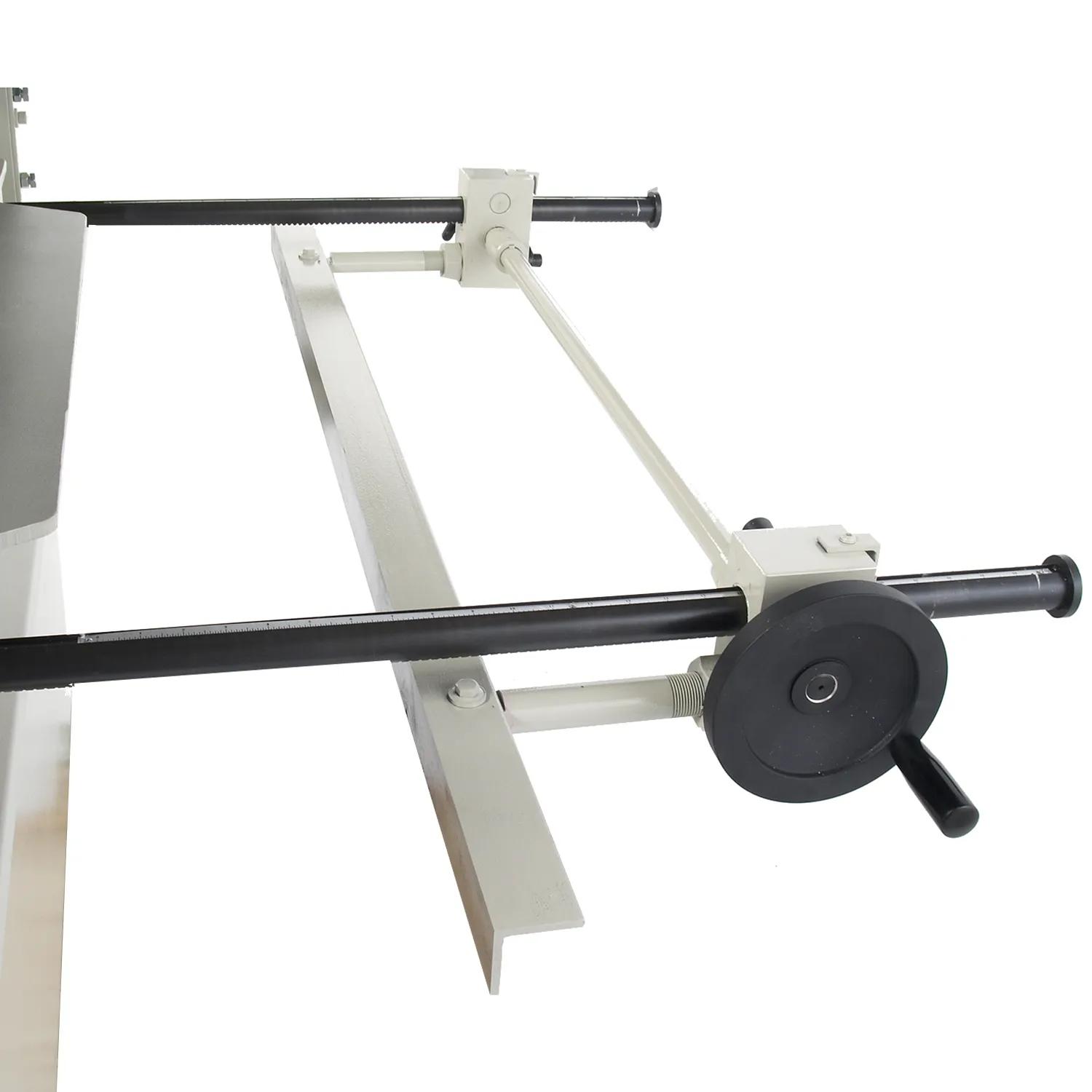

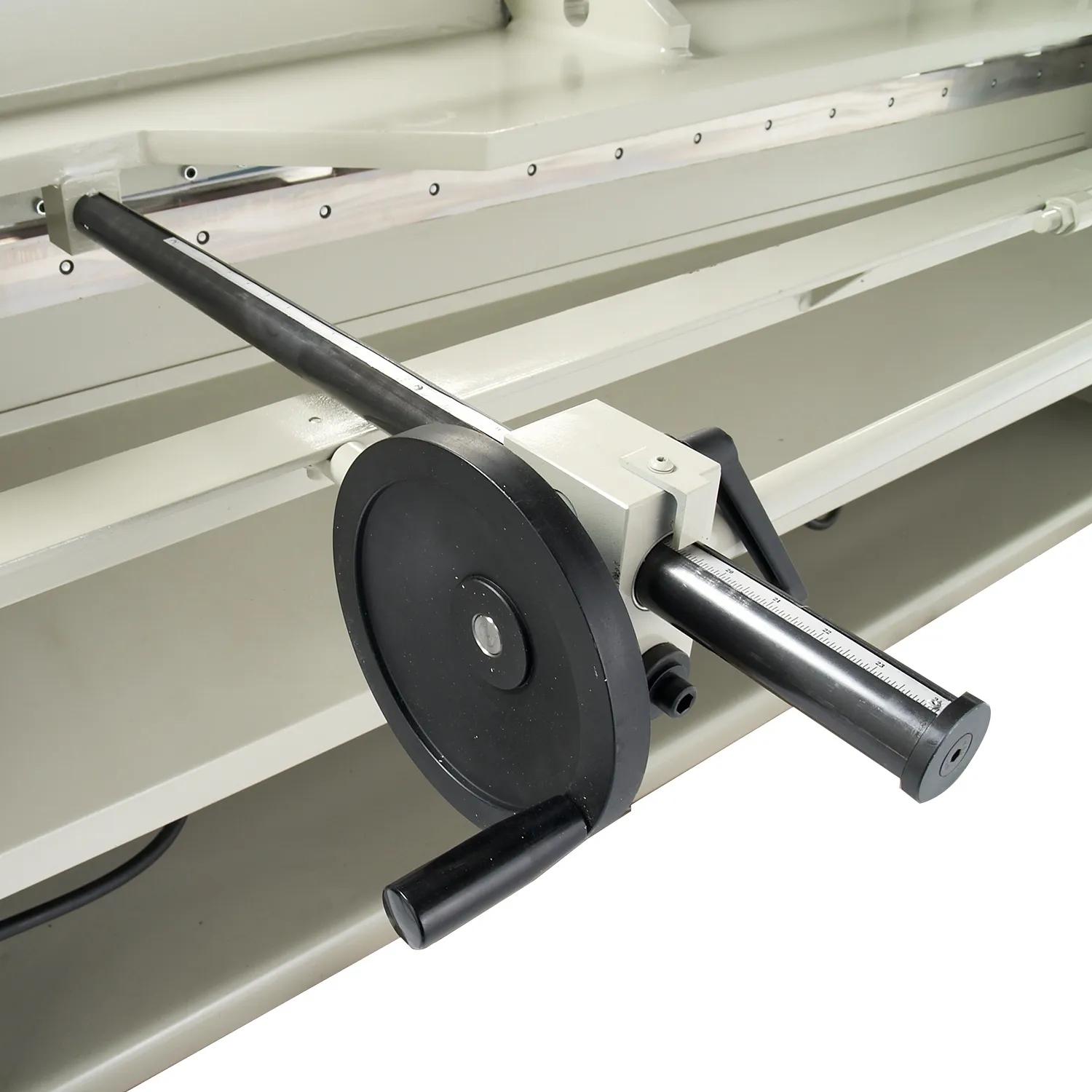

Adjustable 24” back gauge ensures precise repeatability

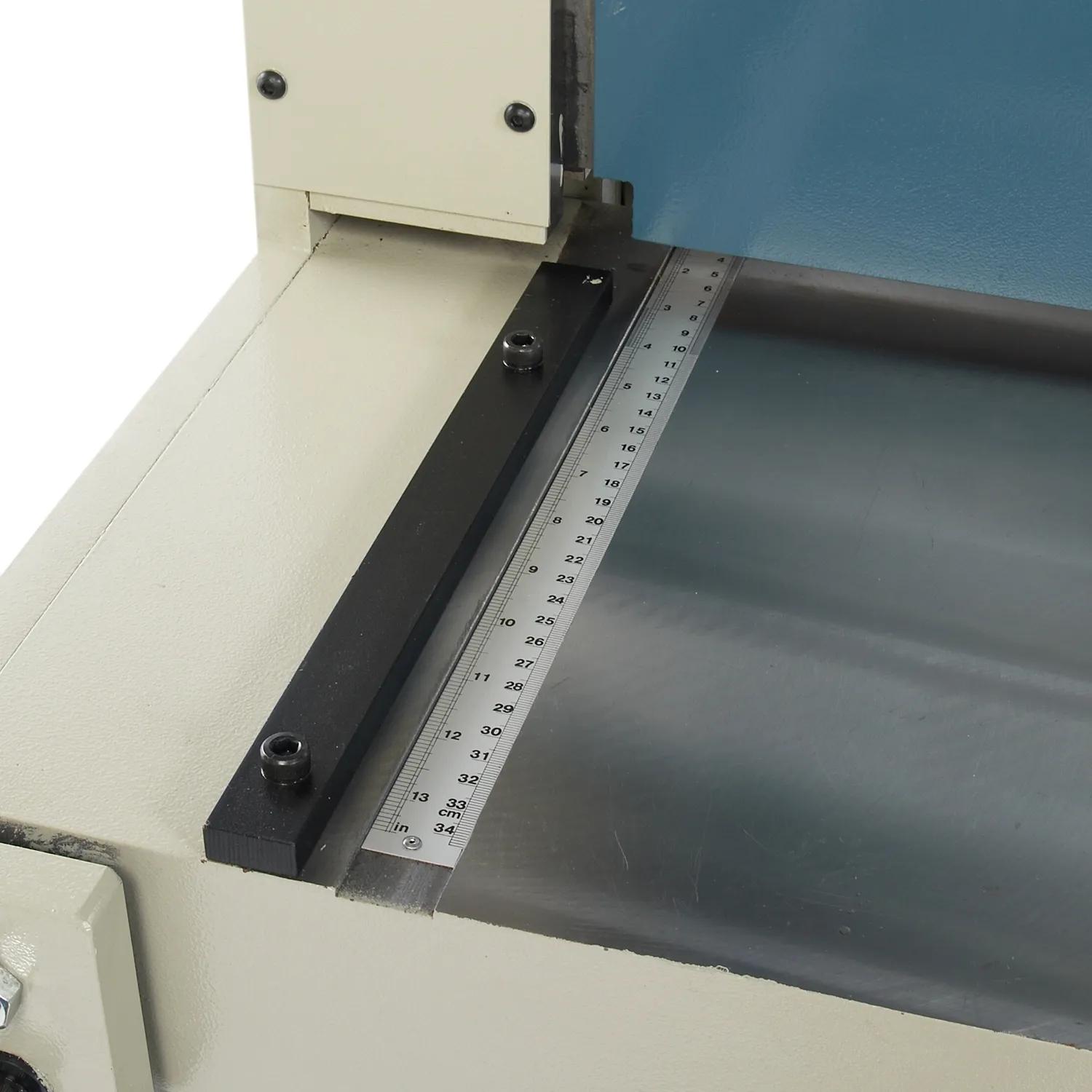

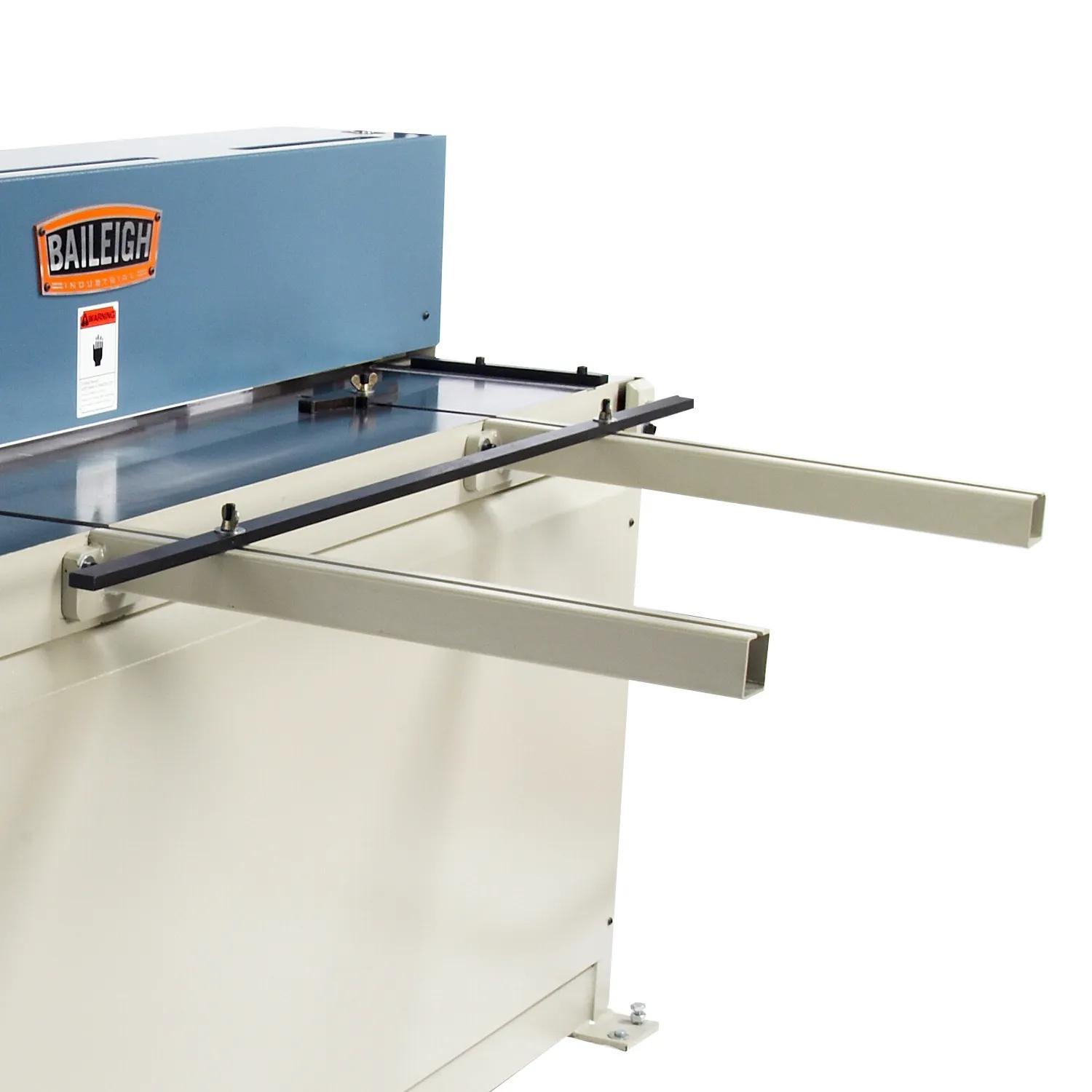

Front support arms and table guides keep the material square to the blade

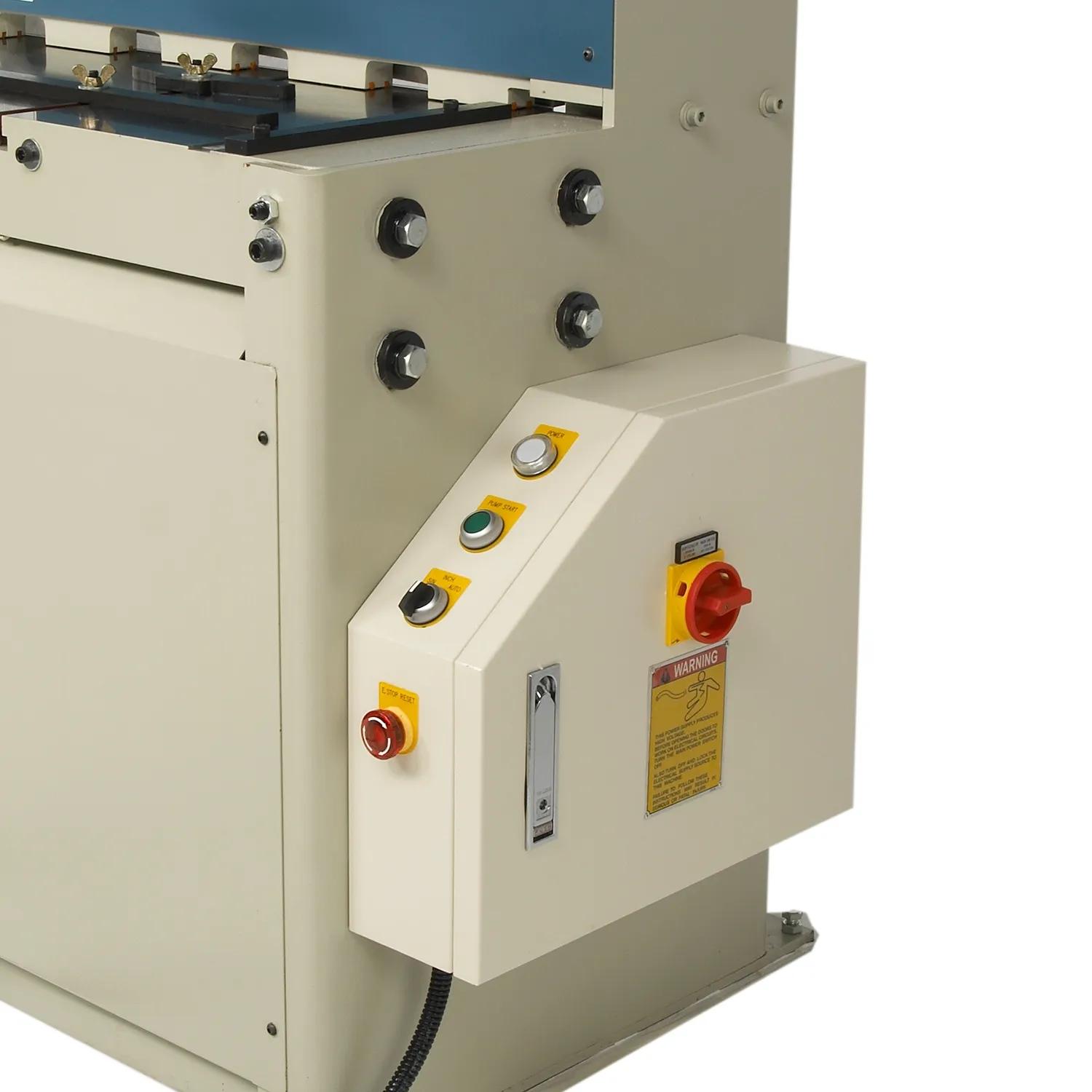

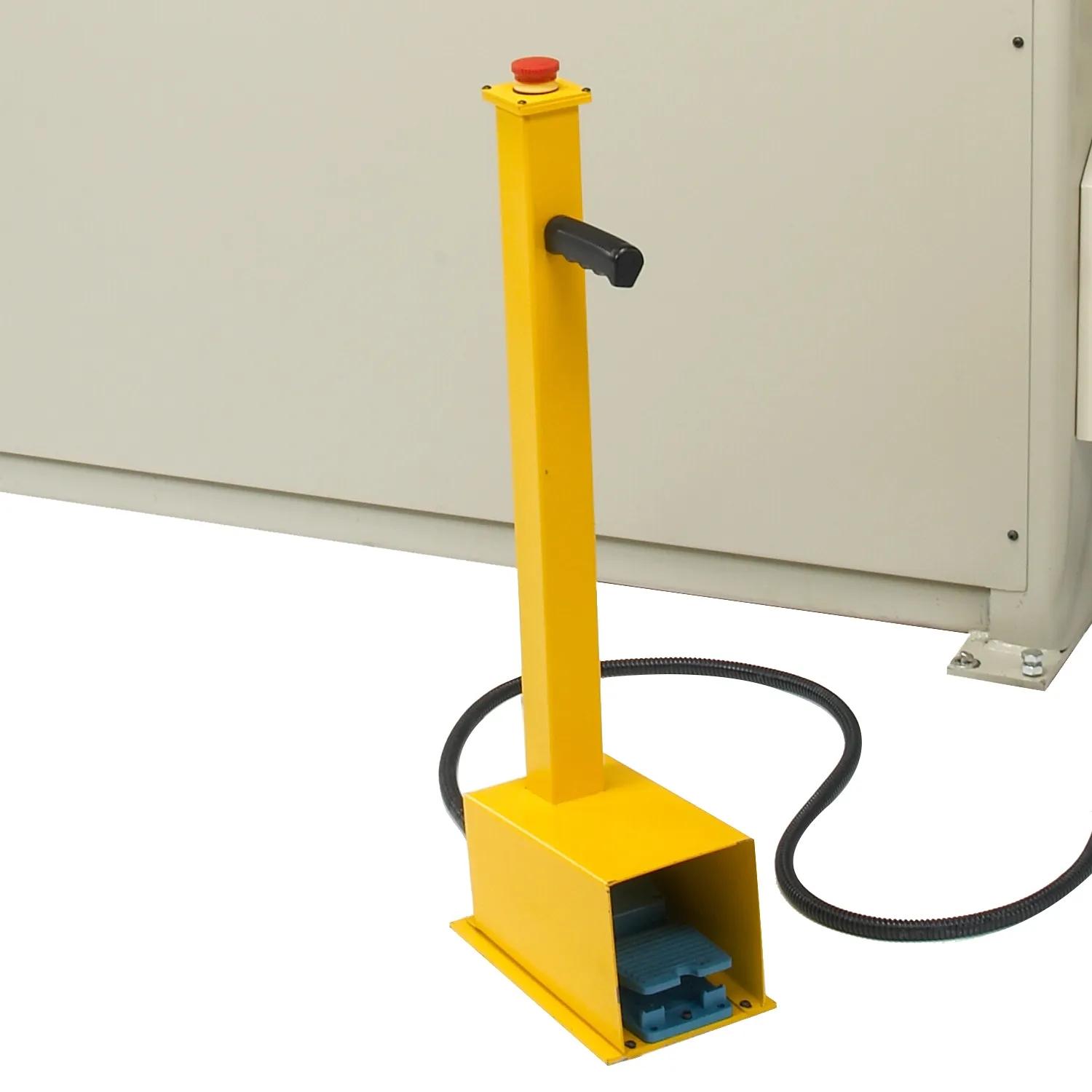

3 modes on the operator console: Inch mode: Jog the control and ease the blade down to the material, Single mode: Make one cut cycle per foot pedal push, and an Auto mode: Continue cycling as you hold the pedal down
Comes standard with high carbon chromium blades
Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money
Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life
Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy
More Information
Stock NumberBA9-1007207

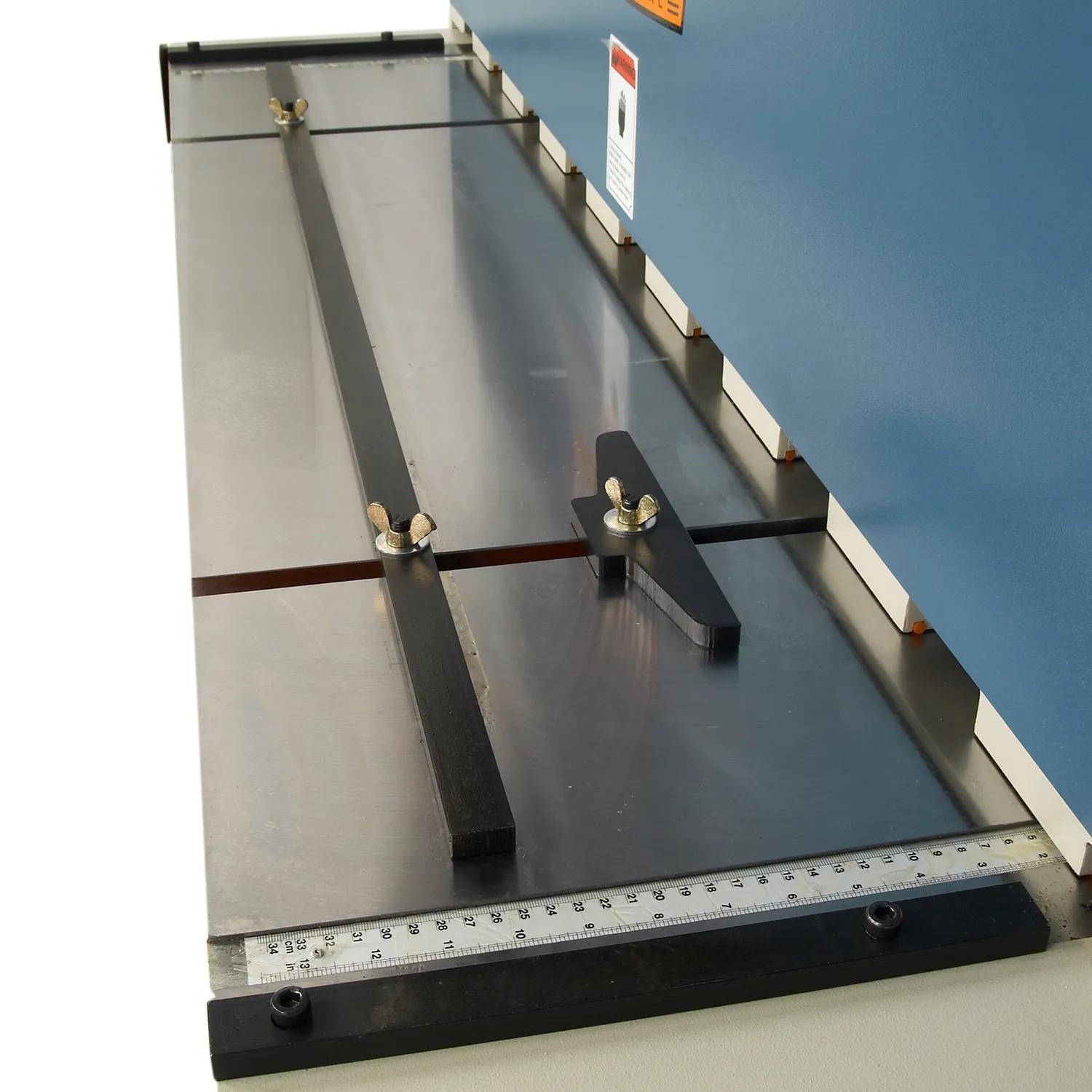

Front Gauge Capacity (In.)24
Model NumberSH-8014
Prop 65Cancer and Reproductive Harm
Shearing Length Capacity (In.)80"
Style (Type)Compact Hydraulic Shear
Warranty1 Year
Gross Weight3700.0
Net weight3700.0
