Compact Metal Shear - (SH-6010)
Stock Number:
BA9-1007167
$21,899.99
Enhanced Bullet 1:
60 " length
Enhanced Bullet 2:
10 gauge mild steel max. capacity
Enhanced Bullet 3:
220-volt 3-phase
Enhanced Bullet 4:
26 strokes per minute
Product Overview

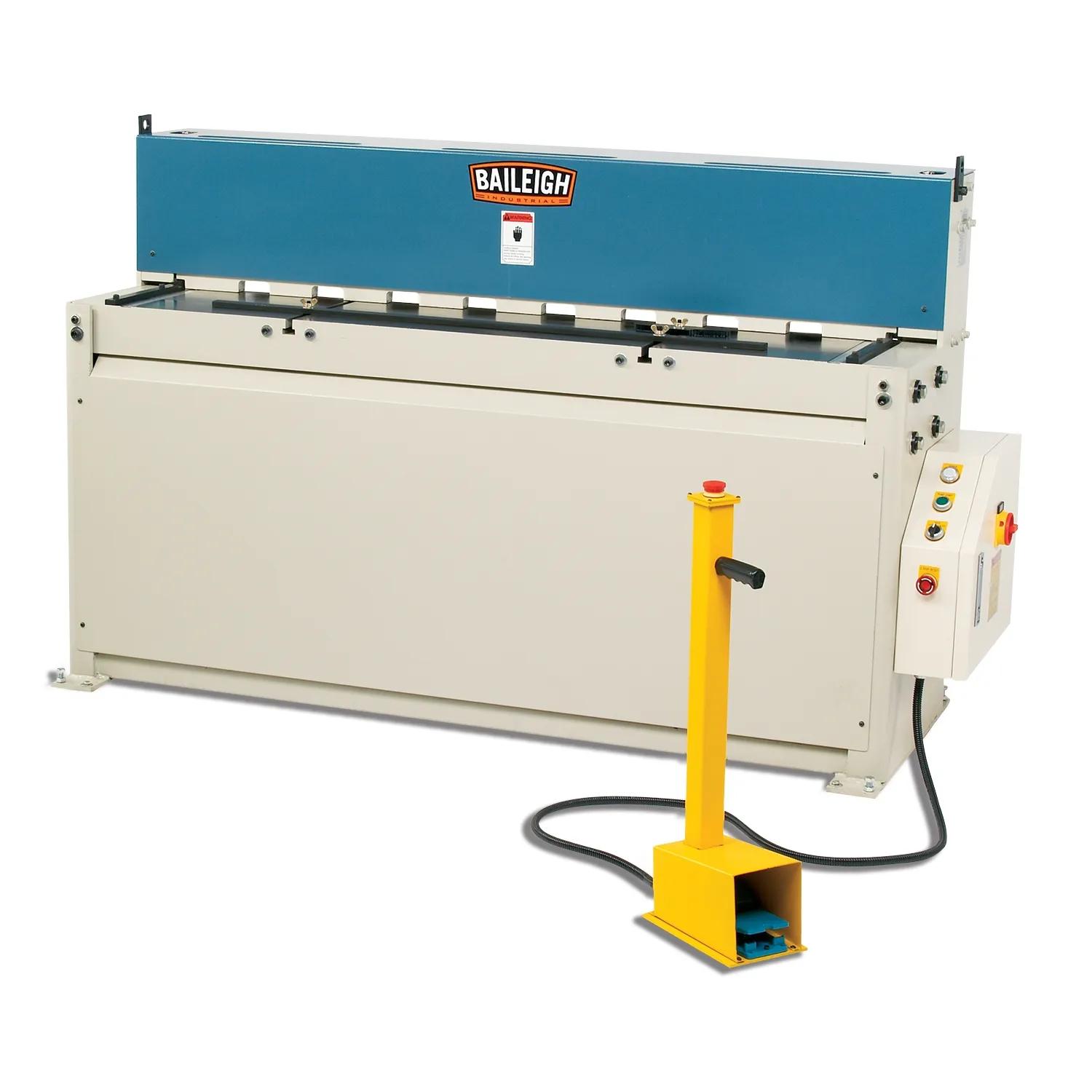

We build this Hydraulic Shear with a fully welded metal plate frame to reduce flex and ensure accuracy. Industrial-grade hydraulics produce smooth movements that prolong blade life.
Also available in 52”-long and a 80”-long versions (both with 10 gauge capacity).
Covered by a 1-year parts warranty. Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience. Questions? Not sure which Sheet Metal Shear is right for you? Call 1-920-684-4990 and talk to a Baileigh expert.
60” length
10-gauge mild steel maximum capacity with a minimum capacity of 24-gauge mild steel.
3 hp motor runs on 220-volt 3-phase power with up to 26 strokes per minute

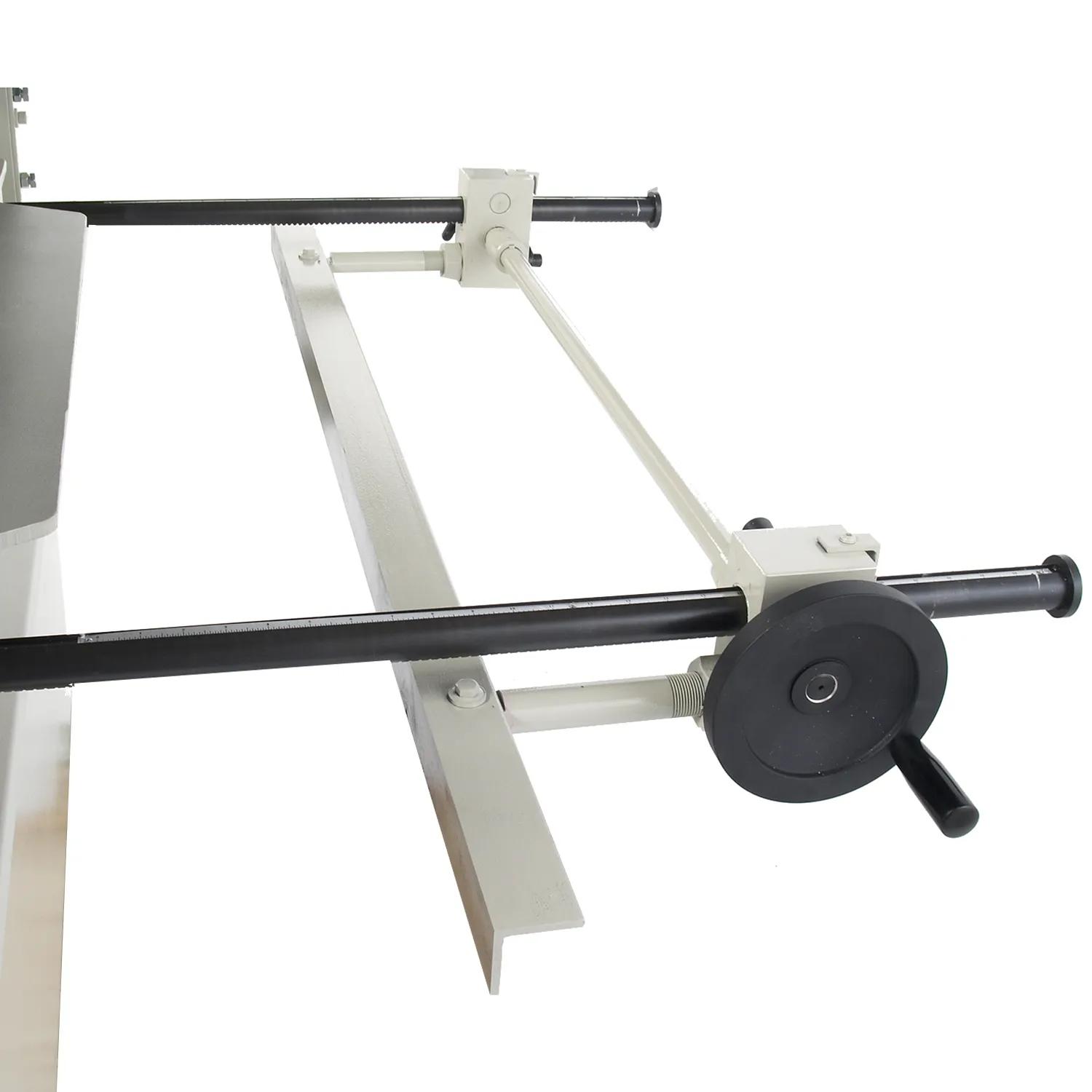

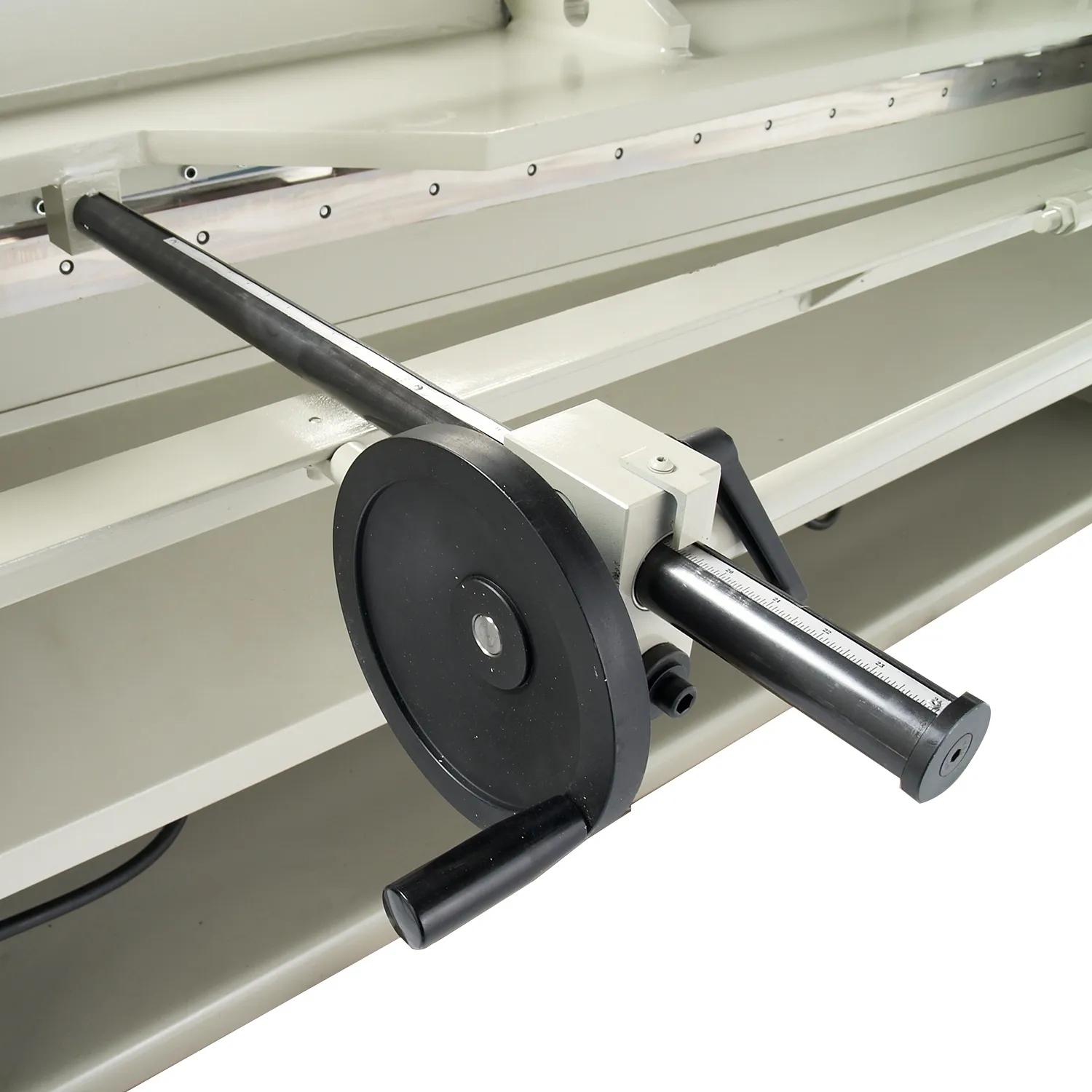

Adjustable 24” back gauge ensures precise repeatability

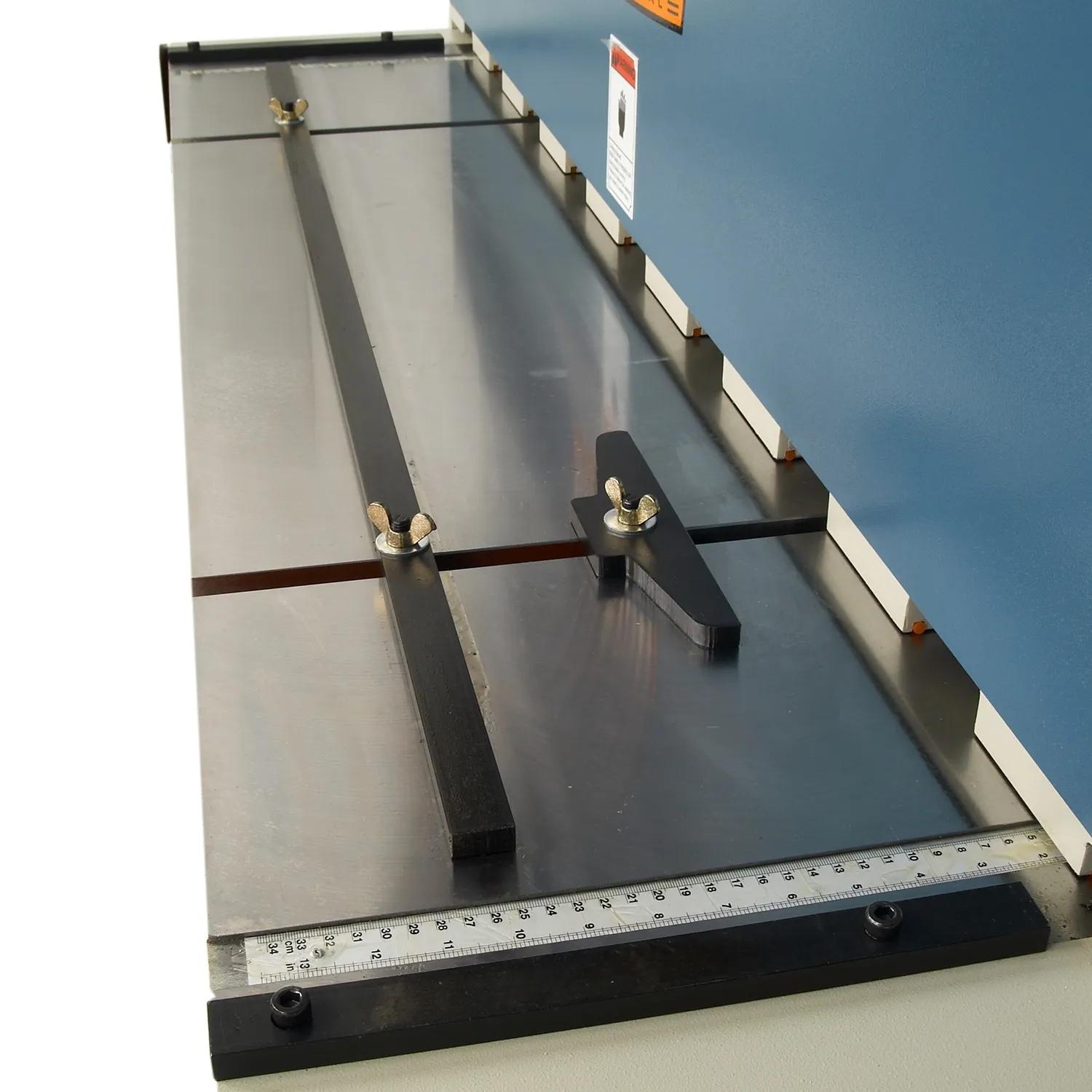

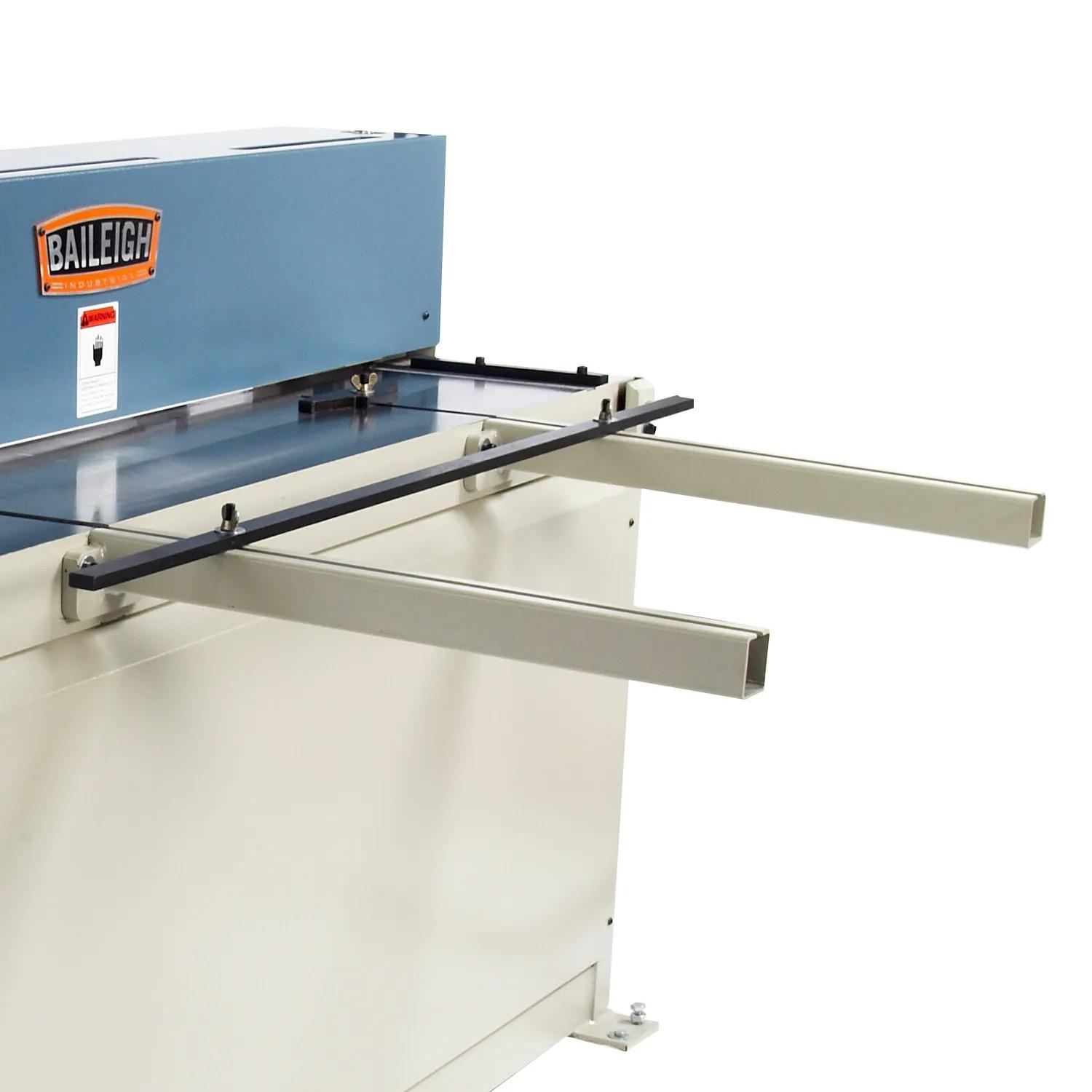

Front support arms and table guides keep the material square to the blade

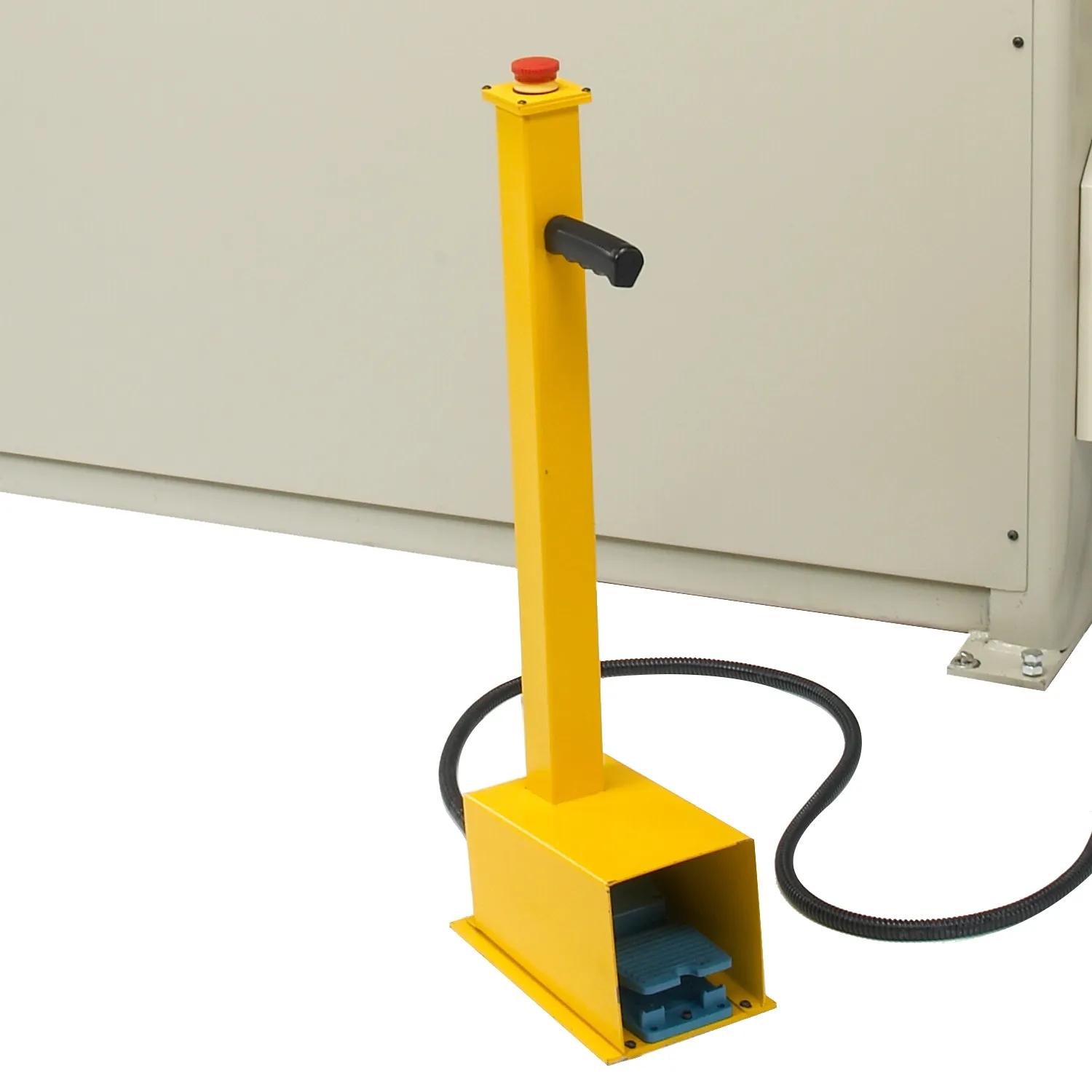

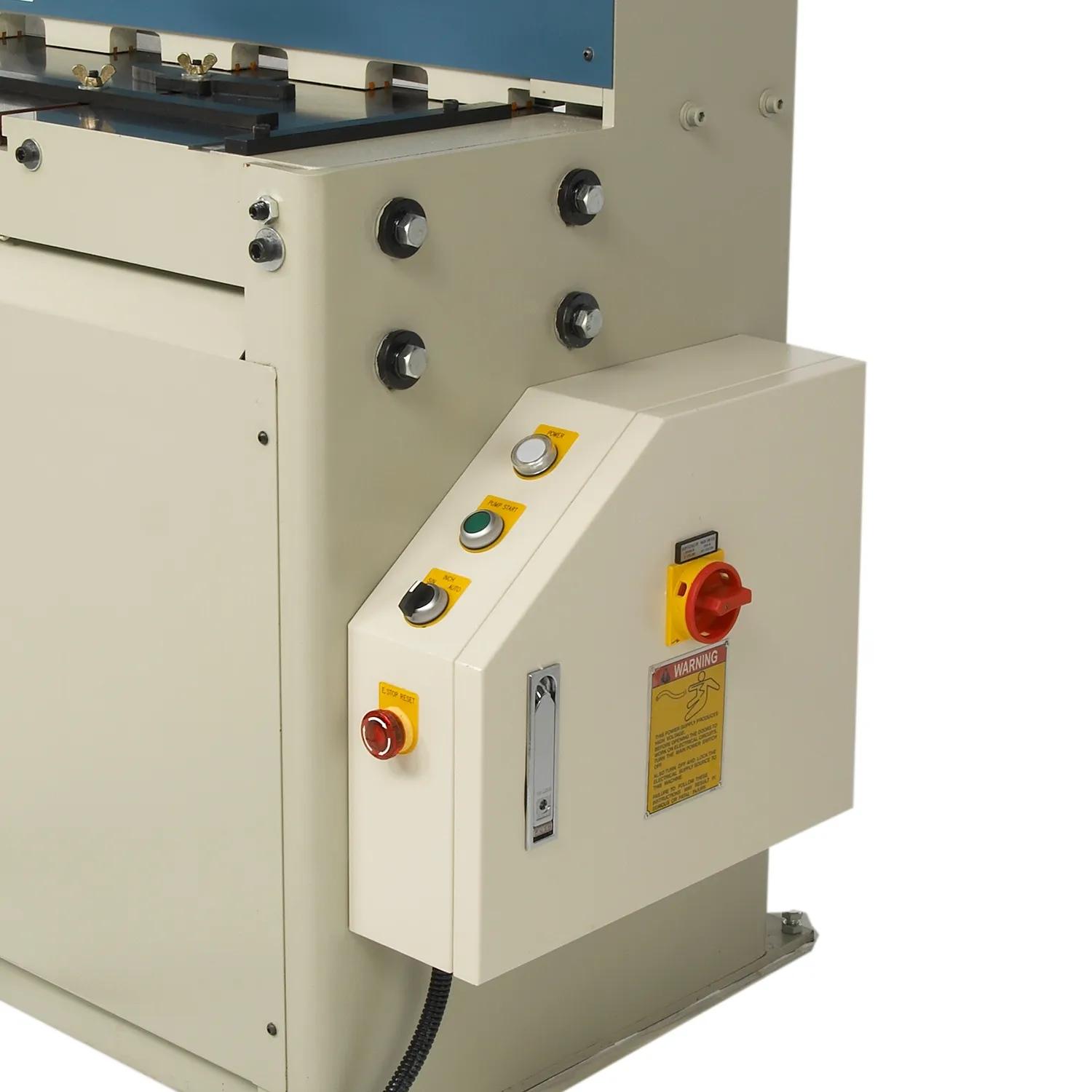

3 modes on the operator console: Inch mode: Jog the control and ease the blade down to the material, Single mode: Make one cut cycle per foot pedal push, and an Auto mode: Continue cycling as you hold the pedal down
Comes standard with high carbon chromium blades
Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money
Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life
Rigid steel frame minimizes deformation and helps deliver clean, high-quality cuts
| Stock Number | BA9-1007167 |
|---|---|
| Front Gauge Capacity (In.) | 24 |
| Model Number | SH-6010 |
| Prop 65 | Cancer and Reproductive Harm |
| Shearing Length Capacity (In.) | 60" |
| Warranty | 1 Year |
| Gross Weight | 3000.0 |
| Net weight | 3000.0 |
