Cut Off Saw CS-350SA
Leasing starts at $438 with Click LeaseYou are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.
Product Overview
This semi-automatic cold saw makes pristine cuts on a production scale. Its pneumatic vise and automatic return save you time. A flood coolant system maintains high quality.
*Accepts a massive 14” blade.
*4.33” round tube capacity at 90°.
*You can switch between 2 speeds, 26 and 52 rpm, depending on your material.
*4 hp motor runs the direct-drive blade and requires 220-volt 3-phase power.
*Miters 45° right and 90° left, which is important if you have any slotting applications.
*Rigid cast iron head minimizes vibrations so that the blade gives you high-quality cuts—and will for many years to come.
*Ground and hardened all-metal gears in blade head ensure tight tolerances throughout the life of the saw.
*Backlash adjustment allows you to tighten the gears when needed and keep the saw accurate.
*Design adds semi-automatic features to our manual CS-350M, which has proven itself one of the best production saws available.
*Semi-automatic system is simple to operate.
*Simply put the material in the vise and push the foot pedal down. The saw handles the rest.
*The blade starts, descends, cuts, and returns on its own. Once the cut is complete the blade will shut off and the head will raise back up.
*Air-powered vise, controlled by the foot pedal, clamps the material with jaws on both sides.

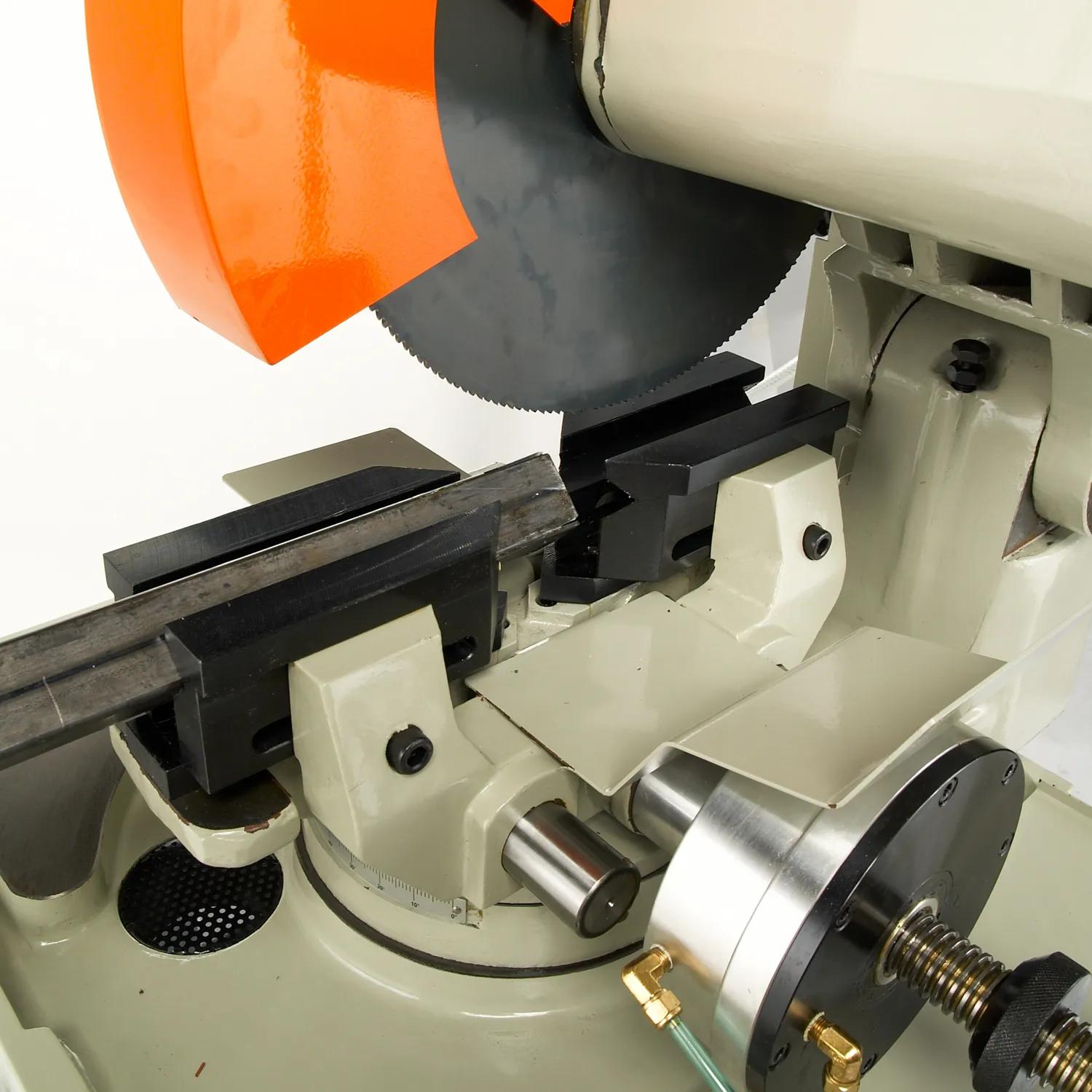

*American-style vise is self-centering. It keeps the material in the right position for the blade, so you don’t have to worry about different material diameters.
*Steel stop rod allows you to cut repeatable lengths conveniently.
*Rigid cast iron saw base maintains accuracy and high cut quality by preventing the blade from wobbling.
*Durable folded steel stand puts the machine at a comfortable working height.
*Flood coolant system lubricates the blade and helps it deliver clean, precise cuts, like only a cold saw can.
*Integrated coolant system makes blades longer, so you spend less on replacements. It also prolongs the lifespan of saw itself.
*We stock replacement parts so we can ship them to you quickly.
*This circular cold saw comes covered by a 1-year parts warranty.
*Lifetime technical support by phone means that you can talk to a Baileigh rep with hands-on machine experience whenever you need help.
Recommended for: Production cutting of thin-, medium-, or thick-walled pipe, as well as tubing, extrusions, or solid bar stock.
Questions? Not sure which cold saw is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.
| Stock Number | BA9-1002578 |
|---|---|
| Model Number | CS-350SA |
| Motor (HP) | 3.0 / 4.0 hp |
| Prop 65 | Cancer and Reproductive Harm |
| Solid Round at 45 Degrees (In.) | 1.575" |
| Solid Round at 90 Degrees (In.) | 2.362" |
| Style (Type) | Dual Action, Self Centering |
| Tubing Rectangle at 45 Degrees (In.) | 2.953" x 2.362" |
| Tubing Rectangle at 90 Degrees (In.) | 4.25" x 3.5" |
| Tubing Round at 45 Degrees (In.) | 2.953" |
| Tubing Square at 45 Degrees (In.) | 2.953" x 2.953" |
| Tubing Square at 90 Degrees (In.) | 4.331" |
| Gross Weight | 900.0 |
| Net weight | 900.0 |
