DP-1400VS Variable Speed Drill Press

Stock Number
BA9-1022511
$6,719.00

Product Overview

Built using the finest components, the DP-1400VS floor drill press draws strength from its sturdy base and column that won’t flinch during the heaviest drilling sessions. With a unique table that pivots 360 degrees, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.

Questions? Please give us a call at 1-920-684-4990.


+ Show More
2 hp motor runs on just 220 volts of single-phase power
Tackles a maximum drilling capacity of 1.25” mild steel
Heavy duty spindle transfers power to the #3 Morse taper tooling
Speed Potentiometer dial controls powerful inverter-driven head
Variable drilling speed, ranging from 80 to 2500 rpm, lets you choose the right setting to suit your application
Digital readout displays actual spindle rpm, ensuring precise results time after time
Features an auto-reversing tap function with up to .625” capacity
Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions

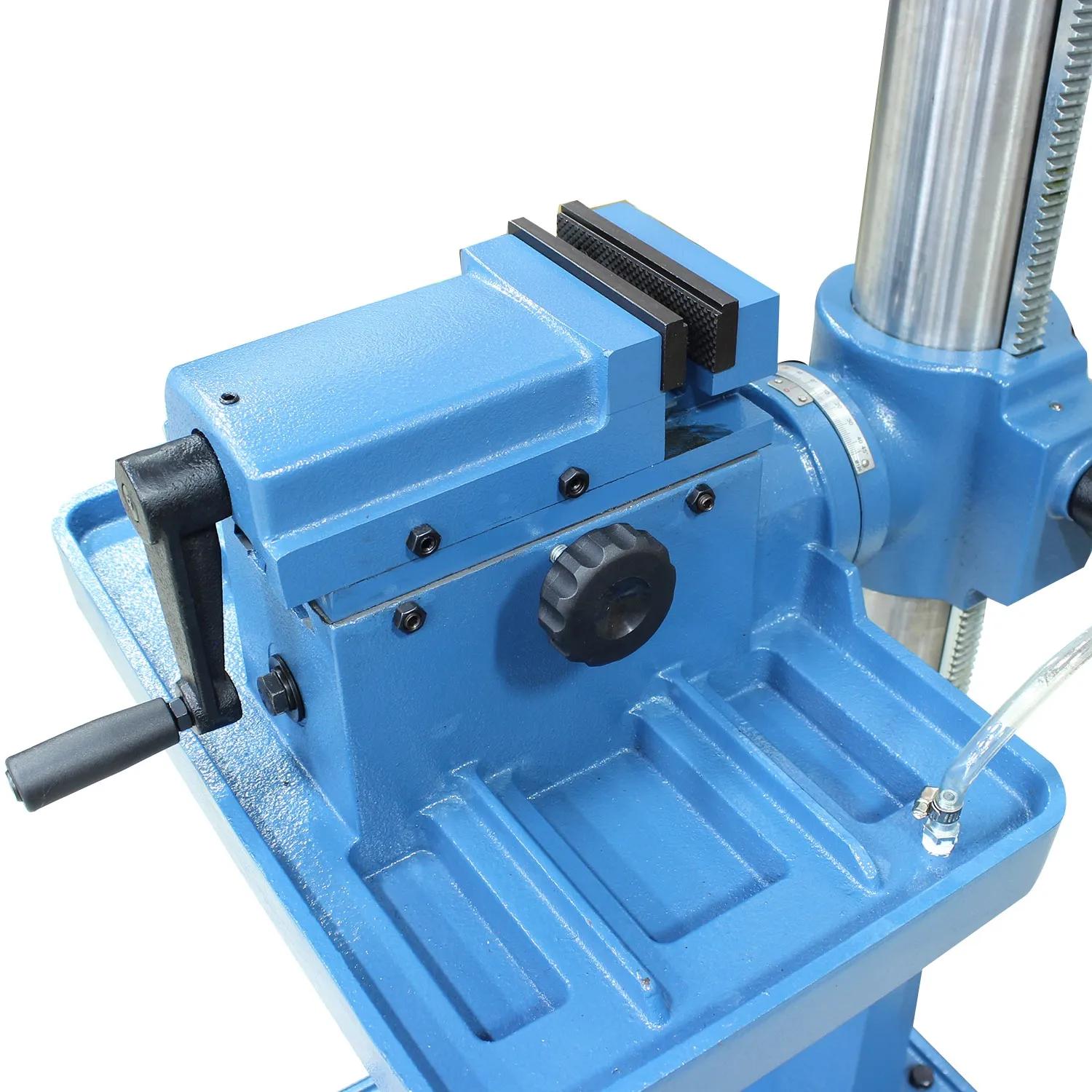

Base and 25.5"” x 17.75” table are made of a heavy iron casting to increase rigidity with very large .511" T-slots which let a vise or fixture securely hold your material
Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan
More Information
Stock NumberBA9-1022511
Base Dimensions (In.)7.75" x 25.5"
Column Diameter (In.)4"
Drilling Capacity (In.)1.25
Input Power220V / 1-phase
Model NumberDP-1400VS
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)2.44”
Shipping Dimensions (L x W x H) (In.)60x44x88
Table Slots (In.).551"
Warranty1 Year
Weight (Lbs.)710
Gross Weight665.0
Net weight665.0
Max. Spindle Speed230 – 2500 rpm
Min. Spindle Speed80 – 1000 rpm
