Dual Miter Band Saw - BS-350M

Stock Number
BA9-1001557
$8,519.00
Click LeaseLeasing starts at $252 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $252

Product Overview

Need to cut at multiple angles in both directions? This dual-mitering band saw has a cast iron head and bow that can swivel 60° right and 45° left.

Modes of operation:
*Choose between 2 modes of operation, manual or hydraulic descent, depending on your preference and project.
*Manual descent mode:
*For small production runs.
*Perfect for small or medium sized fabricators’ needs.
*Turn on the machine via a trigger switch in the descent handle.
*Manually guide the band saw blade through the material.

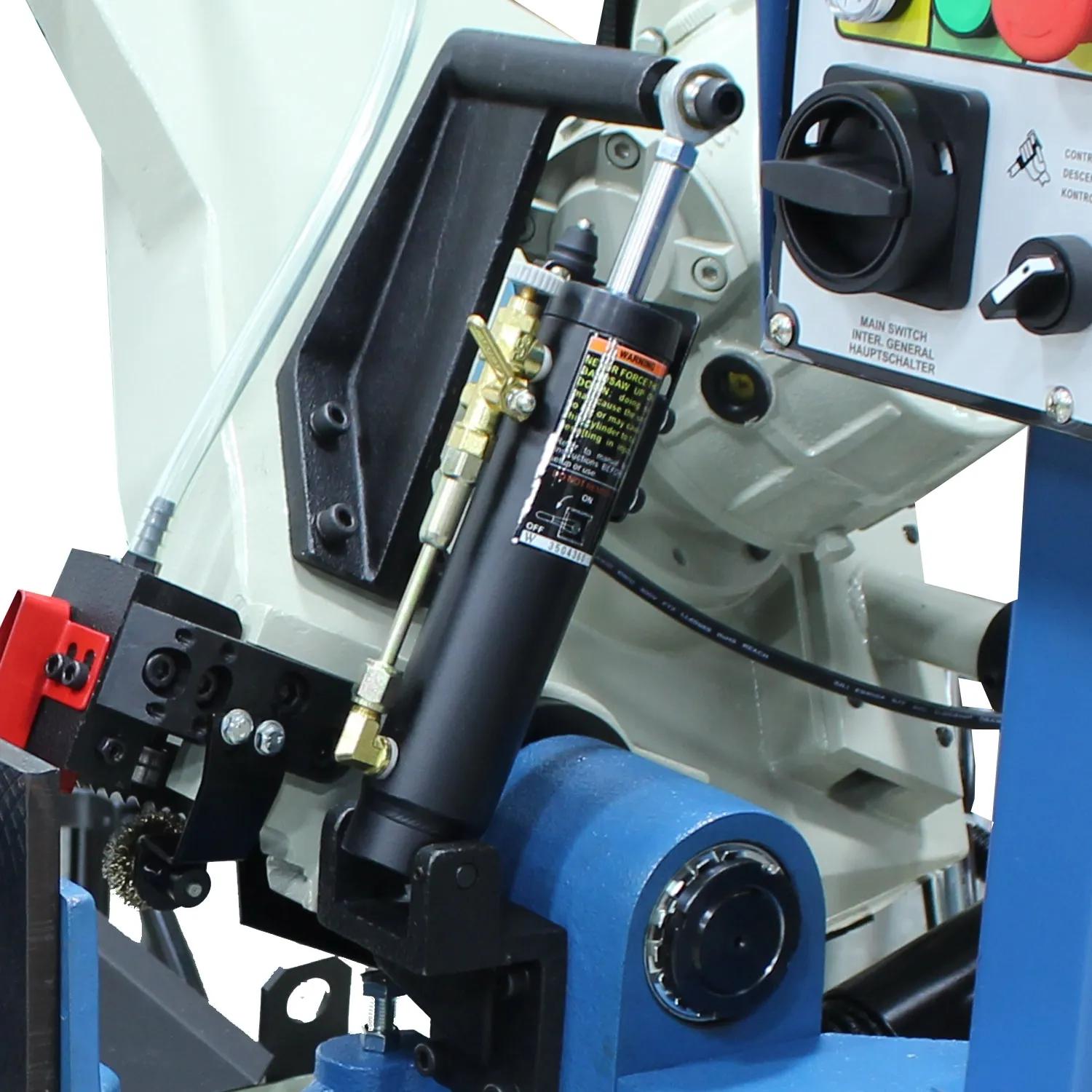

*Hydraulic descent mode:
*For larger production runs.
*Increases blade life and reduces operator fatigue.
*Downfeed adjustment for feed pressure.

Warranty and Support:
*We cover this horizontal band saw with a 1-year parts warranty.
*Both the saw and replacement parts are typically in stock for fast deliveries.
*Includes lifetime technical support by phone. Call up our team of experienced reps any time for troubleshooting or project advice.

Call us at 1-920-684-4990 with any questions you have about this dual miter band saw for sale.


+ Show More
10.5” round capacity at 90°
Runs on 220-volt single-phase power. You can use the dual miter band saw just about anywhere
2 hp motor, driven by an AC inverter, makes the machine reliable
Direct-drive gearbox saves you the trouble of adjusting pulleys or replacing broken belts!
Cast iron head and bow, machined to exacting tolerances, reduce vibration and deliver the straightest, highest quality cuts on the market
1” blade width

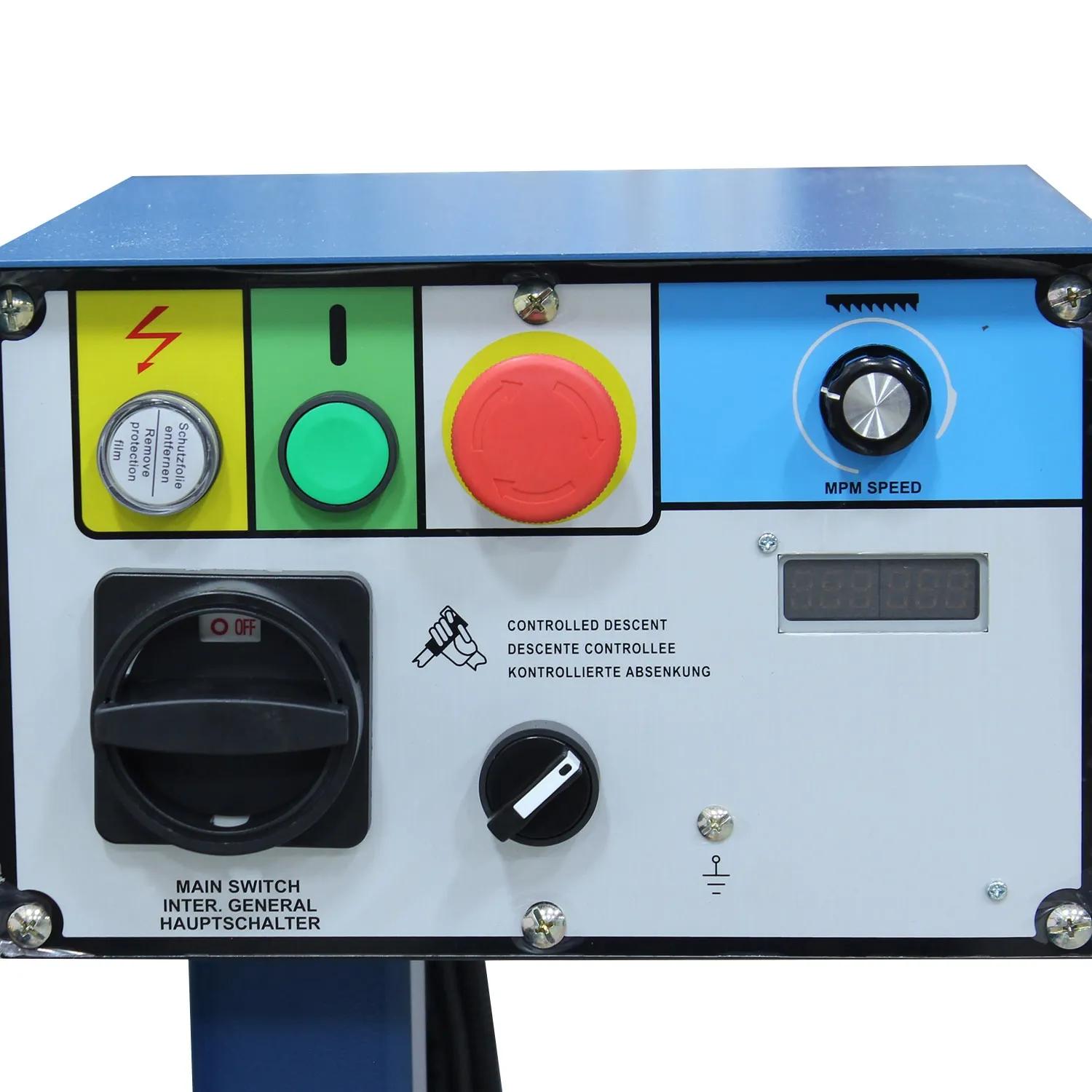

Variable speed control, from 66- 280 fpm, lets you select the speed to suit your material and application

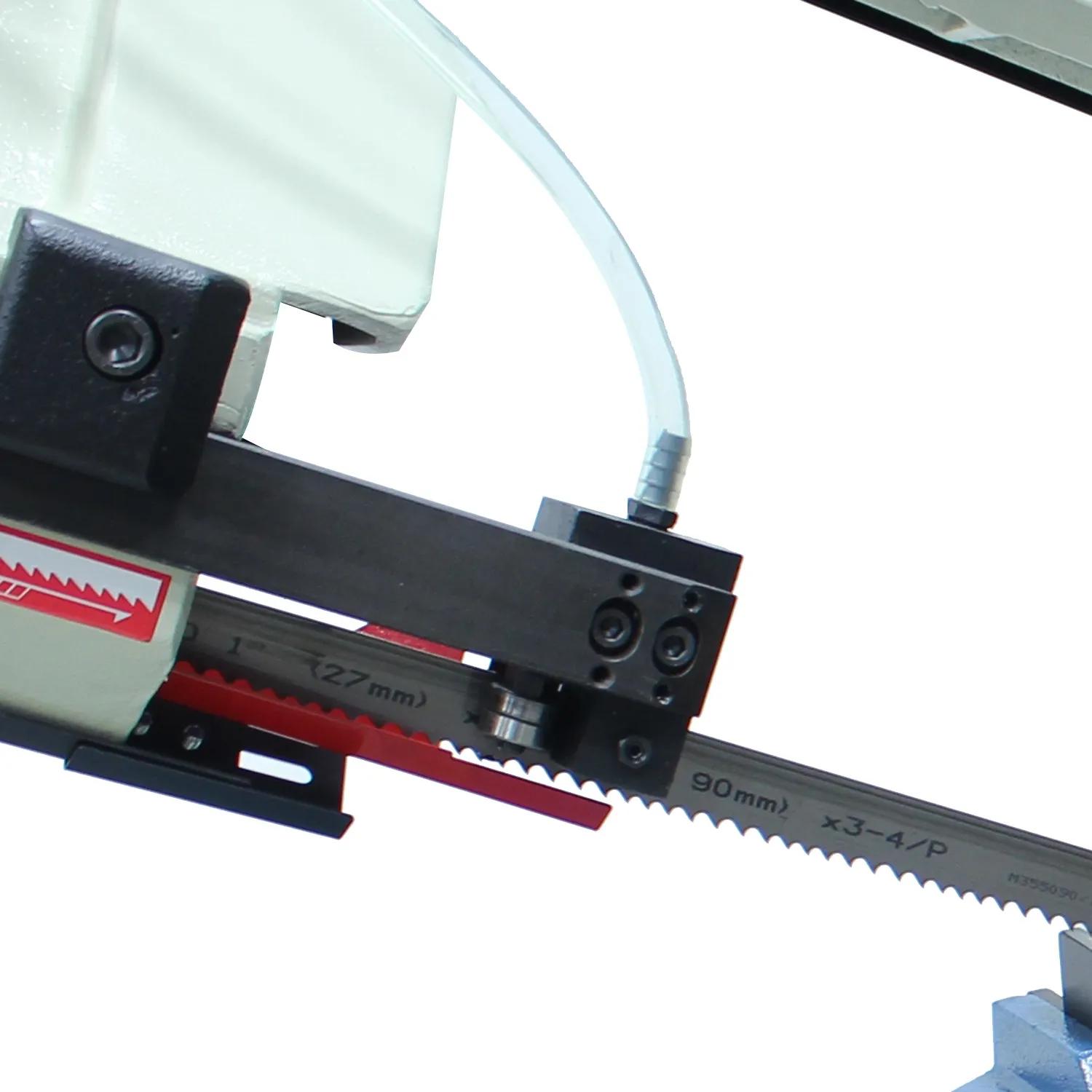

Ball bearing blade guides help you get the blade as close to the material as possible to make accurate cuts, ensuring long blade life

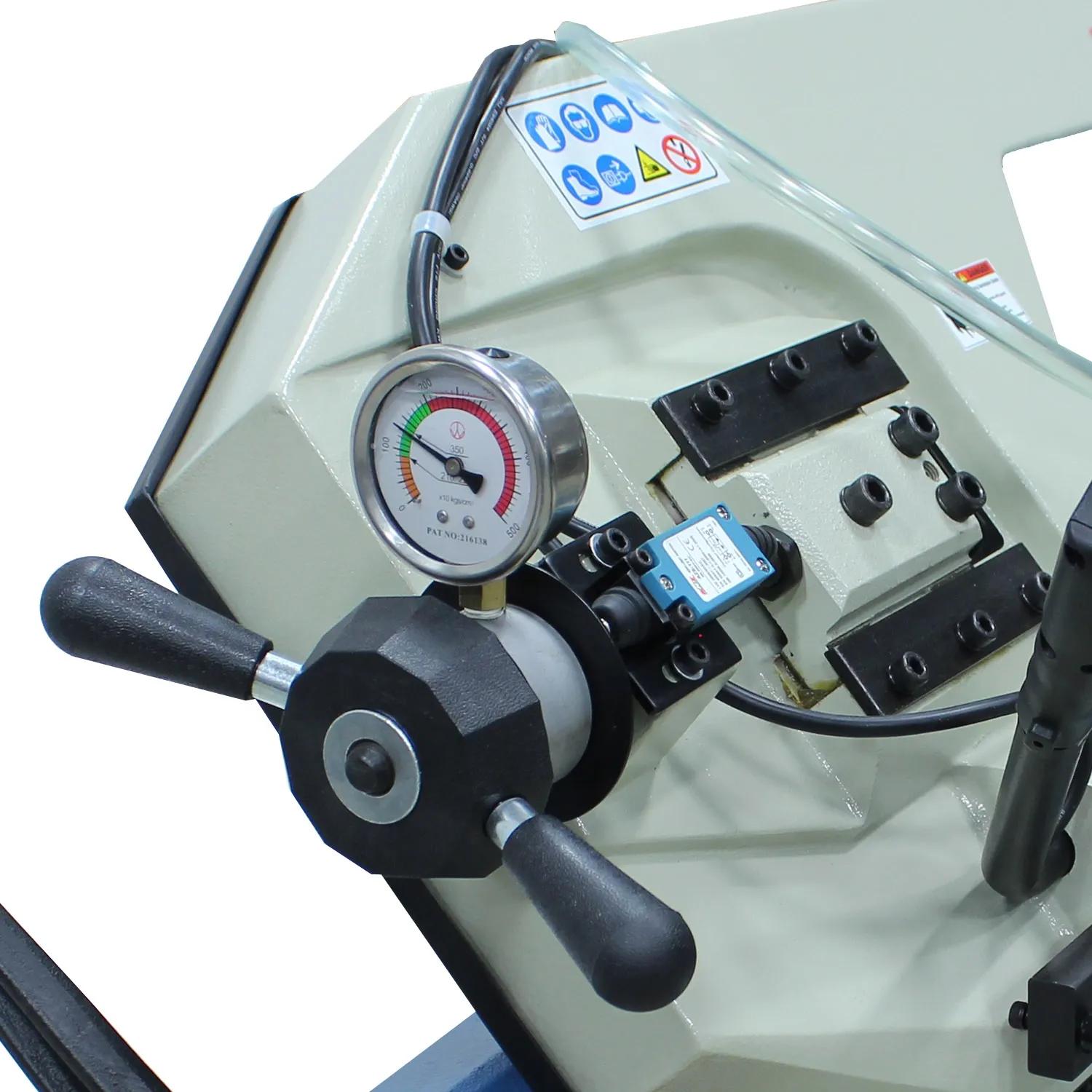

Patented blade tension device, a liquid-filled gauge, makes it easy to check and adjust the tension

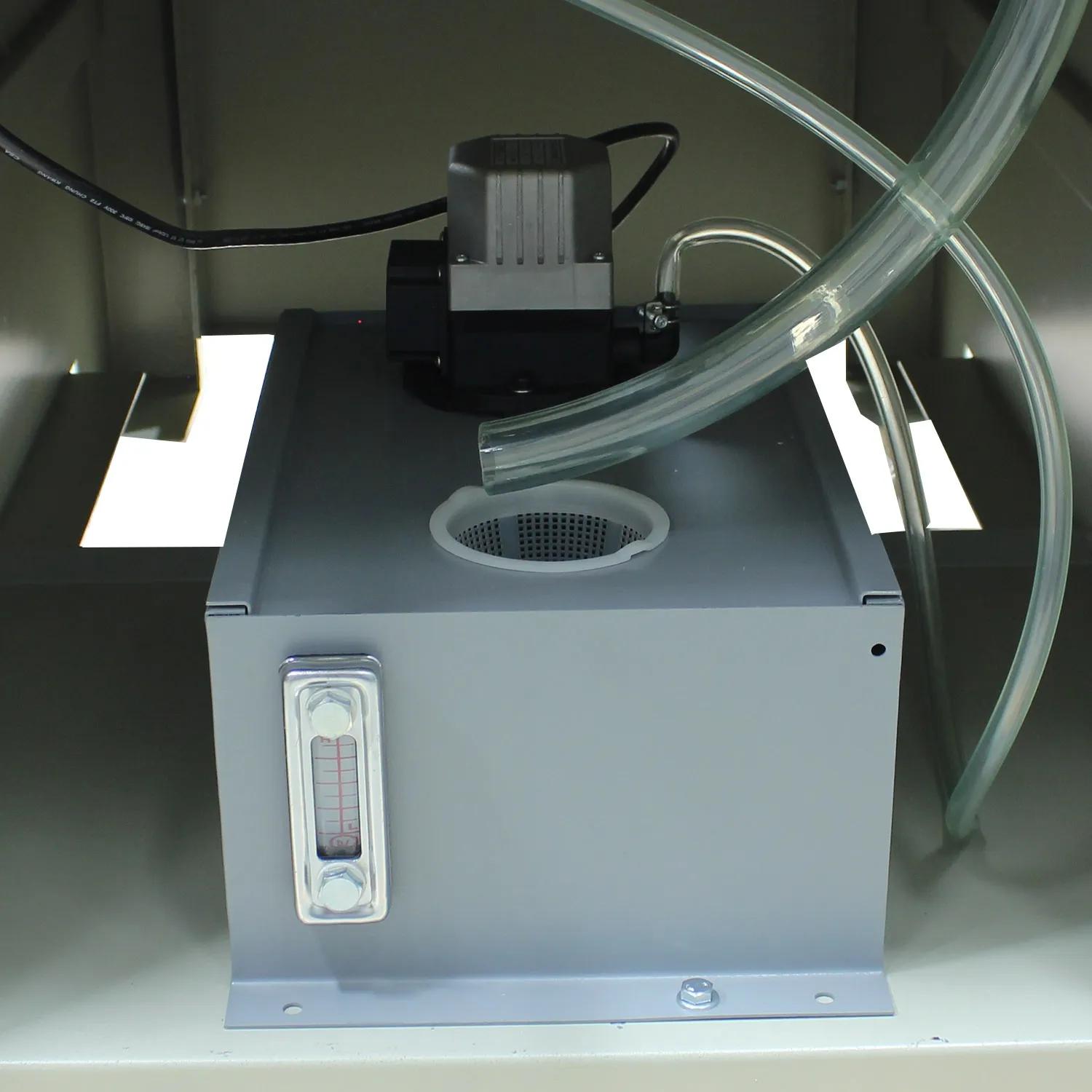

Comes standard with a flood coolant system to wash away metal chips and help blades last longer
More Information
Stock NumberBA9-1001557
Blade GuideCarbide x Roller
Blade Speeds (SFPM)66–280 Variable
Capacity Round 90 X 45 X 60 X 4510.63" x 9.45" x 6.3" x 8.28"
Descent ControlHydraulic
DriveGear
Input Power220V / 1-phase
Type of Miter AdjustmentDual Swivel Head
Miter Angle Range (Deg.)0 – 60°, 45°L
Model NumberBS-350M
Motor (HP)High Torque 1.5Kw (AC)
Prop 65Cancer and Reproductive Harm
ReturnManual
Shipping Dimensions (L x W x H) (In.)69x44x49
Table Height (In.)35
Warranty1 Year
Weight (Lbs.)865
Gross Weight862.0
Net weight862.0
