Dual Mitering Band Saw - BS-20M-DM
Stock Number:
BA9-1001292
$18,509.00
Enhanced Bullet 1:
220V or 440V 3-phase models
Enhanced Bullet 2:
13" round capacity at 90°
Enhanced Bullet 3:
Head miters 45° left, 60° right
Enhanced Bullet 4:
1.25" blade width
Product Overview
Need to increase production? The manual BS-20M-DM dual miter band saw offers hydraulic descent, a roller infeed, and a material stop for efficiency. With its steel frame, the saw will last for many years.
Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.
Available in 220-volt triple-phase or 440-volt triple-phase (special order) models

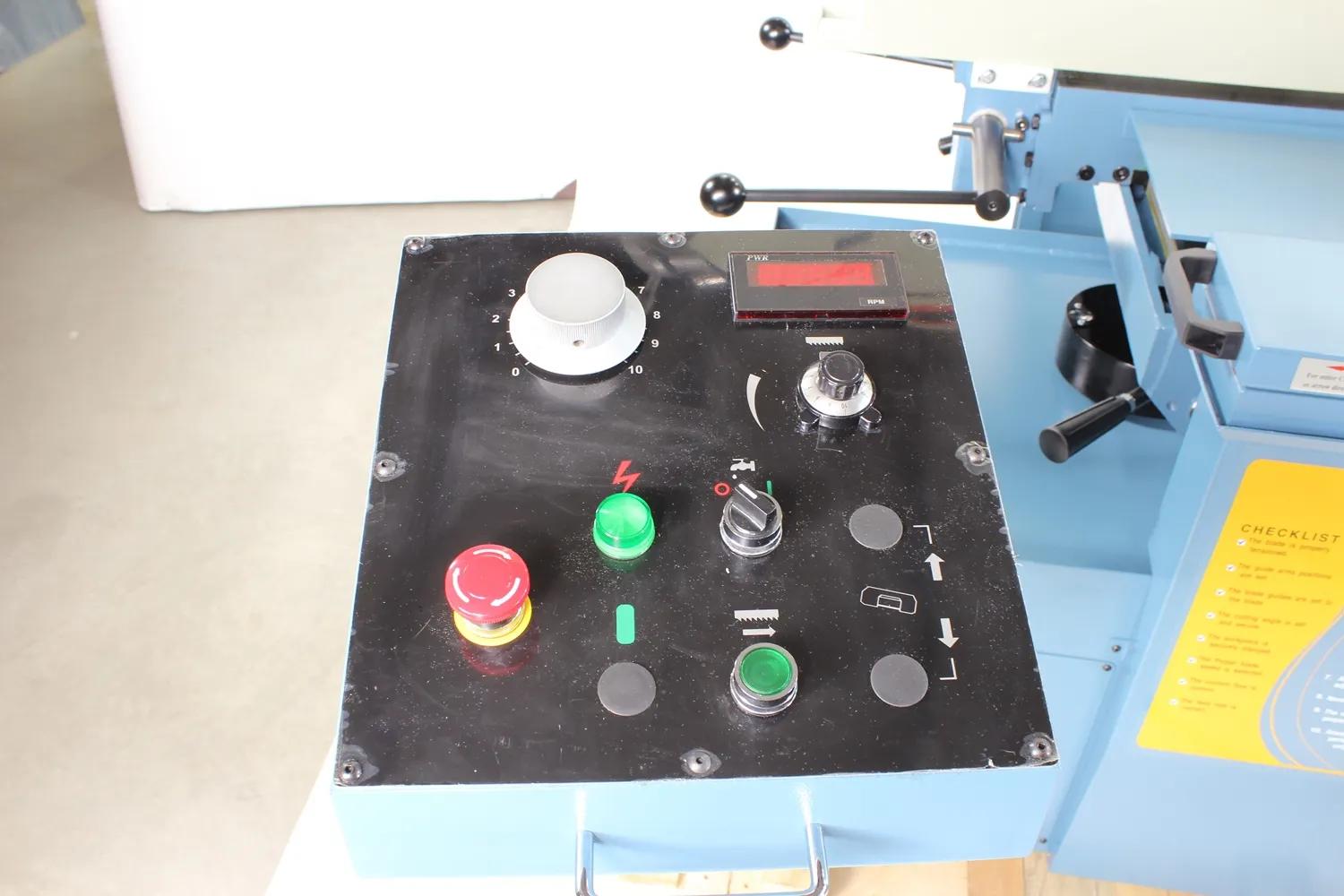

Digital readout shows the blade speed. Adjust the dial to use the same settings for multiples of a part

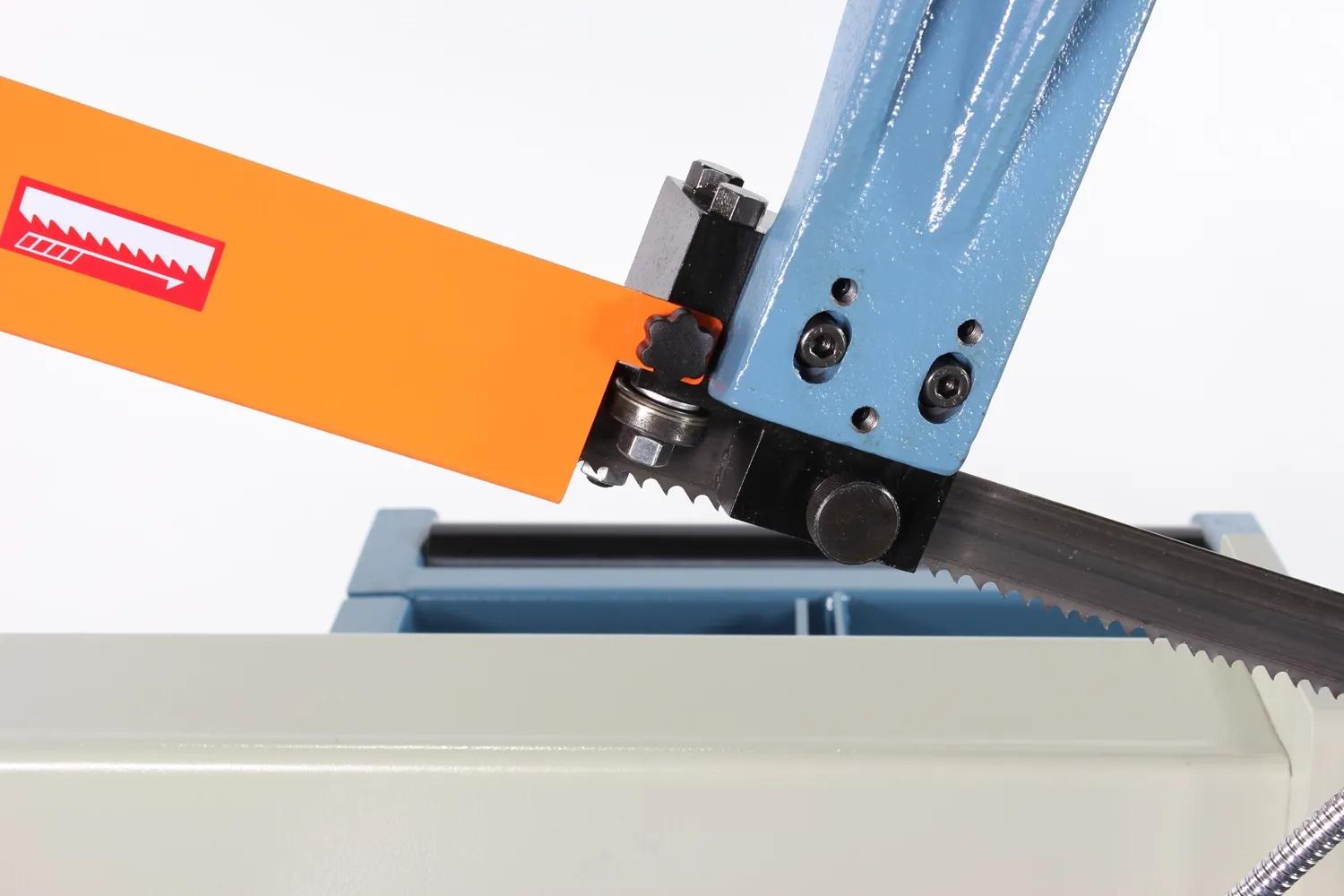

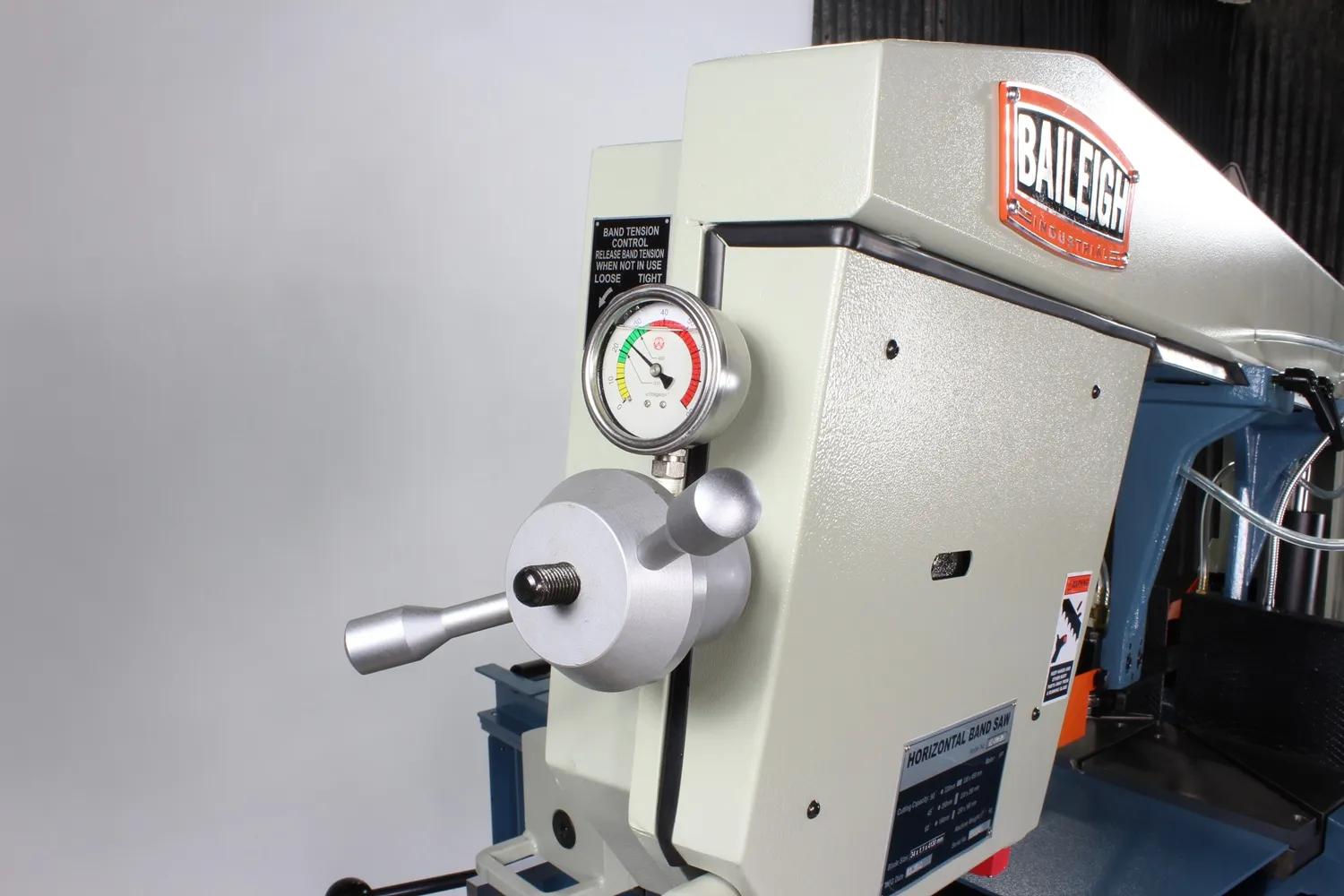

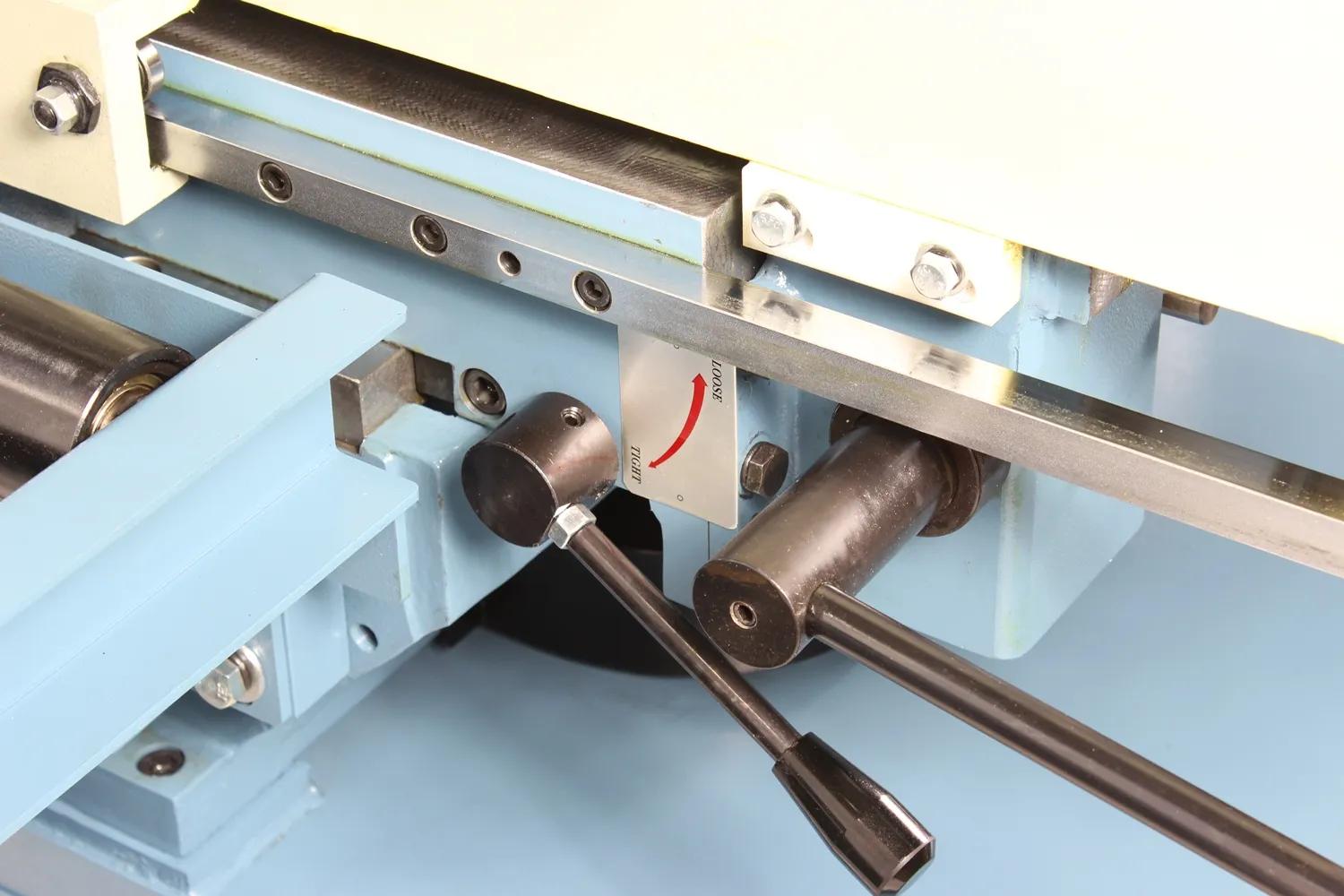

Accepts large 1.25” blade (included) for speed and accuracy paired with our patented blade tensioning gauge that simplifies the process of checking and adjusting the tension

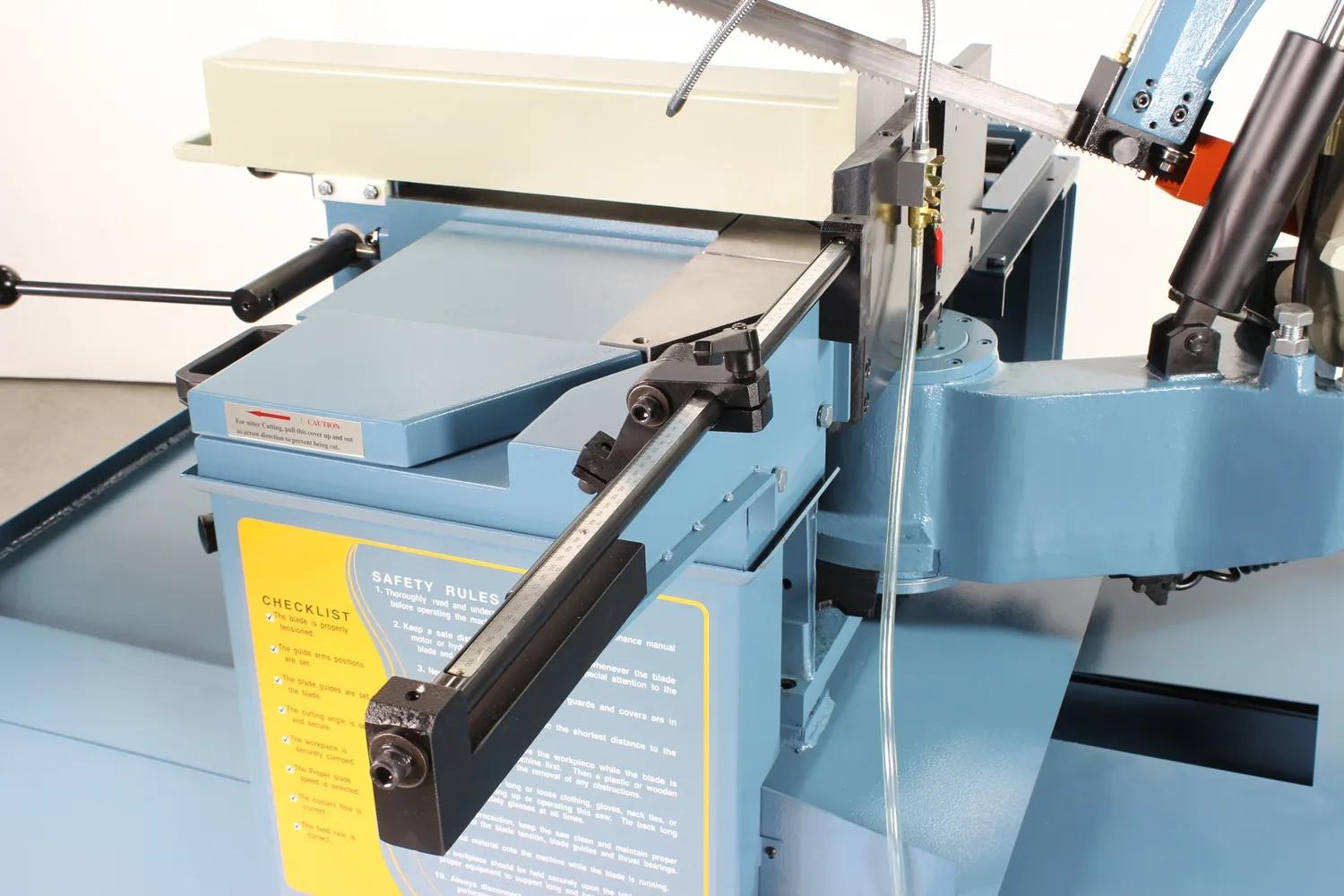

Inverter drive lets you adjust blade speed: 69 to 306 fpm and includes a material stop for conveniently making repeat cuts
Miters 45° left and 60° right by pushing or pulling the head to the angle you need while roller infeed and outfeed table enables you to slide the material to and from the blade, saving strain

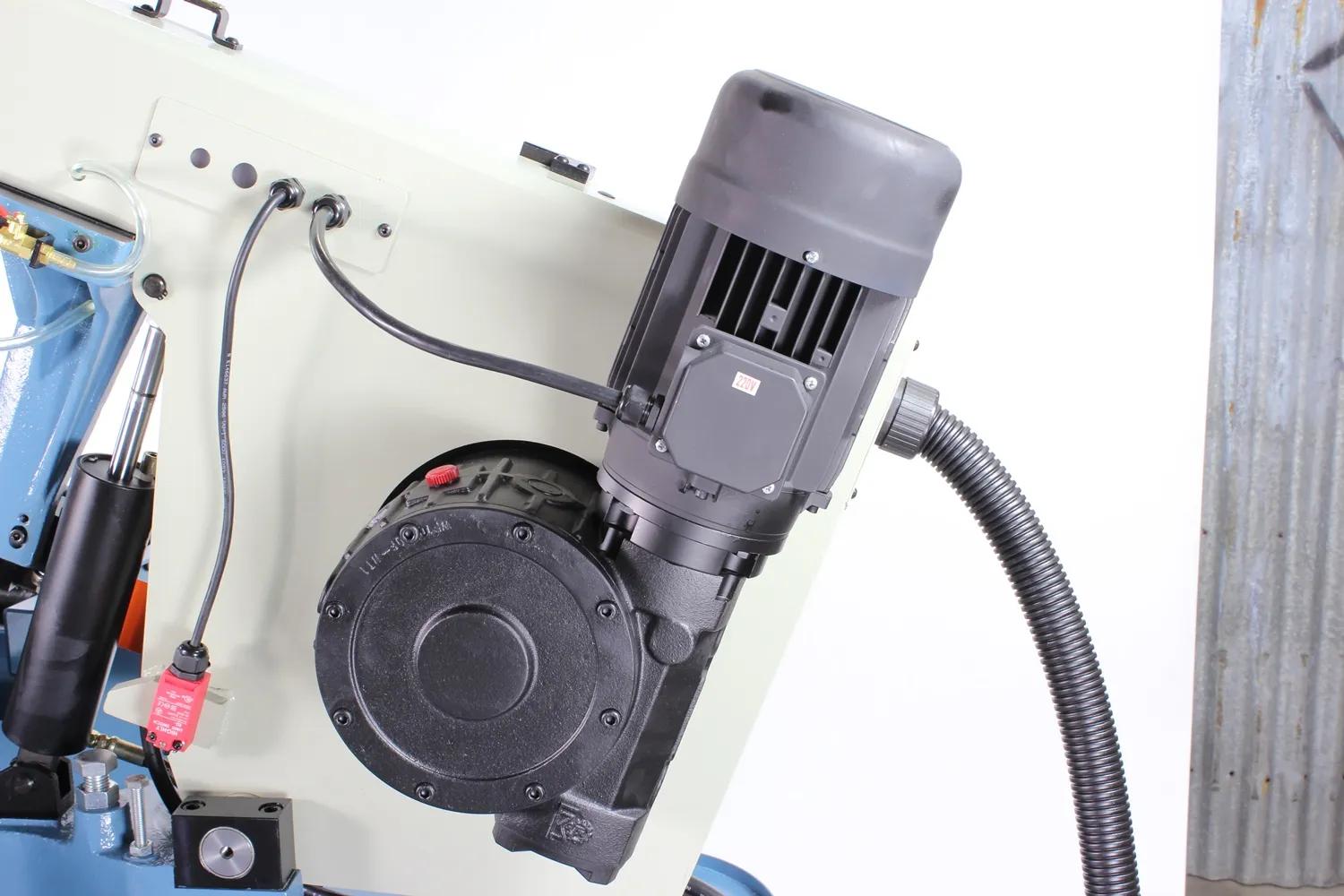

Industrial reduction gearbox transmission makes the saw more reliable than one with a belt and pulley system
Quick-lock vise has serrated jaws that grip onto round material, preventing it from spinning and ruining a blade

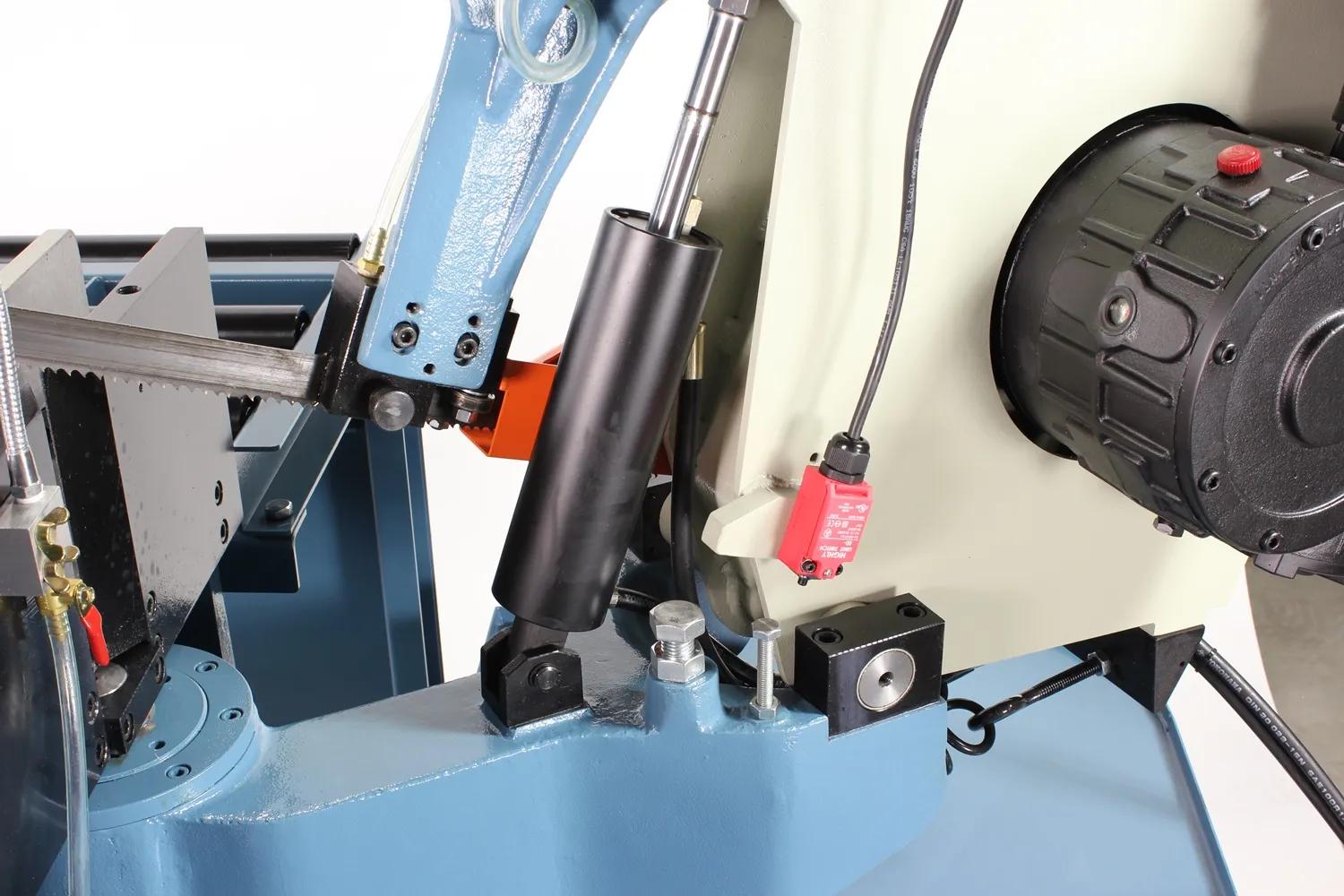

Hydraulic descent allows you to select the proper speed with an automatic shut-off system that stops the machine once it’s done cutting, for your safety

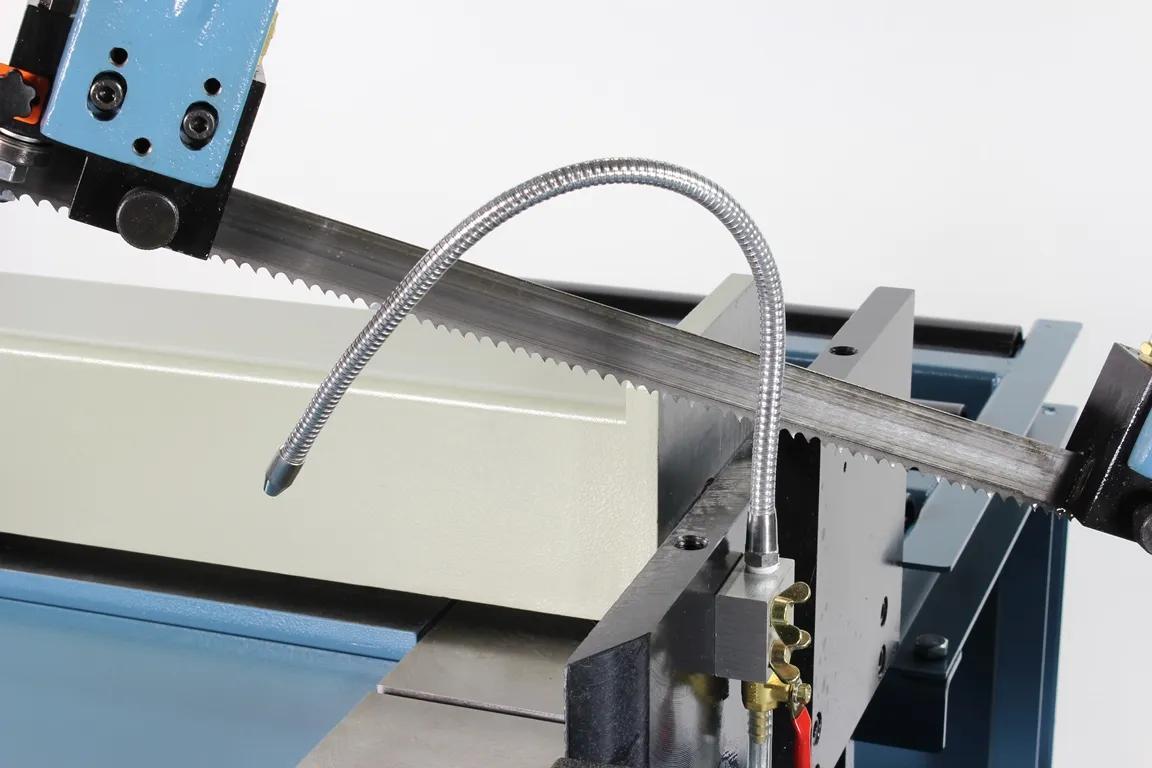

High-pressure flood coolant system washes away chips and helps the blade last longer with huge chip tray at the bottom that collects debris and keeps your shop clean
Rigid cast iron bow adds to the structural strength of the machine and reduces vibrations with the help of the electro-welded steel frame that keeps vibrations down to a minimum, so your cuts stay straight and accurate
| Stock Number | BA9-1001292 |
|---|---|
| Accessories | Included Accessories |
| Blade Guide | Carbide / Roller |
| Blade Speeds (SFPM) | 60 - 306 Inverter Driven |
| Capacity Round 90 X 45 X 60 | 13" x 12" x 8.5" |
| Capacity Square 90 X 45 X 60 | 13" x 12" x 8.5" |
| Descent Control | Hydraulic |
| Drive | Inverter Direct |
| Input Power | 220V, 60Hz, 3-Phase |
| Type of Miter Adjustment | Dual Miter Swivel Head |
| Miter Angle Range (Deg.) | 0 – 60°, 45°L |
| Model Number | BS-20M-DM |
| Motor (HP) | 3.0 hp |
| Prop 65 | Cancer and Reproductive Harm |
| Return | Manual |
| Shipping Dimensions (L x W x H) (In.) | 90x36x67 |
| Table Height (In.) | 30.5 |
| Warranty | 1 Year |
| Weight (Lbs.) | 2180 |
| Gross Weight | 2180.0 |
| Net weight | 2180.0 |
