Economical Tube bending Software - BT-PRO

Call 920-684-4990 for availability
Stock Number:
BA9-1002158
$658.00
Enhanced Bullet 1: Tube and pipe bending software
Enhanced Bullet 2: Lower cost alternative to SE
Enhanced Bullet 3: For designing chassis, roll cages, rock sliders, and more
Enhanced Bullet 4: Good place to start on a tubing assemby project
Request a Quote
Add to Compare920-684-4990
Economical Tube bending Software - BT-PRO

Product Overview

Baileigh Industrial now offers two versions of its popular Bend Tech® tube and pipe bending layout software, Bent Tech-Pro® and Bend-Tech SE®. This tube bending software helps the fabricator design profitable pipe and tubing designs, saving set up costs (material waste) on any brand of bender, but is especially helpful when using our RDB line of Benders. This layout software can be learned in minutes and will save the any shop that has to bend tube and pipe tons of money in material savings.

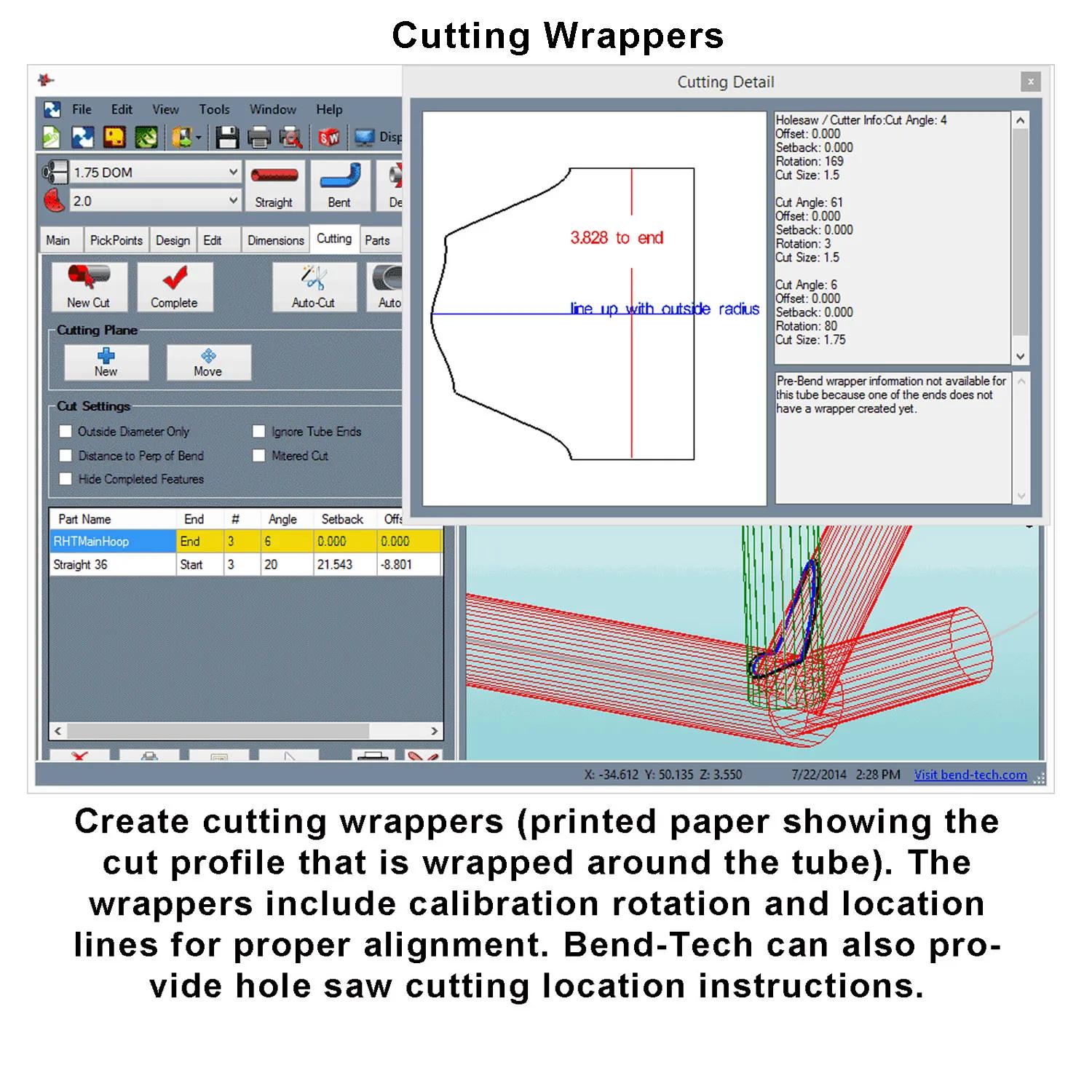

Another nice feature of Bend-Tech is its tube notching templates. Bend-Tech creates cutting wrappers for your notching. The wrappers are created from your assembly design, using your printer, showing the fish mouthing profile and calibration lines for linear and rotational placement around the tube allowing for precise notches every time. Purchase Bend-Tech PRO tube bending software from Baileigh Industrial.


+ Show More

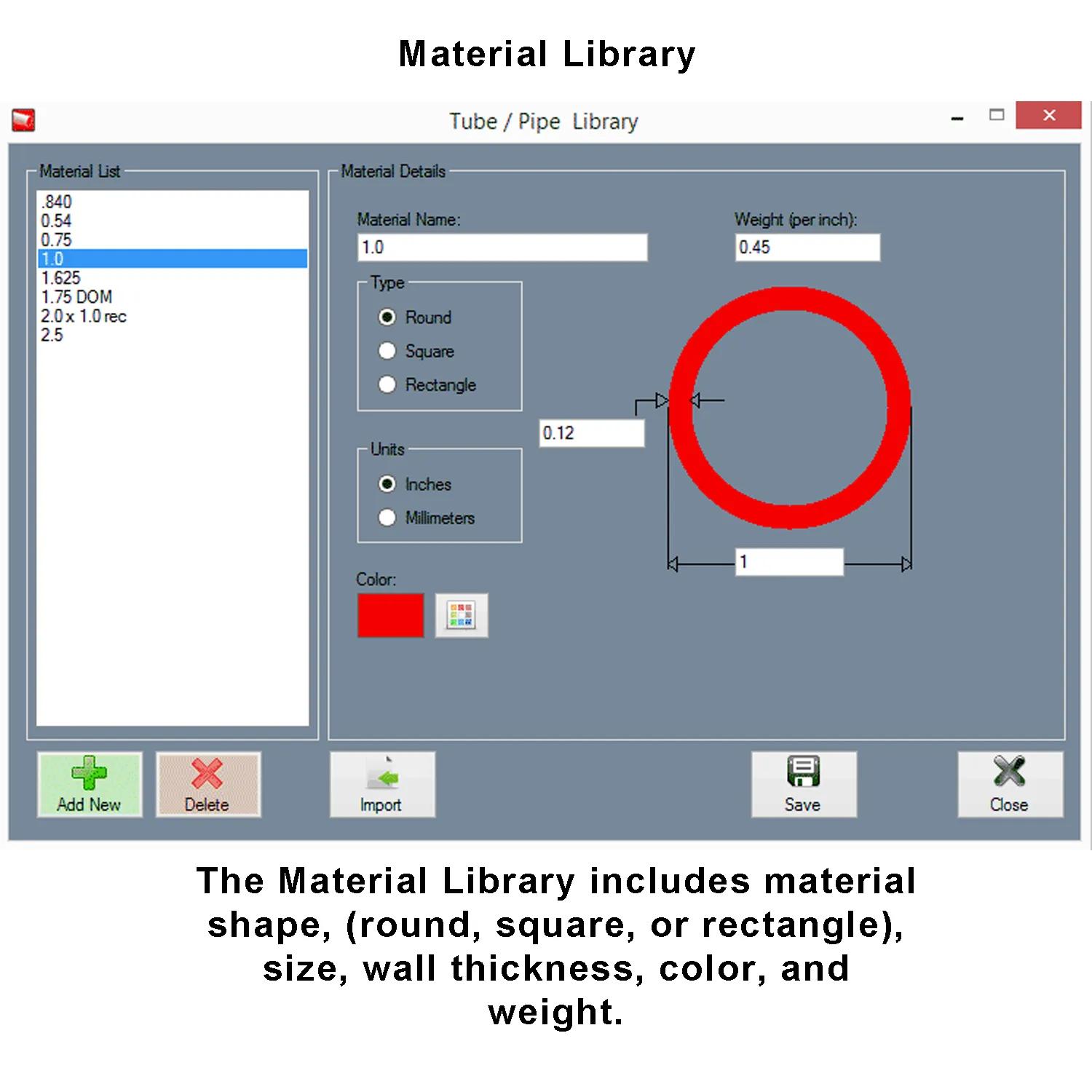

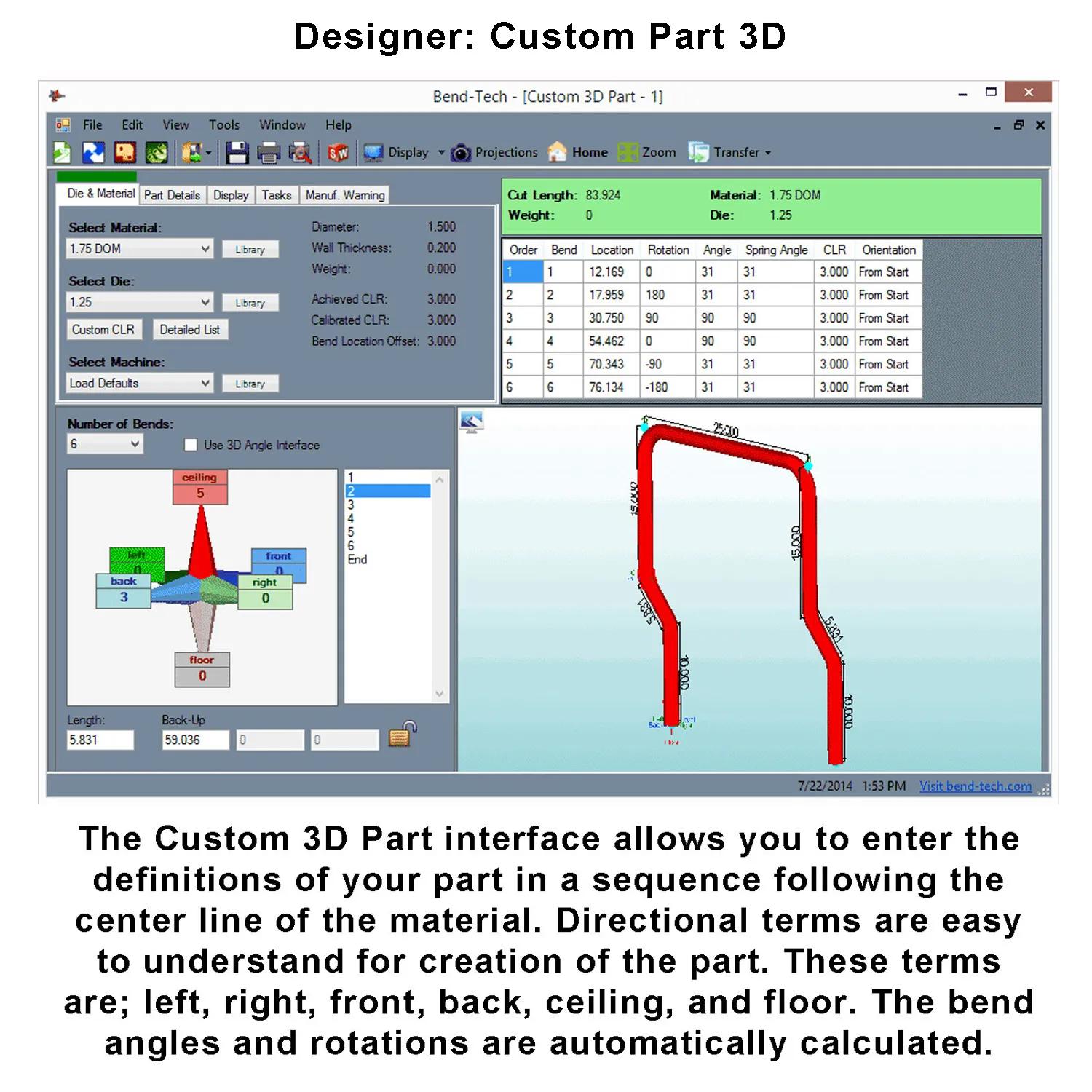

Features include: Easy Design Input, Pick Points for Dimensional Placement, Parametric Style Interface, and Material Data Base

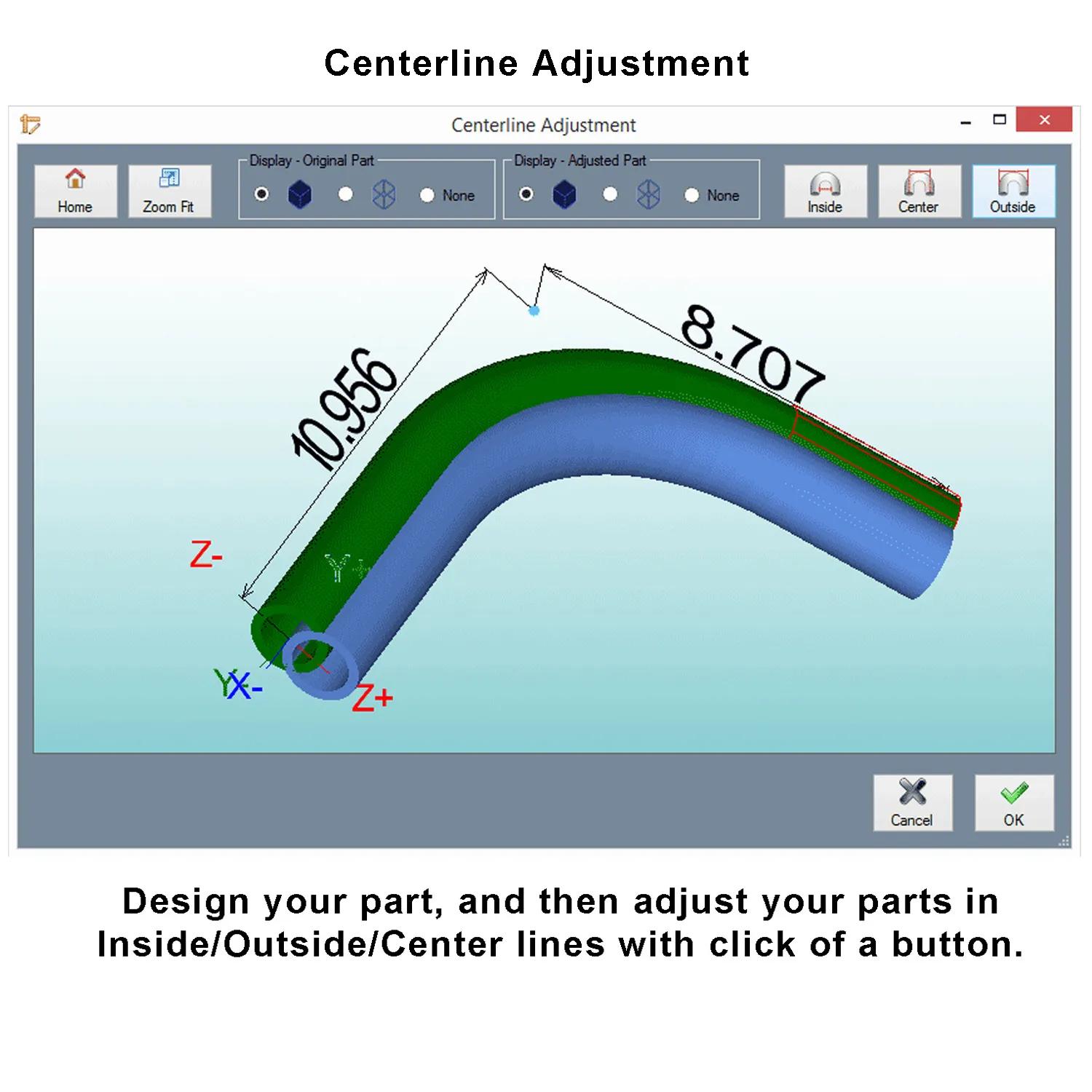

Other features include: CLR or Inside Radius (adjustable for each bend), Graphical Part Recall, and 3D Shaded Model can be Rotated Dynamically
Bend Allowance and K-factor available Rotate Sections to Create a True 3D Part
Parts are Placed in a Data Base for Future Retrieval. Help Functions are Fully Video Scripted (Learn BEND-TECH in 30 Minutes)
Create prints of the Dimensional Model, Shaded Model, Flat Layout and Title Block/li>

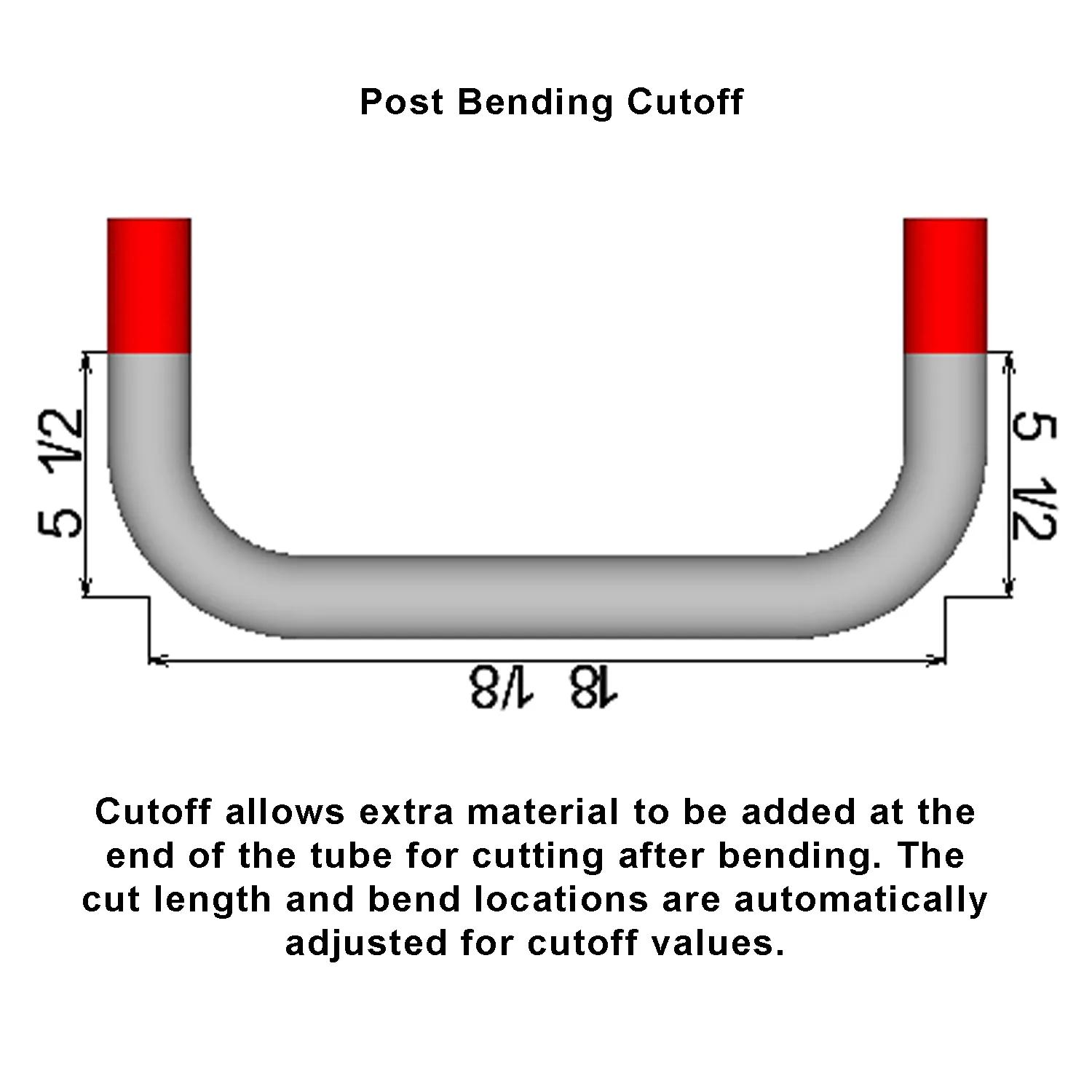

Flat Development for Cut Length and Bending Locations

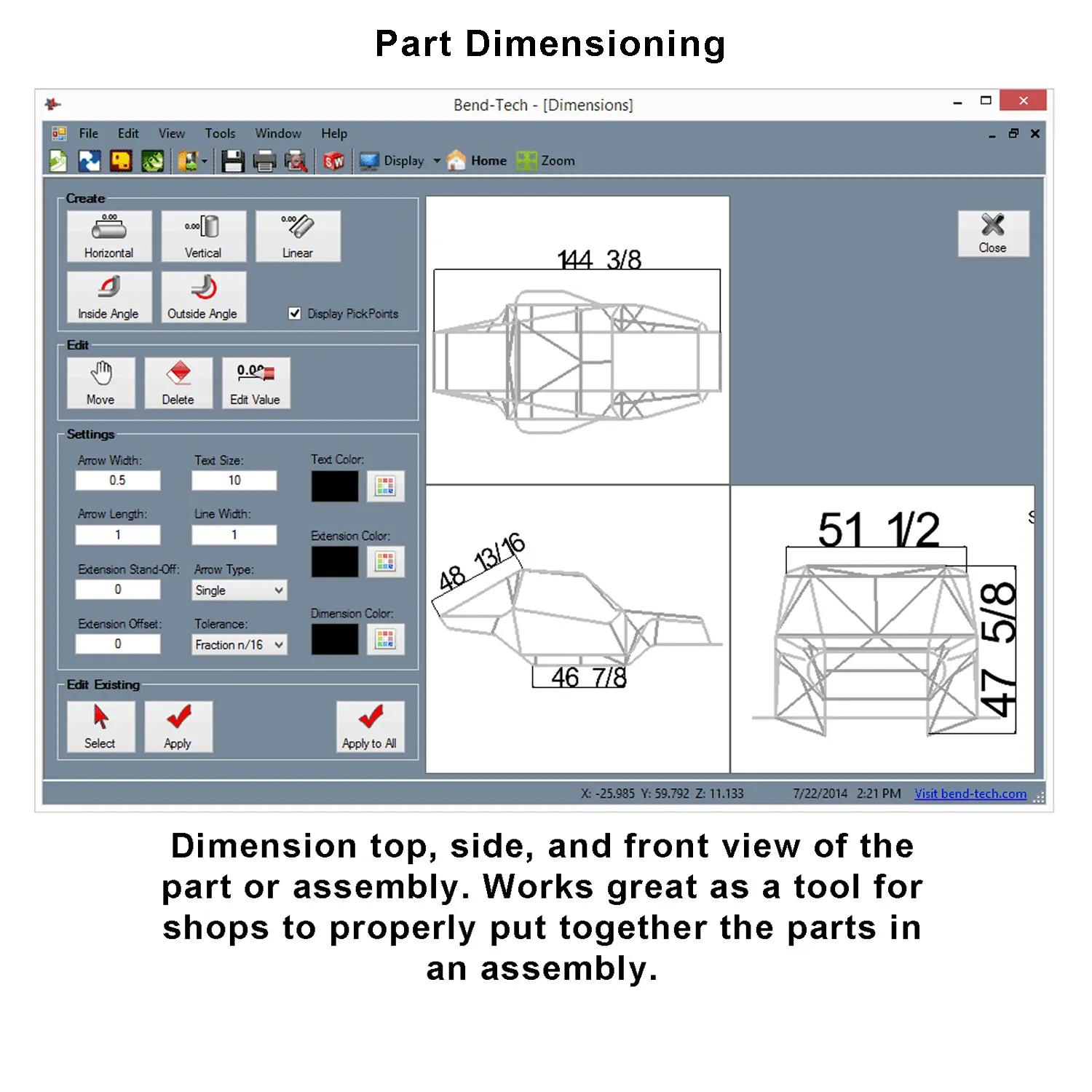

Dimension|| Start of Bend, End of Bend and Center of Bend, from either Direction - Dimension with Decimals or Fractions

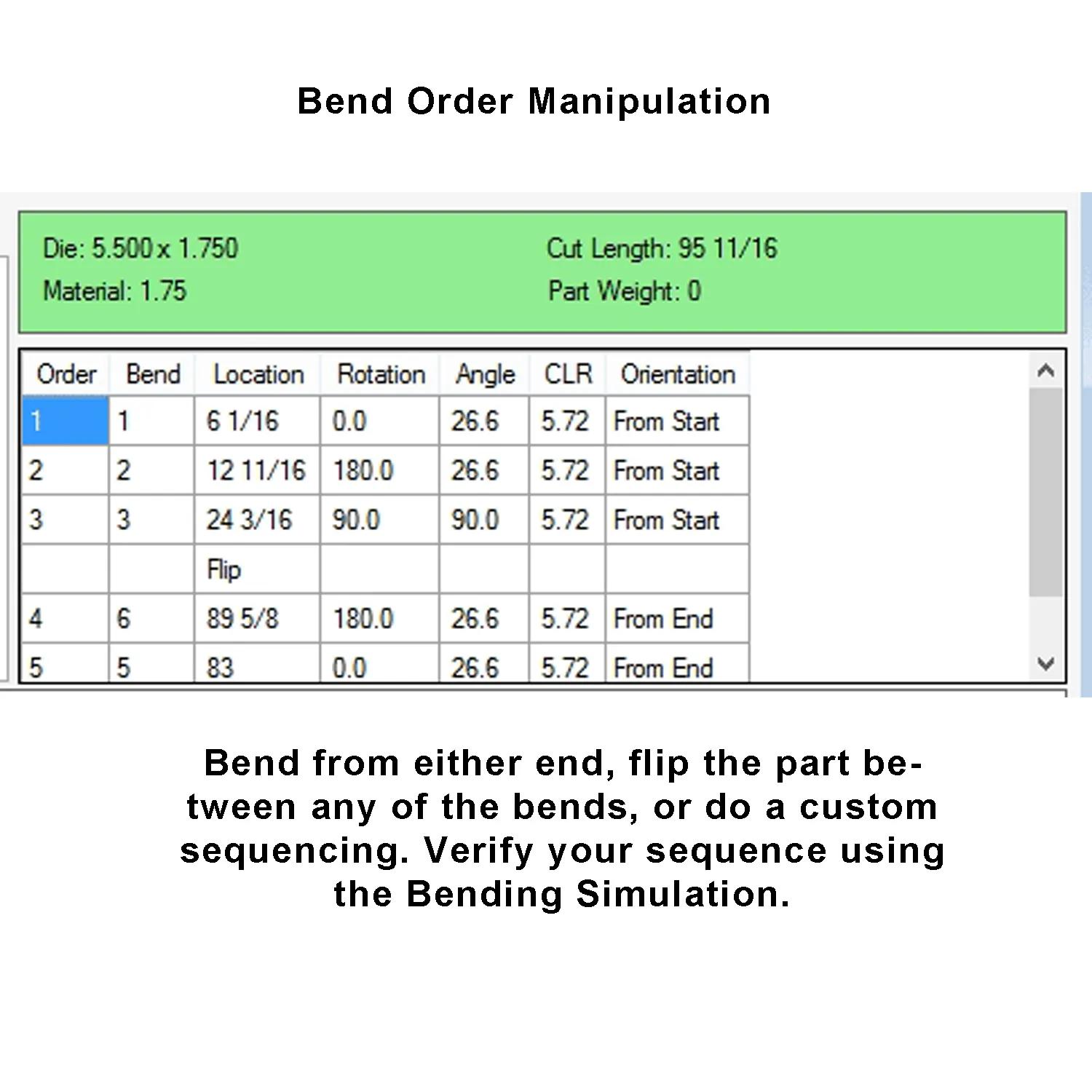

Flat Includes Bending Data, such as, Bend Angles, CLR or Inside Radius, Rotation Angle, and Bend Order
Preferences|| Colors, Text Sizes and Arrow Sizes are Saved in User Definable Databases
Our tube bending software (program) helps the fabricator layout (design) profitable pipe and tubing designs saving set up costs (material waste) on any brand of pipe bender
More Information
Stock NumberBA9-1002158
AccessoriesIncluded Accessories
Model NumberBT-PRO
Prop 65Cancer and Reproductive Harm
Warranty1 Year
Gross Weight1.0
Net weight1.0
