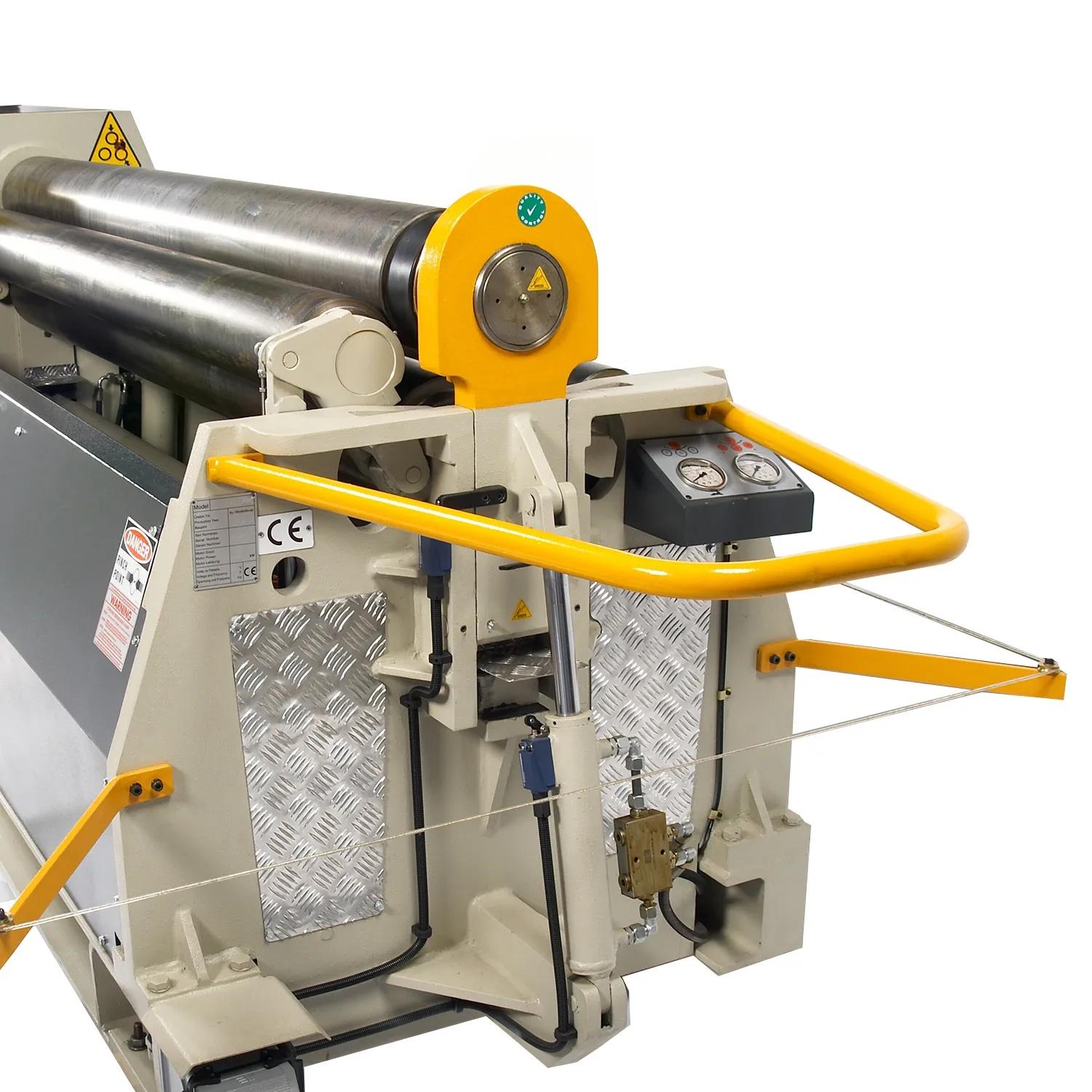

Four Roll Plate Roll PR-603-4
Product Overview
We designed this plate roll for years of trouble-free use. Direct movement on the lateral rolls can form tighter diameters with less work, whereas many plate rolls rely on orbital movement.

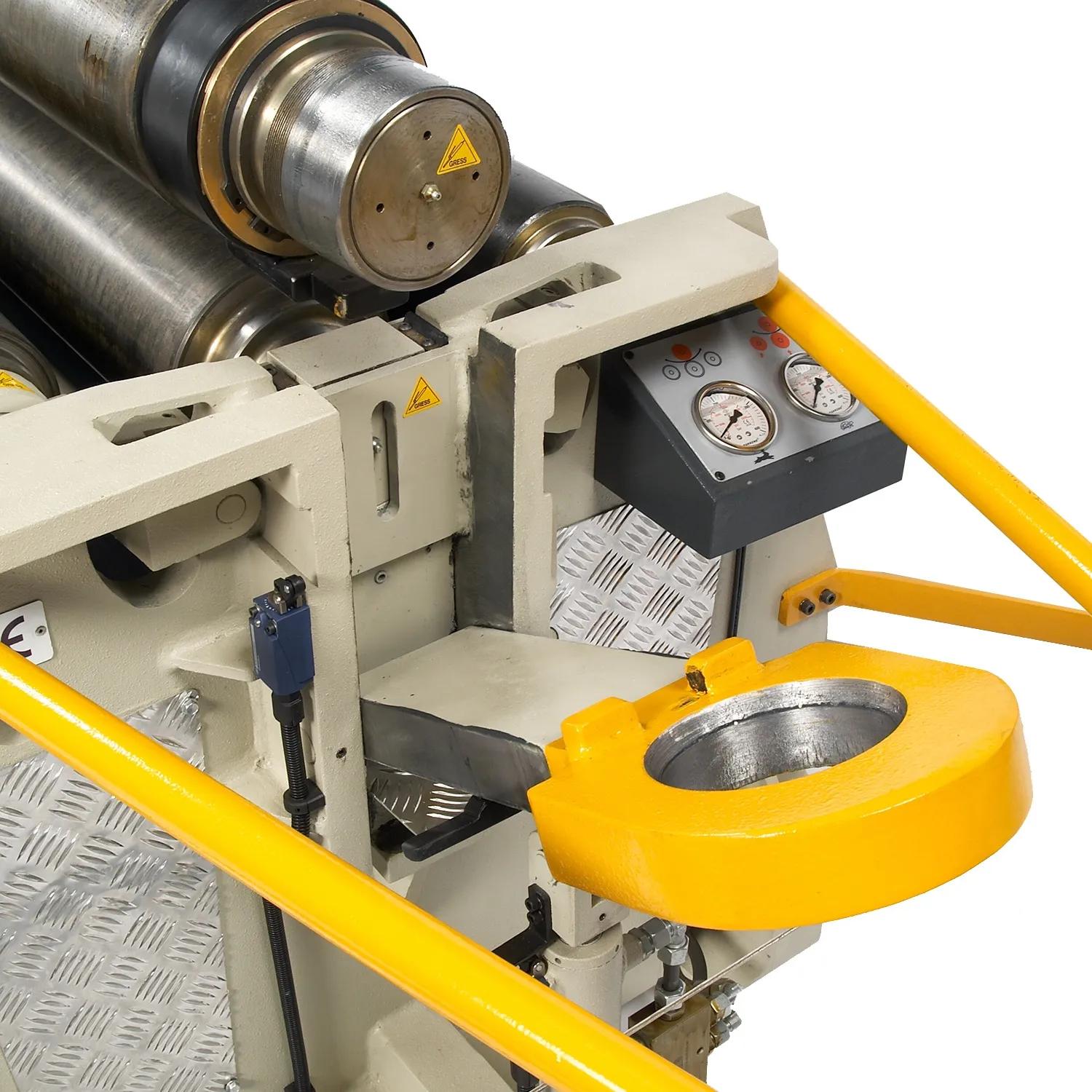

*Rolls up to ¼” mild steel in 6-foot lengths.
*Robust 4 hp motor runs on 220-volt 3-phase power.
*Planetary gearbox, connected to main motor, drives the top and bottom rolls at a solid 16 feet per minute.

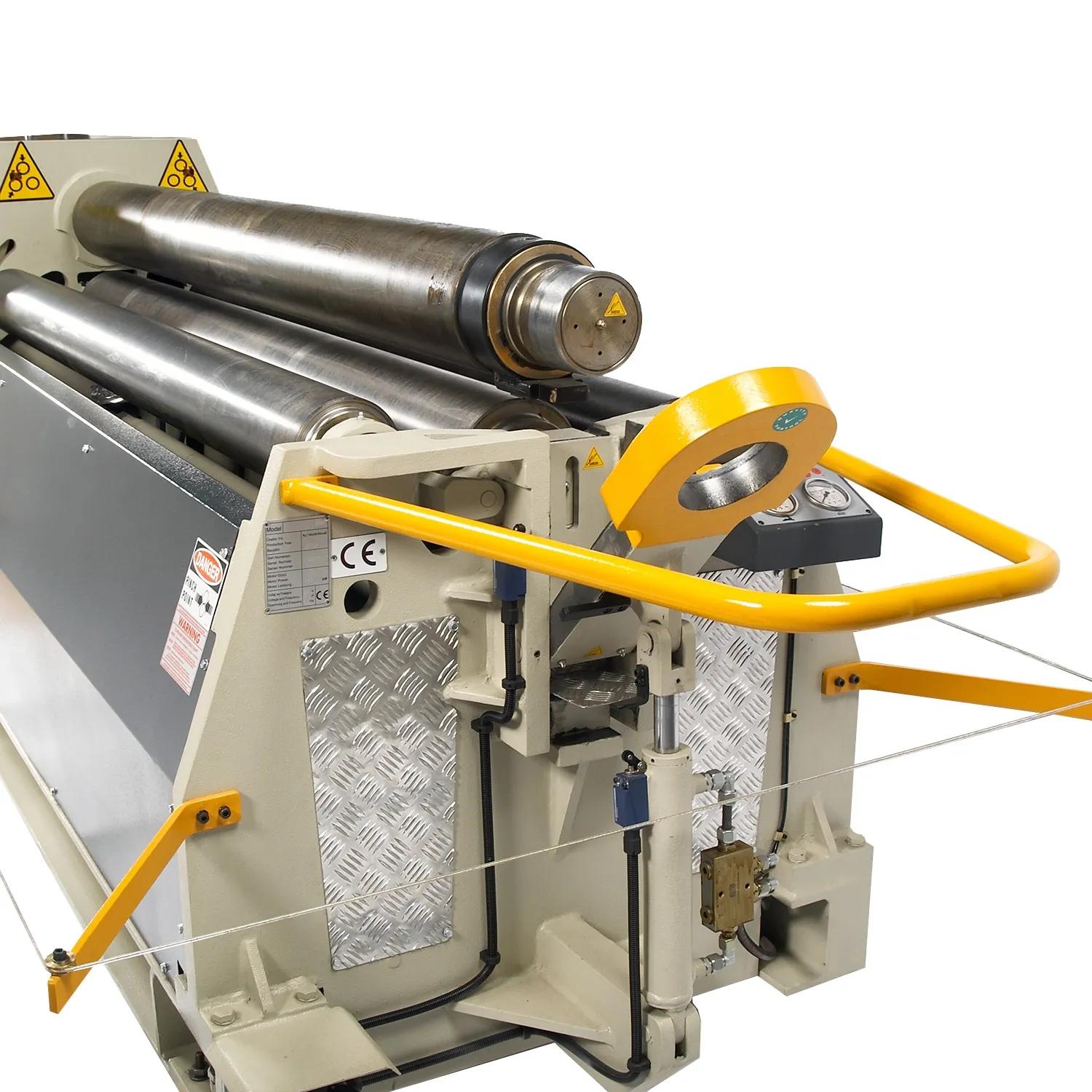

*Direct linear piston movement for the lateral and forming rolls delivers even more power.

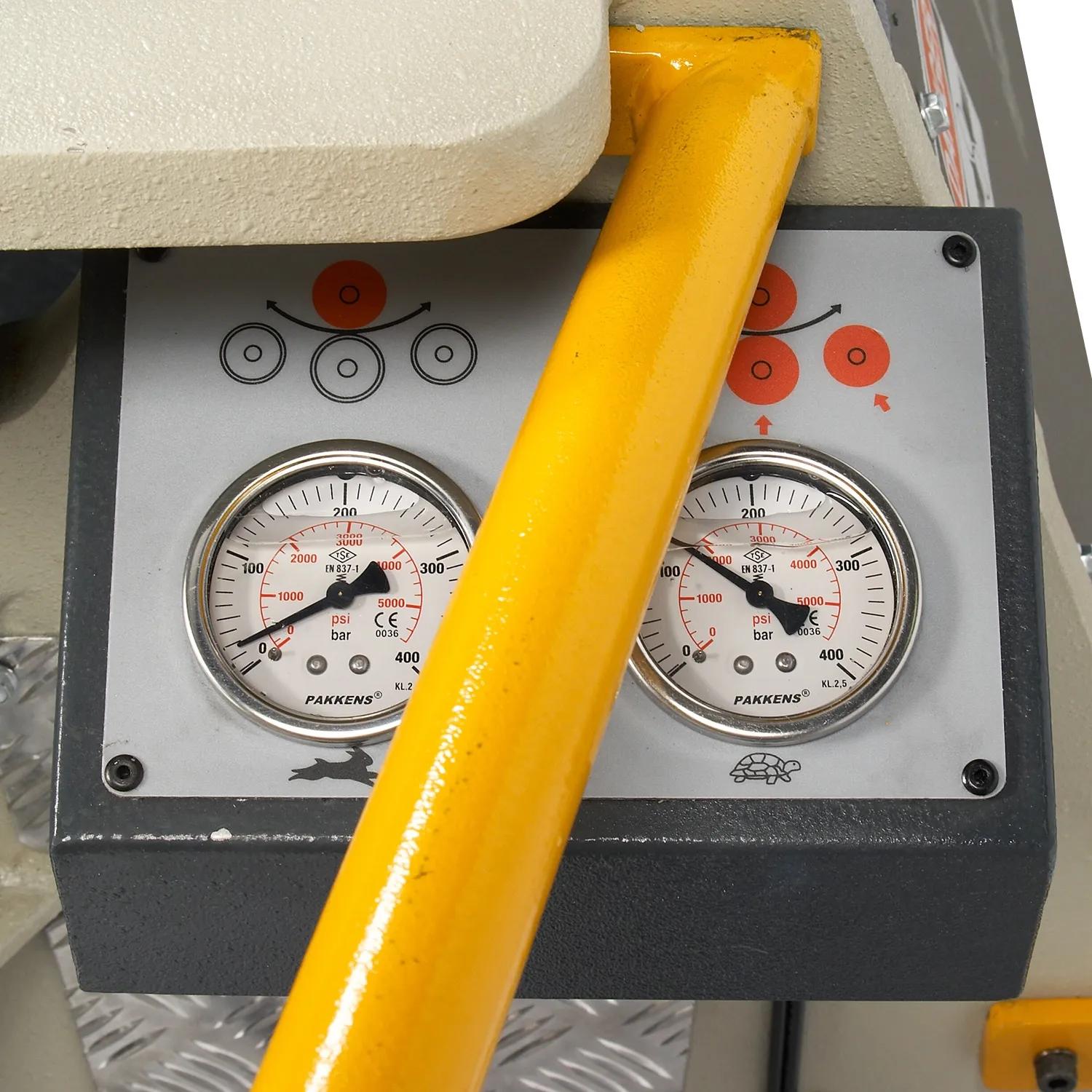

*Industrial 1.5 hp hydraulic motor moves the lateral rolls.
*3 digital readouts give accurate roll locations for easy repeatability.

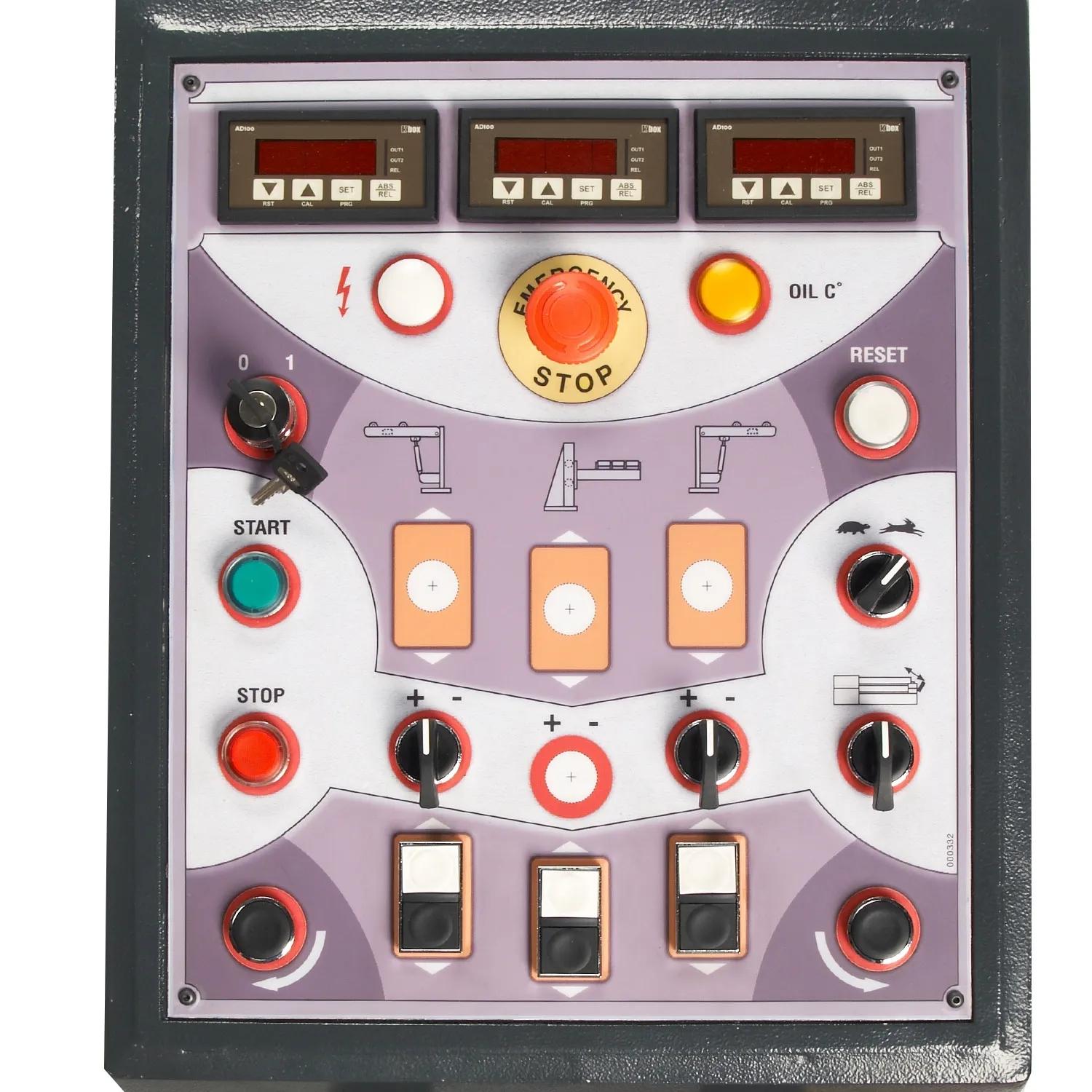

*Operator control pedestal lets you conveniently manage all movements of the machine.
*Welded steel plate frame keeps the machine rigid and helps prevent flex.
*Covered by a 1-year parts warranty.
*Includes lifetime technical support by phone from our team of in-house machine experts.
Special Capacities:
*Capacity at 5x roll diameter without pre bending .315”.
*Capacity at 1.5x roll diameter without pre bending .236”.
*Capacity at 1.5x roll diameter with pre bending .157”.
Questions? Not sure which plate roll is right for you? Call 1-920-684-4990 and talk to a Baileigh expert.
| Stock Number | BA9-1006554 |
|---|---|
| Maximum Forming Length (In.) | 80 |
| Model Number | PR-603-4 |
| Motor (HP) | 5.5 hp |
| Prop 65 | Cancer and Reproductive Harm |
| Gross Weight | 7600.0 |
| Net weight | 7600.0 |
