BS-260M Dual-Mitering Gear-Driven Bandsaw, 1Ph 220V

Stock Number
BA9-1001432
$6,799.00
Click LeaseLeasing starts at $201 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $201

Product Overview

The gear-driven BS-260M industrial band saw is one of the most versatile saws on the market. An AC inverter for speed control runs on 220-volt single-phase power. Use it almost anywhere!

*Capacity of 8.66” round at 90°.
*Dual-mitering head swivels up to 60° to the right and up to 45° to the left.
*Change the miter angle in seconds with the quick-release head lock.
*Solid cast iron saw bow and pivot ensure the straightest cuts with little to no vibration.
*Accepts standard 1” blades.
*8 precision ball bearings keep the blade in line.
*Patented blade tensioning device helps you check the tension and safely shuts down the machine if the blade breaks.
*You can adjust the cutting speed from 66 to 280 fpm to make high-quality cuts in a specific material.
*Direct-drive gearbox design saves you time in the long run—no pulleys to adjust or belts to break!
*2 operating modes:
*Manual descent mode for small production runs: Turn on the machine via the trigger switch, then manually guide the material. Perfect for small-to-medium-sized shops.

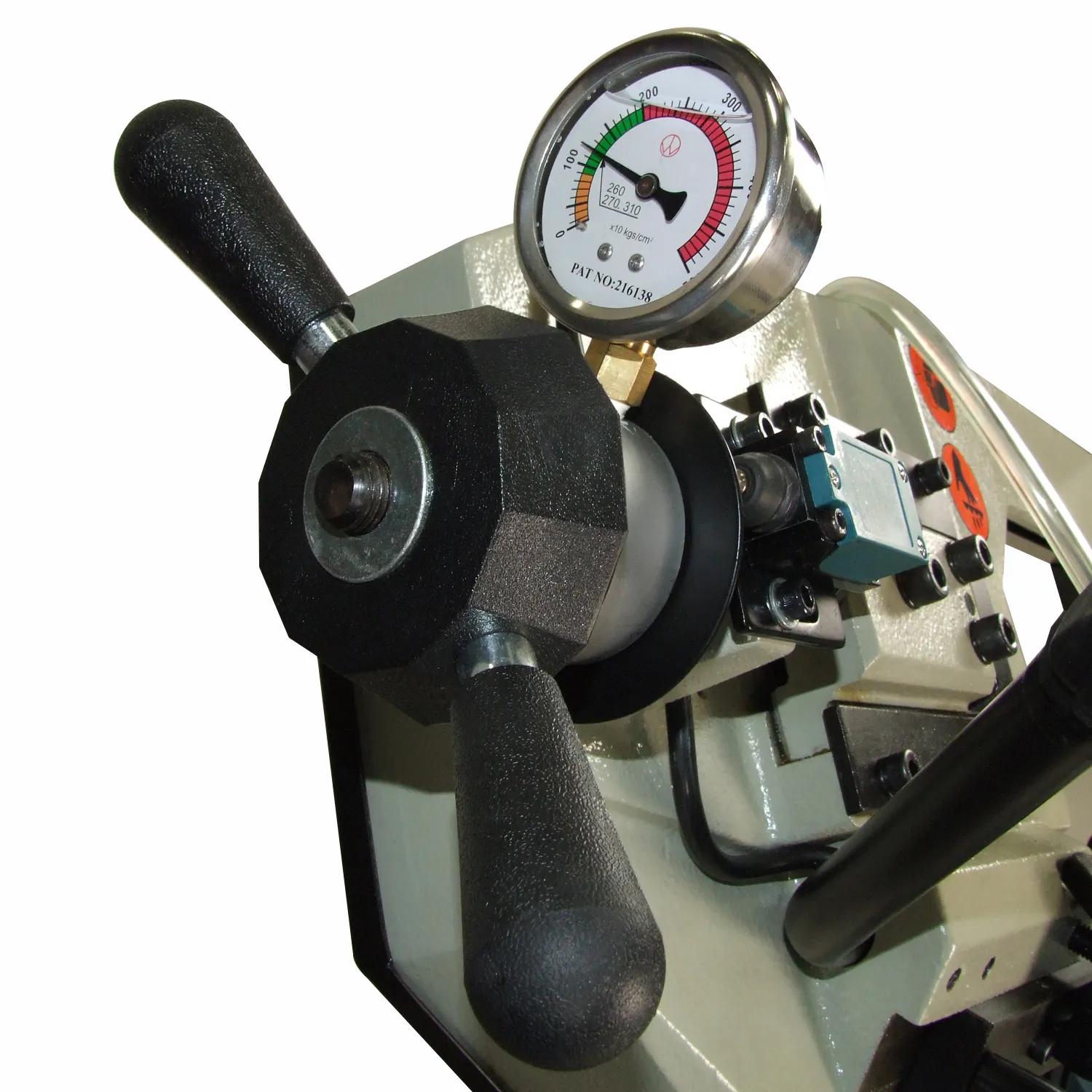

*Hydraulic descent for larger production runs: Increases blade life and reduces operator fatigue. The hydraulic descent has a downfeed adjustment for feed pressure.
*Comes standard with a powerful flood coolant system that washes away metal chips, cools and lubricates the blade, and helps prolong blade life.
*Fully-welded steel base stabilizes the saw, reduces vibrations, and helps to maintain accuracy for decades.
*Baileigh covers this small horizontal band saw with a 1-year parts warranty.
*We typically keep all replacement parts in stock for fast deliveries.
*Includes lifetime technical support by phone. Call up our team of experienced reps whenever you have a problem with the saw.

Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.


+ Show More

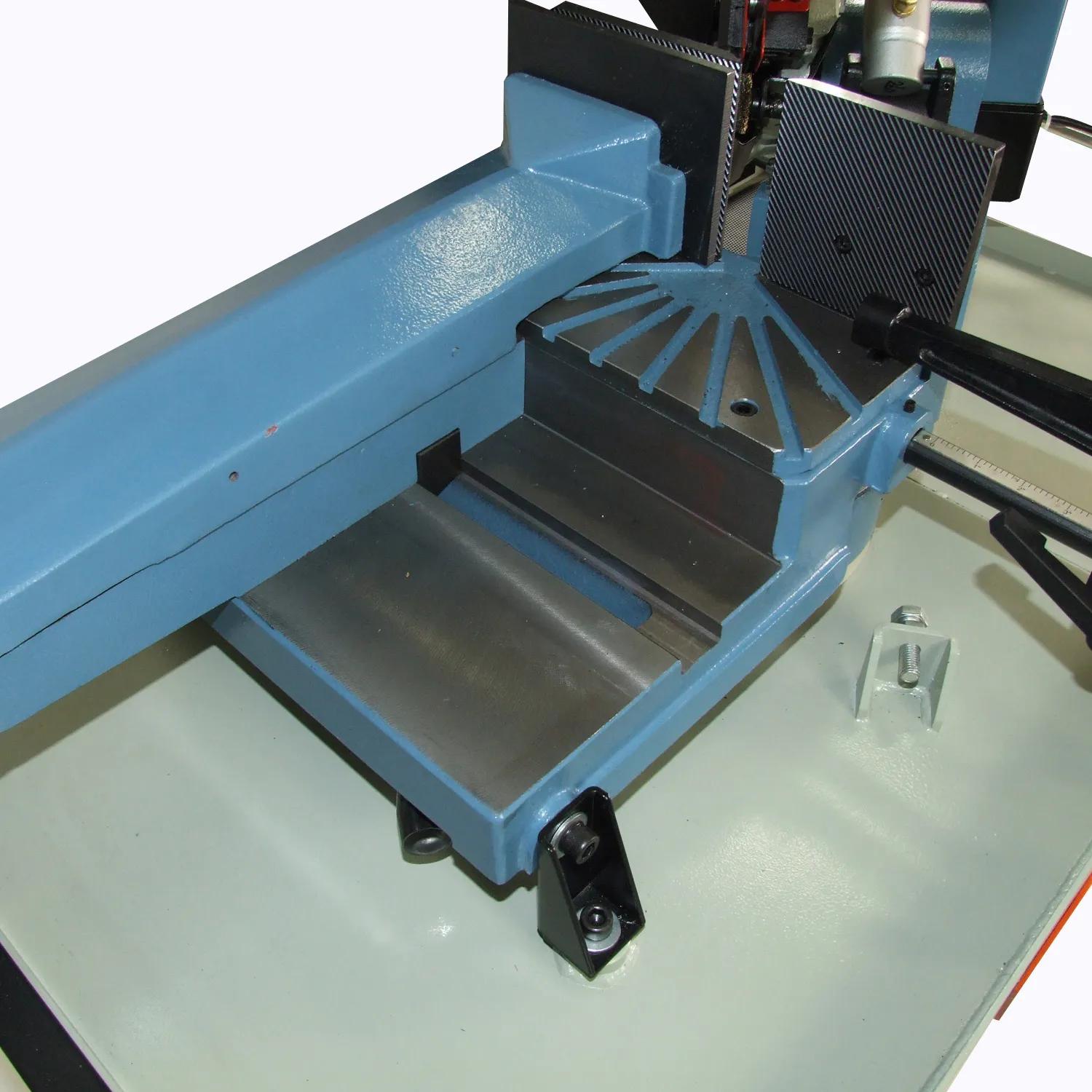

Capacity of 8.66” round at 90° and accepts standard 1” blades

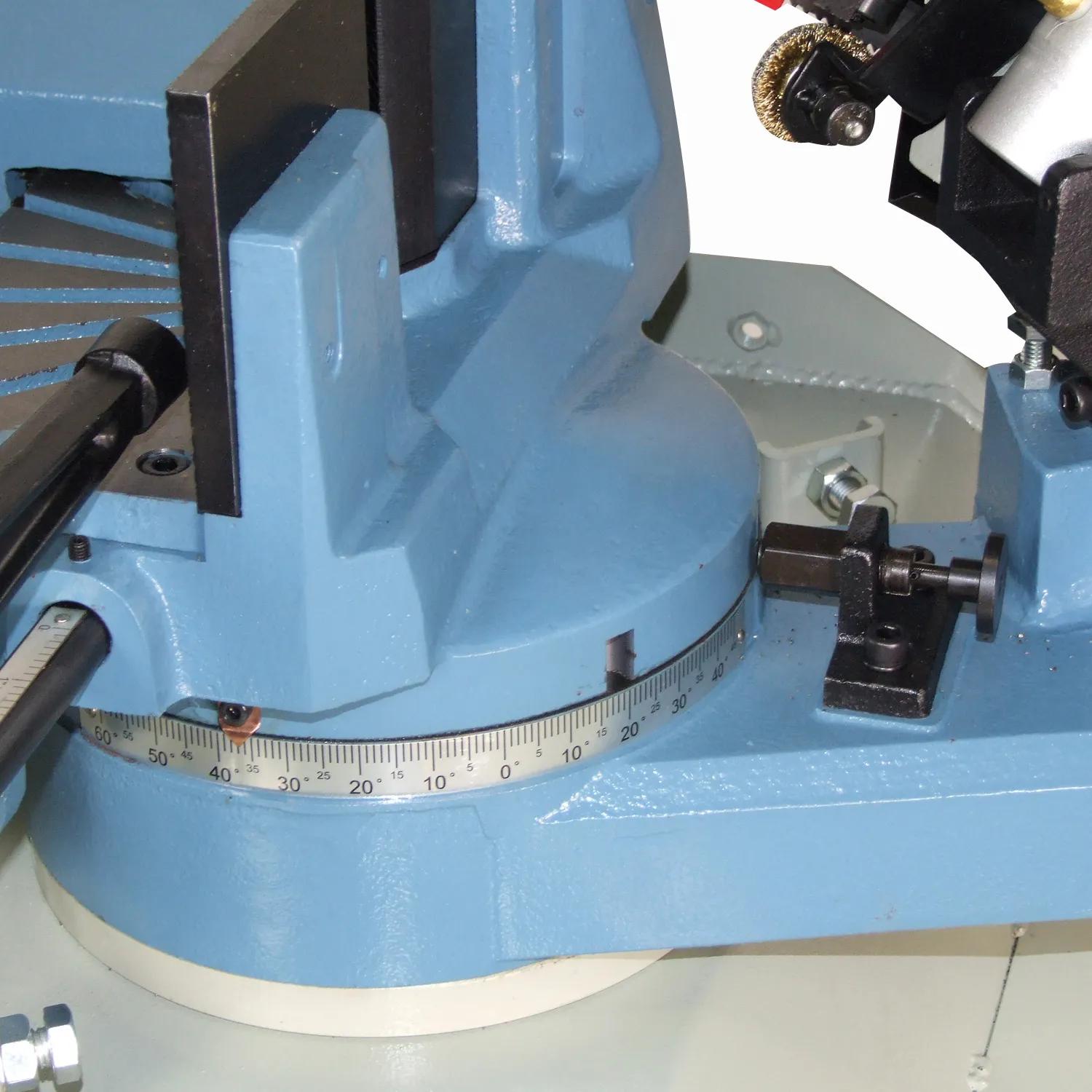

Dual-mitering head swivels up to 60° to the right and up to 45° to the left. Change the miter angle in seconds with the quick-release head lock
Solid cast iron saw bow and pivot ensure the straightest cuts with little to no vibration
8 precision ball bearings keep the blade in line
Patented blade tensioning device helps you check the tension and safely shuts down the machine if the blade breaks

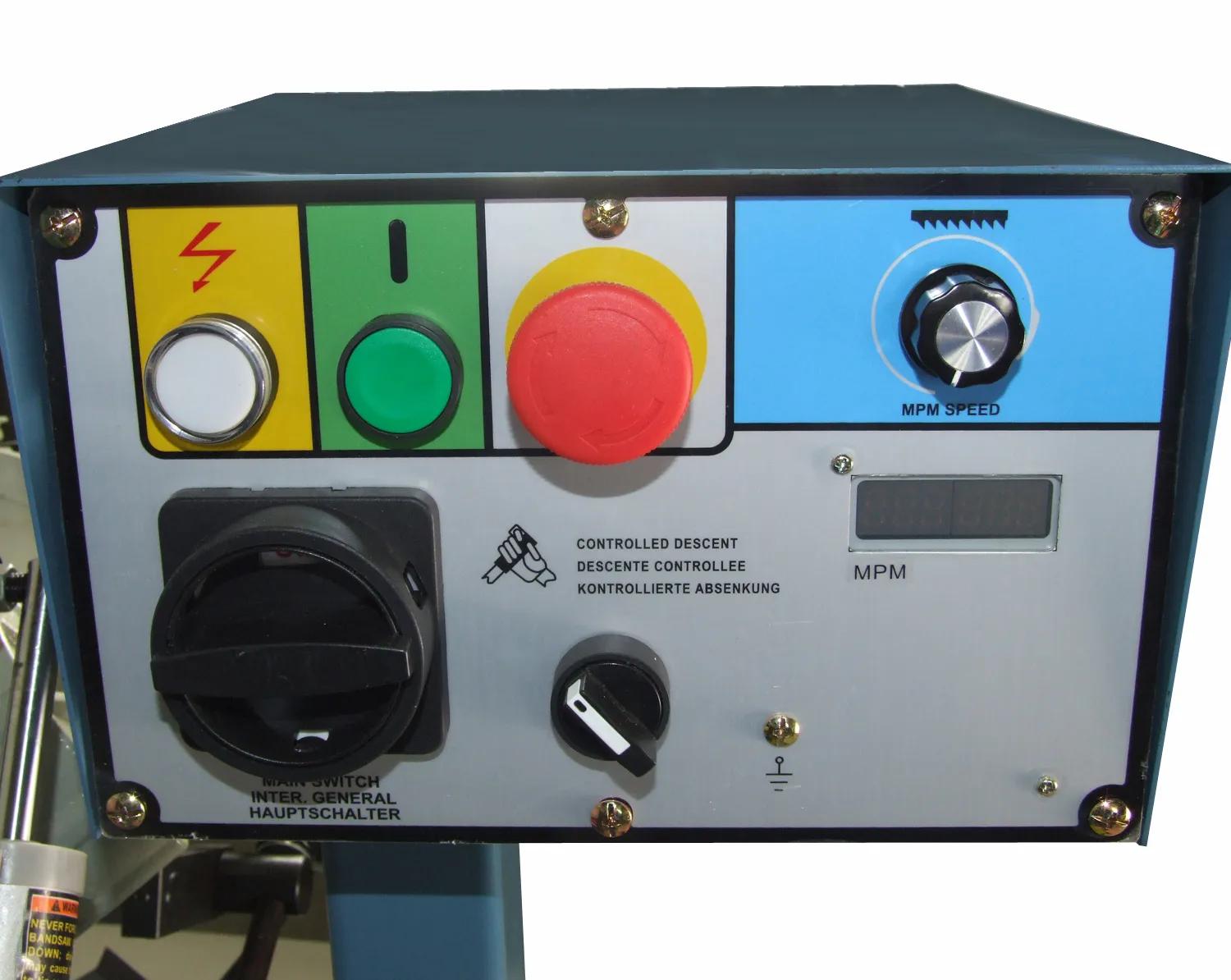

You can adjust the cutting speed from 66 to 280 fpm to make high-quality cuts in a specific material
Direct-drive gearbox design saves you time in the long run—no pulleys to adjust or belts to break!

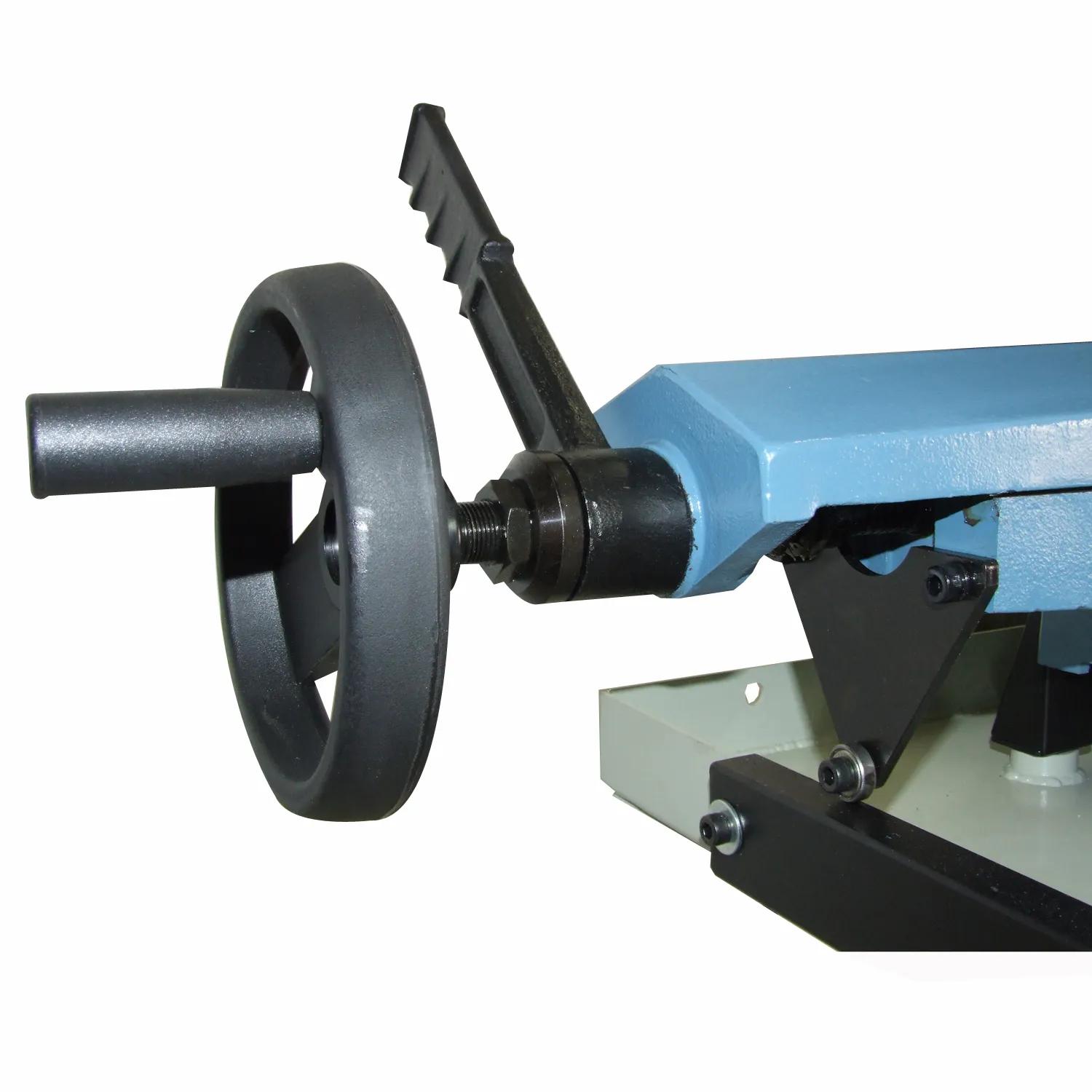

2 operating modes: Manual descent mode for small production runs and Hydraulic descent for larger production runs
Comes standard with a powerful flood coolant system that washes away metal chips, cools and lubricates the blade, and helps prolong blade life
Fully welded steel base stabilizes the saw, reduces vibrations, and helps to maintain accuracy for decades
More Information
Stock NumberBA9-1001432
Blade GuideCarbide x Roller
Blade Speeds (SFPM)66–280 Variable
Capacity Round 90 X 45 X 60 X 458.66" / 5.9" / 3.5" / 5.31”
Capacity Square 90 X 45 X 60 X 45L8.46" / 5.7" / 3.34" / 4.33”
Descent ControlHydraulic
DriveGear
Input Power220V 1-Phase
Type of Miter AdjustmentDual Swivel Head
Miter Angle Range (Deg.)0 – 60°, 45°L
Model NumberBS-260M
Motor (HP)High Torque 1.1Kw (AC)
Prop 65Cancer and Reproductive Harm
ReturnManual
Shipping Dimensions (L x W x H) (In.)69x44x45
Table Height (In.)35"
Warranty1 Year
Weight (Lbs.)745
Gross Weight717.0
