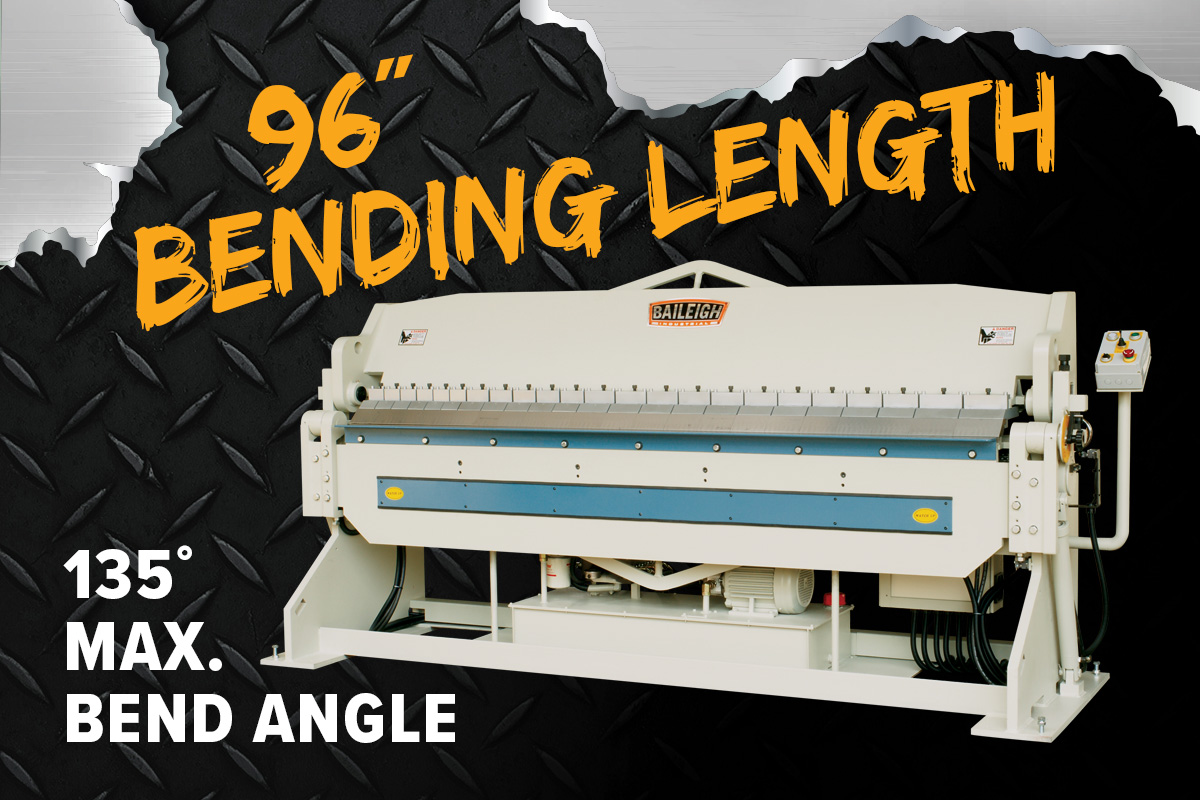

Heavy Duty Hydraulic Box and Pan (Finger) Brake - (BB-9610H)

Call 920-684-4990 for availability
Stock Number
BA9-1021003
$34,809.00

Product Overview

Designed with crowning compensation, the BB-9610H Hydraulic Sheet Metal Brake adjusts to fit the gauge you’re bending and produces uniform bends.

Baileigh covers this Hydraulic Box and Pan Brake with a 1-year parts warranty. You can count on lifetime technical support by phone. Call us up anytime when you need help with the machine or advice on an application. Questions? Not sure which metal brake is right for you? Give us a call at 1-920-684-4990 and talk to a Baileigh expert.


+ Show More
10-gauge mild steel sheet metal maximum capacity and 1” beam adjustment
Bends across its full 8-foot (96”) working width
Maximum bend angle of 135° and maximum 6” box depth
Industrial-grade hydraulics will make precise and efficient bends, day in, day out, for decades
5 hp motor runs on 220-volt 3 phase power
Hydraulic system clamps the material via dual hydraulic motors, then lifts the bending leaf with industrial hydraulic cylinders
Adjustable bend auto-stop simplifies production runs - just dial in your desired degree
Foot pedal and toggle joystick controls let you operate this hydraulic sheet metal brake in manual or semi-automatic mode
Includes 22 hardened 3-piece fingers (6 of 3", 4 of 4", 10 of 5" and 2 of 6" ) to create many different size boxes
Fully-welded steel beam and bending leaf, supported with truss rods, prevent twisting and deflection—important when you’re bending heavy 10-gauge mild steel
More Information
Stock NumberBA9-1021003
Beam Adjustment (Front to Rear) (In.)1"
Bending Length Capacity (In.)96
Maximum Box Depth (In.)6"
Mild Steel Capacity (Gauge)10.0000
Model NumberBB-9610H
Prop 65Cancer and Reproductive Harm
Style (Type)Heavy Duty Hydraulic Box and Pan (Finger) Brake
Warranty1 Year
Weight (Lbs.)5640
Gross Weight5640.0
Net weight5640.0
Shipping Dimensions (L x W x H) (In.)135x44x71
Input Power220V / 3-phase
Max. Bend (Deg.)0 – 135°
Motor (HP)5 hp
Overall Length (In.)96”
