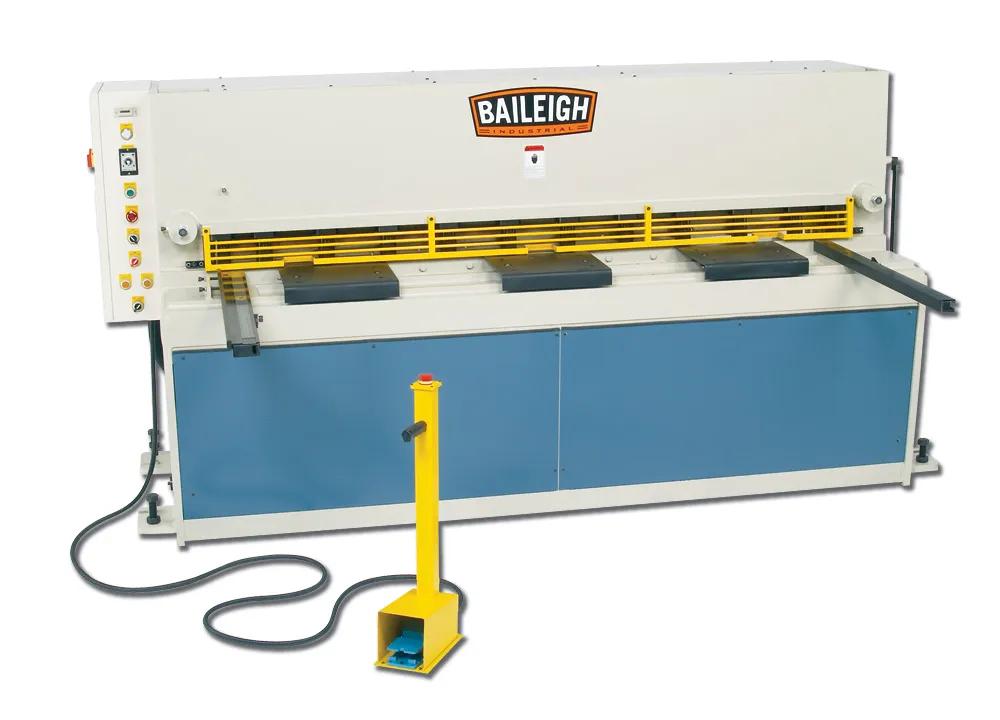

Heavy Duty Hydraulic Sheet Metal Shear - (SH-8010-HD)
Call 920-684-4990 for availability
Stock Number:
BA9-1007202
$40,839.00
Enhanced Bullet 1:
80 " length
Enhanced Bullet 2:
10 gauge mild steel capacity
Enhanced Bullet 3:
220V 3-phase power
Enhanced Bullet 4:
Manual backgauge
 | Click here to explore affordable leasing options today! |
Product Overview
Thanks to its fully welded steel plate construction, this Hydraulic Shear will offer any shop years of dependable service. The adjustable blade gap and rake angle also ensure accuracy.
Also available in an 80”-long, 8-gauge model and a 52-long, 10-gauge model.
You can add an optional sheet support system to this model. Please call us for details.
Covered by a 1-year parts warranty. Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience. Questions? Not sure which is the best Sheet Metal Shear for you? Call 1-920-684-4990 with any questions you have about our Heavy Duty Metal Shears.
80” length with a 10-gauge mild steel maximum capacity and 7.5 hp motor that runs on 220-volt 3-phase power

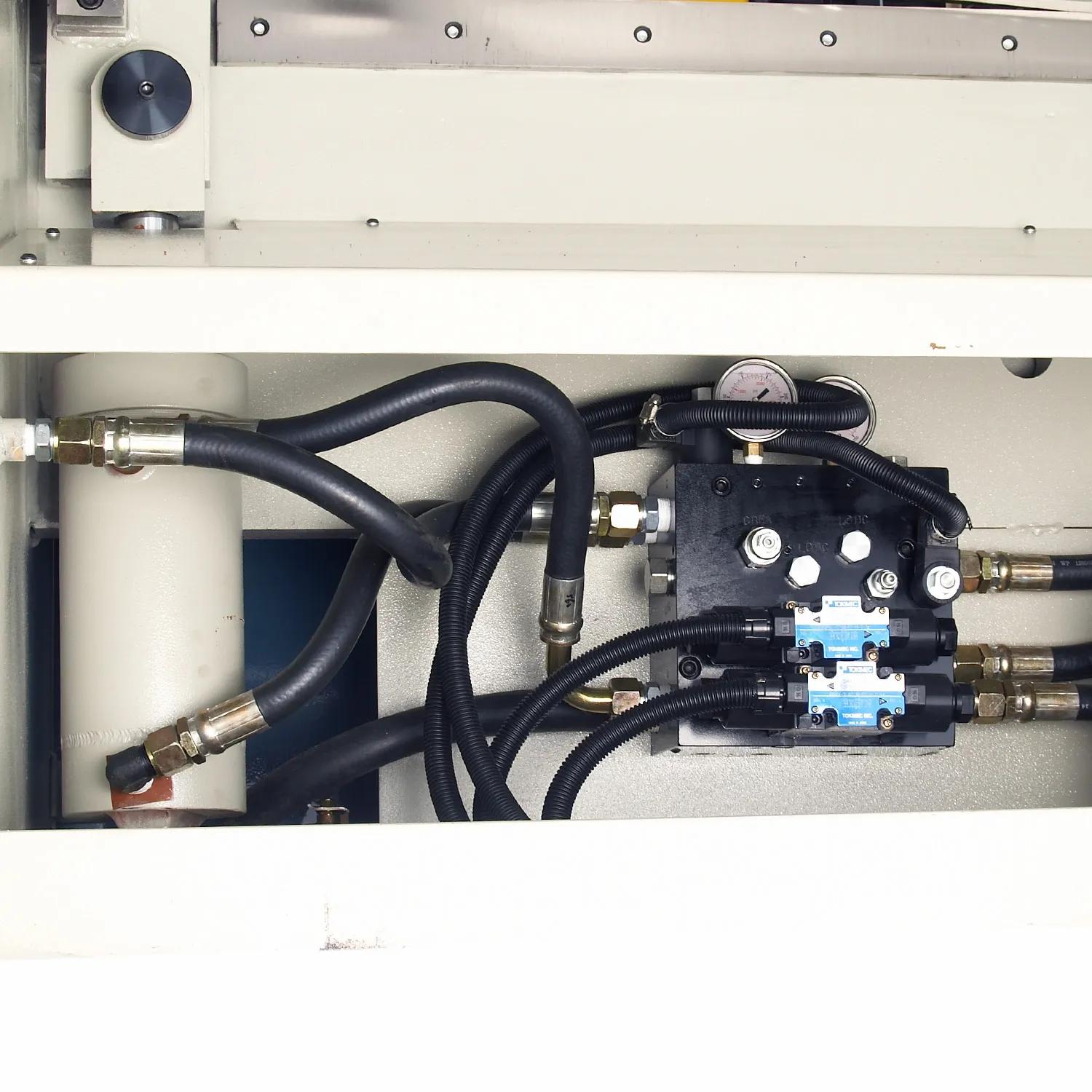

Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy with an industrial-grade hydraulic system is in the front for easy fluid changes

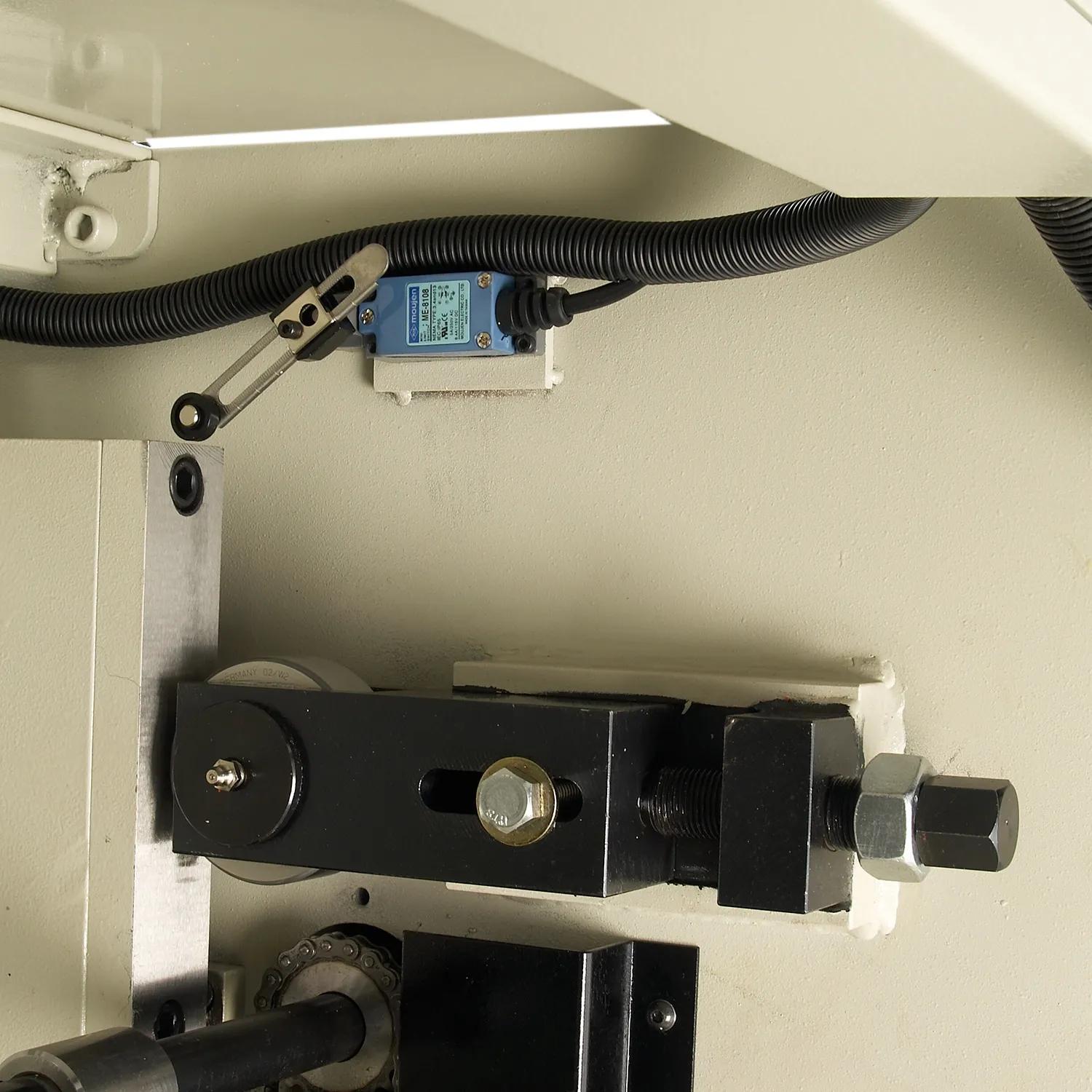

Shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction

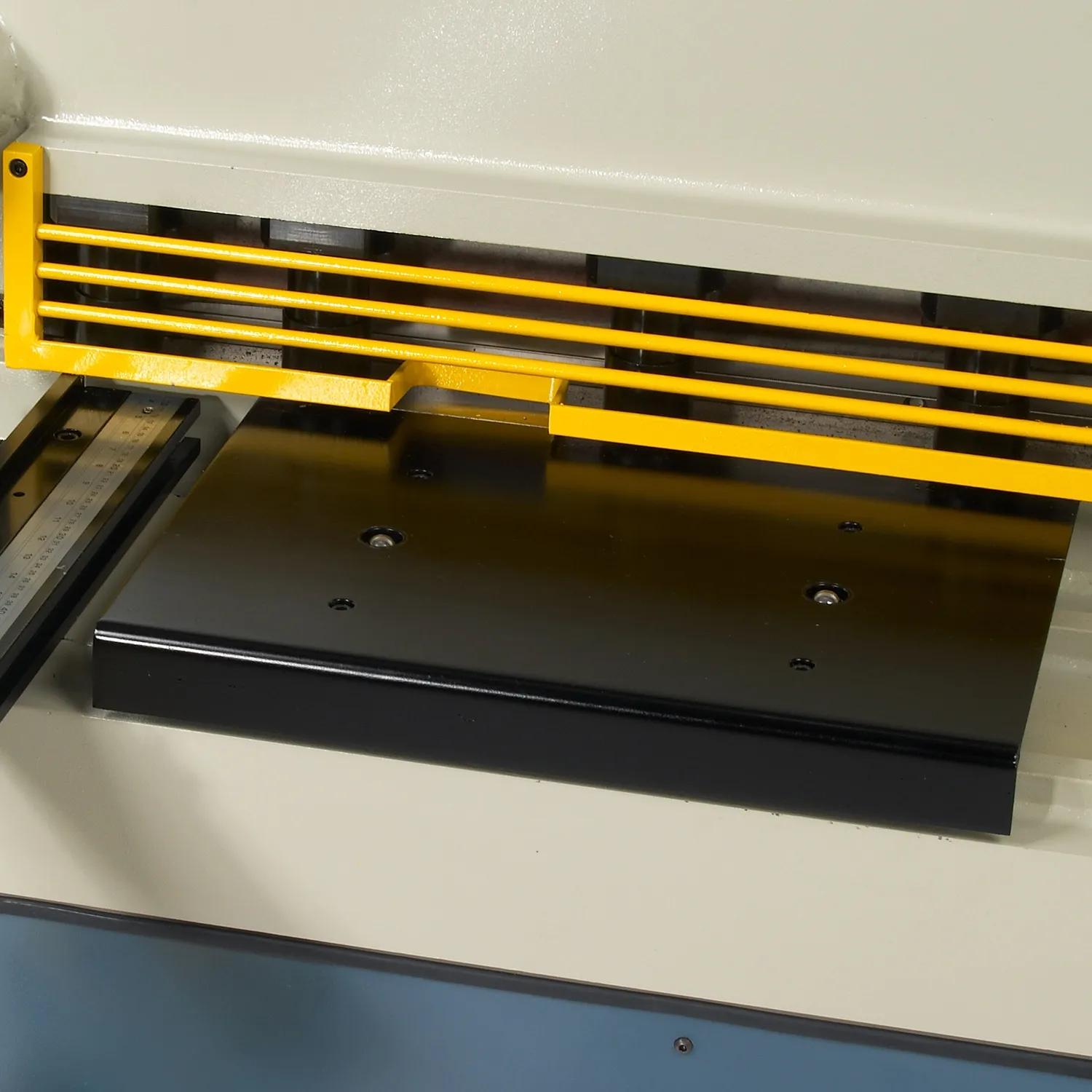

Heavy duty table with roller bars slides material into the machine more easily

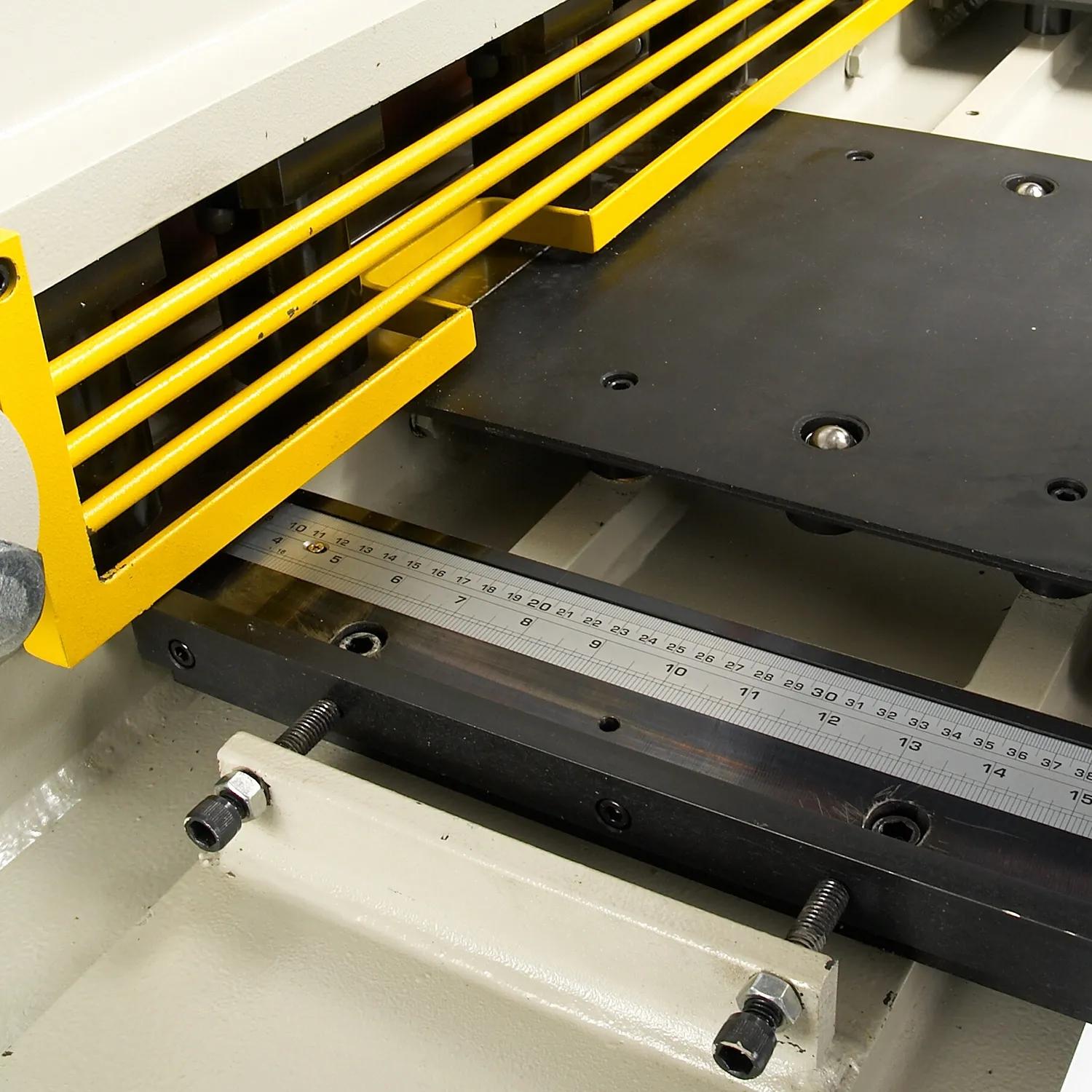

Manually adjustable 23.62” back gauge ensures precise repeatability and side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material
Switch between 3 modes as needed: Jog mode: Inching the blade down to the material, Single cycle mode: One cut for one pedal push, and an Automatic cycling mode: Continuously cutting for production runs
Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics
Convenient blade gap adjustment lets you eliminate folding and twisting and comes standard with high carbon chromium blades

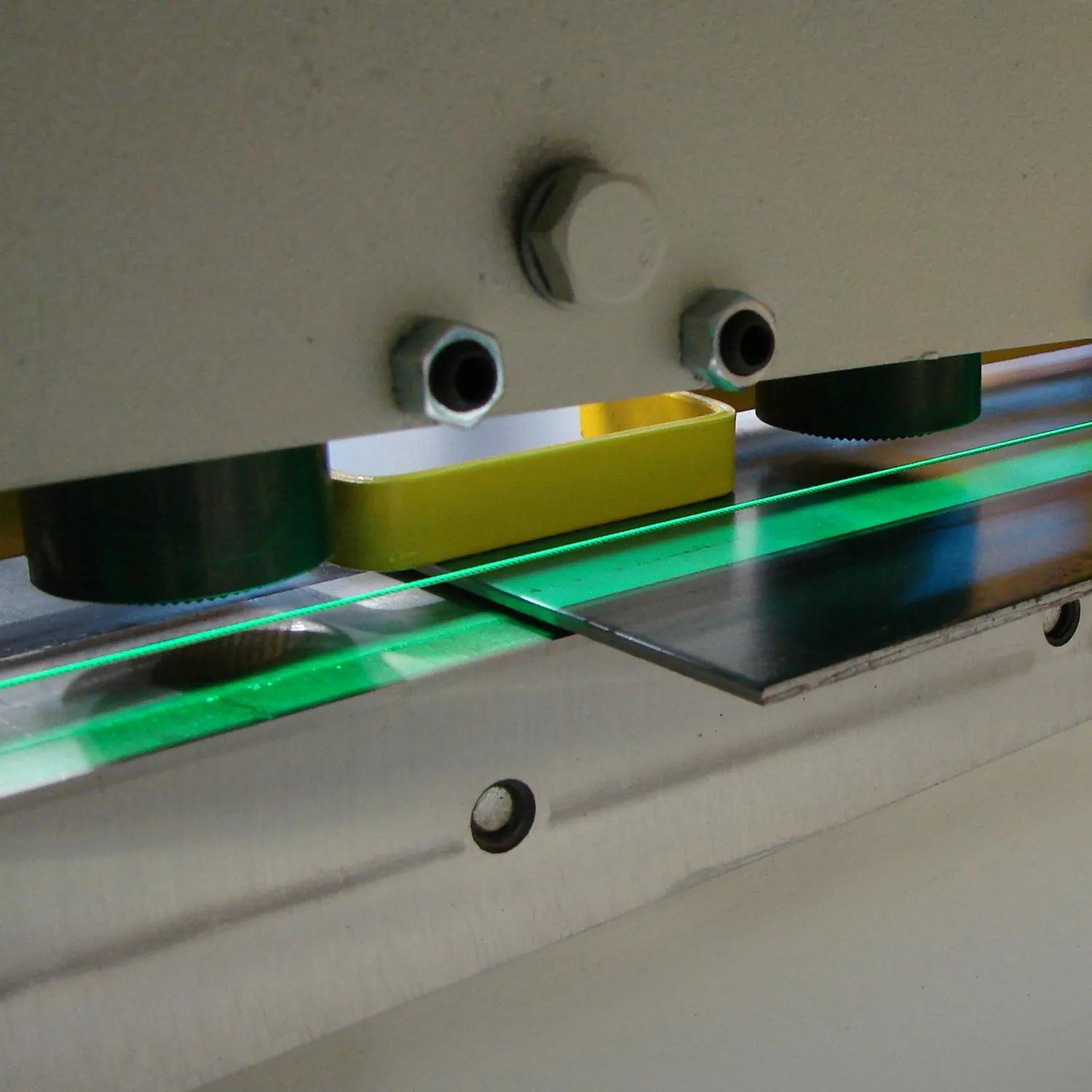

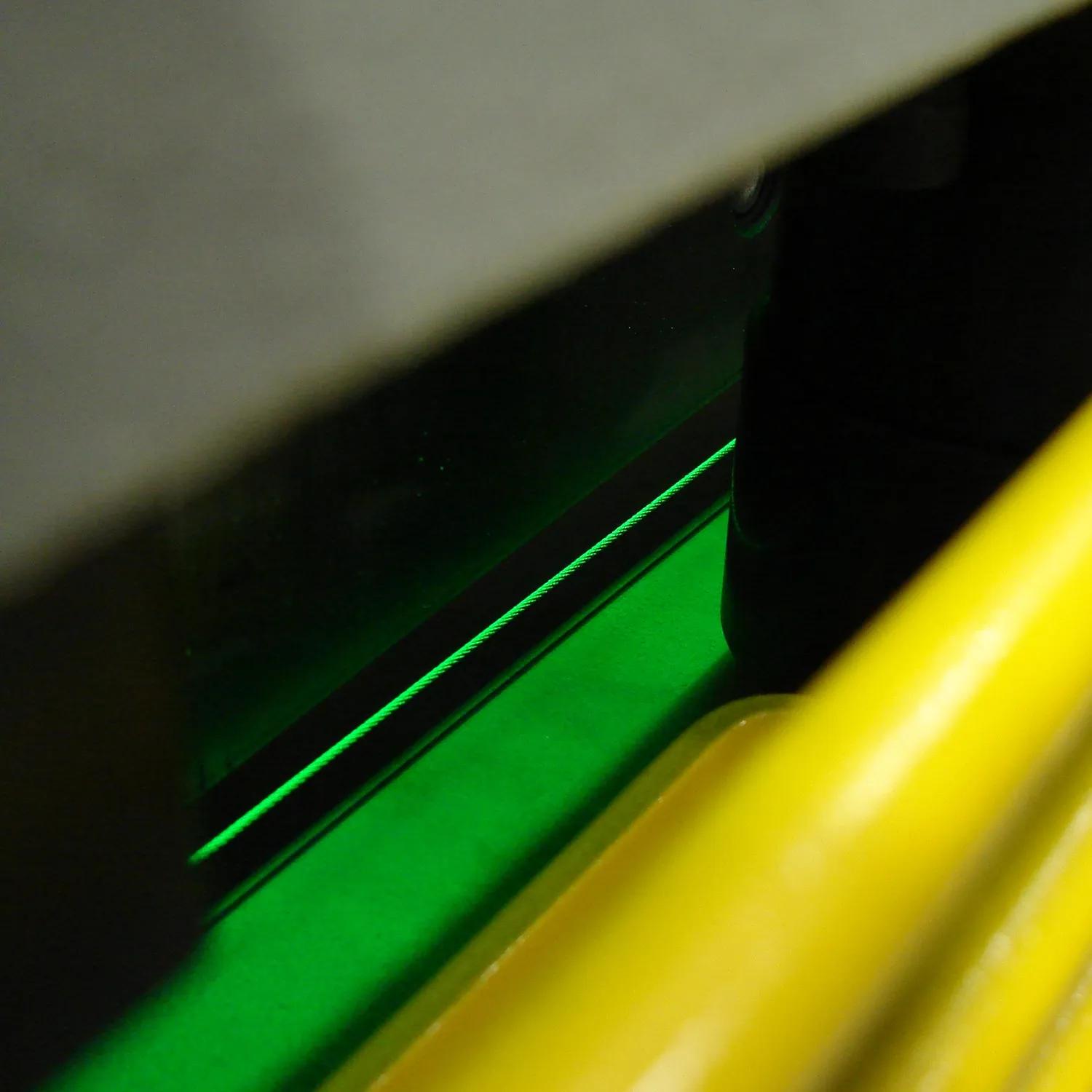

2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed with a shadow line that creates a reference line on the material so you know exactly where the cut will be
Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life
| Stock Number | BA9-1007202 |
|---|---|
| Front Gauge Capacity (In.) | 39.37 |
| Model Number | SH-8010-HD |
| Prop 65 | Cancer and Reproductive Harm |
| Shearing Length Capacity (In.) | 80" |
| Style (Type) | Heavy Duty Hydraulic Sheet Metal Shear |
| Warranty | 1 Year |
| Weight (Lbs.) | 6600 |
| Gross Weight | 6600.0 |
| Net weight | 6600.0 |
