Product Details
Industrial Construction: The Baileigh DP-1250VS-HS High Speed Drill Press is built with a heavy-duty cast iron base and a wide column that minimizes flex, providing rigidity and stability for demanding drilling applications.
High Speed Performance: Featuring a 2 HP, 220 V single-phase inverter-driven motor and variable speed from 100 to 4000 RPM, the DP-1250VS-HS delivers extended speed capability ideal for thermal friction drilling, conventional drilling, and tapping.

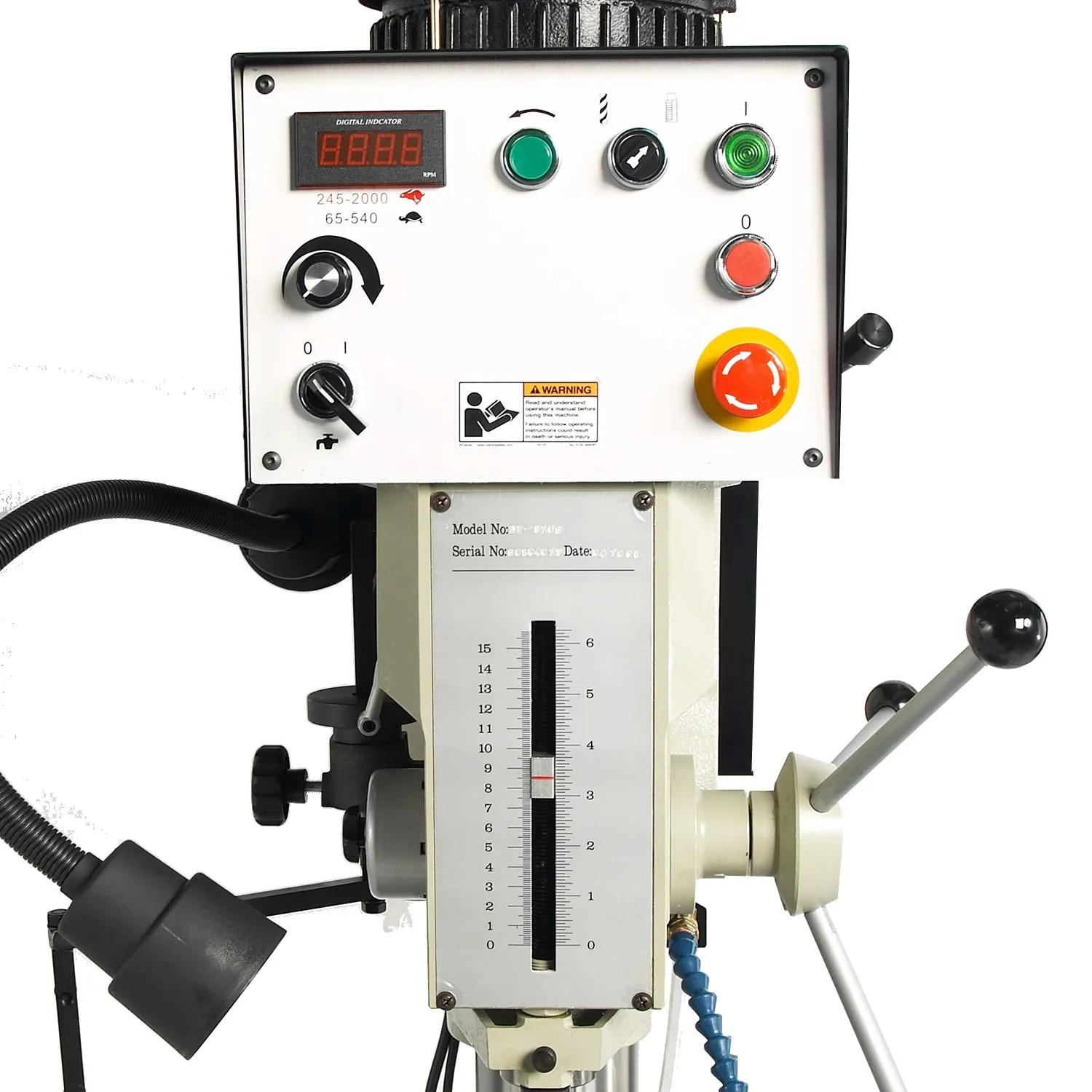

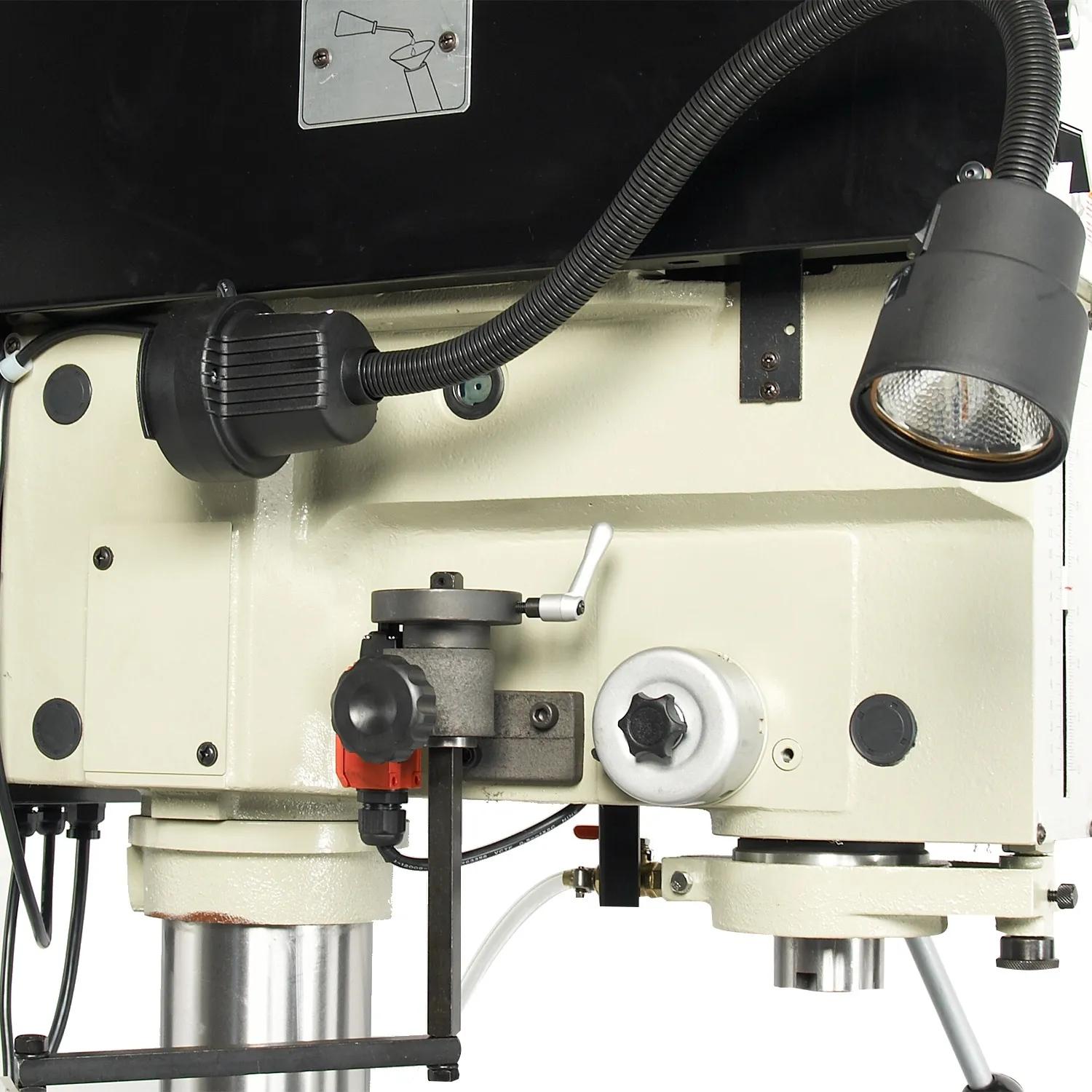

Shop Versatility: Designed for fabrication and machine shop environments, this high speed drill press includes an auto-reversing tapping feature, built-in coolant system to extend tooling life, machined worktable with large T-slots, and halogen work light for enhanced visibility.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Swing Capacity: This drill press provides a 20″ swing for drilling larger workpieces.
- Drill Capacity: This machine drills up to 1.25″ through mild steel at full capacity.

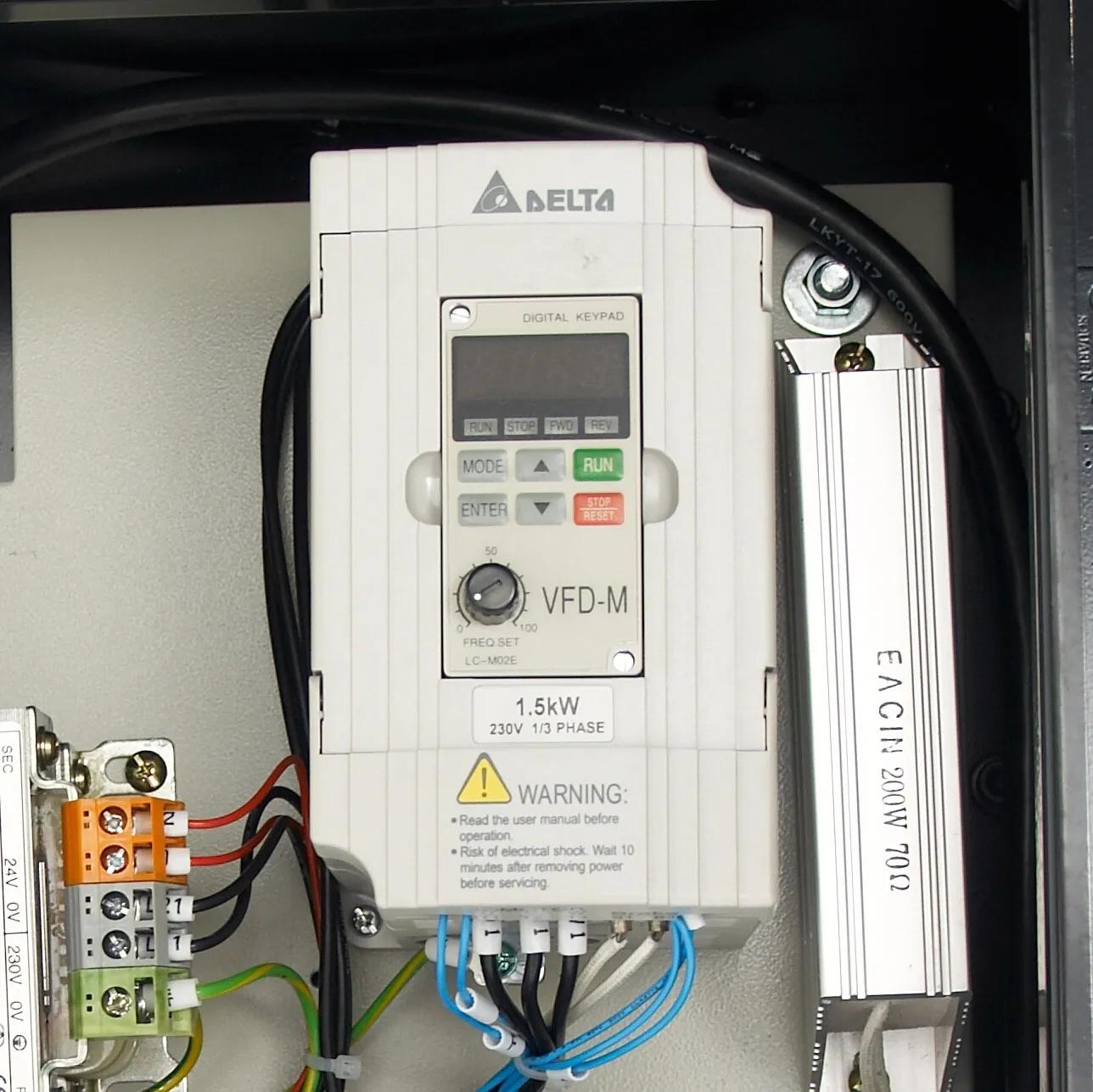

- Motor Power: A 2 HP inverter-driven motor supplies high speed drilling power.
- Power Requirement: The unit operates on 220 V single-phase power common in industrial shops.
- Variable Speed: This drill press offers continuous speed control from 100 to 4000 RPM for versatile drilling, tapping, and thermal friction applications.
- Spindle Taper: The machine uses a #4 Morse taper spindle for broad tooling compatibility.

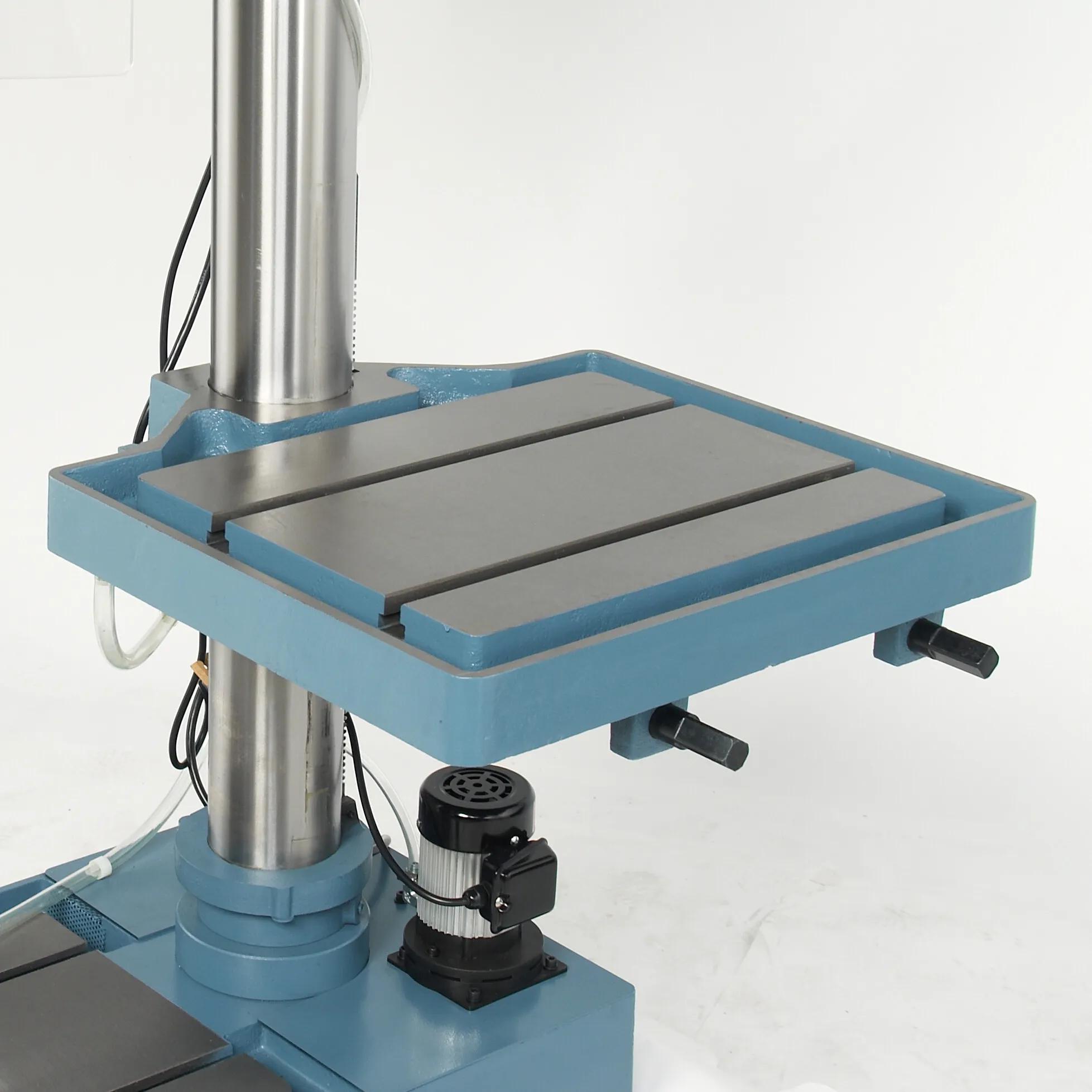

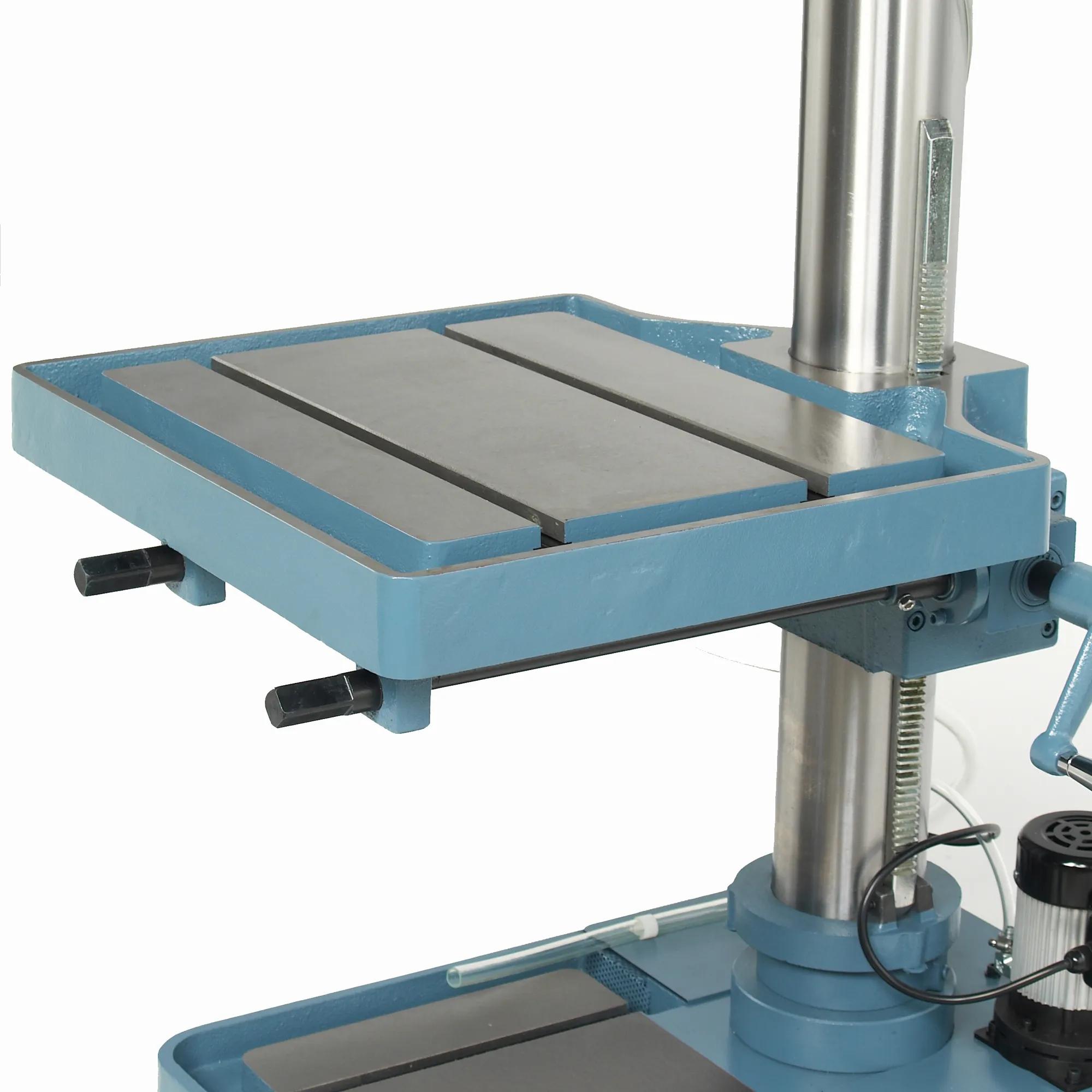

- Worktable: The machined, polished worktable includes large .625″ T-slots for secure workholding.

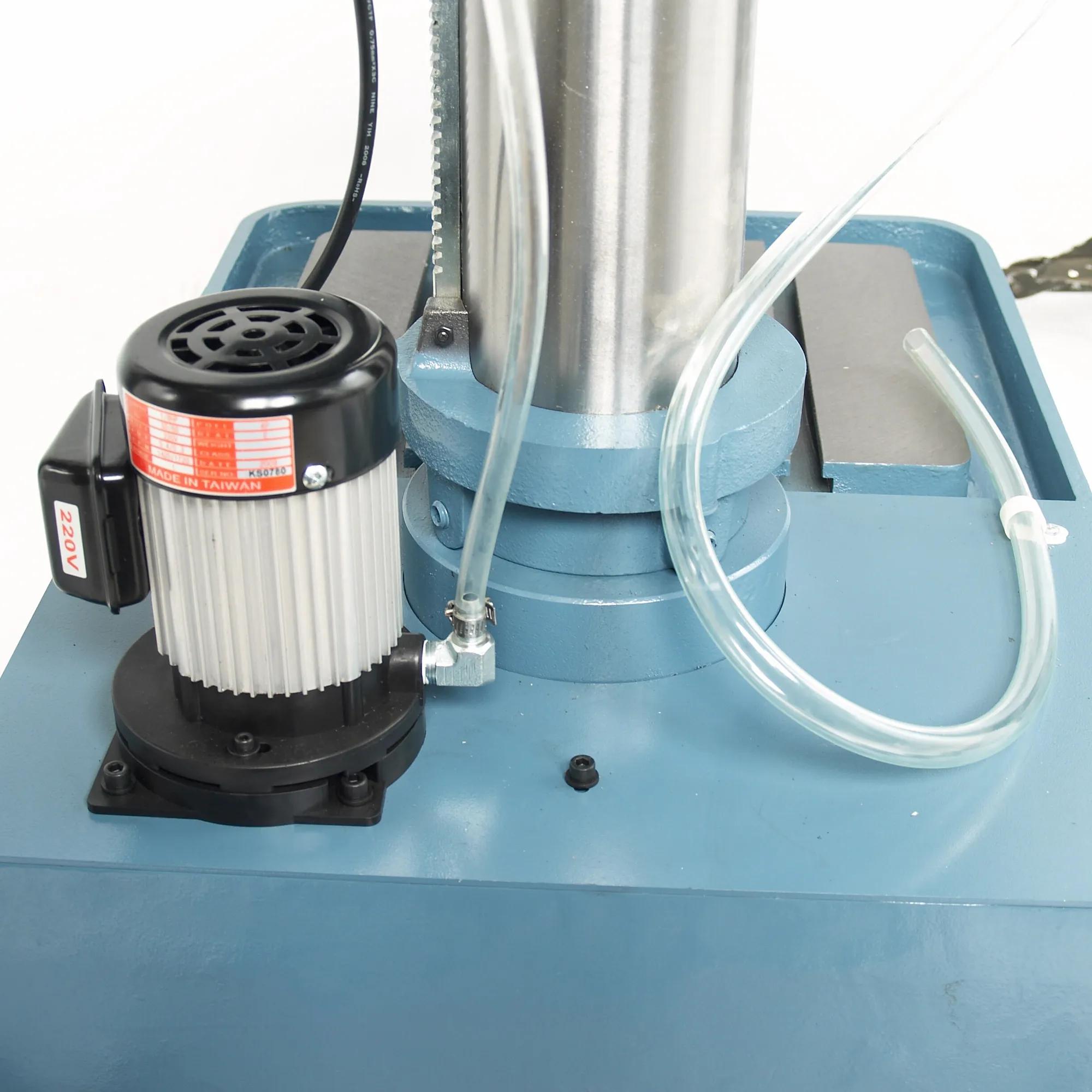

- Coolant System: A built-in coolant system extends tool life by cooling the work zone.
- Safety Features: A protective spindle shield with limit switch helps keep operators safe.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1002871
- Coolant Pump Motor1/8 hp
- Drilling Capacity Mild Steel1.25 in.
- Gross Weight752.0
- Horse Power (HP)2
- Input Power220V Single Phase
- Max. Spindle Speed540 4000 rpm
- Min. Spindle Speed85 540 rpm
- Model NumberDP-1250VS-HS
- Motor HP2
- Motor PhaseSingle
- Net weight752.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Spindle Speeds100 to 4000 RPM
- Swing20 in.
- Tapping Capacity Mild Steel.625 in.
- Warranty1 Year
