Horizontal Band Saw - BS-300M
Call 920-684-4990 for availability
Stock Number:
BA9-1001492
$5,999.00
Enhanced Bullet 1:
240V 1-phase metal band saw
Enhanced Bullet 2:
9.75" round capacity at 90°
Enhanced Bullet 3:
Vise miters 45°
Enhanced Bullet 4:
1" blade width
Product Overview
Do you love old-time American-style band saws and how well they handle? The BS-300M single-phase horizontal band saw updates that sturdy design with time-saving features. Questions about this single-phase band saw? Call us at 1-920-663-4177 and talk to a Baileigh expert.
2 hp motor runs on 240-volt single-phase power, so any shop can reap the benefits of this saw
9.75” round maximum capacity at 90°
Standard 1” blade width - Cuts almost anything that you can throw at it, including many different shapes and profiles of metal

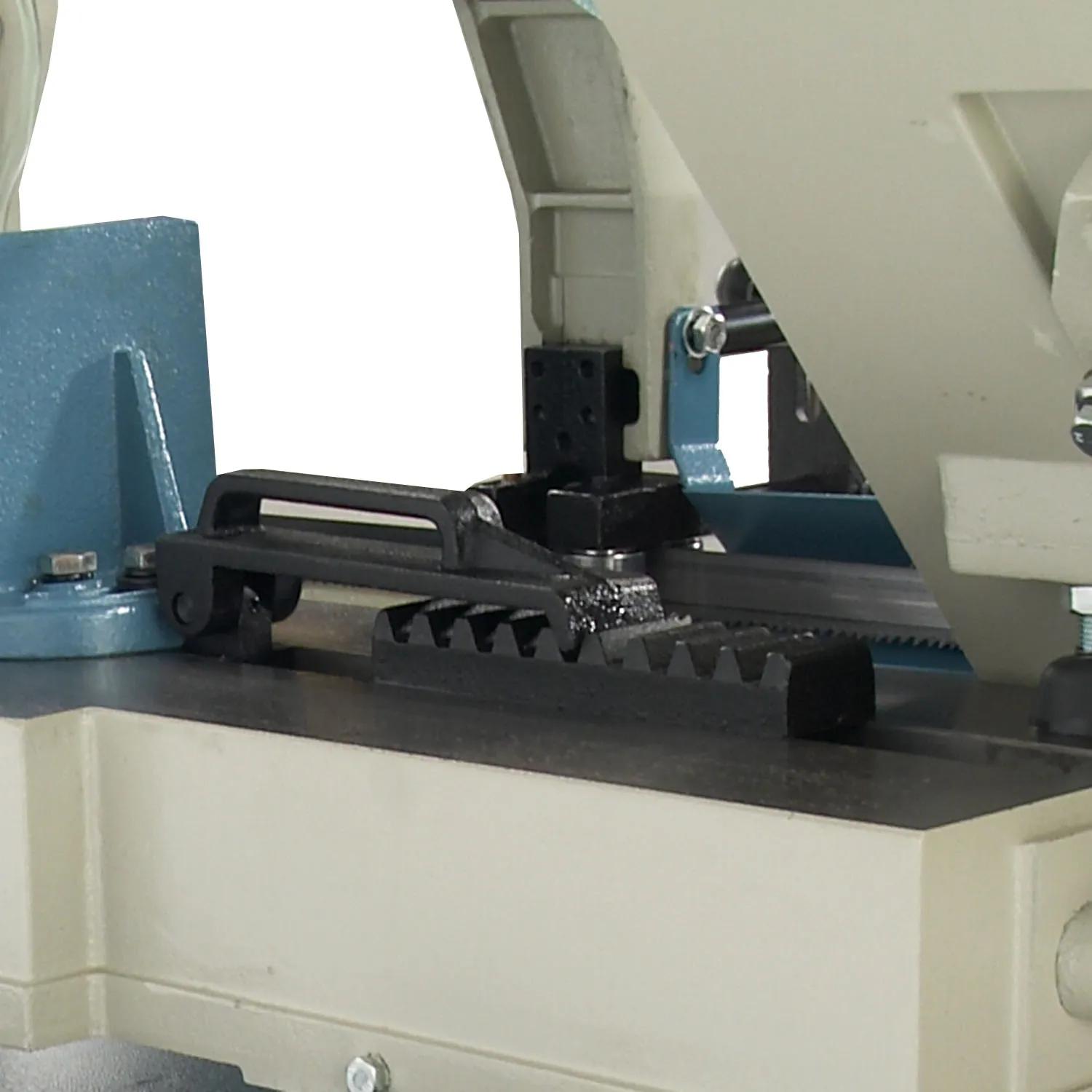

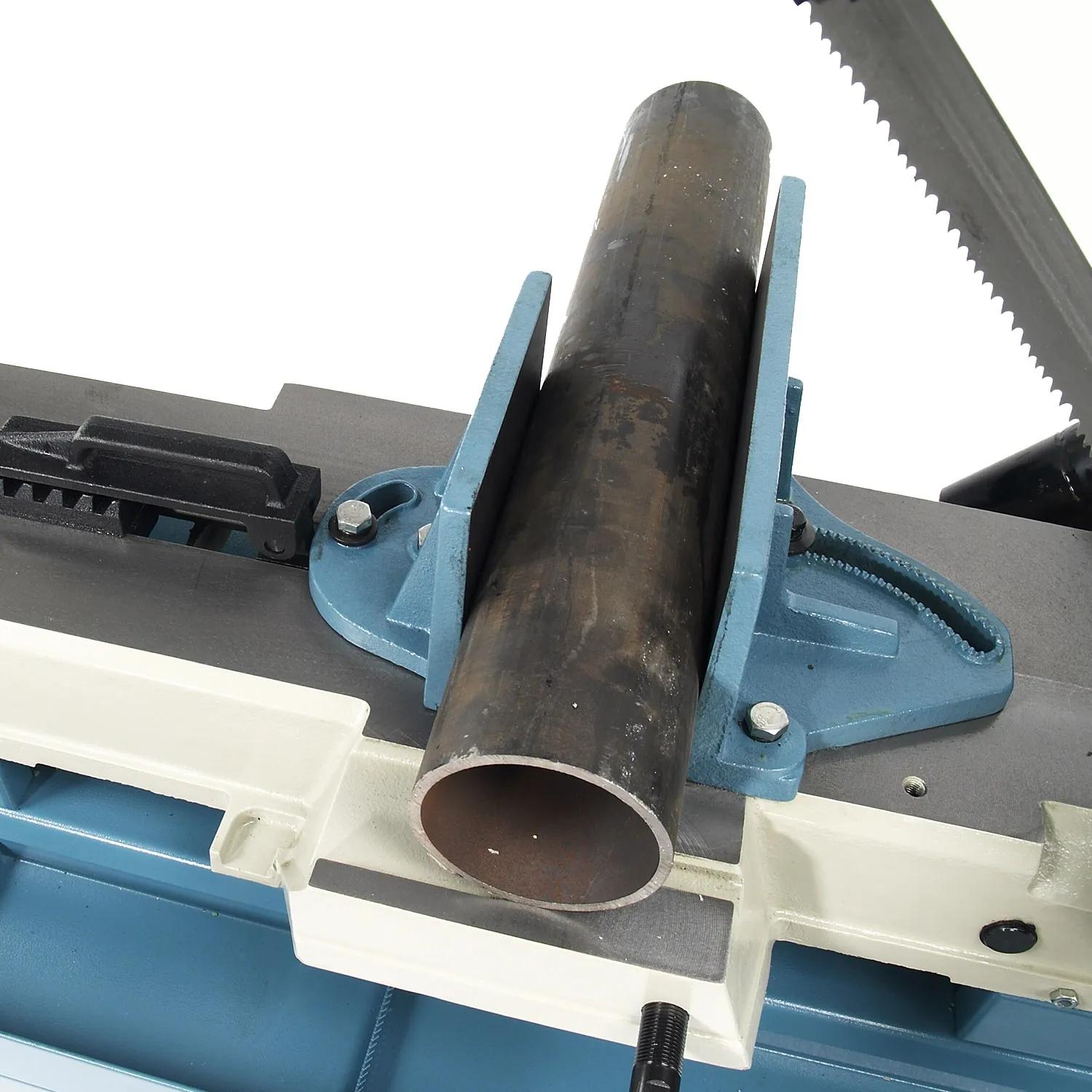

Vise miters up to 45°
4 cutting speeds (82, 132, 170, 235 fpm) allow you to fine-tune the saw for better cut quality
Includes our patented blade tension device: a liquid-filled gauge that makes it easy to check whether your blade is properly tensioned

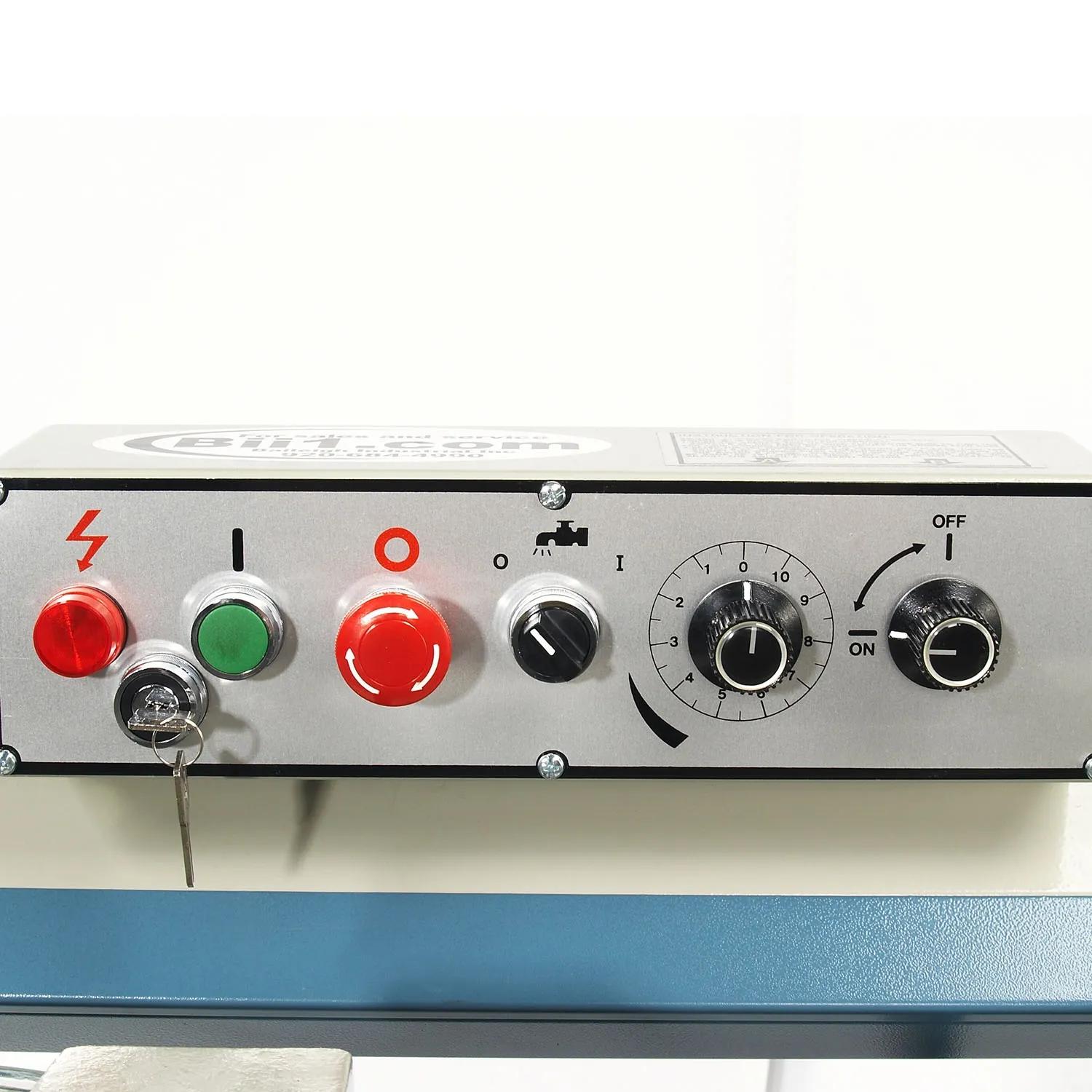

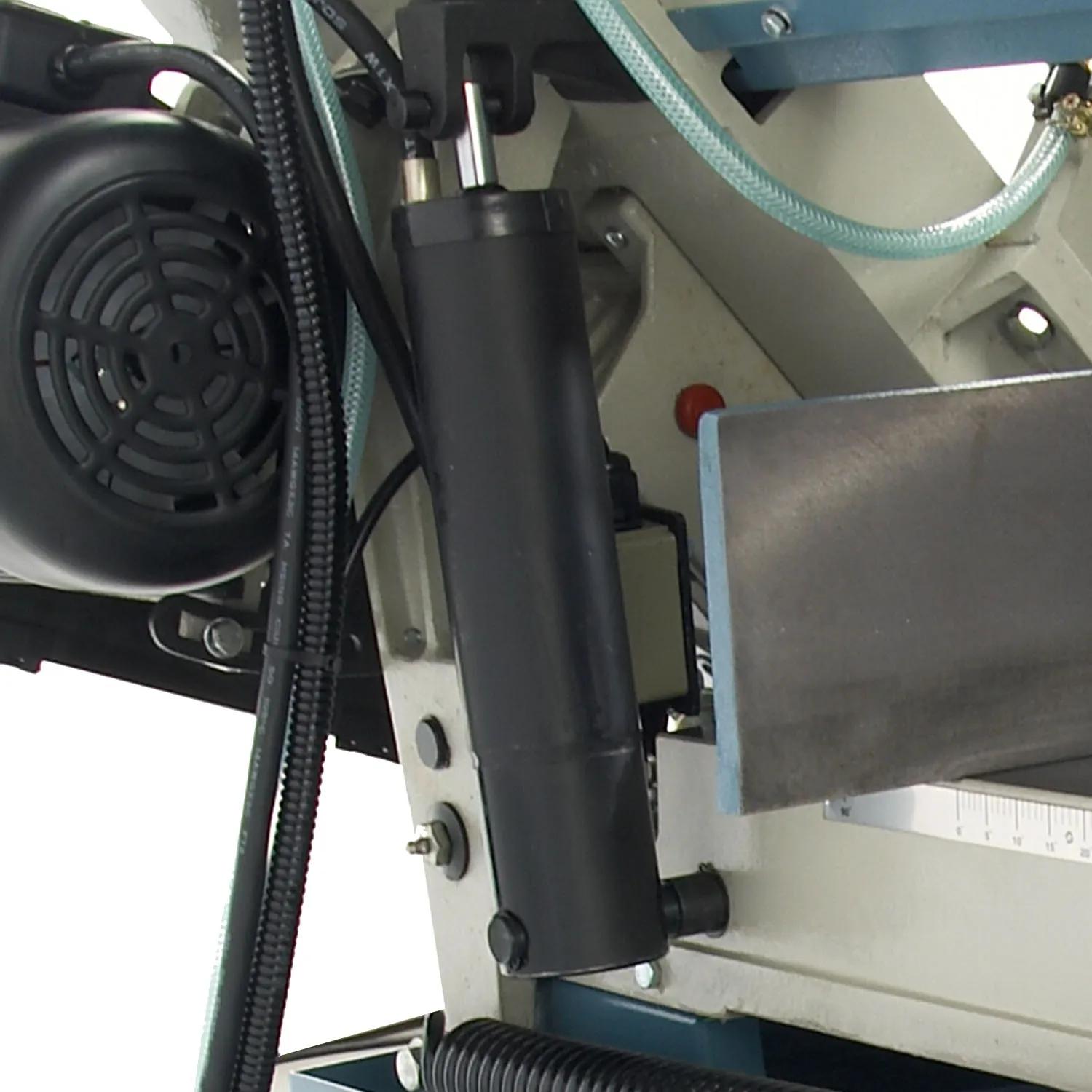

Hydraulic descent pressure controlled by a panel located on top of the bow
Automatic shutoff feature at the end of the cut reduces operator effort and keeps your shop safe

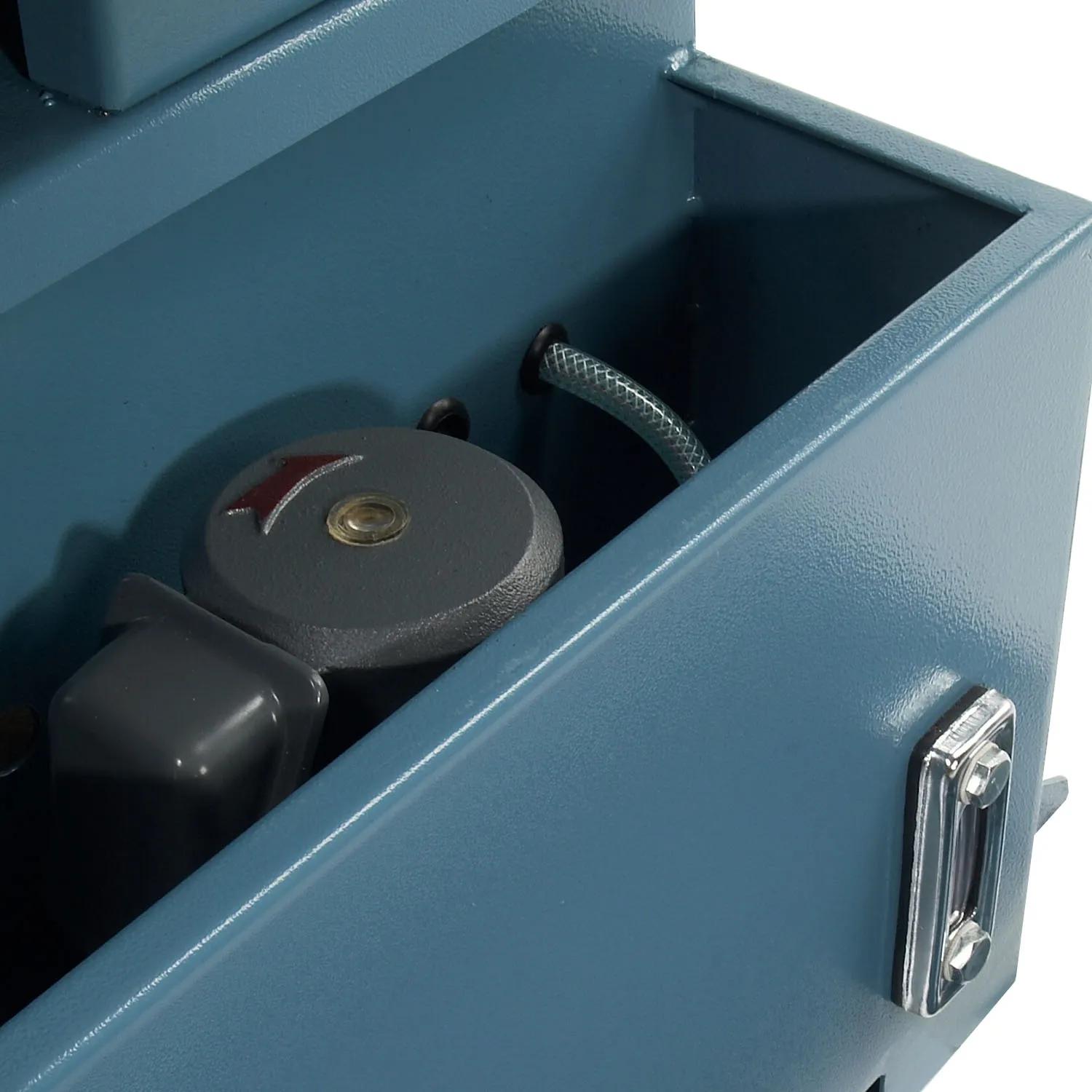

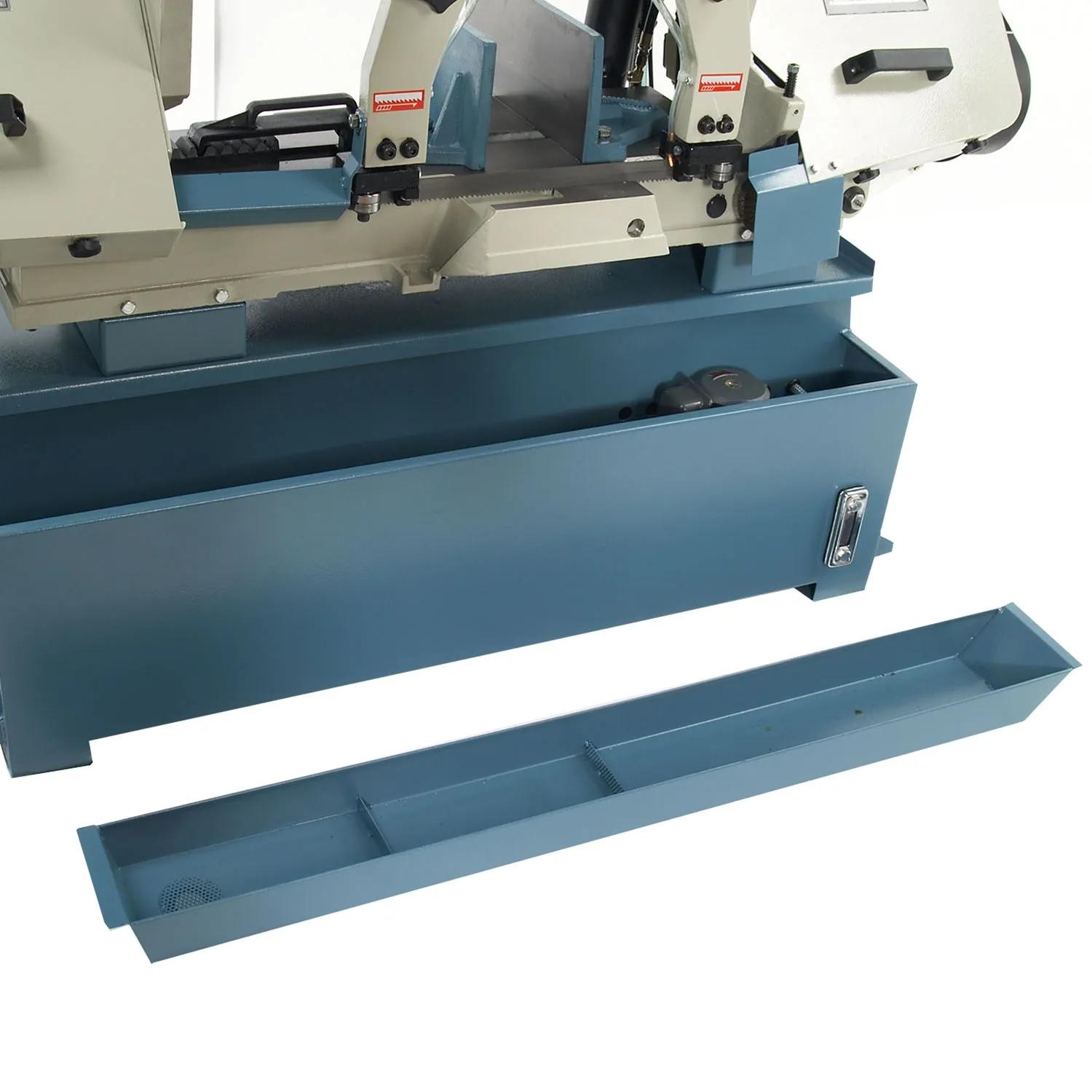

Comes standard with a flood coolant system (which some companies charge extra for) to wash away metal chips, help blades last longer, and reduce expenses
Fully welded steel base minimizes vibrations to deliver clean, accurate cuts and adds structural strength to the machine. This saw can take a lot of punishment!
| Stock Number | BA9-1001492 |
|---|---|
| Accessories | Included Accessories |
| Blade Guide | Roller |
| Blade Speeds (SFPM) | 82, 132, 170, or 235 |
| Capacity Rectangular 90 X 45 | 9.84" x 16.33" / 9.84" x 7.50" |
| Capacity Round 90 X 45 | 9.84" x 7.5" |
| Capacity Square 90 X 45 | 9.84" x 7.5" |
| Descent Control | Hydraulic |
| Drive | Belt x Pulley |
| Input Power | 240V / 1-phase |
| Type of Miter Adjustment | Vise |
| Miter Angle Range (Deg.) | 0 – 45° |
| Model Number | BS-300M |
| Motor (HP) | 2 hp |
| Prop 65 | Cancer and Reproductive Harm |
| Return | Manual |
| Shipping Dimensions (L x W x H) (In.) | 69x44x48 |
| Table Height (In.) | 30.7 |
| Warranty | 1 Year |
| Weight (Lbs.) | 845 |
| Gross Weight | 791.0 |
| Net weight | 791.0 |
