Horizontal Band Saw - BS-360SA

Call 920-684-4990 for availability
Stock Number
BA9-1001582
$27,189.00

Product Overview

Need to cut steel all day, every day? This semi-automatic horizontal band saw will save you time with its efficient hydraulic system. The cast iron bow and steel frame maintain accuracy.

Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.


+ Show More

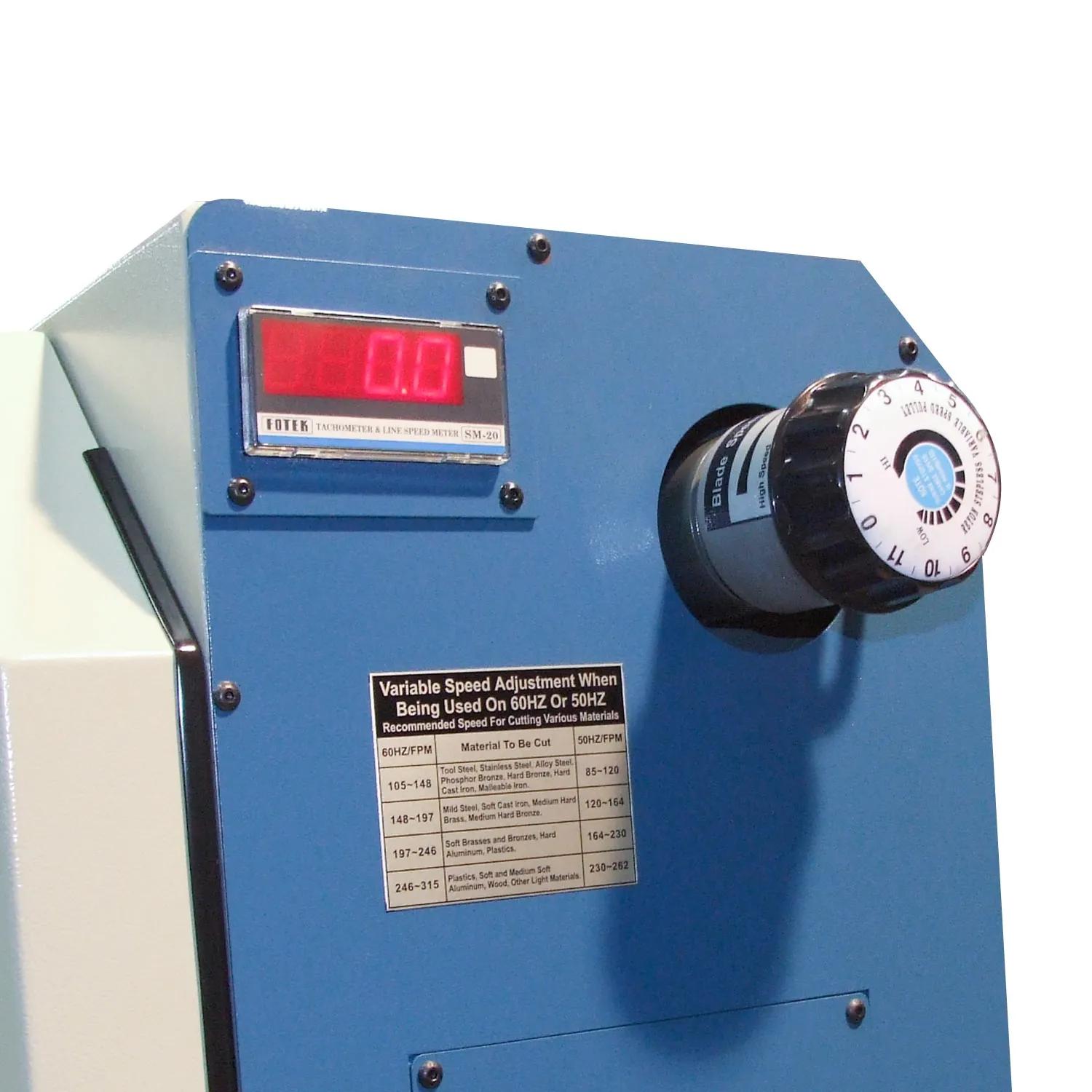

Features include: Huge capacity of 14” round and 14” x 22” rectangle, 77 to 252 fpm variable blade speed, standard 1.25” blade (included) to make straight and accurate cuts, and a robust 5 hp motor that runs on 220-volt 3-phase power

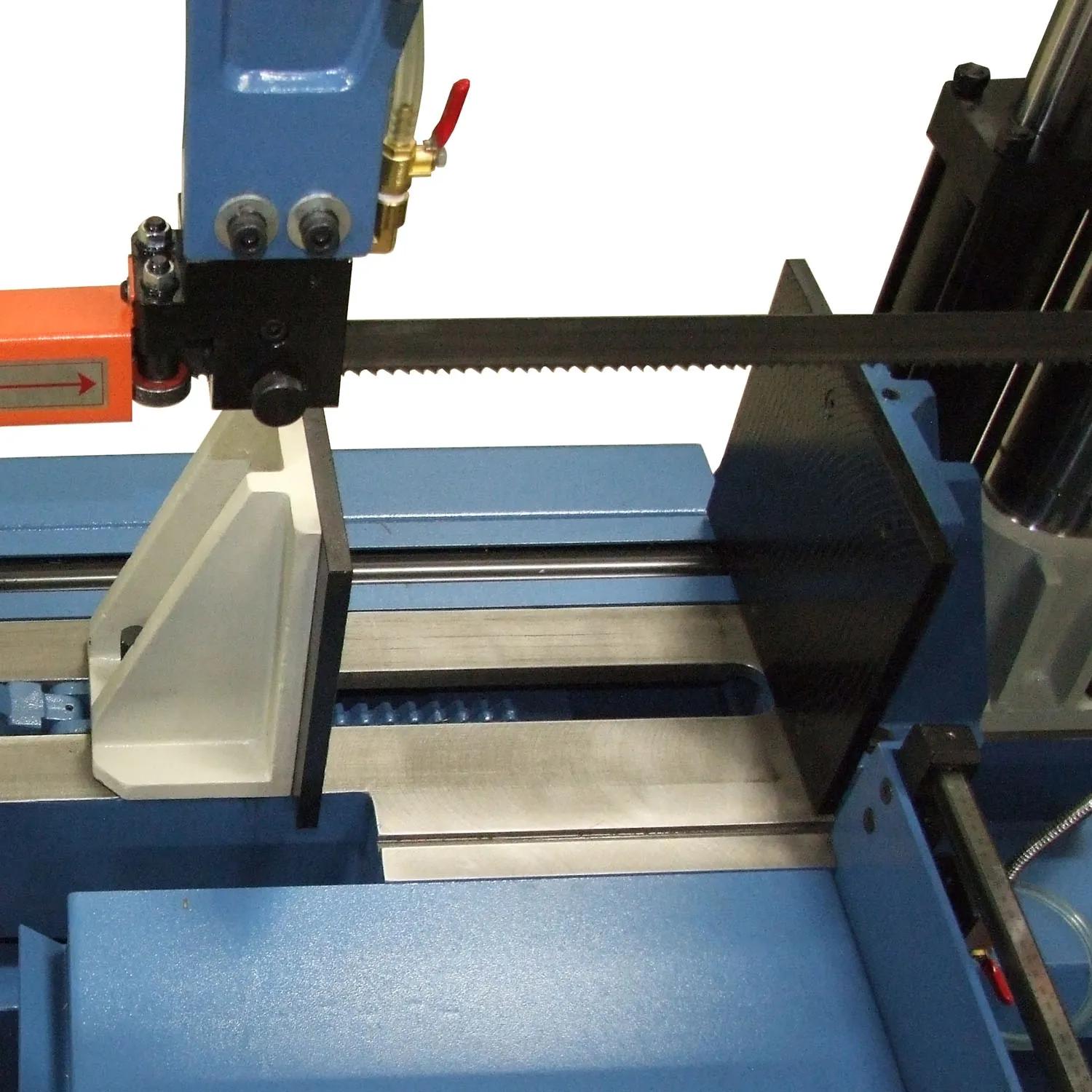

Cast iron vise and bow, machined to exacting tolerances, ensure that cuts are as precise as possible

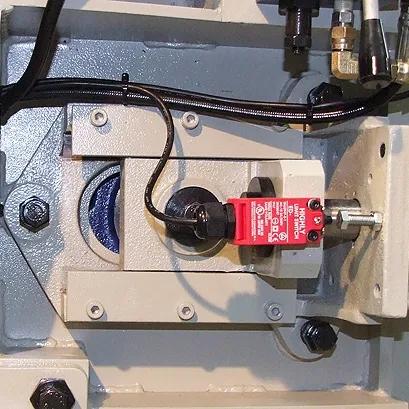

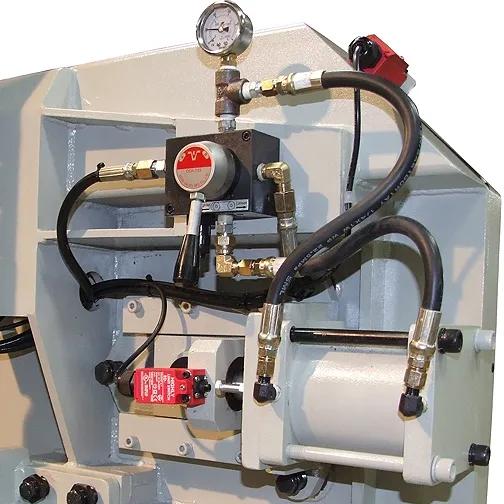

Industrial-grade hydraulic system controls the vise and the bow height
Fully sealed ball bearings used as blade guides track the blade smoothly and properly

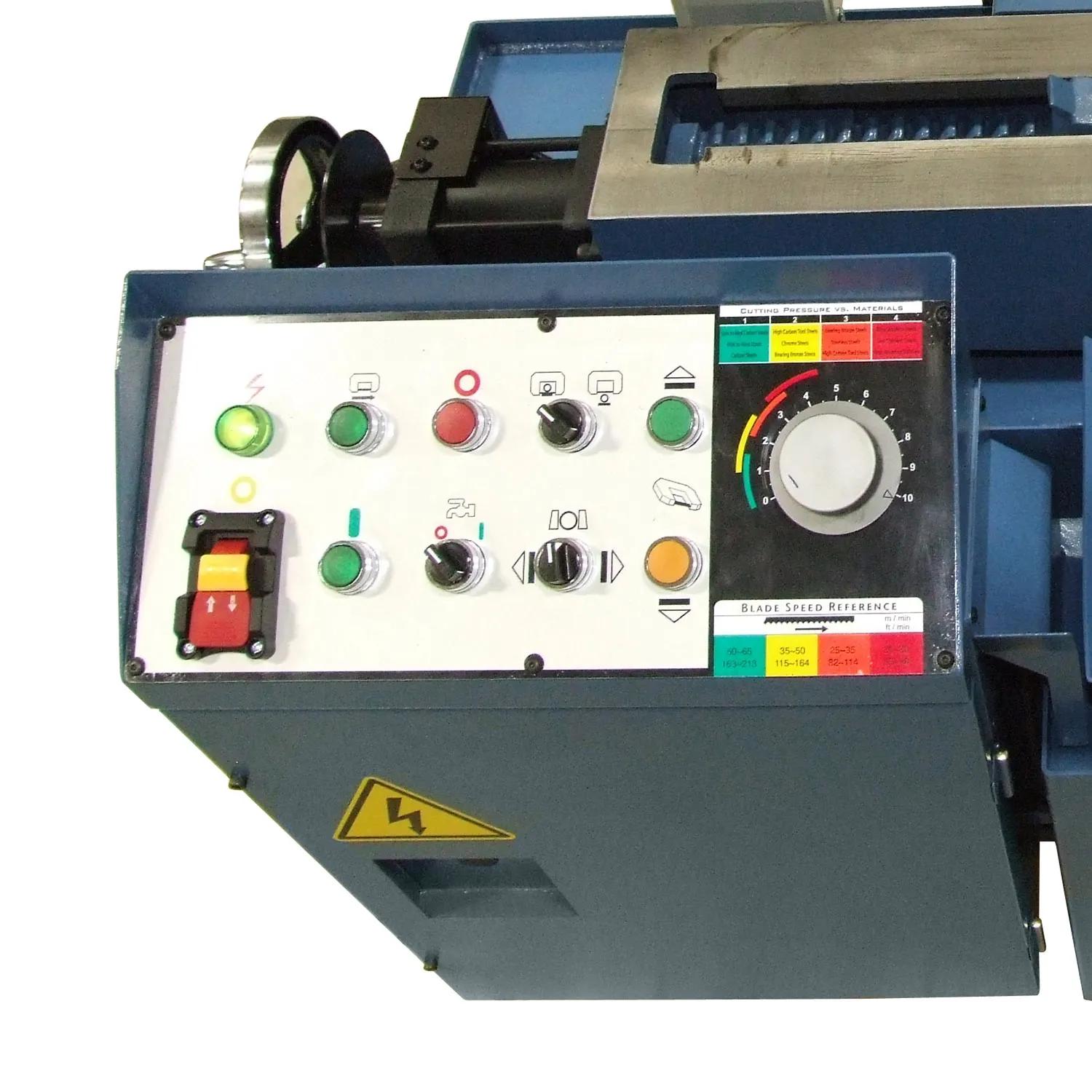

Easy-to-use control panel—with labeled buttons and dials for locking the vice, starting the blade, and more—lets you get up and running quickly
Patented hydraulic blade tension device makes it easy to get the right settings. Just line up the arrow with the green fluid-filled gauge
Electro-welded steel frame reduces vibrations and keeps cuts accurate over many years of production
Includes blade brake switch for safety

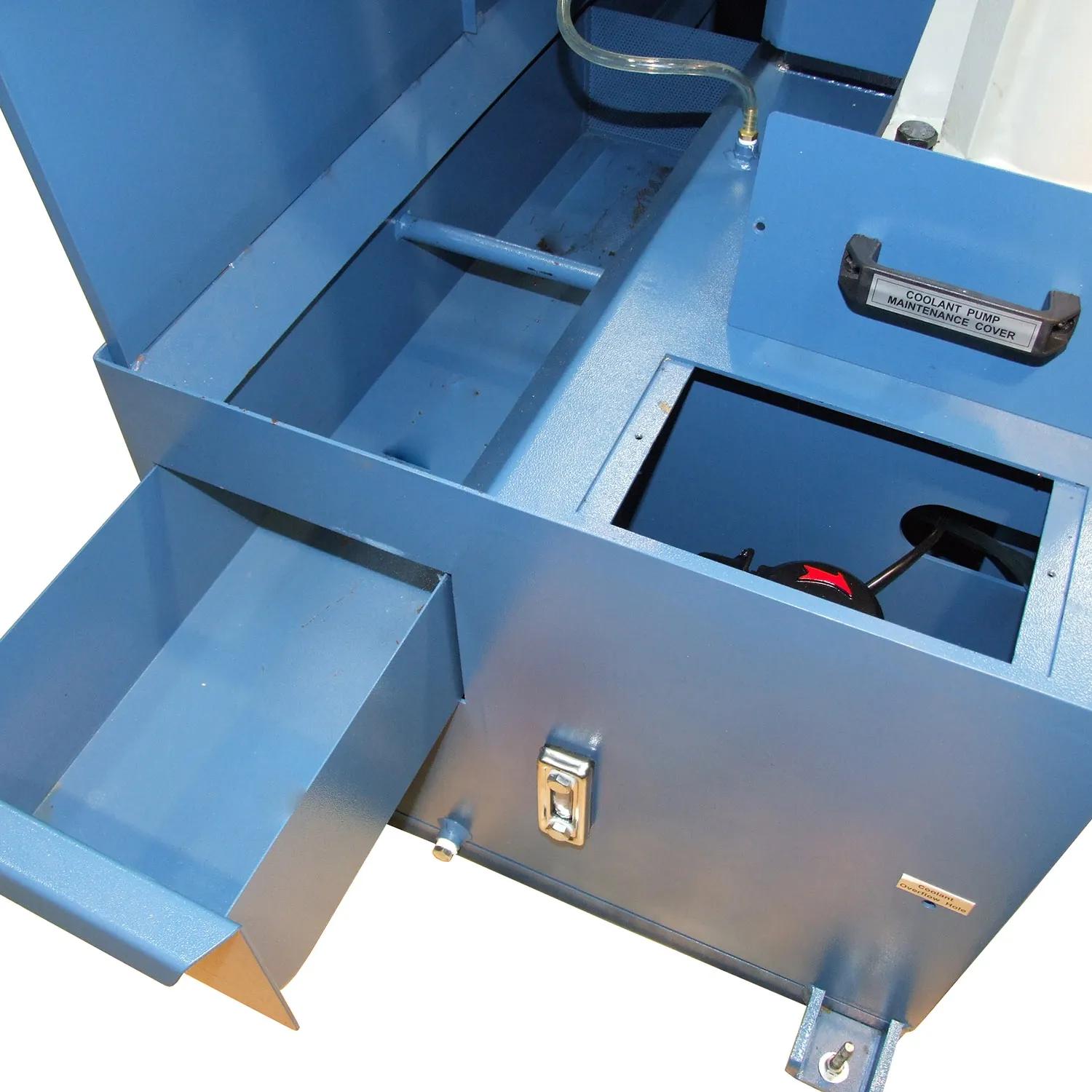

Flood coolant system washes away chips after cutting and helps blades last longer

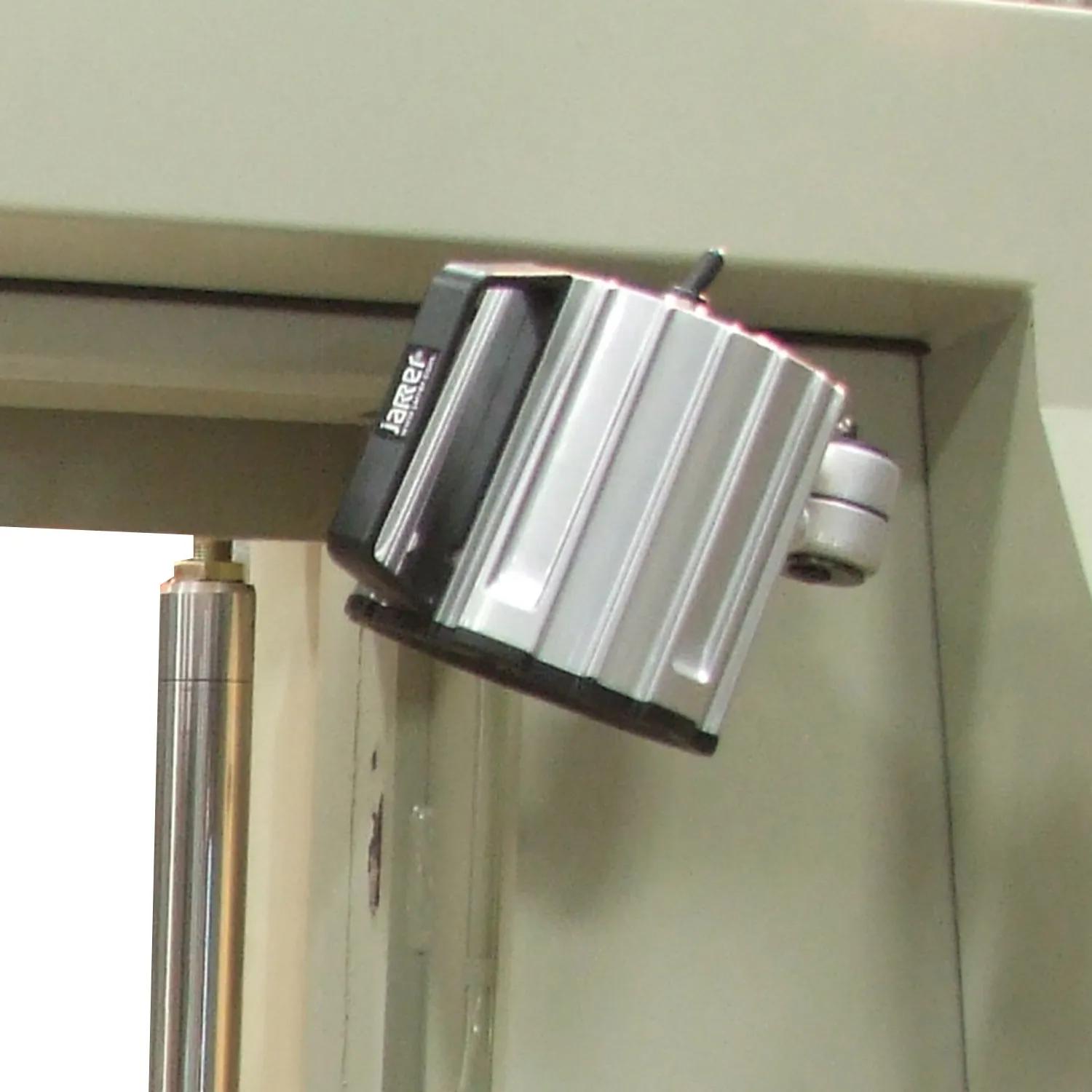

Comes with a chip removal blade brush and bright halogen work light that gives you a clear view of what you’re cutting
More Information
Stock NumberBA9-1001582
Blade GuideCarbide x Roller
Blade Speeds (SFPM)77 to 252 (Variable Speed)
Descent ControlPressure Assist Hydraulic
DriveBelt x Pulley
Horse Power (HP)5.0000
Input Power220V / 3-phase
Miter Angle Range (Deg.)N x A
Model NumberBS-360SA
Motor (HP)5 hp
Prop 65Cancer and Reproductive Harm
Rectangle at 90 Degrees (In.)14.17" x 22"
ReturnHydraulic
Shipping Dimensions (L x W x H) (In.)98x31x74
Square at 90 Degrees (In.)14.17"
Table Height (In.)29.21
Warranty1 Year
Weight (Lbs.)2600
Gross Weight3000.0
Net weight3000.0
