Horizontal Band Saw - BS-916M

Stock Number
BA9-1001740
$5,269.00
Click LeaseLeasing starts at $156 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $156

Product Overview

Based on our BS-300M, the Baileigh BS-916M metal cutting band saw has a compact footprint for small shops. This saw’s cast iron head and fully-welded steel base reduce vibration and ensure accuracy.

Baileigh also offers a Single Phase Bandsaw.

Questions about this industrial bandsaw for sale? Call us at 1-920-684-4990 and talk to a Baileigh expert.


+ Show More

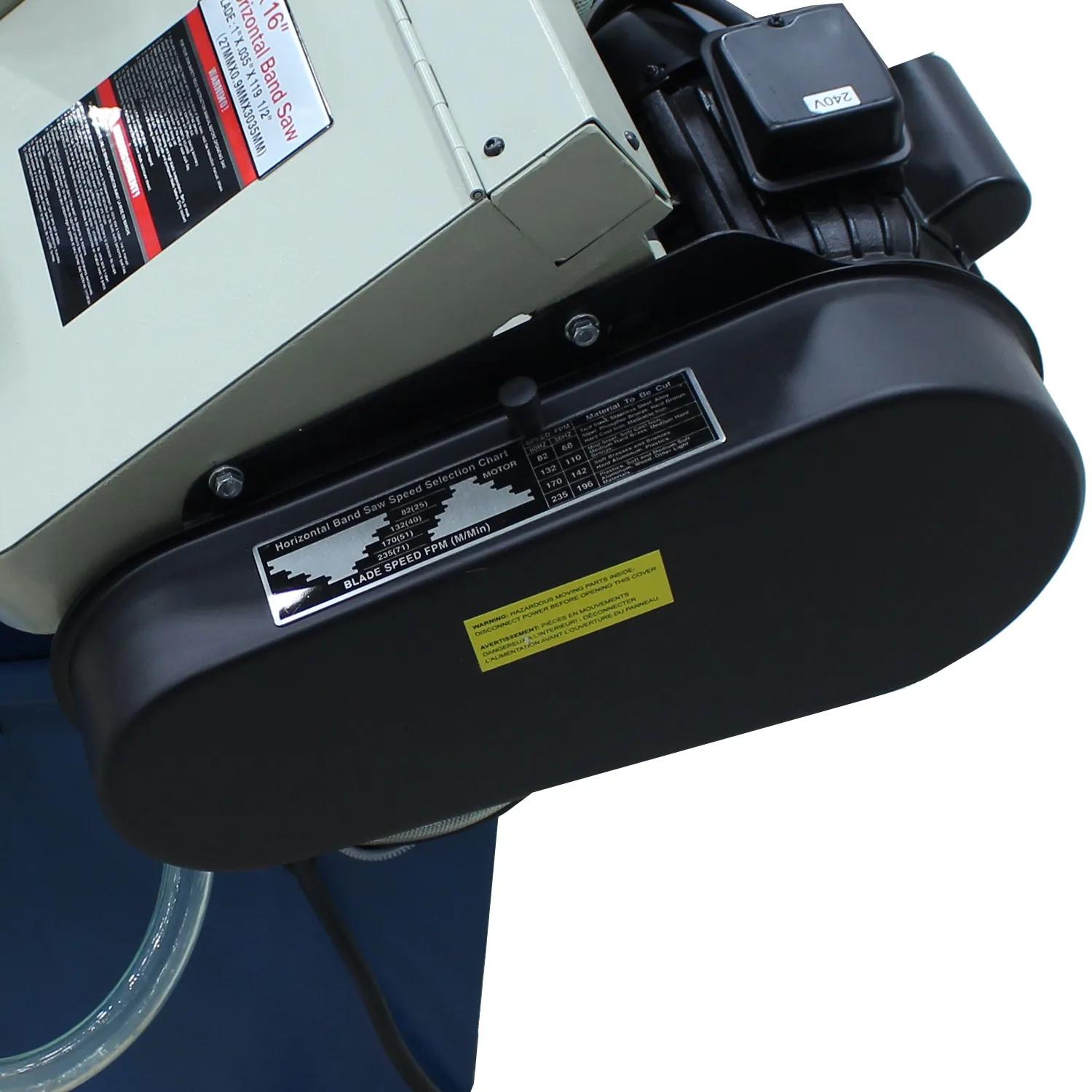

1.5 hp motor is powered by 240-volt single-phase power
8.75” round capacity at 90°

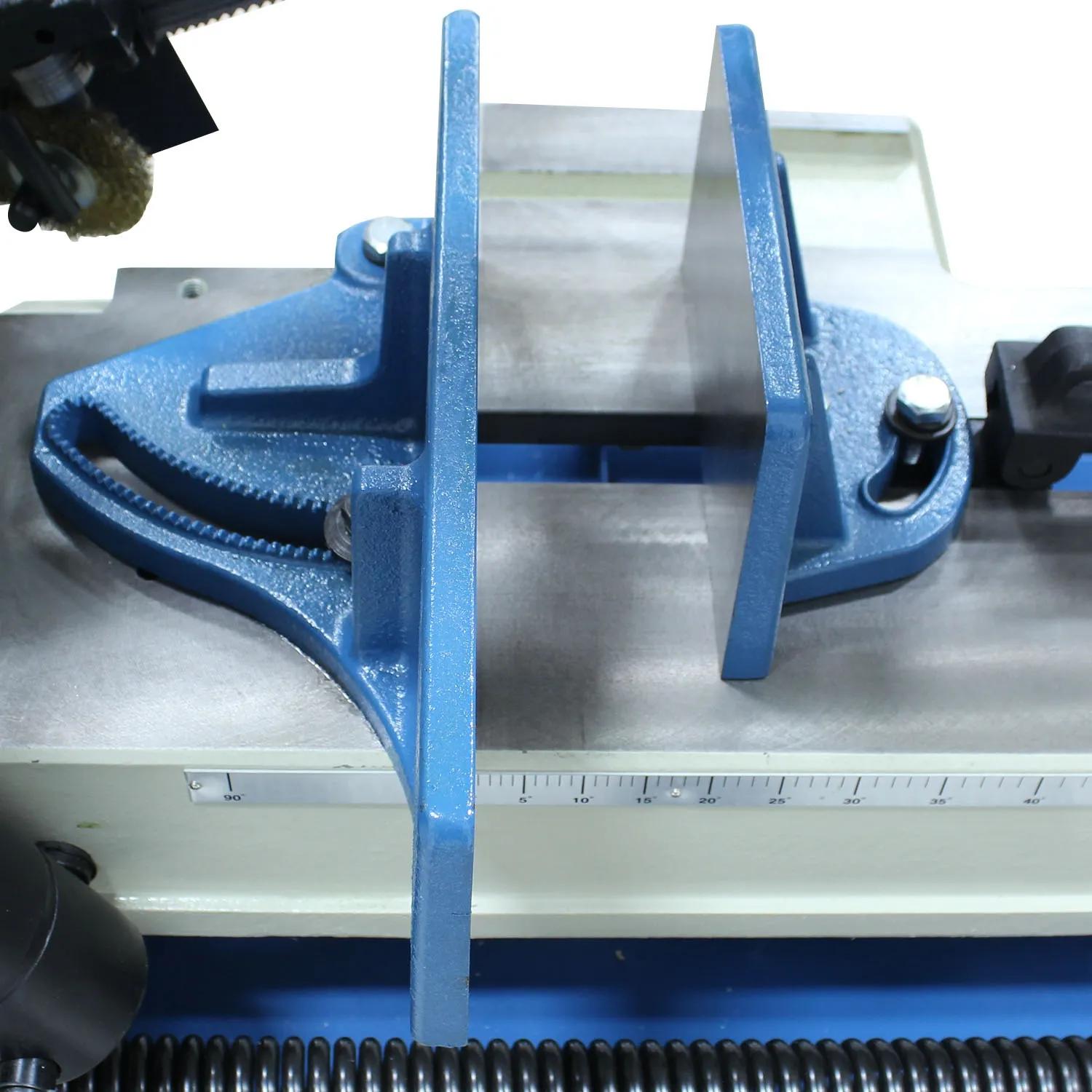

Vise miters up to 45°
Accepts standard 1” blades

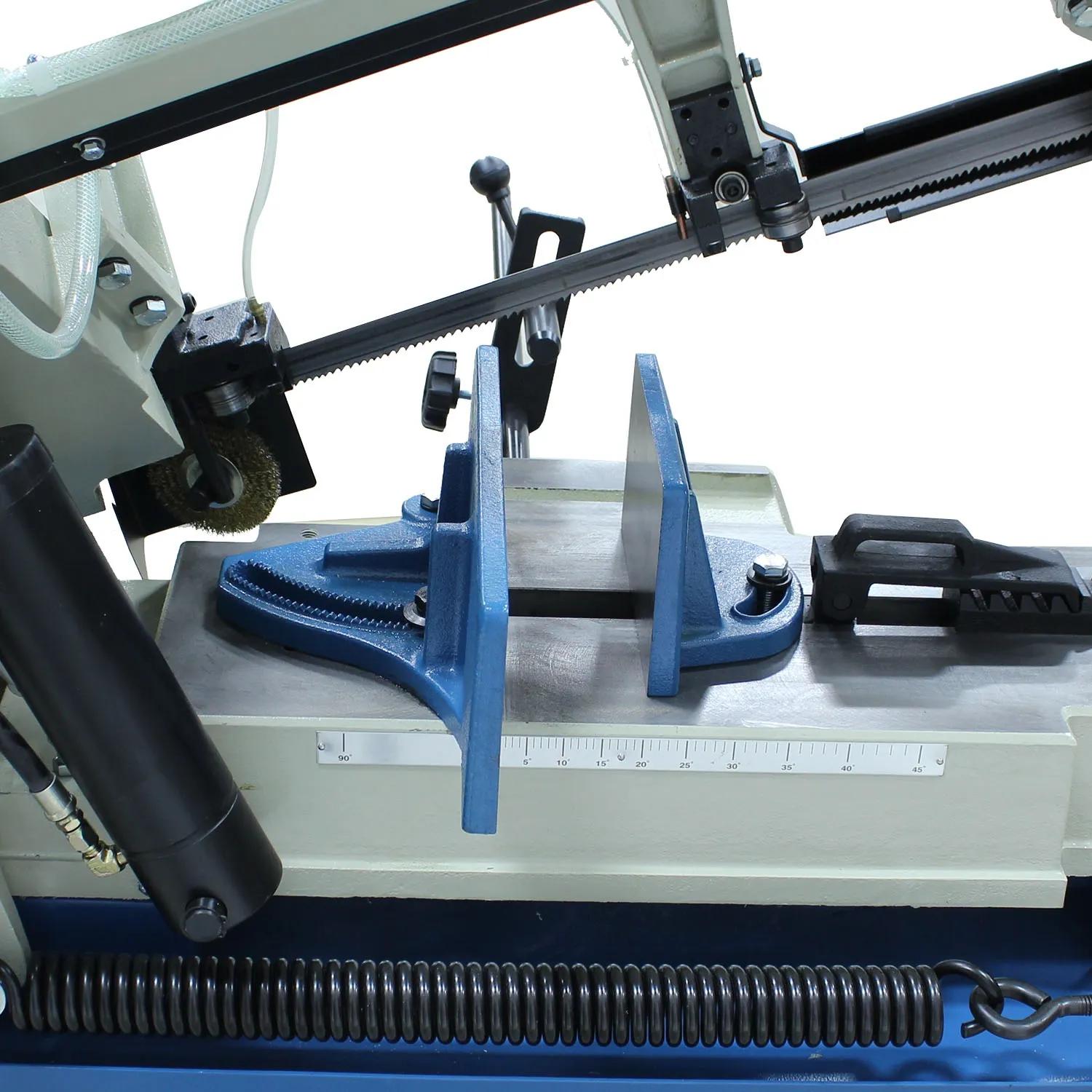

4 cutting speeds: 82, 132, 170, and 235 fpm
Patented blade tension device, with a liquid-filled gauge, lets you adjust the blade to the correct tension without difficulty

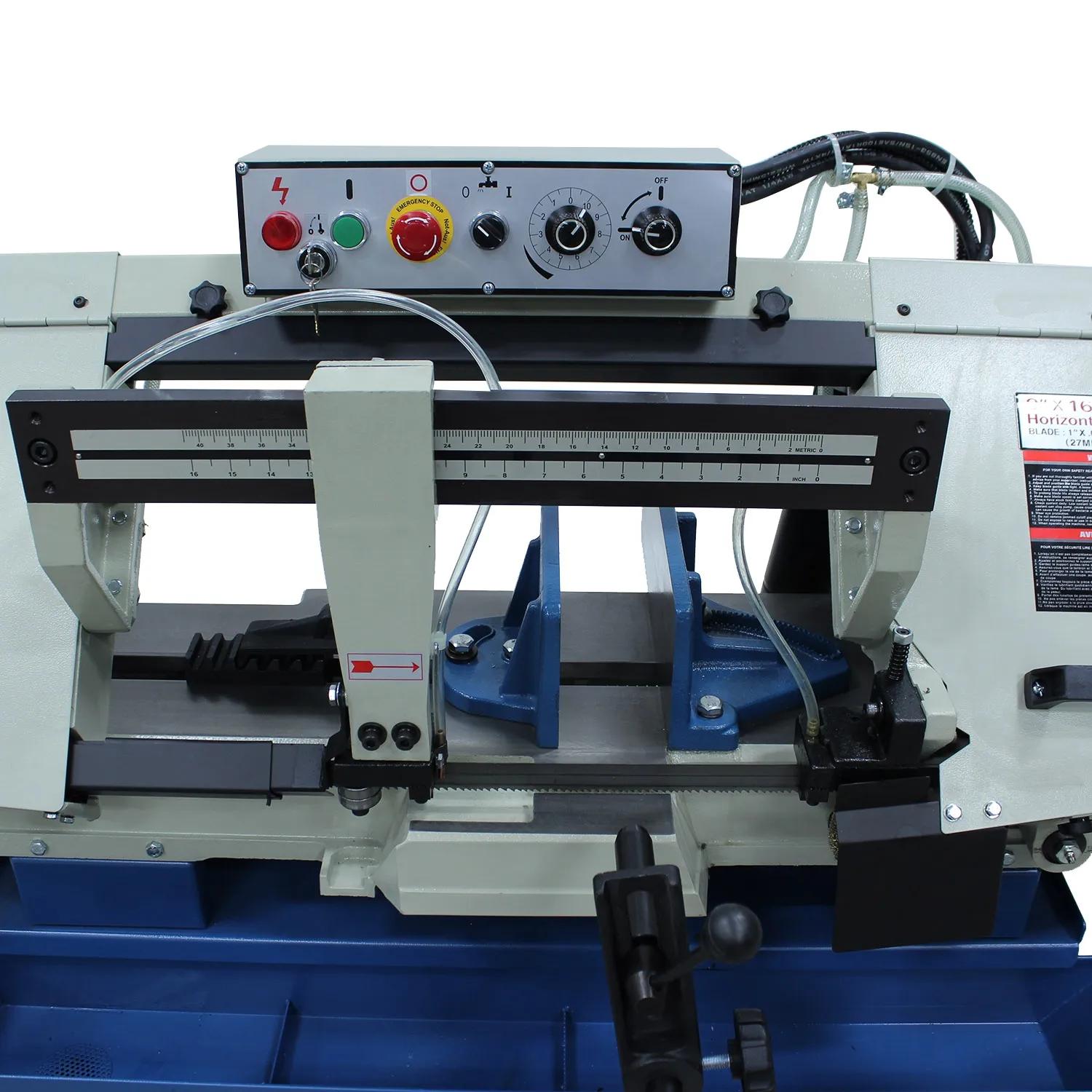

You can control the hydraulic descent through an easy-to-access panel located on top of the bow
Automatically shuts off at the end of the cut for safety and efficiency

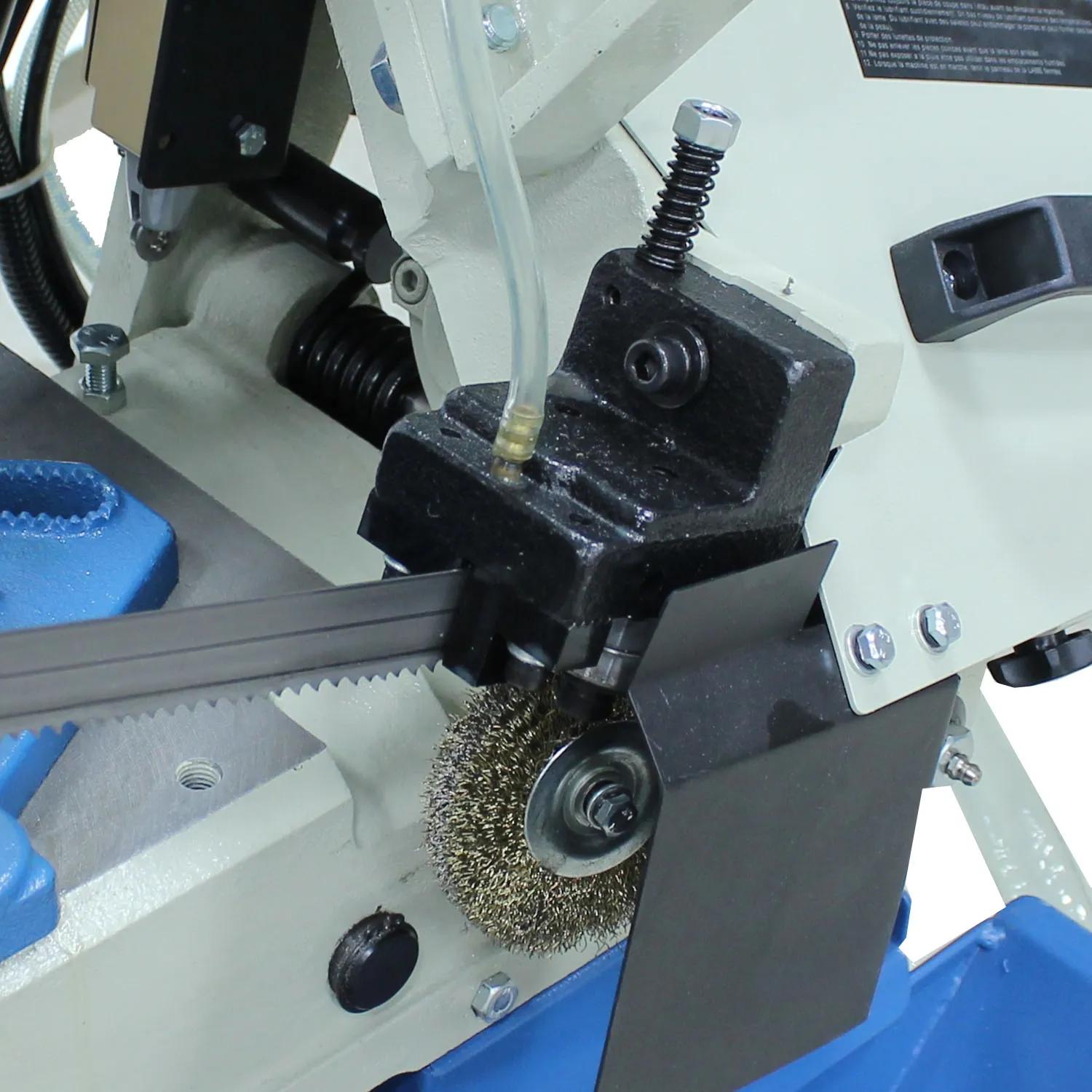

Comes standard with a flood coolant system that washes away chips, lubricates the blade, and prolongs blade life
More Information
Stock NumberBA9-1001740
AccessoriesIncluded Accessories
Blade GuideRoller
Blade Speeds (SFPM)82 x 132 x 170 x 235
Capacity Rectangular 90 X 45 X 458.85" x 13.5" x 8.85" x 6.5"
Capacity Round 90 X 458.85" x 6.5"
Capacity Square 90 X 458.85" x 6.5"
Descent ControlHydraulic
DriveBelt x Pulley
Input Power240V / 1-phase
Type of Miter AdjustmentVise
Miter Angle Range (Deg.)0 – 45°
Model NumberBS-916M
Motor (HP)1.5 hp
Prop 65Cancer and Reproductive Harm
ReturnManual
Shipping Dimensions (L x W x H) (In.)69x44x46
Table Height (In.)24
Warranty1 Year
Weight (Lbs.)770
Gross Weight696.0
Net weight696.0
