Horizontal Press Brake - (HPB-45NC)

Name: Horizontal Press Brake - (HPB-45NC)
SKU: BA9-1004703
Price: 24479 USD
Availability: OutOfStock

Call 920-684-4990 for availability

Stock Number:

BA9-1004703

$24,479.00

Enhanced Bullet 1: 45 tons of pressure

Enhanced Bullet 2: Programmable NC controller

Enhanced Bullet 3: 9.84" stroke length

Enhanced Bullet 4: 220V 3-phase power

Leasing starts at $708 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $708

Skip to the end of the images gallery

Skip to the beginning of the images gallery

View Real Applications

Product Overview

This Baileigh horizontal press brake machine can bend, punch, and shear with the right tooling. You can easily make small parts, like flanges and brackets, because material lies on a flat surface.

Also available in a 78-ton industrial hydraulic press brake.

Recommended for:
*Full industrial production, including shipbuilding yards, boiler manufacturers, nuclear applications.
*Making parts that are thick, but not wide (die size is limited).

Covered by a 1-year parts warranty. Includes lifetime technical support by phone. Questions about this horizontal press brake for sale? Not sure which press brake is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.

+ Show More

Features

Electronic encoders make this hydraulic press brake accurate to +/- .002”

Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material. Numerical control (NC) programmer can store up to 50 programs with 10 bends per program

You can adjust the pressure of the hydraulics for your material. You can also run the metal press brake in a manual mode for one-off projects as well as set-up

Robust manual back gauge bolts to the machine and helps with repeatability and product counter makes production runs more efficient

Machined table, 36” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!

Quick-release tooling system makes changes fast and simple. Just turn the handle and the post will lift. The V die slides in and out

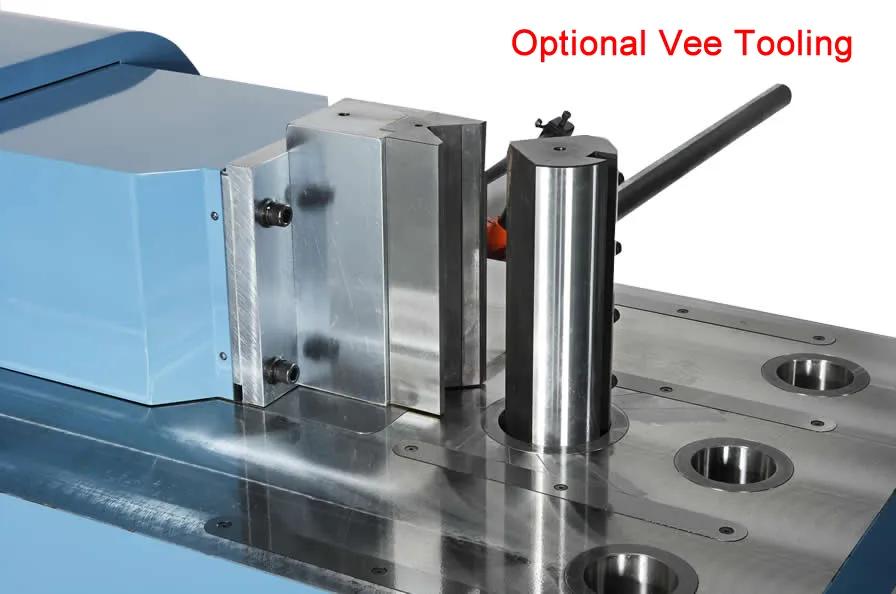

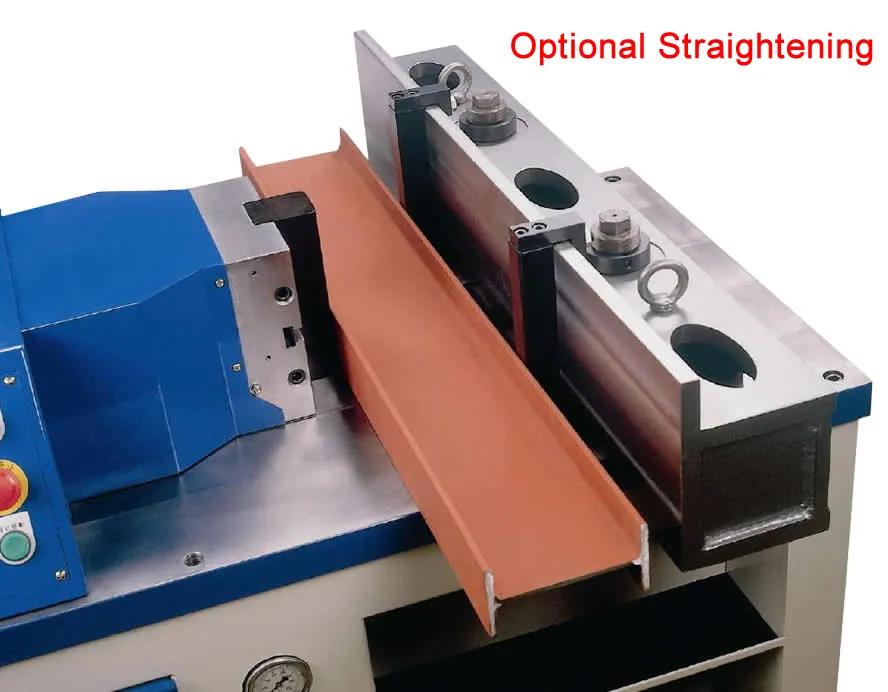

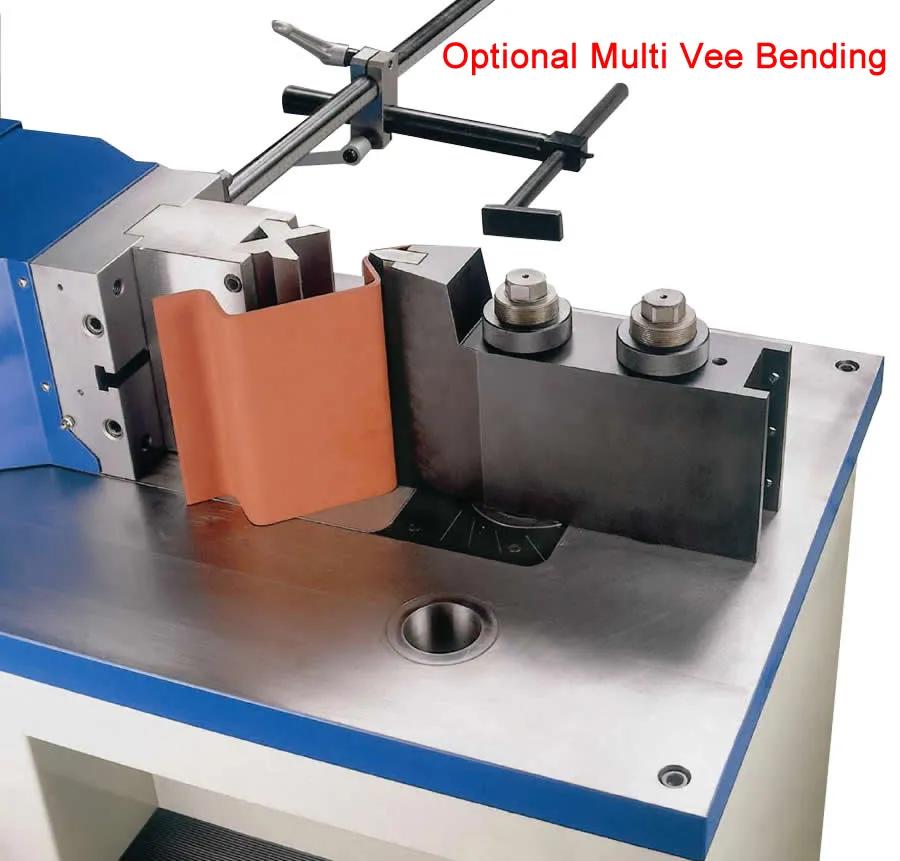

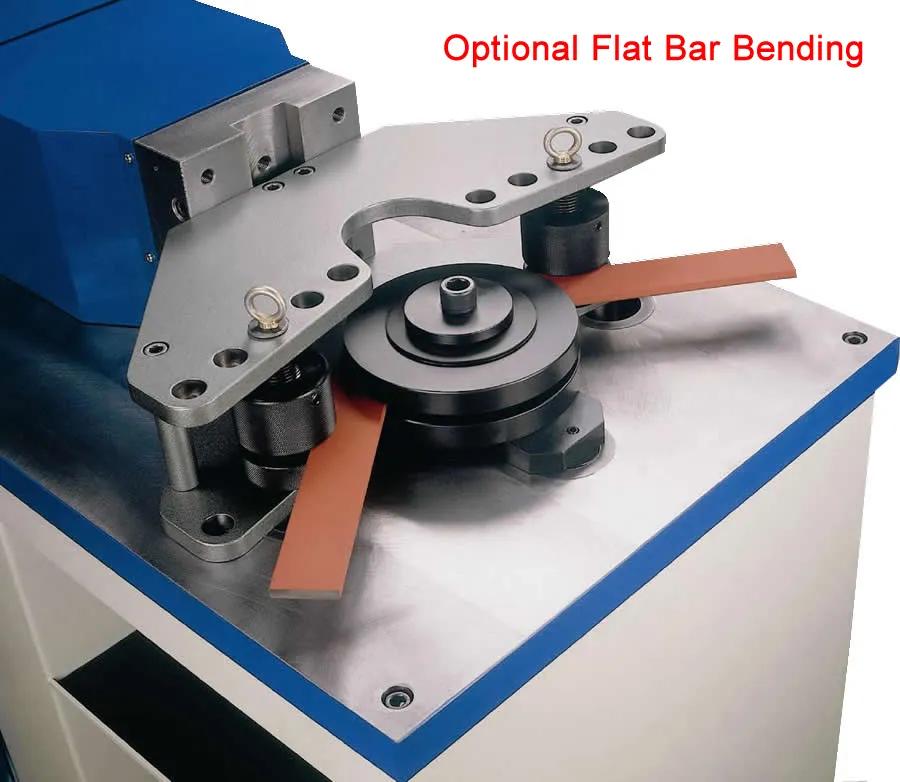

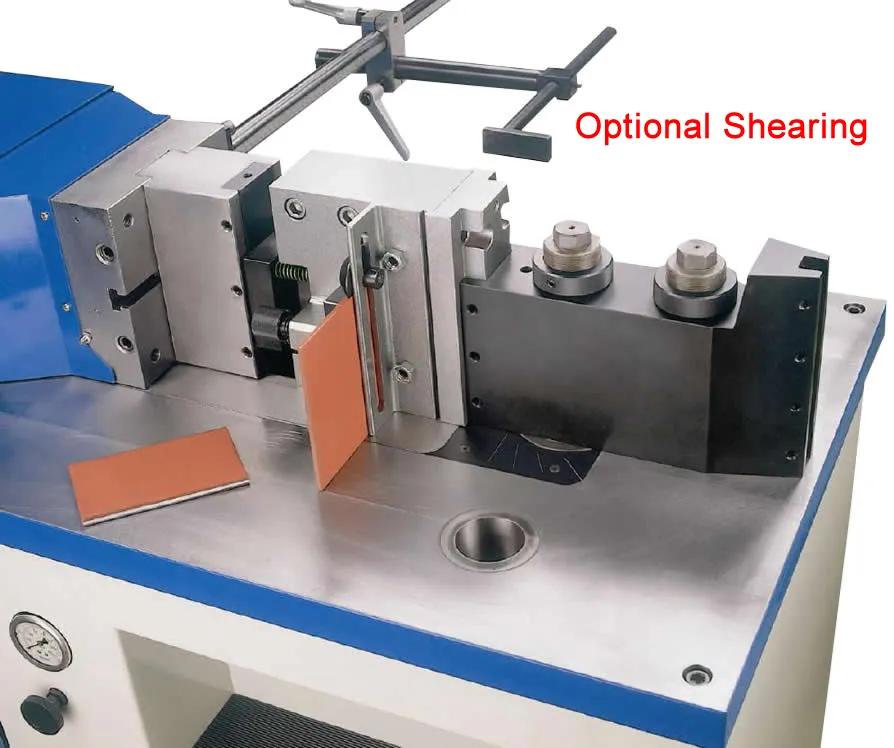

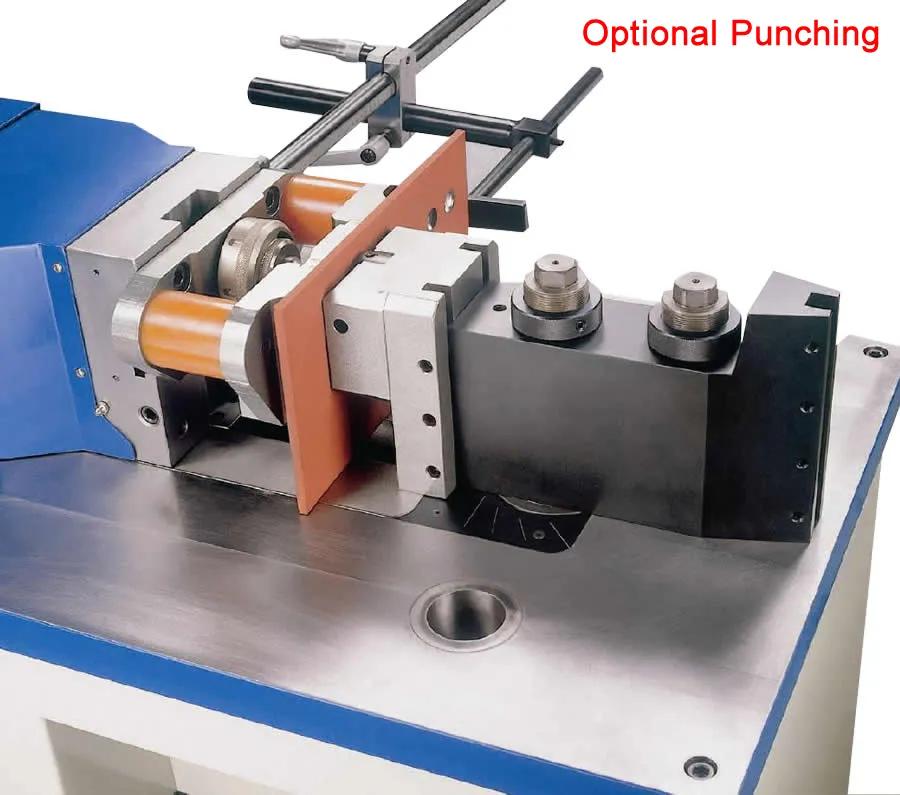

Includes 80mm single-V tooling (V-opening die and V post). Also accepts attachments for punching, straightening, shearing, and even pipe bending

Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary

2,266-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won’t flinch under pressure

Industrial-grade hydraulic system is located on top of the metal press brake to reduce flex and shelving in the front can hold tooling and items you might need on a daily basis

Specifications

More Information
Stock Number	BA9-1004703
Approach Speed	1.5" / sec.
Approx. Pressure (Tons)	45 tons
Fixture Holes	(1) @ 3.268" dia. / (3) @ 2.283" dia.
Horse Power (HP)	5.0000
Input Power	220V / 3-phase
Minimum Return Speed (In./Sec)	.78" / sec.
Model Number	HPB-45NC
Motor (HP)	5 hp
Prop 65	Cancer and Reproductive Harm
Punch Work Height (In.)	7.875"
Shipping Dimensions (L x W x H) (In.)	60x48x55
Stroke Length (In.)	9.84"
Table Height (In.)	36.61"
Warranty	1 Year
Weight (Lbs.)	2266
Gross Weight	2270.0
Volts	220V
