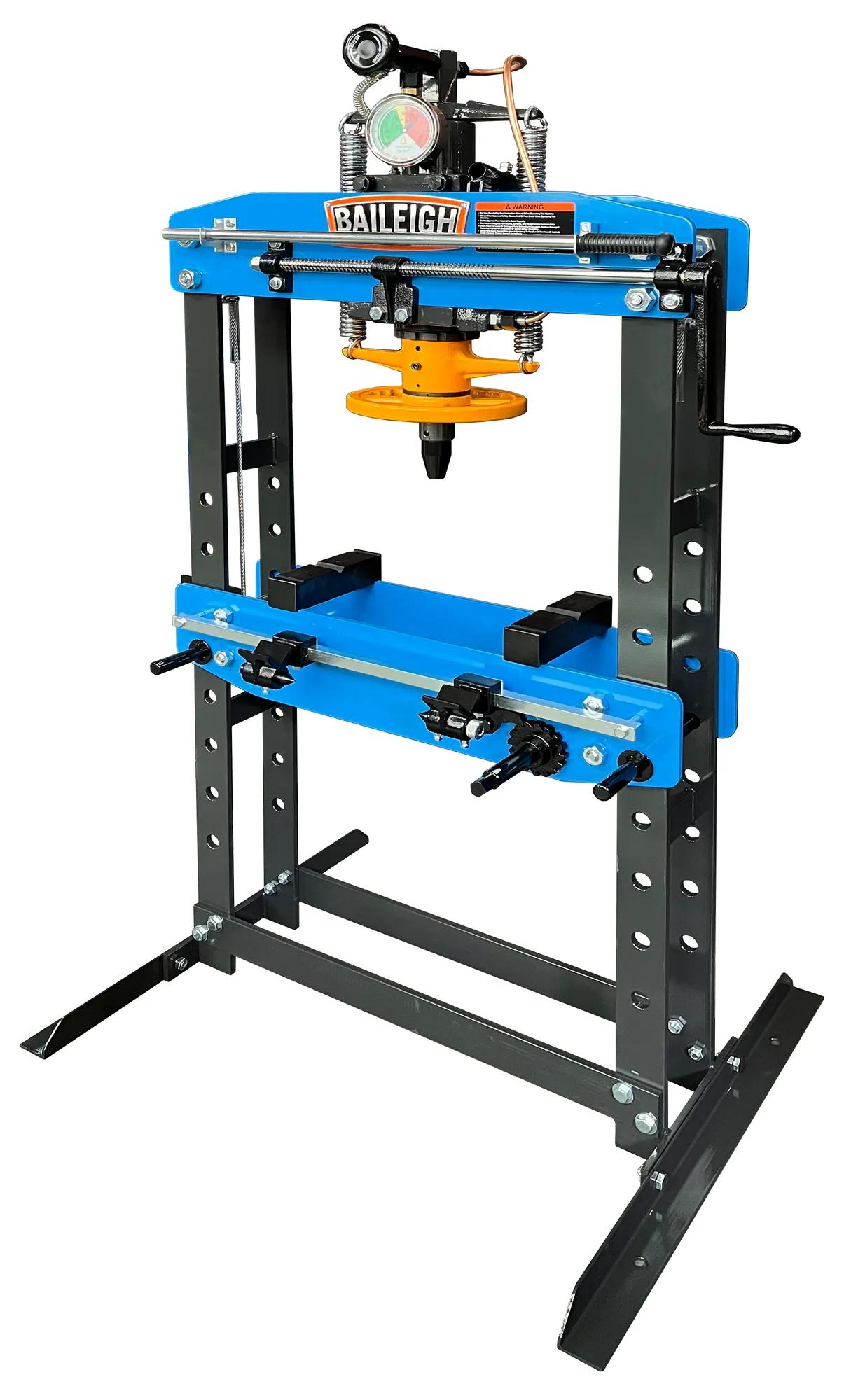

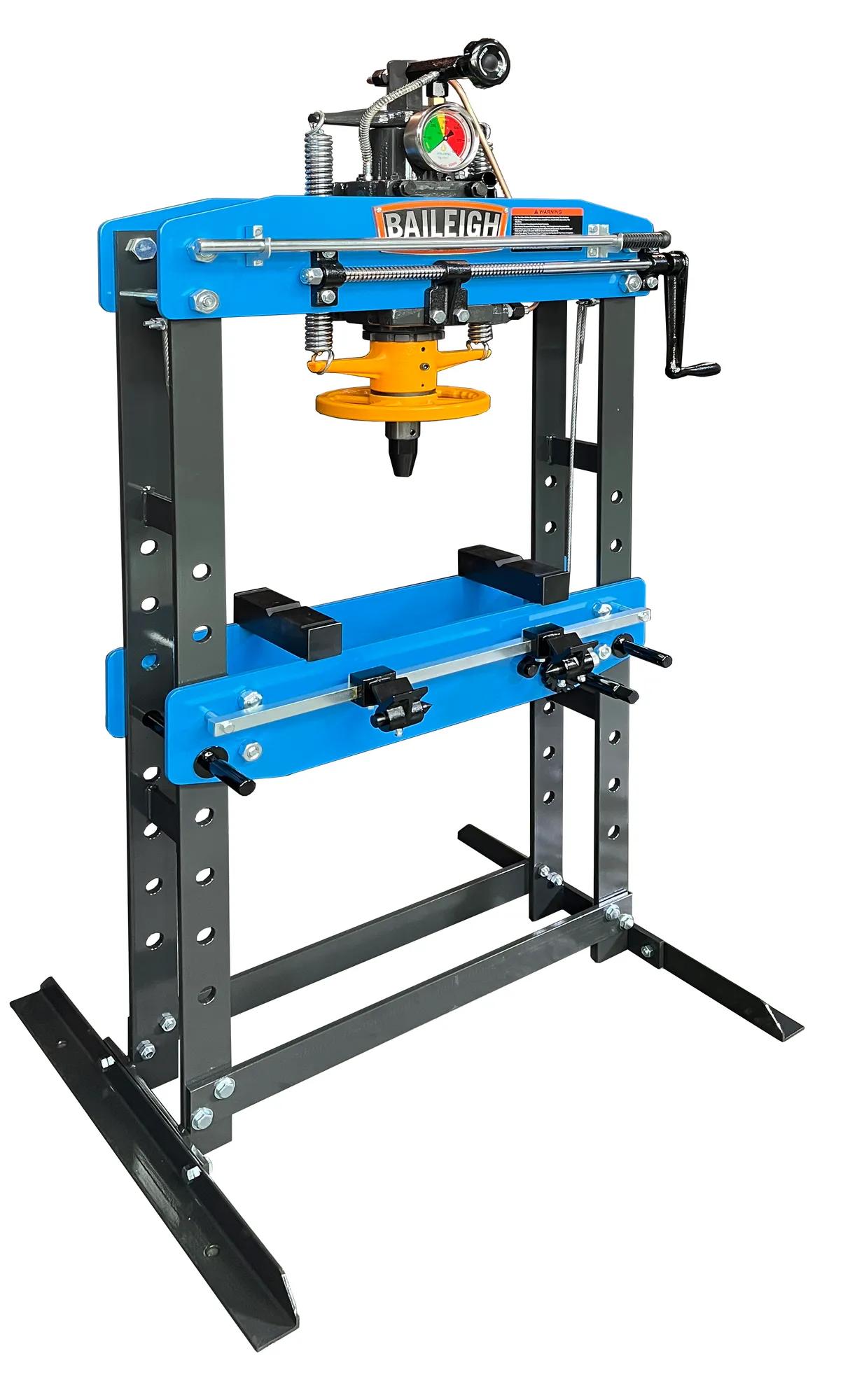

HSP-15A - 15 TON HYDRAULIC SHOP PRESS
Stock Number:
BA9-1232703
$3,139.00
Enhanced Bullet 1:
15-ton capacity
Enhanced Bullet 2:
Manual H-frame press
Enhanced Bullet 3:
24.75" working width
Enhanced Bullet 4:
4.5" stroke
Product Overview
Baileigh's HSP-15A is a 15-ton Hydraulic Shop Press with an H-frame. Each machine is built using a heavy steel plate that is electro-welded together and comes standard with industrial-grade hydraulics. These 15-ton hydraulic shop presses are for serious fabrication and machine shop owners who demand only the best quality from their operation.
Manual
15-ton capacity.
24.75” working width.
4.5” cylinder stroke.
Industrial-grade hydraulic components will provide years of reliable use.
Adjustable table to fit a wide variety of applications.
Includes pressure regulator and gauge.
Rigid, electro-welded steel construction lets you work at full capacity with no worries about the machine flexing.
Comes standard with a V-block set.
Covered by a 1-year parts warranty and lifetime technical support by phone.
| Stock Number | BA9-1232703 |
|---|---|
| Lateral Movement (In.) | 10-3/16 |
| Model Number | HSP-15A |
| Piston Stroke (In.) | 4-3/4 |
| Prop 65 | Cancer and Reproductive Harm |
| Ram Diameter (In.) | 2-1/2 |
| Screw Stroke (In.) | 4 |
| Vertical Table Travel (In.) | 25 |
| Warranty | 1 Year |
| Weight (Lbs.) | 378 |
| Work Table Size (In.) | 24-3/4 x 7-1/2 |
| Gross Weight | 438.0 |
| Net weight | 438.0 |
| Cylinder Movable | No |
