Hydraulic Brake Press - (BP-5078CNC)

Built from name-brand parts and steel plate, this Industrial Press Brake will stay rigid and accurate. You can program the bend depth and back gauge for efficient production.

*Delivers 50 tons of pressure over its entire 78” length.
*Long enough to bend 6-foot pieces of mild steel.
*Runs on 220-volt 3-phase power.
*Industrial-grade hydraulic system with a Vickers/Eaton® pump will last for many years at peak capacity.
*NOK® hydraulic seals from Japan are some of the best in the industry. They'll help the hydraulics run smoothly.

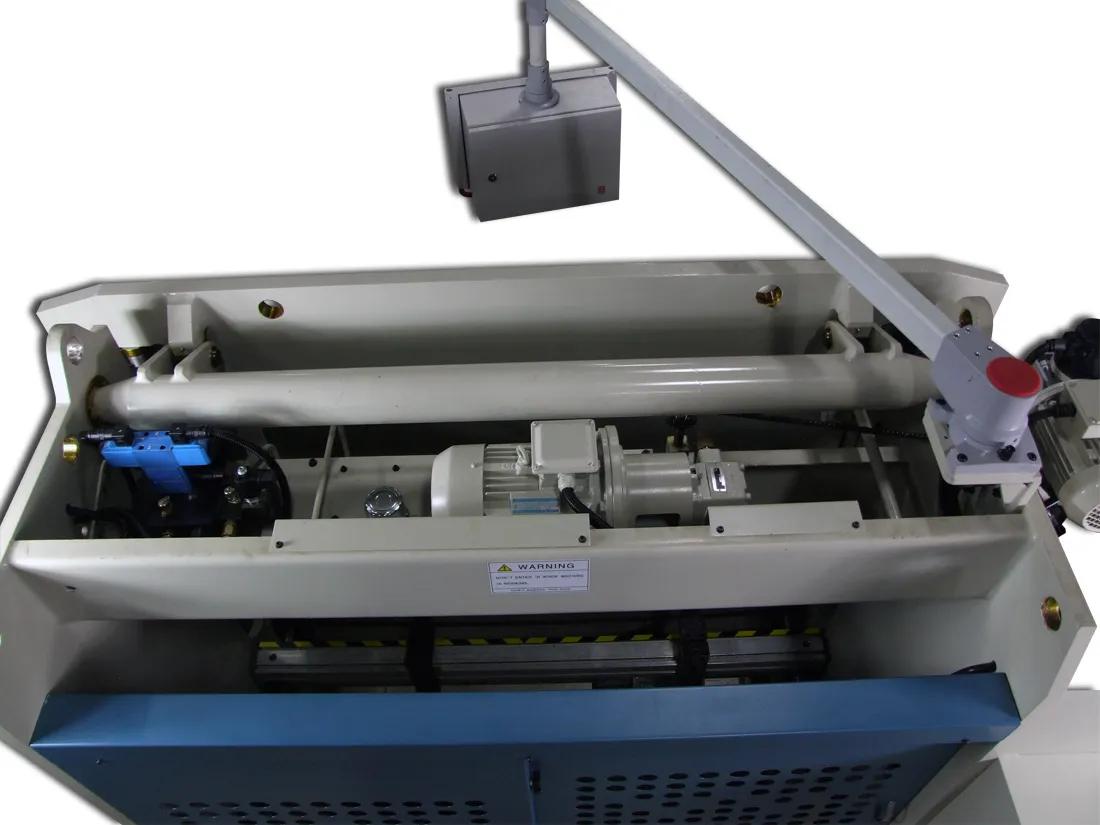

*Torque tube connects the 2 hydraulic cylinders, so they always stay synchronized and parallel to the bending table.
*Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine remains balanced and lasts longer.

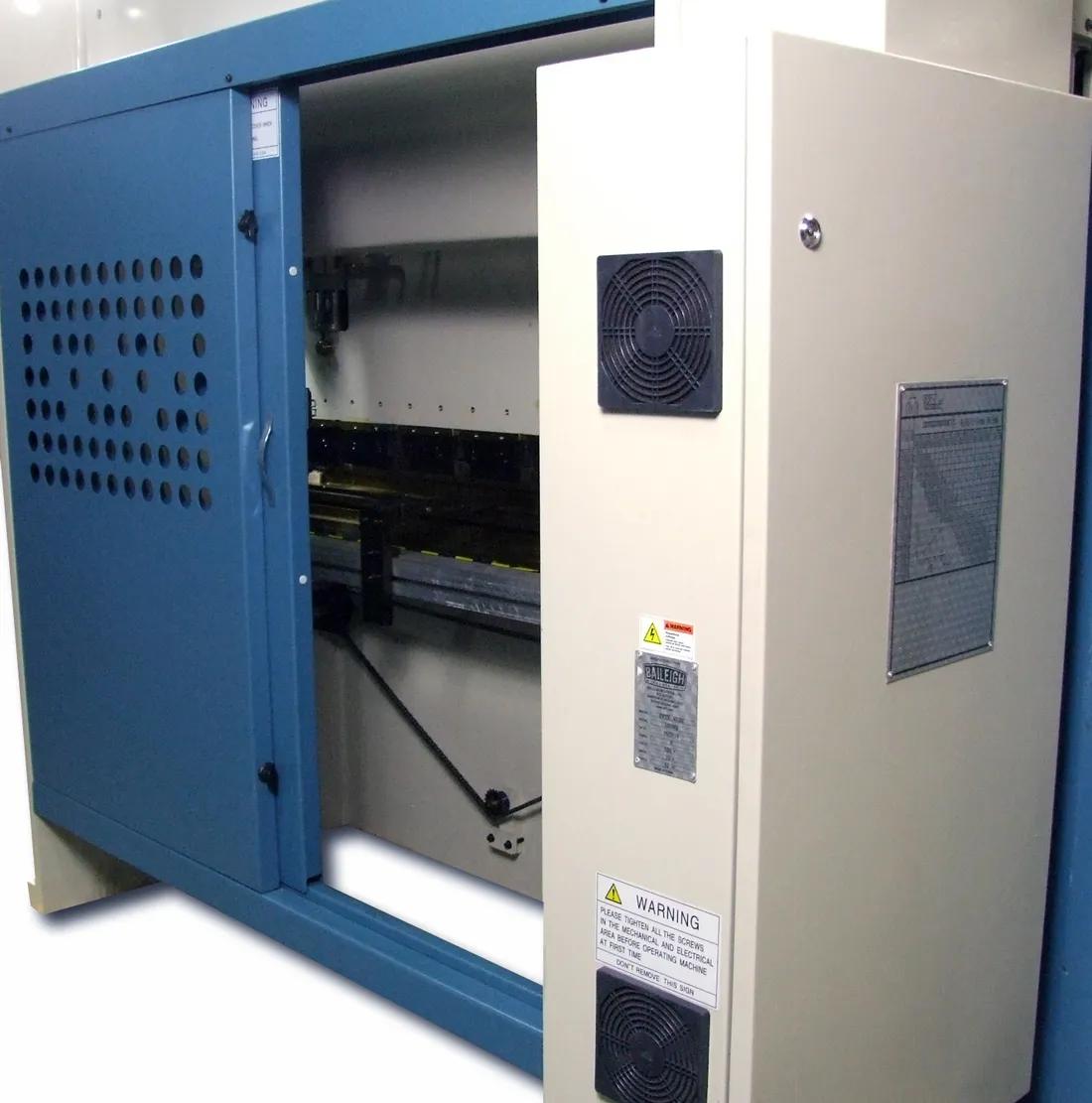

*Hydraulic cylinders are in the back of the machine for convenient fluid changes.

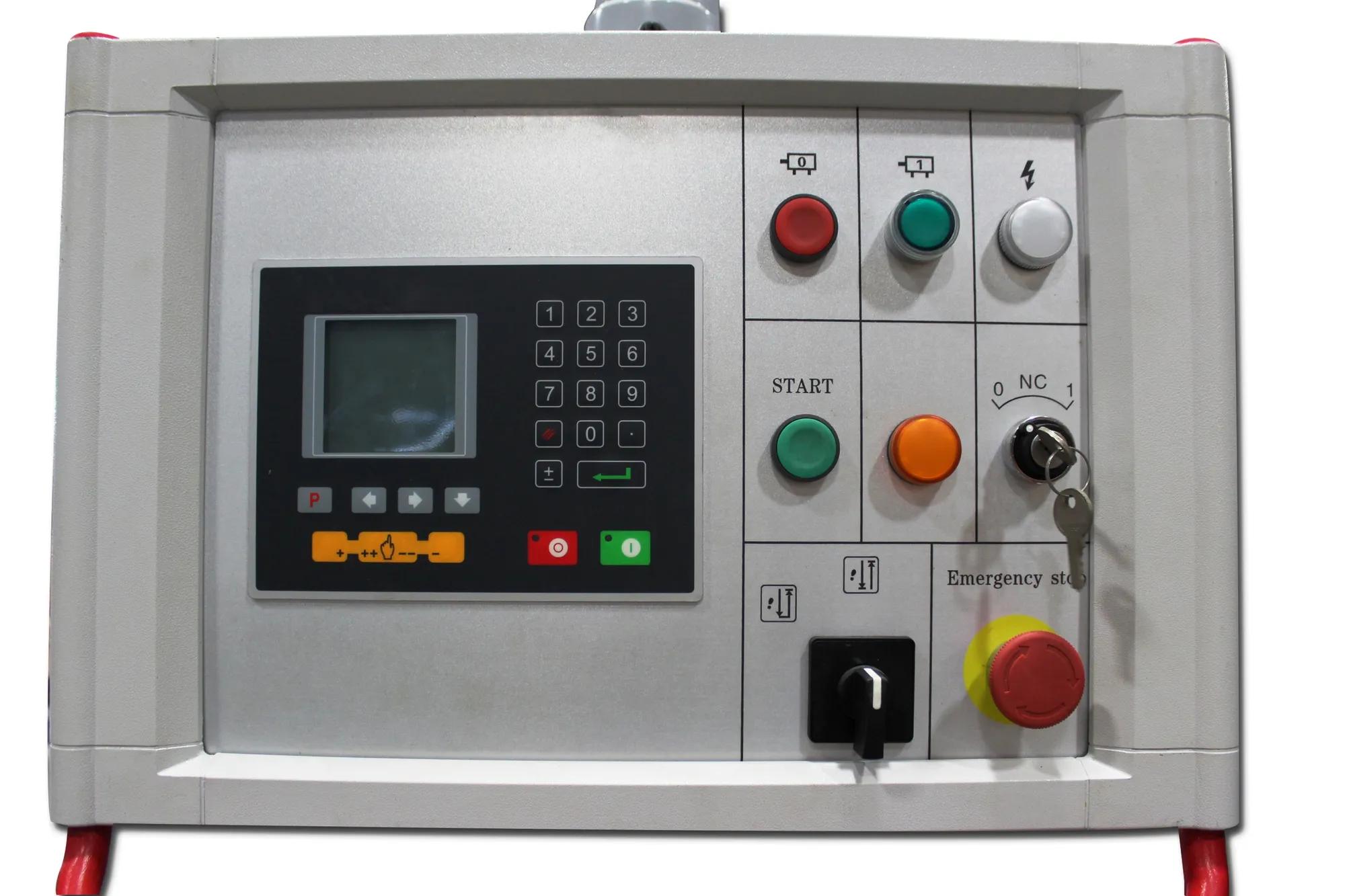

Accurate, User-Friendly Control System:
*Runs in single-bend mode or programmable mode.
*Comes standard with 2 axes of control: stroke and back gauge distance.
*Simple controller is so intuitive that you could train someone to use it in 5 minutes.
*Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
*Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.
*Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.

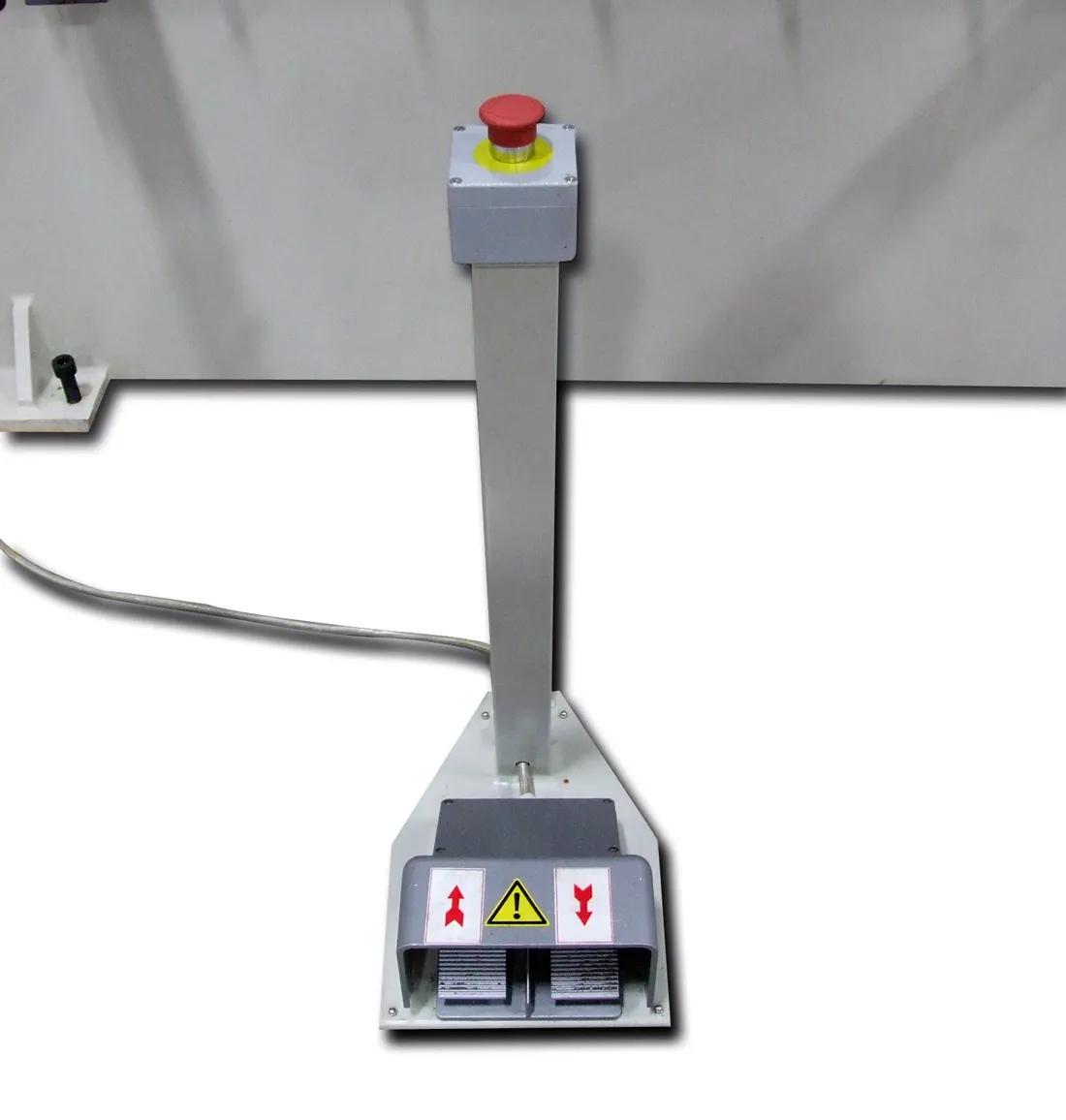

*Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
*You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
*Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
*Faster speed option lets you reduce cycle times and bend more quickly.
*Chain drive back gauge system uses tried-and-true technology that you can easily maintain.
*The 23" back gauge can advance or retract according to programmed instructions.

Rigid Steel Construction and Included Tooling:
*Fully welded all-steel framework helps prevent deformation and minimize flex during the bending process.
*Weighs a robust 6,000 lbs. for massive structural strength that ensures accurate results.
*Includes support arms around 2 feet in length.

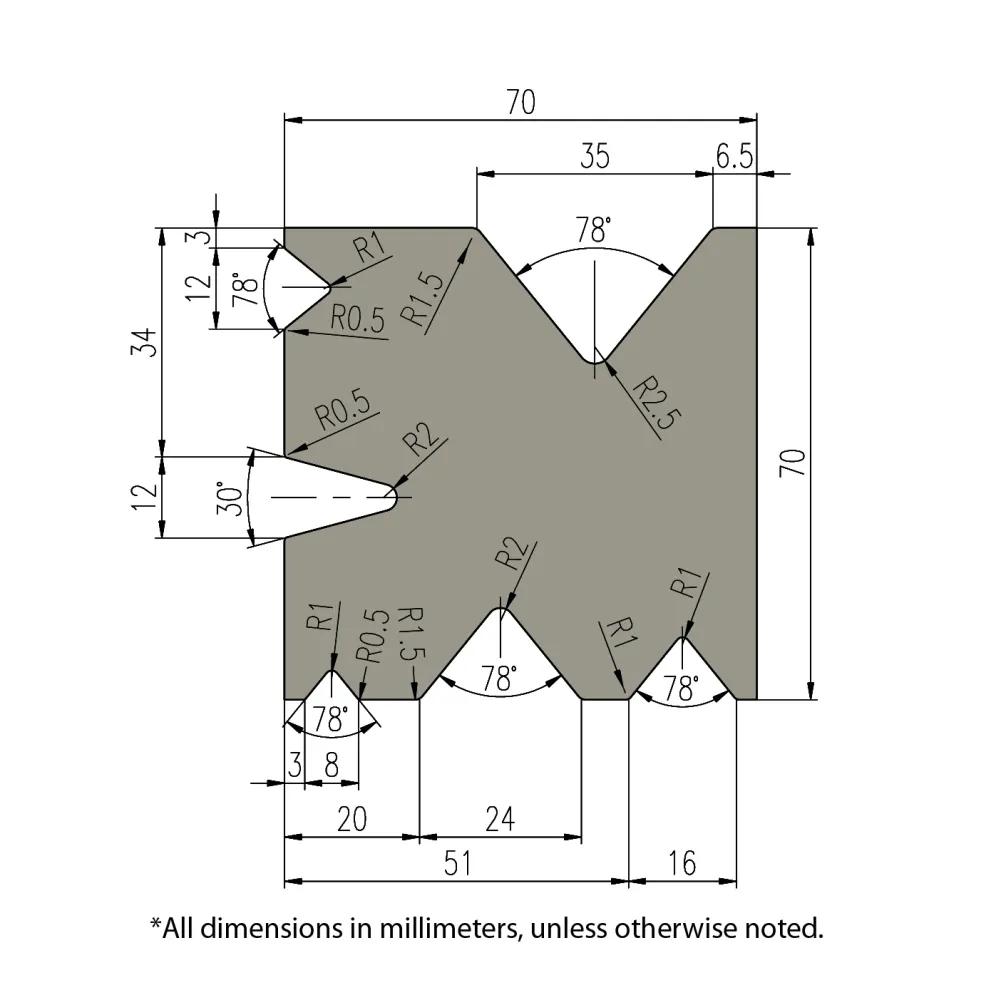

*Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style).

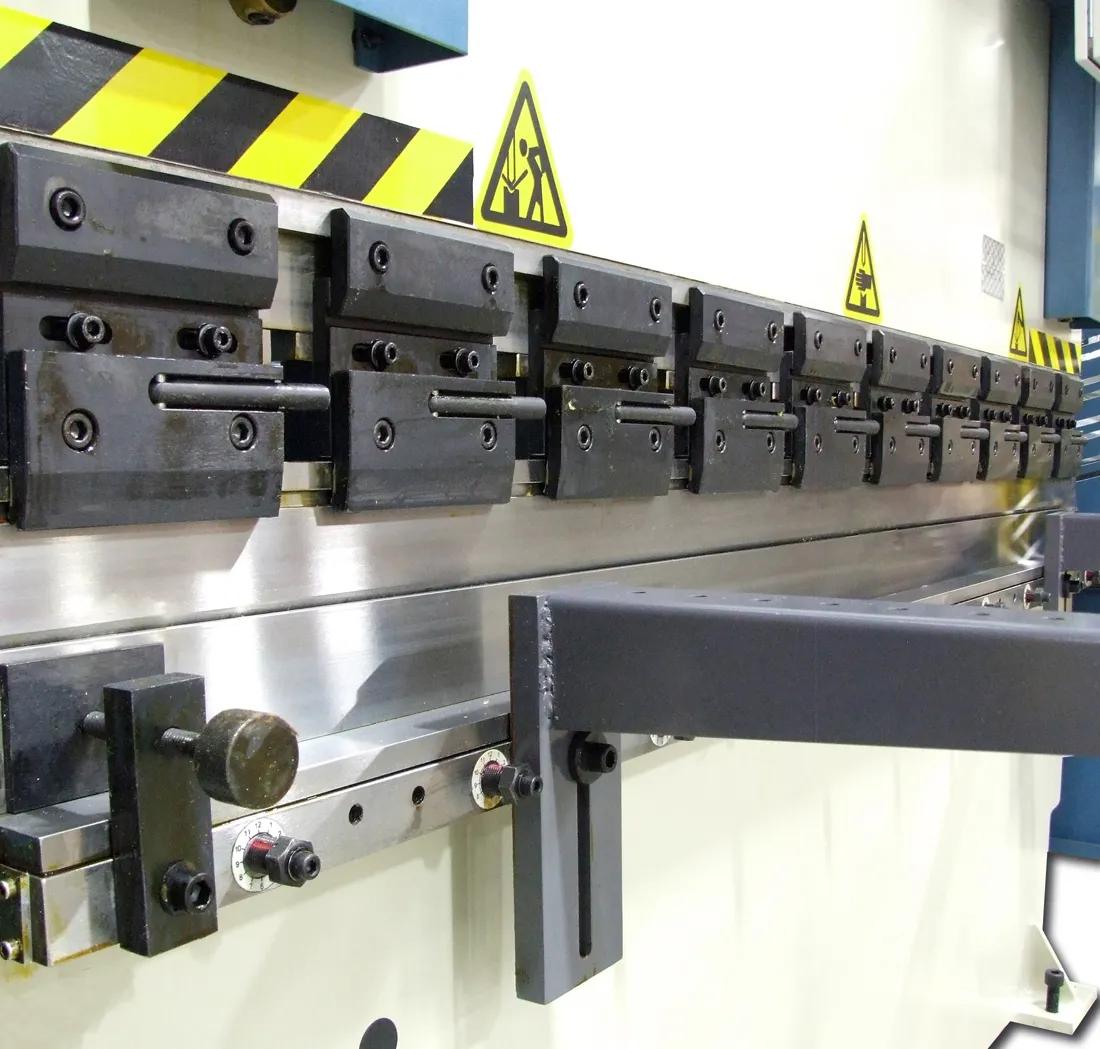

*Quick-release tool holders let you make changes easily. You only have to open a lever and it drops the top die out. No time-consuming cap screws!

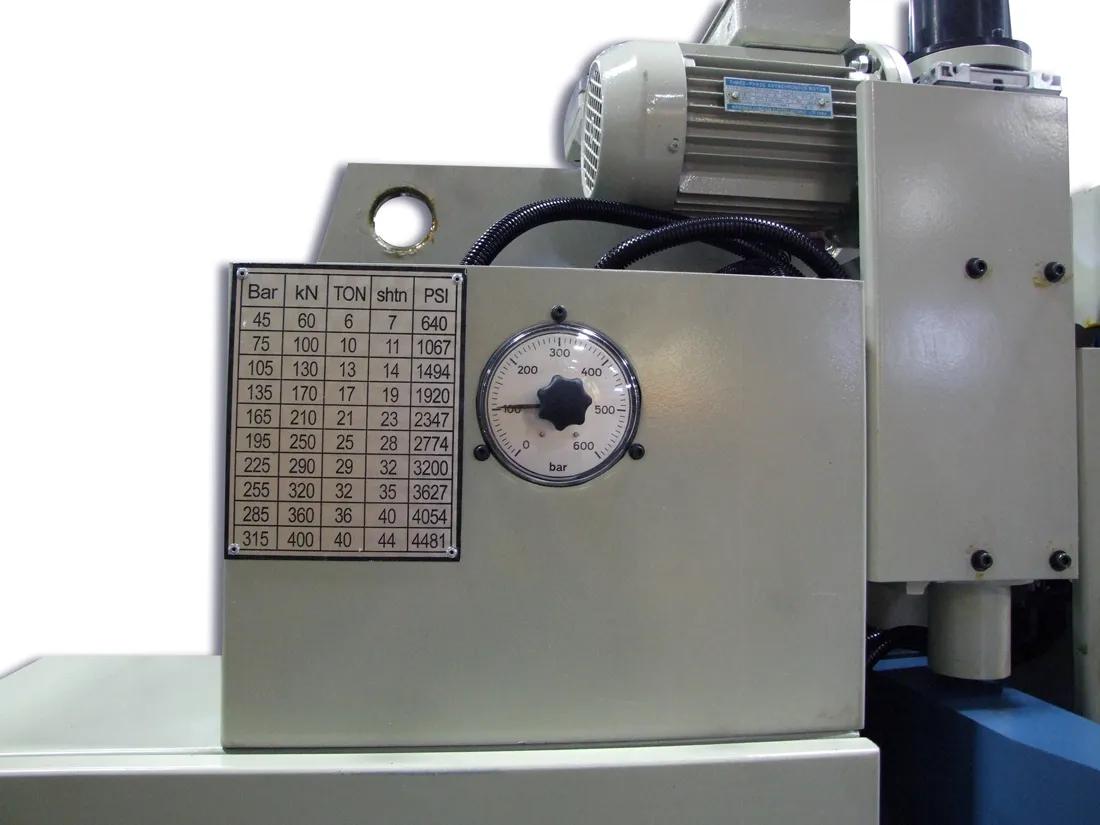

*Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
*Safety light curtains prevent the machine from bending when someone is too close.
*Light curtains will swing open and get out of the way when you’re doing a tool change.

Fast Shipping and Expert After-Sale Care:
*This hydraulic press brake ships fully assembled. Just uncrate it, plug it in, and get started.
*We keep machine handling to a minimum to reduce the risk of damage. The flatbed truck that leaves our facilities is the one that shows up at your door.
*Replacement parts are in stock at our Wisconsin headquarters, so we can get them to you quickly.
*We offer a 1-year parts warranty, as well as lifetime technical support by phone.
*You can contact us any time to talk with service reps who have years of industrial experience.

Questions? Not sure which press brake is right for you? Call us at 1-920-684-4990and talk to a Baileigh expert.
