Hydraulic H-Frame Press HSP-110M-HD
Stock Number:
BA9-1012426
$17,839.99
Enhanced Bullet 1:
110-ton capacity
Enhanced Bullet 2:
220V 3-phase power
Enhanced Bullet 3:
42.12" working width
Enhanced Bullet 4:
11.8" stroke
Product Overview
With a 1” plate steel framework and plenty of time-saving features, this hydraulic H-frame press sets the standard by which all other models should be measured.
Recommended for: General assembly, straightening work, and pressing bearings in and out of their housings.
Manual
110-ton capacity.
42.12” working width.

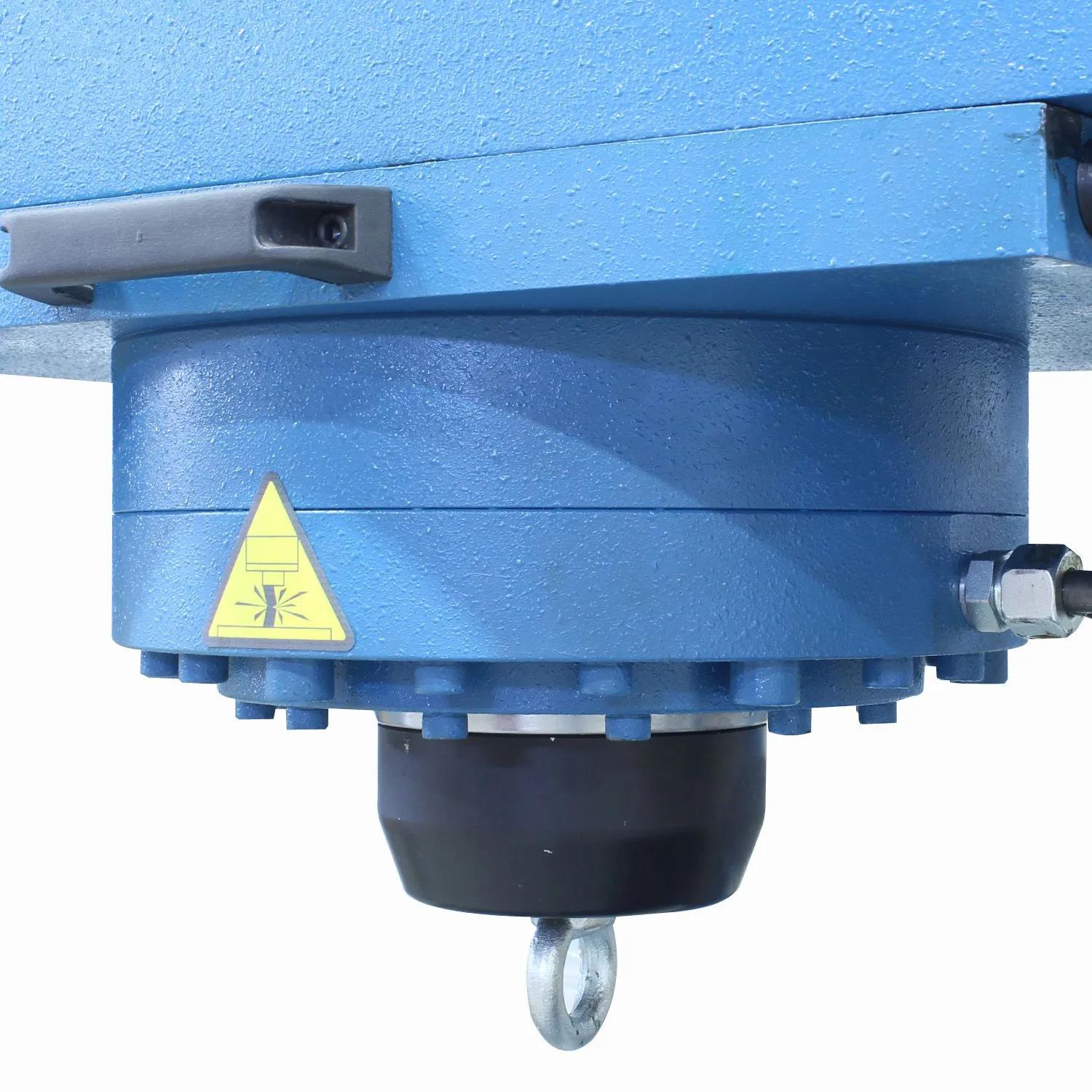

8.66” diameter cylinder with 11.8” stroke.
Runs on 220-volt 3-phase power.
7.5 hp motor can push all 110 tons of force without strain.
Cylinder moves left or right within the framework so you can apply force for off-center projects.

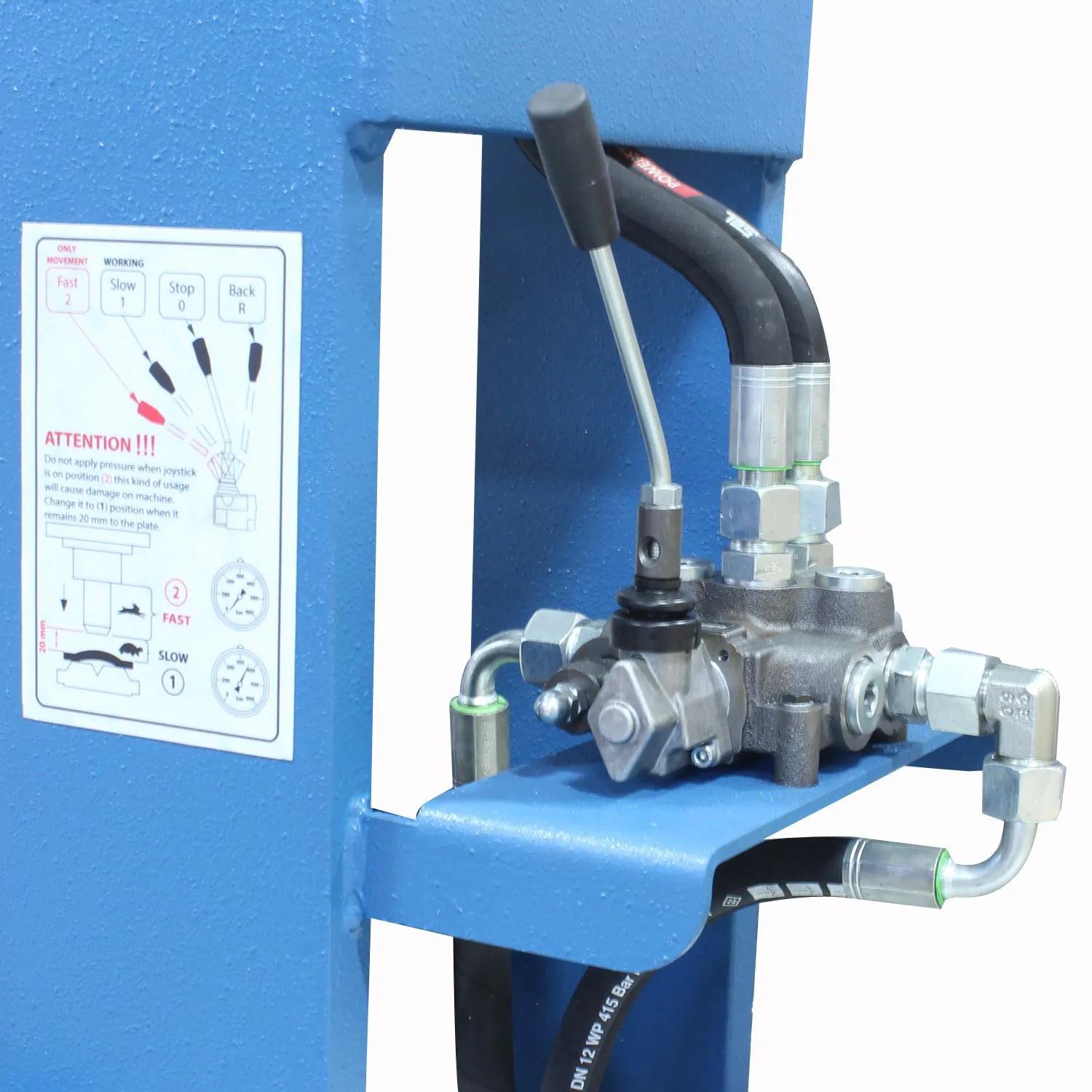

2-speed down movement (rapid or slow descent) with a pressure regulator.
6.3” chrome piston automatically returns to the top position after the job is done.

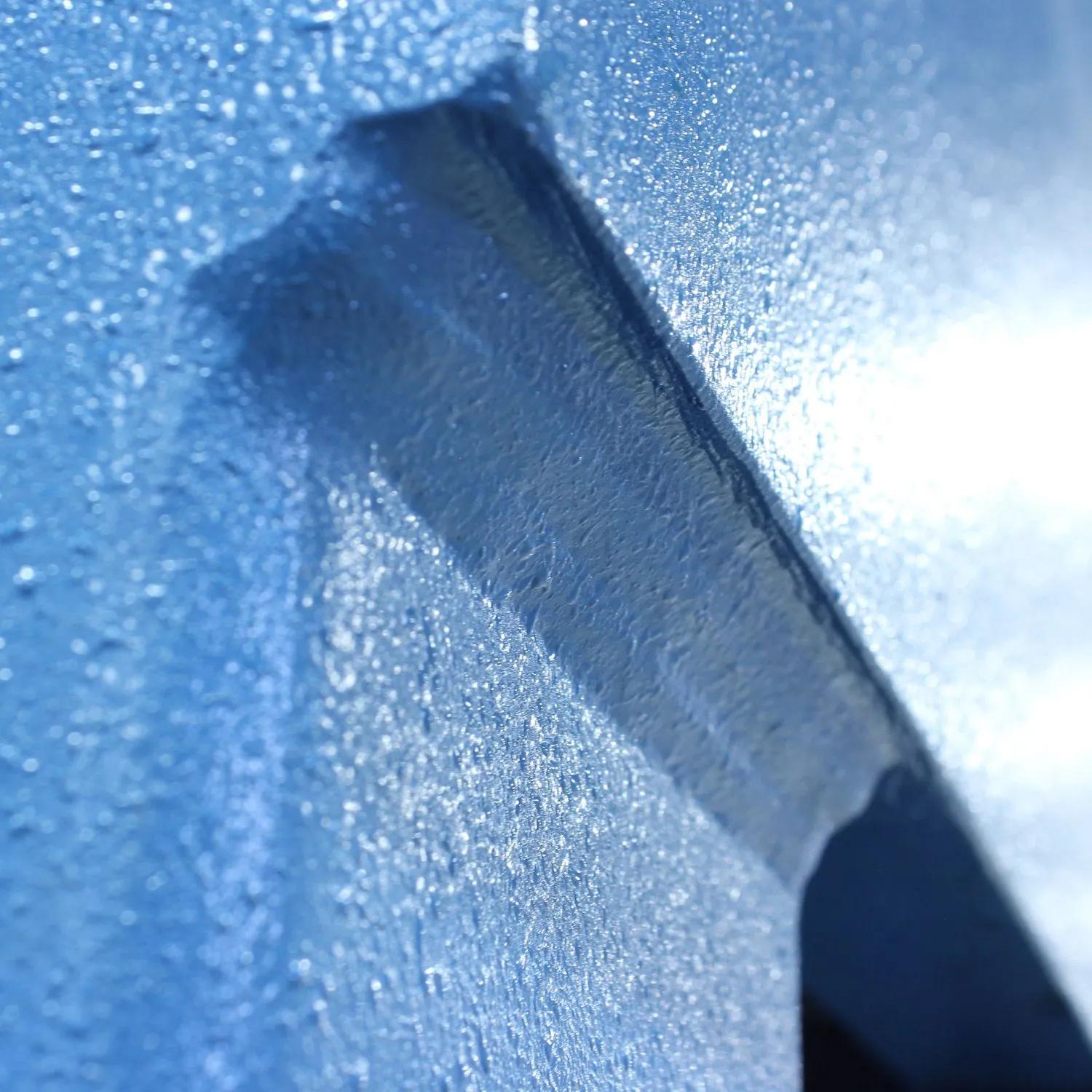

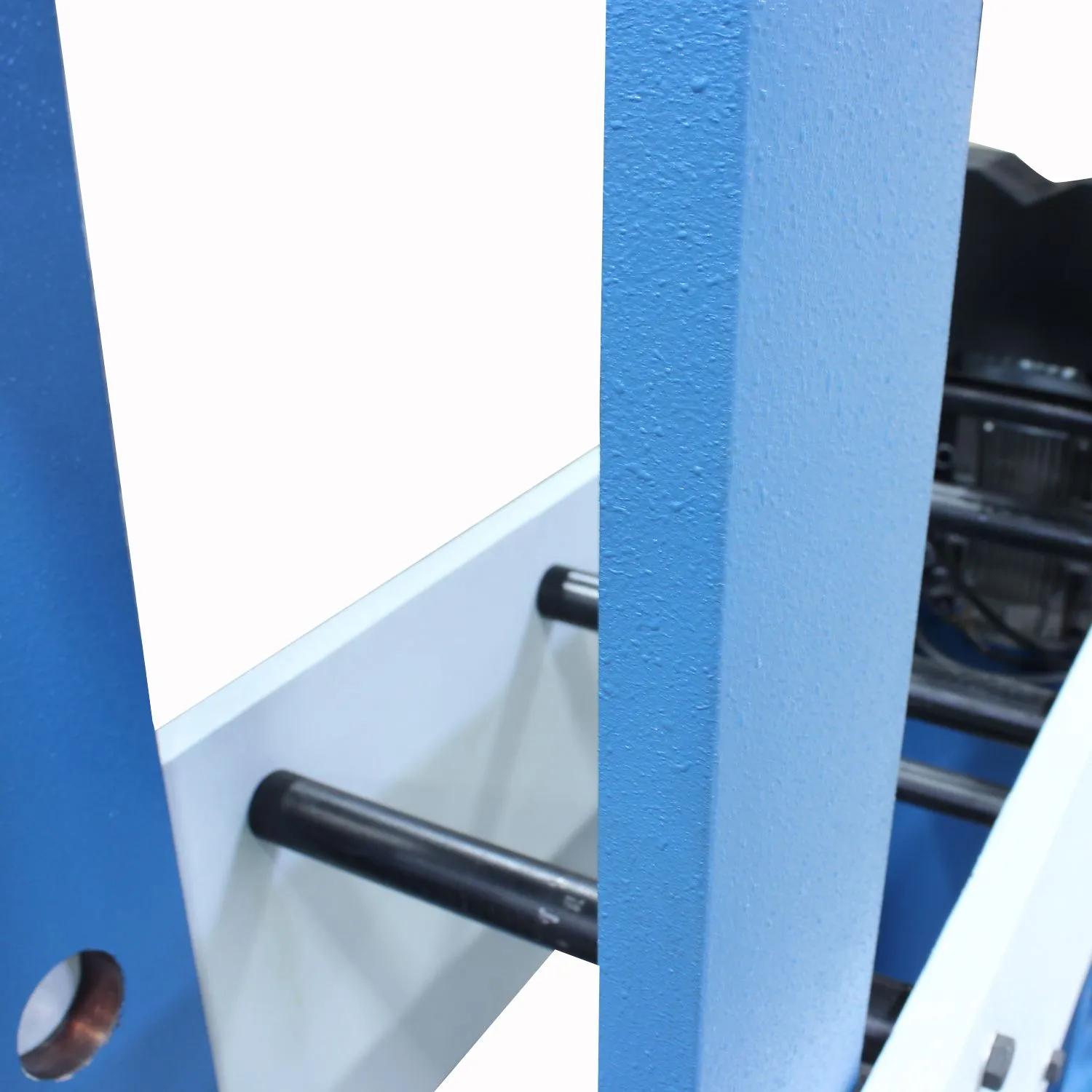

Welded steel construction maintains accuracy, holding up under the machine’s full force without flexing.
Baileigh backs this hydraulic H-frame press with a 1-year parts warranty
| Stock Number | BA9-1012426 |
|---|---|
| Model Number | HSP-110M-HD |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | 1 Year |
| Gross Weight | 3400.0 |
| Net weight | 3400.0 |
| Cylinder Movable | Yes |
| Maximum Pressure (PSI) | 3858 psi |
| Minimum Return Speed (In./Sec) | .393" / sec. |
| Piston Diameter (In.) | 4.72" |
| Speed (rpm) | 3000 |
