Hydraulic Metal Shear - (SH-10010)

Name: Hydraulic Metal Shear - (SH-10010)
SKU: BA9-1007037
Price: 30649 USD
Availability: InStock

Only 1 left

Stock Number:

BA9-1007037

$30,649.00

Enhanced Bullet 1: 100 " length

Enhanced Bullet 2: 10 gauge mild steel capacity

Enhanced Bullet 3: 220-volt 3-phase 7.5 hp motor

Enhanced Bullet 4: 22 strokes per minute

Skip to the end of the images gallery

Skip to the beginning of the images gallery

View Real Applications

Product Overview

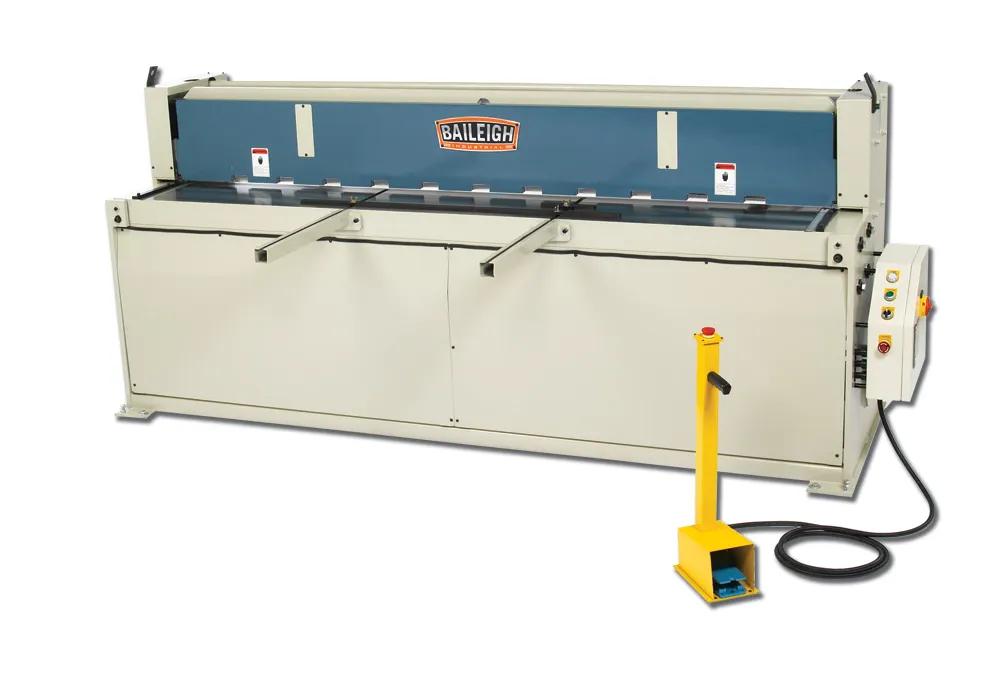

Want to cut 8-foot sheets without trimming? This 100”-wide Hydraulic Metal Shear can handle most applications. Its ground and polished steel plate frame ensures quality cuts at full capacity.

Also available in 80”-long and 120”-long versions (both with 10-gauge capacity).

Covered by a 1-year parts warranty. Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience. Questions? Not sure which sheet metal shear is right for you? Call 1-920-684-4990 and talk to a Baileigh expert.

+ Show More

Features

10-gauge mild steel maximum capacity and a minimum capacity of 24-gauge mild steel

7.5 hp motor runs on 220-volt 3-phase power with up to 22 strokes per minute

Powerful industrial-grade hydraulics produce smooth movements that prolong blade life

Adjustable 24” back gauge provides for repeatability

Front support arms and table guides keep the material square to the blade

3 modes on the operator console: Inch mode: Jog the control and ease the blade down to the material, Single mode: Make one cut cycle per foot pedal push, Auto mode: Continue cycling as you hold the pedal down

Comes standard with high carbon chromium blades

Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money

Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life

Fully welded steel construction helps prevent flex and maintain accuracy for many years.

Specifications

More Information
Stock Number	BA9-1007037
Front Gauge Capacity (In.)	24
Model Number	SH-10010
Prop 65	Cancer and Reproductive Harm
Shearing Length Capacity (In.)	100"
Style (Type)	Hydraulic Metal Shear
Warranty	1 Year
Weight (Lbs.)	6000
Gross Weight	6000.0
