Hydraulic Press Brake - (BP-22410 CNC)

Call 920-684-4990 for availability
Stock Number
BA9-1000790
$96,589.00

Product Overview

Heavy steel construction enables this programmable 10-foot press brake to make crisp bends without deformation. The tried-and-true Nachi® hydraulic pump will last for years.

*Delivers a whopping 224 tons of pressure.
*Offers 10-foot (125”) length and 100” of distance between the housings.
*This press brake is also available in a 13-foot version.
*Runs on 220-volt 3-phase power.
*Industrial-grade hydraulic system with a Nachi® pump will keep the machine running smoothly and reliably.
*Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times.
*Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer.
*Hydraulic cylinders are near the back of the machine for convenient fluid changes.

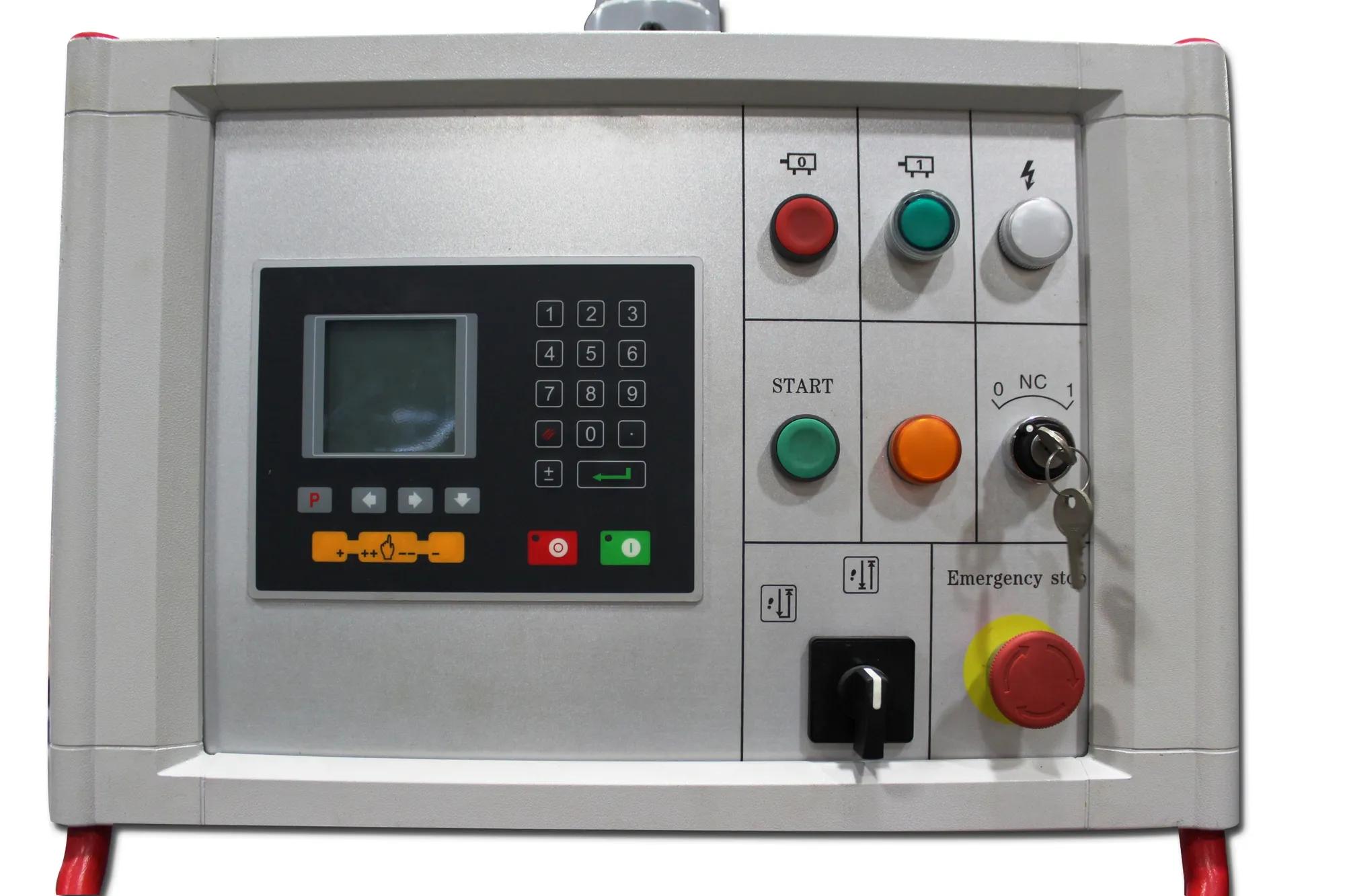

Accurate, User-Friendly Control System
*Runs in single-bend mode or programmable mode.
*Comes standard with 2 axes of control: stroke and back gauge distance.
*Controller is so simple that you could train someone to use it in 5 minutes.
*Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
*Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.

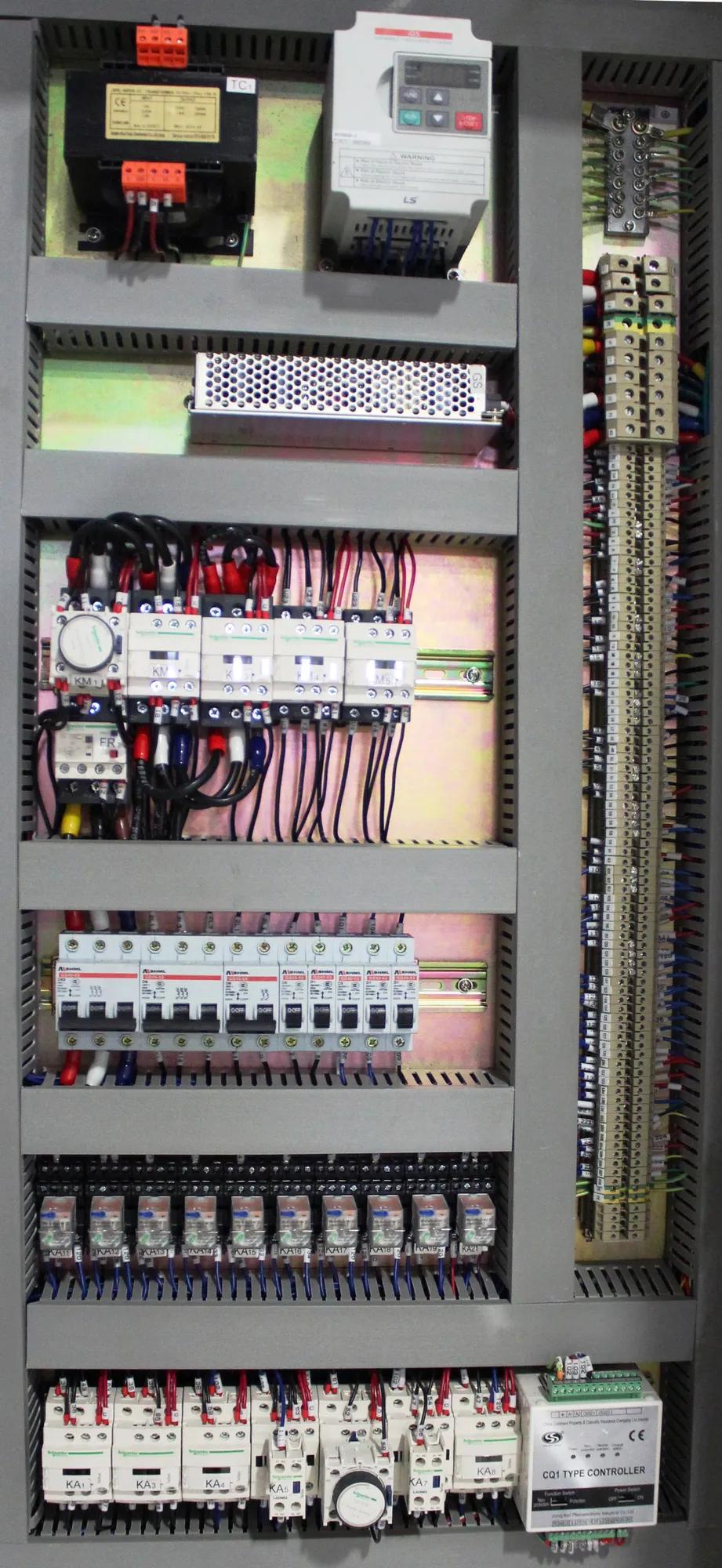

*Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.
*Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
*You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
*Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
*Speed option lets you reduce cycle time and make your shop more efficient.
*Chain drive back gauge system uses tried-and-true technology that you can maintain easily.
*The 23.62" back gauge can advance or retract according to programmed instructions.

Steel Plate Construction and Included Tooling
*Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process.
*Weighs a robust 21,280 lbs. for massive structural strength that ensures accurate results.
*Includes support arms around 2 feet in length.

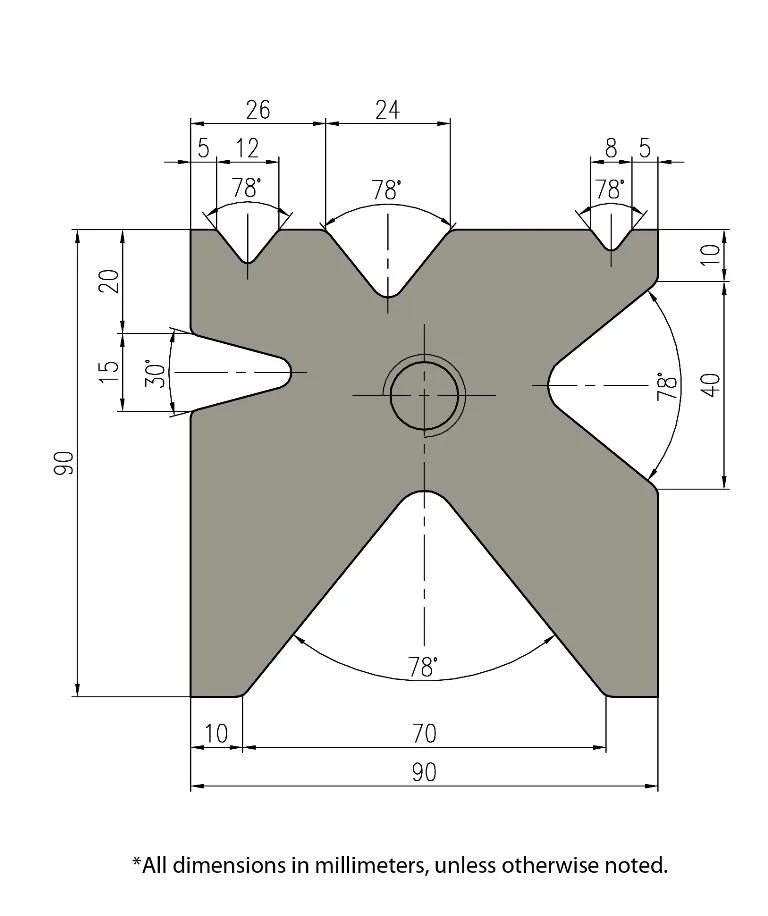

*Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style).
*Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!
*Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
*Safety light curtains prevent the machine from bending when someone is too close.
*Light curtains will swing open and get out of the way when you’re doing a tool change.

Fast Shipping and Lifetime After-Sale Care
*This hydraulic press brake ships fully assembled. Just uncrate it, plug it in, and get started.
*We keep machine handling to a minimum to reduce the risk of damage. The flatbed truck that leaves our facilities is the one that shows up at your door.
*Replacement parts are in stock at our Wisconsin headquarters, so we can get them to you quickly.
*We offer a 1-year parts warranty.
*With lifetime technical support by phone, you can contact us any time and talk with service reps who have years of experience with industrial machinery.

Questions? Not sure which combination machine is right for you? Call us at 1-920-684-4990and talk to a Baileigh expert.


+ Show More
224 tons of pressure
10-foot length (125”)
Nachi® hydraulic pump
Controller stores 40 programs
Covered by Baileigh 1-Year Parts Warranty
More Information
Stock NumberBA9-1000790
Approach Speed2.0" / sec.
Assembled Machine Dimensions (L x W x H) (In.)134" x 64" x 103"
Back Gauge Capacity (In.)23.62"
Bending Speed.236" / sec
Distance From Table To Ram19.6"
Distance Per Stroke (In.)7
Input Power220V / 3-phase
Model NumberBP-22410 CNC
Prop 65Cancer and Reproductive Harm
Shipping Dimensions (L x W x H) (In.)155x72x100
Shipping Weight (Lbs.)21280
Throat Depth (In.)12.5"
Warranty1 Year
Weight (Lbs.)29570
Gross Weight29570.0
Back Gauge Motor (hp)1/2 hp
Distance Between Housings (In.)100/123"
