Hydraulic Press Brake BP-9078NC
Product Overview
Our largest NC hydraulic press brake weighs 8,800 lbs. with a rigid steel frame. The encoder-controlled stroke and back gauge system offers 2 DROs and takes just 5 minutes to learn.
*Delivers up to 90 tons of pressure.
*Bends sheet metal up to 78” wide.
*10 hp main motor runs on 220-volt 3-phase power.
Powerful, Easy-to-Use Hydraulic System
*Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.
*2 encoder-controlled hydraulic cylinders move the top beam.
*Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.
*It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).
*You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend won't lose its shape.
*2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.
*Foot pedal brings the stroke up and down, leaving your hands free to position the material.
*Motorized back gauge rides on a solid ball screw trolley mechanism.
*Back gauge encoder shows its position on its own DRO.
*Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine.
Rigid Structure and Low Maintenance
*Heavy electrowelded frame, made of solid steel, enables this press brake to stay accurate and run smoothly in production for many years.
*Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.

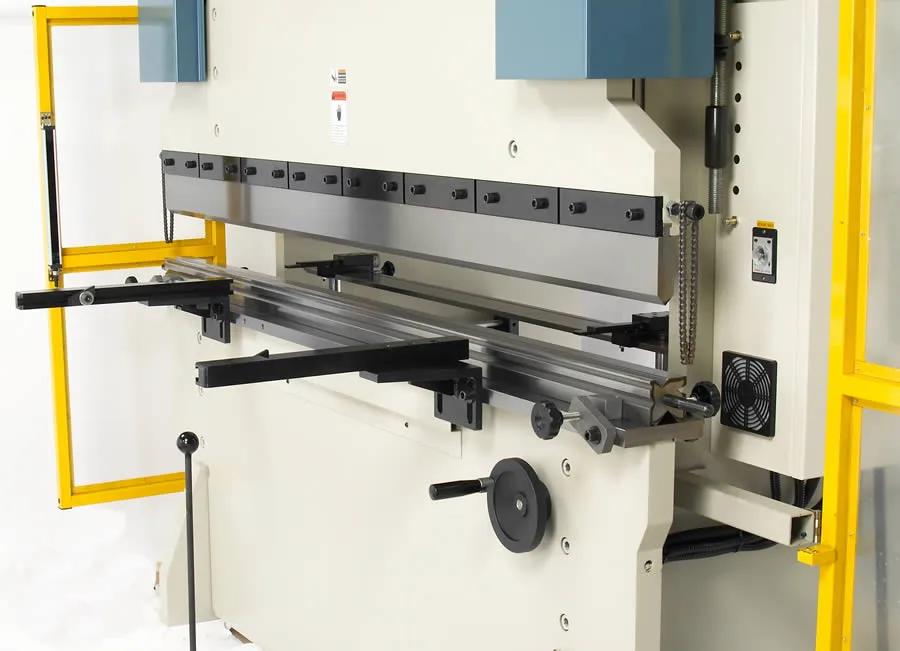

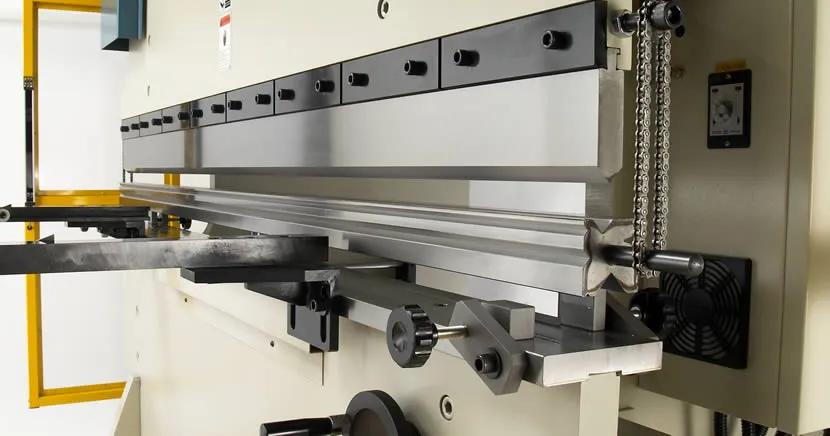

*Includes a set of hardened single-Vee American tooling.
*Accepts standard press brake tooling, giving you a wide variety of options.
*Comes with front material rests (or support arms), which some competing machines do not include.
*6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.
*4 grease zerks let you add oil every few months.
*Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.
Fast Shipping and Lifetime Service
*Typically in stock and usually ships in 72 hours.
*Most replacement parts are in stock at our Wisconsin headquarters, so we can get them to you without delay.
*Comes covered by a 1-year parts warranty.
*We provide lifetime technical support by phone. All of our reps have hands-on machine experience. Call us whenever you need help and advice on a project.
Recommended for: Industrial shops, maintenance shops, and R&D shops.
Questions? Not sure which press brake is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.
Stock Number | BA9-1000839 |
---|---|
Accessories | Included Accessories |
Approach Speed | 3.14" / sec. |
Back Gauge Capacity (In.) | 23.62" |
Bending Speed | .236" / sec |
Capacity (In.) | 90 tons |
Distance Between Housings | 61 |
Distance From Table To Ram | 11.81" |
Distance Per Stroke (In.) | 5.9 |
Input Power | 220V / 3-phase |
Minimum Return Speed (In./Sec) | 2.36" / sec. |
Model Number | BP-9078NC |
Motor (HP) | 10 hp |
Oil Reservoir Capacity (cc) | 45 gal |
Prop 65 | Cancer and Reproductive Harm |
Shipping Dimensions (L x W x H) (In.) | 103x85x100 |
Table Length (In.) | 78" |
Throat Depth (In.) | 7.87" |
Warranty | 1 Year |
Weight (Lbs.) | 8800 |
Gross Weight | 8800.0 |
Net weight | 8800.0 |
Back Gauge Motor (hp) | 1/2 hp |
