Product Details
Industrial Construction: The Baileigh HSP-60M hydraulic press is a heavy-duty H-frame press engineered for industrial fabrication and shop use. It is constructed from heavy welded steel plate to provide rigidity and long-term durability under high loads.
Power & Capacity: Equipped with a 5 HP motor and driven by a piston-style hydraulic pump, this press delivers 60 tonof pressing force across a 41.25” working width, making it ideal for bending, straightening, and forming applications.

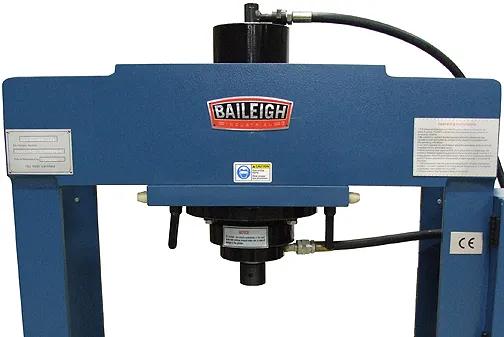

Precision & Control: The cylinder has an 11.5” stroke and moves left to right within the frame to accommodate off-center parts, and the press includes a standard pressure gauge and a two-piece V-block set for versatile workholding.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Press capacity: Provides 60 ton maximum pressing force.

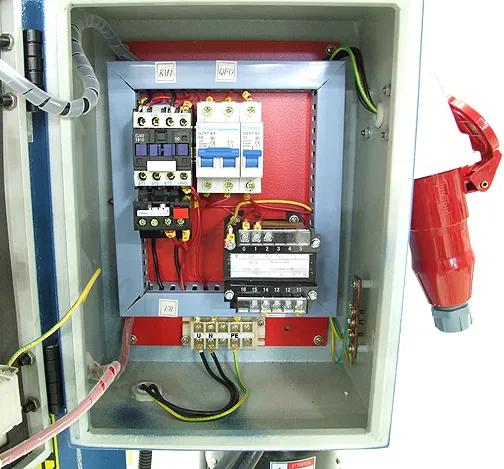

- Input power: Requires 220 V three-phase electrical supply.
- Motor horsepower: Powered by a 5 HP motor.
- Working width: 41.25 ” distance between uprights.
- Cylinder stroke: 11.5 ” vertical cylinder travel.
- Cylinder movement: Cylinder can move left and right within the frame for off-center work.
- Frame construction: Fully welded steel frame for rigidity and strength.
- Pressure gauge: Includes standard pressure gauge.
- V-block set: Comes with a 2-piece V-block set.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1012740A
- Distance From Table To RamMin. 10.04" - Max. 39.57"
- Gross Weight2200.0
- Input Power220V Three Phase
- Model NumberHSP-60M
- Net weight2200.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Speed (rpm)1440
- Stroke Length12 in.
- Warranty1 Year
