Hydraulic Sheet Metal Brake - (BB-12010H)

Name: Hydraulic Sheet Metal Brake - (BB-12010H)
SKU: BA9-1020998
Price: 41589 USD
Availability: InStock

Only 1 left

Stock Number:

BA9-1020998

$41,589.00

Enhanced Bullet 1: 220V 3-phase hydraulic box and pan brake

Enhanced Bullet 2: 10 gauge mild steel capacity

Enhanced Bullet 3: 10-foot length

Enhanced Bullet 4: Includes 26 fingers from 3" to 6"

Skip to the end of the images gallery

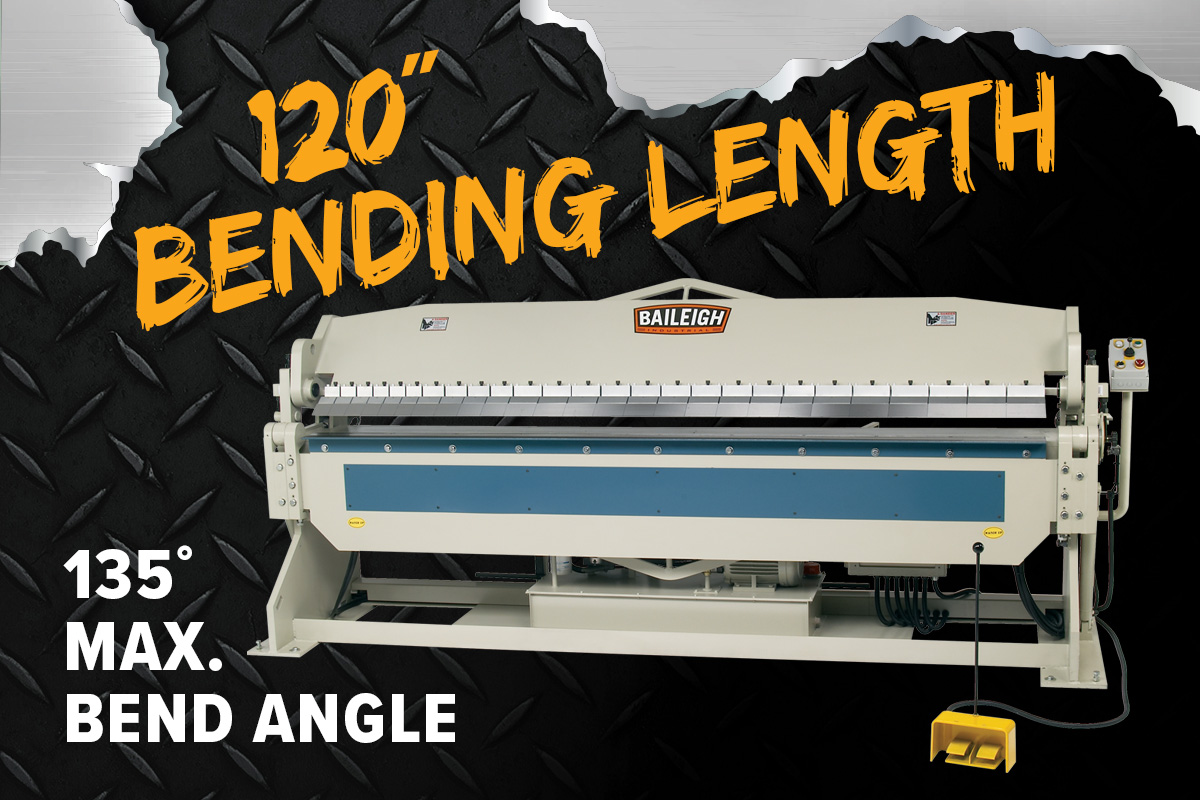

Hydraulic Sheet Metal Brake - (BB-12010H)

Skip to the beginning of the images gallery

View Real Applications

Product Overview

This Hydraulic Box and Pan Brake will offer years of profitable service in any production shop. A fully-welded steel plate frame ensures accuracy when bending heavy gauges.

*Bends 10-gauge mild steel and 12-gauge stainless steel or lighter.
*10 feet (120”) bending length.
*Maximum bend angle of 135°.

Industrial-grade hydraulic system does all the following:
*Clamps the material at the fingers,
*Lifts the bend leaf to the pre-set bend angle,
*Opens the beam when the bend is complete.

Supported by 1-Year parts warranty and lifetime technical support by phone. Get free troubleshooting and advice from our team of experienced reps whenever you need it. Questions? Not sure which metal brake is right for you? Give us a call at 1-920-684-4990 and talk to a Baileigh expert.

+ Show More

Features

Hydraulically driven bend leaf with a 5 hp motor runs on 220-volt three-phase power with an extra-rigid base design that supports the weight of heavier materials

Made using only the most durable and high-quality electrical components

Includes 26 hardened fingers in assorted sizes (6 of 3", 4 of 4", 10 of 5", and 6 of 6") - adjust them for different box and pan applications

Adjustable auto-stop: just dial in the bend degree when using the hydraulic bending brake in manual or semi-automatic mode

Variable bend speed and clamping pressure adjustment give you control over the material

You can operate the machine by toggle from the console, or by using the foot pedal controls

Semi-automatic bending mode with foot pedal control will increase productivity, reduce operator effort, and streamline production runs

Material thickness adjustment enables you to take on many gauges of sheet metal and easily switch between them

Greaseable joints and filtered hydraulic system enable this sheet metal brake to work smoothly for years

Electro-welded steel frame, with massive truss rods, minimizes deformation when bending at full capacity

Specifications

More Information
Stock Number	BA9-1020998
Beam Adjustment (Front to Rear) (In.)	1"
Bending Length Capacity (In.)	120
Maximum Box Depth (In.)	6"
Mild Steel Capacity (Gauge)	10.0000
Model Number	BB-12010H
Prop 65	Cancer and Reproductive Harm
Style (Type)	Hydraulic Sheet Metal Brake
Warranty	1 Year
Weight (Lbs.)	7700
Gross Weight	7700.0
Net weight	7700.0
Shipping Dimensions (L x W x H) (In.)	158x44x70
Input Power	220V / 3-phase
Max. Bend (Deg.)	0 – 135°
Motor (HP)	5 hp
