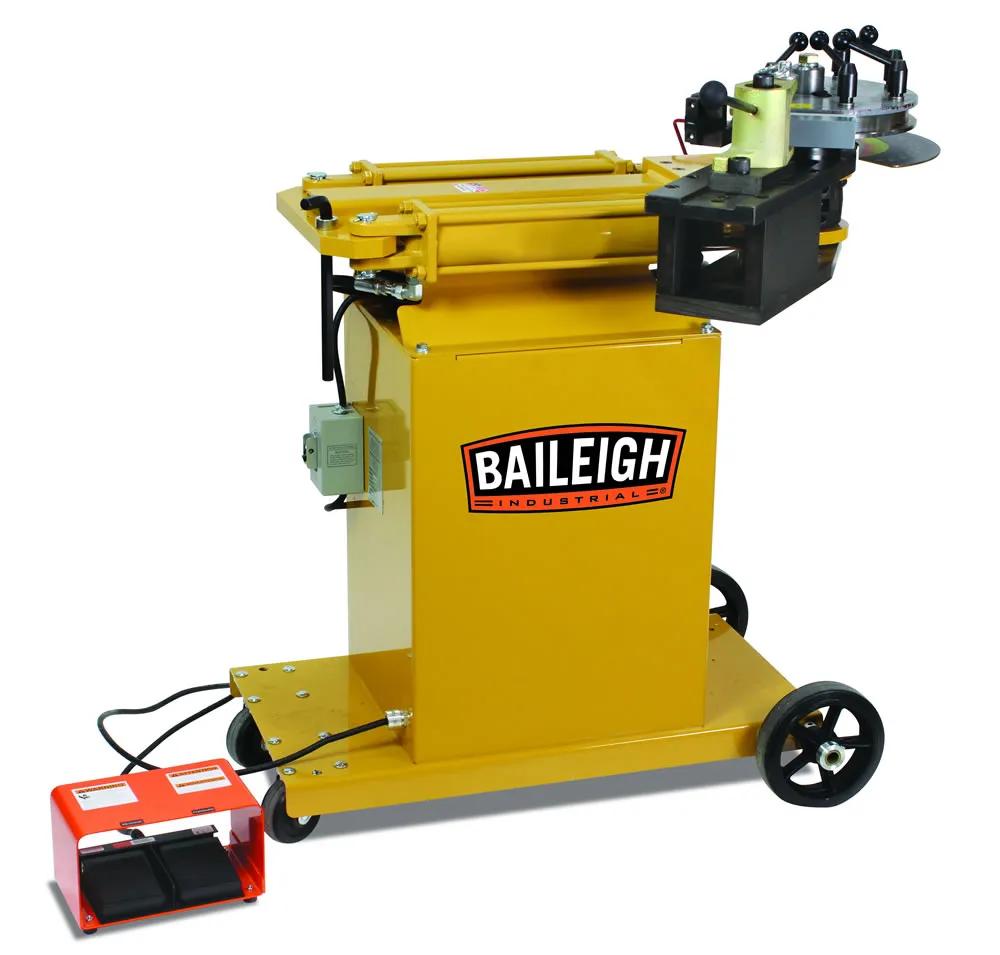

Hydraulic Tube Bender - (RDB-150)

Name: Hydraulic Tube Bender - (RDB-150)
SKU: BA9-RDB150110
Price: 6331.65 USD
Availability: OutOfStock

Call 920-684-4990 for availability

Stock Number:

BA9-RDB150110

$6,331.65

PRE-BLACK FRIDAY SALE | ORIGINAL PRICE $7449

Enhanced Bullet 1: 110V hydraulic rotary draw tube and pipe bender

Enhanced Bullet 2: 2" schedule 40 pipe capacity

Enhanced Bullet 3: 2.5" mild steel round tube wall capacity

Enhanced Bullet 4: 10.5" CLR maximum

Leasing starts at $220 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $220

Skip to the end of the images gallery

Skip to the beginning of the images gallery

View Real Applications

Product Overview

This American-made machine set a new standard in 2002 as the first Hydraulic Tube Bender to bend tube and pipe 180° in one shot. Now we have thousands of RDB-150s in the field—working as well today as they did the day they were made.

Why choose the RDB-150 over similar machines?

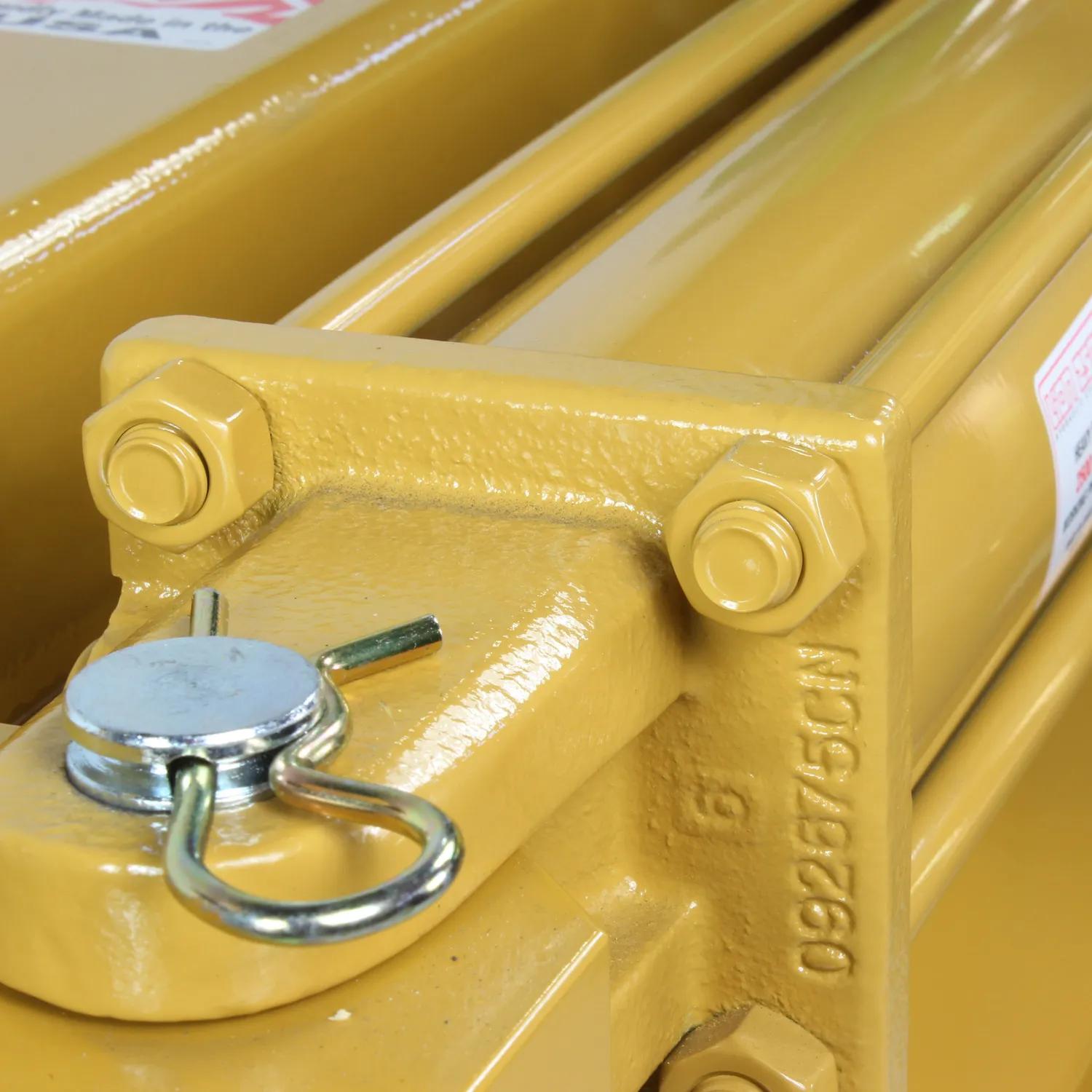

Our original, much-imitated twin-cylinder design remains unequaled.
Small- to medium-sized fabrication shops will save time and money by investing in this hydraulic bender.
Accepts simple-to-add drop-on tooling from Baileigh—including custom sets on request—giving you thousands of possibilities.
Our limitless after-sale support means that free advice on projects and applications is always just a call away.

Please give us a call at 1-920-684-4990 to talk to a customer service representative or fill out our contact form.

Sample Tooling List

+ Show More

Features

Runs on just 110 volts of power and will work at most fabrication sites in North America

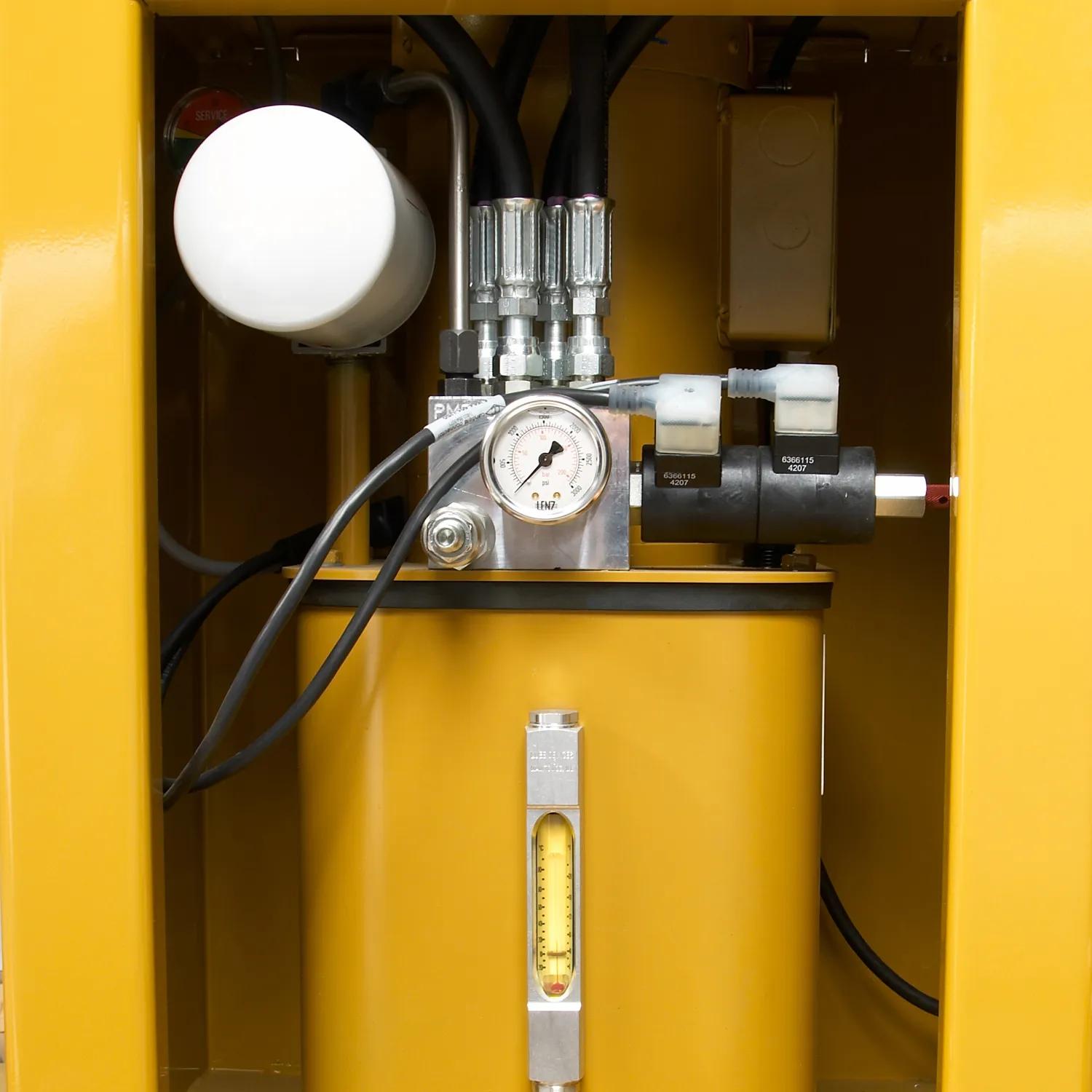

Rotary draw powered by low-pressure, industrial-grade hydraulic system

8” centerline radius maximum, depending on the outside diameter of the material

Bends with a capacity of 2" schedule 40 pipe and up to 2.5" tubing with a wall thickness of .120" mild steel

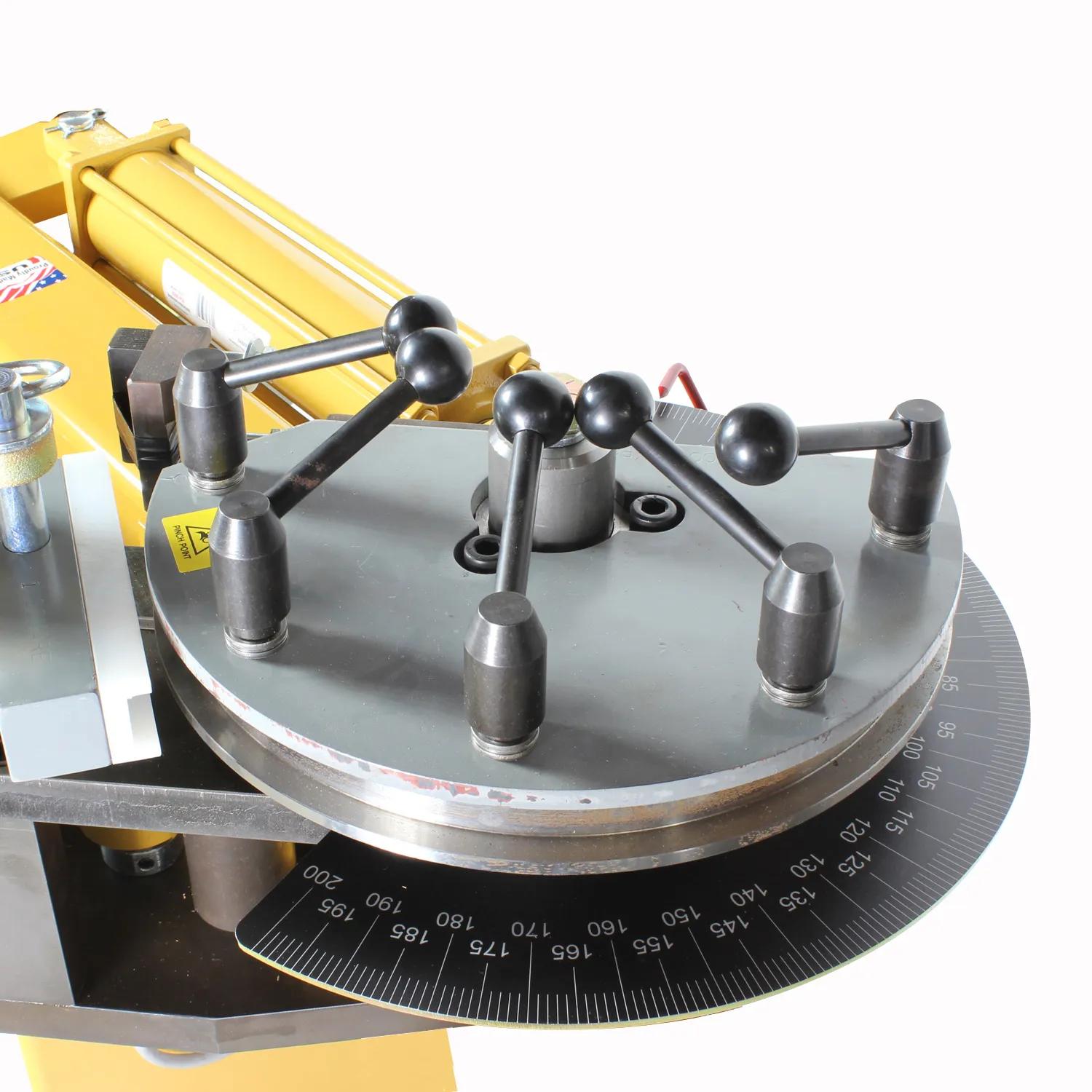

Easy-to-read degree indicator to help you achieve correct bend degrees

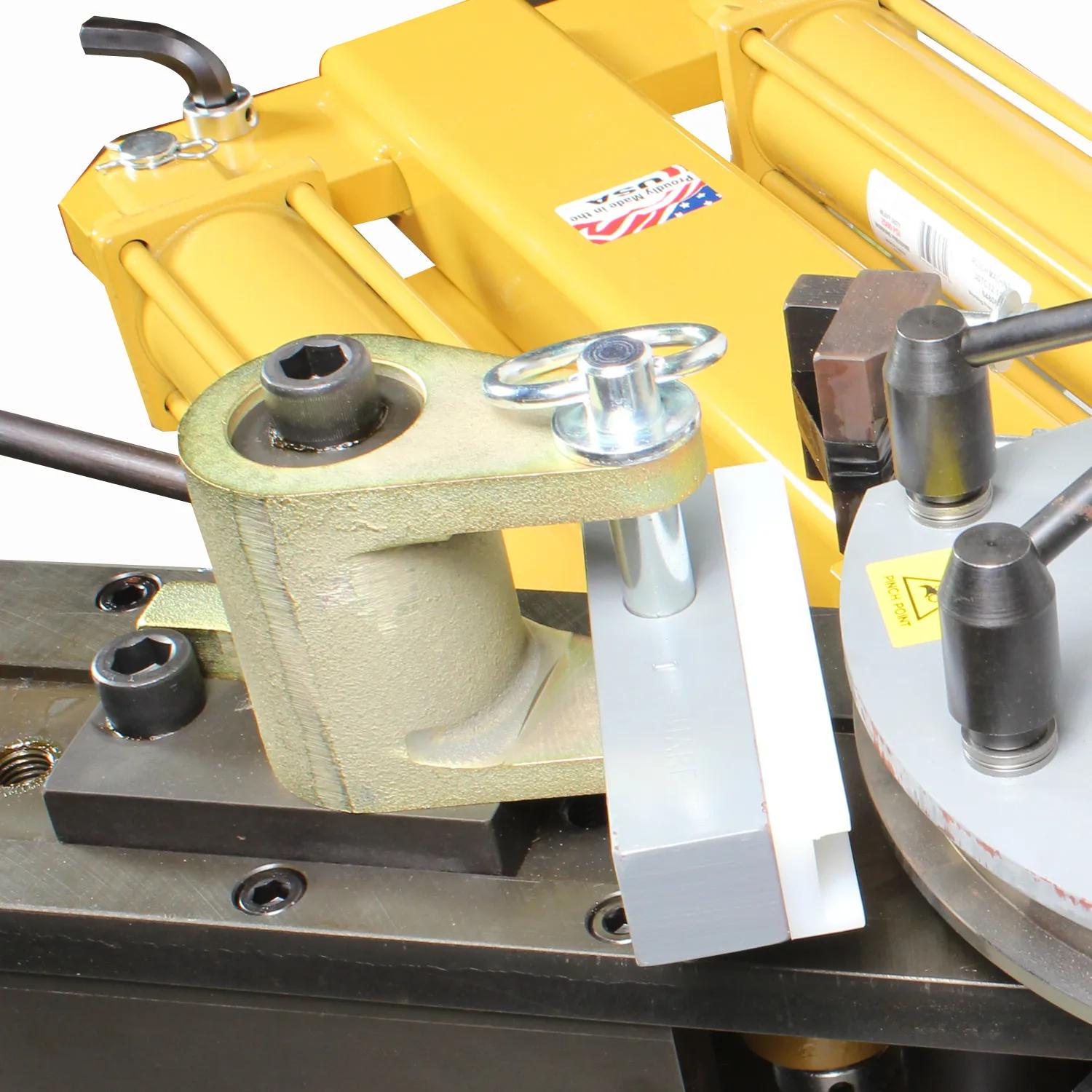

Quick-release counter die system for hassle-free loading and unloading

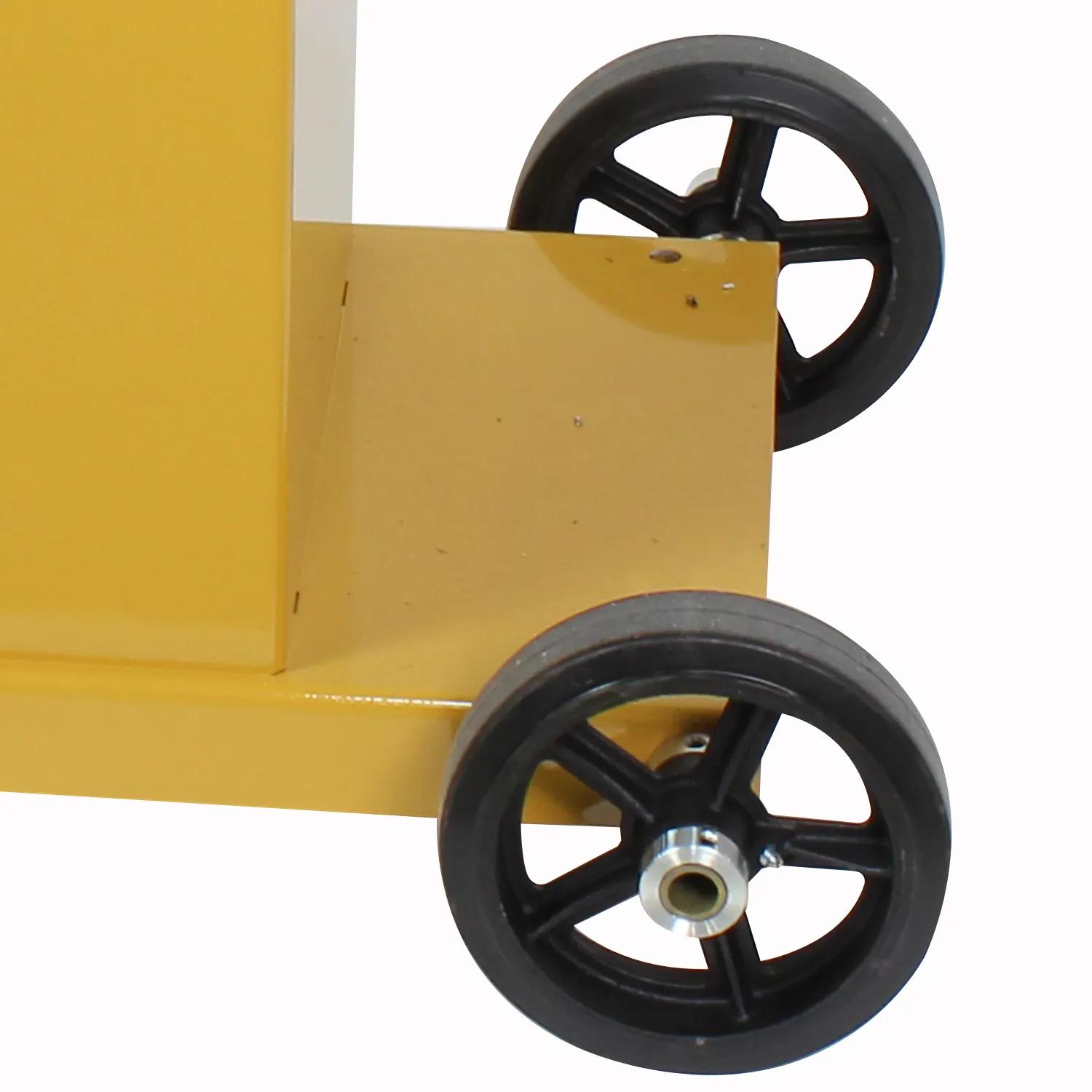

Includes wheels on the base for smooth movement, helpful for storage in small shops

Covered by a 1-year parts warranty and lifetime technical support

Specifications

More Information
Stock Number	BA9-RDB150110
Model Number	RDB-150
Chromoly Round Tube Wall	2" (.125)
Input Power	110V
Minimum OD	0.25
Prop 65	Cancer and Reproductive Harm
Round Pipe Sch. 40 Capacity (In.)	2"
Round Tube Capacity (In.)	2.5" (.125)
Shipping Dimensions (L x W x H) (In.)	60x44x77
Square Tube Capacity (In.)	2" (.125)
Warranty	1 Year
Weight (Lbs.)	610
Gross Weight	610.0
Net weight	610.0
