Mandrel Tube Bender – (MB-350)

Name: Mandrel Tube Bender – (MB-350)
SKU: BA9-MB350
Price: 52739 USD
Availability: OutOfStock

Call 920-684-4990 for availability

Stock Number:

BA9-MB350

$52,739.00

Enhanced Bullet 1: 220V Three Phase

Enhanced Bullet 2: 3" Round Capacity

Enhanced Bullet 3: Touch Screen Operator Interface

Enhanced Bullet 4: Up to 140 programs

Skip to the end of the images gallery

Skip to the beginning of the images gallery

View Real Applications

Product Overview

The MB-350 Mandrel Bender from Baileigh Industrial is the perfect machine for small to medium fabricators looking to either increase productivity or bend to small radii like 1.5 times the outside diameter of the material. Bending stainless steel exhaust is another great application for the MB-350. This machine has a capacity of 3” OD x .065” wall thickness on stainless steel.

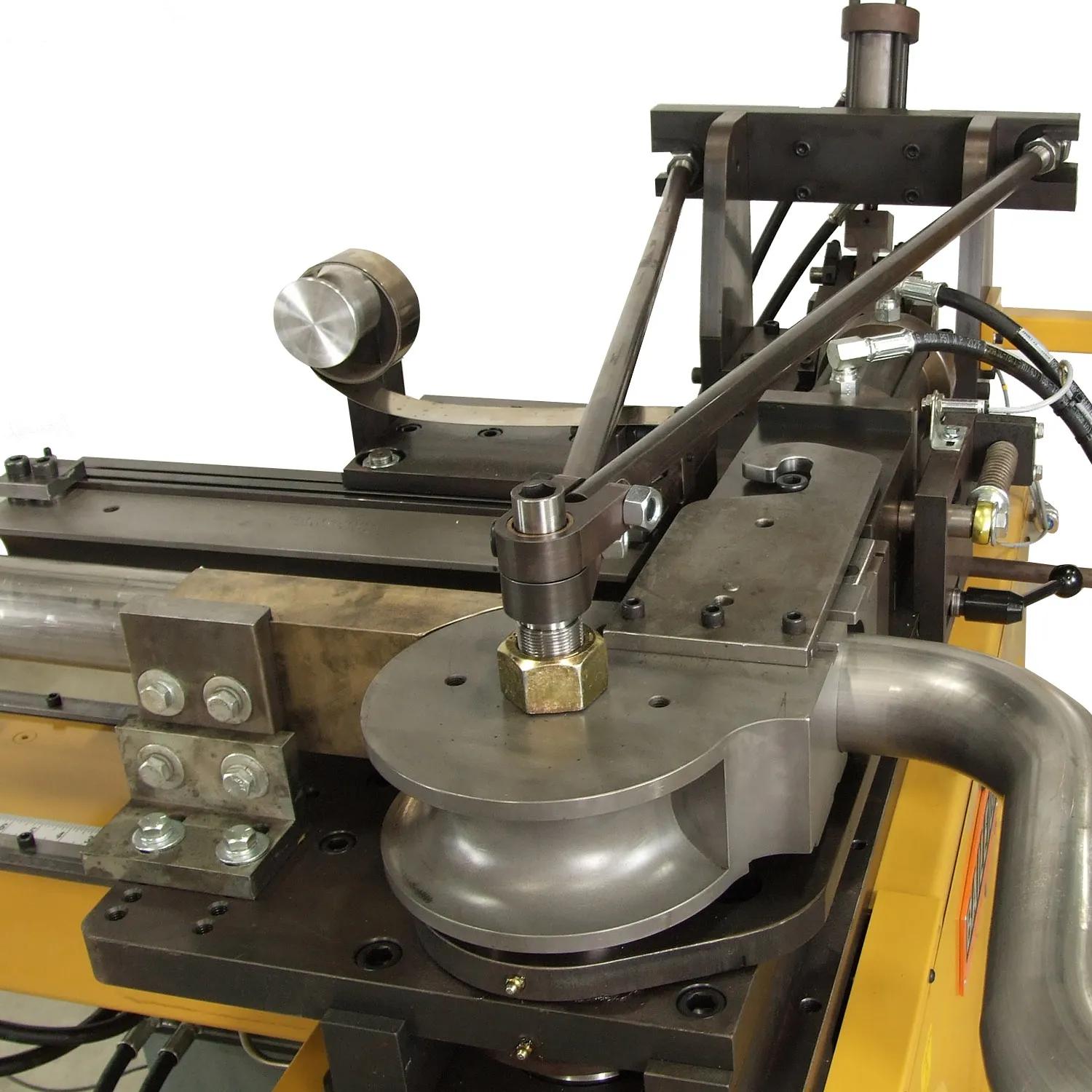

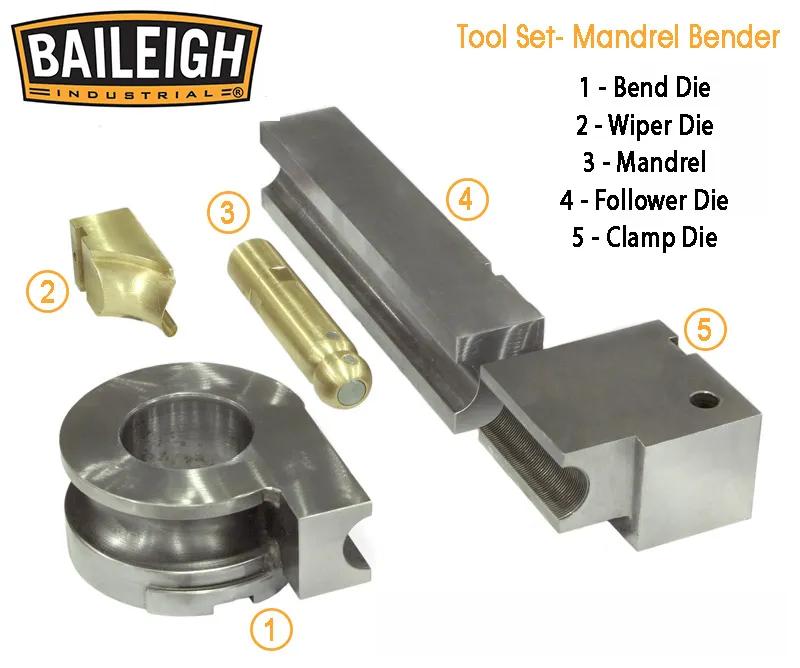

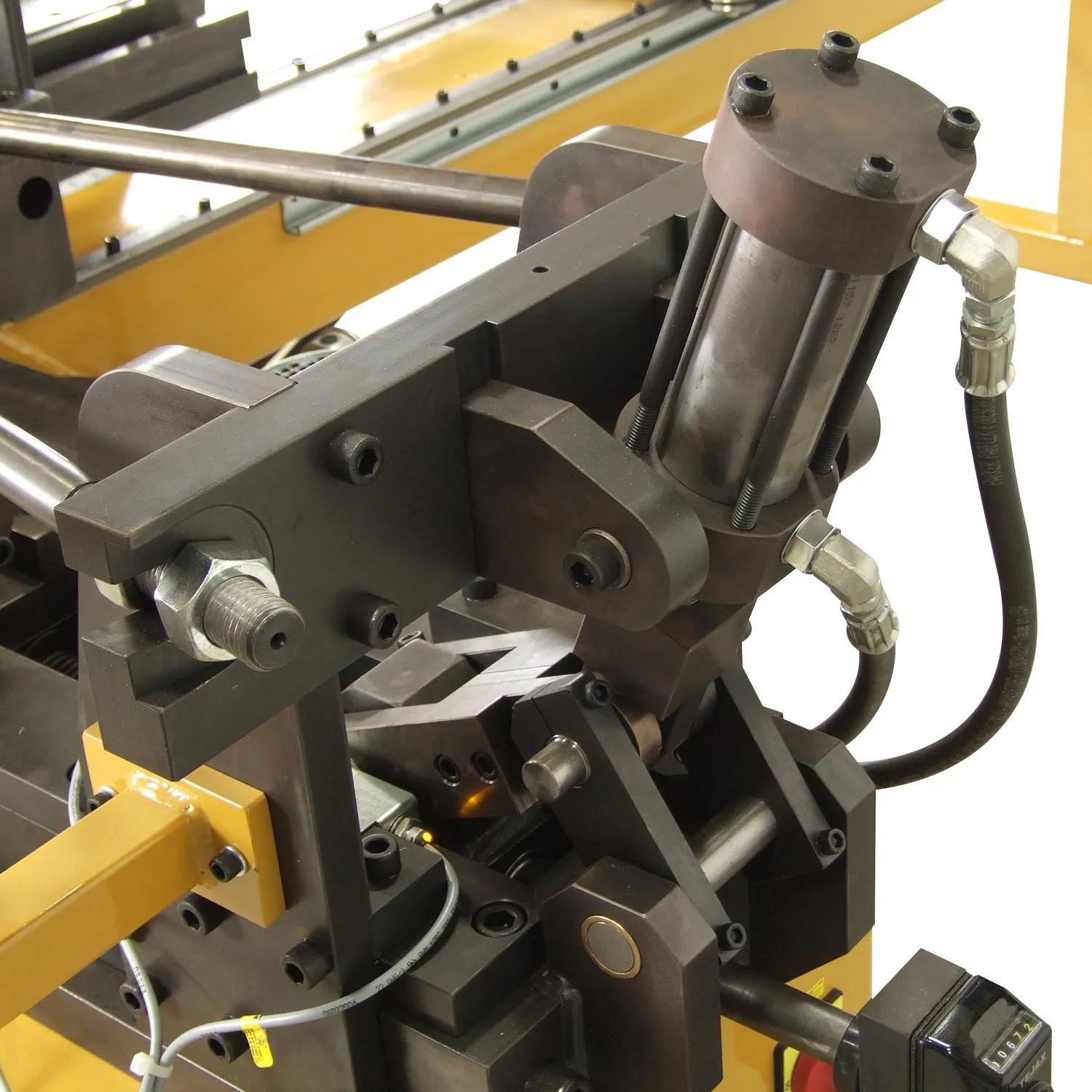

This is a right handed Mandrel Bender with single stack tooling which makes operation a lot less confusing for first time operators. Of course, tooling on the MB-350 like all Mandrel Benders is application specific and must be verified to work by Baileigh Industrial. Tooling consists of five parts|| 1 - Rotary Bending Die|| 2 - Clamp Die|| 3- Pressure Die|| 4 - Mandrel|| 5 - Wiper Die.

To see if you application will work or to get more information on the MB-350 Mandrel Bender from Baileigh Industrial, contact a representative today

+ Show More

Resources

Manual (1) PDF Download

Manual (2)

Features

The MB-350 is made in the USA and is packed with great features

Operation is controlled by a touch screen programmer that can have 170 programs with 10 bends per program with the included memory but is unlimited with the use of an SD card (standard 2CB SD card, max)

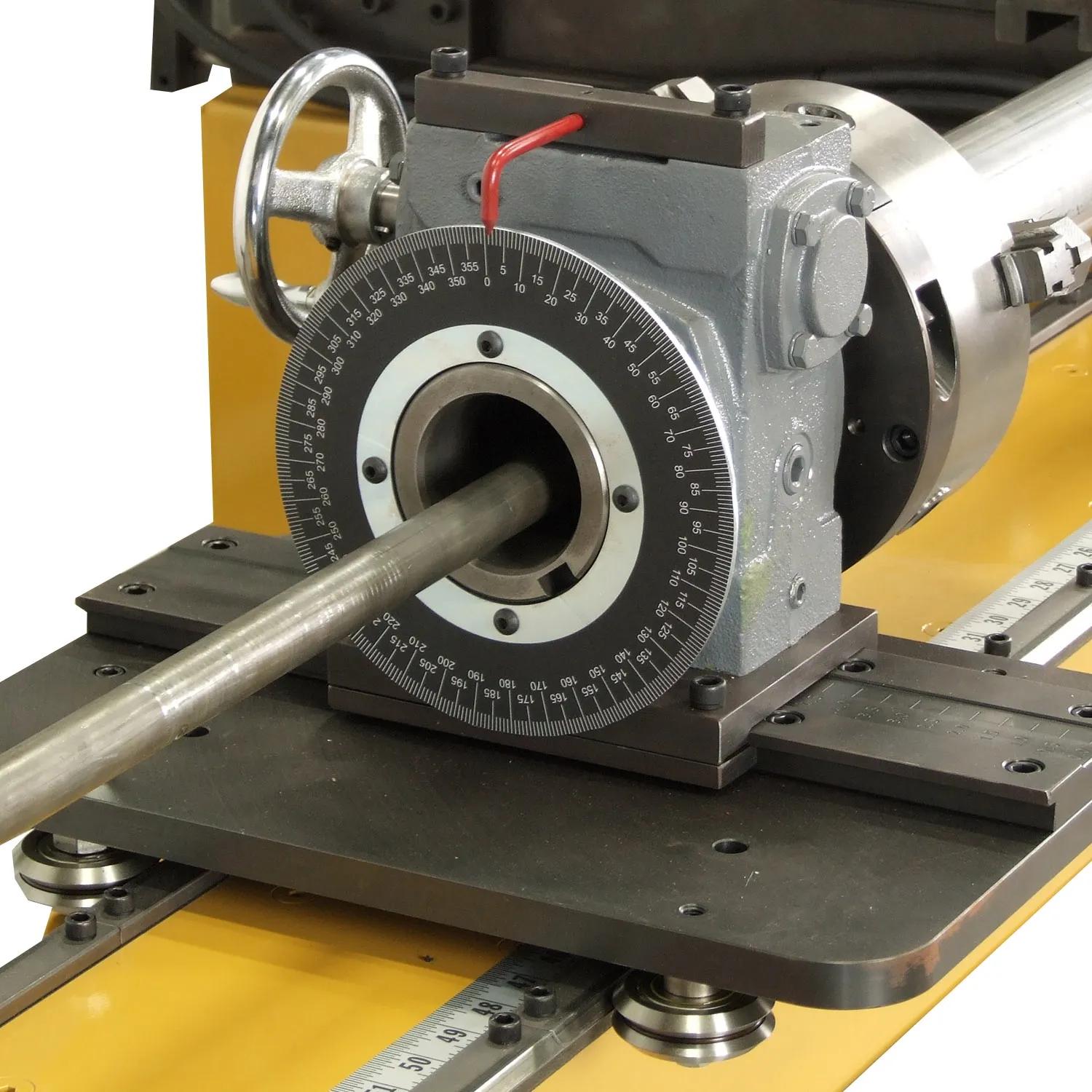

A 10’’ mandrel extraction table with rotary chuck is also included

This table along with the four manual carriage stops, allows the operator to “program” where the next bend is

Covered by a 1-year parts warranty

Includes lifetime technical support by phone

Specifications

More Information
Stock Number	BA9-MB350
Bend Direction	Clockwise
Bending HP	4

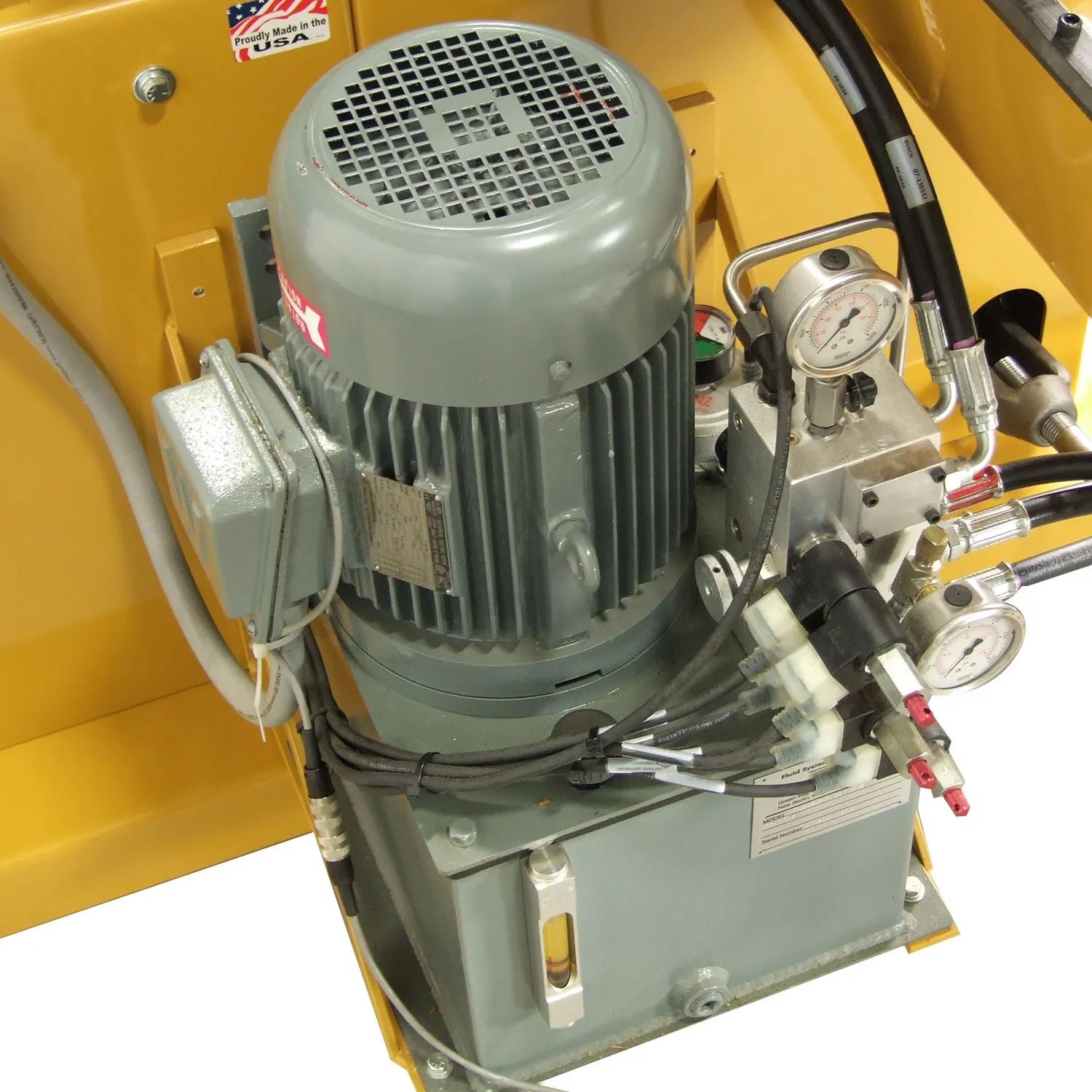

Hydraulic Motor	5
Index Chuck Through Hole	2.4
Input Power	220V / 3-phase
Mandrel Rod Size	1" dia. x 1"
Material Feed	1"
Maximum Pressure (PSI)	3000 psi.
Minimum Center line Radius	1.5 x dia.
Model Number	MB350
Prop 65	Cancer and Reproductive Harm
Warranty	1 Year
Weight (Lbs.)	4000
Gross Weight	2700.0
Net weight	2700.0
