Manual Cold Saw | CS-275EU

Stock Number
BA9-1002434
$3,079.99

Click LeaseLeasing starts at $88 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $88

Product Overview

The CS-275EU makes pristine cuts as only a cold saw can. It’s ideal for light metal fabrication and chassis. A cast iron base and flood coolant system ensure a long lifetime of use.

Recommended for:
*Hobbyists that need a bigger saw than our CS-250
*Maintenance departments in full production shops
*Custom R&D shops

Covered by a 1-year parts warranty. Includes lifetime technical support by phone. Call us at 1-920-684-4990 with any questions you have about this circular manual cold saw machine.


+ Show More
Blade turns at 54 rpm and accepts an 11” blade (included)
3.25” round tube capacity at 90°, big enough for just about any chassis project
Miters up to 45° left and right while the Dual-mitering head lets you tackle various shapes and materials like pipe, angle iron, and solid bar
Robust 1.5 hp motor runs on 110-volt power, so you can use it anywhere

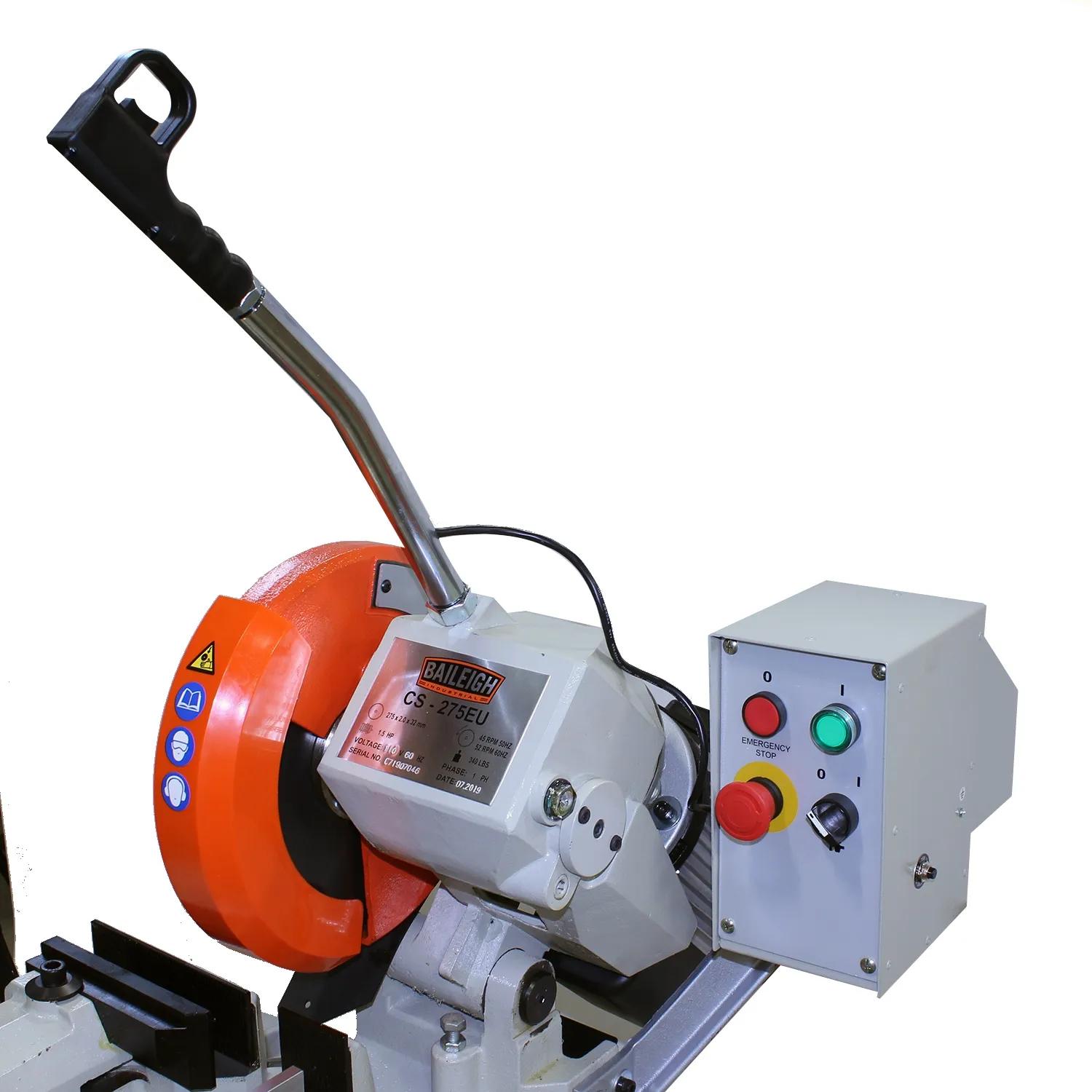

Fully cast-iron head will deliver clean cuts for many years

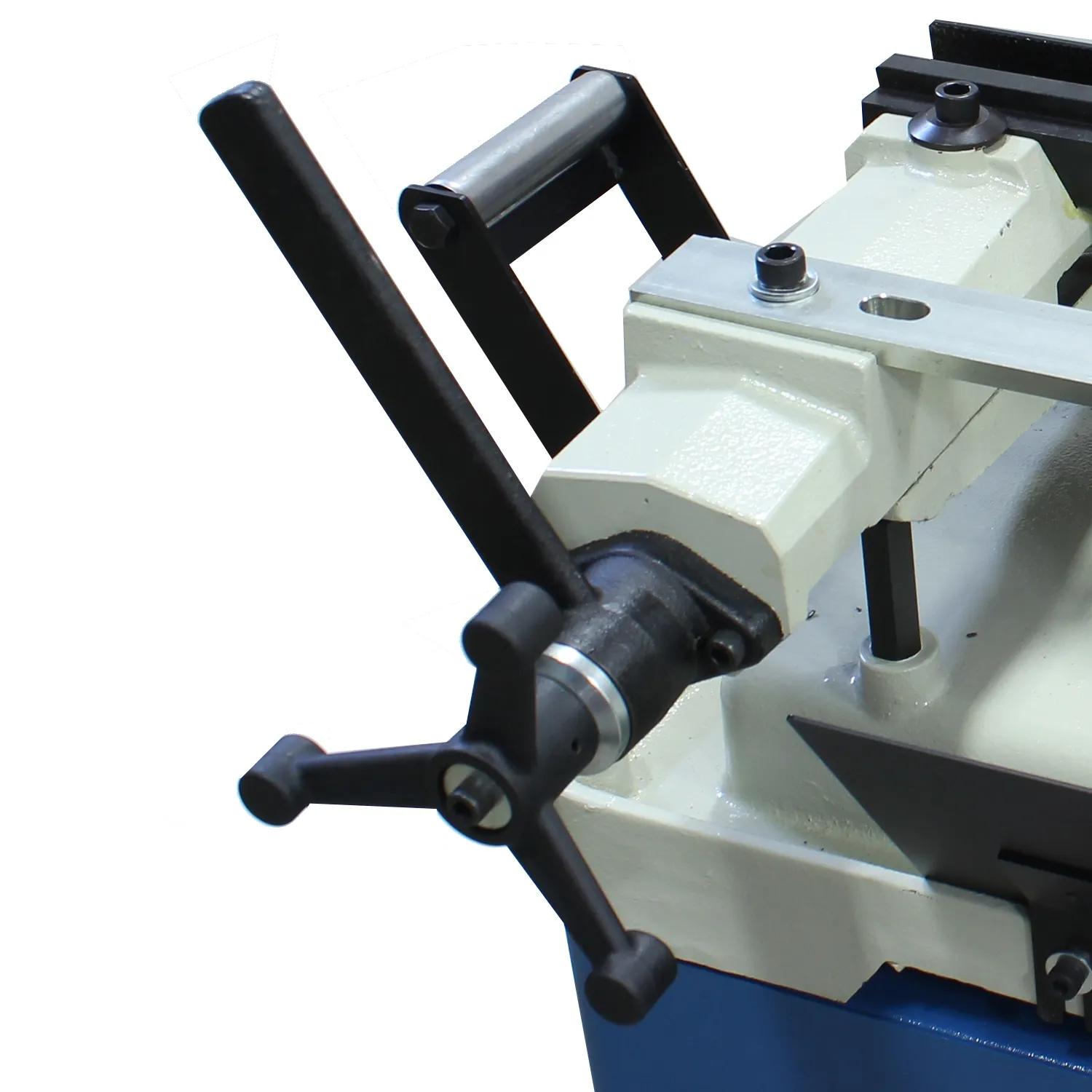

European-style vise with a cam lock allows for fast material loading and unloading. Vise supports the material on opposite sides of the blade to maintain high cut quality

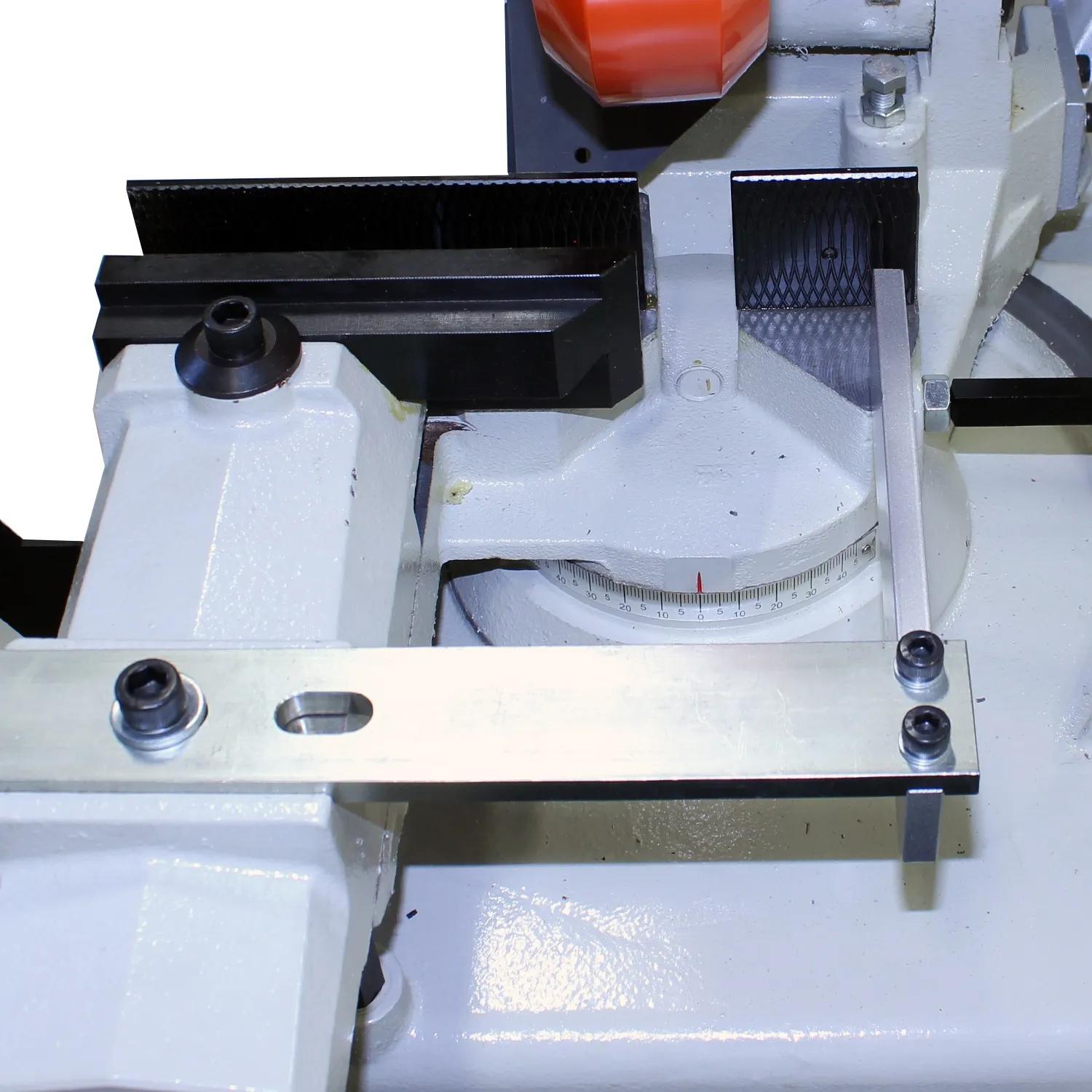

Material stop rod lets you conveniently set up repeatable cuts for production runs
Solid cast iron saw base keeps the machine stable, so that the blade cuts accurately
Saw sits on top of a sturdy steel stand that puts the machine at a comfortable cutting height

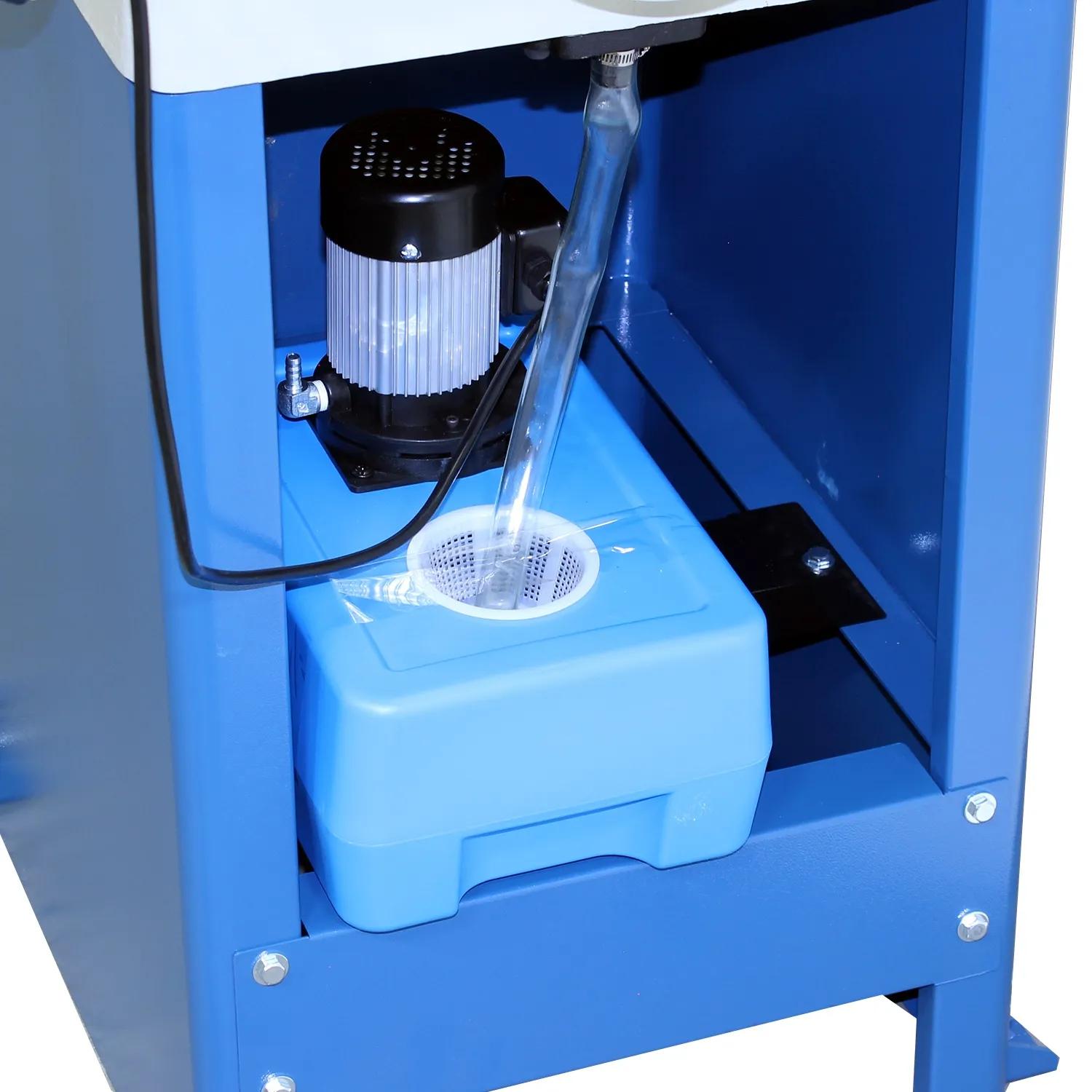

Flood coolant system helps the operator cut material more easily and prolongs blade and machine life
More Information
Stock NumberBA9-1002434
Model NumberCS-275EU
Motor (HP)1.5 hp
Prop 65Cancer and Reproductive Harm
Solid Round at 45 Degrees (In.)3.25"
Solid Round at 90 Degrees (In.)3.25"
Style (Type)Single Action with Cam Lock
Tubing Rectangle at 45 Degrees (In.)2.2" x 2"
Tubing Rectangle at 90 Degrees (In.)3.1" x 2"
Tubing Round at 45 Degrees (In.)3.25"
Tubing Square at 45 Degrees (In.)2.2" x 2.2"
Tubing Square at 90 Degrees (In.)3.25"
Warranty1 Year
Gross Weight378.0
Net weight378.0
