Manually Operated Arbor Press | AP-5

Stock Number
BA9-1000264
$1,399.00

Product Overview

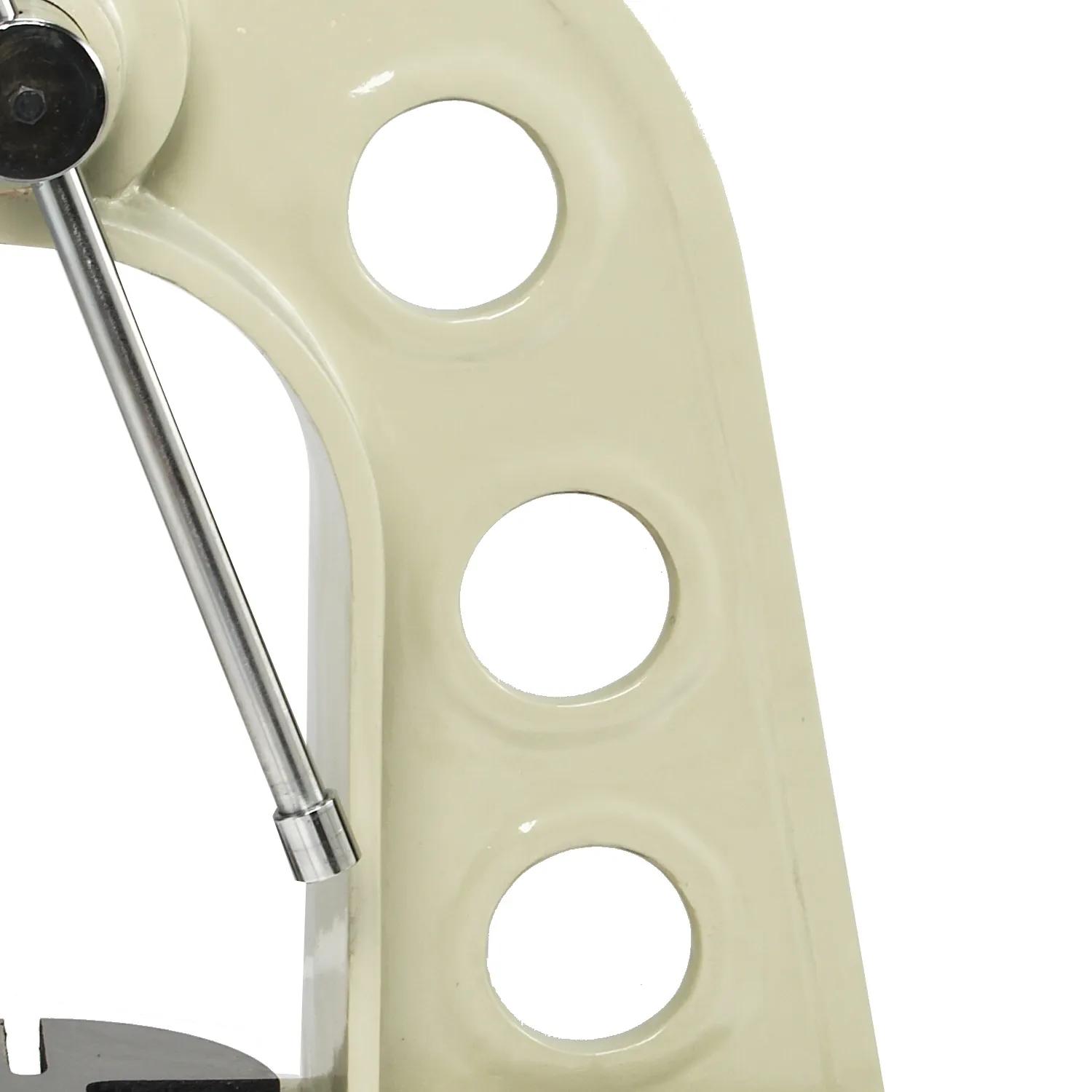

We engineered the AP-5 arbor press to produce up to 5.6 tons of force and last for decades. A machined cast iron housing framework gives this manual sheet metal-forming press its “muscle” and increases its durability.

Recommended for: Pressing bearings and bushings or broaching keyways in any fabrication or machine shop.

Questions? Feel free to give us a call at (920) 684-4990 and talk to a Baileigh expert.


+ Show More
Has a throat depth of 8.89” and accepts material up to 17.5” high
Thick 2” x 2” case-hardened ram transfers pressure without flex for maximum accuracy

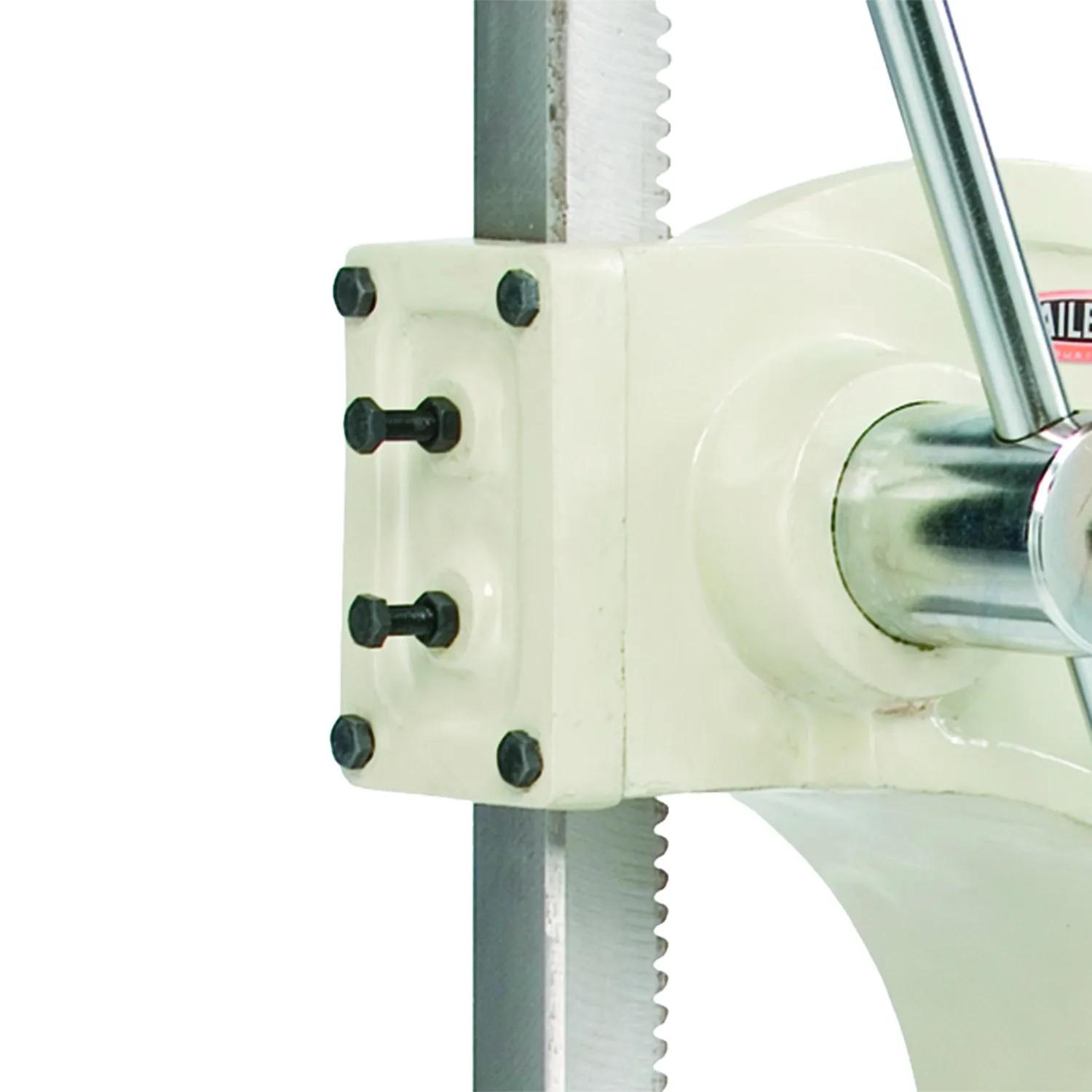

Adjustable ram cap allows for gap adjustment of ram
31” adjustable, single-leverage handle multiplies your force to produce strain-free pressure
Sturdy 2.375" pivot shaft supports smooth, powerful ram movement

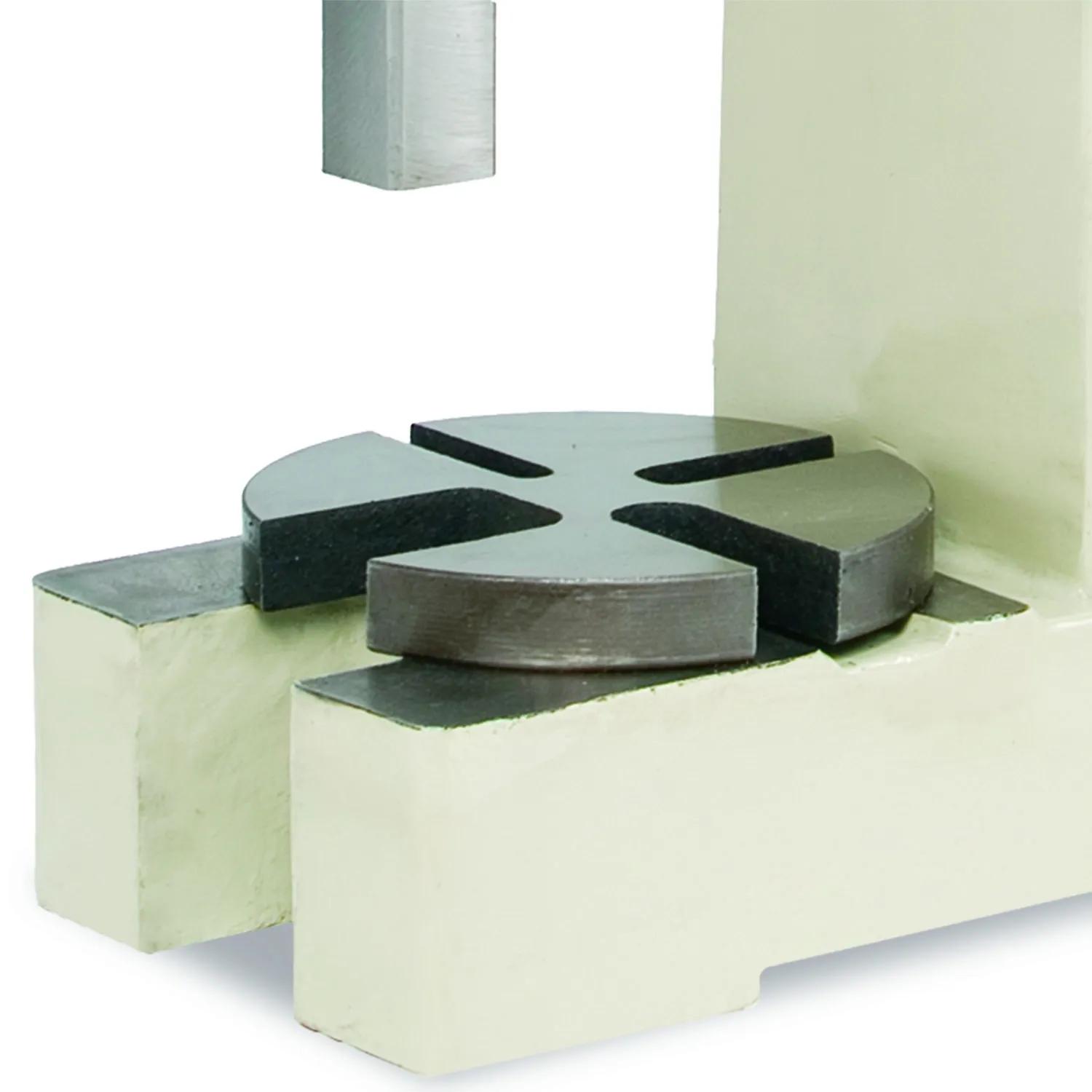

Includes a durable 4-position bottom die plate to secure various broach sizes
You can remove the bottom plate to press items directly on the AP-5’s framework
Can be pedestal- or bench-mounted
Typically kept in stock for immediate shipment
More Information
Stock NumberBA9-1000264
Approx. Pressure (Tons)5.6 tons
Model NumberAP-5
Prop 65Cancer and Reproductive Harm
Ram Bore (In.)2" x 2"
Travel of Ram (In.)8.5"
Warranty1 Year
Weight (Lbs.)400
Gross Weight440.0
Net weight440.0
Cylinder MovableNo
