Metal Cutting Bandsaw - BS-330M
Stock Number:
BA9-1001517
$14,699.00
.
Enhanced Bullet 1:
220V 3-phase power
Enhanced Bullet 2:
13" round capacity at 90°
Enhanced Bullet 3:
Head miters 45°
Enhanced Bullet 4:
1.25" blade width
Leasing starts at $434 with Click LeaseYou are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.
Product Overview
In 2005, we introduced the BS-330M manual mitering band saw. With steel frames and smooth hydraulic descent, these saws have given shops trouble-free productivity for 10+ years.
Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.
Features include: Maximum capacity of 13” OD round at 90°, large 1.25” blade, and laser guide that helps you see where your cut will be and line it up

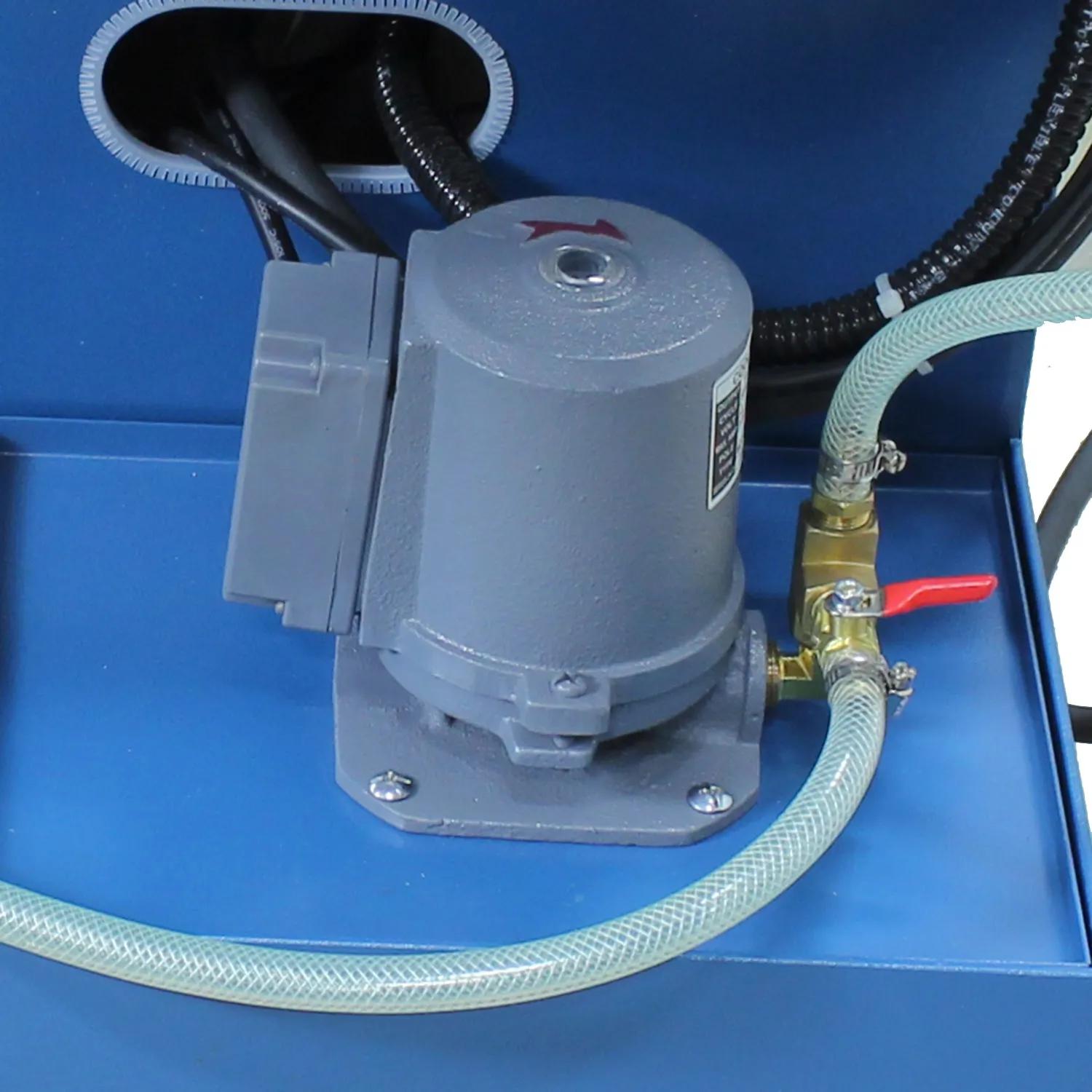

Other features include: Swing-away material stop enables you to easily make repeatable cuts and a flood coolant system that will wash away metal shavings and prolong blade life

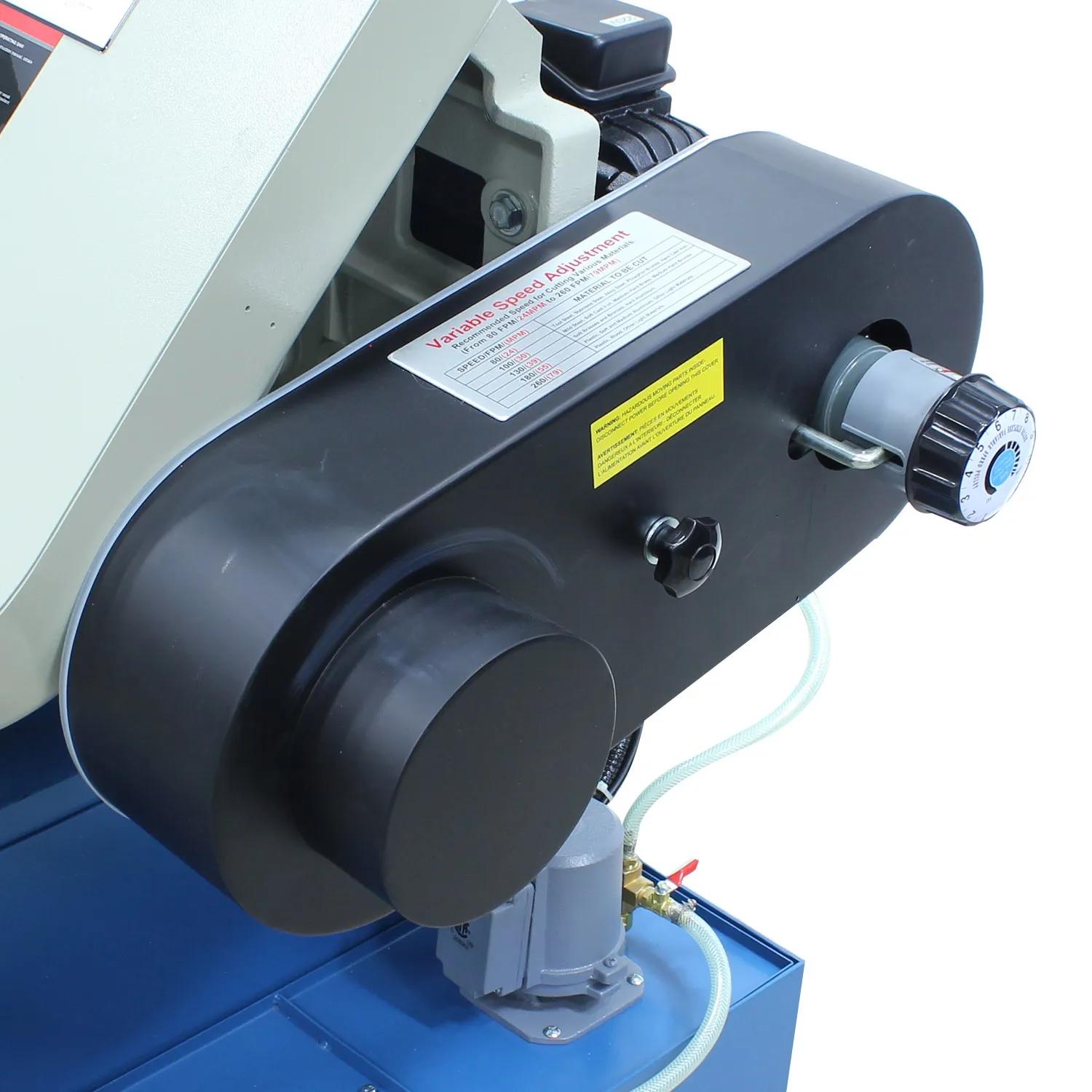

Variable blade speed from 82 to 270 fpm lets you choose the right speed for metal, plastic, and wood

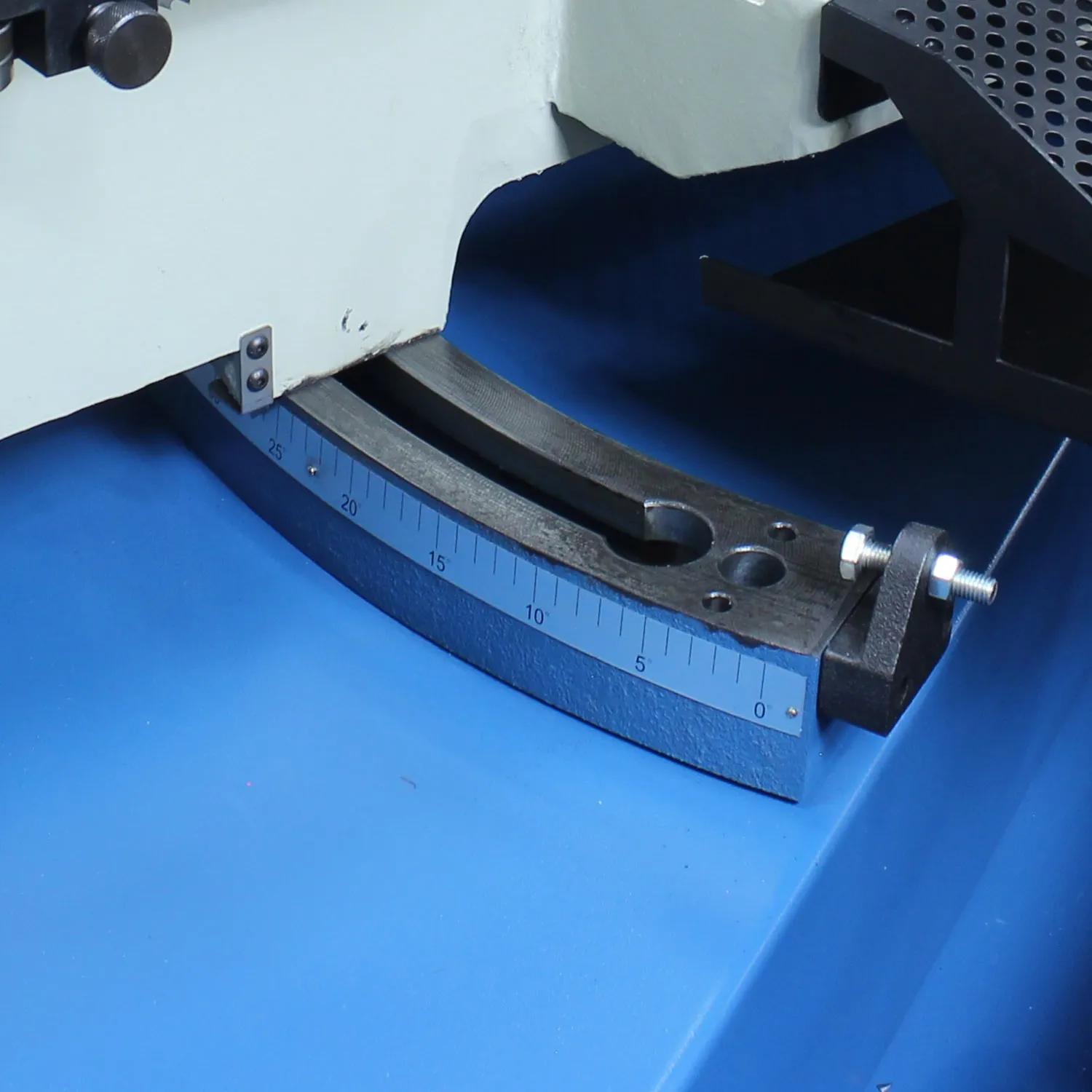

Saw head miters up to 45° with a 3 hp motor that runs on 220-volt triple-phase power, more reliable and efficient than single-phase
Heavy cast iron head and bow reduce vibrations while cutting and the heavy electro-welded steel construction minimizes vibrations to keep cuts accurate

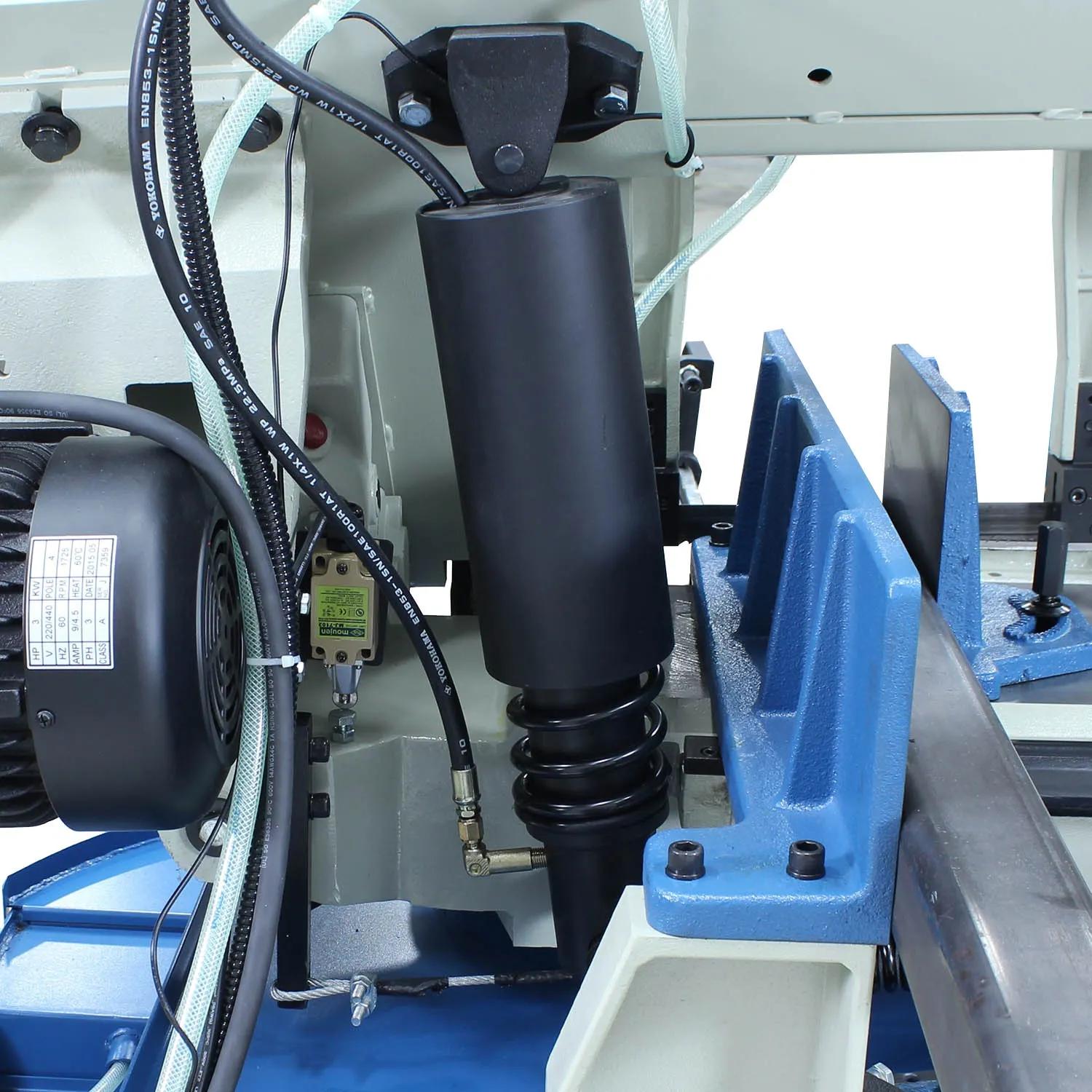

Hydraulic descent makes production runs more efficient, increases blade life, and reduces operator fatigue

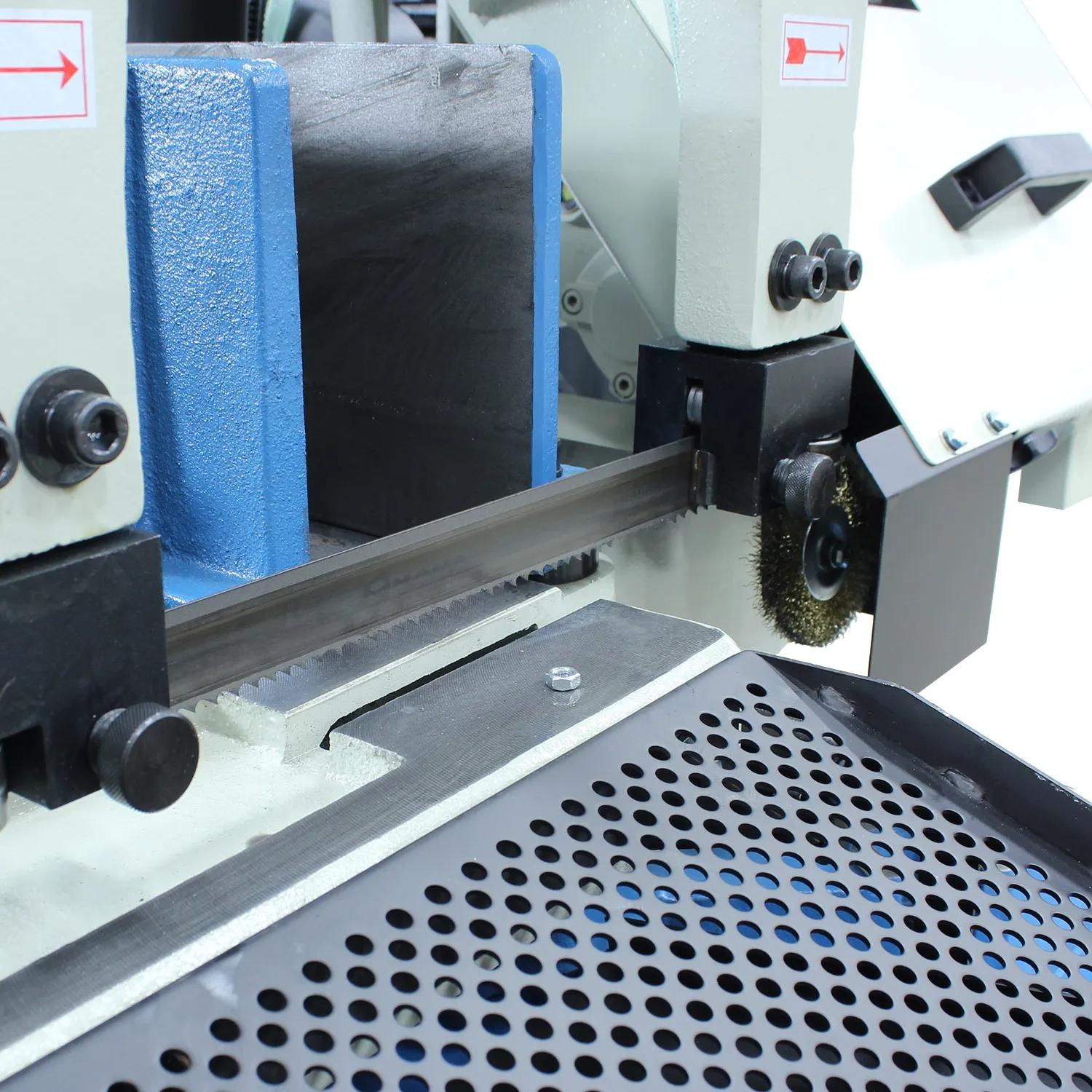

Tungsten carbide blade guides get as close as possible to the material to allow for more precise cuts while the durable steel flywheels drive the blade

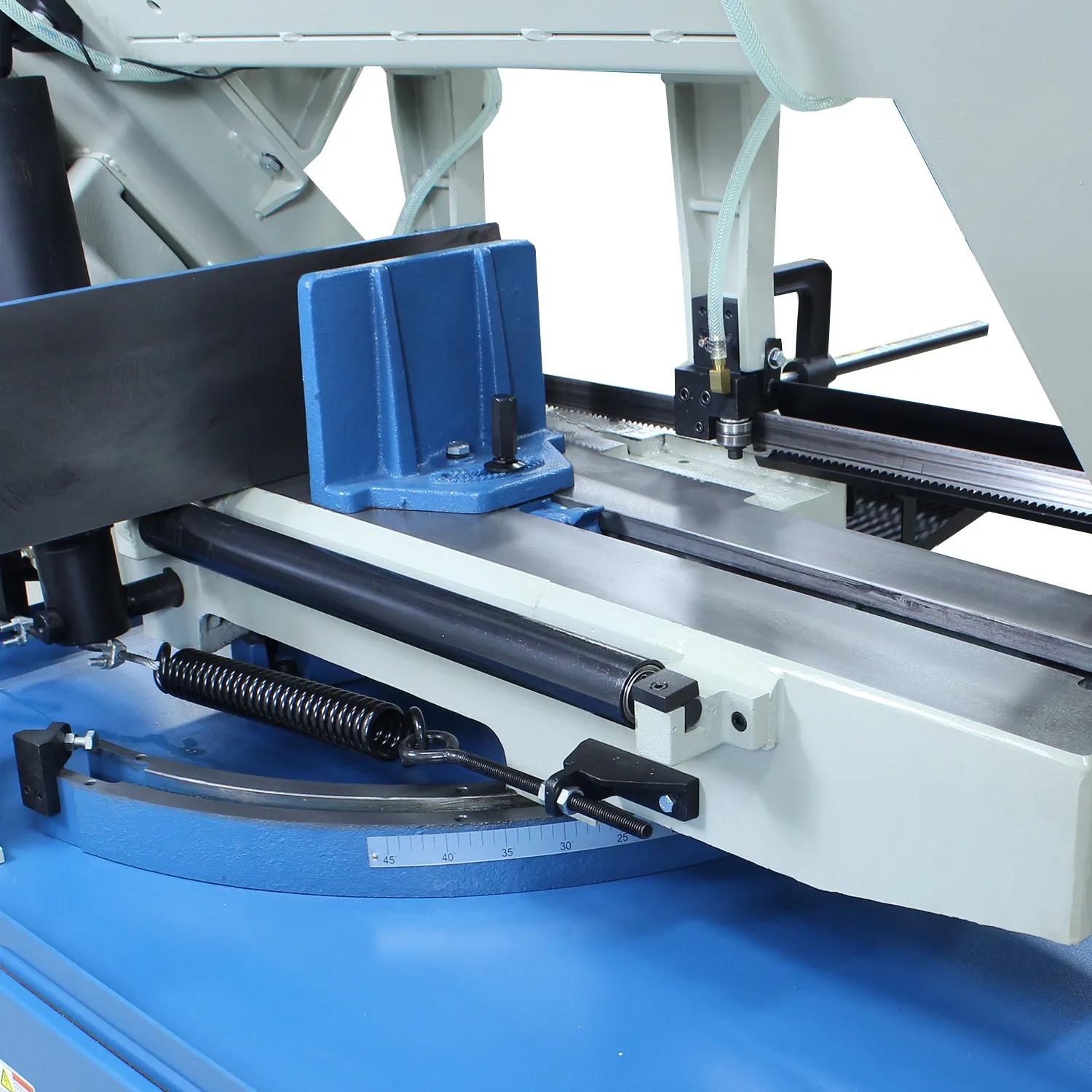

Adjustable vise can move back and forth. A quick cam lock system holds it in place
Control panel has large start and emergency stop buttons and a dial for adjusting the speed with the automatic shut-off safety feature that stops the blade from running when the saw gets to the bottom of the cut
Baileigh’s patented blade tension gauge takes the effort out of getting the tension right. Just line the arrow pointer up with the green zone and you’re good to go
| Stock Number | BA9-1001517 |
|---|---|
| Accessories | Included Accessories |
| Blade Guide | Carbide x Roller |
| Blade Speeds (SFPM) | 82–270 |
| Capacity Rectangular 90 X 45 | 13" x 18.9" / 11" x 10.04" |
| Capacity Round 90 X 45 | 13" x 8.86" |
| Capacity Square 90 X 45 | 13" x 8.86" |
| Descent Control | Hydraulic |
| Drive | Belt x Pulley |
| Input Power | 220V / 3-phase |
| Type of Miter Adjustment | Swivel Head and Vise |
| Miter Angle Range (Deg.) | 0 – 45° |
| Model Number | BS-330M |
| Motor (HP) | 3.0 hp |
| Prop 65 | Cancer and Reproductive Harm |
| Return | Manual |
| Shipping Dimensions (L x W x H) (In.) | 90x37x63 |
| Table Height (In.) | 30.5 |
| Warranty | 1 Year |
| Weight (Lbs.) | 1830 |
| Gross Weight | 1720.0 |
| Net weight | 1720.0 |
