Metal Lathe - PL-1860E
Stock Number:
BA9-1016624
$36,999.00
Enhanced Bullet 1:
_x000D_
2-axis DRO_x000D_
Enhanced Bullet 2:
Sheet steel and cast iron base_x000D_
Enhanced Bullet 3:
60" between centers
Enhanced Bullet 4:
_x000D_
25 to 1800 rpm_x000D_
Product Overview
Looking for a large, economical tool room lathe? The PL-1860E includes a DRO, polished slideways, and a cast iron base—features you won’t find on many machines in this price range.
Questions? Not sure what’s the best metal lathe for you? Call us at 1-920-684-4990 and talk to a friendly Baileigh rep.
7.5 hp motor runs on 220-volt 3-phase power and 12 spindle speeds from 25 to 1,800 rpm
Perfect for shops or schools that need more capacity on a budget with no assembly required

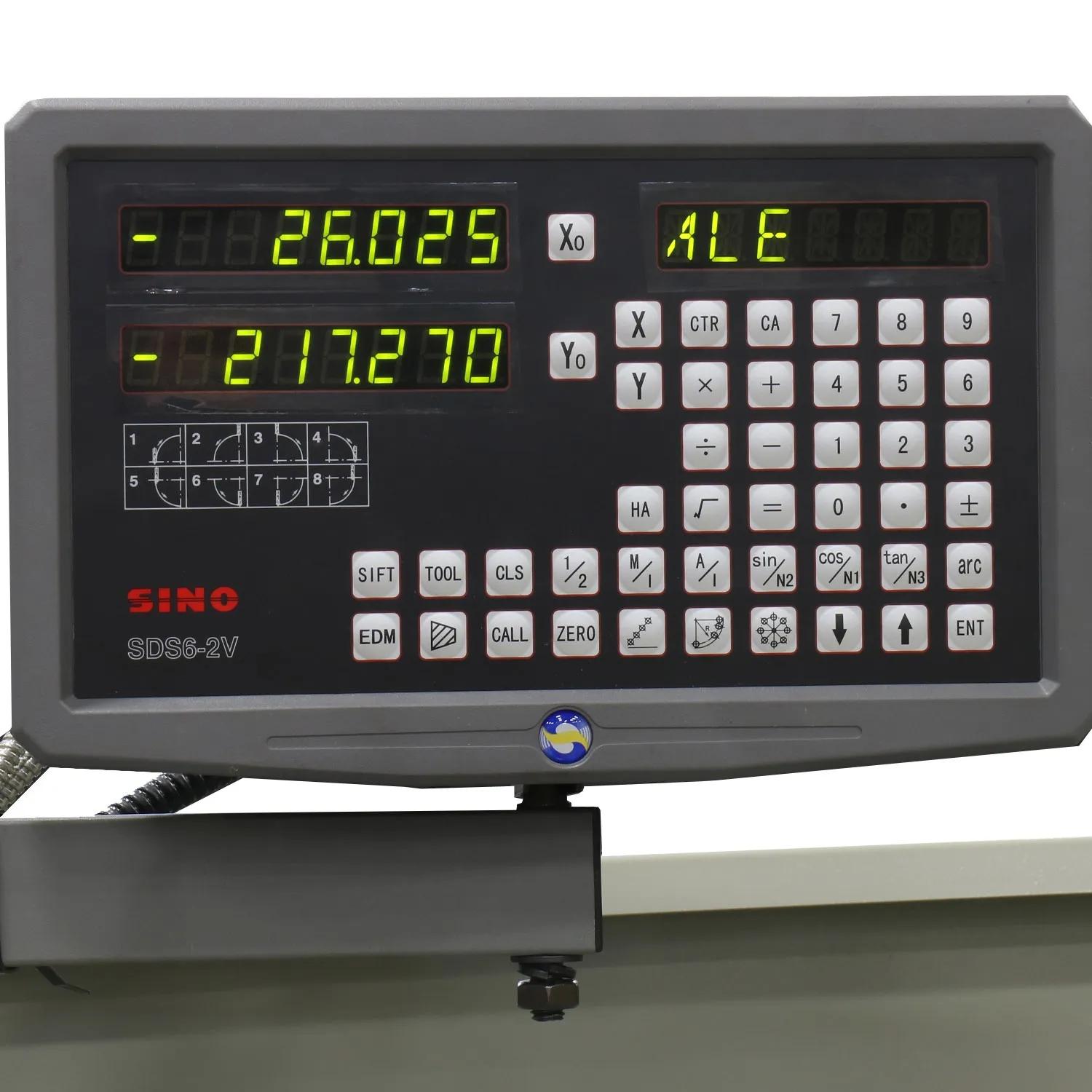

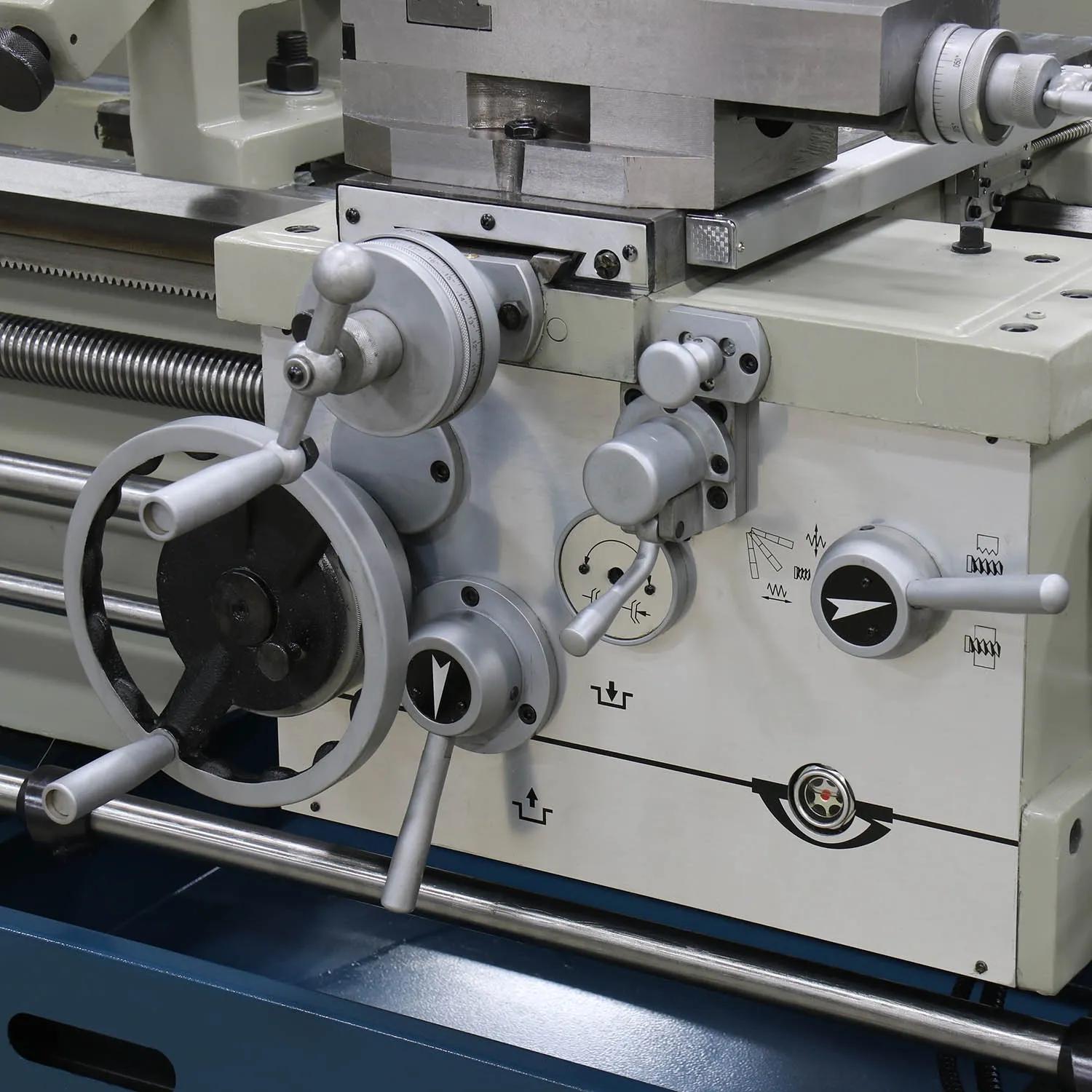

2-axis digital readout (DRO) system
Precision ground, hardened, and then polished to ensure smooth movement
Cross-ribbed bed adds strength and stability
Cast iron and sheet steel base supports the main frame and will stand up to years of use
Gap lathe design allows you to remove a section of the slide for slightly more diameter

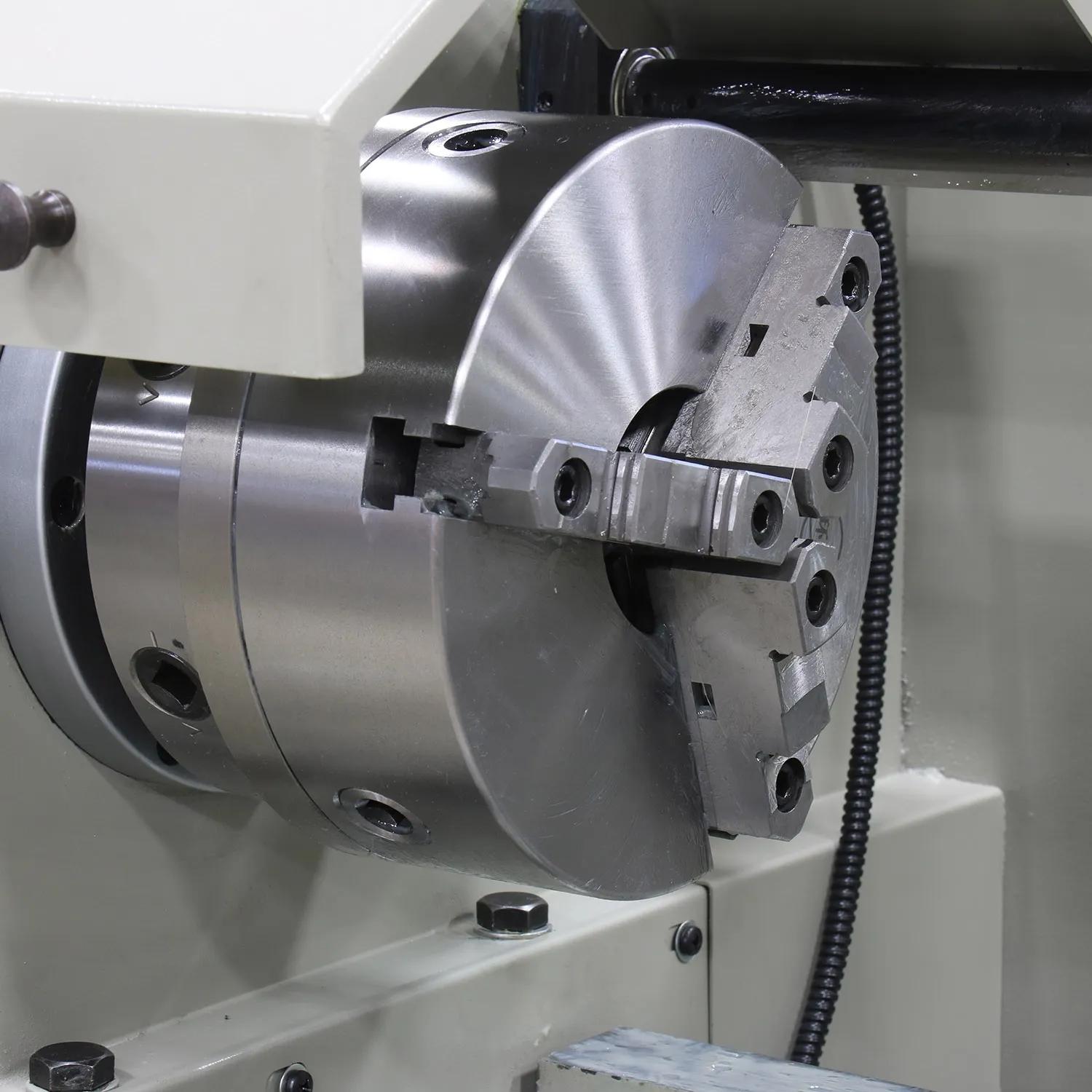

Comes standard with 3-jaw universal chuck (8”) and 4-jaw chuck (13”), Headstock chuck guard with automatic safety switch, and 8" back plate
Other features include steady rest and follow rest, Emergency foot brake, integrated coolant system with rear splash guard, and Halogen work light
| Stock Number | BA9-1016624 |
|---|---|
| Center Distance (In.) | 60" |
| Input Power | 220V / 3-phase |
| Lead Screw Diameter | 1.125 |
| Leadscrew Thread Pitch | 4 T.P.I. |
| Longitudinal Feed Imp Qty Type | 122 / .0015"-.0913" / rev. |
| Model Number | PL-1860E-1.0 |
| Modular Pitch Threads Range | 21 / .25 to 10 M.P |
| Motor (HP) | 7.5 hp |
| Nose Radius (In.) | D1-8 |
| Number of Spindle Speeds | 25-1800 rpm |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Taper | MT7 |
| Shipping Dimensions (L x W x H) (In.) | 116x45x66 |
| Spindle Bore (In.) | 3.125" |
| Spindle Taper with Sleeve | MT5 |
| Swing Over Bed (In.) | 18" |
| Swing Over Cross Slide (In.) | 10-3/4" |
| Swing Through Gap (In.) | 27.5" |

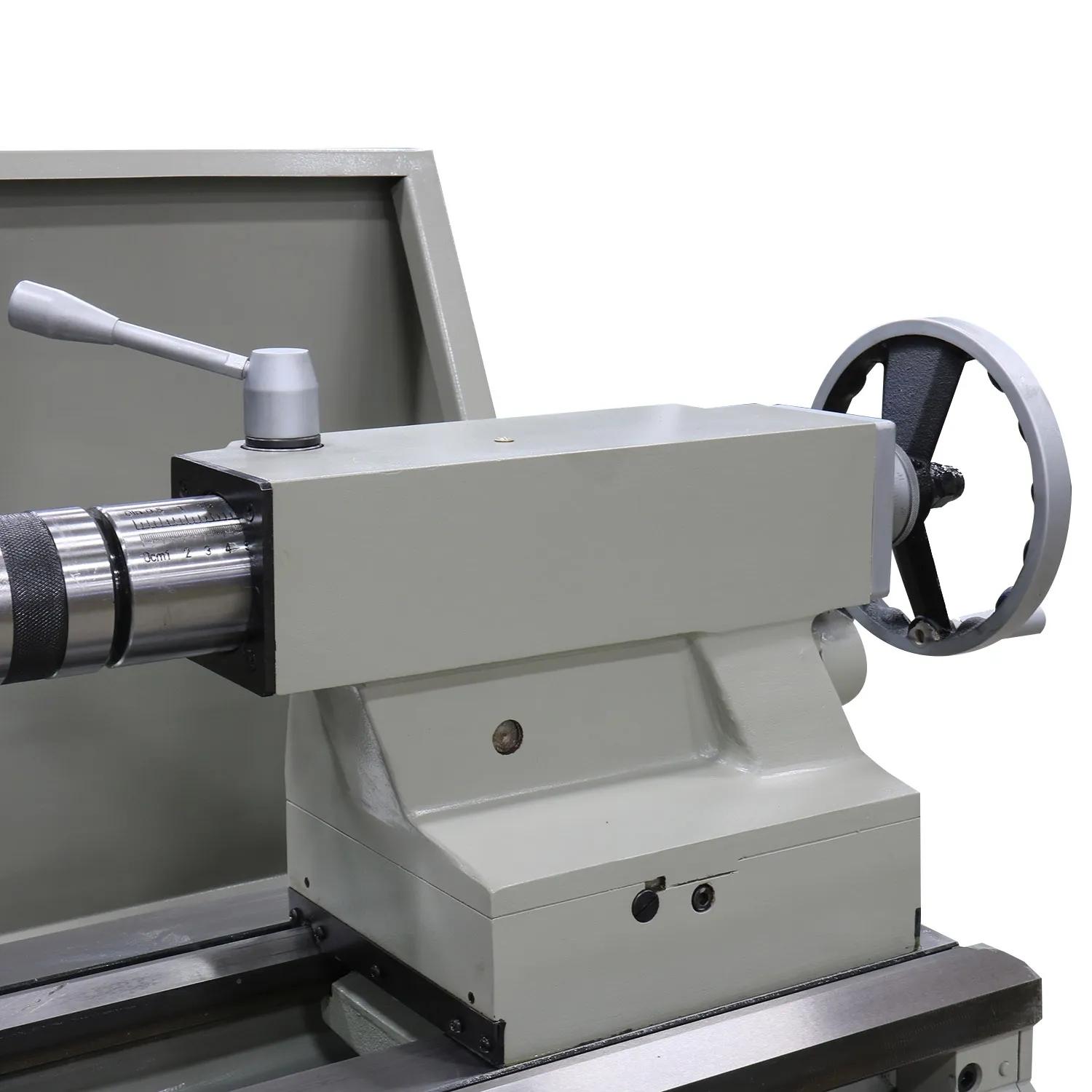

| Tailstock Spindle Travel (In.) | 6" |
| Warranty | 1 Year |
| Weight (Lbs.) | 5650 |
| Width of Bed (In.) | 13-1/8" |
| Gross Weight | 5650.0 |
| Net weight | 5650.0 |
| Compound Rest Travel | 5-1/8" |
| Cross Slide Travel | 10-1/2" |
| Threads Diametrical Quality Type (D.P.) | 45 / 3-1/2 to 96 D.P |
| Threads Imperial Quality Type (T.P.I.) | 61 / 1-5/8 to 72 T.P.I |
