Metal Shrinker Stretcher - (MSS-16F)

Stock Number
BA9-1005710
$1,899.00

Product Overview

Our most popular Shrinker Stretcher, the MSS-16F combines a robust 16-gauge mild steel capacity with convenient foot pedal control. Plus, rounded jaws help prevent marks and indents. Order this Sheet Metal Shrinker Stretcher from Baileigh Industrial.

Recommended for: Just about any metalworking, automotive, or airplane shop.

This heavy duty Shrinker Stretcher is covered by a 1-year parts warranty and lifetime technical support by phone from a team of reps with hands-on metalworking experience. Call us at 1-920-684-4990 with any questions you have about this metal shrinking machine.

Find a wide selection of Metal Shrinking tools here at Baileigh Industrial!


+ Show More
6” throat lets you get deep into the middle of metal sheets
Adjustable forming depth and pressure allows you to shape your material just the way you want to
Comes standard with 2 sets of quick-change jaws, one for shrinking and one for stretching

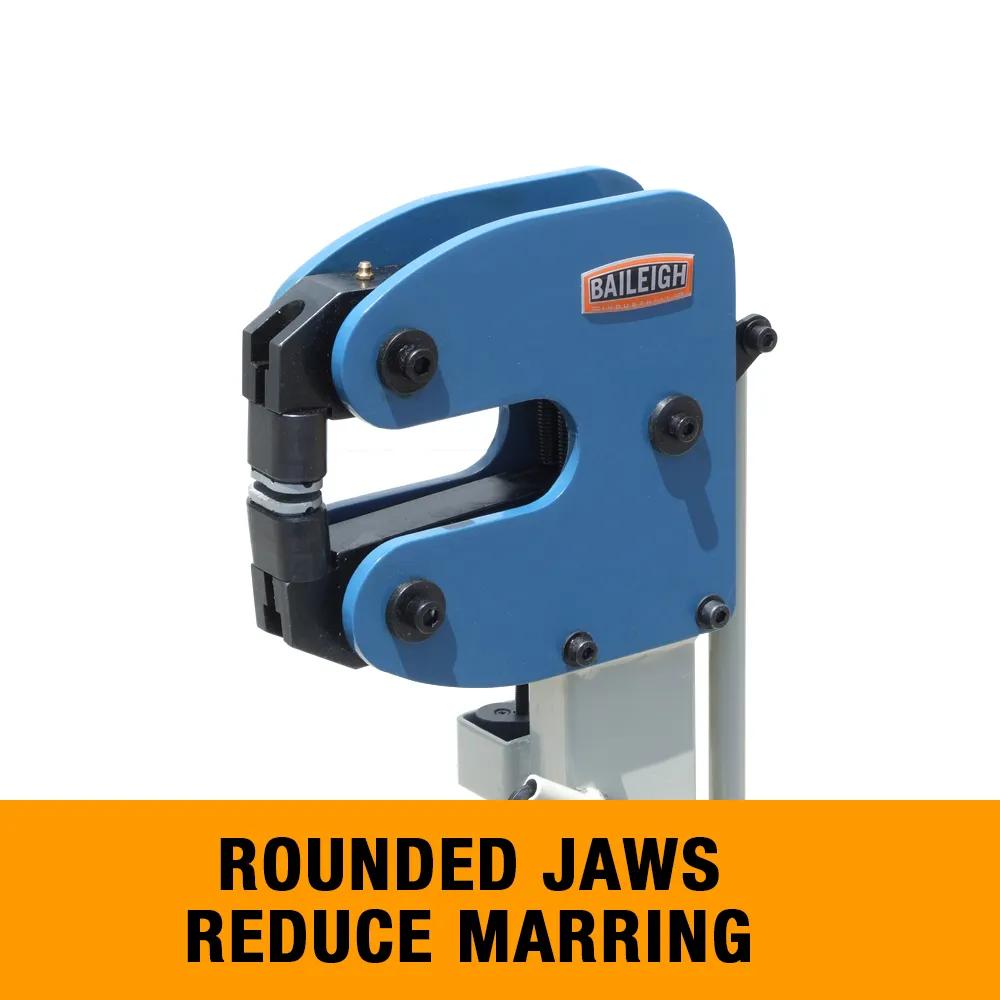

Rounded jaws keep marring to a minimum (unlike square jaws). You won’t have to spend as much time finishing a part afterwards

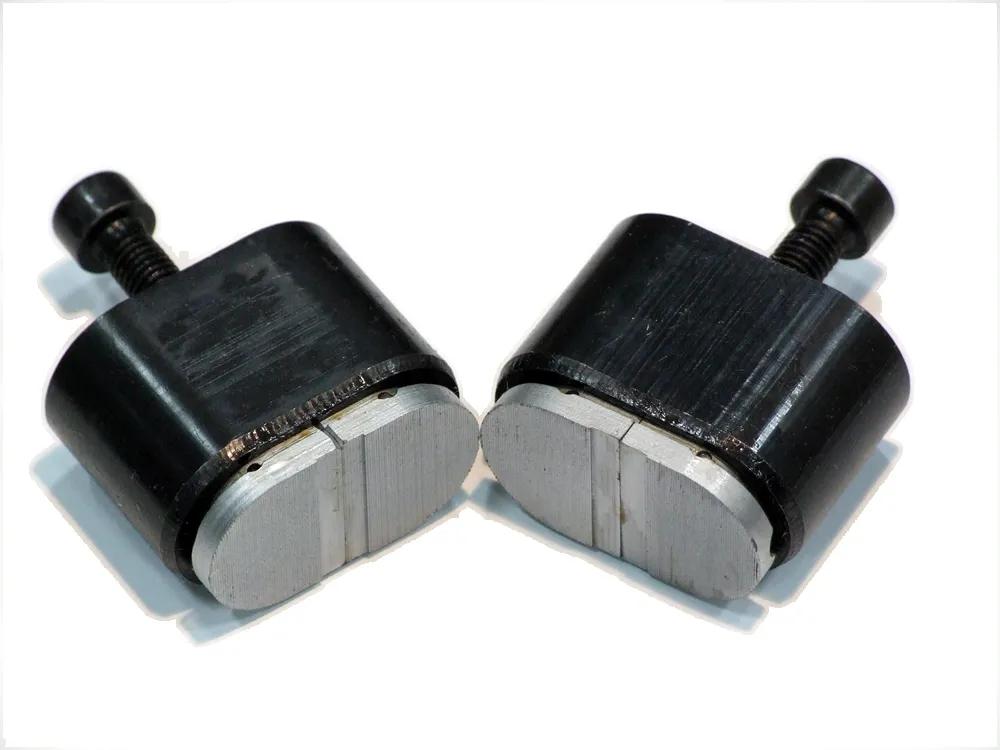

This shrinker stretcher accepts an optional jaw set for aluminum to avoid marks in the soft material

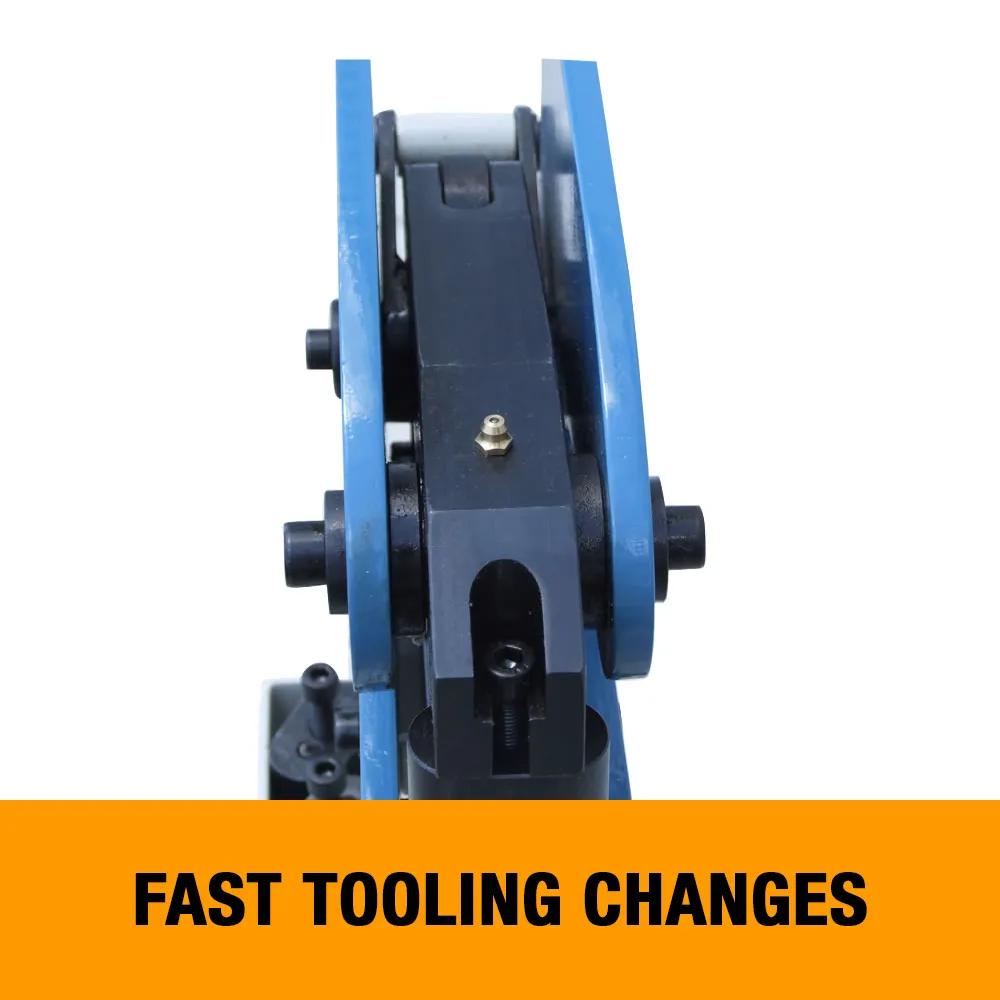

Jaw design allows for fast tooling changes. Just unscrew the jaw with an Allen wrench, lift the tooling out, replace, and screw it in

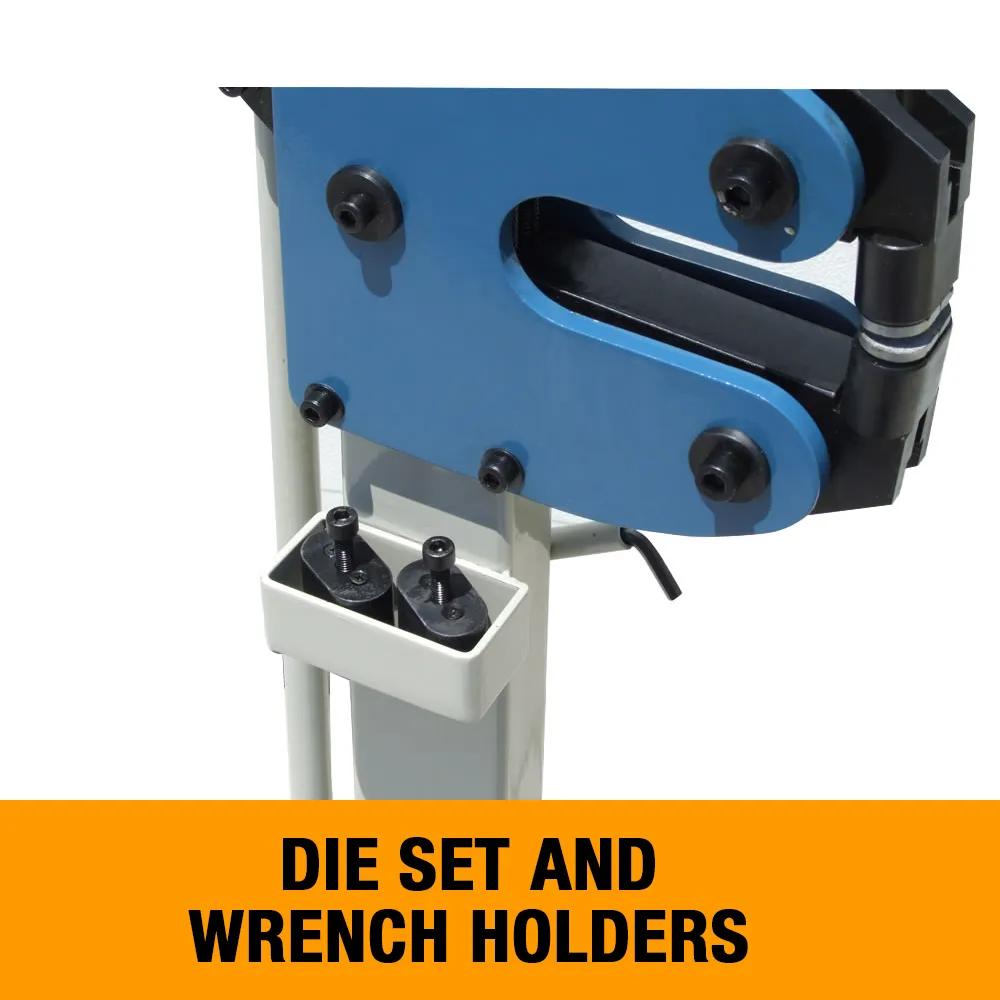

Includes a handy wrench holder, so the tool is never far away when you need to change the jaws

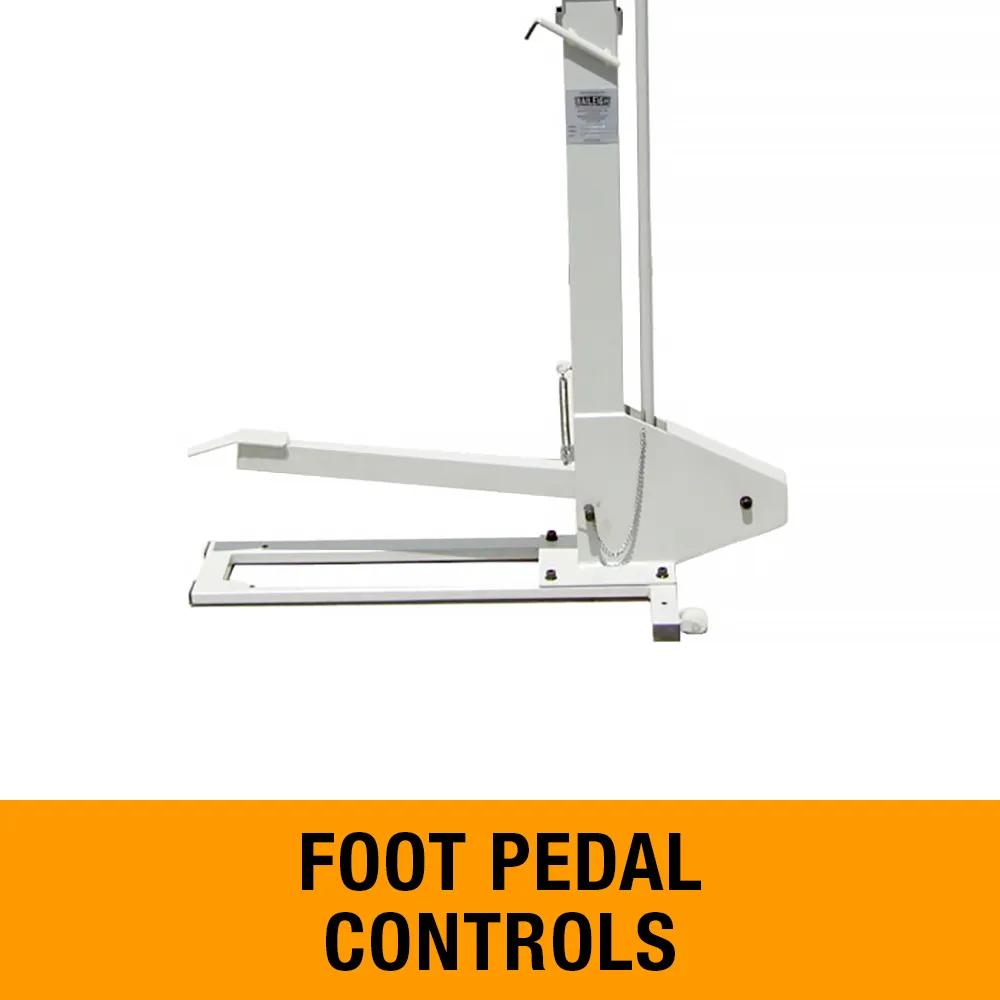

Foot pedal operation leaves your hands free to handle the panel you’re shaping
Durable cast iron stand raises the shrinker stretcher head to a comfortable working height with plenty of leverage
Rolling casters let you tip the machine up and move it easily
More Information
Stock NumberBA9-1005710
Mild Steel Capacity (Gauge)16.0000
Model NumberMSS-16F
Prop 65Cancer and Reproductive Harm
Throat Depth (In.)6"
Warranty1 Year
Weight (Lbs.)91
Gross Weight91.0
