Product Details
Industrial Construction: The Baileigh PR-503 Plate Roll is a hydraulically driven plate forming machine built for precision and durability in professional fabrication environments. Its heavy, fully welded steel frame resists deflection under load to provide long-term accuracy and reliability when bending plate materials.
Performance & Control: Featuring a 5 HP, 220 V 3-phase main motor and three hydraulically driven rolls, the PR-503 delivers smooth and efficient rolling performance across its full 61″ forming width. Hydraulic roll adjustment and a standard digital readout provide repeatable positioning and accurate results.
Shop Versatility: Designed for fabrication shops, industrial metal forming, and production environments, the PR-503 includes user-friendly controls, digital readout for back roll position, and a quick-release top roll for simplified workpiece removal. Perfect for cylinders, guards, tanks, and custom curved parts.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Forming Width: 61″.
- Mild Steel Capacity: 1/4″ (3/16″ recommended).

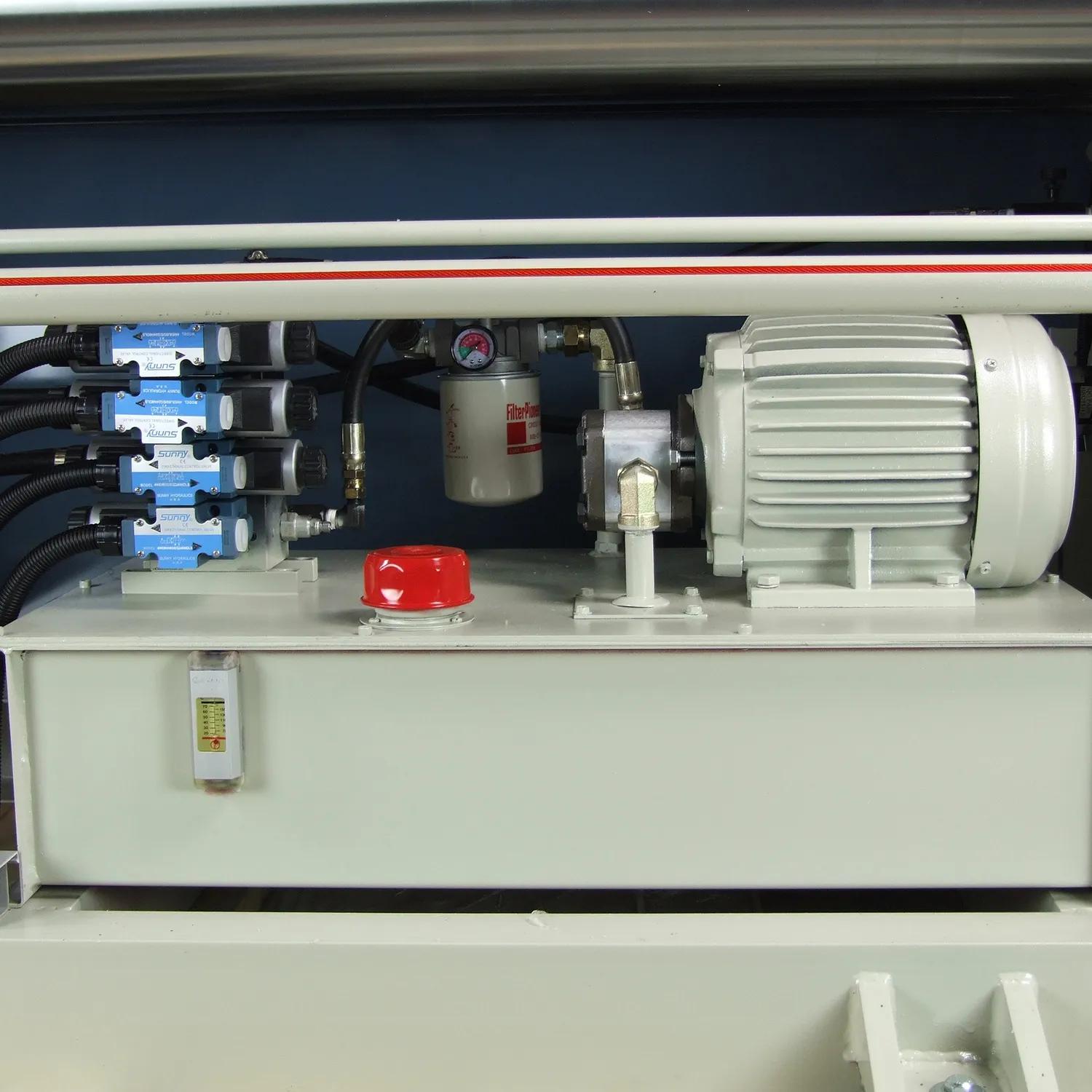

- Motor Power: 5 HP.
- Voltage & Phase: 220 V 3-phase.

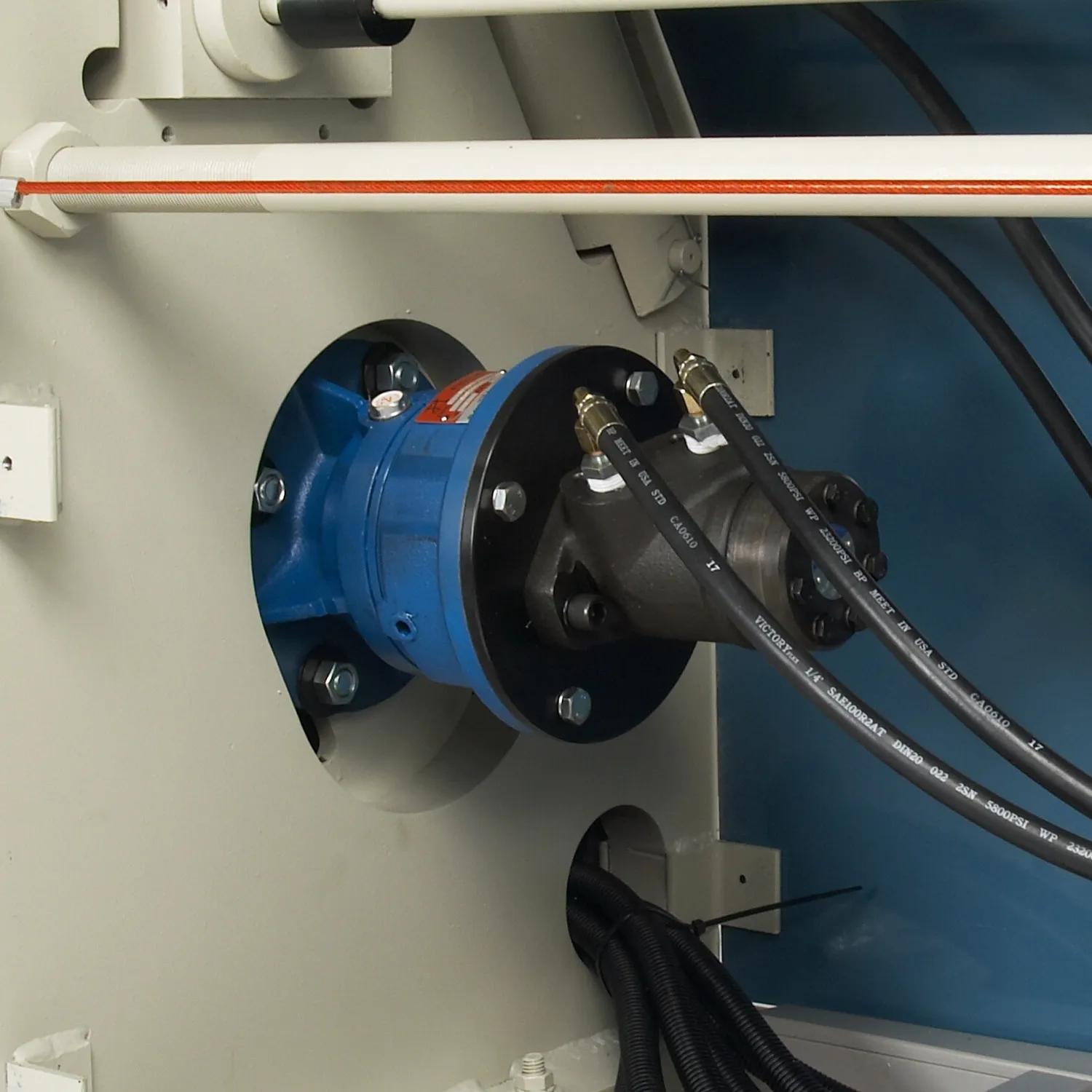

- Driven Rolls: Three hydraulically driven rolls.

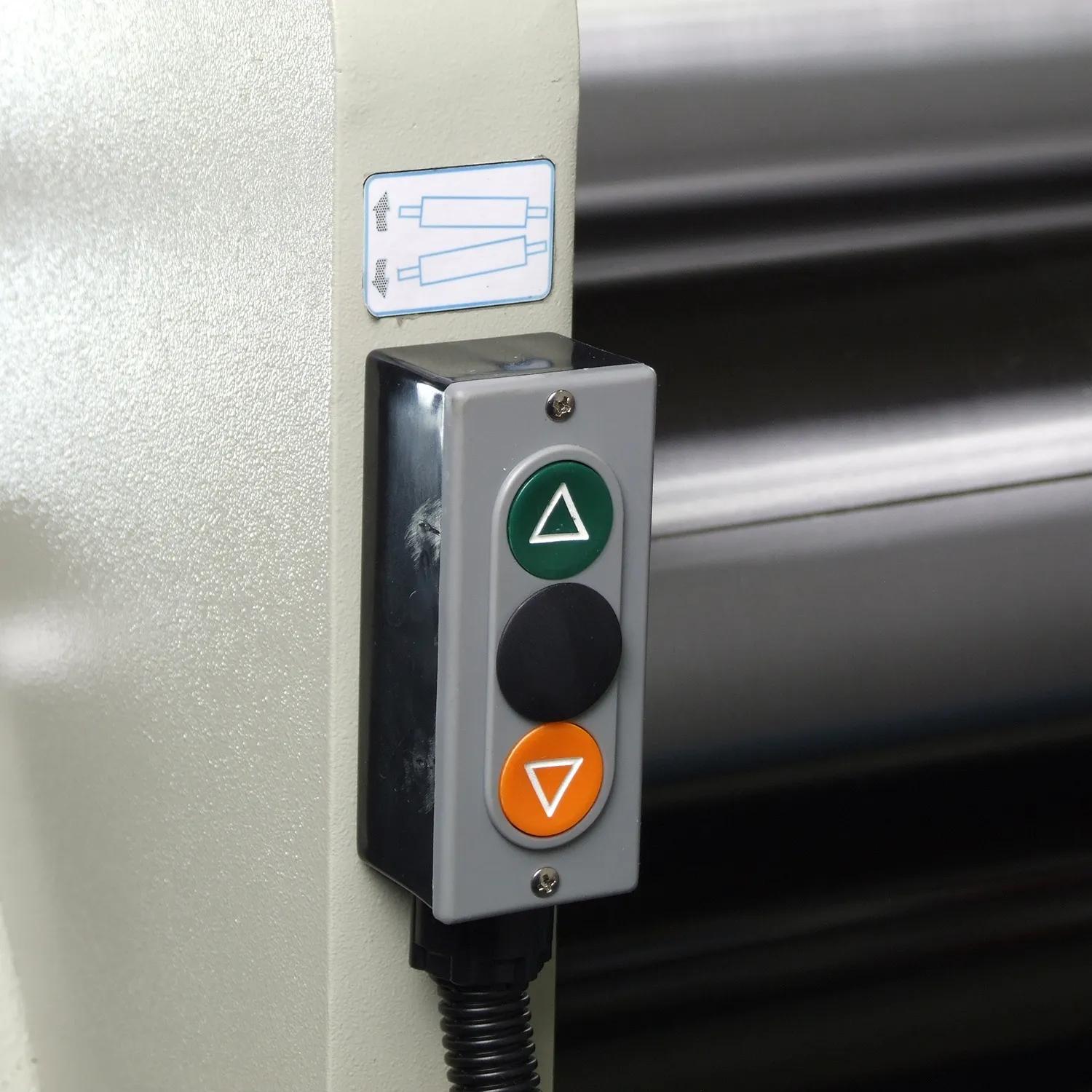

- Hydraulic Adjustment: Precise top roll positioning.

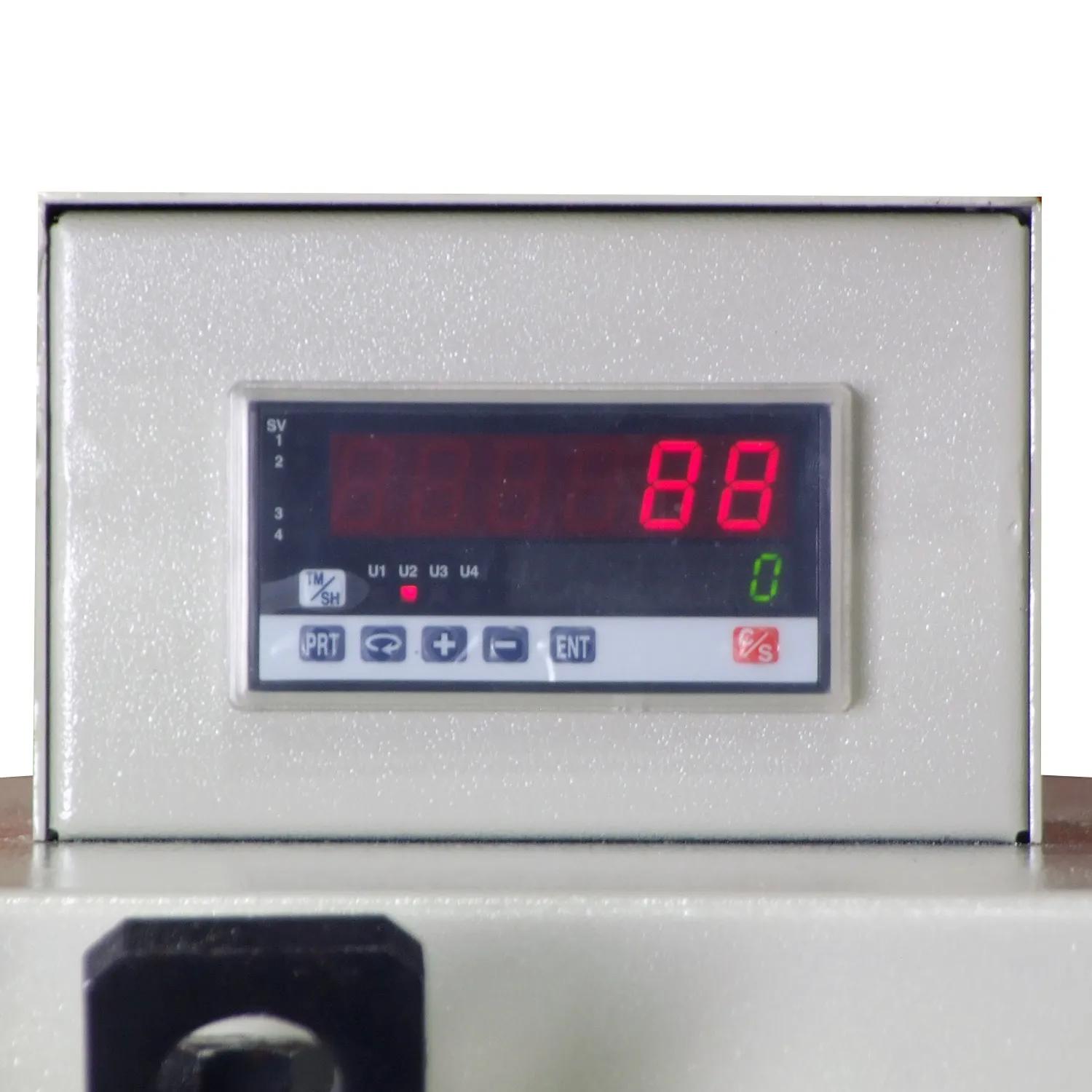

- Digital Readout: Back roll position for repeatable forming.
- Construction: Heavy fully welded steel frame.

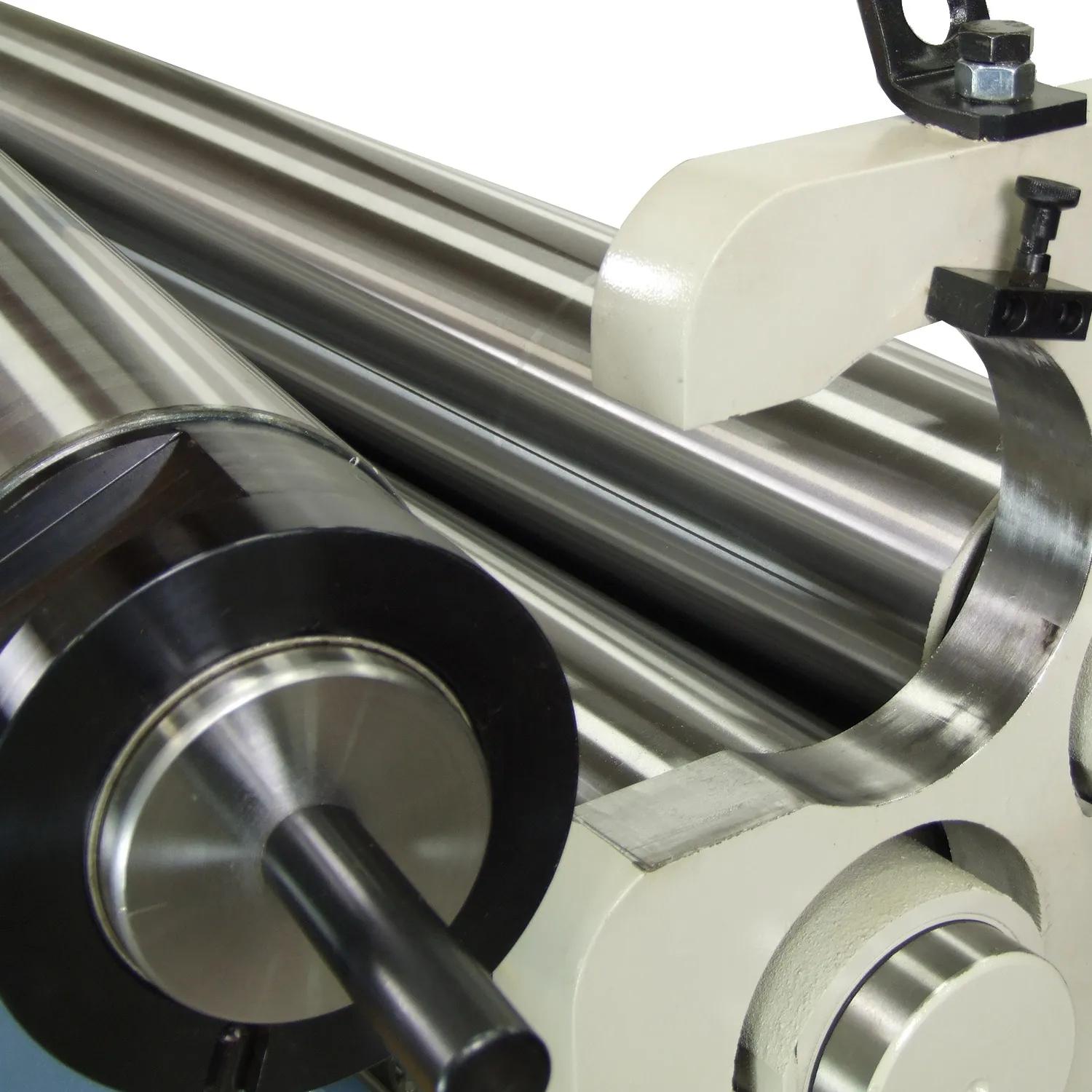

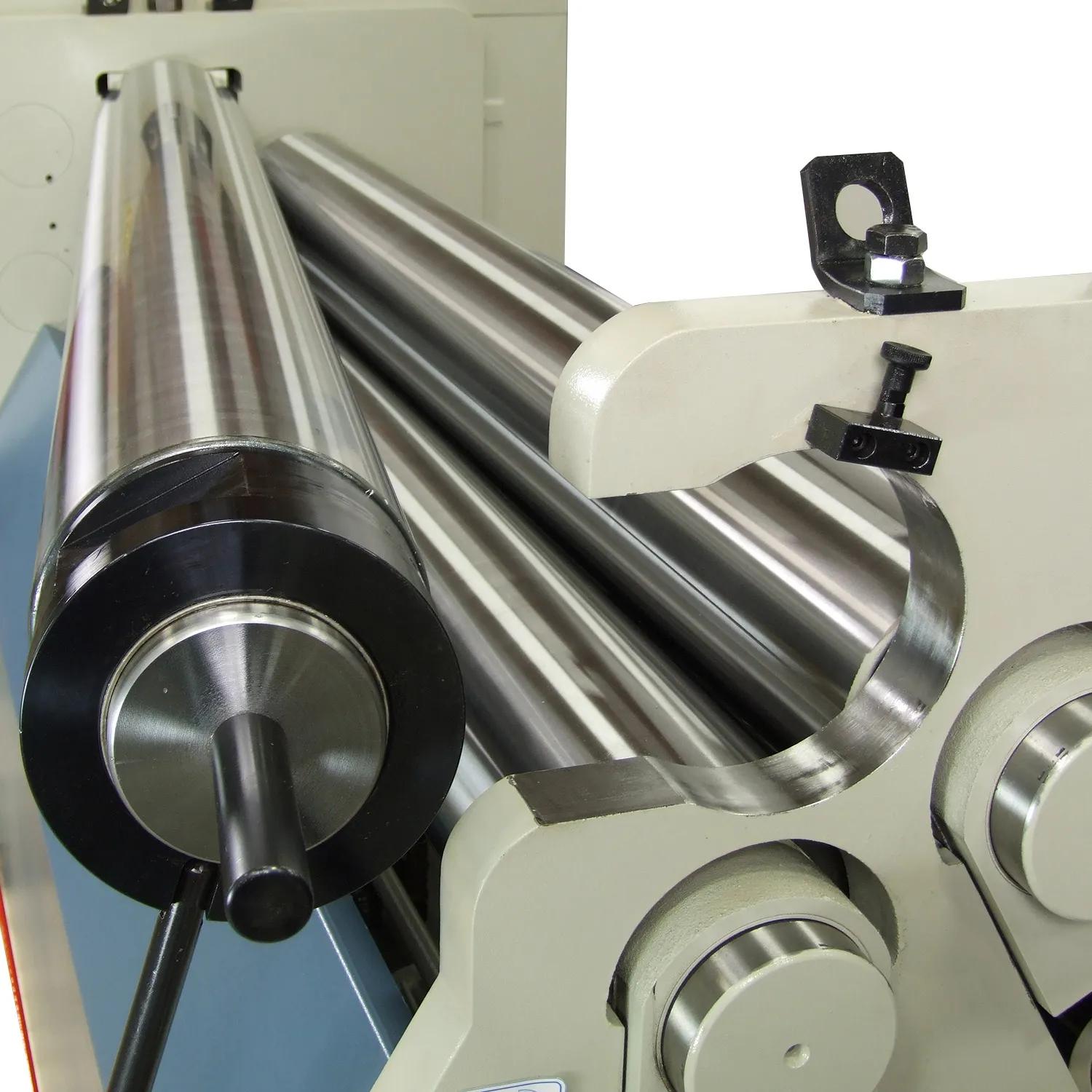

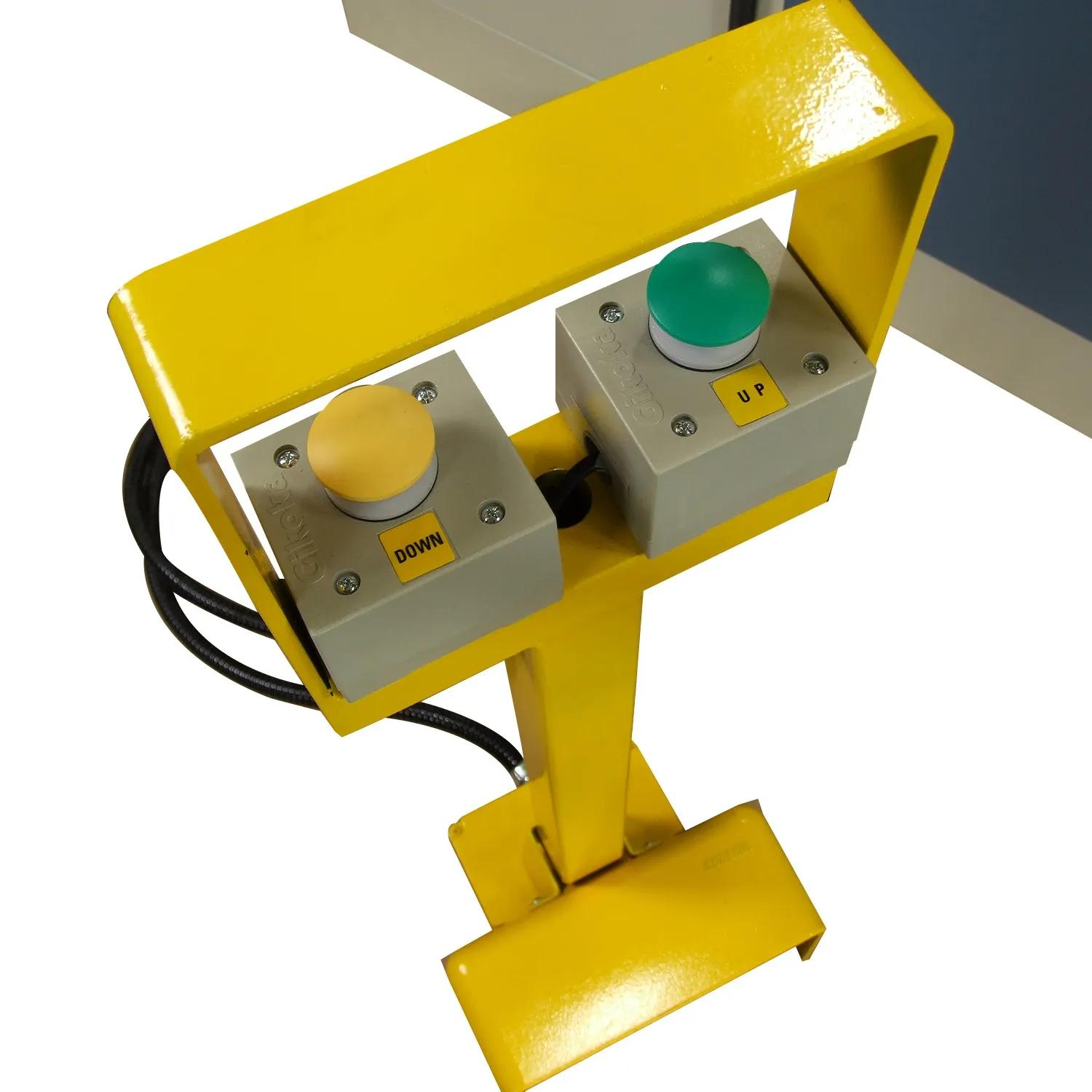

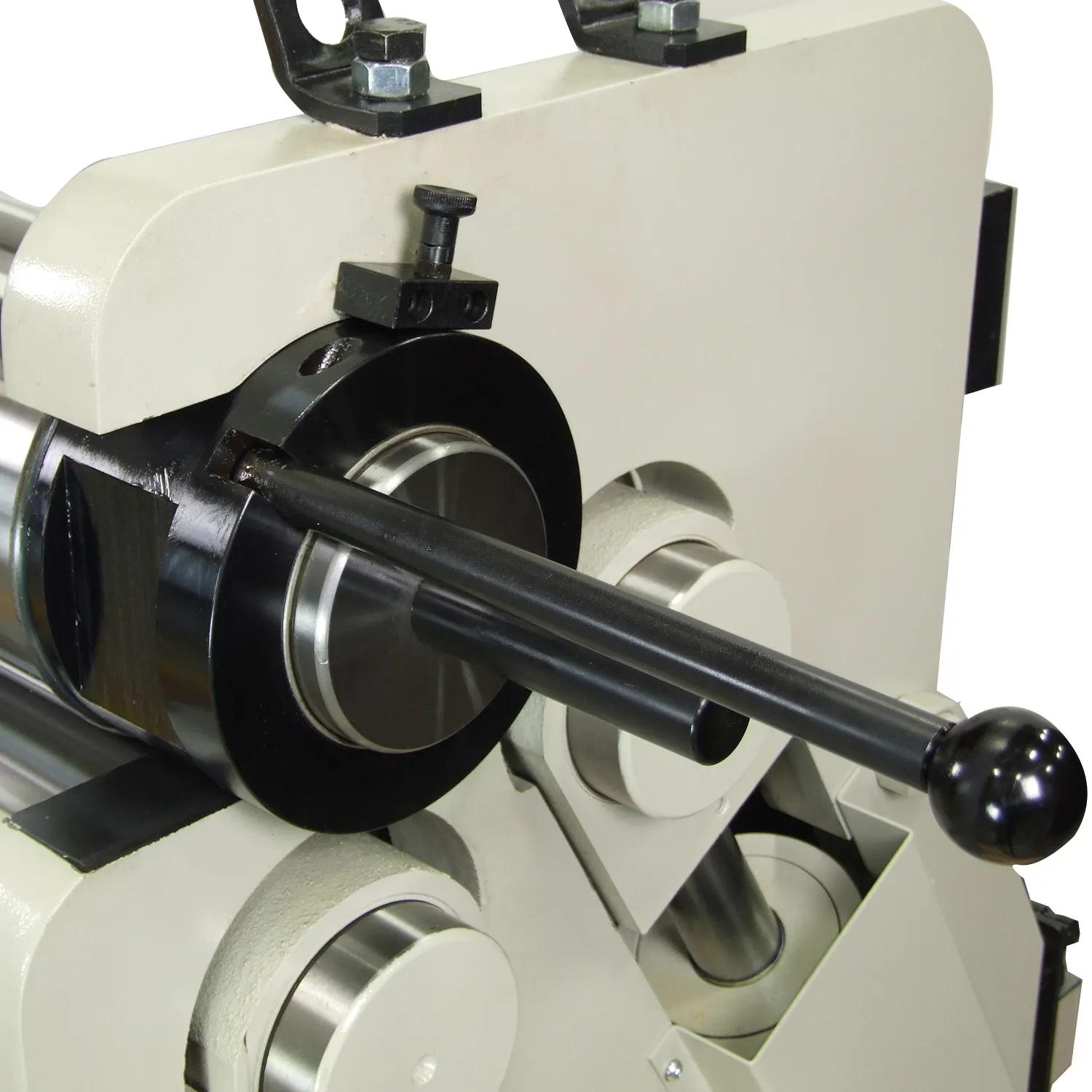

- Controls: Intuitive hydraulic controls with quick-release top roll.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1006531
- Bending Capacity - Length (Inch)60
- Gross Weight6380.0
- Input Power220V Three Phase
- Maximum Forming Length (In.)61
- Mild Steel Capacity (Gauge)3
- Model NumberPR-503
- Motor HP5
- Net weight6380.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
