Pneumatic Power Hammer (PH-28A)

Call 920-684-4990 for availability
Stock Number
BA9-PH28A
$8,989.00

Product Overview

Shrink and stretch with air! The compact, USA-made PH-28A hits much harder than traditional pneumatic power hammers. You can even use a thumbnail shrinker die (included). This air power hammer is recommended for startup automotive shops, metal shapers working on airplane parts, and metal artists. Special Notes: Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. For best results, it is recommended to have a constant air supply of 120 psi


+ Show More
28” throat can handle larger panels than the MH-19 can.
Stretches, shrinks, and planishes up to 16 gauge mild steel.
Variable speed from 0 to 1,000 beats per minute
Runs on 120 psi compressed air.

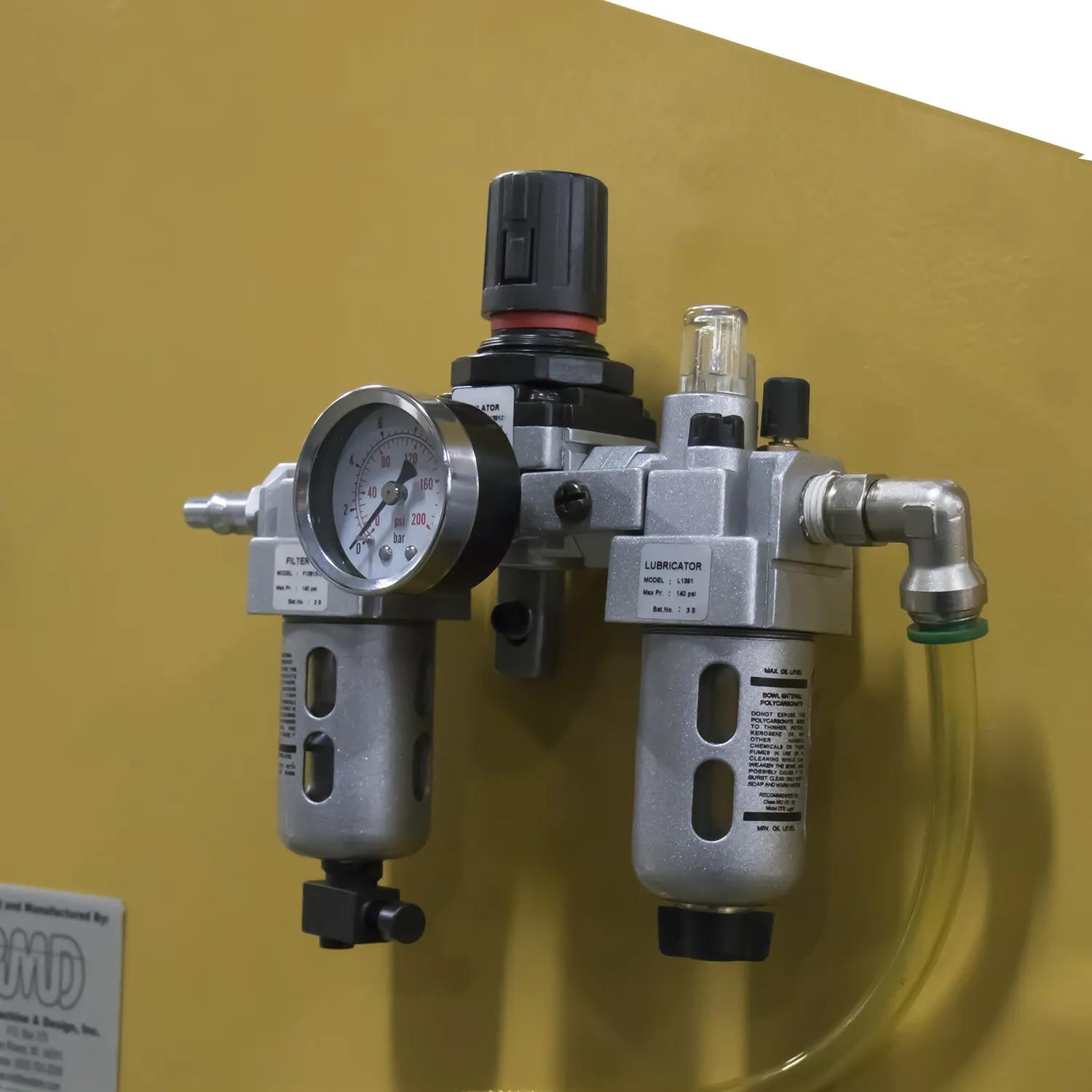

Regulator on the side lets you control the airflow.
Air-powered system is much quieter than a mechanical machine.
Foot pedal operation keeps your hands free to move the material.

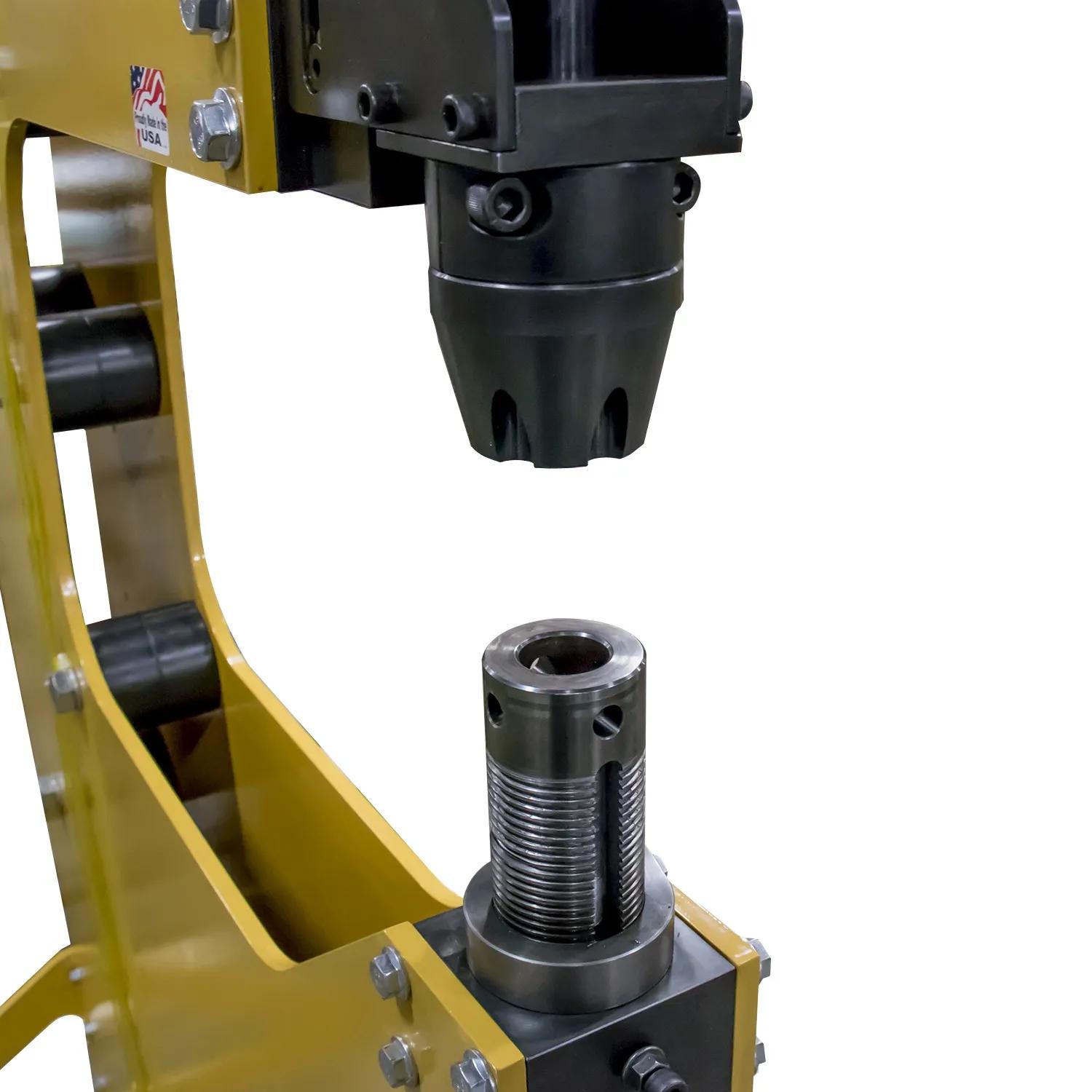

Quick-release handle on the front allows you to lift the tool up and take the material out.

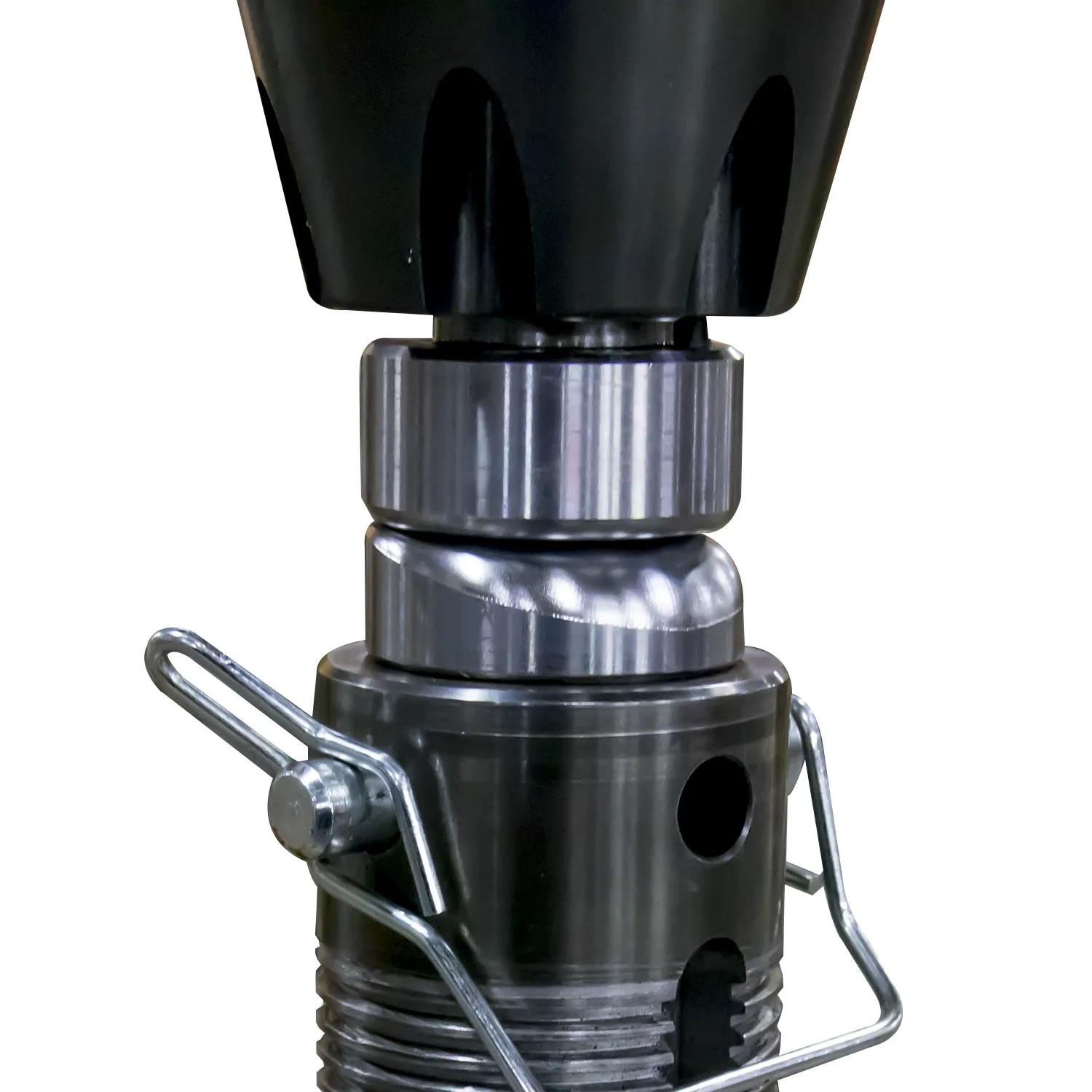

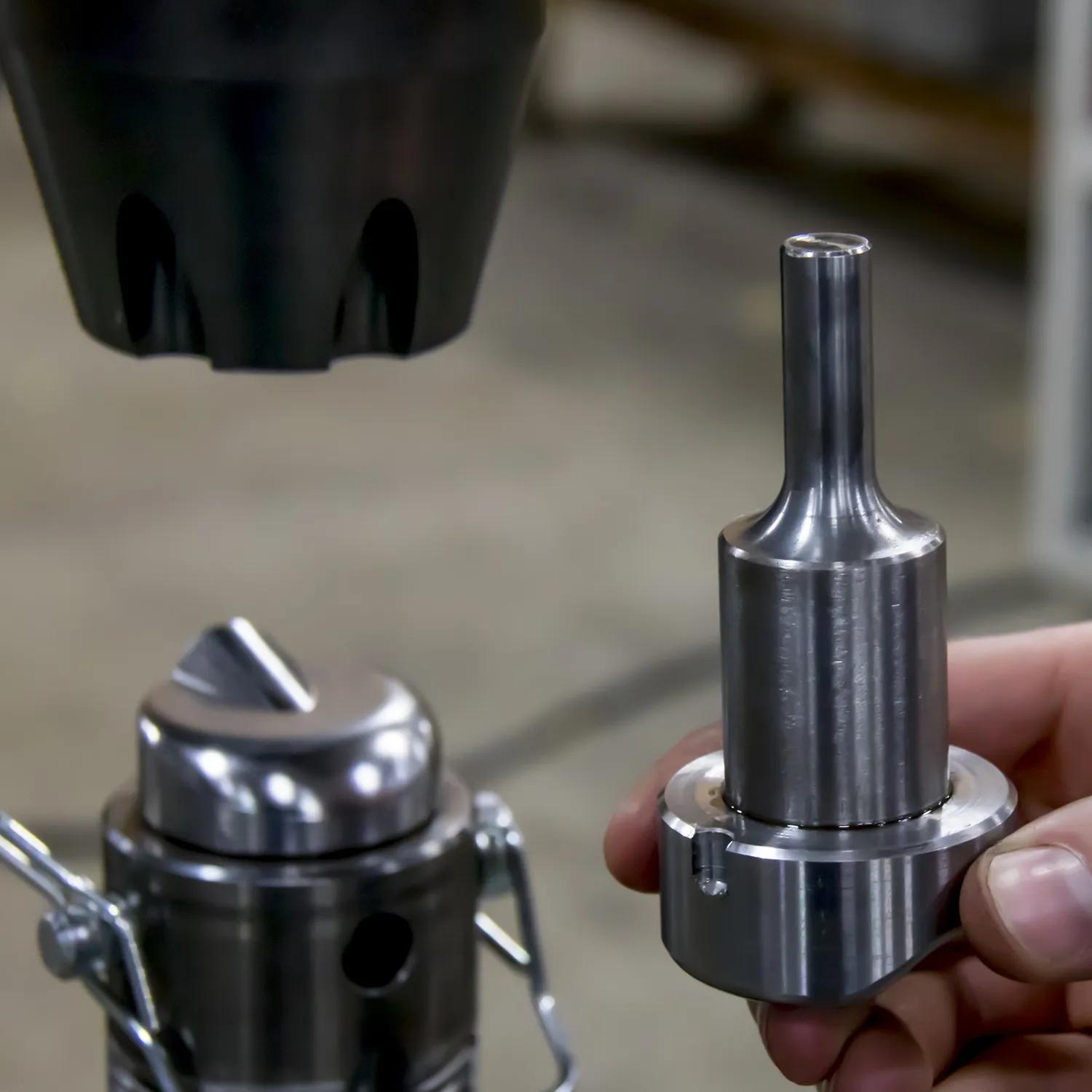

Comes with 5 tooling sets: 2.5” thumbnail shrinking dies, 2.5” master flat top die.1” linear stretch die,12”, 24”, and 36” radius dies
Oiler system on the side can deliver oil directly to the tool for convenient maintenance.
More Information
Stock NumberBA9-PH28A
Aluminum Capacity (Gauge)14.0000
Included Tooling2” Thumbnail Shrinking Dies, 2.5” Master Flat Top Die, 1” Linear Stretch Die, 3” x 36” Radius Die, 3” x 24” Radius Die, 3” x 12” Radius Die
Maximum CFM15.0000
Mild Steel Capacity (Gauge)16.0000
Model Number PH-28A
Prop 65Cancer and Reproductive Harm
Range of Speeds0 - 1000 beats / min (Variable)
Shipping Dimensions (L x W x H) (In.)60x44x77
Throat Depth (In.)28"
Warranty1 Year
Weight (Lbs.)1000
Gross Weight935.0
Net weight935.0
Tooling Height Adjustment (In.)1.5
