Press Brake - BP-11210 CNC
Product Overview

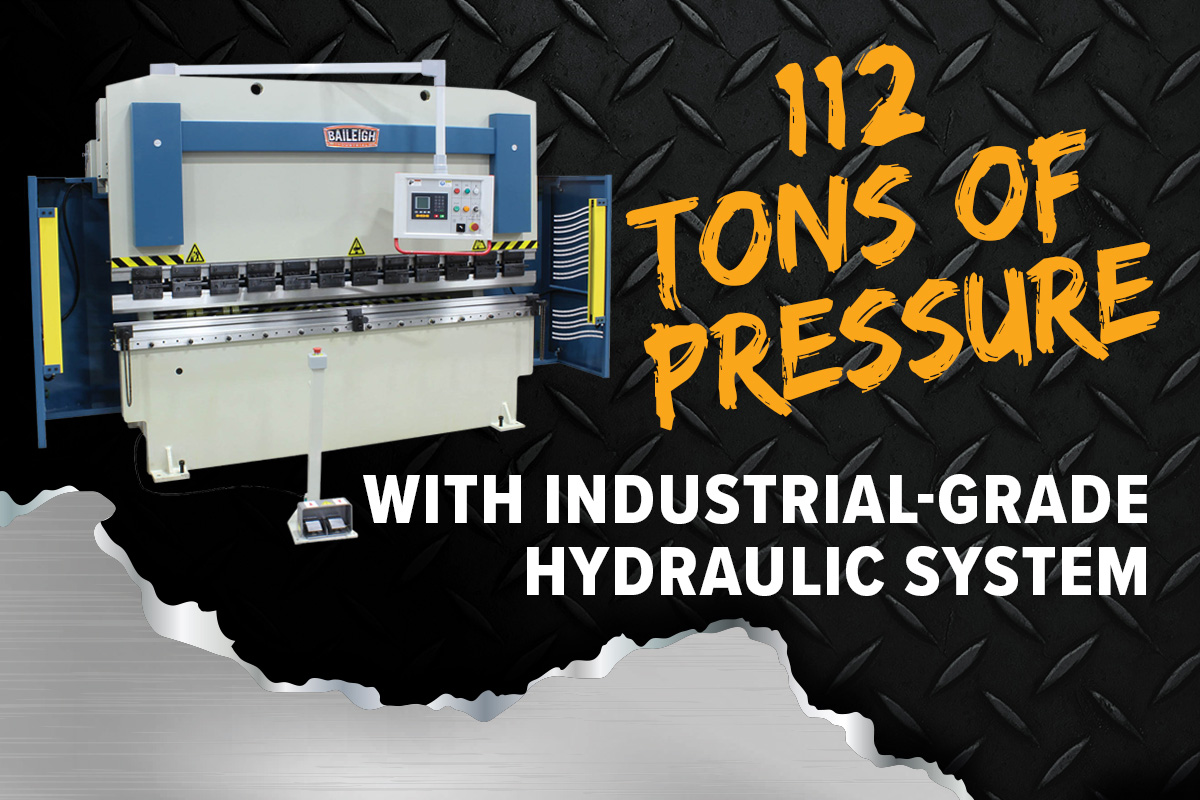

With 102” between all-steel uprights, this hydraulic press brake can bend 8-foot sheets of metal. The control system offers the latest technology for a fraction of the cost of other brands.
Accurate, User-Friendly Control System
*Runs in single-bend mode or programmable mode.
*Comes standard with 2 axes of control: stroke and back gauge distance.
*Simple controller is so intuitive that you could train someone to use it in 5 minutes.

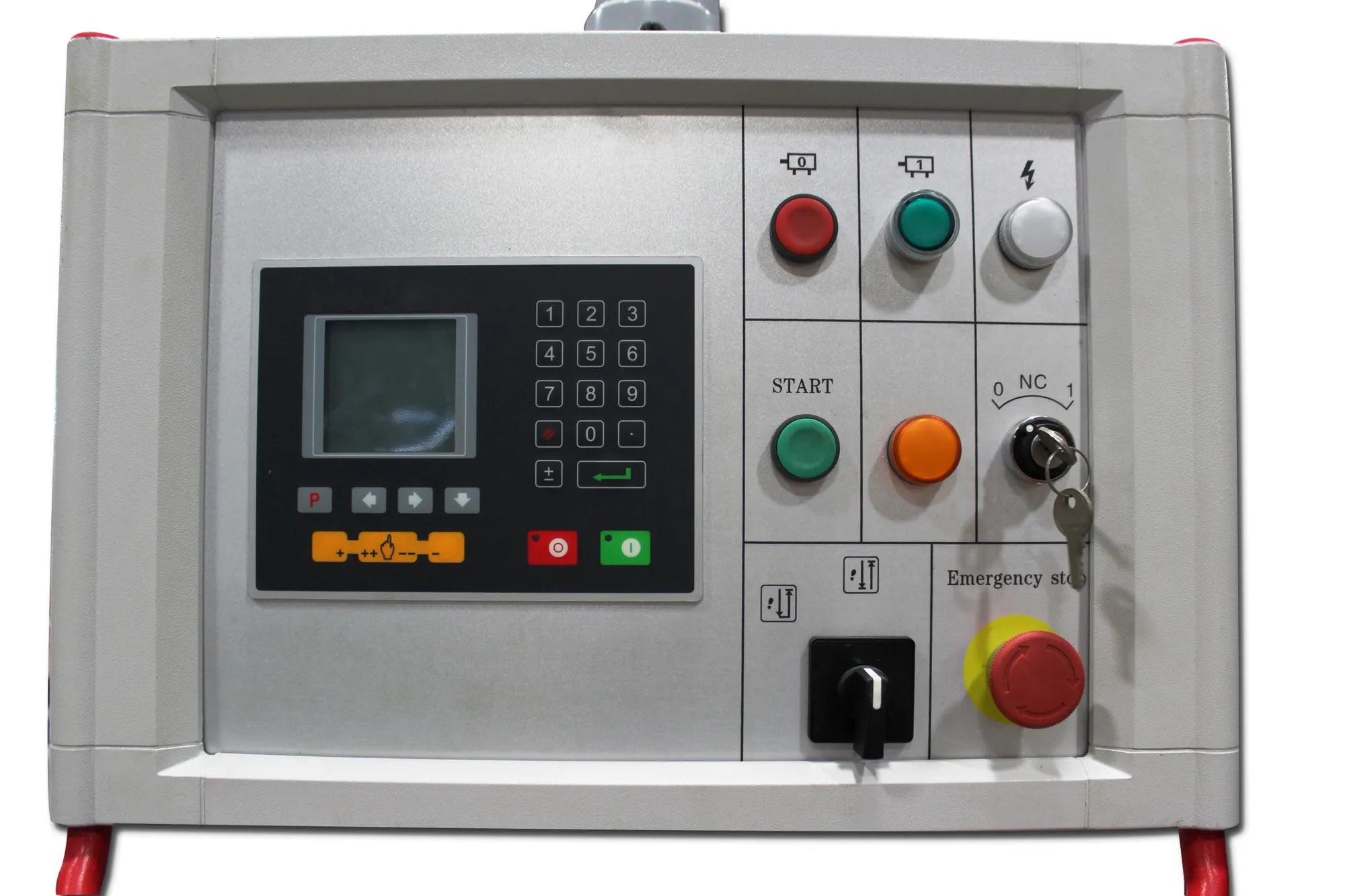

*Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
*Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.

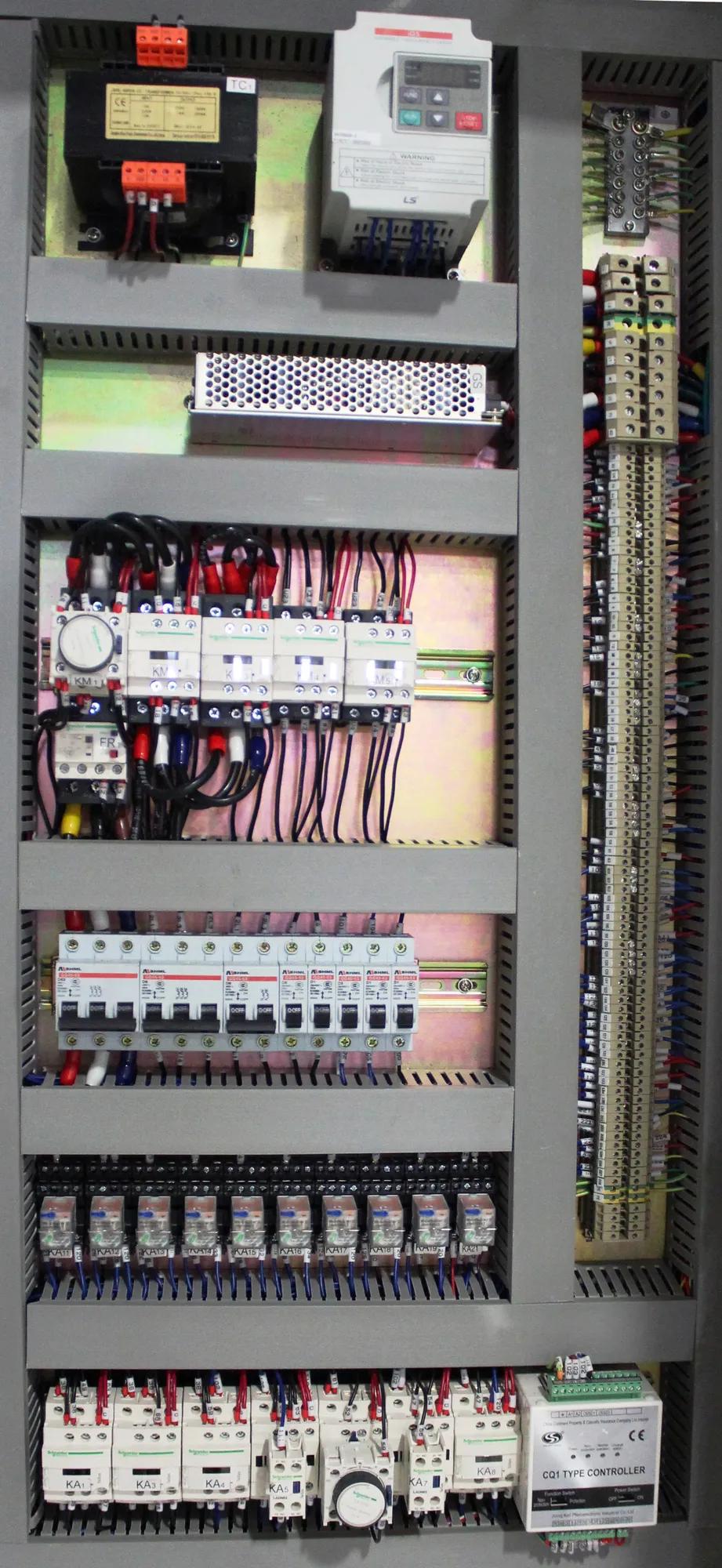

*Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.
*Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
*You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
*Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
*Speed option lets you reduce cycle time and make your shop more efficient.
*Chain drive back gauge system uses tried-and-true technology that you can maintain easily.
*The 23.62" back gauge can advance or retract according to programmed instructions.
Steel Plate Construction and Included Tooling
*Fully welded all-steel construction helps prevent deformation and minimize flex during the bending process.
*Weighs a whopping 14,403 lbs. for massive structural strength that ensures accurate results.
*Includes support arms around 2 feet in length.

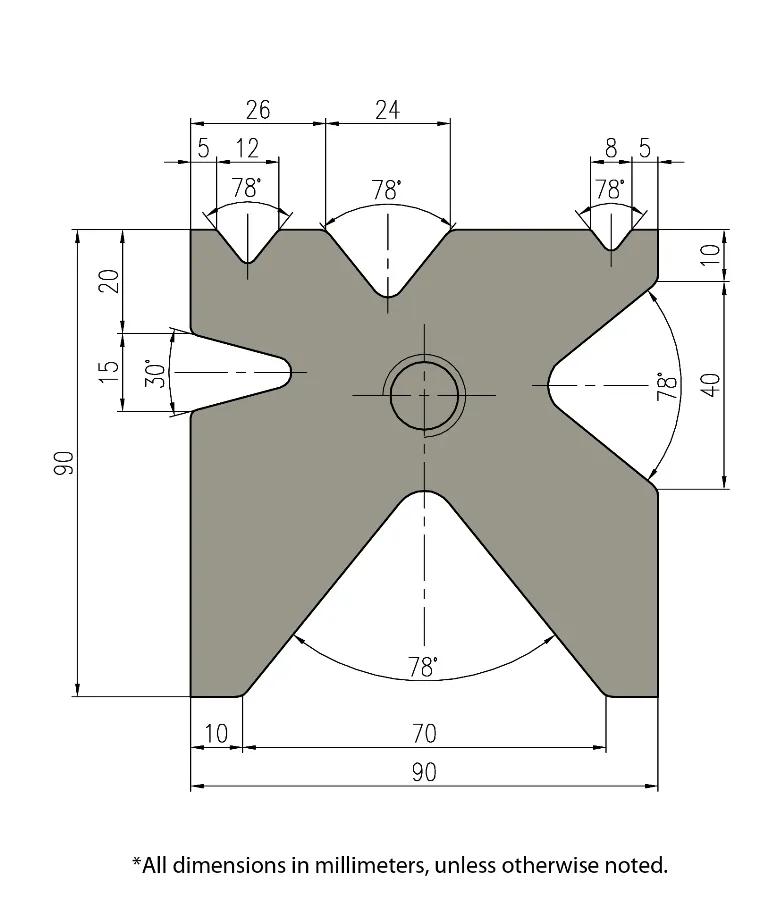

*Comes standard with tooling: a multi-vee bottom die and gooseneck punches (European Style).
*Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!
*Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
*Safety light curtains prevent the machine from bending when someone is too close.
*Light curtains will swing open and get out of the way when you’re doing a tool change.
Questions? Not sure which combination machine is right for you? Call us at 1-920-684-4990and talk to a Baileigh expert.
| Stock Number | BA9-1000781 |
|---|---|
| Approach Speed | 2.0" / sec. |
| Back Gauge Capacity (In.) | 23.62" |
| Bending Speed | .6" / sec. |
| Distance From Table To Ram | 15.3" |
| Distance Per Stroke (In.) | 4.7 |
| Input Power | 220V / 3-phase |
| Minimum Return Speed (In./Sec) | 2.36" / sec. |
| Model Number | BP-11210 CNC |
| Prop 65 | Cancer and Reproductive Harm |
| Shipping Dimensions (L x W x H) (In.) | 168x67x96 |
| Throat Depth (In.) | 12.5" |
| Warranty | 1 Year |
| Weight (Lbs.) | 14500 |
| Gross Weight | 14550.0 |
| Back Gauge Motor (hp) | 1/2 hp |
| Distance Between Housings (In.) | 102/124" |
