Programmable Tube Bender | RDB-350-TS
Stock Number:
BA9-RDB350220TS
$26,379.00
Enhanced Bullet 1:
220V 3-phase rotary-draw bender
Enhanced Bullet 2:
2.5 " schedule 40 pipe capacity
Enhanced Bullet 3:
24 " CLR maximum
Enhanced Bullet 4:
Stores 170 bend programs
Product Overview
This Tubing Bender for sale will stand up to the rigors of any shop—and save you time. The RDB-350-TS Industrial Tubing Bender bends 180° in 16 seconds. Its quick-release die system speeds up production.
We cover this pipe bender with a 1-year parts warranty. Includes lifetime technical support by phone, so you can call up a Baileigh representative anytime for project advice and troubleshooting. Questions? Give us a call at 1-920-684-4990 or fill out our contact form.

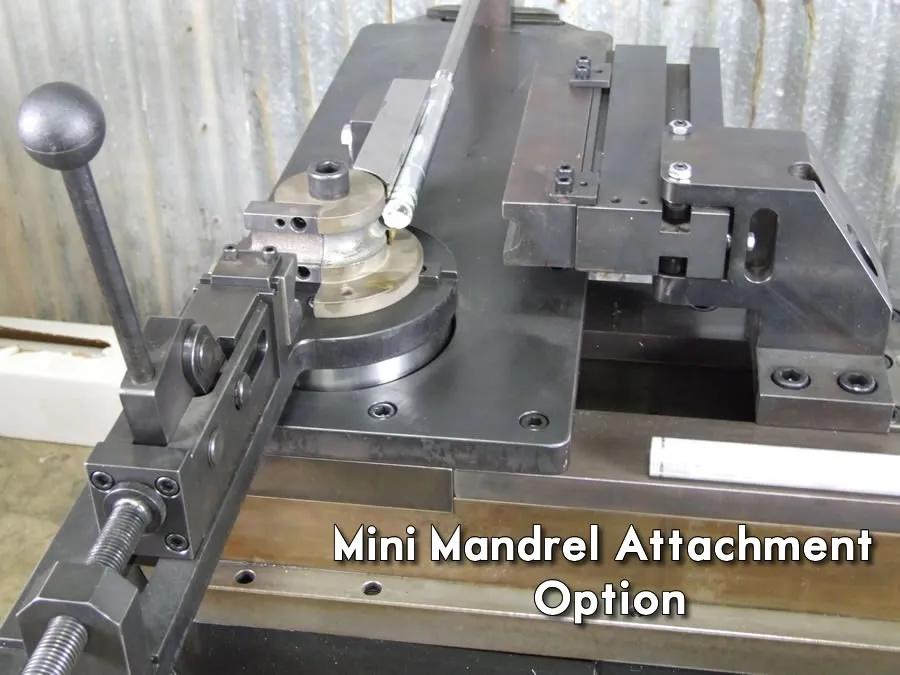

Mini Mandrel Attachment for the RDB-350 Tube Bender (optional)
Sample Tooling List
Capacity of 2.5” schedule 40 pipe and 3” tube with .187” wall thickness
24” centerline radius maximum and bends to 360° in one shot, both left and right
You can program the desired angle, material springback, and bend speed for easy repeatability
Programmer can also keep track of rotational orientation
Touchscreen controller designed for user-friendly programming
320° rotation of the controller lets you operate RDB-350-TS from any side of the machine
Internal memory can store up to 170 programs of 10 bends per program
Unlimited program storage/backup via the micro-SD port (standard 2CB SD card)

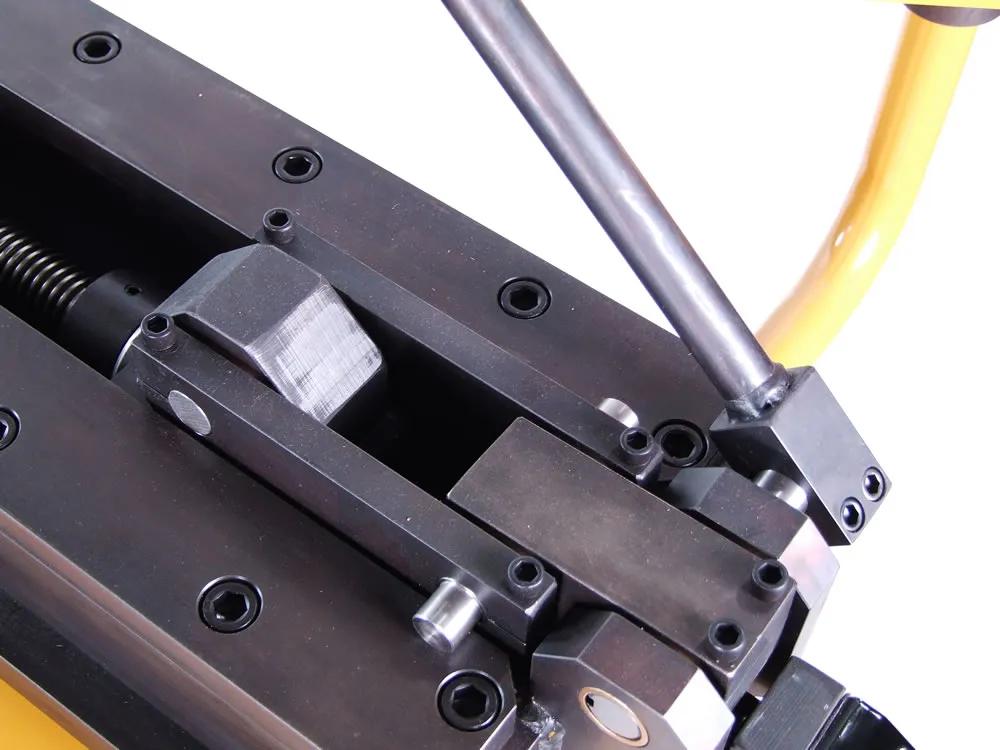

Quick-release counter die system allows you to load and unload the pipe bender quickly for high production runs
Accepts a rotary positioning table, available from in several lengths, to achieve accurate bends on varying planes
| Stock Number | BA9-RDB350220TS |
|---|---|
| Model Number | RDB-350-TS |
| Chromoly Round Tube Wall | 2.5" (.125) |
| Input Power | 220V / 3-phase |
| Minimum OD | 0.24 |
| Prop 65 | Cancer and Reproductive Harm |
| Round Pipe Sch. 40 Capacity (In.) | 2.5" |
| Round Tube Capacity (In.) | 3" (.187) |
| Shipping Dimensions (L x W x H) (In.) | 78x45x80 |
| Square Tube Capacity (In.) | 3" (.125) |
| Warranty | 1 Year |
| Weight (Lbs.) | 1435 |
| Gross Weight | 1484.0 |
| Net weight | 1484.0 |
